◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51376 - QKR(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-90 - RADIO AND TV ▶
8-90 — RADIO AND TV (#79890) — 42 parça

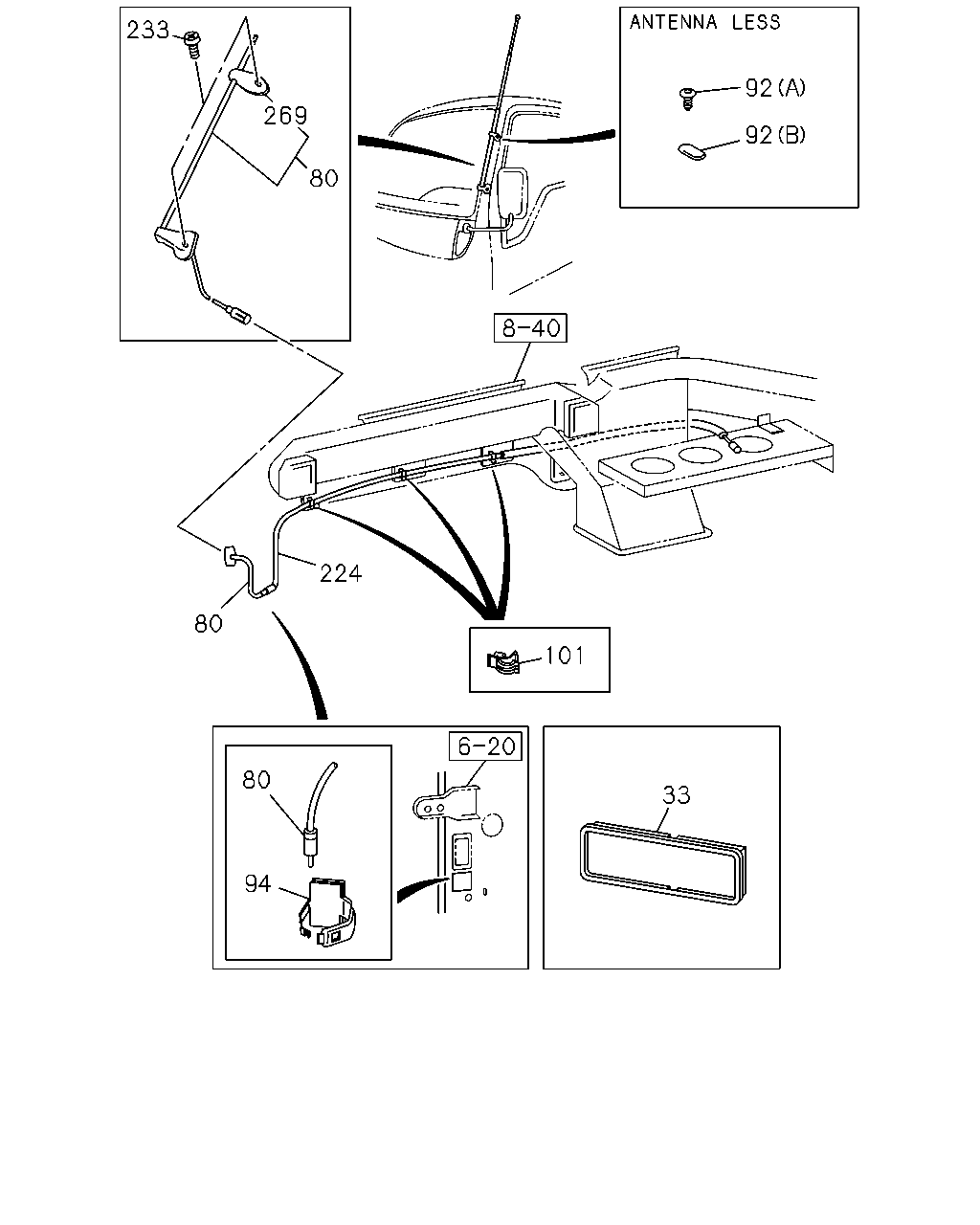

çizim 14333
92 92 269 80 233 224 80 101 33 94 80
BalonParca AdiParca NoAdetTipApplied Date A B
33 09.650 COVER; RADIO 8-97856-203-3 01 1 1011-1308 ●
33 09.650 COVER; RADIO 8-97856-203-3 01 1 1309- ● ●
80 09.645 ANTENNA
ANTENNA<U73> 		8-97211-565-0 01 1 1011-1308 ●
80 09.645 ANTENNA
ANTENNA<U73> 		8-97211-565-0 01 1 1309- ● ●
92 09.647 COVER; HOLE,ANTENNA
EXC. ANTENNA<U73> 16.069 (A) OD=12 L=14.8 		8-94279-921-0 01 1 1011-1308 ●
92 09.647 COVER; HOLE,ANTENNA
EXC. ANTENNA<U73> 16.069 (A) OD=12 L=14.8 		8-94279-921-0 01 1 1309- ● ●
92 09.647 COVER; HOLE,ANTENNA
EXC. ANTENNA<U73> (B) 		8-97088-275-3 01 1 1011-1308 ●
92 09.647 COVER; HOLE,ANTENNA
EXC. ANTENNA<U73> (B) 		8-97088-275-3 01 1 1309- ● ●
94 09.656 CLIP; ANTENNA FEEDER
ANTENNA<U73> 		1-09987-155-3 01 1 1011-1308 ●
94 09.656 CLIP; ANTENNA FEEDER
ANTENNA<U73> 		1-09987-155-3 01 1 1309- ● ●
101 09.649 CLIP; FEEDER TO BRKT
ANTENNA<U73> 04.342 ID=7 		5-09707-053-0 03 1 1011-1308 ●
101 09.649 CLIP; FEEDER TO BRKT
ANTENNA<U73> 04.342 ID=7 		5-09707-053-0 03 1 1309- ● ●
224 09.647 CABLE; EXT,FEEDER
ANTENNA<U73> 		8-97213-766-0 01 1 1011-1308 ●
224 09.647 CABLE; EXT,FEEDER
ANTENNA<U73> 		8-97213-766-0 01 1 1309- ● ●
233 09.647 SCREW
ANTENNA<U73> M6X20 		8-97120-686-0 01 1 1011-1308 ●
233 09.647 SCREW
ANTENNA<U73> M6X20 		8-97120-686-0 01 1 1309- ● ●
233 09.647 SCREW
ANTENNA<U73> M6X16 		8-97123-696-0 01 1 1011-1308 ●
233 09.647 SCREW
ANTENNA<U73> M6X16 		8-97123-696-0 01 1 1309- ● ●
269 09.647 SUPPORT KIT; ANTENNA
ANTENNA<U73> 		8-97219-080-0 01 1 1011-1308 ●
269 09.647 SUPPORT KIT; ANTENNA
ANTENNA<U73> 		8-97219-080-0 01 1 1309- ● ●

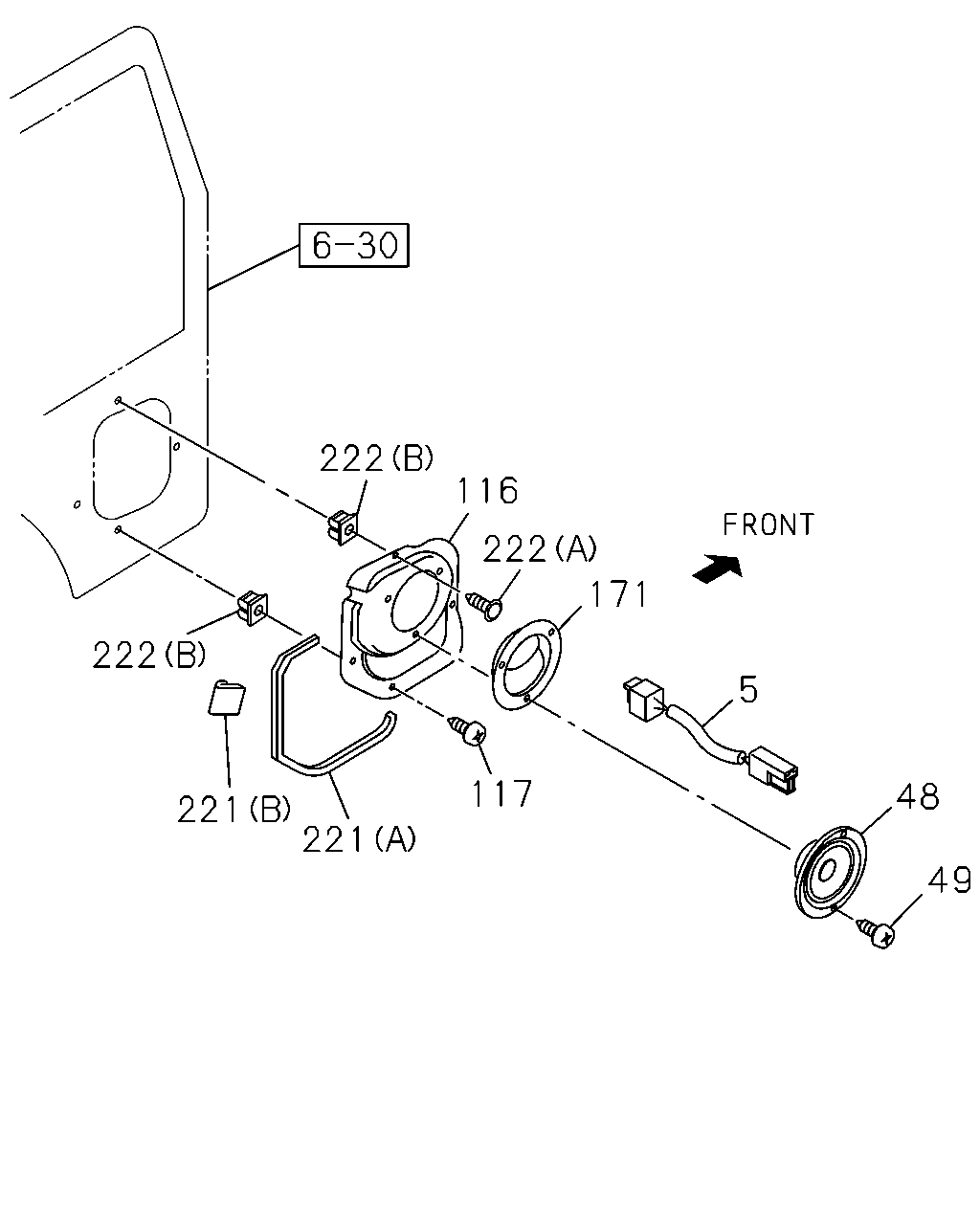

çizim 191738
49 48 5 171 117 221 221 222 222 222 116
BalonParca AdiParca NoAdetTipApplied Date A B
5 09.647 HARNESS; EXT
2-SPEAKER SYSTEM BASE<U95> 		8-97131-327-0 02 1 1011-1308 ●
5 09.647 HARNESS; EXT
2-SPEAKER SYSTEM BASE<U95> 		8-97131-327-0 02 1 1309- ● ●
48 09.650 SPEAKER; AUDIO
2-SPEAKER SYSTEM BASE<U95> 		8-97317-001-1 02 1 1011-1308 ●
48 09.650 SPEAKER; AUDIO
2-SPEAKER SYSTEM BASE<U95> 		8-97317-001-1 02 1 1309- ● ●
49 09.655 SCREW; SPEAKER
2-SPEAKER SYSTEM BASE<U95> M5X14 TAPPING W/TORQUES 		8-98061-856-0 06 1 1011-1308 ●
49 09.655 SCREW; SPEAKER
2-SPEAKER SYSTEM BASE<U95> M5X14 TAPPING W/TORQUES 		8-98061-856-0 06 1 1309- ● ●
116 16.165 PANEL; SPEAKER,FRT DOOR
2-SPEAKER SYSTEM BASE<U95> 		8-97852-324-3 01 1 1011-1308 ●
116 16.165 PANEL; SPEAKER,FRT DOOR
2-SPEAKER SYSTEM BASE<U95> 		8-97852-324-3 01 1 1309- ● ●
116 16.165 PANEL; SPEAKER,FRT DOOR
2-SPEAKER SYSTEM BASE<U95> 		8-97852-325-3 01 1 1011-1308 ●
116 16.165 PANEL; SPEAKER,FRT DOOR
2-SPEAKER SYSTEM BASE<U95> 		8-97852-325-3 01 1 1309- ● ●
117 16.165 SCREW; SPEAKER PANEL
2-SPEAKER SYSTEM BASE<U95> 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 06 1 1011-1308 ●
117 16.165 SCREW; SPEAKER PANEL
2-SPEAKER SYSTEM BASE<U95> 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 06 1 1309- ● ●
171 09.650 COVER; SPEAKER
2-SPEAKER SYSTEM BASE<U95> 		8-97852-331-4 02 1 1011-1308 ●
171 09.650 COVER; SPEAKER
2-SPEAKER SYSTEM BASE<U95> 		8-97852-331-4 02 1 1309- ● ●
221 16.165 SEAL; SPEAKER PANEL
2-SPEAKER SYSTEM BASE<U95> (A) 		8-97852-327-5 02 1 1011-1308 ●
221 16.165 SEAL; SPEAKER PANEL
2-SPEAKER SYSTEM BASE<U95> (A) 		8-97852-327-5 02 1 1309- ● ●
221 16.165 SEAL; SPEAKER PANEL
2-SPEAKER SYSTEM BASE<U95> (B) 		8-97852-601-2 02 1 1011-1308 ●
221 16.165 SEAL; SPEAKER PANEL
2-SPEAKER SYSTEM BASE<U95> (B) 		8-97852-601-2 02 1 1309- ● ●
222 16.165 GROMMET; SCREW,SPEAKER PANEL
2-SPEAKER SYSTEM BASE<U95> 09.264 (A) 		1-09987-144-0 02 1 1011-1308 ●
222 16.165 GROMMET; SCREW,SPEAKER PANEL
2-SPEAKER SYSTEM BASE<U95> 09.264 (A) 		1-09987-144-0 02 1 1309- ● ●
222 16.165 GROMMET; SCREW,SPEAKER PANEL
2-SPEAKER SYSTEM BASE<U95> 01.269 (B) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1011-1308 ●
222 16.165 GROMMET; SCREW,SPEAKER PANEL
2-SPEAKER SYSTEM BASE<U95> 01.269 (B) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1309- ● ●
