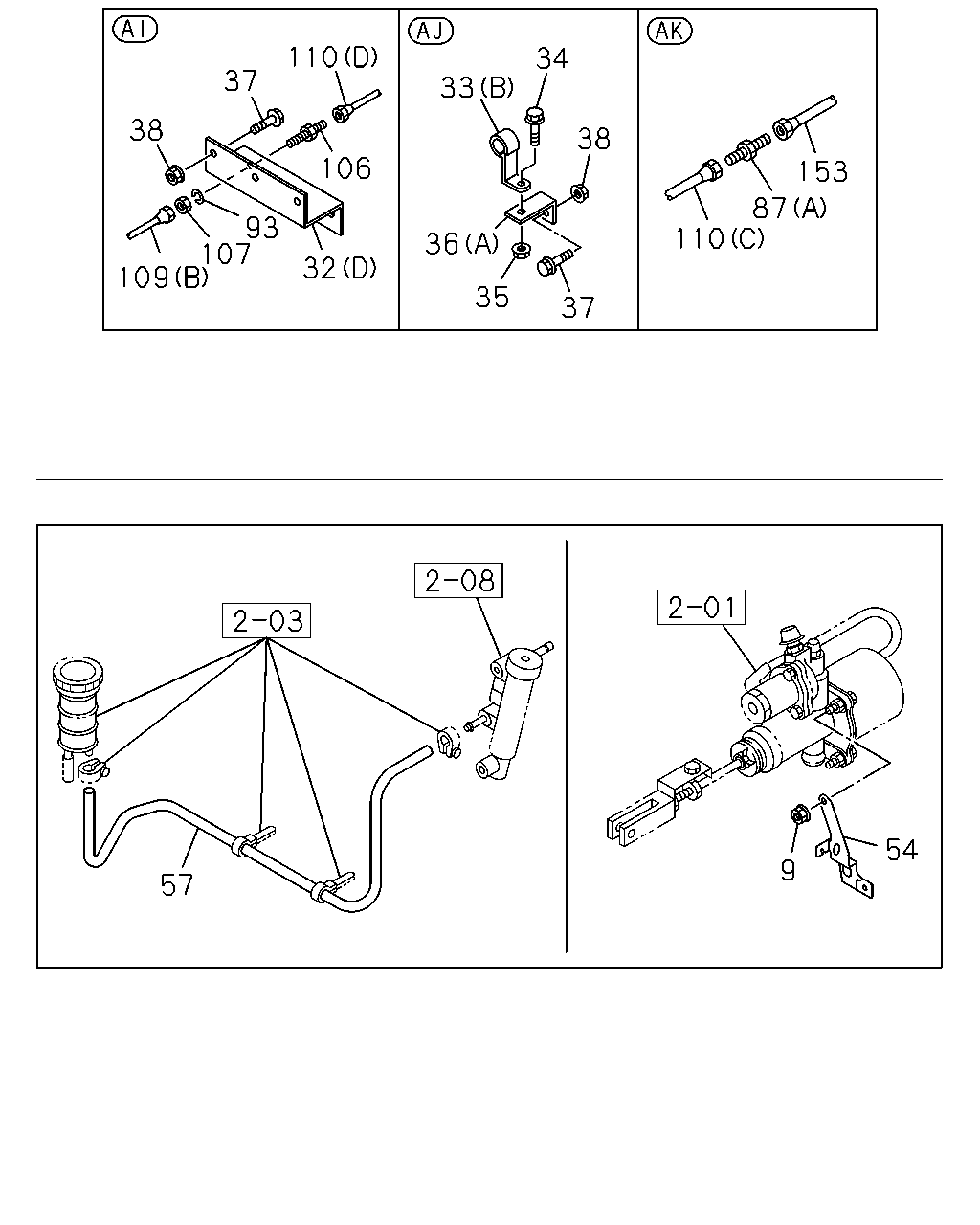

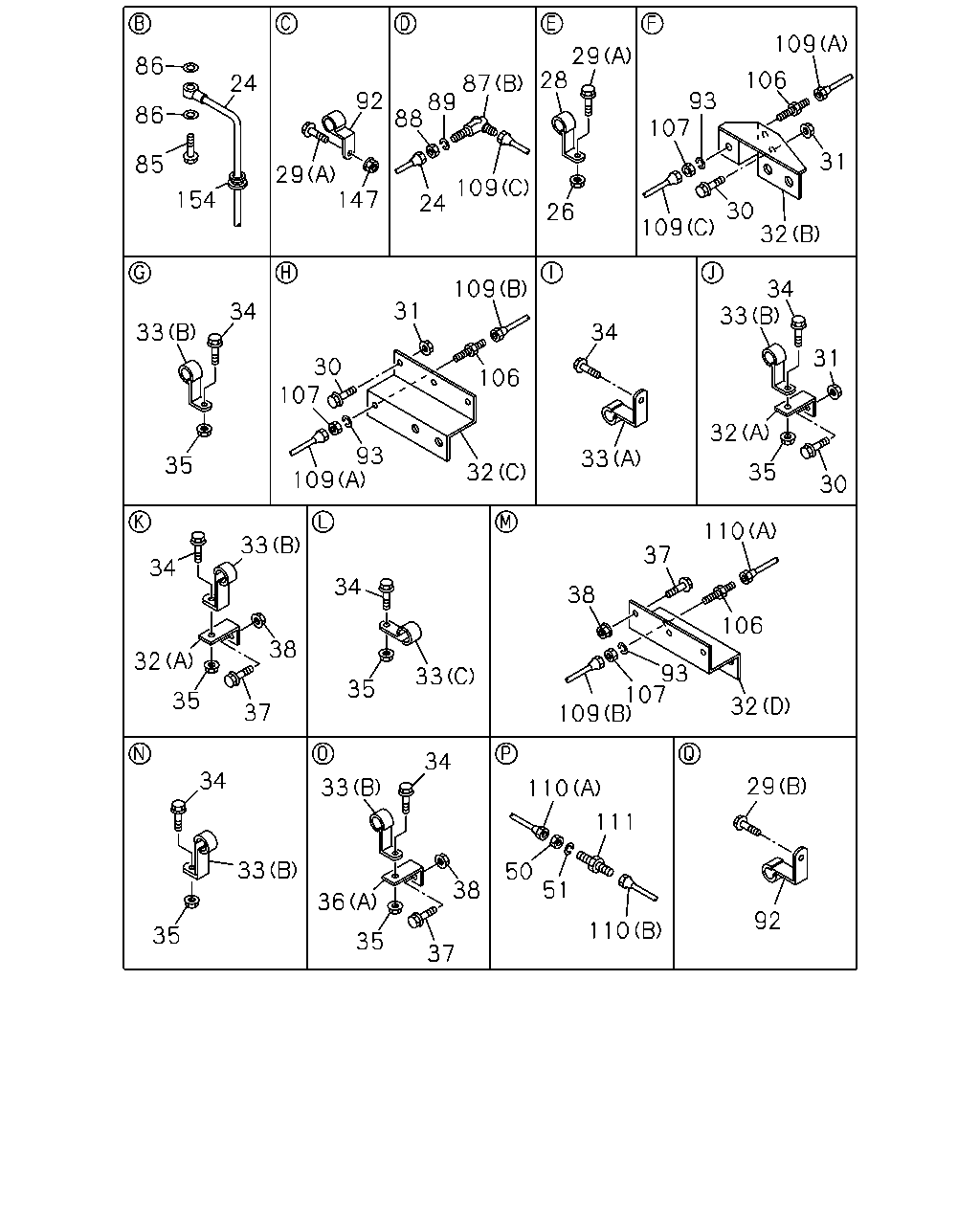

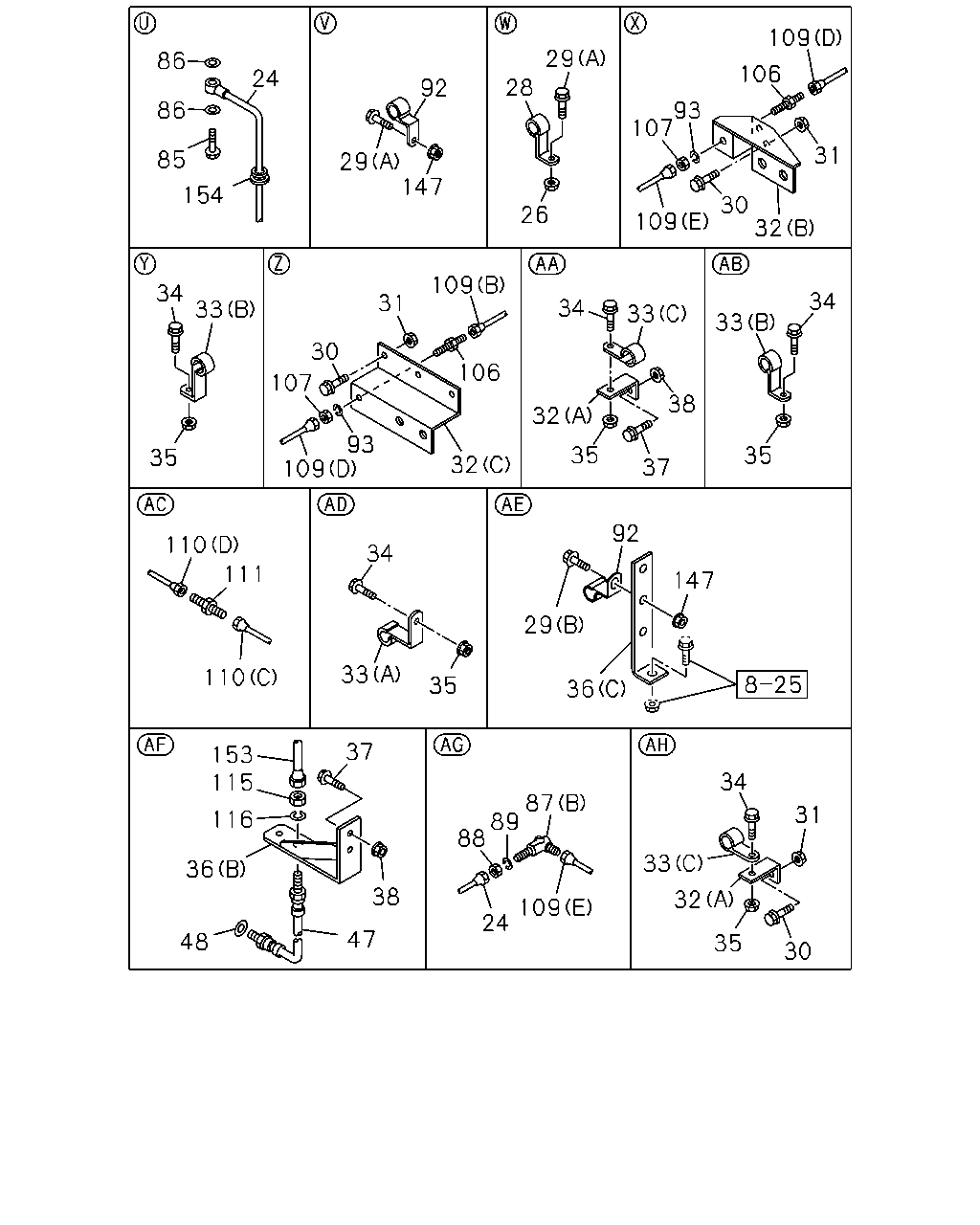

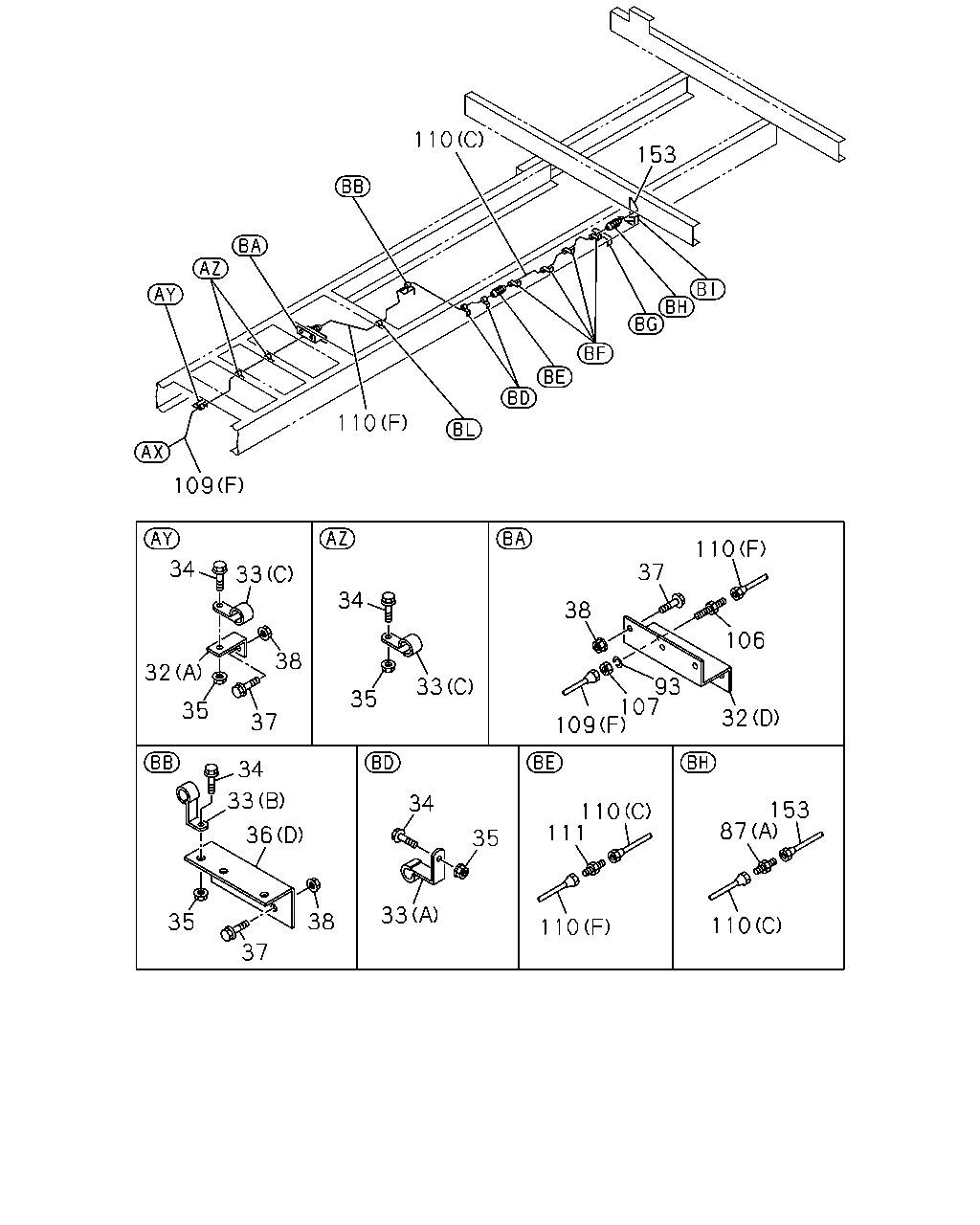

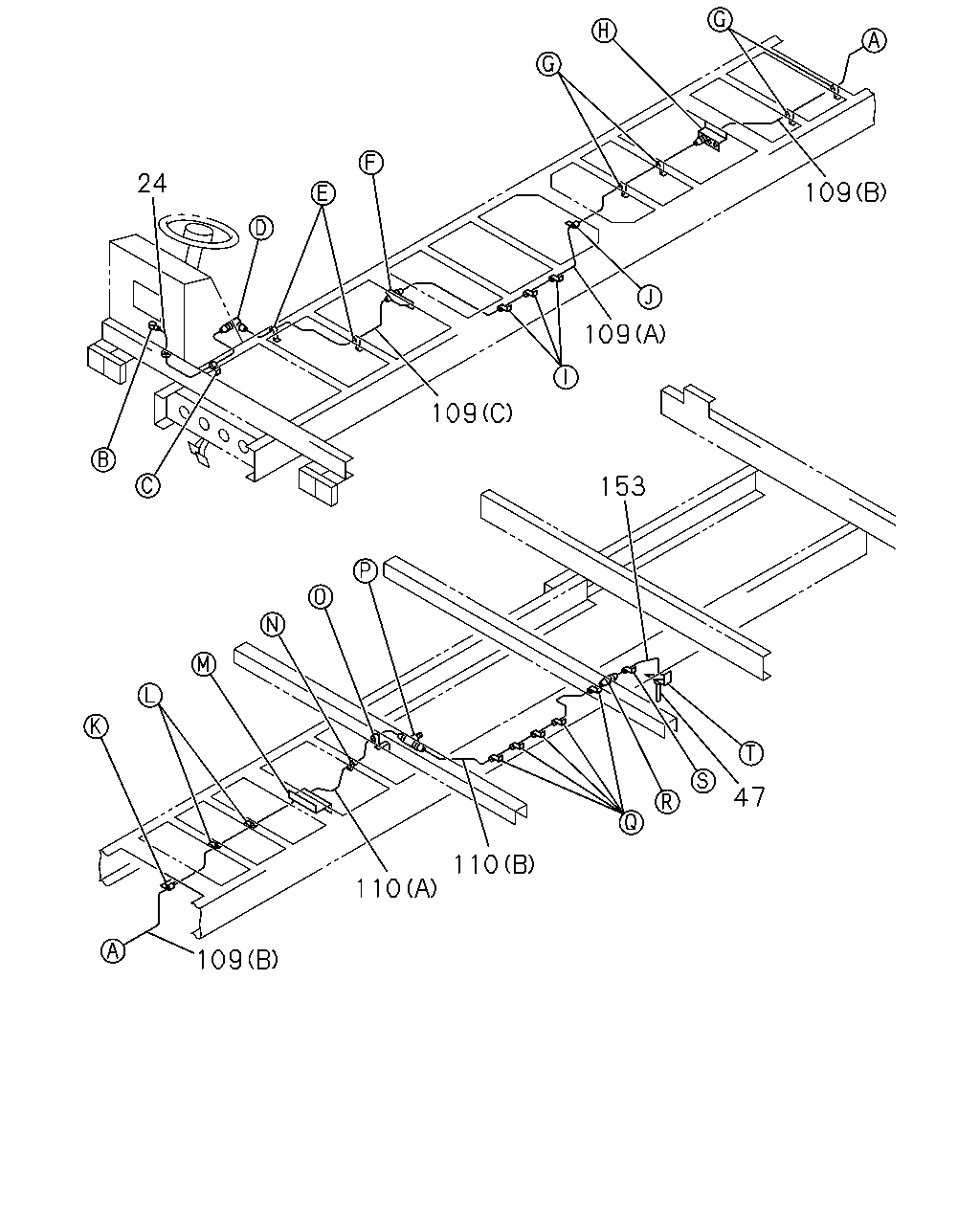

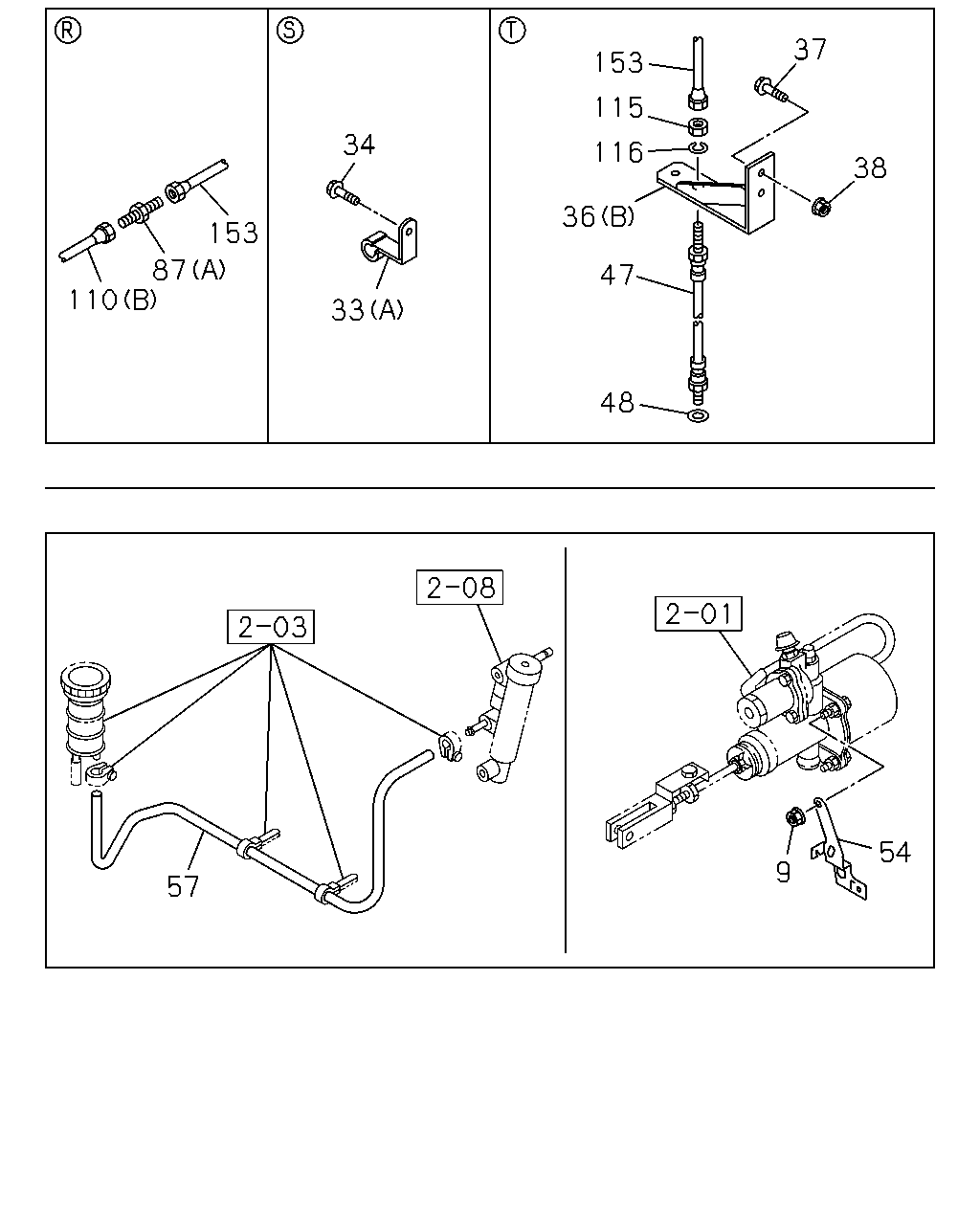

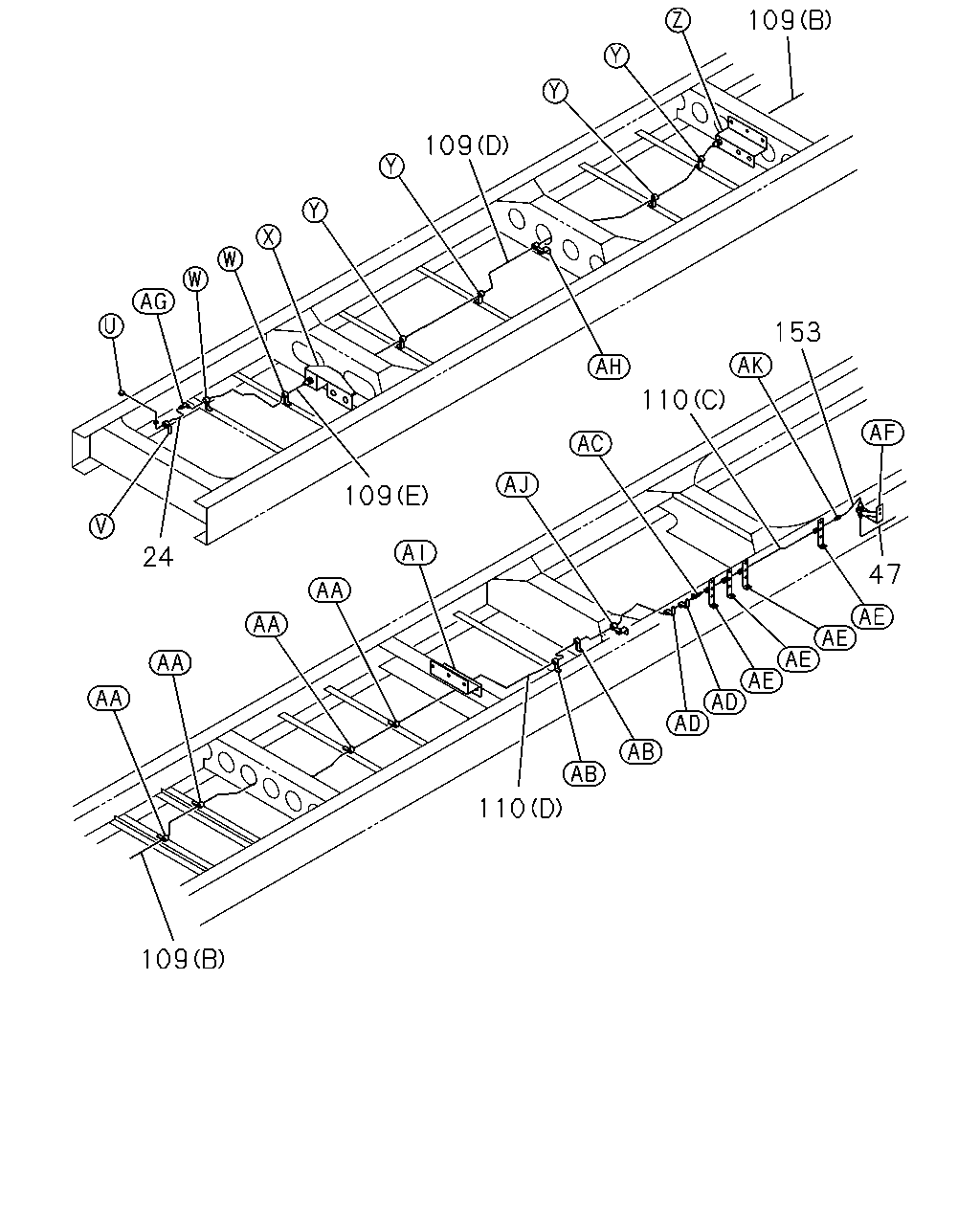

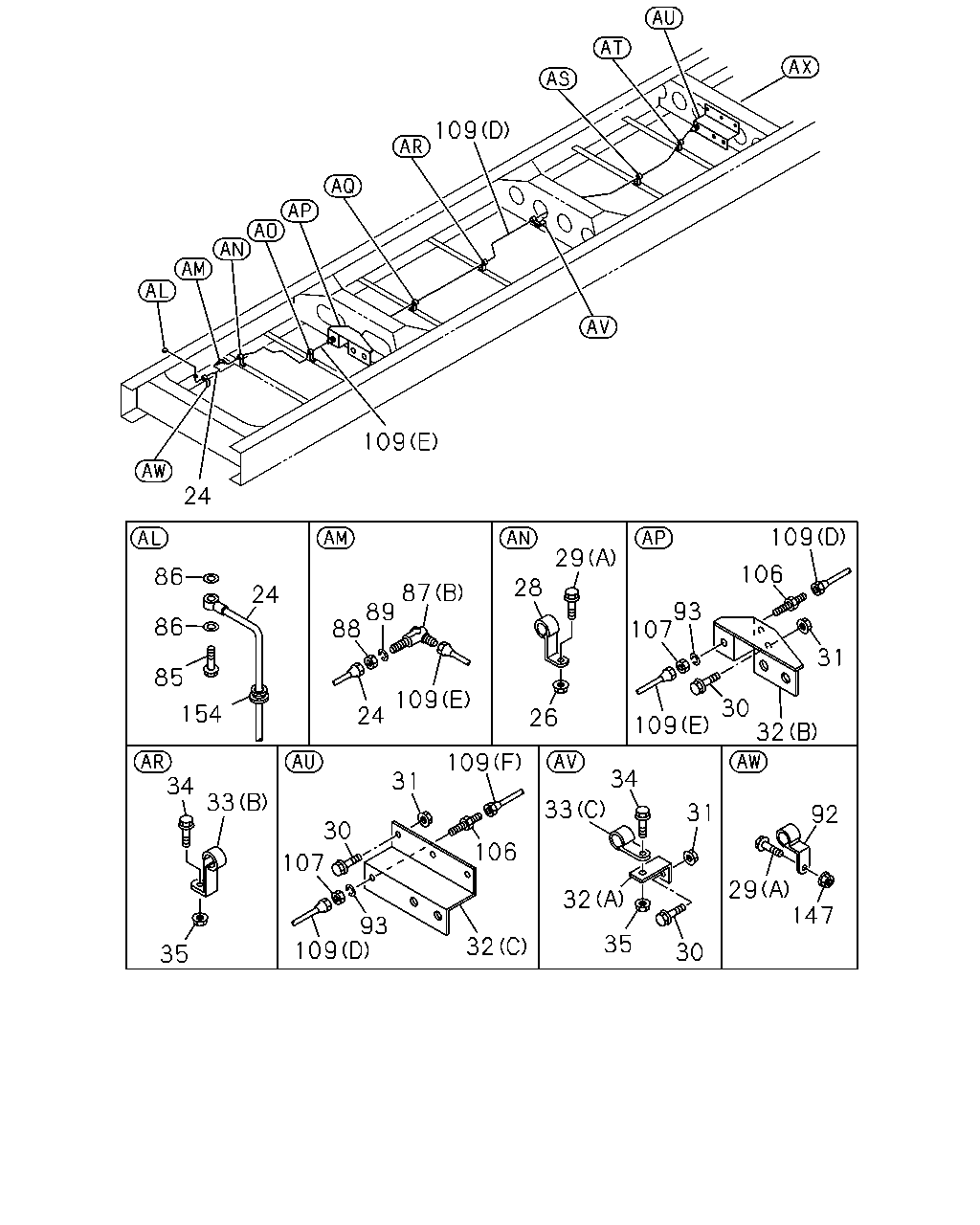

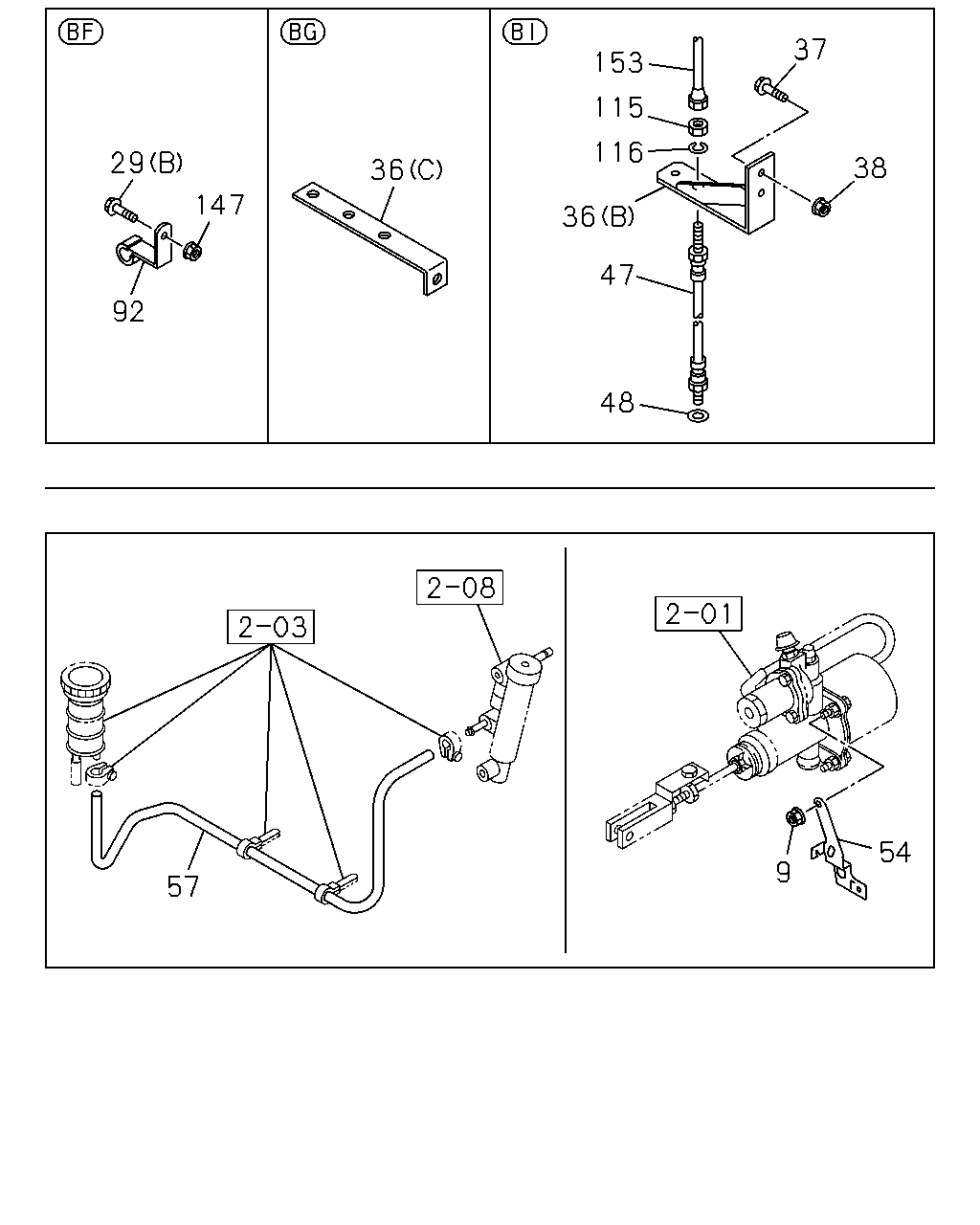

2-05A — CLUTCH PIPING (#7989) — 998 parça

109 29 86 106 24 28 92 86 93 107 31 85 29 147 154 30 32 26 109 109 34 34 31 34 33 33 33 30 106 107 38 32 93 109 35 35 35 32 37 92 110 34 111 147 29 33 110 35 36 37 153 115 34 87 89 88 31 116 33 36 38 32 109 24 47 48 35 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	PIPE ASM; CLU,M/CYL TO UNION	1-49163-399-0	01	1	0012-0203	●	●
24	PIPE ASM; CLU,M/CYL TO UNION	1-49163-399-0	01	1	0204-	●	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0012-0203	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0204-0602	●	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	0012-0203	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	0204-	●	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28680-820-0	03	1	0012-0203	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28680-820-0	03	1	0204-0512	●	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●	●
29	BOLT; CLIP,OIL PIPE RR ENG AIR SUSP(LVD5FB) (B) M8X25 FLANGE	0-28680-825-0	05	1	0012-0203	●	●
29	BOLT; CLIP,OIL PIPE RR ENG AIR SUSP(LVD5FB) (B) M8X25 FLANGE	0-28680-825-0	05	1	0204-0512	●	●	●
29	BOLT; CLIP,OIL PIPE RR ENG AIR SUSP(LVD5FB) (B) M8X25 FLANGE	0-28650-825-0	05	1	0601-	●	●	●
29	BOLT; CLIP,OIL PIPE RR ENG LEAF SUSP(LVR5FB) (B) M8X25 FLANGE	0-28680-825-0	04	1	0012-0203	●	●
29	BOLT; CLIP,OIL PIPE RR ENG LEAF SUSP(LVR5FB) (B) M8X25 FLANGE	0-28680-825-0	04	1	0204-0512	●	●	●
29	BOLT; CLIP,OIL PIPE RR ENG LEAF SUSP(LVR5FB) (B) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
30	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0012-0106	●	●
30	BOLT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	02	1	0107-0203	●	●
30	BOLT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	02	1	0204-0512	●	●	●
30	BOLT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
30	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	04	1	0012-0106	●	●
30	BOLT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	04	1	0107-0203	●	●
30	BOLT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	04	1	0204-0512	●	●	●
30	BOLT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●	●
30	BOLT; BRKT EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	01	1	0107-0512	●	●
30	BOLT; BRKT EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
31	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0012-0106	●	●
31	NUT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	02	1	0107-0203	●	●
31	NUT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	02	1	0204-0602	●	●	●
31	NUT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
31	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0012-0106	●	●
31	NUT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	04	1	0107-0203	●	●
31	NUT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	04	1	0204-0602	●	●	●
31	NUT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●
31	NUT; BRKT EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	01	1	0107-0602	●	●
31	NUT; BRKT EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
32	BRACKET; CLIP OIL PIPE (A) L=40	1-47478-410-0	02	1	0012-0203	●	●
32	BRACKET; CLIP OIL PIPE (A) L=40	1-47478-410-0	02	1	0204-	●	●	●
32	BRACKET; CLIP OIL PIPE (B)	1-47478-921-0	01	1	0012-0203	●	●
32	BRACKET; CLIP OIL PIPE (B)	1-47478-921-0	01	1	0204-	●	●	●
32	BRACKET; CLIP OIL PIPE (C)	1-47478-922-0	01	1	0012-0203	●	●
32	BRACKET; CLIP OIL PIPE (C)	1-47478-922-0	01	1	0204-	●	●	●
32	BRACKET; CLIP OIL PIPE (D)	1-47478-923-0	01	1	0012-0203	●	●
32	BRACKET; CLIP OIL PIPE (D)	1-47478-923-0	01	1	0204-	●	●	●
33	CLIP; OIL PIPE (B) D=18 H=30	1-09701-028-0	06	1	0012-0203	●	●
33	CLIP; OIL PIPE (B) D=18 H=30	1-09701-028-0	06	1	0204-	●	●	●
33	CLIP; OIL PIPE (C) ID=9 L=20	9-09524-835-0	02	1	0012-0203	●	●
33	CLIP; OIL PIPE (C) ID=9 L=20	9-09524-835-0	02	1	0204-0606	●	●	●
33	CLIP; OIL PIPE (C) ID=9 L=20	0-95234-835-0	02	1	0607-	●	●	●
33	CLIP; OIL PIPE RR ENG AIR SUSP(LVD5FB) (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0012-	●	●
33	CLIP; OIL PIPE RR ENG AIR SUSP(LVD5FB) (B) D=18 H=30	1-09701-028-0	02	1	0012-	●	●
33	CLIP; OIL PIPE RR ENG LEAF SUSP(LVR5FB) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0012-0203	●	●
33	CLIP; OIL PIPE RR ENG LEAF SUSP(LVR5FB) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0204-	●	●	●
33	CLIP; OIL PIPE RR ENG LEAF SUSP(LVR5FB) (B) D=18 H=30	1-09701-028-0	04	1	0012-0203	●	●
33	CLIP; OIL PIPE RR ENG LEAF SUSP(LVR5FB) (B) D=18 H=30	1-09701-028-0	04	1	0204-	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	05	1	0012-0203	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8X20 FLANGE	0-28680-820-0	05	1	0012-0203	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	05	1	0204-0512	●	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8X20 FLANGE	0-28680-820-0	05	1	0204-0512	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	05	1	0601-	●	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8X20 FLANGE	0-28650-820-0	05	1	0601-	●	●	●
34	BOLT; PIPE CLIP RR ENG AIR SUSP(LVD5FB) M8X20 FLANGE	0-28680-820-0	08	1	0012-0512	●	●
34	BOLT; PIPE CLIP RR ENG AIR SUSP(LVD5FB) M8X20 FLANGE	0-28650-820-0	08	1	0601-	●	●
34	BOLT; PIPE CLIP RR ENG AIR SUSP(LVD5FB) M8X25 FLANGE	0-28680-825-0	01	1	0012-0512	●	●
34	BOLT; PIPE CLIP RR ENG AIR SUSP(LVD5FB) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8X25 FLANGE	0-28680-825-0	04	1	0012-0203	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8X25 FLANGE	0-28680-825-0	04	1	0204-0512	●	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	05	1	0012-0203	●	●
35	NUT; PIPE CLIP RR ENG AIR SUSP(LVD5FB) M8 FLANGE	0-91150-108-0	05	1	0012-0203	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	05	1	0204-0602	●	●	●
35	NUT; PIPE CLIP RR ENG AIR SUSP(LVD5FB) M8 FLANGE	0-91150-108-0	05	1	0204-0602	●	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	05	1	0603-	●	●	●
35	NUT; PIPE CLIP RR ENG AIR SUSP(LVD5FB) M8 FLANGE	0-91180-108-0	05	1	0603-	●	●	●
35	NUT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91150-108-0	09	1	0012-0203	●	●
35	NUT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91150-108-0	09	1	0204-0602	●	●	●
35	NUT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91180-108-0	09	1	0603-	●	●
36	BRACKET; CLIP (A) L=40	1-47478-410-0	01	1	0012-0203	●	●
36	BRACKET; CLIP (A) L=40	1-47478-410-0	01	1	0204-	●	●	●
36	BRACKET; CLIP (B)	1-47478-929-0	01	1	0012-0203	●	●
36	BRACKET; CLIP (B)	1-47478-929-0	01	1	0204-	●	●	●
36	BRACKET; CLIP RR ENG LEAF SUSP(LVR5FB) (C) L=135	1-47478-729-0	01	1	0012-0203	●	●
36	BRACKET; CLIP RR ENG LEAF SUSP(LVR5FB) (C) L=135	1-47478-729-0	01	1	0204-	●	●	●
36	BRACKET; CLIP 6WA1 TC-C(55L) (D)	1-47478-924-0	01	1	0204-			●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	0012-0106	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	0107-0107	●	●
37	BOLT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	01	1	0107-0107	●	●
37	BOLT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	02	1	0108-0203	●	●
37	BOLT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	04	1	0204-0512	●	●	●
37	BOLT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	04	1	0012-0106	●	●
37	BOLT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	04	1	0107-0203	●	●
37	BOLT; CLIP BRKT M8X40 FLANGE	0-28680-840-0	02	1	0012-0203	●	●
37	BOLT; CLIP BRKT M8X40 FLANGE	0-28680-840-0	02	1	0204-0512	●	●	●
37	BOLT; CLIP BRKT M8X40 FLANGE	0-28650-840-0	02	1	0601-	●	●	●
37	BOLT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	02	1	0204-0512	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	0204-0512			●
37	BOLT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-			●
37	BOLT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	01	1	0108-0203	●	●
37	BOLT; CLIP BRKT 6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	01	1	0204-0512	●	●	●
37	BOLT; CLIP BRKT 6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●
38	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0012-0107	●	●
38	NUT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	01	1	0108-0203	●	●
38	NUT; CLIP BRKT 6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	01	1	0204-0602	●	●	●
38	NUT; CLIP BRKT 6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
38	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	06	1	0012-0106	●	●
38	NUT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	06	1	0107-0203	●	●
38	NUT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	06	1	0204-0602	●	●	●
38	NUT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	06	1	0603-	●	●	●
38	NUT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	03	1	0107-0107	●	●
38	NUT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	04	1	0108-0602	●	●
38	NUT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
38	NUT; CLIP BRKT 6WA1 TC-C(55L) M8 FLANGE	0-91150-108-0	02	1	0204-0602			●
38	NUT; CLIP BRKT 6WA1 TC-C(55L) M8 FLANGE	0-91180-108-0	02	1	0603-			●
47	HOSE; FLEX,CLU CONT L=400	1-09365-108-0	01	1	0012-0210	●	●
47	HOSE; FLEX,CLU CONT L=400	1-09365-108-0	01	1	0211-	●	●
47	HOSE; FLEX,CLU CONT 6SD1 TC-S(83L) L=400	1-09365-108-0	01	1	0211-			●
47	HOSE; FLEX,CLU CONT 6WA1 TC-C(55L) L=330	1-09364-665-0	01	1	0204-			●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0012-0203	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0204-	●	●	●
85	BOLT; EYE JOINT,CLU M/CYL M14X29 EYE-BOLT	9-09906-325-1	01	1	0012-0203	●	●
85	BOLT; EYE JOINT,CLU M/CYL M14X29 EYE-BOLT	9-09906-325-1	01	1	0204-	●	●	●
86	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=20.0	9-09571-414-0	02	1	0012-0203	●	●
86	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=20.0	9-09571-414-0	02	1	0204-	●	●	●
87	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0012-0203	●	●
87	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0204-0607	●	●	●
87	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0608-	●	●	●
87	UNION; OIL PIPE (B) M14	9-09225-108-1	01	1	0012-0203	●	●
87	UNION; OIL PIPE (B) M14	9-09225-108-1	01	1	0204-0607	●	●	●
87	UNION; OIL PIPE (B) M14	0-92125-108-0	01	1	0608-	●	●	●
88	NUT; PIPE UNION M14	9-99111-414-0	01	1	0012-0203	●	●
88	NUT; PIPE UNION M14	9-99111-414-0	01	1	0204-0512	●	●	●
88	NUT; PIPE UNION M14	0-91111-514-0	01	1	0601-	●	●	●
89	WASHER; LK,PIPE UNION ID=14.2	9-09150-514-0	01	1	0012-0203	●	●
89	WASHER; LK,PIPE UNION ID=14.2	9-09150-514-0	01	1	0204-0603	●	●	●
89	WASHER; LK,PIPE UNION ID=14.2	0-91510-514-0	01	1	0604-0903	●	●	●
89	WASHER; LK,PIPE UNION ID=14.2	0-91510-814-0	01	1	0904-	●	●	●
92	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0012-0203	●	●
92	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0204-	●	●	●
92	CLIP; OIL PIPE RR ENG AIR SUSP(LVD5FB) ID=8 H=20 L=20	1-09700-604-0	05	1	0012-	●	●
92	CLIP; OIL PIPE RR ENG LEAF SUSP(LVR5FB) ID=8 H=20 L=20	1-09700-604-0	04	1	0012-0203	●	●
92	CLIP; OIL PIPE RR ENG LEAF SUSP(LVR5FB) ID=8 H=20 L=20	1-09700-604-0	04	1	0204-	●	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	9-09150-514-0	03	1	0012-0203	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	9-09150-514-0	03	1	0204-0603	●	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	0-91510-514-0	03	1	0604-0903	●	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	0-91510-814-0	03	1	0904-	●	●	●
106	UNION; OIL PIPE M14	9-09223-308-1	03	1	0012-0203	●	●
106	UNION; OIL PIPE M14	9-09223-308-1	03	1	0204-0607	●	●	●
106	UNION; OIL PIPE M14	0-92113-308-0	03	1	0608-	●	●	●
107	NUT; UNION,OIL PIPE M14	9-99111-414-0	03	1	0012-0203	●	●
107	NUT; UNION,OIL PIPE M14	9-99111-414-0	03	1	0204-0512	●	●	●
107	NUT; UNION,OIL PIPE M14	0-91111-514-0	03	1	0601-	●	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 6200MM(62W) (B) L=2757 SERVICED BY L=3000	1-47428-773-0	01	1	0012-0203	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 6200MM(62W) (B) L=2757 SERVICED BY L=3000	1-47428-773-0	01	1	0204-	●	●	●
109	PIPE; AIR,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (C) L=1501 SERVICED BY L=1550	1-47428-766-0	01	1	0012-0203	●	●
109	PIPE; AIR,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (C) L=1501 SERVICED BY L=1550	1-47428-766-0	01	1	0204-	●	●	●
109	PIPE; AIR,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (A) L=2963 SERVICED BY L=3000	1-47428-773-0	01	1	0012-0203	●	●
109	PIPE; AIR,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (A) L=2963 SERVICED BY L=3000	1-47428-773-0	01	1	0204-	●	●	●
109	PIPE; AIR,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (D) L=2672 SERVICED BY L=2700	1-47428-772-0	01	1	0012-0112	●	●
109	PIPE; AIR,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (D) L=2667 SERVICED BY L=2700	1-47428-772-0	01	1	0201-0203	●	●
109	PIPE; AIR,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (D) L=2667 SERVICED BY L=2700	1-47428-772-0	01	1	0204-	●	●	●
109	PIPE; AIR,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (E)	1-49165-798-0	01	1	0012-0203	●	●
109	PIPE; AIR,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (E)	1-49165-798-0	01	1	0204-	●	●	●
109	PIPE; AIR,UNION TO UNION (F) L=2607 SERVICED BY L=2700	1-47428-772-0	01	1	0204-			●
110	PIPE; OIL,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (A) L=1185 SERVICED BY L=1250	1-47428-764-0	01	1	0012-0203	●	●
110	PIPE; OIL,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (A) L=1185 SERVICED BY L=1250	1-47428-764-0	01	1	0204-	●	●	●
110	PIPE; OIL,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (B) L=2130	1-49165-978-0	01	1	0012-0203	●	●
110	PIPE; OIL,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (B) L=2130	1-49165-978-0	01	1	0204-	●	●	●
110	PIPE; OIL,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (C) L=1348 SERVICED BY L=1400	1-47428-765-0	01	1	0012-0203	●	●
110	PIPE; OIL,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (C) L=1348 SERVICED BY L=1400	1-47428-765-0	01	1	0204-	●	●	●
110	PIPE; OIL,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (D) L=1856	1-49165-799-0	01	1	0012-	●	●
110	PIPE; OIL,UNION TO UNION 6WA1 TC-C(55L) (F) L=1972 SERVICED BY L=2150	1-47428-770-0	01	1	0204-			●
111	UNION; OIL PIPE RR ENG AIR SUSP(LVD5FB) M14	9-09223-308-1	01	1	0012-0607	●	●
111	UNION; OIL PIPE RR ENG AIR SUSP(LVD5FB) M14	0-92113-308-0	01	1	0608-	●	●
111	UNION; OIL PIPE RR ENG LEAF SUSP(LVR5FB) M14 STRAIGHT	9-09223-008-1	01	1	0012-0203	●	●
111	UNION; OIL PIPE RR ENG LEAF SUSP(LVR5FB) M14 STRAIGHT	9-09223-008-1	01	1	0204-0607	●	●	●
111	UNION; OIL PIPE RR ENG LEAF SUSP(LVR5FB) M14 STRAIGHT	0-92113-008-0	01	1	0608-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0012-0203	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0204-0512	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0012-0203	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0204-0603	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-0903	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-814-0	01	1	0904-	●	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	0012-0203	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	0204-0602	●	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
147	NUT; CLIP FIX RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91150-108-0	04	1	0012-0203	●	●
147	NUT; CLIP FIX RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91150-108-0	04	1	0204-0602	●	●	●
147	NUT; CLIP FIX RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
153	PIPE ASM; CLU,UNION TO FLEX RR ENG AIR SUSP(LVD5FB)	1-49165-476-0	01	1	0012-	●	●
153	PIPE ASM; CLU,UNION TO FLEX RR ENG LEAF SUSP(LVR5FB)	1-49165-478-0	01	1	0012-0203	●	●
153	PIPE ASM; CLU,UNION TO FLEX RR ENG LEAF SUSP(LVR5FB)	1-49165-478-0	01	1	0204-	●	●	●
154	GROMMET; CLU OIL PIPE	1-09333-026-2	01	1	0012-0203	●	●
154	GROMMET; CLU OIL PIPE	1-09333-026-2	01	1	0204-	●	●	●

109 29 28 86 106 24 87 89 88 92 93 107 86 31 85 29 147 109 154 24 30 32 26 109 109 34 33 31 34 33 34 31 30 107 106 32 93 33 35 32 35 109 30 110 33 37 34 34 38 106 38 32 93 107 109 33 35 35 32 37 34 34 29 33 110 111 33 50 51 38 36 92 110 35 35 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	PIPE ASM; CLU,M/CYL TO UNION	1-49163-399-0	01	1	0012-0203	●	●
24	PIPE ASM; CLU,M/CYL TO UNION	1-49163-399-0	01	1	0204-	●	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0012-0203	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0204-0602	●	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	0012-0203	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	0204-	●	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28680-820-0	03	1	0012-0203	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28680-820-0	03	1	0204-0512	●	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●	●
29	BOLT; CLIP,OIL PIPE RR ENG AIR SUSP(LVD5FB) (B) M8X25 FLANGE	0-28680-825-0	05	1	0012-0203	●	●
29	BOLT; CLIP,OIL PIPE RR ENG AIR SUSP(LVD5FB) (B) M8X25 FLANGE	0-28680-825-0	05	1	0204-0512	●	●	●
29	BOLT; CLIP,OIL PIPE RR ENG AIR SUSP(LVD5FB) (B) M8X25 FLANGE	0-28650-825-0	05	1	0601-	●	●	●
29	BOLT; CLIP,OIL PIPE RR ENG LEAF SUSP(LVR5FB) (B) M8X25 FLANGE	0-28680-825-0	04	1	0012-0203	●	●
29	BOLT; CLIP,OIL PIPE RR ENG LEAF SUSP(LVR5FB) (B) M8X25 FLANGE	0-28680-825-0	04	1	0204-0512	●	●	●
29	BOLT; CLIP,OIL PIPE RR ENG LEAF SUSP(LVR5FB) (B) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
30	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0012-0106	●	●
30	BOLT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	02	1	0107-0203	●	●
30	BOLT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	02	1	0204-0512	●	●	●
30	BOLT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
30	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	04	1	0012-0106	●	●
30	BOLT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	04	1	0107-0203	●	●
30	BOLT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	04	1	0204-0512	●	●	●
30	BOLT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●	●
30	BOLT; BRKT EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	01	1	0107-0512	●	●
30	BOLT; BRKT EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
31	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0012-0106	●	●
31	NUT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	02	1	0107-0203	●	●
31	NUT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	02	1	0204-0602	●	●	●
31	NUT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
31	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0012-0106	●	●
31	NUT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	04	1	0107-0203	●	●
31	NUT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	04	1	0204-0602	●	●	●
31	NUT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●
31	NUT; BRKT EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	01	1	0107-0602	●	●
31	NUT; BRKT EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
32	BRACKET; CLIP OIL PIPE (A) L=40	1-47478-410-0	02	1	0012-0203	●	●
32	BRACKET; CLIP OIL PIPE (A) L=40	1-47478-410-0	02	1	0204-	●	●	●
32	BRACKET; CLIP OIL PIPE (B)	1-47478-921-0	01	1	0012-0203	●	●
32	BRACKET; CLIP OIL PIPE (B)	1-47478-921-0	01	1	0204-	●	●	●
32	BRACKET; CLIP OIL PIPE (C)	1-47478-922-0	01	1	0012-0203	●	●
32	BRACKET; CLIP OIL PIPE (C)	1-47478-922-0	01	1	0204-	●	●	●
32	BRACKET; CLIP OIL PIPE (D)	1-47478-923-0	01	1	0012-0203	●	●
32	BRACKET; CLIP OIL PIPE (D)	1-47478-923-0	01	1	0204-	●	●	●
33	CLIP; OIL PIPE (B) D=18 H=30	1-09701-028-0	06	1	0012-0203	●	●
33	CLIP; OIL PIPE (B) D=18 H=30	1-09701-028-0	06	1	0204-	●	●	●
33	CLIP; OIL PIPE (C) ID=9 L=20	9-09524-835-0	02	1	0012-0203	●	●
33	CLIP; OIL PIPE (C) ID=9 L=20	9-09524-835-0	02	1	0204-0606	●	●	●
33	CLIP; OIL PIPE (C) ID=9 L=20	0-95234-835-0	02	1	0607-	●	●	●
33	CLIP; OIL PIPE RR ENG AIR SUSP(LVD5FB) (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0012-	●	●
33	CLIP; OIL PIPE RR ENG AIR SUSP(LVD5FB) (B) D=18 H=30	1-09701-028-0	02	1	0012-	●	●
33	CLIP; OIL PIPE RR ENG LEAF SUSP(LVR5FB) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0012-0203	●	●
33	CLIP; OIL PIPE RR ENG LEAF SUSP(LVR5FB) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0204-	●	●	●
33	CLIP; OIL PIPE RR ENG LEAF SUSP(LVR5FB) (B) D=18 H=30	1-09701-028-0	04	1	0012-0203	●	●
33	CLIP; OIL PIPE RR ENG LEAF SUSP(LVR5FB) (B) D=18 H=30	1-09701-028-0	04	1	0204-	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	05	1	0012-0203	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8X20 FLANGE	0-28680-820-0	05	1	0012-0203	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	05	1	0204-0512	●	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8X20 FLANGE	0-28680-820-0	05	1	0204-0512	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	05	1	0601-	●	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8X20 FLANGE	0-28650-820-0	05	1	0601-	●	●	●
34	BOLT; PIPE CLIP RR ENG AIR SUSP(LVD5FB) M8X20 FLANGE	0-28680-820-0	08	1	0012-0512	●	●
34	BOLT; PIPE CLIP RR ENG AIR SUSP(LVD5FB) M8X20 FLANGE	0-28650-820-0	08	1	0601-	●	●
34	BOLT; PIPE CLIP RR ENG AIR SUSP(LVD5FB) M8X25 FLANGE	0-28680-825-0	01	1	0012-0512	●	●
34	BOLT; PIPE CLIP RR ENG AIR SUSP(LVD5FB) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8X25 FLANGE	0-28680-825-0	04	1	0012-0203	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8X25 FLANGE	0-28680-825-0	04	1	0204-0512	●	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	05	1	0012-0203	●	●
35	NUT; PIPE CLIP RR ENG AIR SUSP(LVD5FB) M8 FLANGE	0-91150-108-0	05	1	0012-0203	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	05	1	0204-0602	●	●	●
35	NUT; PIPE CLIP RR ENG AIR SUSP(LVD5FB) M8 FLANGE	0-91150-108-0	05	1	0204-0602	●	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	05	1	0603-	●	●	●
35	NUT; PIPE CLIP RR ENG AIR SUSP(LVD5FB) M8 FLANGE	0-91180-108-0	05	1	0603-	●	●	●
35	NUT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91150-108-0	09	1	0012-0203	●	●
35	NUT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91150-108-0	09	1	0204-0602	●	●	●
35	NUT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91180-108-0	09	1	0603-	●	●
36	BRACKET; CLIP (A) L=40	1-47478-410-0	01	1	0012-0203	●	●
36	BRACKET; CLIP (A) L=40	1-47478-410-0	01	1	0204-	●	●	●
36	BRACKET; CLIP (B)	1-47478-929-0	01	1	0012-0203	●	●
36	BRACKET; CLIP (B)	1-47478-929-0	01	1	0204-	●	●	●
36	BRACKET; CLIP RR ENG LEAF SUSP(LVR5FB) (C) L=135	1-47478-729-0	01	1	0012-0203	●	●
36	BRACKET; CLIP RR ENG LEAF SUSP(LVR5FB) (C) L=135	1-47478-729-0	01	1	0204-	●	●	●
36	BRACKET; CLIP 6WA1 TC-C(55L) (D)	1-47478-924-0	01	1	0204-			●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	0012-0106	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	0107-0107	●	●
37	BOLT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	01	1	0107-0107	●	●
37	BOLT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	02	1	0108-0203	●	●
37	BOLT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	04	1	0204-0512	●	●	●
37	BOLT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	04	1	0012-0106	●	●
37	BOLT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	04	1	0107-0203	●	●
37	BOLT; CLIP BRKT M8X40 FLANGE	0-28680-840-0	02	1	0012-0203	●	●
37	BOLT; CLIP BRKT M8X40 FLANGE	0-28680-840-0	02	1	0204-0512	●	●	●
37	BOLT; CLIP BRKT M8X40 FLANGE	0-28650-840-0	02	1	0601-	●	●	●
37	BOLT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	02	1	0204-0512	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	0204-0512			●
37	BOLT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-			●
37	BOLT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	01	1	0108-0203	●	●
37	BOLT; CLIP BRKT 6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	01	1	0204-0512	●	●	●
37	BOLT; CLIP BRKT 6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●
38	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0012-0107	●	●
38	NUT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	01	1	0108-0203	●	●
38	NUT; CLIP BRKT 6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	01	1	0204-0602	●	●	●
38	NUT; CLIP BRKT 6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
38	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	06	1	0012-0106	●	●
38	NUT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	06	1	0107-0203	●	●
38	NUT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	06	1	0204-0602	●	●	●
38	NUT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	06	1	0603-	●	●	●
38	NUT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	03	1	0107-0107	●	●
38	NUT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	04	1	0108-0602	●	●
38	NUT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
38	NUT; CLIP BRKT 6WA1 TC-C(55L) M8 FLANGE	0-91150-108-0	02	1	0204-0602			●
38	NUT; CLIP BRKT 6WA1 TC-C(55L) M8 FLANGE	0-91180-108-0	02	1	0603-			●
50	NUT; UNION RR ENG AIR SUSP(LVD5FB) M14	9-99111-414-0	01	1	0012-0203	●	●
50	NUT; UNION RR ENG AIR SUSP(LVD5FB) M14	9-99111-414-0	01	1	0204-0512	●	●	●
50	NUT; UNION RR ENG AIR SUSP(LVD5FB) M14	0-91111-514-0	01	1	0601-	●	●	●
51	WASHER; LK RR ENG AIR SUSP(LVD5FB) ID=14.2	9-09150-514-0	01	1	0012-0203	●	●
51	WASHER; LK RR ENG AIR SUSP(LVD5FB) ID=14.2	9-09150-514-0	01	1	0204-0603	●	●	●
51	WASHER; LK RR ENG AIR SUSP(LVD5FB) ID=14.2	0-91510-514-0	01	1	0604-0903	●	●	●
51	WASHER; LK RR ENG AIR SUSP(LVD5FB) ID=14.2	0-91510-814-0	01	1	0904-	●	●	●
85	BOLT; EYE JOINT,CLU M/CYL M14X29 EYE-BOLT	9-09906-325-1	01	1	0012-0203	●	●
85	BOLT; EYE JOINT,CLU M/CYL M14X29 EYE-BOLT	9-09906-325-1	01	1	0204-	●	●	●
86	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=20.0	9-09571-414-0	02	1	0012-0203	●	●
86	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=20.0	9-09571-414-0	02	1	0204-	●	●	●
87	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0012-0203	●	●
87	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0204-0607	●	●	●
87	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0608-	●	●	●
87	UNION; OIL PIPE (B) M14	9-09225-108-1	01	1	0012-0203	●	●
87	UNION; OIL PIPE (B) M14	9-09225-108-1	01	1	0204-0607	●	●	●
87	UNION; OIL PIPE (B) M14	0-92125-108-0	01	1	0608-	●	●	●
88	NUT; PIPE UNION M14	9-99111-414-0	01	1	0012-0203	●	●
88	NUT; PIPE UNION M14	9-99111-414-0	01	1	0204-0512	●	●	●
88	NUT; PIPE UNION M14	0-91111-514-0	01	1	0601-	●	●	●
89	WASHER; LK,PIPE UNION ID=14.2	9-09150-514-0	01	1	0012-0203	●	●
89	WASHER; LK,PIPE UNION ID=14.2	9-09150-514-0	01	1	0204-0603	●	●	●
89	WASHER; LK,PIPE UNION ID=14.2	0-91510-514-0	01	1	0604-0903	●	●	●
89	WASHER; LK,PIPE UNION ID=14.2	0-91510-814-0	01	1	0904-	●	●	●
92	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0012-0203	●	●
92	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0204-	●	●	●
92	CLIP; OIL PIPE RR ENG AIR SUSP(LVD5FB) ID=8 H=20 L=20	1-09700-604-0	05	1	0012-	●	●
92	CLIP; OIL PIPE RR ENG LEAF SUSP(LVR5FB) ID=8 H=20 L=20	1-09700-604-0	04	1	0012-0203	●	●
92	CLIP; OIL PIPE RR ENG LEAF SUSP(LVR5FB) ID=8 H=20 L=20	1-09700-604-0	04	1	0204-	●	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	9-09150-514-0	03	1	0012-0203	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	9-09150-514-0	03	1	0204-0603	●	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	0-91510-514-0	03	1	0604-0903	●	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	0-91510-814-0	03	1	0904-	●	●	●
106	UNION; OIL PIPE M14	9-09223-308-1	03	1	0012-0203	●	●
106	UNION; OIL PIPE M14	9-09223-308-1	03	1	0204-0607	●	●	●
106	UNION; OIL PIPE M14	0-92113-308-0	03	1	0608-	●	●	●
107	NUT; UNION,OIL PIPE M14	9-99111-414-0	03	1	0012-0203	●	●
107	NUT; UNION,OIL PIPE M14	9-99111-414-0	03	1	0204-0512	●	●	●
107	NUT; UNION,OIL PIPE M14	0-91111-514-0	03	1	0601-	●	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 6200MM(62W) (B) L=2757 SERVICED BY L=3000	1-47428-773-0	01	1	0012-0203	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 6200MM(62W) (B) L=2757 SERVICED BY L=3000	1-47428-773-0	01	1	0204-	●	●	●
109	PIPE; AIR,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (C) L=1501 SERVICED BY L=1550	1-47428-766-0	01	1	0012-0203	●	●
109	PIPE; AIR,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (C) L=1501 SERVICED BY L=1550	1-47428-766-0	01	1	0204-	●	●	●
109	PIPE; AIR,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (A) L=2963 SERVICED BY L=3000	1-47428-773-0	01	1	0012-0203	●	●
109	PIPE; AIR,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (A) L=2963 SERVICED BY L=3000	1-47428-773-0	01	1	0204-	●	●	●
109	PIPE; AIR,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (D) L=2672 SERVICED BY L=2700	1-47428-772-0	01	1	0012-0112	●	●
109	PIPE; AIR,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (D) L=2667 SERVICED BY L=2700	1-47428-772-0	01	1	0201-0203	●	●
109	PIPE; AIR,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (D) L=2667 SERVICED BY L=2700	1-47428-772-0	01	1	0204-	●	●	●
109	PIPE; AIR,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (E)	1-49165-798-0	01	1	0012-0203	●	●
109	PIPE; AIR,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (E)	1-49165-798-0	01	1	0204-	●	●	●
109	PIPE; AIR,UNION TO UNION (F) L=2607 SERVICED BY L=2700	1-47428-772-0	01	1	0204-			●
110	PIPE; OIL,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (A) L=1185 SERVICED BY L=1250	1-47428-764-0	01	1	0012-0203	●	●
110	PIPE; OIL,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (A) L=1185 SERVICED BY L=1250	1-47428-764-0	01	1	0204-	●	●	●
110	PIPE; OIL,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (B) L=2130	1-49165-978-0	01	1	0012-0203	●	●
110	PIPE; OIL,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (B) L=2130	1-49165-978-0	01	1	0204-	●	●	●
110	PIPE; OIL,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (C) L=1348 SERVICED BY L=1400	1-47428-765-0	01	1	0012-0203	●	●
110	PIPE; OIL,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (C) L=1348 SERVICED BY L=1400	1-47428-765-0	01	1	0204-	●	●	●
110	PIPE; OIL,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (D) L=1856	1-49165-799-0	01	1	0012-	●	●
110	PIPE; OIL,UNION TO UNION 6WA1 TC-C(55L) (F) L=1972 SERVICED BY L=2150	1-47428-770-0	01	1	0204-			●
111	UNION; OIL PIPE RR ENG AIR SUSP(LVD5FB) M14	9-09223-308-1	01	1	0012-0607	●	●
111	UNION; OIL PIPE RR ENG AIR SUSP(LVD5FB) M14	0-92113-308-0	01	1	0608-	●	●
111	UNION; OIL PIPE RR ENG LEAF SUSP(LVR5FB) M14 STRAIGHT	9-09223-008-1	01	1	0012-0203	●	●
111	UNION; OIL PIPE RR ENG LEAF SUSP(LVR5FB) M14 STRAIGHT	9-09223-008-1	01	1	0204-0607	●	●	●
111	UNION; OIL PIPE RR ENG LEAF SUSP(LVR5FB) M14 STRAIGHT	0-92113-008-0	01	1	0608-	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	0012-0203	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	0204-0602	●	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
147	NUT; CLIP FIX RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91150-108-0	04	1	0012-0203	●	●
147	NUT; CLIP FIX RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91150-108-0	04	1	0204-0602	●	●	●
147	NUT; CLIP FIX RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
154	GROMMET; CLU OIL PIPE	1-09333-026-2	01	1	0012-0203	●	●
154	GROMMET; CLU OIL PIPE	1-09333-026-2	01	1	0204-	●	●	●

110 153 110 109 110 34 37 33 34 38 106 38 32 93 107 109 33 35 35 32 37 34 33 34 153 110 111 87 36 35 33 38 35 110 110 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
32	BRACKET; CLIP OIL PIPE (A) L=40	1-47478-410-0	02	1	0012-0203	●	●
32	BRACKET; CLIP OIL PIPE (A) L=40	1-47478-410-0	02	1	0204-	●	●	●
32	BRACKET; CLIP OIL PIPE (B)	1-47478-921-0	01	1	0012-0203	●	●
32	BRACKET; CLIP OIL PIPE (B)	1-47478-921-0	01	1	0204-	●	●	●
32	BRACKET; CLIP OIL PIPE (C)	1-47478-922-0	01	1	0012-0203	●	●
32	BRACKET; CLIP OIL PIPE (C)	1-47478-922-0	01	1	0204-	●	●	●
32	BRACKET; CLIP OIL PIPE (D)	1-47478-923-0	01	1	0012-0203	●	●
32	BRACKET; CLIP OIL PIPE (D)	1-47478-923-0	01	1	0204-	●	●	●
33	CLIP; OIL PIPE (B) D=18 H=30	1-09701-028-0	06	1	0012-0203	●	●
33	CLIP; OIL PIPE (B) D=18 H=30	1-09701-028-0	06	1	0204-	●	●	●
33	CLIP; OIL PIPE (C) ID=9 L=20	9-09524-835-0	02	1	0012-0203	●	●
33	CLIP; OIL PIPE (C) ID=9 L=20	9-09524-835-0	02	1	0204-0606	●	●	●
33	CLIP; OIL PIPE (C) ID=9 L=20	0-95234-835-0	02	1	0607-	●	●	●
33	CLIP; OIL PIPE RR ENG AIR SUSP(LVD5FB) (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0012-	●	●
33	CLIP; OIL PIPE RR ENG AIR SUSP(LVD5FB) (B) D=18 H=30	1-09701-028-0	02	1	0012-	●	●
33	CLIP; OIL PIPE RR ENG LEAF SUSP(LVR5FB) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0012-0203	●	●
33	CLIP; OIL PIPE RR ENG LEAF SUSP(LVR5FB) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0204-	●	●	●
33	CLIP; OIL PIPE RR ENG LEAF SUSP(LVR5FB) (B) D=18 H=30	1-09701-028-0	04	1	0012-0203	●	●
33	CLIP; OIL PIPE RR ENG LEAF SUSP(LVR5FB) (B) D=18 H=30	1-09701-028-0	04	1	0204-	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	05	1	0012-0203	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8X20 FLANGE	0-28680-820-0	05	1	0012-0203	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	05	1	0204-0512	●	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8X20 FLANGE	0-28680-820-0	05	1	0204-0512	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	05	1	0601-	●	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8X20 FLANGE	0-28650-820-0	05	1	0601-	●	●	●
34	BOLT; PIPE CLIP RR ENG AIR SUSP(LVD5FB) M8X20 FLANGE	0-28680-820-0	08	1	0012-0512	●	●
34	BOLT; PIPE CLIP RR ENG AIR SUSP(LVD5FB) M8X20 FLANGE	0-28650-820-0	08	1	0601-	●	●
34	BOLT; PIPE CLIP RR ENG AIR SUSP(LVD5FB) M8X25 FLANGE	0-28680-825-0	01	1	0012-0512	●	●
34	BOLT; PIPE CLIP RR ENG AIR SUSP(LVD5FB) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8X25 FLANGE	0-28680-825-0	04	1	0012-0203	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8X25 FLANGE	0-28680-825-0	04	1	0204-0512	●	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	05	1	0012-0203	●	●
35	NUT; PIPE CLIP RR ENG AIR SUSP(LVD5FB) M8 FLANGE	0-91150-108-0	05	1	0012-0203	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	05	1	0204-0602	●	●	●
35	NUT; PIPE CLIP RR ENG AIR SUSP(LVD5FB) M8 FLANGE	0-91150-108-0	05	1	0204-0602	●	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	05	1	0603-	●	●	●
35	NUT; PIPE CLIP RR ENG AIR SUSP(LVD5FB) M8 FLANGE	0-91180-108-0	05	1	0603-	●	●	●
35	NUT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91150-108-0	09	1	0012-0203	●	●
35	NUT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91150-108-0	09	1	0204-0602	●	●	●
35	NUT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91180-108-0	09	1	0603-	●	●
36	BRACKET; CLIP (A) L=40	1-47478-410-0	01	1	0012-0203	●	●
36	BRACKET; CLIP (A) L=40	1-47478-410-0	01	1	0204-	●	●	●
36	BRACKET; CLIP (B)	1-47478-929-0	01	1	0012-0203	●	●
36	BRACKET; CLIP (B)	1-47478-929-0	01	1	0204-	●	●	●
36	BRACKET; CLIP RR ENG LEAF SUSP(LVR5FB) (C) L=135	1-47478-729-0	01	1	0012-0203	●	●
36	BRACKET; CLIP RR ENG LEAF SUSP(LVR5FB) (C) L=135	1-47478-729-0	01	1	0204-	●	●	●
36	BRACKET; CLIP 6WA1 TC-C(55L) (D)	1-47478-924-0	01	1	0204-			●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	0012-0106	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	0107-0107	●	●
37	BOLT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	01	1	0107-0107	●	●
37	BOLT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	02	1	0108-0203	●	●
37	BOLT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	04	1	0204-0512	●	●	●
37	BOLT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	04	1	0012-0106	●	●
37	BOLT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	04	1	0107-0203	●	●
37	BOLT; CLIP BRKT M8X40 FLANGE	0-28680-840-0	02	1	0012-0203	●	●
37	BOLT; CLIP BRKT M8X40 FLANGE	0-28680-840-0	02	1	0204-0512	●	●	●
37	BOLT; CLIP BRKT M8X40 FLANGE	0-28650-840-0	02	1	0601-	●	●	●
37	BOLT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	02	1	0204-0512	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	0204-0512			●
37	BOLT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-			●
37	BOLT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	01	1	0108-0203	●	●
37	BOLT; CLIP BRKT 6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	01	1	0204-0512	●	●	●
37	BOLT; CLIP BRKT 6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●
38	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0012-0107	●	●
38	NUT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	01	1	0108-0203	●	●
38	NUT; CLIP BRKT 6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	01	1	0204-0602	●	●	●
38	NUT; CLIP BRKT 6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
38	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	06	1	0012-0106	●	●
38	NUT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	06	1	0107-0203	●	●
38	NUT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	06	1	0204-0602	●	●	●
38	NUT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	06	1	0603-	●	●	●
38	NUT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	03	1	0107-0107	●	●
38	NUT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	04	1	0108-0602	●	●
38	NUT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
38	NUT; CLIP BRKT 6WA1 TC-C(55L) M8 FLANGE	0-91150-108-0	02	1	0204-0602			●
38	NUT; CLIP BRKT 6WA1 TC-C(55L) M8 FLANGE	0-91180-108-0	02	1	0603-			●
87	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0012-0203	●	●
87	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0204-0607	●	●	●
87	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0608-	●	●	●
87	UNION; OIL PIPE (B) M14	9-09225-108-1	01	1	0012-0203	●	●
87	UNION; OIL PIPE (B) M14	9-09225-108-1	01	1	0204-0607	●	●	●
87	UNION; OIL PIPE (B) M14	0-92125-108-0	01	1	0608-	●	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	9-09150-514-0	03	1	0012-0203	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	9-09150-514-0	03	1	0204-0603	●	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	0-91510-514-0	03	1	0604-0903	●	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	0-91510-814-0	03	1	0904-	●	●	●
106	UNION; OIL PIPE M14	9-09223-308-1	03	1	0012-0203	●	●
106	UNION; OIL PIPE M14	9-09223-308-1	03	1	0204-0607	●	●	●
106	UNION; OIL PIPE M14	0-92113-308-0	03	1	0608-	●	●	●
107	NUT; UNION,OIL PIPE M14	9-99111-414-0	03	1	0012-0203	●	●
107	NUT; UNION,OIL PIPE M14	9-99111-414-0	03	1	0204-0512	●	●	●
107	NUT; UNION,OIL PIPE M14	0-91111-514-0	03	1	0601-	●	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 6200MM(62W) (B) L=2757 SERVICED BY L=3000	1-47428-773-0	01	1	0012-0203	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 6200MM(62W) (B) L=2757 SERVICED BY L=3000	1-47428-773-0	01	1	0204-	●	●	●
109	PIPE; AIR,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (C) L=1501 SERVICED BY L=1550	1-47428-766-0	01	1	0012-0203	●	●
109	PIPE; AIR,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (C) L=1501 SERVICED BY L=1550	1-47428-766-0	01	1	0204-	●	●	●
109	PIPE; AIR,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (A) L=2963 SERVICED BY L=3000	1-47428-773-0	01	1	0012-0203	●	●
109	PIPE; AIR,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (A) L=2963 SERVICED BY L=3000	1-47428-773-0	01	1	0204-	●	●	●
109	PIPE; AIR,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (D) L=2672 SERVICED BY L=2700	1-47428-772-0	01	1	0012-0112	●	●
109	PIPE; AIR,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (D) L=2667 SERVICED BY L=2700	1-47428-772-0	01	1	0201-0203	●	●
109	PIPE; AIR,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (D) L=2667 SERVICED BY L=2700	1-47428-772-0	01	1	0204-	●	●	●
109	PIPE; AIR,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (E)	1-49165-798-0	01	1	0012-0203	●	●
109	PIPE; AIR,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (E)	1-49165-798-0	01	1	0204-	●	●	●
109	PIPE; AIR,UNION TO UNION (F) L=2607 SERVICED BY L=2700	1-47428-772-0	01	1	0204-			●
110	PIPE; OIL,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (A) L=1185 SERVICED BY L=1250	1-47428-764-0	01	1	0012-0203	●	●
110	PIPE; OIL,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (A) L=1185 SERVICED BY L=1250	1-47428-764-0	01	1	0204-	●	●	●
110	PIPE; OIL,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (B) L=2130	1-49165-978-0	01	1	0012-0203	●	●
110	PIPE; OIL,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (B) L=2130	1-49165-978-0	01	1	0204-	●	●	●
110	PIPE; OIL,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (C) L=1348 SERVICED BY L=1400	1-47428-765-0	01	1	0012-0203	●	●
110	PIPE; OIL,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (C) L=1348 SERVICED BY L=1400	1-47428-765-0	01	1	0204-	●	●	●
110	PIPE; OIL,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (D) L=1856	1-49165-799-0	01	1	0012-	●	●
110	PIPE; OIL,UNION TO UNION 6WA1 TC-C(55L) (F) L=1972 SERVICED BY L=2150	1-47428-770-0	01	1	0204-			●
111	UNION; OIL PIPE RR ENG AIR SUSP(LVD5FB) M14	9-09223-308-1	01	1	0012-0607	●	●
111	UNION; OIL PIPE RR ENG AIR SUSP(LVD5FB) M14	0-92113-308-0	01	1	0608-	●	●
111	UNION; OIL PIPE RR ENG LEAF SUSP(LVR5FB) M14 STRAIGHT	9-09223-008-1	01	1	0012-0203	●	●
111	UNION; OIL PIPE RR ENG LEAF SUSP(LVR5FB) M14 STRAIGHT	9-09223-008-1	01	1	0204-0607	●	●	●
111	UNION; OIL PIPE RR ENG LEAF SUSP(LVR5FB) M14 STRAIGHT	0-92113-008-0	01	1	0608-	●	●
153	PIPE ASM; CLU,UNION TO FLEX RR ENG AIR SUSP(LVD5FB)	1-49165-476-0	01	1	0012-	●	●
153	PIPE ASM; CLU,UNION TO FLEX RR ENG LEAF SUSP(LVR5FB)	1-49165-478-0	01	1	0012-0203	●	●
153	PIPE ASM; CLU,UNION TO FLEX RR ENG LEAF SUSP(LVR5FB)	1-49165-478-0	01	1	0204-	●	●	●

109 109 24 109 29 106 86 28 87 89 88 24 93 107 86 31 85 109 30 32 154 24 26 109 109 34 34 31 33 33 31 92 30 106 107 29 147 32 93 109 35 32 30 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	PIPE ASM; CLU,M/CYL TO UNION	1-49163-399-0	01	1	0012-0203	●	●
24	PIPE ASM; CLU,M/CYL TO UNION	1-49163-399-0	01	1	0204-	●	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0012-0203	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0204-0602	●	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	0012-0203	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	0204-	●	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28680-820-0	03	1	0012-0203	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28680-820-0	03	1	0204-0512	●	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●	●
29	BOLT; CLIP,OIL PIPE RR ENG AIR SUSP(LVD5FB) (B) M8X25 FLANGE	0-28680-825-0	05	1	0012-0203	●	●
29	BOLT; CLIP,OIL PIPE RR ENG AIR SUSP(LVD5FB) (B) M8X25 FLANGE	0-28680-825-0	05	1	0204-0512	●	●	●
29	BOLT; CLIP,OIL PIPE RR ENG AIR SUSP(LVD5FB) (B) M8X25 FLANGE	0-28650-825-0	05	1	0601-	●	●	●
29	BOLT; CLIP,OIL PIPE RR ENG LEAF SUSP(LVR5FB) (B) M8X25 FLANGE	0-28680-825-0	04	1	0012-0203	●	●
29	BOLT; CLIP,OIL PIPE RR ENG LEAF SUSP(LVR5FB) (B) M8X25 FLANGE	0-28680-825-0	04	1	0204-0512	●	●	●
29	BOLT; CLIP,OIL PIPE RR ENG LEAF SUSP(LVR5FB) (B) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
30	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0012-0106	●	●
30	BOLT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	02	1	0107-0203	●	●
30	BOLT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	02	1	0204-0512	●	●	●
30	BOLT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
30	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	04	1	0012-0106	●	●
30	BOLT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	04	1	0107-0203	●	●
30	BOLT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	04	1	0204-0512	●	●	●
30	BOLT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●	●
30	BOLT; BRKT EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	01	1	0107-0512	●	●
30	BOLT; BRKT EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
31	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0012-0106	●	●
31	NUT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	02	1	0107-0203	●	●
31	NUT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	02	1	0204-0602	●	●	●
31	NUT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
31	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0012-0106	●	●
31	NUT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	04	1	0107-0203	●	●
31	NUT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	04	1	0204-0602	●	●	●
31	NUT; BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●
31	NUT; BRKT EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	01	1	0107-0602	●	●
31	NUT; BRKT EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
32	BRACKET; CLIP OIL PIPE (A) L=40	1-47478-410-0	02	1	0012-0203	●	●
32	BRACKET; CLIP OIL PIPE (A) L=40	1-47478-410-0	02	1	0204-	●	●	●
32	BRACKET; CLIP OIL PIPE (B)	1-47478-921-0	01	1	0012-0203	●	●
32	BRACKET; CLIP OIL PIPE (B)	1-47478-921-0	01	1	0204-	●	●	●
32	BRACKET; CLIP OIL PIPE (C)	1-47478-922-0	01	1	0012-0203	●	●
32	BRACKET; CLIP OIL PIPE (C)	1-47478-922-0	01	1	0204-	●	●	●
32	BRACKET; CLIP OIL PIPE (D)	1-47478-923-0	01	1	0012-0203	●	●
32	BRACKET; CLIP OIL PIPE (D)	1-47478-923-0	01	1	0204-	●	●	●
33	CLIP; OIL PIPE (B) D=18 H=30	1-09701-028-0	06	1	0012-0203	●	●
33	CLIP; OIL PIPE (B) D=18 H=30	1-09701-028-0	06	1	0204-	●	●	●
33	CLIP; OIL PIPE (C) ID=9 L=20	9-09524-835-0	02	1	0012-0203	●	●
33	CLIP; OIL PIPE (C) ID=9 L=20	9-09524-835-0	02	1	0204-0606	●	●	●
33	CLIP; OIL PIPE (C) ID=9 L=20	0-95234-835-0	02	1	0607-	●	●	●
33	CLIP; OIL PIPE RR ENG AIR SUSP(LVD5FB) (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0012-	●	●
33	CLIP; OIL PIPE RR ENG AIR SUSP(LVD5FB) (B) D=18 H=30	1-09701-028-0	02	1	0012-	●	●
33	CLIP; OIL PIPE RR ENG LEAF SUSP(LVR5FB) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0012-0203	●	●
33	CLIP; OIL PIPE RR ENG LEAF SUSP(LVR5FB) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0204-	●	●	●
33	CLIP; OIL PIPE RR ENG LEAF SUSP(LVR5FB) (B) D=18 H=30	1-09701-028-0	04	1	0012-0203	●	●
33	CLIP; OIL PIPE RR ENG LEAF SUSP(LVR5FB) (B) D=18 H=30	1-09701-028-0	04	1	0204-	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	05	1	0012-0203	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8X20 FLANGE	0-28680-820-0	05	1	0012-0203	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	05	1	0204-0512	●	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8X20 FLANGE	0-28680-820-0	05	1	0204-0512	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	05	1	0601-	●	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8X20 FLANGE	0-28650-820-0	05	1	0601-	●	●	●
34	BOLT; PIPE CLIP RR ENG AIR SUSP(LVD5FB) M8X20 FLANGE	0-28680-820-0	08	1	0012-0512	●	●
34	BOLT; PIPE CLIP RR ENG AIR SUSP(LVD5FB) M8X20 FLANGE	0-28650-820-0	08	1	0601-	●	●
34	BOLT; PIPE CLIP RR ENG AIR SUSP(LVD5FB) M8X25 FLANGE	0-28680-825-0	01	1	0012-0512	●	●
34	BOLT; PIPE CLIP RR ENG AIR SUSP(LVD5FB) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8X25 FLANGE	0-28680-825-0	04	1	0012-0203	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8X25 FLANGE	0-28680-825-0	04	1	0204-0512	●	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	05	1	0012-0203	●	●
35	NUT; PIPE CLIP RR ENG AIR SUSP(LVD5FB) M8 FLANGE	0-91150-108-0	05	1	0012-0203	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	05	1	0204-0602	●	●	●
35	NUT; PIPE CLIP RR ENG AIR SUSP(LVD5FB) M8 FLANGE	0-91150-108-0	05	1	0204-0602	●	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	05	1	0603-	●	●	●
35	NUT; PIPE CLIP RR ENG AIR SUSP(LVD5FB) M8 FLANGE	0-91180-108-0	05	1	0603-	●	●	●
35	NUT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91150-108-0	09	1	0012-0203	●	●
35	NUT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91150-108-0	09	1	0204-0602	●	●	●
35	NUT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91180-108-0	09	1	0603-	●	●
85	BOLT; EYE JOINT,CLU M/CYL M14X29 EYE-BOLT	9-09906-325-1	01	1	0012-0203	●	●
85	BOLT; EYE JOINT,CLU M/CYL M14X29 EYE-BOLT	9-09906-325-1	01	1	0204-	●	●	●
86	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=20.0	9-09571-414-0	02	1	0012-0203	●	●
86	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=20.0	9-09571-414-0	02	1	0204-	●	●	●
87	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0012-0203	●	●
87	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0204-0607	●	●	●
87	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0608-	●	●	●
87	UNION; OIL PIPE (B) M14	9-09225-108-1	01	1	0012-0203	●	●
87	UNION; OIL PIPE (B) M14	9-09225-108-1	01	1	0204-0607	●	●	●
87	UNION; OIL PIPE (B) M14	0-92125-108-0	01	1	0608-	●	●	●
88	NUT; PIPE UNION M14	9-99111-414-0	01	1	0012-0203	●	●
88	NUT; PIPE UNION M14	9-99111-414-0	01	1	0204-0512	●	●	●
88	NUT; PIPE UNION M14	0-91111-514-0	01	1	0601-	●	●	●
89	WASHER; LK,PIPE UNION ID=14.2	9-09150-514-0	01	1	0012-0203	●	●
89	WASHER; LK,PIPE UNION ID=14.2	9-09150-514-0	01	1	0204-0603	●	●	●
89	WASHER; LK,PIPE UNION ID=14.2	0-91510-514-0	01	1	0604-0903	●	●	●
89	WASHER; LK,PIPE UNION ID=14.2	0-91510-814-0	01	1	0904-	●	●	●
92	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0012-0203	●	●
92	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0204-	●	●	●
92	CLIP; OIL PIPE RR ENG AIR SUSP(LVD5FB) ID=8 H=20 L=20	1-09700-604-0	05	1	0012-	●	●
92	CLIP; OIL PIPE RR ENG LEAF SUSP(LVR5FB) ID=8 H=20 L=20	1-09700-604-0	04	1	0012-0203	●	●
92	CLIP; OIL PIPE RR ENG LEAF SUSP(LVR5FB) ID=8 H=20 L=20	1-09700-604-0	04	1	0204-	●	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	9-09150-514-0	03	1	0012-0203	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	9-09150-514-0	03	1	0204-0603	●	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	0-91510-514-0	03	1	0604-0903	●	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	0-91510-814-0	03	1	0904-	●	●	●
106	UNION; OIL PIPE M14	9-09223-308-1	03	1	0012-0203	●	●
106	UNION; OIL PIPE M14	9-09223-308-1	03	1	0204-0607	●	●	●
106	UNION; OIL PIPE M14	0-92113-308-0	03	1	0608-	●	●	●
107	NUT; UNION,OIL PIPE M14	9-99111-414-0	03	1	0012-0203	●	●
107	NUT; UNION,OIL PIPE M14	9-99111-414-0	03	1	0204-0512	●	●	●
107	NUT; UNION,OIL PIPE M14	0-91111-514-0	03	1	0601-	●	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 6200MM(62W) (B) L=2757 SERVICED BY L=3000	1-47428-773-0	01	1	0012-0203	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 6200MM(62W) (B) L=2757 SERVICED BY L=3000	1-47428-773-0	01	1	0204-	●	●	●
109	PIPE; AIR,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (C) L=1501 SERVICED BY L=1550	1-47428-766-0	01	1	0012-0203	●	●
109	PIPE; AIR,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (C) L=1501 SERVICED BY L=1550	1-47428-766-0	01	1	0204-	●	●	●
109	PIPE; AIR,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (A) L=2963 SERVICED BY L=3000	1-47428-773-0	01	1	0012-0203	●	●
109	PIPE; AIR,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (A) L=2963 SERVICED BY L=3000	1-47428-773-0	01	1	0204-	●	●	●
109	PIPE; AIR,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (D) L=2672 SERVICED BY L=2700	1-47428-772-0	01	1	0012-0112	●	●
109	PIPE; AIR,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (D) L=2667 SERVICED BY L=2700	1-47428-772-0	01	1	0201-0203	●	●
109	PIPE; AIR,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (D) L=2667 SERVICED BY L=2700	1-47428-772-0	01	1	0204-	●	●	●
109	PIPE; AIR,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (E)	1-49165-798-0	01	1	0012-0203	●	●
109	PIPE; AIR,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (E)	1-49165-798-0	01	1	0204-	●	●	●
109	PIPE; AIR,UNION TO UNION (F) L=2607 SERVICED BY L=2700	1-47428-772-0	01	1	0204-			●
147	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	0012-0203	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	0204-0602	●	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
147	NUT; CLIP FIX RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91150-108-0	04	1	0012-0203	●	●
147	NUT; CLIP FIX RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91150-108-0	04	1	0204-0602	●	●	●
147	NUT; CLIP FIX RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
154	GROMMET; CLU OIL PIPE	1-09333-026-2	01	1	0012-0203	●	●
154	GROMMET; CLU OIL PIPE	1-09333-026-2	01	1	0204-	●	●	●

109 109 153 110 109 24 47 110 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	PIPE ASM; CLU,M/CYL TO UNION	1-49163-399-0	01	1	0012-0203	●	●
24	PIPE ASM; CLU,M/CYL TO UNION	1-49163-399-0	01	1	0204-	●	●	●
47	HOSE; FLEX,CLU CONT L=400	1-09365-108-0	01	1	0012-0210	●	●
47	HOSE; FLEX,CLU CONT L=400	1-09365-108-0	01	1	0211-	●	●
47	HOSE; FLEX,CLU CONT 6SD1 TC-S(83L) L=400	1-09365-108-0	01	1	0211-			●
47	HOSE; FLEX,CLU CONT 6WA1 TC-C(55L) L=330	1-09364-665-0	01	1	0204-			●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 6200MM(62W) (B) L=2757 SERVICED BY L=3000	1-47428-773-0	01	1	0012-0203	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 6200MM(62W) (B) L=2757 SERVICED BY L=3000	1-47428-773-0	01	1	0204-	●	●	●
109	PIPE; AIR,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (C) L=1501 SERVICED BY L=1550	1-47428-766-0	01	1	0012-0203	●	●
109	PIPE; AIR,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (C) L=1501 SERVICED BY L=1550	1-47428-766-0	01	1	0204-	●	●	●
109	PIPE; AIR,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (A) L=2963 SERVICED BY L=3000	1-47428-773-0	01	1	0012-0203	●	●
109	PIPE; AIR,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (A) L=2963 SERVICED BY L=3000	1-47428-773-0	01	1	0204-	●	●	●
109	PIPE; AIR,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (D) L=2672 SERVICED BY L=2700	1-47428-772-0	01	1	0012-0112	●	●
109	PIPE; AIR,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (D) L=2667 SERVICED BY L=2700	1-47428-772-0	01	1	0201-0203	●	●
109	PIPE; AIR,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (D) L=2667 SERVICED BY L=2700	1-47428-772-0	01	1	0204-	●	●	●
109	PIPE; AIR,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (E)	1-49165-798-0	01	1	0012-0203	●	●
109	PIPE; AIR,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (E)	1-49165-798-0	01	1	0204-	●	●	●
109	PIPE; AIR,UNION TO UNION (F) L=2607 SERVICED BY L=2700	1-47428-772-0	01	1	0204-			●
110	PIPE; OIL,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (A) L=1185 SERVICED BY L=1250	1-47428-764-0	01	1	0012-0203	●	●
110	PIPE; OIL,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (A) L=1185 SERVICED BY L=1250	1-47428-764-0	01	1	0204-	●	●	●
110	PIPE; OIL,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (B) L=2130	1-49165-978-0	01	1	0012-0203	●	●
110	PIPE; OIL,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (B) L=2130	1-49165-978-0	01	1	0204-	●	●	●
110	PIPE; OIL,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (C) L=1348 SERVICED BY L=1400	1-47428-765-0	01	1	0012-0203	●	●
110	PIPE; OIL,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (C) L=1348 SERVICED BY L=1400	1-47428-765-0	01	1	0204-	●	●	●
110	PIPE; OIL,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (D) L=1856	1-49165-799-0	01	1	0012-	●	●
110	PIPE; OIL,UNION TO UNION 6WA1 TC-C(55L) (F) L=1972 SERVICED BY L=2150	1-47428-770-0	01	1	0204-			●
153	PIPE ASM; CLU,UNION TO FLEX RR ENG AIR SUSP(LVD5FB)	1-49165-476-0	01	1	0012-	●	●
153	PIPE ASM; CLU,UNION TO FLEX RR ENG LEAF SUSP(LVR5FB)	1-49165-478-0	01	1	0012-0203	●	●
153	PIPE ASM; CLU,UNION TO FLEX RR ENG LEAF SUSP(LVR5FB)	1-49165-478-0	01	1	0204-	●	●	●

110 34 37 33 38 38 106 153 87 110 93 107 109 36 32 35 37 54 9 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	0012-0203	●	●
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	0204-0602	●	●	●
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●
32	BRACKET; CLIP OIL PIPE (A) L=40	1-47478-410-0	02	1	0012-0203	●	●
32	BRACKET; CLIP OIL PIPE (A) L=40	1-47478-410-0	02	1	0204-	●	●	●
32	BRACKET; CLIP OIL PIPE (B)	1-47478-921-0	01	1	0012-0203	●	●
32	BRACKET; CLIP OIL PIPE (B)	1-47478-921-0	01	1	0204-	●	●	●
32	BRACKET; CLIP OIL PIPE (C)	1-47478-922-0	01	1	0012-0203	●	●
32	BRACKET; CLIP OIL PIPE (C)	1-47478-922-0	01	1	0204-	●	●	●
32	BRACKET; CLIP OIL PIPE (D)	1-47478-923-0	01	1	0012-0203	●	●
32	BRACKET; CLIP OIL PIPE (D)	1-47478-923-0	01	1	0204-	●	●	●
33	CLIP; OIL PIPE (B) D=18 H=30	1-09701-028-0	06	1	0012-0203	●	●
33	CLIP; OIL PIPE (B) D=18 H=30	1-09701-028-0	06	1	0204-	●	●	●
33	CLIP; OIL PIPE (C) ID=9 L=20	9-09524-835-0	02	1	0012-0203	●	●
33	CLIP; OIL PIPE (C) ID=9 L=20	9-09524-835-0	02	1	0204-0606	●	●	●
33	CLIP; OIL PIPE (C) ID=9 L=20	0-95234-835-0	02	1	0607-	●	●	●
33	CLIP; OIL PIPE RR ENG AIR SUSP(LVD5FB) (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0012-	●	●
33	CLIP; OIL PIPE RR ENG AIR SUSP(LVD5FB) (B) D=18 H=30	1-09701-028-0	02	1	0012-	●	●
33	CLIP; OIL PIPE RR ENG LEAF SUSP(LVR5FB) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0012-0203	●	●
33	CLIP; OIL PIPE RR ENG LEAF SUSP(LVR5FB) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0204-	●	●	●
33	CLIP; OIL PIPE RR ENG LEAF SUSP(LVR5FB) (B) D=18 H=30	1-09701-028-0	04	1	0012-0203	●	●
33	CLIP; OIL PIPE RR ENG LEAF SUSP(LVR5FB) (B) D=18 H=30	1-09701-028-0	04	1	0204-	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	05	1	0012-0203	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8X20 FLANGE	0-28680-820-0	05	1	0012-0203	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	05	1	0204-0512	●	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8X20 FLANGE	0-28680-820-0	05	1	0204-0512	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	05	1	0601-	●	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8X20 FLANGE	0-28650-820-0	05	1	0601-	●	●	●
34	BOLT; PIPE CLIP RR ENG AIR SUSP(LVD5FB) M8X20 FLANGE	0-28680-820-0	08	1	0012-0512	●	●
34	BOLT; PIPE CLIP RR ENG AIR SUSP(LVD5FB) M8X20 FLANGE	0-28650-820-0	08	1	0601-	●	●
34	BOLT; PIPE CLIP RR ENG AIR SUSP(LVD5FB) M8X25 FLANGE	0-28680-825-0	01	1	0012-0512	●	●
34	BOLT; PIPE CLIP RR ENG AIR SUSP(LVD5FB) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8X25 FLANGE	0-28680-825-0	04	1	0012-0203	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8X25 FLANGE	0-28680-825-0	04	1	0204-0512	●	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	05	1	0012-0203	●	●
35	NUT; PIPE CLIP RR ENG AIR SUSP(LVD5FB) M8 FLANGE	0-91150-108-0	05	1	0012-0203	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	05	1	0204-0602	●	●	●
35	NUT; PIPE CLIP RR ENG AIR SUSP(LVD5FB) M8 FLANGE	0-91150-108-0	05	1	0204-0602	●	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	05	1	0603-	●	●	●
35	NUT; PIPE CLIP RR ENG AIR SUSP(LVD5FB) M8 FLANGE	0-91180-108-0	05	1	0603-	●	●	●
35	NUT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91150-108-0	09	1	0012-0203	●	●
35	NUT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91150-108-0	09	1	0204-0602	●	●	●
35	NUT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91180-108-0	09	1	0603-	●	●
36	BRACKET; CLIP (A) L=40	1-47478-410-0	01	1	0012-0203	●	●
36	BRACKET; CLIP (A) L=40	1-47478-410-0	01	1	0204-	●	●	●
36	BRACKET; CLIP (B)	1-47478-929-0	01	1	0012-0203	●	●
36	BRACKET; CLIP (B)	1-47478-929-0	01	1	0204-	●	●	●
36	BRACKET; CLIP RR ENG LEAF SUSP(LVR5FB) (C) L=135	1-47478-729-0	01	1	0012-0203	●	●
36	BRACKET; CLIP RR ENG LEAF SUSP(LVR5FB) (C) L=135	1-47478-729-0	01	1	0204-	●	●	●
36	BRACKET; CLIP 6WA1 TC-C(55L) (D)	1-47478-924-0	01	1	0204-			●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	0012-0106	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	0107-0107	●	●
37	BOLT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	01	1	0107-0107	●	●
37	BOLT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	02	1	0108-0203	●	●
37	BOLT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	04	1	0204-0512	●	●	●
37	BOLT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	04	1	0012-0106	●	●
37	BOLT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	04	1	0107-0203	●	●
37	BOLT; CLIP BRKT M8X40 FLANGE	0-28680-840-0	02	1	0012-0203	●	●
37	BOLT; CLIP BRKT M8X40 FLANGE	0-28680-840-0	02	1	0204-0512	●	●	●
37	BOLT; CLIP BRKT M8X40 FLANGE	0-28650-840-0	02	1	0601-	●	●	●
37	BOLT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	02	1	0204-0512	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	0204-0512			●
37	BOLT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-			●
37	BOLT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	01	1	0108-0203	●	●
37	BOLT; CLIP BRKT 6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	01	1	0204-0512	●	●	●
37	BOLT; CLIP BRKT 6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●
38	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0012-0107	●	●
38	NUT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	01	1	0108-0203	●	●
38	NUT; CLIP BRKT 6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	01	1	0204-0602	●	●	●
38	NUT; CLIP BRKT 6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
38	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	06	1	0012-0106	●	●
38	NUT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	06	1	0107-0203	●	●
38	NUT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	06	1	0204-0602	●	●	●
38	NUT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	06	1	0603-	●	●	●
38	NUT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	03	1	0107-0107	●	●
38	NUT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	04	1	0108-0602	●	●
38	NUT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
38	NUT; CLIP BRKT 6WA1 TC-C(55L) M8 FLANGE	0-91150-108-0	02	1	0204-0602			●
38	NUT; CLIP BRKT 6WA1 TC-C(55L) M8 FLANGE	0-91180-108-0	02	1	0603-			●
54	BRACKET; AIR,FLEX HOSE	1-47477-284-1	01	1	0012-0203	●	●
54	BRACKET; AIR,FLEX HOSE	1-47477-284-1	01	1	0204-	●	●	●
57	HOSE; CLU M/CYL TO OIL TANK L=920 SERVICED BY L=1800	1-09360-320-0	01	1	0012-0203	●	●
57	HOSE; CLU M/CYL TO OIL TANK L=920 SERVICED BY L=1800	1-09360-320-0	01	1	0204-	●	●	●
87	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0012-0203	●	●
87	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0204-0607	●	●	●
87	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0608-	●	●	●
87	UNION; OIL PIPE (B) M14	9-09225-108-1	01	1	0012-0203	●	●
87	UNION; OIL PIPE (B) M14	9-09225-108-1	01	1	0204-0607	●	●	●
87	UNION; OIL PIPE (B) M14	0-92125-108-0	01	1	0608-	●	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	9-09150-514-0	03	1	0012-0203	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	9-09150-514-0	03	1	0204-0603	●	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	0-91510-514-0	03	1	0604-0903	●	●	●
93	WASHER; LK,UNION,OIL PIPE ID=14.2	0-91510-814-0	03	1	0904-	●	●	●
106	UNION; OIL PIPE M14	9-09223-308-1	03	1	0012-0203	●	●
106	UNION; OIL PIPE M14	9-09223-308-1	03	1	0204-0607	●	●	●
106	UNION; OIL PIPE M14	0-92113-308-0	03	1	0608-	●	●	●
107	NUT; UNION,OIL PIPE M14	9-99111-414-0	03	1	0012-0203	●	●
107	NUT; UNION,OIL PIPE M14	9-99111-414-0	03	1	0204-0512	●	●	●
107	NUT; UNION,OIL PIPE M14	0-91111-514-0	03	1	0601-	●	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 6200MM(62W) (B) L=2757 SERVICED BY L=3000	1-47428-773-0	01	1	0012-0203	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 6200MM(62W) (B) L=2757 SERVICED BY L=3000	1-47428-773-0	01	1	0204-	●	●	●
109	PIPE; AIR,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (C) L=1501 SERVICED BY L=1550	1-47428-766-0	01	1	0012-0203	●	●
109	PIPE; AIR,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (C) L=1501 SERVICED BY L=1550	1-47428-766-0	01	1	0204-	●	●	●
109	PIPE; AIR,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (A) L=2963 SERVICED BY L=3000	1-47428-773-0	01	1	0012-0203	●	●
109	PIPE; AIR,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (A) L=2963 SERVICED BY L=3000	1-47428-773-0	01	1	0204-	●	●	●
109	PIPE; AIR,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (D) L=2672 SERVICED BY L=2700	1-47428-772-0	01	1	0012-0112	●	●
109	PIPE; AIR,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (D) L=2667 SERVICED BY L=2700	1-47428-772-0	01	1	0201-0203	●	●
109	PIPE; AIR,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (D) L=2667 SERVICED BY L=2700	1-47428-772-0	01	1	0204-	●	●	●
109	PIPE; AIR,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (E)	1-49165-798-0	01	1	0012-0203	●	●
109	PIPE; AIR,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (E)	1-49165-798-0	01	1	0204-	●	●	●
109	PIPE; AIR,UNION TO UNION (F) L=2607 SERVICED BY L=2700	1-47428-772-0	01	1	0204-			●
110	PIPE; OIL,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (A) L=1185 SERVICED BY L=1250	1-47428-764-0	01	1	0012-0203	●	●
110	PIPE; OIL,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (A) L=1185 SERVICED BY L=1250	1-47428-764-0	01	1	0204-	●	●	●
110	PIPE; OIL,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (B) L=2130	1-49165-978-0	01	1	0012-0203	●	●
110	PIPE; OIL,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (B) L=2130	1-49165-978-0	01	1	0204-	●	●	●
110	PIPE; OIL,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (C) L=1348 SERVICED BY L=1400	1-47428-765-0	01	1	0012-0203	●	●
110	PIPE; OIL,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (C) L=1348 SERVICED BY L=1400	1-47428-765-0	01	1	0204-	●	●	●
110	PIPE; OIL,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (D) L=1856	1-49165-799-0	01	1	0012-	●	●
110	PIPE; OIL,UNION TO UNION 6WA1 TC-C(55L) (F) L=1972 SERVICED BY L=2150	1-47428-770-0	01	1	0204-			●
153	PIPE ASM; CLU,UNION TO FLEX RR ENG AIR SUSP(LVD5FB)	1-49165-476-0	01	1	0012-	●	●
153	PIPE ASM; CLU,UNION TO FLEX RR ENG LEAF SUSP(LVR5FB)	1-49165-478-0	01	1	0012-0203	●	●
153	PIPE ASM; CLU,UNION TO FLEX RR ENG LEAF SUSP(LVR5FB)	1-49165-478-0	01	1	0204-	●	●	●

24 109 109 109 153 47 110 110 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	PIPE ASM; CLU,M/CYL TO UNION	1-49163-399-0	01	1	0012-0203	●	●
24	PIPE ASM; CLU,M/CYL TO UNION	1-49163-399-0	01	1	0204-	●	●	●
47	HOSE; FLEX,CLU CONT L=400	1-09365-108-0	01	1	0012-0210	●	●
47	HOSE; FLEX,CLU CONT L=400	1-09365-108-0	01	1	0211-	●	●
47	HOSE; FLEX,CLU CONT 6SD1 TC-S(83L) L=400	1-09365-108-0	01	1	0211-			●
47	HOSE; FLEX,CLU CONT 6WA1 TC-C(55L) L=330	1-09364-665-0	01	1	0204-			●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 6200MM(62W) (B) L=2757 SERVICED BY L=3000	1-47428-773-0	01	1	0012-0203	●	●
109	PIPE; AIR,UNION TO UNION WHEEL BASE 6200MM(62W) (B) L=2757 SERVICED BY L=3000	1-47428-773-0	01	1	0204-	●	●	●
109	PIPE; AIR,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (C) L=1501 SERVICED BY L=1550	1-47428-766-0	01	1	0012-0203	●	●
109	PIPE; AIR,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (C) L=1501 SERVICED BY L=1550	1-47428-766-0	01	1	0204-	●	●	●
109	PIPE; AIR,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (A) L=2963 SERVICED BY L=3000	1-47428-773-0	01	1	0012-0203	●	●
109	PIPE; AIR,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (A) L=2963 SERVICED BY L=3000	1-47428-773-0	01	1	0204-	●	●	●
109	PIPE; AIR,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (D) L=2672 SERVICED BY L=2700	1-47428-772-0	01	1	0012-0112	●	●
109	PIPE; AIR,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (D) L=2667 SERVICED BY L=2700	1-47428-772-0	01	1	0201-0203	●	●
109	PIPE; AIR,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (D) L=2667 SERVICED BY L=2700	1-47428-772-0	01	1	0204-	●	●	●
109	PIPE; AIR,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (E)	1-49165-798-0	01	1	0012-0203	●	●
109	PIPE; AIR,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (E)	1-49165-798-0	01	1	0204-	●	●	●
109	PIPE; AIR,UNION TO UNION (F) L=2607 SERVICED BY L=2700	1-47428-772-0	01	1	0204-			●
110	PIPE; OIL,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (A) L=1185 SERVICED BY L=1250	1-47428-764-0	01	1	0012-0203	●	●
110	PIPE; OIL,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (A) L=1185 SERVICED BY L=1250	1-47428-764-0	01	1	0204-	●	●	●
110	PIPE; OIL,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (B) L=2130	1-49165-978-0	01	1	0012-0203	●	●
110	PIPE; OIL,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (B) L=2130	1-49165-978-0	01	1	0204-	●	●	●
110	PIPE; OIL,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (C) L=1348 SERVICED BY L=1400	1-47428-765-0	01	1	0012-0203	●	●
110	PIPE; OIL,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (C) L=1348 SERVICED BY L=1400	1-47428-765-0	01	1	0204-	●	●	●
110	PIPE; OIL,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (D) L=1856	1-49165-799-0	01	1	0012-	●	●
110	PIPE; OIL,UNION TO UNION 6WA1 TC-C(55L) (F) L=1972 SERVICED BY L=2150	1-47428-770-0	01	1	0204-			●
153	PIPE ASM; CLU,UNION TO FLEX RR ENG AIR SUSP(LVD5FB)	1-49165-476-0	01	1	0012-	●	●
153	PIPE ASM; CLU,UNION TO FLEX RR ENG LEAF SUSP(LVR5FB)	1-49165-478-0	01	1	0012-0203	●	●
153	PIPE ASM; CLU,UNION TO FLEX RR ENG LEAF SUSP(LVR5FB)	1-49165-478-0	01	1	0204-	●	●	●

37 153 115 34 116 38 36 153 87 110 47 33 48 54 9 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	0012-0203	●	●
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	0204-0602	●	●	●
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●
33	CLIP; OIL PIPE (B) D=18 H=30	1-09701-028-0	06	1	0012-0203	●	●
33	CLIP; OIL PIPE (B) D=18 H=30	1-09701-028-0	06	1	0204-	●	●	●
33	CLIP; OIL PIPE (C) ID=9 L=20	9-09524-835-0	02	1	0012-0203	●	●
33	CLIP; OIL PIPE (C) ID=9 L=20	9-09524-835-0	02	1	0204-0606	●	●	●
33	CLIP; OIL PIPE (C) ID=9 L=20	0-95234-835-0	02	1	0607-	●	●	●
33	CLIP; OIL PIPE RR ENG AIR SUSP(LVD5FB) (A) ID=8 H=20 L=20	1-09700-604-0	04	1	0012-	●	●
33	CLIP; OIL PIPE RR ENG AIR SUSP(LVD5FB) (B) D=18 H=30	1-09701-028-0	02	1	0012-	●	●
33	CLIP; OIL PIPE RR ENG LEAF SUSP(LVR5FB) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0012-0203	●	●
33	CLIP; OIL PIPE RR ENG LEAF SUSP(LVR5FB) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	0204-	●	●	●
33	CLIP; OIL PIPE RR ENG LEAF SUSP(LVR5FB) (B) D=18 H=30	1-09701-028-0	04	1	0012-0203	●	●
33	CLIP; OIL PIPE RR ENG LEAF SUSP(LVR5FB) (B) D=18 H=30	1-09701-028-0	04	1	0204-	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	05	1	0012-0203	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8X20 FLANGE	0-28680-820-0	05	1	0012-0203	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	05	1	0204-0512	●	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8X20 FLANGE	0-28680-820-0	05	1	0204-0512	●	●	●
34	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	05	1	0601-	●	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8X20 FLANGE	0-28650-820-0	05	1	0601-	●	●	●
34	BOLT; PIPE CLIP RR ENG AIR SUSP(LVD5FB) M8X20 FLANGE	0-28680-820-0	08	1	0012-0512	●	●
34	BOLT; PIPE CLIP RR ENG AIR SUSP(LVD5FB) M8X20 FLANGE	0-28650-820-0	08	1	0601-	●	●
34	BOLT; PIPE CLIP RR ENG AIR SUSP(LVD5FB) M8X25 FLANGE	0-28680-825-0	01	1	0012-0512	●	●
34	BOLT; PIPE CLIP RR ENG AIR SUSP(LVD5FB) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8X25 FLANGE	0-28680-825-0	04	1	0012-0203	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8X25 FLANGE	0-28680-825-0	04	1	0204-0512	●	●	●
34	BOLT; PIPE CLIP RR ENG LEAF SUSP(LVR5FB) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
36	BRACKET; CLIP (A) L=40	1-47478-410-0	01	1	0012-0203	●	●
36	BRACKET; CLIP (A) L=40	1-47478-410-0	01	1	0204-	●	●	●
36	BRACKET; CLIP (B)	1-47478-929-0	01	1	0012-0203	●	●
36	BRACKET; CLIP (B)	1-47478-929-0	01	1	0204-	●	●	●
36	BRACKET; CLIP RR ENG LEAF SUSP(LVR5FB) (C) L=135	1-47478-729-0	01	1	0012-0203	●	●
36	BRACKET; CLIP RR ENG LEAF SUSP(LVR5FB) (C) L=135	1-47478-729-0	01	1	0204-	●	●	●
36	BRACKET; CLIP 6WA1 TC-C(55L) (D)	1-47478-924-0	01	1	0204-			●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	0012-0106	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	0107-0107	●	●
37	BOLT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	01	1	0107-0107	●	●
37	BOLT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	02	1	0108-0203	●	●
37	BOLT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	04	1	0204-0512	●	●	●
37	BOLT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	04	1	0012-0106	●	●
37	BOLT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	04	1	0107-0203	●	●
37	BOLT; CLIP BRKT M8X40 FLANGE	0-28680-840-0	02	1	0012-0203	●	●
37	BOLT; CLIP BRKT M8X40 FLANGE	0-28680-840-0	02	1	0204-0512	●	●	●
37	BOLT; CLIP BRKT M8X40 FLANGE	0-28650-840-0	02	1	0601-	●	●	●
37	BOLT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	02	1	0204-0512	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	0204-0512			●
37	BOLT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-			●
37	BOLT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	01	1	0108-0203	●	●
37	BOLT; CLIP BRKT 6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	01	1	0204-0512	●	●	●
37	BOLT; CLIP BRKT 6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●
38	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0012-0107	●	●
38	NUT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	01	1	0108-0203	●	●
38	NUT; CLIP BRKT 6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	01	1	0204-0602	●	●	●
38	NUT; CLIP BRKT 6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
38	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	06	1	0012-0106	●	●
38	NUT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	06	1	0107-0203	●	●
38	NUT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	06	1	0204-0602	●	●	●
38	NUT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	06	1	0603-	●	●	●
38	NUT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	03	1	0107-0107	●	●
38	NUT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	04	1	0108-0602	●	●
38	NUT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
38	NUT; CLIP BRKT 6WA1 TC-C(55L) M8 FLANGE	0-91150-108-0	02	1	0204-0602			●
38	NUT; CLIP BRKT 6WA1 TC-C(55L) M8 FLANGE	0-91180-108-0	02	1	0603-			●
47	HOSE; FLEX,CLU CONT L=400	1-09365-108-0	01	1	0012-0210	●	●
47	HOSE; FLEX,CLU CONT L=400	1-09365-108-0	01	1	0211-	●	●
47	HOSE; FLEX,CLU CONT 6SD1 TC-S(83L) L=400	1-09365-108-0	01	1	0211-			●
47	HOSE; FLEX,CLU CONT 6WA1 TC-C(55L) L=330	1-09364-665-0	01	1	0204-			●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0012-0203	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0204-	●	●	●
54	BRACKET; AIR,FLEX HOSE	1-47477-284-1	01	1	0012-0203	●	●
54	BRACKET; AIR,FLEX HOSE	1-47477-284-1	01	1	0204-	●	●	●
57	HOSE; CLU M/CYL TO OIL TANK L=920 SERVICED BY L=1800	1-09360-320-0	01	1	0012-0203	●	●
57	HOSE; CLU M/CYL TO OIL TANK L=920 SERVICED BY L=1800	1-09360-320-0	01	1	0204-	●	●	●
87	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0012-0203	●	●
87	UNION; OIL PIPE (A) M14 STRAIGHT	9-09223-008-1	01	1	0204-0607	●	●	●
87	UNION; OIL PIPE (A) M14 STRAIGHT	0-92113-008-0	01	1	0608-	●	●	●
87	UNION; OIL PIPE (B) M14	9-09225-108-1	01	1	0012-0203	●	●
87	UNION; OIL PIPE (B) M14	9-09225-108-1	01	1	0204-0607	●	●	●
87	UNION; OIL PIPE (B) M14	0-92125-108-0	01	1	0608-	●	●	●
110	PIPE; OIL,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (A) L=1185 SERVICED BY L=1250	1-47428-764-0	01	1	0012-0203	●	●
110	PIPE; OIL,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (A) L=1185 SERVICED BY L=1250	1-47428-764-0	01	1	0204-	●	●	●
110	PIPE; OIL,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (B) L=2130	1-49165-978-0	01	1	0012-0203	●	●
110	PIPE; OIL,UNION TO UNION RR ENG AIR SUSP(LVD5FB) (B) L=2130	1-49165-978-0	01	1	0204-	●	●	●
110	PIPE; OIL,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (C) L=1348 SERVICED BY L=1400	1-47428-765-0	01	1	0012-0203	●	●
110	PIPE; OIL,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (C) L=1348 SERVICED BY L=1400	1-47428-765-0	01	1	0204-	●	●	●
110	PIPE; OIL,UNION TO UNION RR ENG LEAF SUSP(LVR5FB) (D) L=1856	1-49165-799-0	01	1	0012-	●	●
110	PIPE; OIL,UNION TO UNION 6WA1 TC-C(55L) (F) L=1972 SERVICED BY L=2150	1-47428-770-0	01	1	0204-			●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0012-0203	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0204-0512	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0012-0203	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0204-0603	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-0903	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-814-0	01	1	0904-	●	●	●
153	PIPE ASM; CLU,UNION TO FLEX RR ENG AIR SUSP(LVD5FB)	1-49165-476-0	01	1	0012-	●	●
153	PIPE ASM; CLU,UNION TO FLEX RR ENG LEAF SUSP(LVR5FB)	1-49165-478-0	01	1	0012-0203	●	●
153	PIPE ASM; CLU,UNION TO FLEX RR ENG LEAF SUSP(LVR5FB)	1-49165-478-0	01	1	0204-	●	●	●

37 153 115 116 29 38 36 147 36 47 92 48 54 9 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	0012-0203	●	●
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	0204-0602	●	●	●
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28680-820-0	03	1	0012-0203	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28680-820-0	03	1	0204-0512	●	●	●
29	BOLT; CLIP,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●	●
29	BOLT; CLIP,OIL PIPE RR ENG AIR SUSP(LVD5FB) (B) M8X25 FLANGE	0-28680-825-0	05	1	0012-0203	●	●
29	BOLT; CLIP,OIL PIPE RR ENG AIR SUSP(LVD5FB) (B) M8X25 FLANGE	0-28680-825-0	05	1	0204-0512	●	●	●
29	BOLT; CLIP,OIL PIPE RR ENG AIR SUSP(LVD5FB) (B) M8X25 FLANGE	0-28650-825-0	05	1	0601-	●	●	●
29	BOLT; CLIP,OIL PIPE RR ENG LEAF SUSP(LVR5FB) (B) M8X25 FLANGE	0-28680-825-0	04	1	0012-0203	●	●
29	BOLT; CLIP,OIL PIPE RR ENG LEAF SUSP(LVR5FB) (B) M8X25 FLANGE	0-28680-825-0	04	1	0204-0512	●	●	●
29	BOLT; CLIP,OIL PIPE RR ENG LEAF SUSP(LVR5FB) (B) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●
36	BRACKET; CLIP (A) L=40	1-47478-410-0	01	1	0012-0203	●	●
36	BRACKET; CLIP (A) L=40	1-47478-410-0	01	1	0204-	●	●	●
36	BRACKET; CLIP (B)	1-47478-929-0	01	1	0012-0203	●	●
36	BRACKET; CLIP (B)	1-47478-929-0	01	1	0204-	●	●	●
36	BRACKET; CLIP RR ENG LEAF SUSP(LVR5FB) (C) L=135	1-47478-729-0	01	1	0012-0203	●	●
36	BRACKET; CLIP RR ENG LEAF SUSP(LVR5FB) (C) L=135	1-47478-729-0	01	1	0204-	●	●	●
36	BRACKET; CLIP 6WA1 TC-C(55L) (D)	1-47478-924-0	01	1	0204-			●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	0012-0106	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	0107-0107	●	●
37	BOLT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	01	1	0107-0107	●	●
37	BOLT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	02	1	0108-0203	●	●
37	BOLT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	04	1	0204-0512	●	●	●
37	BOLT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	04	1	0012-0106	●	●
37	BOLT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	04	1	0107-0203	●	●
37	BOLT; CLIP BRKT M8X40 FLANGE	0-28680-840-0	02	1	0012-0203	●	●
37	BOLT; CLIP BRKT M8X40 FLANGE	0-28680-840-0	02	1	0204-0512	●	●	●
37	BOLT; CLIP BRKT M8X40 FLANGE	0-28650-840-0	02	1	0601-	●	●	●
37	BOLT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	02	1	0204-0512	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	02	1	0204-0512			●
37	BOLT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
37	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	02	1	0601-			●
37	BOLT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	01	1	0108-0203	●	●
37	BOLT; CLIP BRKT 6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28680-825-0	01	1	0204-0512	●	●	●
37	BOLT; CLIP BRKT 6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●	●
38	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0012-0107	●	●
38	NUT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	01	1	0108-0203	●	●
38	NUT; CLIP BRKT 6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	01	1	0204-0602	●	●	●
38	NUT; CLIP BRKT 6SD1 TC(32L) EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
38	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	06	1	0012-0106	●	●
38	NUT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	06	1	0107-0203	●	●
38	NUT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	06	1	0204-0602	●	●	●
38	NUT; CLIP BRKT EXC. EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	06	1	0603-	●	●	●
38	NUT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	03	1	0107-0107	●	●
38	NUT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-108-0	04	1	0108-0602	●	●
38	NUT; CLIP BRKT EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
38	NUT; CLIP BRKT 6WA1 TC-C(55L) M8 FLANGE	0-91150-108-0	02	1	0204-0602			●
38	NUT; CLIP BRKT 6WA1 TC-C(55L) M8 FLANGE	0-91180-108-0	02	1	0603-			●
47	HOSE; FLEX,CLU CONT L=400	1-09365-108-0	01	1	0012-0210	●	●
47	HOSE; FLEX,CLU CONT L=400	1-09365-108-0	01	1	0211-	●	●
47	HOSE; FLEX,CLU CONT 6SD1 TC-S(83L) L=400	1-09365-108-0	01	1	0211-			●
47	HOSE; FLEX,CLU CONT 6WA1 TC-C(55L) L=330	1-09364-665-0	01	1	0204-			●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0012-0203	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0204-	●	●	●
54	BRACKET; AIR,FLEX HOSE	1-47477-284-1	01	1	0012-0203	●	●
54	BRACKET; AIR,FLEX HOSE	1-47477-284-1	01	1	0204-	●	●	●
57	HOSE; CLU M/CYL TO OIL TANK L=920 SERVICED BY L=1800	1-09360-320-0	01	1	0012-0203	●	●
57	HOSE; CLU M/CYL TO OIL TANK L=920 SERVICED BY L=1800	1-09360-320-0	01	1	0204-	●	●	●
92	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0012-0203	●	●
92	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0204-	●	●	●
92	CLIP; OIL PIPE RR ENG AIR SUSP(LVD5FB) ID=8 H=20 L=20	1-09700-604-0	05	1	0012-	●	●
92	CLIP; OIL PIPE RR ENG LEAF SUSP(LVR5FB) ID=8 H=20 L=20	1-09700-604-0	04	1	0012-0203	●	●
92	CLIP; OIL PIPE RR ENG LEAF SUSP(LVR5FB) ID=8 H=20 L=20	1-09700-604-0	04	1	0204-	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0012-0203	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0204-0512	●	●	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0012-0203	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0204-0603	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-0903	●	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-814-0	01	1	0904-	●	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	0012-0203	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	0204-0602	●	●	●
147	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●
147	NUT; CLIP FIX RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91150-108-0	04	1	0012-0203	●	●
147	NUT; CLIP FIX RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91150-108-0	04	1	0204-0602	●	●	●
147	NUT; CLIP FIX RR ENG LEAF SUSP(LVR5FB) M8 FLANGE	0-91180-108-0	04	1	0603-	●	●
153	PIPE ASM; CLU,UNION TO FLEX RR ENG AIR SUSP(LVD5FB)	1-49165-476-0	01	1	0012-	●	●
153	PIPE ASM; CLU,UNION TO FLEX RR ENG LEAF SUSP(LVR5FB)	1-49165-478-0	01	1	0012-0203	●	●
153	PIPE ASM; CLU,UNION TO FLEX RR ENG LEAF SUSP(LVR5FB)	1-49165-478-0	01	1	0204-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
