8-80 — WINDSHIELD WIPER AND WASHER (#79889) — 83 parça

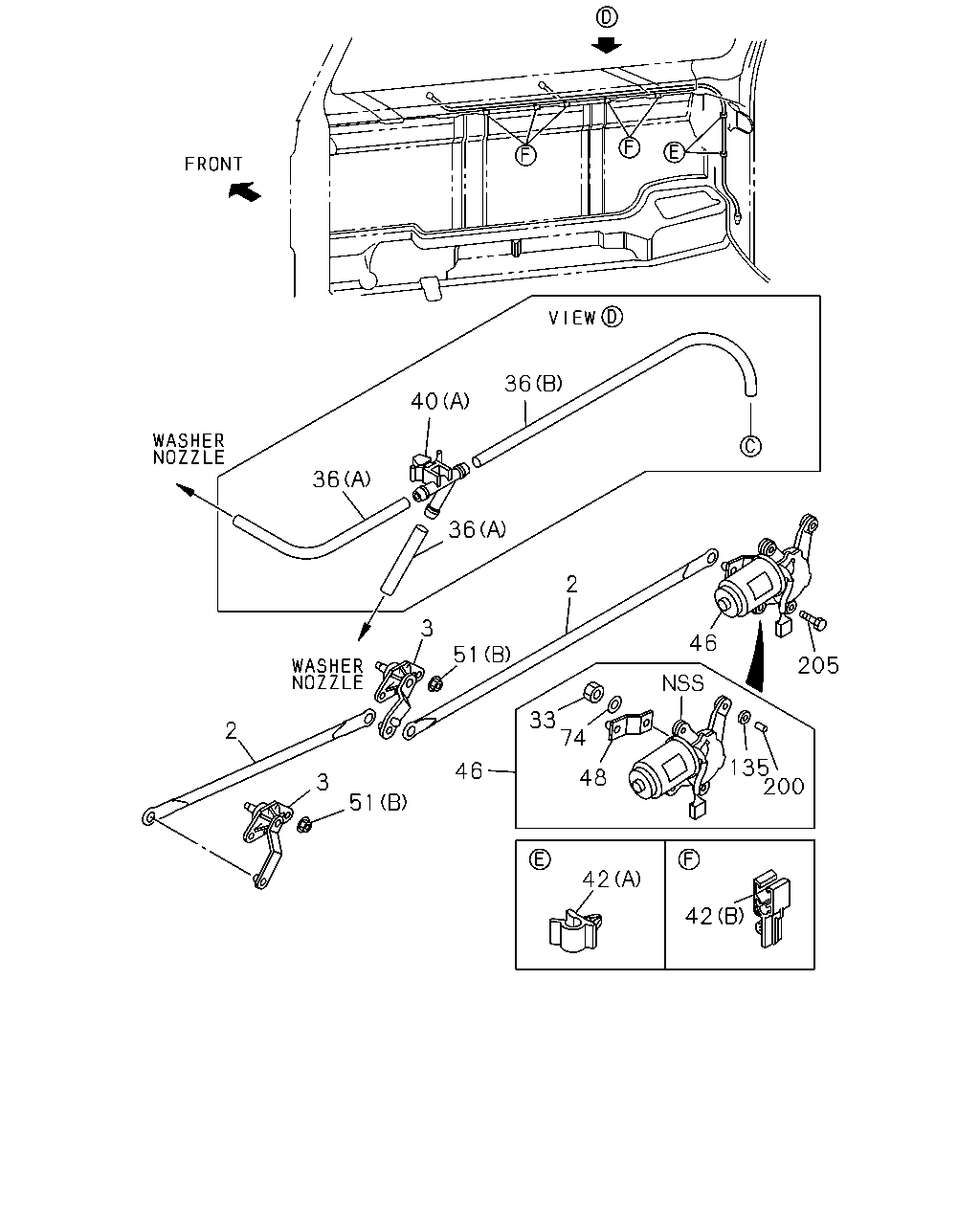

çizim 158110
42 42 74 33 135 200 46 205 2 51 3 36 36 40 36 51 3 2 46 48
BalonParca AdiParca NoAdetTipApplied Date A B
2 16.063 LINK; FRT WIPER
MOTOR TO PIVOT 		8-97855-150-0 01 1 1011-1308 ●
2 16.063 LINK; FRT WIPER
MOTOR TO PIVOT 		8-97855-150-0 01 1 1309- ● ●
2 16.063 LINK; FRT WIPER
PIVOT TO PIVOT L=580 W/CAP 		8-97855-153-0 01 1 1011-1308 ●
2 16.063 LINK; FRT WIPER
PIVOT TO PIVOT L=580 W/CAP 		8-97855-153-0 01 1 1309- ● ●
3 16.063 PIVOT ASM; FRT WIPER
CENTER 		8-97855-145-1 01 1 1011-1308 ●
3 16.063 PIVOT ASM; FRT WIPER
CENTER 		8-97855-145-1 01 1 1309- ● ●
3 16.063 PIVOT ASM; FRT WIPER
DRIVER 		8-98003-074-0 01 1 1011-1103 ●
3 16.063 PIVOT ASM; FRT WIPER
DRIVER 		8-97855-148-2 01 1 1104-1308 ●
3 16.063 PIVOT ASM; FRT WIPER
DRIVER 		8-97855-148-2 01 1 1309- ● ●
33 16.064 NUT; MOTOR TO ARM
M8 		8-97855-157-0 01 1 1011-1308 ●
33 16.064 NUT; MOTOR TO ARM
M8 		8-97855-157-0 01 1 1309- ● ●
36 16.065 HOSE; WASHER
10.155 (A) SERVICED BY L=10000 		8-94389-303-0 01 1 1011-1308 ●
36 16.065 HOSE; WASHER
10.155 (A) SERVICED BY L=10000 		8-94389-303-0 01 1 1309- ● ●
36 16.065 HOSE; WASHER
(B) SERVICED BY L=10000 		9-09914-906-0 01 1 1011-1308 ●
36 16.065 HOSE; WASHER
(B) SERVICED BY L=10000 		9-09914-906-0 01 1 1309- ● ●
40 16.065 JOINT; WASHER HOSE
(B) 		5-83363-006-0 01 1 1011-1308 ●
40 16.065 JOINT; WASHER HOSE
(B) 		5-83363-006-0 01 1 1309- ● ●
40 16.065 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 1011-1308 ●
40 16.065 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 1309- ● ●
42 16.065 CLIP; WASHER HOSE
(A) 		8-94144-956-0 02 1 1011-1308 ●
42 16.065 CLIP; WASHER HOSE
(A) 		8-94144-956-0 02 1 1309- ● ●
42 16.065 CLIP; WASHER HOSE
(B) 		8-94279-819-0 05 1 1011-1308 ●
42 16.065 CLIP; WASHER HOSE
(B) 		8-94279-819-0 05 1 1309- ● ●
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER 8-97361-375-2 01 1 1011-1308 ●
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER 8-97361-375-2 01 1 1309- ● ●
48 16.063 ARM; WIPER MOTOR 8-97218-924-0 01 1 1011-1308 ●
48 16.063 ARM; WIPER MOTOR 8-97218-924-0 01 1 1309- ● ●
51 16.063 NUT; WIPER MOTOR LINK
(A) 		8-97135-435-0 02 1 1011-1308 ●
51 16.063 NUT; WIPER MOTOR LINK
(A) 		8-97135-435-0 02 1 1309- ● ●
51 16.063 NUT; WIPER MOTOR LINK
04.634 (B) M8 FLANGE 		8-97581-233-0 04 1 1011-1308 ●
51 16.063 NUT; WIPER MOTOR LINK
04.634 (B) M8 FLANGE 		8-97581-233-0 04 1 1309- ● ●
74 16.063 WASHER; ARM TO MOTOR
ID=8 		8-97855-158-0 01 1 1011-1308 ●
74 16.063 WASHER; ARM TO MOTOR
ID=8 		8-97855-158-0 01 1 1309- ● ●
135 16.250 RUBBER; CUSHION,WIPER MOTOR 8-97855-159-0 03 1 1011-1308 ●
135 16.250 RUBBER; CUSHION,WIPER MOTOR 8-97855-159-0 03 1 1309- ● ●
200 16.064 COLLAR; WIPER MOTOR 8-97855-160-0 03 1 1011-1308 ●
200 16.064 COLLAR; WIPER MOTOR 8-97855-160-0 03 1 1309- ● ●
205 16.064 BOLT; WIPER MOTOR
10.152 M6X28 W/PL WASHER 		8-94148-420-0 03 1 1011-1308 ●
205 16.064 BOLT; WIPER MOTOR
10.152 M6X28 W/PL WASHER 		8-94148-420-0 03 1 1309- ● ●

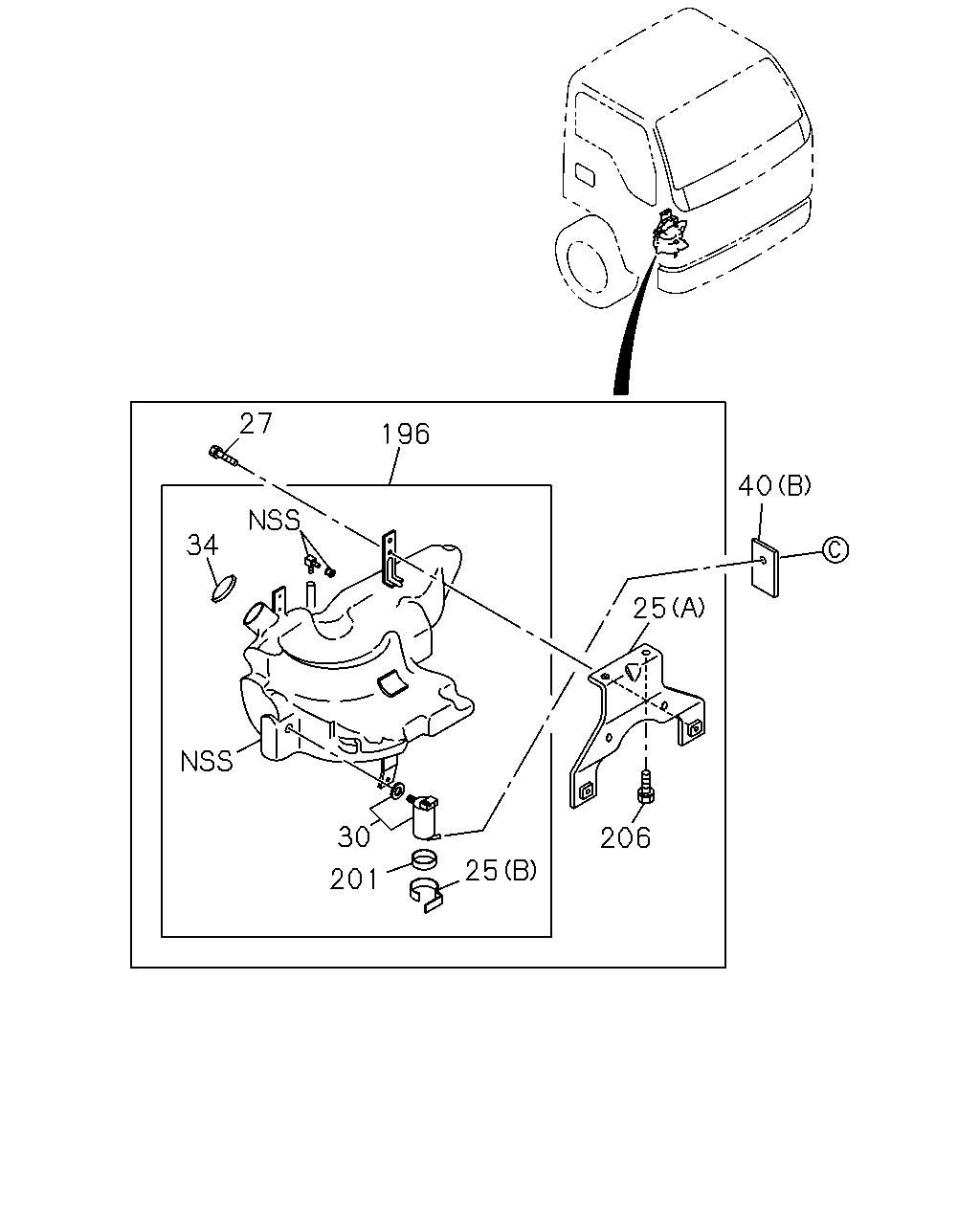

çizim 158195
40 25 196 27 34 30 201 25 206
BalonParca AdiParca NoAdetTipApplied Date A B
25 16.065 BRACKET; WASHER TANK
(A) 		8-97855-067-0 01 1 1011-1308 ●
25 16.065 BRACKET; WASHER TANK
(A) 		8-97855-067-0 01 1 1309- ● ●
25 16.065 BRACKET; WASHER TANK
(B) 		8-97855-226-0 01 1 1011-1308 ●
25 16.065 BRACKET; WASHER TANK
(B) 		8-97855-226-0 01 1 1309- ● ●
27 16.065 BOLT; WASHER TANK
16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 03 1 1011-1308 ●
27 16.065 BOLT; WASHER TANK
16.550 M8X16 W/LK&PL WASHER 		8-94310-730-0 03 1 1309- ● ●
30 16.065 MOTOR ASM; FRT WASHER TANK 8-97855-138-0 01 1 1011-1308 ●
30 16.065 MOTOR ASM; FRT WASHER TANK 8-97855-138-0 01 1 1309- ● ●
34 16.065 CAP; WASHER TANK 8-97855-140-0 01 1 1011-1308 ●
34 16.065 CAP; WASHER TANK 8-97855-140-0 01 1 1309- ● ●
40 16.065 JOINT; WASHER HOSE
(B) 		5-83363-006-0 01 1 1011-1308 ●
40 16.065 JOINT; WASHER HOSE
(B) 		5-83363-006-0 01 1 1309- ● ●
40 16.065 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 1011-1308 ●
40 16.065 JOINT; WASHER HOSE
(A) 		8-97855-163-0 01 1 1309- ● ●
196 16.065 TANK; WASHER 8-97855-065-6 01 1 1011-1308 ●
196 16.065 TANK; WASHER 8-97855-065-6 01 1 1309- ● ●
201 16.064 LINING; WIPER MOTOR 8-97352-826-0 01 1 1011-1308 ●
201 16.064 LINING; WIPER MOTOR 8-97352-826-0 01 1 1309- ● ●
206 16.065 BOLT; BRKT,WASHER TANK
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1011-1308 ●
206 16.065 BOLT; BRKT,WASHER TANK
02.343 M6X16 FLANGE 		0-28650-616-0 02 1 1309- ● ●
çizim 158271
198 230 51 11 10 199 39 5 9 7
BalonParca AdiParca NoAdetTipApplied Date A B
5 16.063 ARM; WIPER
DRIVER 		8-97226-885-0 01 1 1011-1308 ●
5 16.063 ARM; WIPER
DRIVER 		8-97226-885-0 01 1 1309- ● ●
5 16.063 ARM; WIPER
PASSENGER 		8-97226-886-0 01 1 1011-1308 ●
5 16.063 ARM; WIPER
PASSENGER 		8-97226-886-0 01 1 1309- ● ●
7 16.062 BLADE; WIPER 8-97137-469-2 02 1 1011-1308 ●
7 16.062 BLADE; WIPER 8-97137-469-2 02 1 1309- ● ●
9 16.062 RUBBER; FRT WIPER BLADE
L=475 		8-97142-093-1 02 1 1011-1308 ●
9 16.062 RUBBER; FRT WIPER BLADE
L=475 		8-97142-093-1 02 1 1309- ● ●
10 16.063 NUT; WIPER ARM TO WIPER PIVOT
02.334 M8 		0-91110-508-0 02 1 1011-1308 ●
10 16.063 NUT; WIPER ARM TO WIPER PIVOT
02.334 M8 		0-91110-508-0 02 1 1309- ● ●
11 16.063 COVER; WIPER ARM
BLACK 		8-94282-851-0 02 1 1011-1308 ●
11 16.063 COVER; WIPER ARM
BLACK 		8-94282-851-0 02 1 1309- ● ●
39 16.065 NOZZLE; WINDSHIELD WASHER 8-98010-172-0 02 1 1011-1308 ●
39 16.065 NOZZLE; WINDSHIELD WASHER 8-98010-172-0 02 1 1309- ● ●
51 16.063 NUT; WIPER MOTOR LINK
(A) 		8-97135-435-0 02 1 1011-1308 ●
51 16.063 NUT; WIPER MOTOR LINK
(A) 		8-97135-435-0 02 1 1309- ● ●
51 16.063 NUT; WIPER MOTOR LINK
04.634 (B) M8 FLANGE 		8-97581-233-0 04 1 1011-1308 ●
51 16.063 NUT; WIPER MOTOR LINK
04.634 (B) M8 FLANGE 		8-97581-233-0 04 1 1309- ● ●
198 16.063 COVER; PIVOT,WIPER 8-97359-329-0 02 1 1011-1308 ●
198 16.063 COVER; PIVOT,WIPER 8-97359-329-0 02 1 1309- ● ●
199 16.063 COVER; NOZZLE,WIPER 8-97855-022-1 02 1 1011-1308 ●
199 16.063 COVER; NOZZLE,WIPER 8-97855-022-1 02 1 1309- ● ●
230 16.064 COLLAR; WIPER LINK
16.065 		8-97135-434-0 02 1 1011-1308 ●
230 16.064 COLLAR; WIPER LINK
16.065 		8-97135-434-0 02 1 1309- ● ●
