Sayfa 8-65 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51376 - QKR(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-65 - CONTROL LEVER; HEATER AND AIR CON ▶

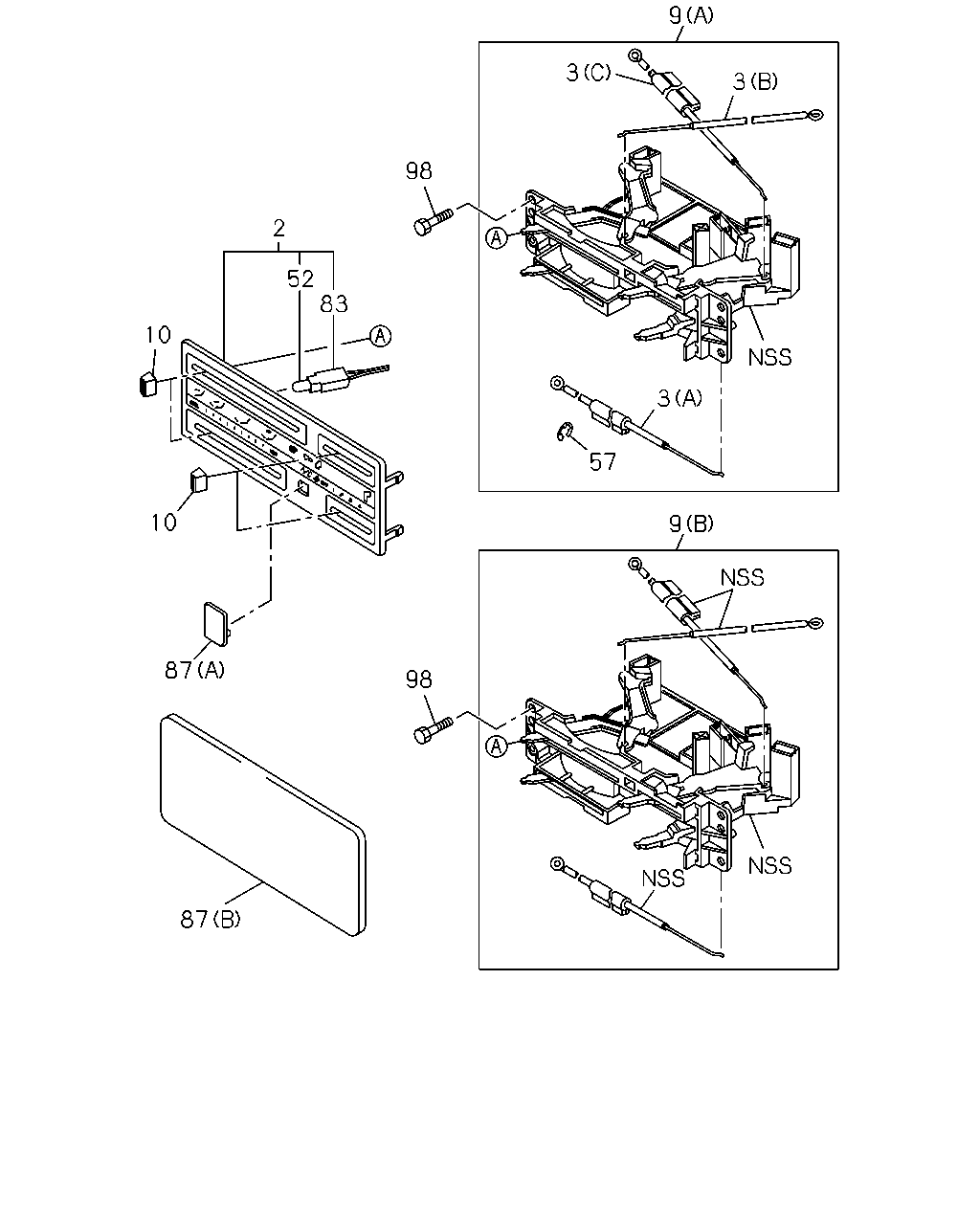

8-65 — CONTROL LEVER; HEATER AND AIR CON (#79887) — 36 parça

9 3 3 57 9 3 98 98 87 87 10 10 2 52 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	08.852 PANEL ASM; CONT,ILLUMINATION	8-97048-330-1	01	1	1011-1308	●
2	08.852 PANEL ASM; CONT,ILLUMINATION	8-97048-330-1	01	1	1309-	●	●
3	09.787 CABLE; HTR CONT LVR HEATER & DEFROSTER(C41) (A) MIX	8-97101-660-2	01	1	1011-1308	●
3	09.787 CABLE; HTR CONT LVR HEATER & DEFROSTER(C41) (A) MIX	8-97101-660-2	01	1	1309-1309	●	●
3	09.787 CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) (A) MIX	8-97101-660-2	01	1	1310-	●	●
3	09.787 CABLE; HTR CONT LVR HEATER & DEFROSTER(C41) (B) MODE	8-97101-674-2	01	1	1011-1308	●
3	09.787 CABLE; HTR CONT LVR HEATER & DEFROSTER(C41) (B) MODE	8-97101-674-2	01	1	1309-1309	●	●
3	09.787 CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) (B) MODE	8-97101-674-2	01	1	1310-	●	●
3	09.787 CABLE; HTR CONT LVR HEATER & DEFROSTER(C41) (C) FRESH	8-97101-675-3	01	1	1011-1308	●
3	09.787 CABLE; HTR CONT LVR HEATER & DEFROSTER(C41) (C) FRESH	8-97101-675-3	01	1	1309-1309	●	●
3	09.787 CABLE; HTR CONT LVR HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) (C) FRESH	8-97101-675-3	01	1	1310-	●	●
9	08.852 LEVER ASM; HTR & A/C CONT FORGED AIR VENTILATION(C39) (B)	8-97381-198-0	01	1	1011-1308	●
9	08.852 LEVER ASM; HTR & A/C CONT FORGED AIR VENTILATION(C39) (B)	8-97381-198-0	01	1	1309-	●	●
9	08.852 LEVER ASM; HTR & A/C CONT HEATER & DEFROSTER(C41) (A)	8-97069-831-1	01	1	1011-1308	●
9	08.852 LEVER ASM; HTR & A/C CONT HEATER & DEFROSTER(C41) (A)	8-97069-831-1	01	1	1309-1309	●	●
9	08.852 LEVER ASM; HTR & A/C CONT HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) (A)	8-97069-831-1	01	1	1310-	●	●
10	08.852 KNOB; CONT LEVER FORGED AIR VENTILATION(C39)	8-97114-430-0	02	1	1011-1308	●
10	08.852 KNOB; CONT LEVER FORGED AIR VENTILATION(C39)	8-97114-430-0	02	1	1309-	●	●
10	08.852 KNOB; CONT LEVER HEATER & DEFROSTER(C41)	8-97114-430-0	04	1	1011-1308	●
10	08.852 KNOB; CONT LEVER HEATER & DEFROSTER(C41)	8-97114-430-0	04	1	1309-1309	●	●
10	08.852 KNOB; CONT LEVER HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66)	8-97114-430-0	04	1	1310-	●	●
52	08.991 BULB; PANEL ILLUMINATION 14V 140MA	8-97100-290-0	01	1	1011-1308	●
52	08.991 BULB; PANEL ILLUMINATION 14V 140MA	8-97100-290-0	01	1	1309-	●	●
57	09.787 RING; SNAP,HTR CONT LVR HEATER & DEFROSTER(C41)	8-97311-509-0	01	1	1011-1308	●
57	09.787 RING; SNAP,HTR CONT LVR HEATER & DEFROSTER(C41)	8-97311-509-0	01	1	1309-1309	●	●
57	09.787 RING; SNAP,HTR CONT LVR HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66)	8-97311-509-0	01	1	1310-	●	●
83	08.849 HARNESS; CONT PANEL	8-97308-566-0	01	1	1011-1308	●
83	08.849 HARNESS; CONT PANEL	8-97308-566-0	01	1	1309-	●	●
87	08.849 CAP; A/C SWITCH (A)	8-97065-448-2	01	1	1011-1308	●
87	08.849 CAP; A/C SWITCH (A)	8-97065-448-2	01	1	1309-	●	●
87	08.849 CAP; A/C SWITCH EXC. HEATER & DEFROSTER(C41) (B)	8-97071-228-0	01	1	1011-1308	●
87	08.849 CAP; A/C SWITCH EXC. HEATER & DEFROSTER(C41) (B)	8-97071-228-0	01	1	1309-1309	●	●
87	08.849 CAP; A/C SWITCH EXC. HEATER & DEFROSTER(C41),AIR CON PROVISON FOR DEALER INSTALLATION(C66) (B)	8-97071-228-0	01	1	1310-	●	●
98	08.852 SCREW; CONT PANEL 10.230 M6X16 W/LK&PL WASHER	8-94139-963-0	03	1	1011-1210	●
98	08.852 SCREW; CONT PANEL 02.587 M6X19.5 W/LK&PL WASHER	8-97360-226-0	03	1	1211-1308	●
98	08.852 SCREW; CONT PANEL 02.587 M6X19.5 W/LK&PL WASHER	8-97360-226-0	03	1	1309-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
