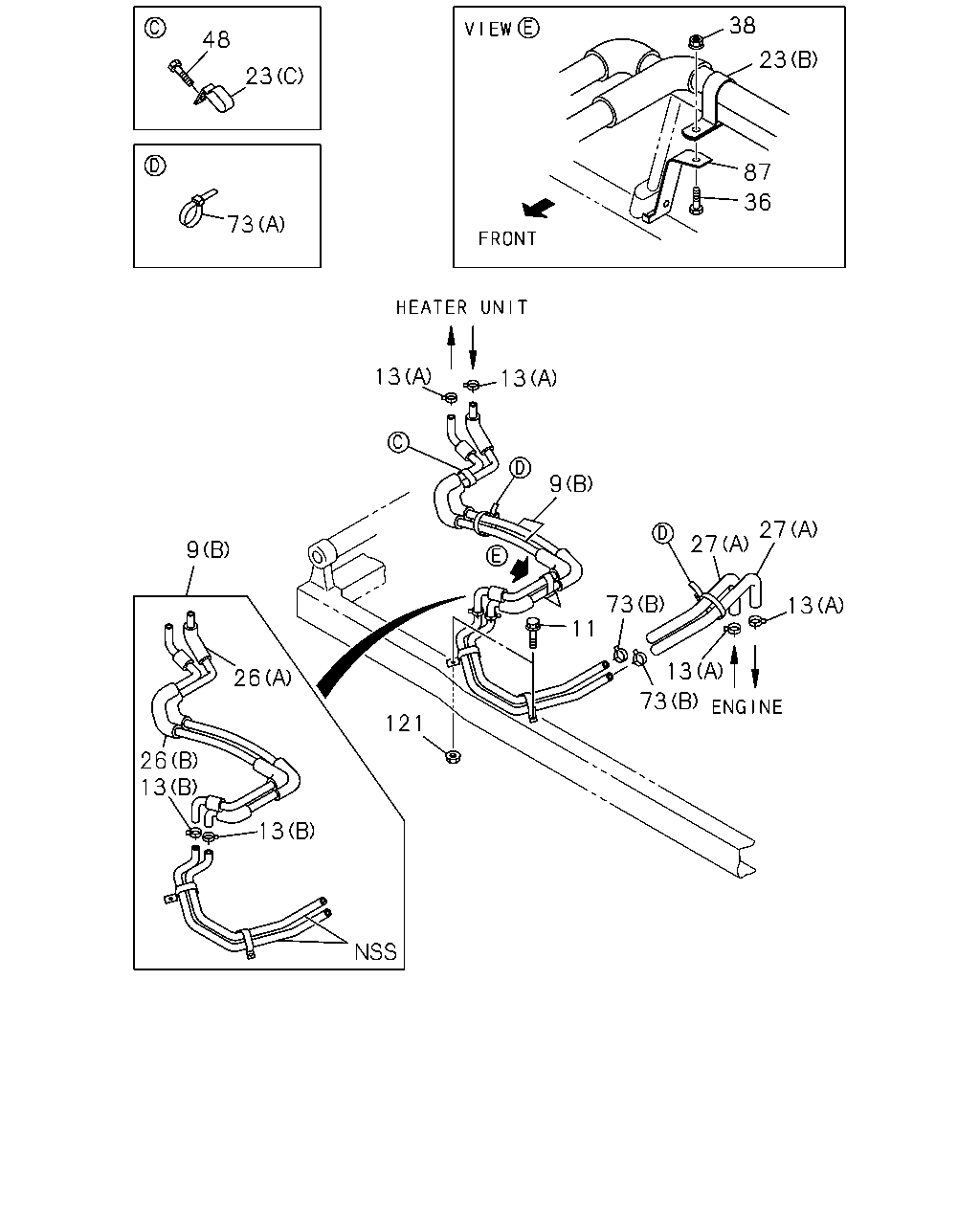

9 |
08.846 PIPE; HTR
4JB1-TC ENG(RDT)
HEATER & DEFROSTER(C41)
IDENTIFICATION LABEL FOR KD<6UT>
(B)
|
8-97693-081-0 |
01 |
1 |
1206-1308 |
● |
|
| |
9 |
08.846 PIPE; HTR
4JB1-TC ENG(RDT)
HEATER & DEFROSTER(C41)
IDENTIFICATION LABEL FOR KD<6UT>
(B)
|
8-97693-081-0 |
01 |
1 |
1309-1309 |
● |
● |
| |
9 |
08.846 PIPE; HTR
4JB1-TC ENG(RDT)
HEATER & DEFROSTER(C41),AIR CON PROVISON
FOR DEALER INSTALLATION(C66)
IDENTIFICATION LABEL FOR KD<6UT>
(B)
|
8-97693-081-0 |
01 |
1 |
1310- |
● |
● |
| |
9 |
08.846 PIPE; HTR
4JB1-TC ENG(RDT)
HEATER & DEFROSTER(C41)
EXC. IDENTIFICATION LABEL FOR KD<6UT>
(B)
|
8-97231-907-0 |
01 |
1 |
1206-1308 |
● |
|
| |
9 |
08.846 PIPE; HTR
4JB1-TC ENG(RDT)
HEATER & DEFROSTER(C41)
EXC. IDENTIFICATION LABEL FOR KD<6UT>
(B)
|
8-97231-907-0 |
01 |
1 |
1309-1309 |
● |
● |
| |
9 |
08.846 PIPE; HTR
4JB1-TC ENG(RDT)
HEATER & DEFROSTER(C41),AIR CON PROVISON
FOR DEALER INSTALLATION(C66)
EXC. IDENTIFICATION LABEL FOR KD<6UT>
(B)
|
8-97231-907-0 |
01 |
1 |
1310- |
● |
● |
| |

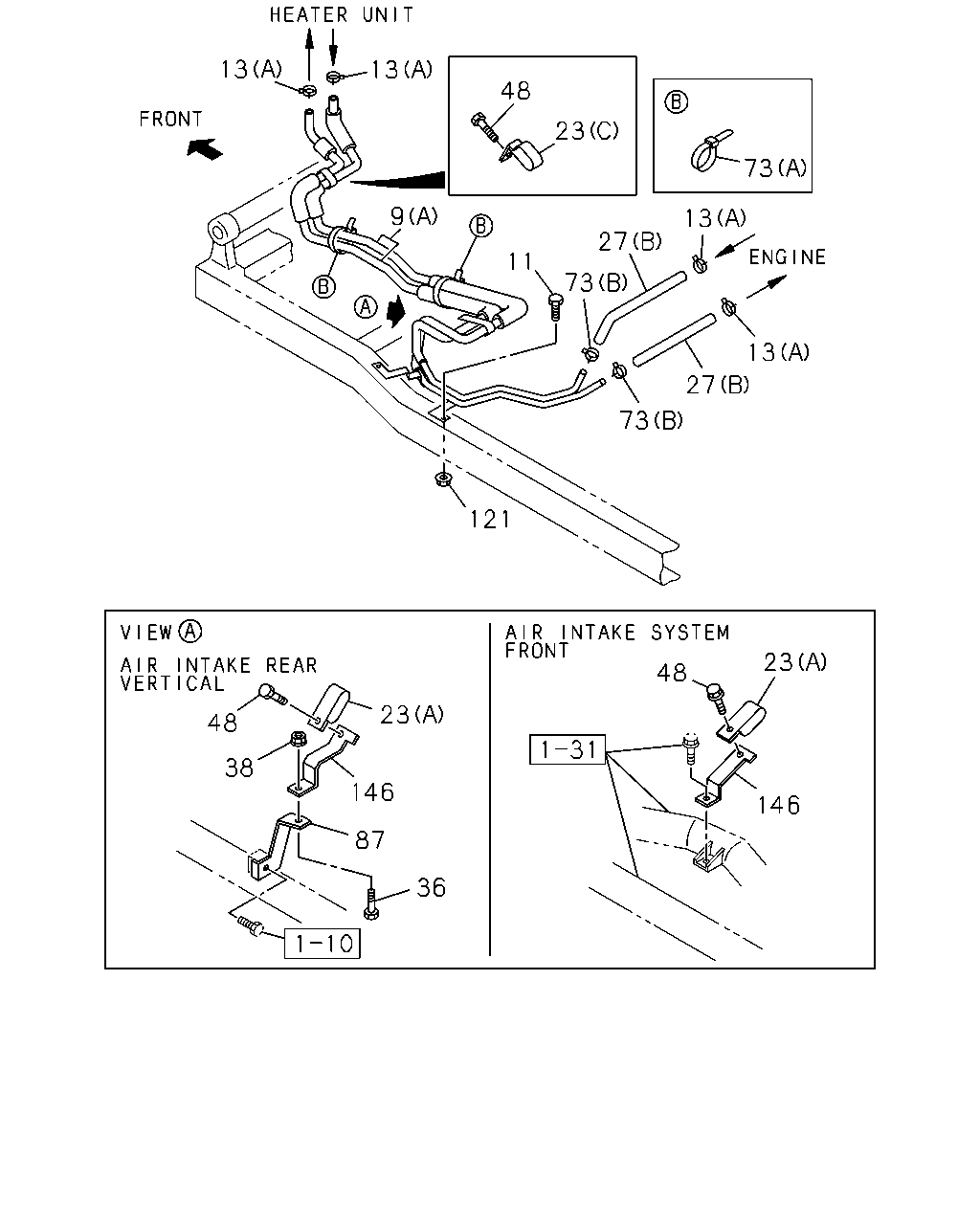

9 |
08.846 PIPE; HTR
4JB1-NA ENG(RLF)
HEATER & DEFROSTER(C41)
(A)
|
8-97129-185-0 |
01 |
1 |
1011-1309 |
● |
|
| |
9 |
08.846 PIPE; HTR
4JB1-NA ENG(RLF)
HEATER & DEFROSTER(C41),AIR CON PROVISON
FOR DEALER INSTALLATION(C66)
(A)
|
8-97129-185-0 |
01 |
1 |
1310- |
● |
|
| |
11 |
08.845 BOLT; HTR PIPE
HEATER & DEFROSTER(C41)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
1011-1308 |
● |
|
| |
11 |
08.845 BOLT; HTR PIPE
HEATER & DEFROSTER(C41)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
02 |
1 |
1309- |
● |
● |
| |
13 |
08.846 CLIP; HTR HOSE
4JB1-TC ENG(RDT)
HEATER & DEFROSTER(C41)
IDENTIFICATION LABEL FOR KD<6UT>
(B)
|
5-87220-509-0 |
02 |
1 |
1206-1308 |
● |
|
| |
13 |
08.846 CLIP; HTR HOSE
4JB1-TC ENG(RDT)
HEATER & DEFROSTER(C41)
IDENTIFICATION LABEL FOR KD<6UT>
(B)
|
5-87220-509-0 |
02 |
1 |
1309-1309 |
● |
● |
| |
13 |
08.846 CLIP; HTR HOSE
4JB1-TC ENG(RDT)
HEATER & DEFROSTER(C41),AIR CON PROVISON
FOR DEALER INSTALLATION(C66)
IDENTIFICATION LABEL FOR KD<6UT>
(B)
|
5-87220-509-0 |
02 |
1 |
1310- |
● |
● |
| |
13 |
08.846 CLIP; HTR HOSE
HEATER & DEFROSTER(C41)
03.278
(A)
ID=22
|
8-97359-141-0 |
04 |
1 |
1011-1308 |
● |
|
| |
13 |
08.846 CLIP; HTR HOSE
HEATER & DEFROSTER(C41)
03.278
(A)
ID=22
|
8-97359-141-0 |
04 |
1 |
1309-1309 |
● |
● |
| |
13 |
08.846 CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CON PROVISON
FOR DEALER INSTALLATION(C66)
03.278
(A)
ID=22
|
8-97359-141-0 |
04 |
1 |
1310-1401 |
● |
● |
| |
13 |
08.846 CLIP; HTR HOSE
HEATER & DEFROSTER(C41)
03.278
(A)
ID=22
|
8-97359-141-0 |
04 |
1 |
1402- |
● |
● |
| |
23 |
08.846 CLIP; WATER HOSE,DASH LWR
4JB1-TC ENG(RDT)
HEATER & DEFROSTER(C41)
(B)
|
8-98029-677-0 |
01 |
1 |
1206-1308 |
● |
|
| |
23 |
08.846 CLIP; WATER HOSE,DASH LWR
4JB1-TC ENG(RDT)
HEATER & DEFROSTER(C41)
(B)
|
8-98029-677-0 |
01 |
1 |
1309-1309 |
● |
● |
| |
23 |
08.846 CLIP; WATER HOSE,DASH LWR
4JB1-TC ENG(RDT)
HEATER & DEFROSTER(C41),AIR CON PROVISON
FOR DEALER INSTALLATION(C66)
(B)
|
8-98029-677-0 |
01 |
1 |
1310- |
● |
● |
| |
23 |
08.846 CLIP; WATER HOSE,DASH LWR
4JB1-NA ENG(RLF)
HEATER & DEFROSTER(C41)
(A)
B=18
|
8-97359-144-0 |
01 |
1 |
1011-1205 |
● |
|
| |
23 |
08.846 CLIP; WATER HOSE,DASH LWR
4JB1-NA ENG(RLF)
HEATER & DEFROSTER(C41)
(A)
B=18
|
8-98166-023-0 |
01 |
1 |
1206-1309 |
● |
|
| |
23 |
08.846 CLIP; WATER HOSE,DASH LWR
4JB1-NA ENG(RLF)
HEATER & DEFROSTER(C41),AIR CON PROVISON
FOR DEALER INSTALLATION(C66)
(A)
B=18
|
8-98166-023-0 |
01 |
1 |
1310- |
● |
|
| |
23 |
08.846 CLIP; WATER HOSE,DASH LWR
HEATER & DEFROSTER(C41)
08.852
(C)
|
8-98032-129-0 |
01 |
1 |
1011-1308 |
● |
|
| |
23 |
08.846 CLIP; WATER HOSE,DASH LWR
HEATER & DEFROSTER(C41)
08.852
(C)
|
8-98032-129-0 |
01 |
1 |
1309-1309 |
● |
● |
| |
23 |
08.846 CLIP; WATER HOSE,DASH LWR
HEATER & DEFROSTER(C41),AIR CON PROVISON
FOR DEALER INSTALLATION(C66)
08.852
(C)
|
8-98032-129-0 |
01 |
1 |
1310-1401 |
● |
● |
| |
23 |
08.846 CLIP; WATER HOSE,DASH LWR
HEATER & DEFROSTER(C41)
08.852
(C)
|
8-98032-129-0 |
01 |
1 |
1402- |
● |
● |
| |
26 |
08.846 HOSE; HTR
4JB1-TC ENG(RDT)
HEATER & DEFROSTER(C41)
IDENTIFICATION LABEL FOR KD<6UT>
(A)
|
5-87220-510-0 |
01 |
1 |
1206-1308 |
● |
|
| |
26 |
08.846 HOSE; HTR
4JB1-TC ENG(RDT)
HEATER & DEFROSTER(C41)
IDENTIFICATION LABEL FOR KD<6UT>
(A)
|
5-87220-510-0 |
01 |
1 |
1309-1309 |
● |
● |
| |
26 |
08.846 HOSE; HTR
4JB1-TC ENG(RDT)
HEATER & DEFROSTER(C41),AIR CON PROVISON
FOR DEALER INSTALLATION(C66)
IDENTIFICATION LABEL FOR KD<6UT>
(A)
|
5-87220-510-0 |
01 |
1 |
1310- |
● |
● |
| |
26 |
08.846 HOSE; HTR
4JB1-TC ENG(RDT)
HEATER & DEFROSTER(C41)
IDENTIFICATION LABEL FOR KD<6UT>
(B)
|
5-87220-511-0 |
01 |
1 |
1206-1308 |
● |
|
| |
26 |
08.846 HOSE; HTR
4JB1-TC ENG(RDT)
HEATER & DEFROSTER(C41)
IDENTIFICATION LABEL FOR KD<6UT>
(B)
|
5-87220-511-0 |
01 |
1 |
1309-1309 |
● |
● |
| |
26 |
08.846 HOSE; HTR
4JB1-TC ENG(RDT)
HEATER & DEFROSTER(C41),AIR CON PROVISON
FOR DEALER INSTALLATION(C66)
IDENTIFICATION LABEL FOR KD<6UT>
(B)
|
5-87220-511-0 |
01 |
1 |
1310- |
● |
● |
| |
27 |
08.846 HOSE; WATER,HTR UNIT TO WATER PI
4JB1-TC ENG(RDT)
HEATER & DEFROSTER(C41)
EURO2 SPECIFICATION(NT2)
(A)
|
8-97205-283-0 |
02 |
1 |
1206-1308 |
● |
|
| |
27 |
08.846 HOSE; WATER,HTR UNIT TO WATER PI
4JB1-TC ENG(RDT)
HEATER & DEFROSTER(C41)
(A)
|
8-97205-283-0 |
02 |
1 |
1309- |
● |
● |
| |
27 |
08.846 HOSE; WATER,HTR UNIT TO WATER PI
4JB1-NA ENG(RLF)
HEATER & DEFROSTER(C41)
(B)
|
8-97300-262-0 |
02 |
1 |
1011- |
● |
|
| |
36 |
08.846 BOLT; BRKT
HEATER & DEFROSTER(C41)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
1011-1308 |
● |
|
| |
36 |
08.846 BOLT; BRKT
HEATER & DEFROSTER(C41)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
1309-1309 |
● |
● |
| |
36 |
08.846 BOLT; BRKT
HEATER & DEFROSTER(C41),AIR CON PROVISON
FOR DEALER INSTALLATION(C66)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
1310-1401 |
● |
● |
| |
36 |
08.846 BOLT; BRKT
HEATER & DEFROSTER(C41)
06.216
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
1402- |
● |
● |
| |
38 |
08.846 NUT; BRKT
HEATER & DEFROSTER(C41)
01.540
M8 FLANGE
|
0-91180-208-0 |
01 |
1 |
1011-1308 |
● |
|
| |
38 |
08.846 NUT; BRKT
HEATER & DEFROSTER(C41)
01.540
M8 FLANGE
|
0-91180-208-0 |
01 |
1 |
1309-1309 |
● |
● |
| |
38 |
08.846 NUT; BRKT
HEATER & DEFROSTER(C41),AIR CON PROVISON
FOR DEALER INSTALLATION(C66)
01.540
M8 FLANGE
|
0-91180-208-0 |
01 |
1 |
1310-1401 |
● |
● |
| |
38 |
08.846 NUT; BRKT
HEATER & DEFROSTER(C41)
01.062
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
1402- |
● |
● |
| |
48 |
09.262 BOLT; CLIP FIX
4JB1-NA ENG(RLF)
HEATER & DEFROSTER(C41)
03.162
M6X12 FLANGE
|
0-28050-612-0 |
01 |
1 |
1011-1308 |
● |
|
| |
48 |
09.262 BOLT; CLIP FIX
HEATER & DEFROSTER(C41)
03.162
M6X12 FLANGE
|
0-28050-612-0 |
01 |
1 |
1011-1308 |
● |
|
| |
48 |
09.262 BOLT; CLIP FIX
HEATER & DEFROSTER(C41)
03.162
M6X12 FLANGE
|
0-28050-612-0 |
01 |
1 |
1309-1309 |
● |
● |
| |
48 |
09.262 BOLT; CLIP FIX
4JB1-NA ENG(RLF)
HEATER & DEFROSTER(C41)
03.162
M6X12 FLANGE
|
0-28050-612-0 |
01 |
1 |
1309-1309 |
● |
|
| |
48 |
09.262 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CON PROVISON
FOR DEALER INSTALLATION(C66)
03.162
M6X12 FLANGE
|
0-28050-612-0 |
01 |
1 |
1310-1401 |
● |
● |
| |
48 |
09.262 BOLT; CLIP FIX
4JB1-NA ENG(RLF)
HEATER & DEFROSTER(C41),AIR CON PROVISON
FOR DEALER INSTALLATION(C66)
03.162
M6X12 FLANGE
|
0-28050-612-0 |
01 |
1 |
1310-1401 |
● |
|
| |
48 |
09.262 BOLT; CLIP FIX
4JB1-NA ENG(RLF)
HEATER & DEFROSTER(C41),AIR CON PROVISON
FOR DEALER INSTALLATION(C66)
03.162
M6X12 FLANGE
|
0-28050-612-0 |
01 |
1 |
1402- |
● |
|
| |
48 |
09.262 BOLT; CLIP FIX
HEATER & DEFROSTER(C41),AIR CON PROVISON
FOR DEALER INSTALLATION(C66)
03.162
M6X12 FLANGE
|
0-28050-612-0 |
01 |
1 |
1402- |
● |
|
| |
48 |
09.262 BOLT; CLIP FIX
4JB1-TC ENG(RDT)
HEATER & DEFROSTER(C41),AIR CON PROVISON
FOR DEALER INSTALLATION(C66)
03.162
M6X12 FLANGE
|
0-28050-612-0 |
01 |
1 |
1402- |
|
● |
| |
73 |
08.846 CLIP; HTR HOSE
4JB1-NA ENG(RLF)
HEATER & DEFROSTER(C41)
02.559
(A)
L=250
|
5-09707-030-1 |
01 |
1 |
1011-1309 |
● |
|
| |
73 |
08.846 CLIP; HTR HOSE
4JB1-NA ENG(RLF)
HEATER & DEFROSTER(C41),AIR CON PROVISON
FOR DEALER INSTALLATION(C66)
02.559
(A)
L=250
|
5-09707-030-1 |
01 |
1 |
1310- |
● |
|
| |
73 |
08.846 CLIP; HTR HOSE
4JB1-NA ENG(RLF)
HEATER & DEFROSTER(C41)
02.559
(A)
L=250
|
5-09707-030-1 |
02 |
1 |
1011-1205 |
● |
|
| |
73 |
08.846 CLIP; HTR HOSE
HEATER & DEFROSTER(C41)
02.559
(A)
L=250
|
5-09707-030-1 |
02 |
1 |
1206-1308 |
● |
|
| |
73 |
08.846 CLIP; HTR HOSE
HEATER & DEFROSTER(C41)
02.559
(A)
L=250
|
5-09707-030-1 |
02 |
1 |
1309-1309 |
● |
|
| |
73 |
08.846 CLIP; HTR HOSE
4JB1-TC ENG(RDT)
HEATER & DEFROSTER(C41)
02.559
(A)
L=250
|
5-09707-030-1 |
02 |
1 |
1309-1309 |
|
● |
| |
73 |
08.846 CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CON PROVISON
FOR DEALER INSTALLATION(C66)
02.559
(A)
L=250
|
5-09707-030-1 |
02 |
1 |
1310- |
● |
|
| |
73 |
08.846 CLIP; HTR HOSE
4JB1-TC ENG(RDT)
HEATER & DEFROSTER(C41),AIR CON PROVISON
FOR DEALER INSTALLATION(C66)
02.559
(A)
L=250
|
5-09707-030-1 |
02 |
1 |
1310- |
|
● |
| |
73 |
08.846 CLIP; HTR HOSE
4JB1-NA ENG(RLF)
HEATER & DEFROSTER(C41)
03.278
(B)
ID=22
|
8-97359-141-0 |
02 |
1 |
1011-1205 |
● |
|
| |
73 |
08.846 CLIP; HTR HOSE
HEATER & DEFROSTER(C41)
03.278
(B)
ID=22
|
8-97359-141-0 |
02 |
1 |
1206-1309 |
● |
● |
| |
73 |
08.846 CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CON PROVISON
FOR DEALER INSTALLATION(C66)
03.278
(B)
ID=22
|
8-97359-141-0 |
02 |
1 |
1310- |
● |
● |
| |
87 |
08.846 BRACKET; HTR HOSE CLIP
HEATER & DEFROSTER(C41)
03.417
|
8-97072-530-0 |
01 |
1 |
1011-1308 |
● |
|
| |
87 |
08.846 BRACKET; HTR HOSE CLIP
HEATER & DEFROSTER(C41)
03.417
|
8-97072-530-0 |
01 |
1 |
1309-1309 |
● |
● |
| |
87 |
08.846 BRACKET; HTR HOSE CLIP
HEATER & DEFROSTER(C41),AIR CON PROVISON
FOR DEALER INSTALLATION(C66)
03.417
|
8-97072-530-0 |
01 |
1 |
1310-1401 |
● |
● |
| |
87 |
08.846 BRACKET; HTR HOSE CLIP
HEATER & DEFROSTER(C41)
03.417
|
8-97072-530-0 |
01 |
1 |
1402- |
● |
● |
| |
121 |
08.845 NUT; PIPE
HEATER & DEFROSTER(C41)
01.540
M8 FLANGE
|
0-91180-208-0 |
01 |
1 |
1011-1308 |
● |
|
| |
121 |
08.845 NUT; PIPE
HEATER & DEFROSTER(C41)
01.540
M8 FLANGE
|
0-91180-208-0 |
01 |
1 |
1309-1309 |
● |
|
| |
121 |
08.845 NUT; PIPE
4JB1-TC ENG(RDT)
HEATER & DEFROSTER(C41)
01.540
M8 FLANGE
|
0-91180-208-0 |
01 |
1 |
1309-1309 |
|
● |
| |
121 |
08.845 NUT; PIPE
HEATER & DEFROSTER(C41),AIR CON PROVISON
FOR DEALER INSTALLATION(C66)
01.540
M8 FLANGE
|
0-91180-208-0 |
01 |
1 |
1310-1401 |
● |
|
| |
121 |
08.845 NUT; PIPE
4JB1-TC ENG(RDT)
HEATER & DEFROSTER(C41),AIR CON PROVISON
FOR DEALER INSTALLATION(C66)
01.540
M8 FLANGE
|
0-91180-208-0 |
01 |
1 |
1310-1401 |
|
● |
| |
121 |
08.845 NUT; PIPE
HEATER & DEFROSTER(C41)
01.062
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
1402- |
● |
● |
