Isuzu WW
▶
TRUCKS
▶
QKR
▶
51376 - QKR(MIDDLE EAST)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-28 - CHASSIS ELECTRICAL
▶
8-28 — CHASSIS ELECTRICAL
(#79883) — 37 parça
Tümü
A - NKR6SN
B - NKR6SE
◀
[828A] NO.2 (11 parça)
[828A] NO.4 (2 parça)
[828A] NO.1 (13 parça)
[828A] NO.3 (11 parça)
▶
360
540
4
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B

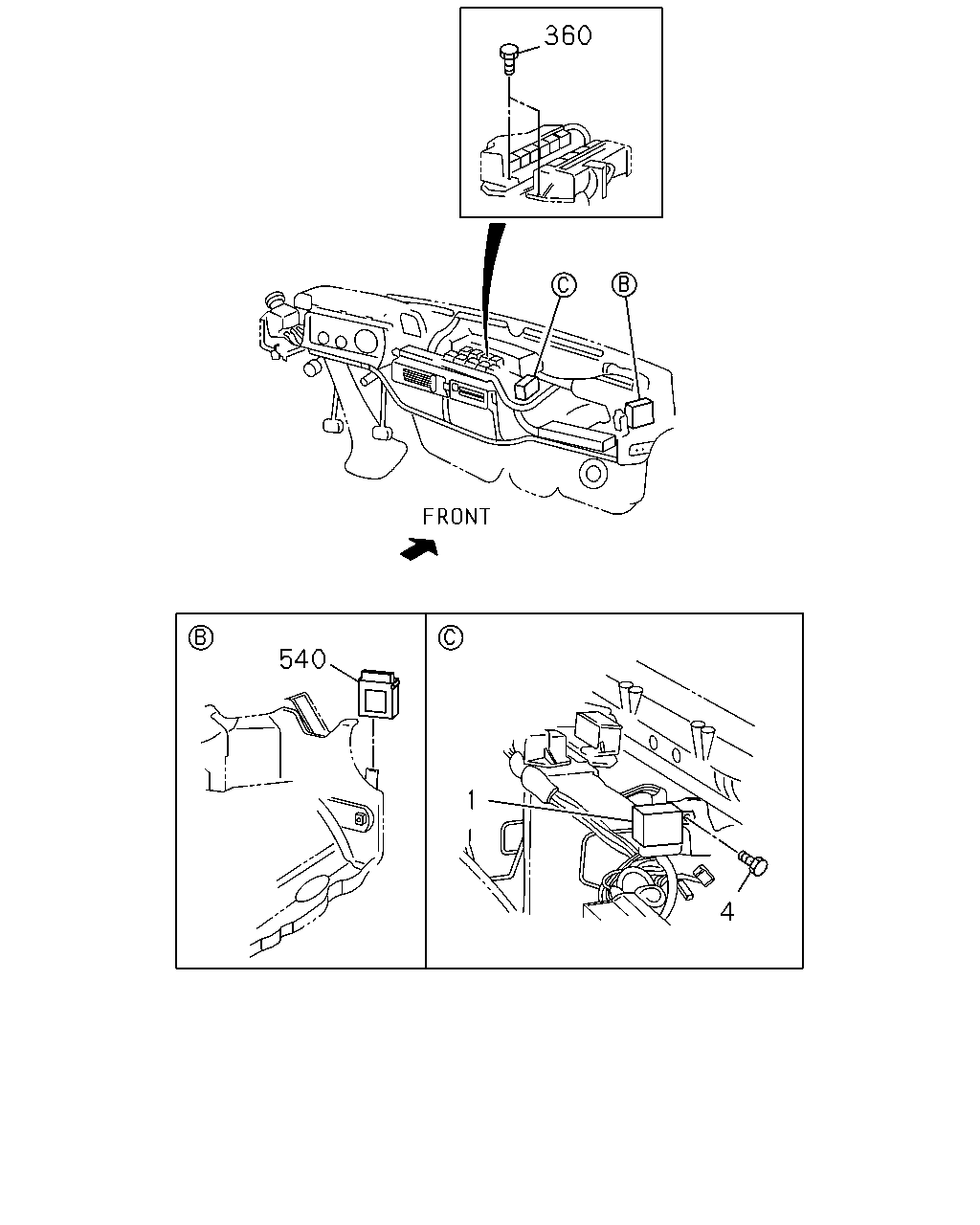

1
02.575 UNIT; FLASHER
8-97228-398-0
01
1
1011-1308
●
1
02.575 UNIT; FLASHER
8-97228-398-0
01
1
1309-
●
●
4
02.575 SCREW; FLASHER UNIT
10.230 M6X16 W/LK&PL WASHER
8-94139-963-0
01
1
1011-1210
●
4
02.575 SCREW; FLASHER UNIT
02.587 M6X19.5 W/LK&PL WASHER
8-97360-226-0
01
1
1211-1308
●
4
02.575 SCREW; FLASHER UNIT
02.587 M6X19.5 W/LK&PL WASHER
8-97360-226-0
01
1
1309-
●
●
360
02.483 BOLT; RELAY BOX
10.230 M6X16 W/LK&PL WASHER
8-94139-963-0
02
1
1011-1210
●
360
02.483 BOLT; RELAY BOX
02.587 M6X19.5 W/LK&PL WASHER
8-97360-226-0
02
1
1211-1308
●
360
02.483 BOLT; RELAY BOX
02.587 M6X19.5 W/LK&PL WASHER
8-97360-226-0
02
1
1309-
●
360
02.483 BOLT; RELAY BOX
4JB1-TC ENG(RDT) 02.587 M6X19.5 W/LK&PL WASHER
8-97360-226-0
02
1
1309-
●
540
16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13>
8-97363-984-0
01
1
1011-1308
●
540
16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13>
8-97363-984-0
01
1
1309-
●
●
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
11

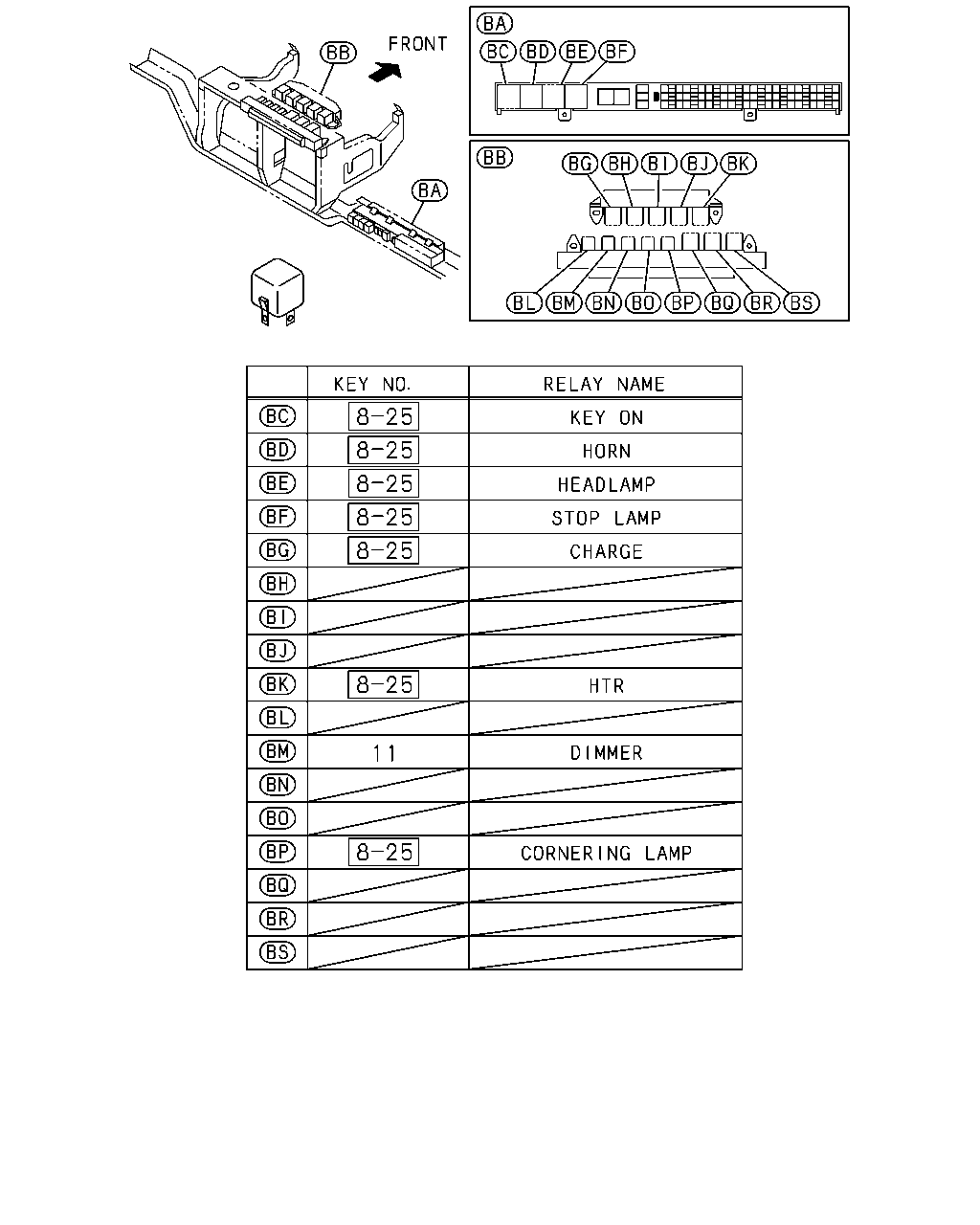

02.485 RELAY; DIMMER
02.510 12V 20A
8-97173-037-1
01
1
1011-1308
●
11
02.485 RELAY; DIMMER
02.510 12V 20A
8-97173-037-1
01
1
1309-
●
●
361
44
189
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
44
02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK)
8-97211-743-2
01
1
1011-1308
●
44
02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK)
8-97211-743-2
01
1
1309-
●
●
45
02.810 HORN; LOW NOTE
DUAL HEAVY DUTY HORN(6KK)
8-97211-744-2
01
1
1011-1308
●
45
02.810 HORN; LOW NOTE
DUAL HEAVY DUTY HORN(6KK)
8-97211-744-2
01
1
1309-
●
●
45
02.810 HORN; LOW NOTE
EXC. DUAL HEAVY DUTY HORN(6KK)
8-97109-362-1
01
1
1011-1308
●
45
02.810 HORN; LOW NOTE
EXC. DUAL HEAVY DUTY HORN(6KK)
8-97109-362-1
01
1
1309-
●
●
189
02.812 BOLT; HORN
DUAL HEAVY DUTY HORN(6KK) 02.343 M8X18.5 W/PL WASHER
8-98141-255-0
02
1
1011-1308
●
189
02.812 BOLT; HORN
DUAL HEAVY DUTY HORN(6KK) 02.343 M8X18.5 W/PL WASHER
8-98141-255-0
02
1
1309-
●
●
189
02.812 BOLT; HORN
EXC. DUAL HEAVY DUTY HORN(6KK) 02.343 M8X18.5 W/PL WASHER
8-98141-255-0
01
1
1011-1308
●
189
02.812 BOLT; HORN
EXC. DUAL HEAVY DUTY HORN(6KK) 02.343 M8X18.5 W/PL WASHER
8-98141-255-0
01
1
1309-
●
●
361
02.559 BOLT; CONNECTOR
08.225 M6X19.5 W/LK&PL WASHER
8-94279-201-0
01
1
1011-1210
●
361
02.559 BOLT; CONNECTOR
02.587 M6X19.5 W/LK&PL WASHER
8-97360-226-0
01
1
1211-1308
●
361
02.559 BOLT; CONNECTOR
02.587 M6X19.5 W/LK&PL WASHER
8-97360-226-0
01
1
1309-
●
●
770
100
100
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
100

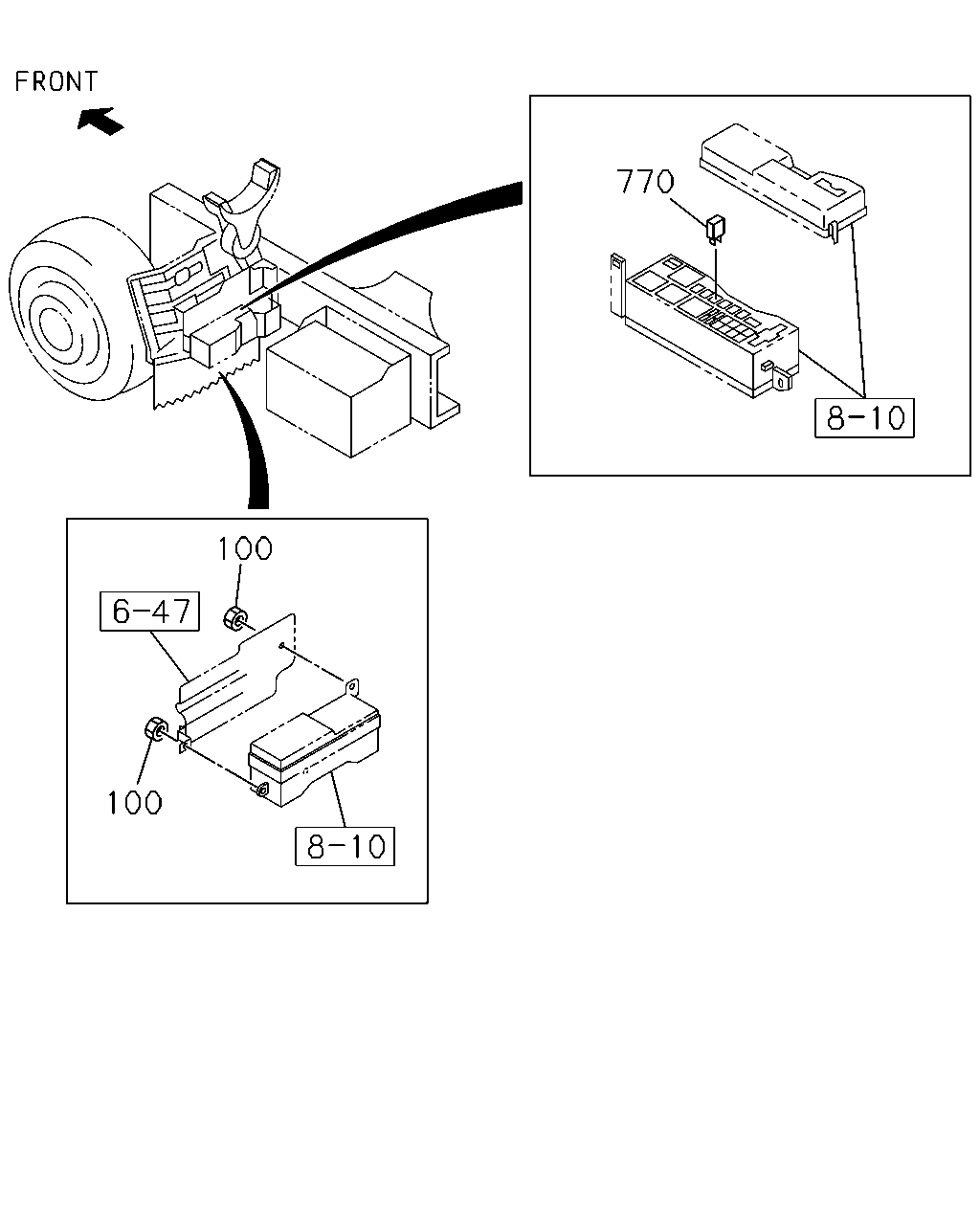

09.277 NUT; RELAY BOX COVER
01.062 M8 FLANGE
0-91180-108-0
03
1
1011-1308
●
100
09.277 NUT; RELAY BOX COVER
01.062 M8 FLANGE
0-91180-108-0
03
1
1309-
●
100
09.277 NUT; RELAY BOX COVER
4JB1-TC ENG(RDT) 01.062 M8 FLANGE
0-91180-108-0
03
1
1309-
●
770
02.510 RELAY; ENG BRK
4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 12V 20A
8-97173-037-1
01
1
1011-1205
●
770
02.510 RELAY; ENG BRK
4JB1-NA ENG(RLF) FUEL SEDIMENTER WITH HEATER<6HU> 12V 20A
8-97173-037-1
01
1
1011-1205
●
770
02.510 RELAY; ENG BRK
EXHAUST BRAKE<NF8> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 12V 20A
8-97173-037-1
01
1
1206-1308
●
770
02.510 RELAY; ENG BRK
FUEL SEDIMENTER WITH HEATER<6HU> 12V 20A
8-97173-037-1
01
1
1206-1308
●
770
02.510 RELAY; ENG BRK
EXHAUST BRAKE<NF8> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 12V 20A
8-97173-037-1
01
1
1309-
●
770
02.510 RELAY; ENG BRK
FUEL SEDIMENTER WITH HEATER<6HU> 12V 20A
8-97173-037-1
01
1
1309-
●
770
02.510 RELAY; ENG BRK
4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 12V 20A
8-97173-037-1
01
1
1309-
●
770
02.510 RELAY; ENG BRK
4JB1-TC ENG(RDT) FUEL SEDIMENTER WITH HEATER<6HU> 12V 20A
8-97173-037-1
01
1
1309-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
