Isuzu WW
▶
TRUCKS
▶
QKR
▶
51376 - QKR(MIDDLE EAST)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#79882) — 15 parça
Tümü
A - NKR6SN
B - NKR6SE
◀
[826A] NO.2 (2 parça)
[826A] NO.1 (13 parça)
▶

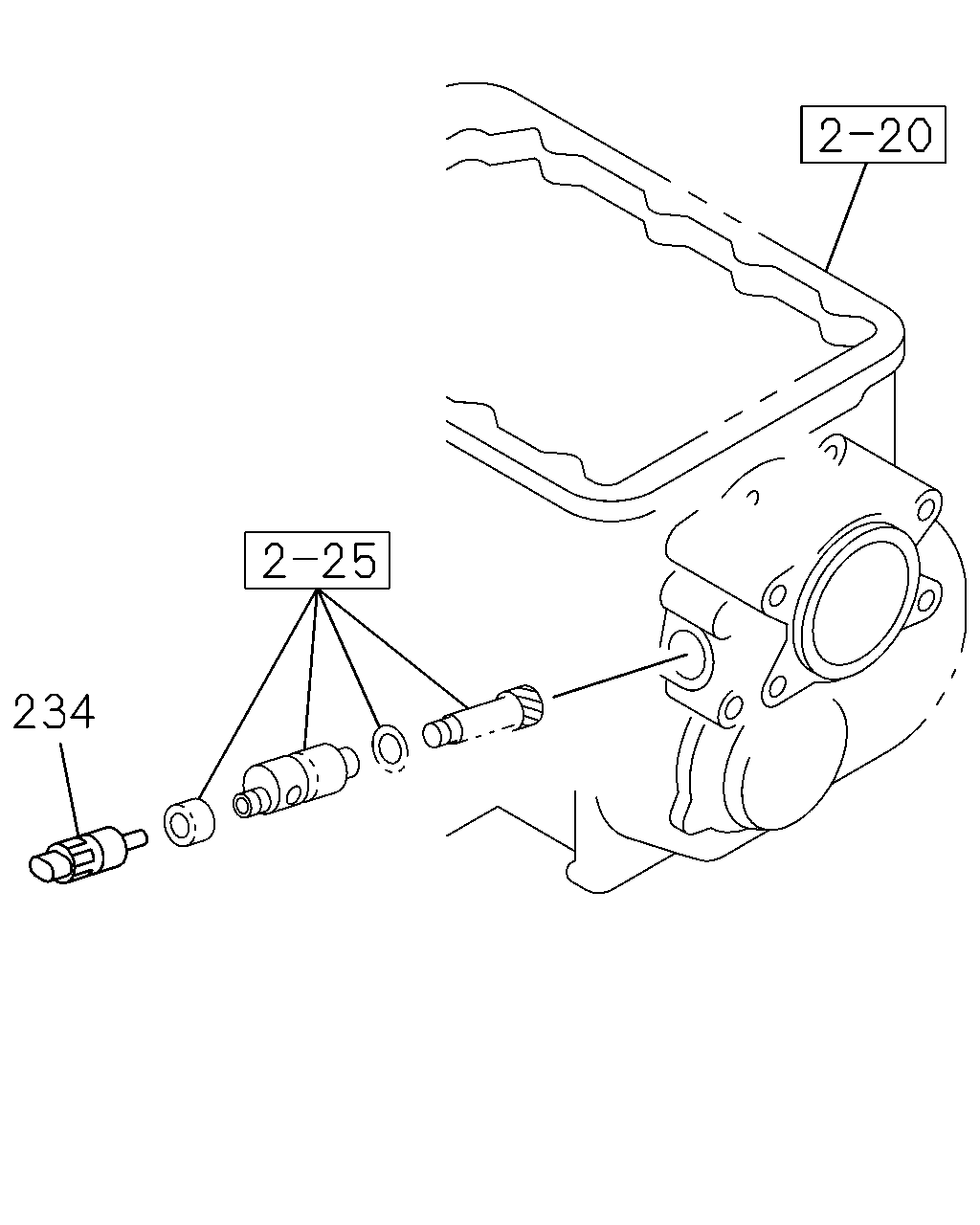

234
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
234
03.682 SENSOR; VEHICLE SPD
4 PULSE ALUMINUM
8-97256-525-0
01
1
1011-1308
●
234
03.682 SENSOR; VEHICLE SPD
4 PULSE ALUMINUM
8-97256-525-0
01
1
1309-
●
●
2
1
3
21
21

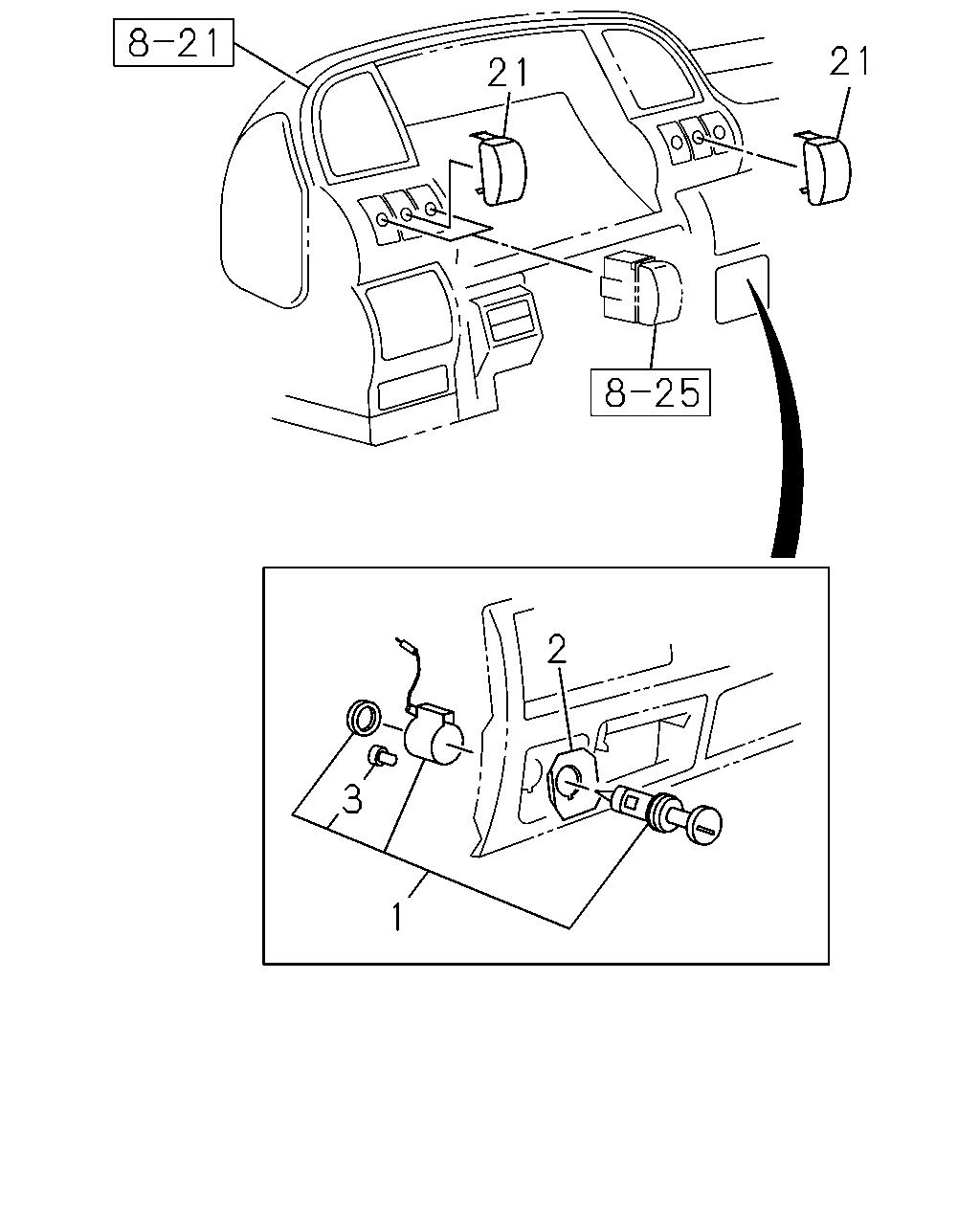

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
09.709 LIGHTER; CIGAR
8-97320-322-0
01
1
1011-1308
●
1
09.709 LIGHTER; CIGAR
8-97320-322-0
01
1
1309-
●
●
2
09.709 BEZEL; CIGAR LIGHTER
8-98091-060-0
01
1
1011-1308
●
2
09.709 BEZEL; CIGAR LIGHTER
8-98091-060-0
01
1
1309-
●
●
3
08.991 BULB; CIGAR LIGHTER
14V 1.4W
8-97173-160-0
01
1
1011-1308
●
3
08.991 BULB; CIGAR LIGHTER
14V 1.4W
8-97173-160-0
01
1
1309-
●
●
21
09.744 COVER; HOLE
8-97136-694-0
01
1
1011-1205
●
21
09.744 COVER; HOLE
4JB1-NA ENG(RLF)
8-97136-694-0
01
1
1011-1205
●
21
09.744 COVER; HOLE
8-97136-694-0
01
1
1206-1308
●
21
09.744 COVER; HOLE
8-97136-694-0
01
1
1206-1308
●
21
09.744 COVER; HOLE
8-97136-694-0
01
1
1309-
●
●
21
09.744 COVER; HOLE
8-97136-694-0
01
1
1309-
●
21
09.744 COVER; HOLE
4JB1-TC ENG(RDT)
8-97136-694-0
01
1
1309-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
