2-03 — CLUTCH PEDAL AND CONTROL (#7988) — 105 parça

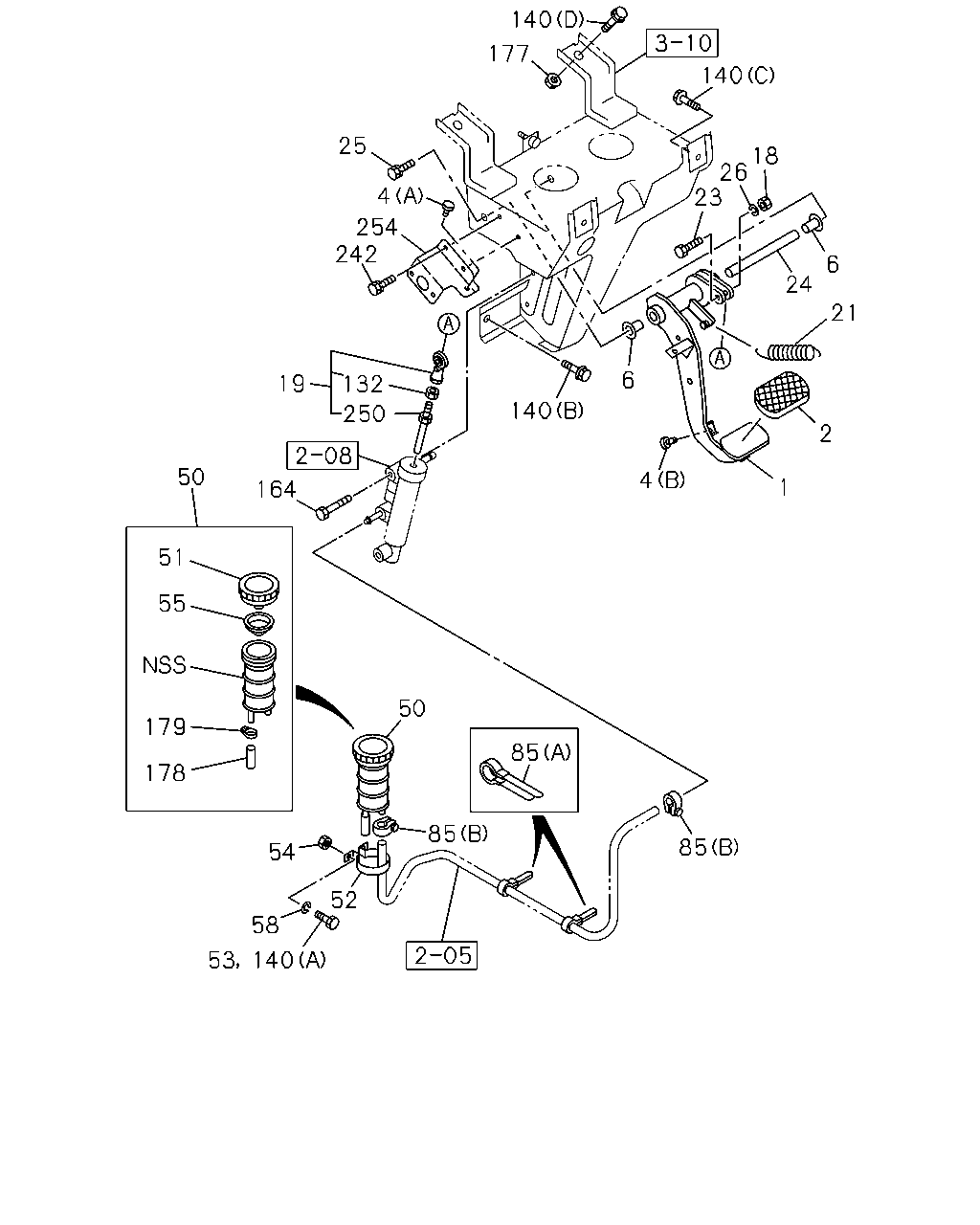

çizim 6522
140 177 140 25 18 26 23 4 254 242 6 24 21 6 19 132 140 250 2 50 4 1 164 51 55 50 179 85 178 85 85 54 52 58 53 140
BalonParca AdiParca NoAdetTipApplied Date A B
1 PEDAL; CLU
6SD1 TC-S(83L) 		1-73907-321-4 01 1 0211- ●
1 PEDAL; CLU 1-73908-171-3 01 1 0012-0203 ● ●
1 PEDAL; CLU
ISUZU M/T<X9A> 		1-73908-171-3 01 1 0204-0210 ● ●
1 PEDAL; CLU
6SD1 TC(32L),6WA1 TC-C(55L) ISUZU M/T<X9A> 		1-73908-171-3 01 1 0211- ● ●
2 COVER; CLU PEDAL 8-94204-810-0 01 1 0012-0106 ● ●
2 COVER; CLU PEDAL 8-97893-618-1 01 1 0107-0203 ● ●
2 COVER; CLU PEDAL
ISUZU M/T<X9A> 		8-97893-618-1 01 1 0204- ● ●
4 STOPPER; CLU PEDAL
A/T<X9D> (A) 		1-47319-014-1 01 1 0204- ●
4 STOPPER; CLU PEDAL
(A) 		1-47319-014-1 04 1 0012-0203 ● ●
4 STOPPER; CLU PEDAL
ISUZU M/T<X9A> (A) 		1-47319-014-1 04 1 0204- ● ●
4 STOPPER; CLU PEDAL
(B) 		5-31419-003-0 01 1 0012-0106 ● ●
6 BUSHING; CLU PEDAL 1-09330-045-0 02 1 0012-0203 ● ●
6 BUSHING; CLU PEDAL
ISUZU M/T<X9A> 		1-09330-045-0 02 1 0204- ● ●
18 NUT; PUSH ROD
M8 		0-91110-508-0 01 1 0107-0203 ● ●
18 NUT; PUSH ROD
ISUZU M/T<X9A> M8 		0-91110-508-0 01 1 0204-0210 ● ●
18 NUT; PUSH ROD
6SD1 TC(32L),6WA1 TC-C(55L) ISUZU M/T<X9A> M8 		0-91110-508-0 01 1 0211- ● ●
18 NUT; PUSH ROD
6SD1 TC-S(83L) M8 		9-09110-508-0 01 1 0211- ●
18 NUT; PUSH ROD
M8 		9-09110-508-0 01 1 0012-0106 ● ●
19 ROD ASM; PUSH,CLU
6SD1 TC-S(83L) 		1-73907-692-0 01 1 0211- ●
19 ROD ASM; PUSH,CLU 1-73908-332-0 01 1 0012-0106 ● ●
19 ROD ASM; PUSH,CLU 1-73996-144-1 01 1 0107-0203 ● ●
19 ROD ASM; PUSH,CLU
ISUZU M/T<X9A> 		1-73996-144-1 01 1 0204-0210 ● ●
19 ROD ASM; PUSH,CLU
6SD1 TC(32L),6WA1 TC-C(55L) ISUZU M/T<X9A> 		1-73996-144-1 01 1 0211- ● ●
21 SPRING; RETURN,CLU PEDAL 1-73908-265-0 01 1 0012-0203 ● ●
21 SPRING; RETURN,CLU PEDAL
ISUZU M/T<X9A> 		1-73908-265-0 01 1 0204- ● ●
23 BOLT; PUSH ROD
M8X35 		0-10960-835-0 01 1 0107-0203 ● ●
23 BOLT; PUSH ROD
ISUZU M/T<X9A> M8X35 		0-10960-835-0 01 1 0204-0210 ● ●
23 BOLT; PUSH ROD
6SD1 TC(32L),6WA1 TC-C(55L) ISUZU M/T<X9A> M8X35 		0-10960-835-0 01 1 0211- ● ●
23 BOLT; PUSH ROD
6SD1 TC-S(83L) M8X39.7 		1-09009-150-0 01 1 0211- ●
23 BOLT; PUSH ROD
M8X43.7 		1-73908-333-0 01 1 0012-0106 ● ●
24 SHAFT; CLU PEDAL 1-73998-936-1 01 1 0012- ● ●
25 BOLT; PEDAL
M10X25 W/LK WASHER 		0-50051-025-0 02 1 0012- ● ●
26 WASHER; LK,PUSH ROD
ID=8.2 		0-91510-608-0 01 1 0107-0203 ● ●
26 WASHER; LK,PUSH ROD
ISUZU M/T<X9A> ID=8.2 		0-91510-608-0 01 1 0204-0210 ● ●
26 WASHER; LK,PUSH ROD
6SD1 TC(32L),6WA1 TC-C(55L) ISUZU M/T<X9A> ID=8.2 		0-91510-608-0 01 1 0211- ● ●
26 WASHER; LK,PUSH ROD
6SD1 TC-S(83L) ID=8.2 		9-09150-608-0 01 1 0211- ●
26 WASHER; LK,PUSH ROD
ID=8.2 		9-09150-608-0 01 1 0012-0106 ● ●
50 TANK; OIL,CLU 1-47530-183-1 01 1 0012-0203 ● ●
50 TANK; OIL,CLU
ISUZU M/T<X9A> 		1-47530-183-1 01 1 0204- ● ●
51 CAP; OIL TANK,CLU 9-47525-032-1 01 1 0012-0203 ● ●
51 CAP; OIL TANK,CLU
ISUZU M/T<X9A> 		9-47525-032-1 01 1 0204- ● ●
52 BRACKET; OIL TANK,CLU M/CYL 9-47537-023-1 01 1 0012-0203 ● ●
52 BRACKET; OIL TANK,CLU M/CYL
ISUZU M/T<X9A> 		9-47537-023-1 01 1 0204- ● ●
53 BOLT; BRKT,OIL TANK,CLU M/CYL
M5X16 		0-20800-516-0 01 1 0012-0203 ● ●
53 BOLT; BRKT,OIL TANK,CLU M/CYL
ISUZU M/T<X9A> M5X16 		0-20800-516-0 01 1 0204- ● ●
54 NUT; BRKT,OIL TANK,CLU M/CYL
M5 		9-99110-405-0 03 1 0012-0203 ● ●
54 NUT; BRKT,OIL TANK,CLU M/CYL
ISUZU M/T<X9A> M5 		9-99110-405-0 03 1 0204-0512 ● ●
54 NUT; BRKT,OIL TANK,CLU M/CYL
ISUZU M/T<X9A> M5 		0-91110-505-0 03 1 0601- ● ●
55 BAFFLE; RUBBER,CLU M/CYL 9-47529-031-0 01 1 0012-0203 ● ●
55 BAFFLE; RUBBER,CLU M/CYL
ISUZU M/T<X9A> 		9-47529-031-0 01 1 0204- ● ●
58 WASHER; PL,BRKT,OIL TANK,CLU M/CYL
ID=5.3 		9-09160-505-0 02 1 0012-0203 ● ●
58 WASHER; PL,BRKT,OIL TANK,CLU M/CYL
ISUZU M/T<X9A> ID=5.3 		9-09160-505-0 02 1 0204-0605 ● ●
58 WASHER; PL,BRKT,OIL TANK,CLU M/CYL
ISUZU M/T<X9A> ID=5.3 		0-91610-505-0 02 1 0606- ● ●
85 CLIP; HOSE TO M/CYL
(A) ID=15 L=65 		1-09700-466-0 02 1 0012-0203 ● ●
85 CLIP; HOSE TO M/CYL
ISUZU M/T<X9A> (A) ID=15 L=65 		1-09700-466-0 02 1 0204-0607 ● ●
85 CLIP; HOSE TO M/CYL
ISUZU M/T<X9A> (A) ID=14 L=44 		9-09917-427-0 02 1 0608- ● ●
85 CLIP; HOSE TO M/CYL
(B) ID=15 		9-09715-098-0 02 1 0012-0203 ● ●
85 CLIP; HOSE TO M/CYL
ISUZU M/T<X9A> (B) ID=15 		9-09715-098-0 02 1 0204- ● ●
132 NUT; LK,PUSH ROD
M8 		0-91110-508-0 01 1 0107-0203 ● ●
132 NUT; LK,PUSH ROD
ISUZU M/T<X9A> M8 		0-91110-508-0 01 1 0204-0210 ● ●
132 NUT; LK,PUSH ROD
6SD1 TC(32L),6WA1 TC-C(55L) ISUZU M/T<X9A> M8 		0-91110-508-0 01 1 0211- ● ●
132 NUT; LK,PUSH ROD
6SD1 TC-S(83L) M8 		9-09110-408-0 01 1 0211- ●
132 NUT; LK,PUSH ROD
M8 		9-09110-408-0 01 1 0012-0106 ● ●
140 BOLT; BRKT
(A) M5X16 		0-20800-516-0 02 1 0012-0203 ● ●
140 BOLT; BRKT
ISUZU M/T<X9A> (A) M5X16 		0-20800-516-0 02 1 0204- ● ●
140 BOLT; BRKT
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0012-0512 ● ●
140 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
140 BOLT; BRKT
(C) M8X30 FLANGE 		0-28680-830-0 02 1 0012-0512 ● ●
140 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
140 BOLT; BRKT
(D) M10X25 FLANGE 		0-28681-025-0 02 1 0012-0512 ● ●
140 BOLT; BRKT
(D) M10X25 FLANGE 		0-28651-025-0 02 1 0601- ● ●
164 BOLT; CLU M/CYL
M10X70 FLANGE 		0-28081-070-0 02 1 0012-0203 ● ●
164 BOLT; CLU M/CYL
ISUZU M/T<X9A> M10X70 FLANGE 		0-28081-070-0 02 1 0204-0512 ● ●
164 BOLT; CLU M/CYL
ISUZU M/T<X9A> M10X70 FLANGE 		0-28051-070-0 02 1 0601- ● ●
177 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0012-0602 ● ●
177 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
178 CAP; OIL TANK HOSE 1-47539-005-0 01 1 0012-0203 ● ●
178 CAP; OIL TANK HOSE
ISUZU M/T<X9A> 		1-47539-005-0 01 1 0204- ● ●
179 CLIP; CAP TO OIL TANK
ID=15 		9-09715-098-0 01 1 0012-0203 ● ●
179 CLIP; CAP TO OIL TANK
ISUZU M/T<X9A> ID=15 		9-09715-098-0 01 1 0204- ● ●
242 BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER 		0-50540-616-0 02 1 0107-0203 ● ●
242 BOLT; BRKT,CLUTCH
ISUZU M/T<X9A> M6X16 W/LK WASHER 		0-50540-616-0 02 1 0204-0210 ● ●
242 BOLT; BRKT,CLUTCH
6SD1 TC(32L),6WA1 TC-C(55L) ISUZU M/T<X9A> M6X16 W/LK WASHER 		0-50540-616-0 02 1 0211- ● ●
242 BOLT; BRKT,CLUTCH
6SD1 TC-S(83L) M6X16 W/LK WASHER 		0-50040-616-0 02 1 0211- ●
242 BOLT; BRKT,CLUTCH
M6X16 W/LK WASHER 		0-50040-616-0 02 1 0012-0106 ● ●
250 ROD; PUSH,CLU 1-73996-219-0 01 1 0012-0203 ● ●
250 ROD; PUSH,CLU
ISUZU M/T<X9A> 		1-73996-219-0 01 1 0204- ● ●
254 BRACKET; CLU SENSOR 1-73998-979-4 01 1 0012-0203 ● ●
254 BRACKET; CLU SENSOR
ISUZU M/T<X9A> 		1-73998-979-5 01 1 0204- ● ●

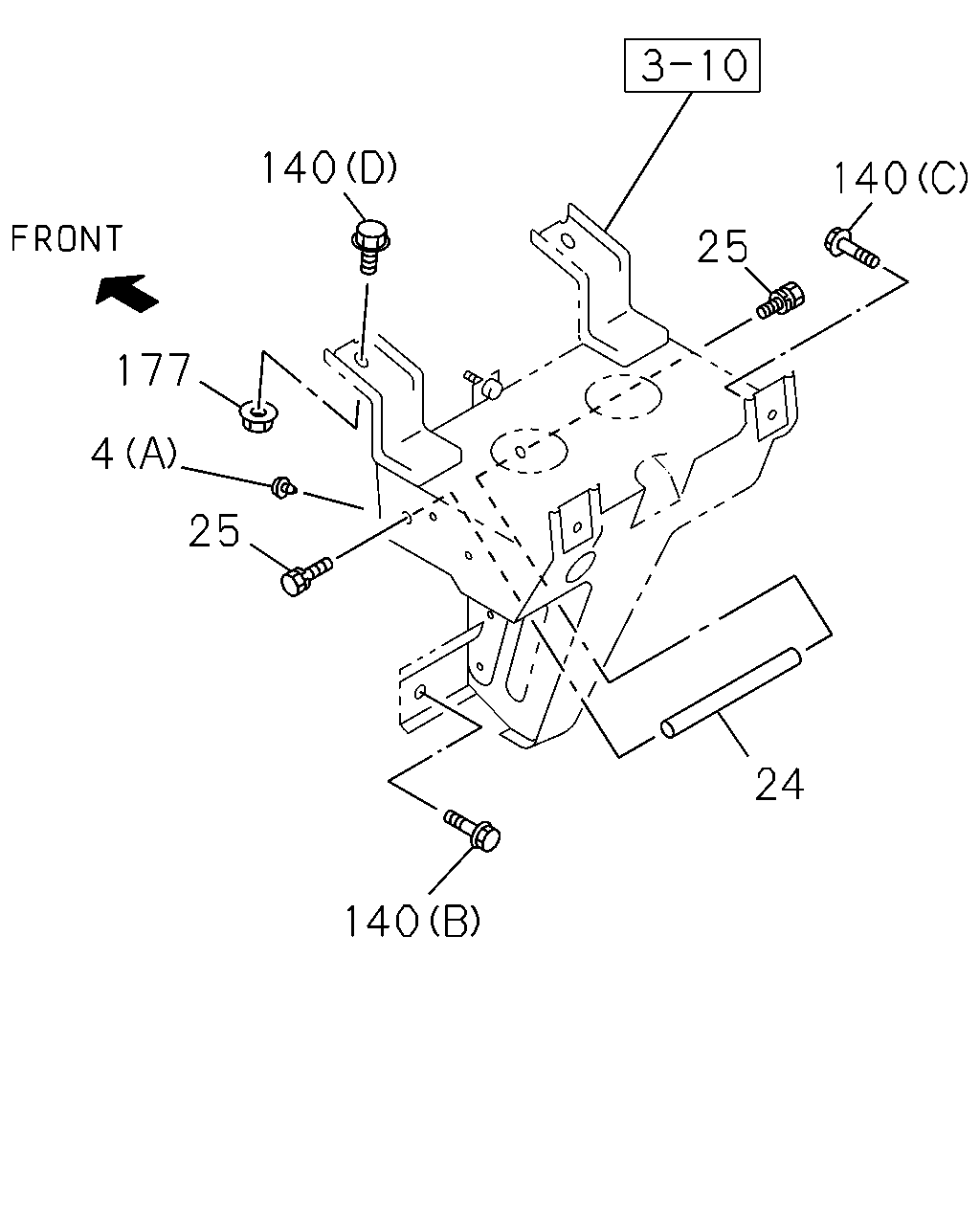

çizim 44377
140 140 25 177 4 25 24 140
BalonParca AdiParca NoAdetTipApplied Date A B
4 STOPPER; CLU PEDAL
A/T<X9D> (A) 		1-47319-014-1 01 1 0204- ●
4 STOPPER; CLU PEDAL
(A) 		1-47319-014-1 04 1 0012-0203 ● ●
4 STOPPER; CLU PEDAL
ISUZU M/T<X9A> (A) 		1-47319-014-1 04 1 0204- ● ●
4 STOPPER; CLU PEDAL
(B) 		5-31419-003-0 01 1 0012-0106 ● ●
24 SHAFT; CLU PEDAL 1-73998-936-1 01 1 0012- ● ●
25 BOLT; PEDAL
M10X25 W/LK WASHER 		0-50051-025-0 02 1 0012- ● ●
140 BOLT; BRKT
(A) M5X16 		0-20800-516-0 02 1 0012-0203 ● ●
140 BOLT; BRKT
ISUZU M/T<X9A> (A) M5X16 		0-20800-516-0 02 1 0204- ● ●
140 BOLT; BRKT
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0012-0512 ● ●
140 BOLT; BRKT
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
140 BOLT; BRKT
(C) M8X30 FLANGE 		0-28680-830-0 02 1 0012-0512 ● ●
140 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
140 BOLT; BRKT
(D) M10X25 FLANGE 		0-28681-025-0 02 1 0012-0512 ● ●
140 BOLT; BRKT
(D) M10X25 FLANGE 		0-28651-025-0 02 1 0601- ● ●
177 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0012-0602 ● ●
177 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
