◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51376 - QKR(MIDDLE EAST) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#79878) — 185 parça

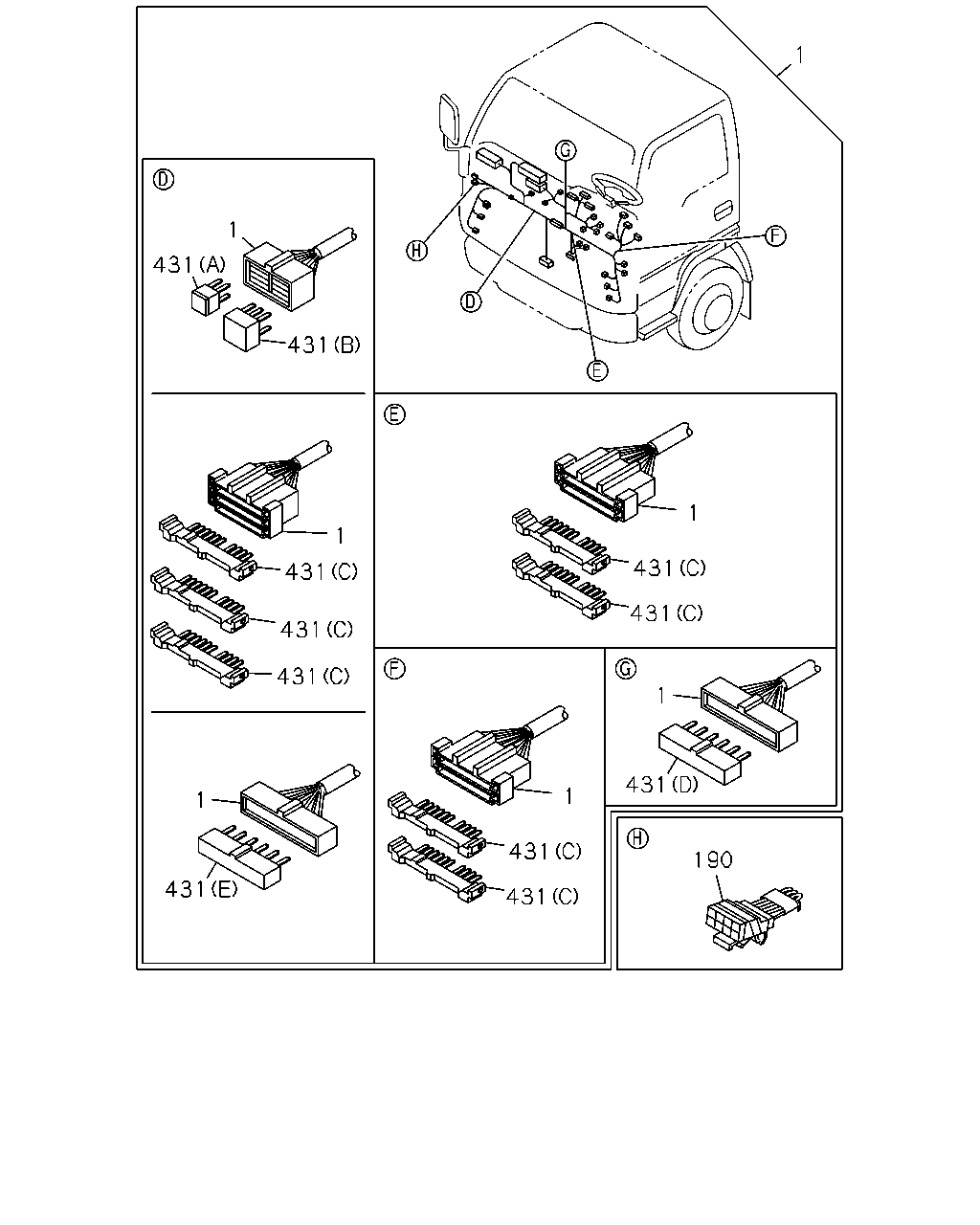

çizim 136169
1 1 431 1 431 431 190 431 431 1 1 431 431 431 431 1 431 431 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.480 HARNESS; CAB
PROVISIONAL PACKAGE SPEC<BCC> 		8-98217-097-0 01 1 1207-1308 ●
1 02.480 HARNESS; CAB
PROVISIONAL PACKAGE SPEC<BCC> 		8-98217-097-0 01 1 1309- ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) PROVISIONAL PACKAGE SPEC<BCC> 		8-98217-097-0 01 1 1309- ●
1 02.480 HARNESS; CAB 8-97381-169-4 01 1 1011-1206 ●
1 02.480 HARNESS; CAB
EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97381-169-4 01 1 1207-1308 ●
1 02.480 HARNESS; CAB
EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97381-169-4 01 1 1309- ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97381-169-4 01 1 1309- ●
190 02.559 CONNECTOR; SHORT CIRCUIT
EXC. INTERMITTENT WIPER<C13> 		8-98036-238-0 01 1 1011-1308 ●
190 02.559 CONNECTOR; SHORT CIRCUIT
EXC. INTERMITTENT WIPER<C13> 		8-98036-238-0 01 1 1309- ● ●
431 02.530 CONNECTOR; JOINT
(D) 6P 		1-82691-206-0 01 1 1011-1308 ●
431 02.530 CONNECTOR; JOINT
(D) 6P 		1-82691-206-0 01 1 1309- ● ●
431 02.530 CONNECTOR; JOINT
(E) 3P & 3P 		1-82698-170-0 01 1 1011-1308 ●
431 02.530 CONNECTOR; JOINT
(E) 3P & 3P 		1-82698-170-0 01 1 1309- ● ●
431 02.530 CONNECTOR; JOINT
(C) 10P GREEN 		1-82699-599-0 07 1 1011-1308 ●
431 02.530 CONNECTOR; JOINT
(C) 10P GREEN 		1-82699-599-0 07 1 1309- ● ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 01 1 1011-1308 ●
431 02.530 CONNECTOR; JOINT
(A) 4P 		8-97077-939-0 01 1 1309- ● ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 01 1 1011-1308 ●
431 02.530 CONNECTOR; JOINT
(B) 6P 		8-97077-941-0 01 1 1309- ● ●

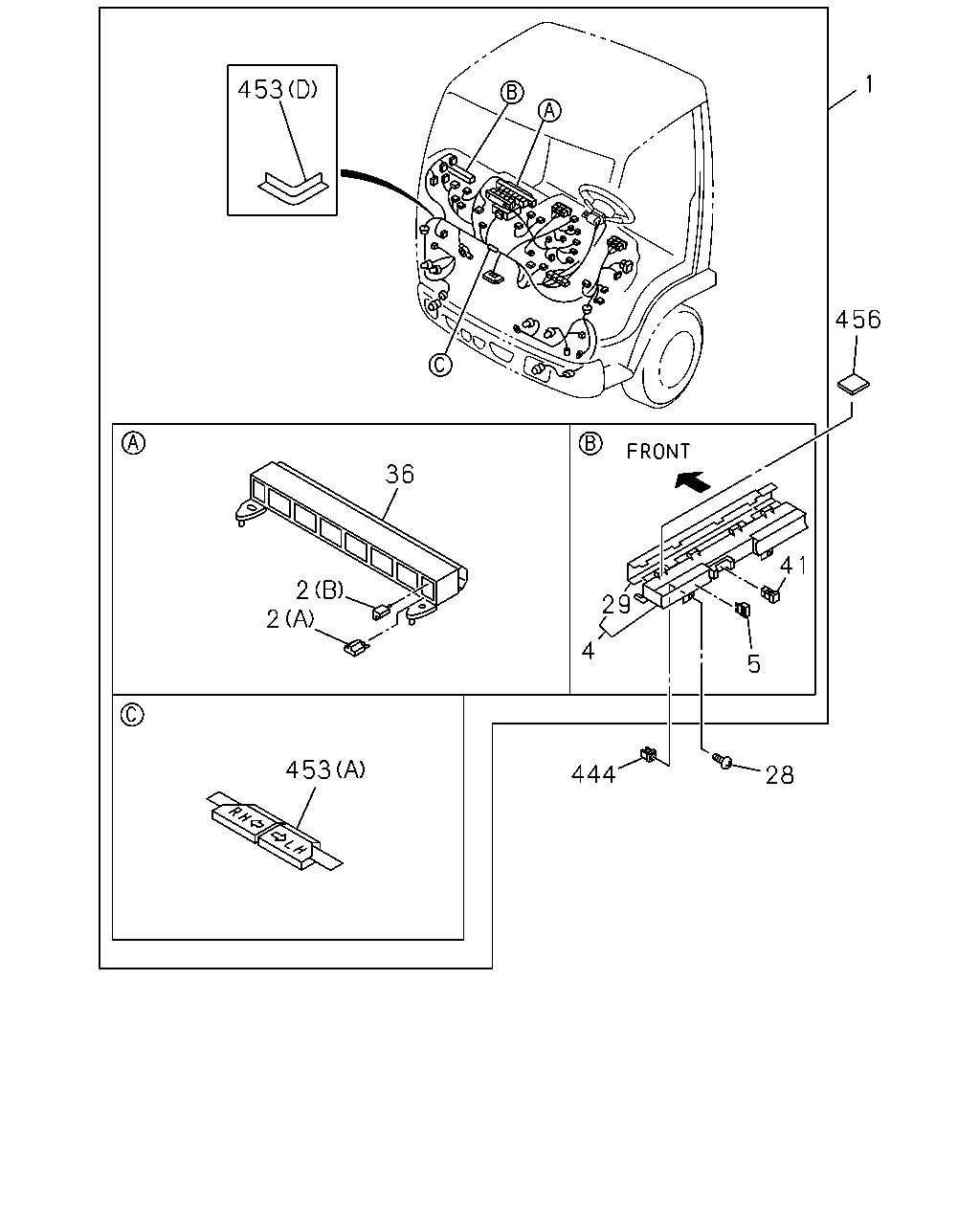

çizim 136421
453 2 453 2 36 444 28 5 4 41 29 456 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.480 HARNESS; CAB
PROVISIONAL PACKAGE SPEC<BCC> 		8-98217-097-0 01 1 1207-1308 ●
1 02.480 HARNESS; CAB
PROVISIONAL PACKAGE SPEC<BCC> 		8-98217-097-0 01 1 1309- ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) PROVISIONAL PACKAGE SPEC<BCC> 		8-98217-097-0 01 1 1309- ●
1 02.480 HARNESS; CAB 8-97381-169-4 01 1 1011-1206 ●
1 02.480 HARNESS; CAB
EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97381-169-4 01 1 1207-1308 ●
1 02.480 HARNESS; CAB
EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97381-169-4 01 1 1309- ●
1 02.480 HARNESS; CAB
4JB1-TC ENG(RDT) EXC. PROVISIONAL PACKAGE SPEC<BCC> 		8-97381-169-4 01 1 1309- ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1011-1308 ●
2 02.483 DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 1309- ● ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1011-1308 ●
2 02.483 DIODE; CABLE HARNESS
(A) BLACK 3P-1.5A 		8-94422-640-1 AR 1 1309- ● ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97187-921-1 01 1 1011-1308 ●
4 02.483 BOX ASM; FUSE,HARNESS 8-97187-921-1 01 1 1309- ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A MINI RED 		8-97062-022-0 AR 1 1011-1308 ●
5 02.485 FUSE; FACIA HARNESS
08.965 10A MINI RED 		8-97062-022-0 AR 1 1309- ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A MINI BLUE 		8-97062-023-0 AR 1 1011-1308 ●
5 02.485 FUSE; FACIA HARNESS
08.965 15A MINI BLUE 		8-97062-023-0 AR 1 1309- ● ●
5 02.485 FUSE; FACIA HARNESS
08.965 30A PINK 		8-97183-643-0 AR 1 1011-1308 ●
5 02.485 FUSE; FACIA HARNESS
08.965 30A PINK 		8-97183-643-0 AR 1 1309- ● ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1011-1101 ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-1212 ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301-1308 ●
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1309- ● ●
29 02.483 COVER; FUSE BOX 8-97074-955-0 01 1 1011-1308 ●
29 02.483 COVER; FUSE BOX 8-97074-955-0 01 1 1309- ● ●
36 02.530 BOX; RELAY 8-97187-918-1 01 1 1011-1308 ●
36 02.530 BOX; RELAY 8-97187-918-1 01 1 1309- ● ●
41 08.821 PULLER; FUSE 8-97103-388-0 01 1 1011-1308 ●
41 08.821 PULLER; FUSE 8-97103-388-0 01 1 1309- ● ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 1011-1308 ●
444 02.483 GROMMET; SCREW,FUSE BOX
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 1309- ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97074-957-0 01 1 1011-1308 ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97074-957-0 01 1 1309- ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-NA ENG(RLF) (C) 		8-97093-668-1 01 1 1011-1205 ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97093-668-1 01 1 1206-1308 ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97093-668-1 01 1 1309- ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-NA ENG(RLF) (B) 		8-97120-589-0 01 1 1011-1205 ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97120-589-0 01 1 1206-1308 ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97120-589-0 01 1 1309- ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-NA ENG(RLF) (D) 		8-94452-553-0 01 1 1011-1205 ●
453 02.483 PROTECTOR; HARNESS
4JB1-NA ENG(RLF) (D) 		8-94452-553-0 01 1 1011-1205 ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-94452-553-0 01 1 1206-1308 ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-94452-553-0 01 1 1206-1308 ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-94452-553-0 01 1 1309- ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-94452-553-0 01 1 1309- ● ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 1011-1308 ●
456 02.483 CUSHION; FUSE BOX
16.085 15X30 T=5 		8-94270-366-2 01 1 1309- ● ●

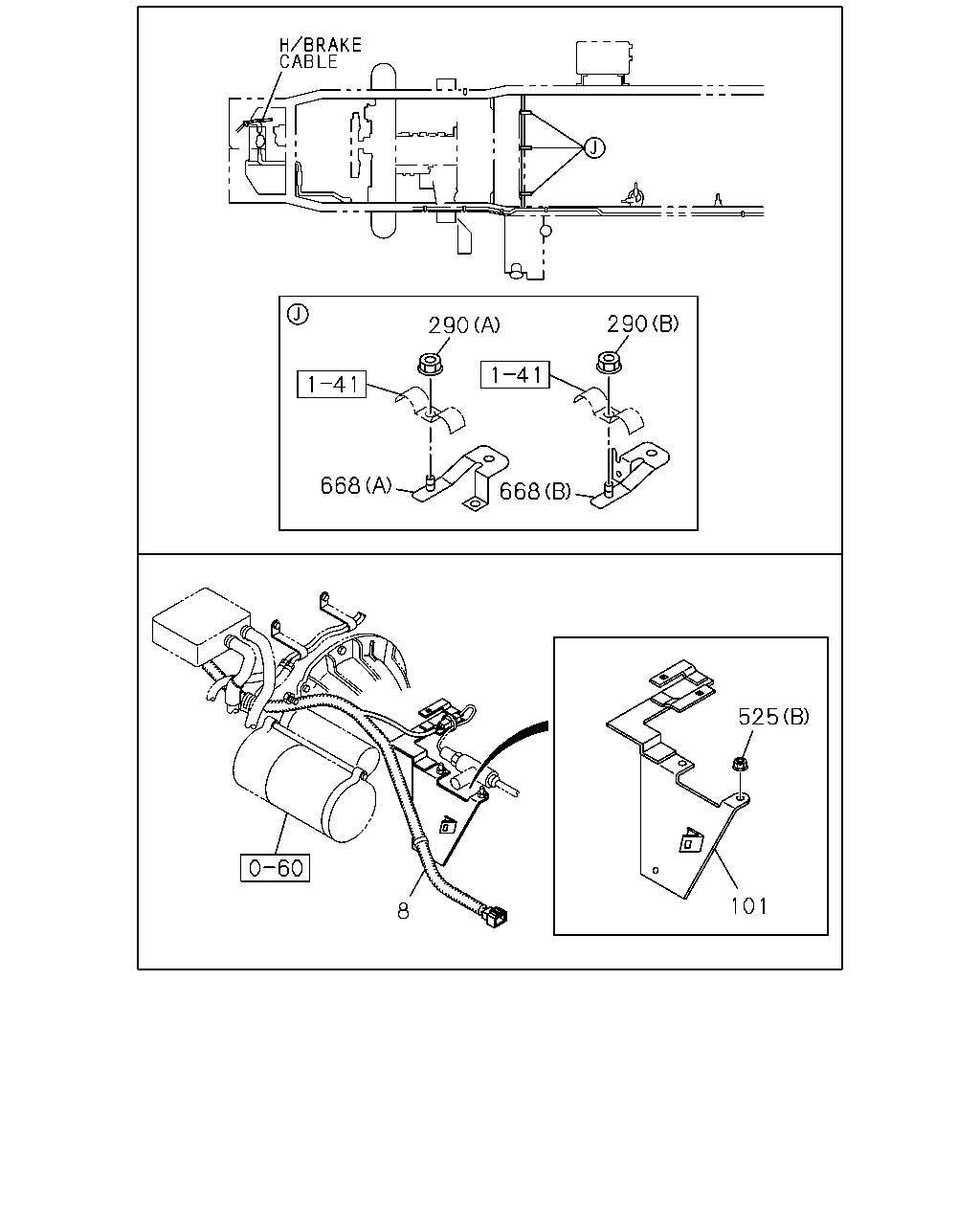

çizim 136775
290 290 668 668 525 101 8
BalonParca AdiParca NoAdetTipApplied Date A B
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98281-748-0 01 1 1503- ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) 		8-98177-614-0 01 1 1206-1305 ●
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) 		8-98240-496-0 01 1 1306-1308 ●
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) 		8-98240-496-0 01 1 1309-1502 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> 		8-98240-496-0 01 1 1503- ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1-NA ENG(RLF) 		8-97377-876-1 01 1 1011-1502 ●
8 02.480 HARNESS; FRAME,FRT
4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 		8-97377-876-1 01 1 1503- ●
101 02.483 BRACKET; HARNESS CONNECTOR
4JB1-NA ENG(RLF) 		8-97068-801-1 01 1 1011- ●
290 02.483 NUT; BRKT
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1011-1308 ●
290 02.483 NUT; BRKT
01.062 (A) M6 FLANGE 		0-91180-106-0 01 1 1309- ● ●
290 02.483 NUT; BRKT
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1011-1308 ●
290 02.483 NUT; BRKT
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1309- ●
290 02.483 NUT; BRKT
4JB1-TC ENG(RDT) 01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1309- ●
525 08.919 NUT; CLIP
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1011-1308 ●
525 08.919 NUT; CLIP
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1309- ● ●
525 08.919 NUT; CLIP
02.559 (A) 		8-97108-658-0 01 1 1011-1308 ●
525 08.919 NUT; CLIP
02.559 (A) 		8-97108-658-0 01 1 1309- ● ●
668 02.559 BRACKET; HARNESS
(A) L=20 		8-94165-263-1 01 1 1011-1308 ●
668 02.559 BRACKET; HARNESS
(A) L=20 		8-94165-263-1 01 1 1309- ●
668 02.559 BRACKET; HARNESS
4JB1-TC ENG(RDT) (A) L=20 		8-94165-263-1 01 1 1309- ●
668 02.559 BRACKET; HARNESS
(B) 		8-97077-845-0 02 1 1011-1308 ●
668 02.559 BRACKET; HARNESS
(B) 		8-97077-845-0 02 1 1309- ●
668 02.559 BRACKET; HARNESS
4JB1-TC ENG(RDT) (B) 		8-97077-845-0 02 1 1309- ●

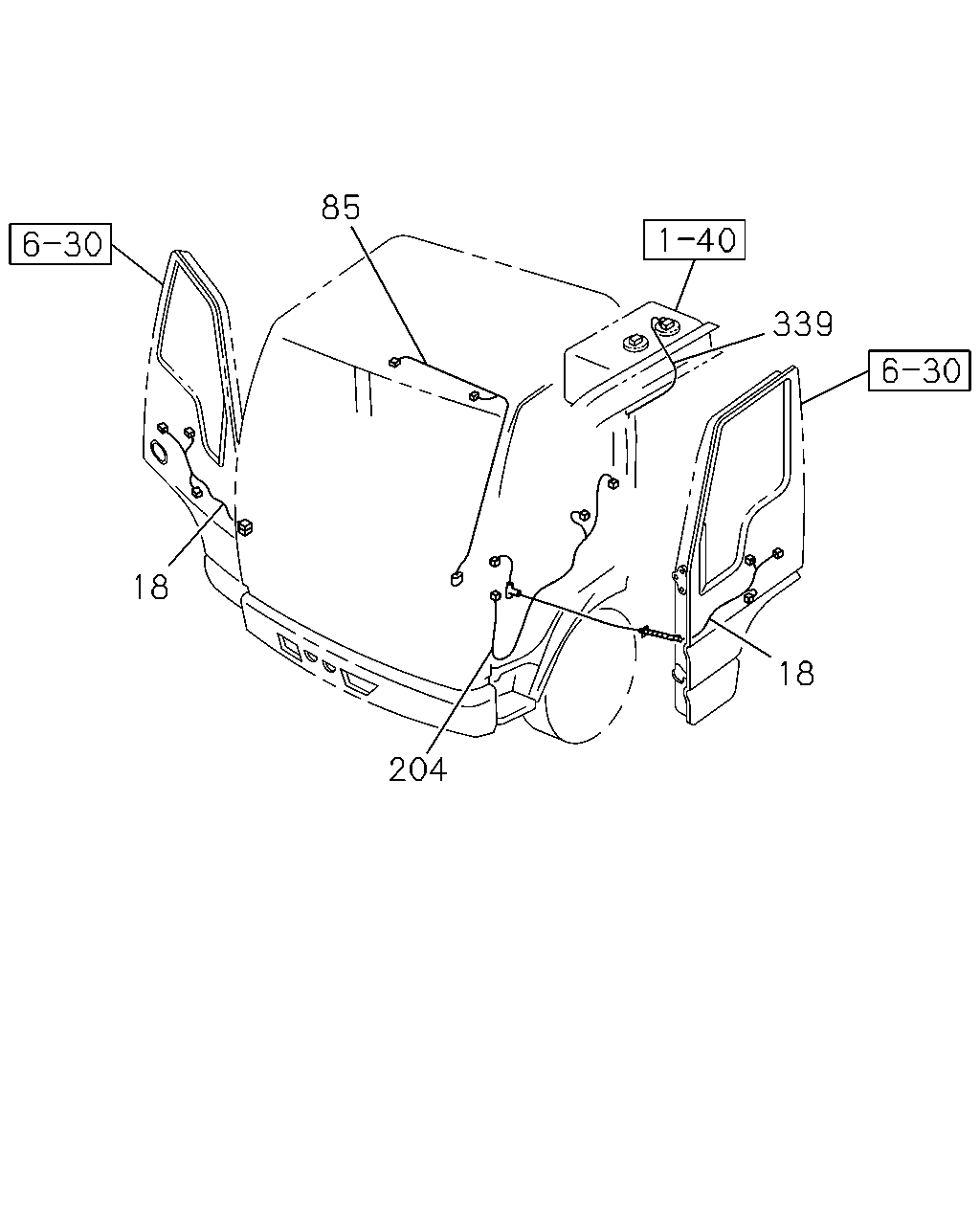

çizim 136853
85 18 204 339 18
BalonParca AdiParca NoAdetTipApplied Date A B
18 02.480 HARNESS; DOOR
2-SPEAKER SYSTEM BASE<U95> 		8-97105-571-1 01 1 1011-1308 ●
18 02.480 HARNESS; DOOR
2-SPEAKER SYSTEM BASE<U95> 		8-97105-571-1 01 1 1309- ● ●
18 02.480 HARNESS; DOOR
2-SPEAKER SYSTEM BASE<U95> 		8-98166-819-0 01 1 1011-1011 ●
18 02.480 HARNESS; DOOR
2-SPEAKER SYSTEM BASE<U95> 		8-97226-671-1 01 1 1011-1308 ●
18 02.480 HARNESS; DOOR
2-SPEAKER SYSTEM BASE<U95> 		8-97226-671-1 01 1 1309- ● ●
85 06.495 HARNESS; ROOM LAMP 8-97364-158-0 01 1 1011-1308 ●
85 06.495 HARNESS; ROOM LAMP 8-97364-158-0 01 1 1309- ● ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-140-0 01 1 1011-1308 ●
204 02.559 HARNESS; CABLE,FLOOR 8-97364-140-0 01 1 1309- ● ●
339 02.530 HARNESS; EXT,FUEL
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98213-781-0 01 1 1206-1308 ●
339 02.530 HARNESS; EXT,FUEL
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98213-781-0 01 1 1309- ● ●

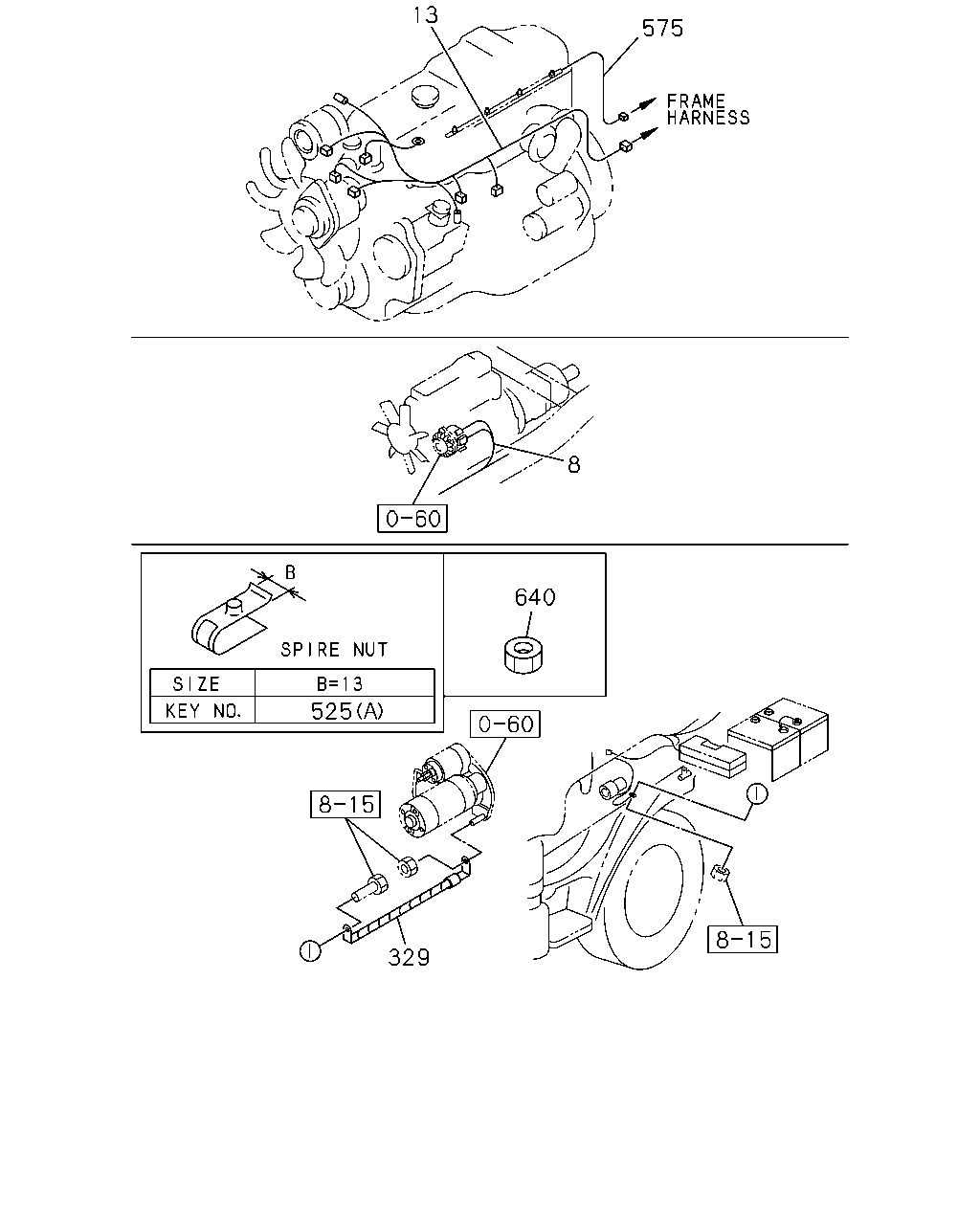

çizim 136911
13 575 8 640 525 329
BalonParca AdiParca NoAdetTipApplied Date A B
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98281-748-0 01 1 1503- ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) 		8-98177-614-0 01 1 1206-1305 ●
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) 		8-98240-496-0 01 1 1306-1308 ●
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) 		8-98240-496-0 01 1 1309-1502 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> 		8-98240-496-0 01 1 1503- ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1-NA ENG(RLF) 		8-97377-876-1 01 1 1011-1502 ●
8 02.480 HARNESS; FRAME,FRT
4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 		8-97377-876-1 01 1 1503- ●
13 02.525 HARNESS; ENG
4JB1-TC ENG(RDT) EURO2 SPECIFICATION(NT2) 		8-97218-750-1 01 1 1206-1308 ●
13 02.525 HARNESS; ENG
4JB1-TC ENG(RDT) EURO2 SPECIFICATION(NT2) 		8-97218-750-1 01 1 1309- ●
13 02.525 HARNESS; ENG
4JB1-TC ENG(RDT) 		8-97218-750-1 01 1 1309- ●
13 02.525 HARNESS; ENG
4JB1-NA ENG(RLF) 		8-97173-694-2 01 1 1011- ●
329 02.480 CABLE; ENG TO FRAME 8-97260-486-1 01 1 1011-1308 ●
329 02.480 CABLE; ENG TO FRAME 8-97260-486-1 01 1 1309- ●
329 02.480 CABLE; ENG TO FRAME
4JB1-TC ENG(RDT) 		8-97260-486-1 01 1 1309- ●
525 08.919 NUT; CLIP
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1011-1308 ●
525 08.919 NUT; CLIP
01.062 (B) M8 FLANGE 		0-91180-108-0 01 1 1309- ● ●
525 08.919 NUT; CLIP
02.559 (A) 		8-97108-658-0 01 1 1011-1308 ●
525 08.919 NUT; CLIP
02.559 (A) 		8-97108-658-0 01 1 1309- ● ●
575 02.525 HARNESS; GLOW PLUG
4JB1-TC ENG(RDT) EURO2 SPECIFICATION(NT2) 		8-97212-328-0 01 1 1206-1308 ●
575 02.525 HARNESS; GLOW PLUG
4JB1-TC ENG(RDT) EURO2 SPECIFICATION(NT2) 		8-97212-328-0 01 1 1309- ●
575 02.525 HARNESS; GLOW PLUG
4JB1-TC ENG(RDT) 		8-97212-328-0 01 1 1309- ●
640 08.919 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1011-1308 ●
640 08.919 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 02 1 1309- ● ●
640 08.919 NUT; CLIP
4JB1-NA ENG(RLF) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1011-1205 ●
640 08.919 NUT; CLIP
4JB1-NA ENG(RLF) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1011-1205 ●
640 08.919 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 1206-1308 ●
640 08.919 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 1206-1308 ●
640 08.919 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 1309- ●
640 08.919 NUT; CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 1309- ●
640 08.919 NUT; CLIP
4JB1-TC ENG(RDT) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1309- ●
640 08.919 NUT; CLIP
4JB1-TC ENG(RDT) 01.062 M6 FLANGE 		0-91180-106-0 01 1 1309- ●

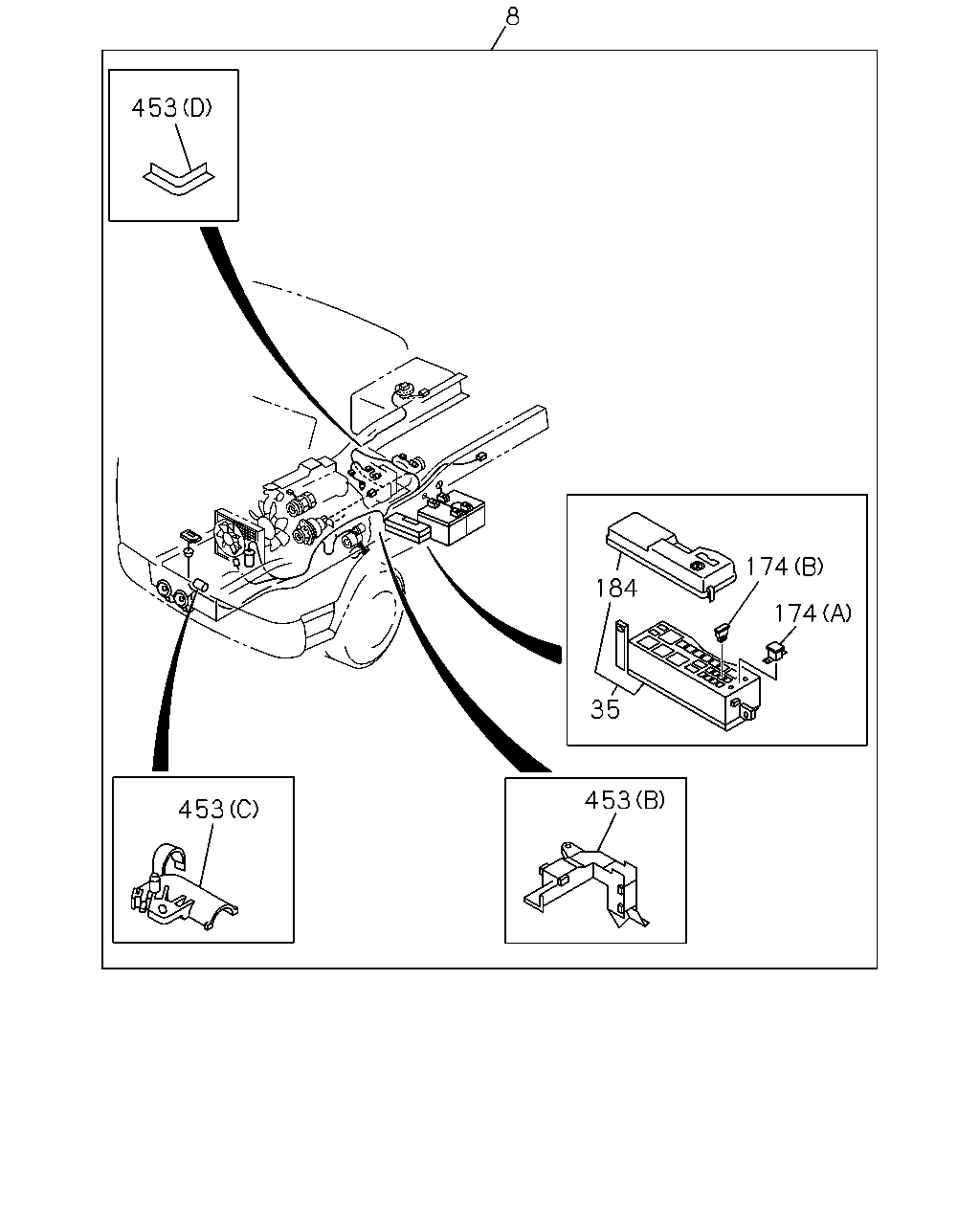

çizim 191727
8 453 453 453 35 184 174 174
BalonParca AdiParca NoAdetTipApplied Date A B
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 		8-98281-748-0 01 1 1503- ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) 		8-98177-614-0 01 1 1206-1305 ●
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) 		8-98240-496-0 01 1 1306-1308 ●
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) 		8-98240-496-0 01 1 1309-1502 ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT> 		8-98240-496-0 01 1 1503- ● ●
8 02.480 HARNESS; FRAME,FRT
4JB1-NA ENG(RLF) 		8-97377-876-1 01 1 1011-1502 ●
8 02.480 HARNESS; FRAME,FRT
4JB1-NA ENG(RLF) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 		8-97377-876-1 01 1 1503- ●
35 02.530 BOX; RELAY & FUSE
4JB1-NA ENG(RLF) 		8-97377-739-0 01 1 1011-1205 ●
35 02.530 BOX; RELAY & FUSE 8-97377-739-0 01 1 1206-1308 ●
35 02.530 BOX; RELAY & FUSE 8-97377-739-0 01 1 1309- ● ●
174 08.965 FUSE; SLOW BLOW
(A) 100A BLUE 		8-94388-306-1 AR 1 1011-1308 ●
174 08.965 FUSE; SLOW BLOW
(A) 100A BLUE 		8-94388-306-1 AR 1 1309- ● ●
174 08.965 FUSE; SLOW BLOW
(B) 30A PINK 		8-97183-643-0 AR 1 1011-1308 ●
174 08.965 FUSE; SLOW BLOW
(B) 30A PINK 		8-97183-643-0 AR 1 1309- ● ●
174 08.965 FUSE; SLOW BLOW
(B) 50A RED 		8-97183-645-0 AR 1 1011-1308 ●
174 08.965 FUSE; SLOW BLOW
(B) 50A RED 		8-97183-645-0 AR 1 1309- ● ●
174 08.965 FUSE; SLOW BLOW
(B) 60A YELLOW 		8-97219-407-0 AR 1 1011-1308 ●
174 08.965 FUSE; SLOW BLOW
(B) 60A YELLOW 		8-97219-407-0 AR 1 1309- ● ●
184 02.559 COVER; RELAY & FUSE BOX
4JB1-NA ENG(RLF) 		8-97377-741-0 01 1 1011-1205 ●
184 02.559 COVER; RELAY & FUSE BOX 8-97377-741-0 01 1 1206-1308 ●
184 02.559 COVER; RELAY & FUSE BOX 8-97377-741-0 01 1 1309- ● ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97074-957-0 01 1 1011-1308 ●
453 02.483 PROTECTOR; HARNESS
(A) 		8-97074-957-0 01 1 1309- ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-NA ENG(RLF) (C) 		8-97093-668-1 01 1 1011-1205 ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97093-668-1 01 1 1206-1308 ●
453 02.483 PROTECTOR; HARNESS
(C) 		8-97093-668-1 01 1 1309- ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-NA ENG(RLF) (B) 		8-97120-589-0 01 1 1011-1205 ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97120-589-0 01 1 1206-1308 ●
453 02.483 PROTECTOR; HARNESS
(B) 		8-97120-589-0 01 1 1309- ● ●
453 02.483 PROTECTOR; HARNESS
4JB1-NA ENG(RLF) (D) 		8-94452-553-0 01 1 1011-1205 ●
453 02.483 PROTECTOR; HARNESS
4JB1-NA ENG(RLF) (D) 		8-94452-553-0 01 1 1011-1205 ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-94452-553-0 01 1 1206-1308 ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-94452-553-0 01 1 1206-1308 ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-94452-553-0 01 1 1309- ● ●
453 02.483 PROTECTOR; HARNESS
(D) 		8-94452-553-0 01 1 1309- ● ●

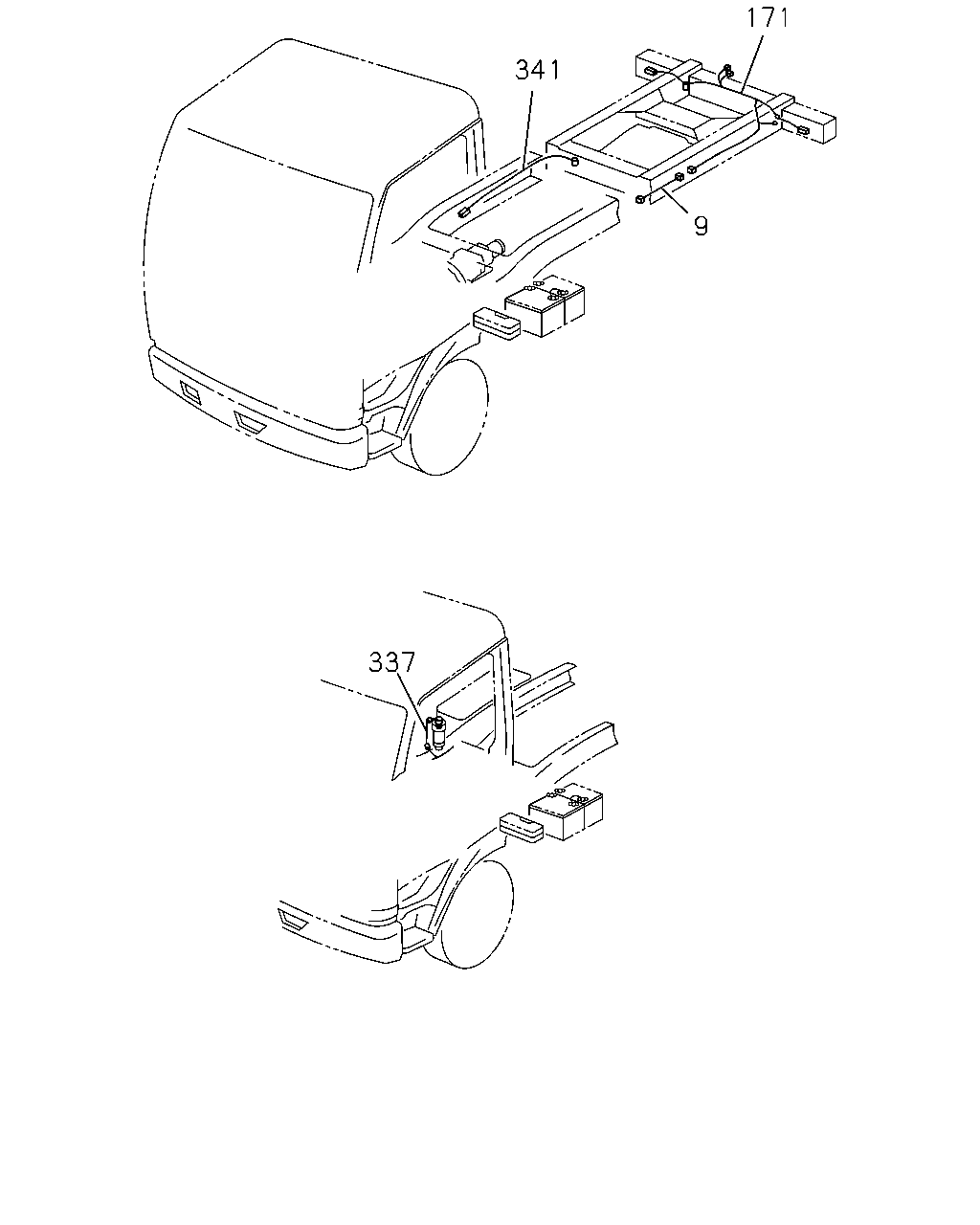

çizim 191729
341 9 171 337
BalonParca AdiParca NoAdetTipApplied Date A B
9 02.480 HARNESS; FRAME,RR 8-97381-162-1 01 1 1309- ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 2700MM(27W) 		8-97377-066-1 01 1 1206-1209 ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 2700MM(27W) 		8-98225-179-0 01 1 1210- ●
9 02.480 HARNESS; FRAME,RR 8-97381-164-1 01 1 1011-1205 ●
9 02.480 HARNESS; FRAME,RR
WHEEL BASE 3300MM(33W) 		8-97381-164-1 01 1 1206- ●
171 02.596 HARNESS; CABLE,TAIL LAMP
RR BODY FLAT BED(RS6) 02.480 		8-97364-150-0 01 1 1206-1308 ●
171 02.596 HARNESS; CABLE,TAIL LAMP
RR BODY FLAT BED(RS6) 02.480 		8-97364-150-0 01 1 1309-1310 ●
171 02.596 HARNESS; CABLE,TAIL LAMP
02.480 		8-97364-150-0 01 1 1309-1310 ●
171 02.596 HARNESS; CABLE,TAIL LAMP
RR BODY FLAT BED(RS6) 02.480 		8-97364-150-0 01 1 1311- ● ●
171 02.596 HARNESS; CABLE,TAIL LAMP
02.480 		8-97364-151-0 01 1 1011-1205 ●
171 02.596 HARNESS; CABLE,TAIL LAMP
EXC. RR BODY FLAT BED(RS6) 02.480 		8-97364-151-0 01 1 1206-1310 ●
171 02.596 HARNESS; CABLE,TAIL LAMP
EXC. RR BODY FLAT BED(RS6) 02.480 		8-97364-151-0 01 1 1311- ● ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97260-501-0 01 1 1011-1308 ●
337 02.530 HARNESS; EXT,HTR
FUEL SEDIMENTER WITH HEATER<6HU> 		8-97260-501-0 01 1 1309- ● ●
341 02.530 HARNESS; CABLE,MAG VLV
4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 		8-97081-340-2 01 1 1011-1205 ●
341 02.530 HARNESS; CABLE,MAG VLV
4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) EXHAUST BRAKE<NF8> 		8-97081-340-2 01 1 1206-1502 ●
341 02.530 HARNESS; CABLE,MAG VLV
4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 		8-97081-340-2 01 1 1206-1502 ●
341 02.530 HARNESS; CABLE,MAG VLV
4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) EXHAUST BRAKE<NF8> IDENTIFICATION LABEL FOR KD<6UT> 		8-97081-340-2 01 1 1503- ●
341 02.530 HARNESS; CABLE,MAG VLV
4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 		8-97081-340-2 01 1 1503- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
