8-03 — LAMP; REAR AND REAR SIDE (#79877) — 112 parça

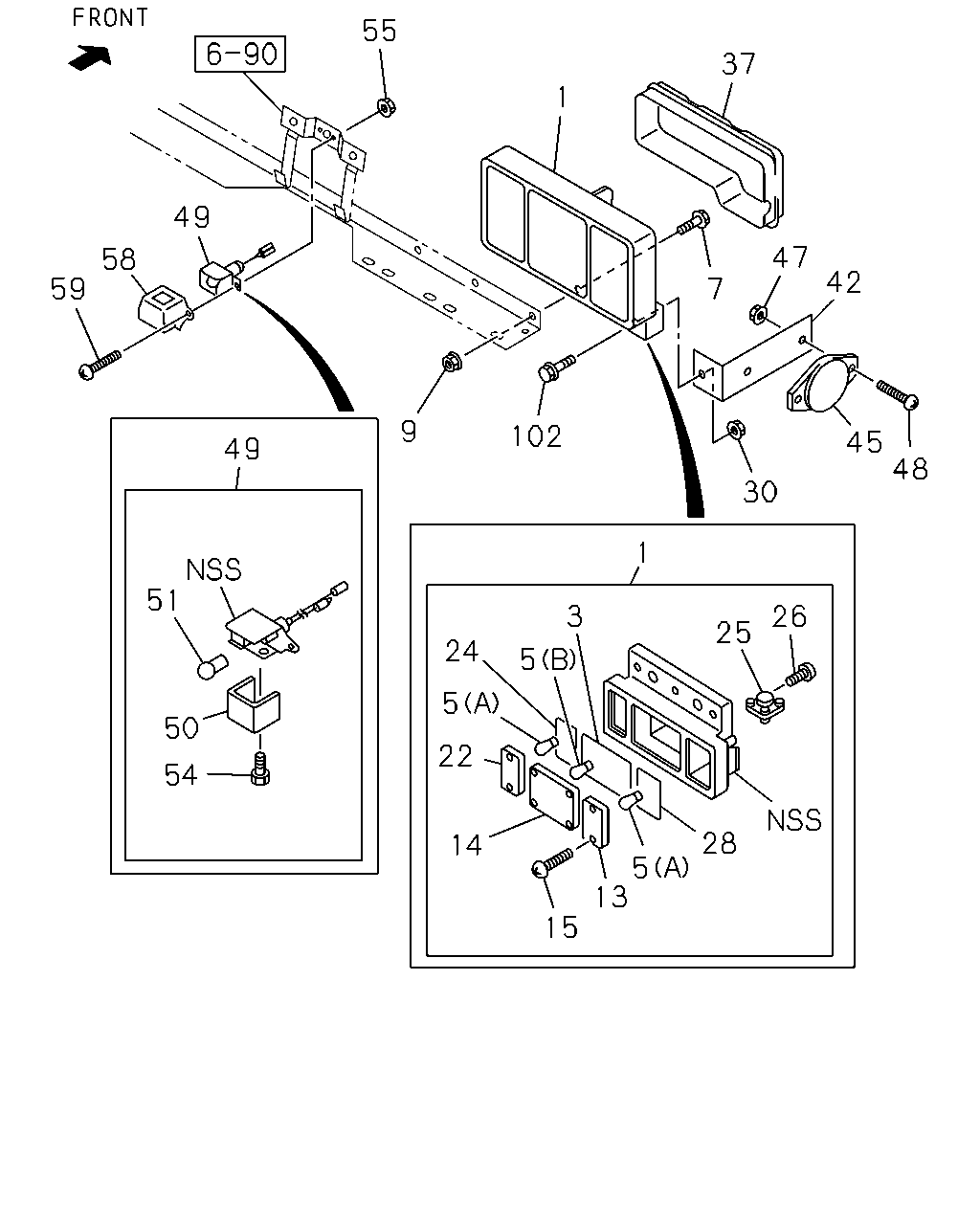

çizim 136224
55 1 37 42 47 7 48 45 30 26 25 28 5 13 15 14 22 5 24 3 1 102 9 49 51 50 54 49 58 59 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 02.679 LAMP ASM; RR COMB
RR BODY FLAT BED(RS6) 		8-97213-352-0 01 1 1206-1308 ●
1 02.679 LAMP ASM; RR COMB
RR BODY FLAT BED(RS6) 		8-97213-352-0 01 1 1309-1312 ●
1 02.679 LAMP ASM; RR COMB 8-97213-352-0 01 1 1309-1312 ●
1 02.679 LAMP ASM; RR COMB
RR BODY FLAT BED(RS6) 		8-97213-352-0 01 1 1401- ● ●
1 02.679 LAMP ASM; RR COMB
RR BODY FLAT BED(RS6) BACK BUZZER<YM9> 		8-97213-353-0 01 1 1206-1308 ●
1 02.679 LAMP ASM; RR COMB
RR BODY FLAT BED(RS6) BACK BUZZER<YM9> 		8-97213-353-0 01 1 1309-1312 ●
1 02.679 LAMP ASM; RR COMB
BACK BUZZER<YM9> 		8-97213-353-0 01 1 1309-1312 ●
1 02.679 LAMP ASM; RR COMB
RR BODY FLAT BED(RS6) BACK BUZZER<YM9> 		8-97213-353-0 01 1 1401- ● ●
1 02.679 LAMP ASM; RR COMB
RR BODY FLAT BED(RS6) EXC. BACK BUZZER<YM9> 		8-97213-351-0 01 1 1206-1308 ●
1 02.679 LAMP ASM; RR COMB
RR BODY FLAT BED(RS6) EXC. BACK BUZZER<YM9> 		8-97213-351-0 01 1 1309-1312 ●
1 02.679 LAMP ASM; RR COMB
EXC. BACK BUZZER<YM9> 		8-97213-351-0 01 1 1309-1312 ●
1 02.679 LAMP ASM; RR COMB
RR BODY FLAT BED(RS6) EXC. BACK BUZZER<YM9> 		8-97213-351-0 01 1 1401- ● ●
1 02.679 LAMP ASM; RR COMB
BACK BUZZER<YM9> 		8-98120-439-0 01 1 1111-1205 ●
1 02.679 LAMP ASM; RR COMB
BACK BUZZER<YM9> EXC. RR BODY FLAT BED(RS6) 		8-98120-439-0 01 1 1206-1312 ●
1 02.679 LAMP ASM; RR COMB
BACK BUZZER<YM9> EXC. RR BODY FLAT BED(RS6) 		8-98120-439-0 01 1 1401- ● ●
1 02.679 LAMP ASM; RR COMB 8-98072-024-0 01 1 1011-1110 ●
1 02.679 LAMP ASM; RR COMB
EXC. BACK BUZZER<YM9> 		8-98072-024-0 01 1 1111-1205 ●
1 02.679 LAMP ASM; RR COMB
EXC. RR BODY FLAT BED(RS6),BACK BUZZER<YM9> 		8-98072-024-0 01 1 1206-1312 ●
1 02.679 LAMP ASM; RR COMB
EXC. RR BODY FLAT BED(RS6),BACK BUZZER<YM9> 		8-98072-024-0 01 1 1401- ● ●
1 02.679 LAMP ASM; RR COMB 8-98072-025-0 01 1 1011-1205 ●
1 02.679 LAMP ASM; RR COMB
EXC. RR BODY FLAT BED(RS6) 		8-98072-025-0 01 1 1206-1312 ●
1 02.679 LAMP ASM; RR COMB
EXC. RR BODY FLAT BED(RS6) 		8-98072-025-0 01 1 1401- ● ●
3 02.684 GASKET; RR COMB LAMP 8-94257-505-0 02 1 1011-1308 ●
3 02.684 GASKET; RR COMB LAMP 8-94257-505-0 02 1 1309- ● ●
5 08.991 BULB; RR COMB LAMP
(A) 12V 21W 		8-94124-074-0 04 1 1011-1308 ●
5 08.991 BULB; RR COMB LAMP
(A) 12V 21W 		8-94124-074-0 04 1 1309- ● ●
5 08.991 BULB; RR COMB LAMP
(B) 12V 21/5W 		8-94125-959-0 02 1 1011-1308 ●
5 08.991 BULB; RR COMB LAMP
(B) 12V 21/5W 		8-94125-959-0 02 1 1309- ● ●
7 02.664 SCREW; RR COMB LAMP
EXC. RR BODY FLAT BED(RS6) BOLT M6X20 		8-94402-623-0 04 1 1206-1312 ●
7 02.664 SCREW; RR COMB LAMP
EXC. RR BODY FLAT BED(RS6) M6X20 		8-94402-623-0 04 1 1401- ● ●
7 02.664 SCREW; RR COMB LAMP
BOLT M6X20 		8-94402-623-0 06 1 1011-1110 ●
7 02.664 SCREW; RR COMB LAMP
BOLT M6X20 		8-94402-623-0 04 1 1111-1205 ●
7 02.664 SCREW; RR COMB LAMP
RR BODY FLAT BED(RS6) BOLT M6X20 		8-94402-623-0 06 1 1206-1308 ●
7 02.664 SCREW; RR COMB LAMP
RR BODY FLAT BED(RS6) BOLT M6X20 		8-94402-623-0 06 1 1309-1312 ●
7 02.664 SCREW; RR COMB LAMP
BOLT M6X20 		8-94402-623-0 06 1 1309-1312 ●
7 02.664 SCREW; RR COMB LAMP
RR BODY FLAT BED(RS6) M6X20 		8-94402-623-0 06 1 1401- ● ●
9 02.689 NUT; LAMP,RR COMB
EXC. RR BODY FLAT BED(RS6) 07.829 M6 FLANGE 		5-09440-004-0 06 1 1311-1312 ●
9 02.689 NUT; LAMP,RR COMB
07.829 M6 FLANGE 		5-09440-004-0 06 1 1011-1110 ●
9 02.689 NUT; LAMP,RR COMB
07.829 M6 FLANGE 		5-09440-004-0 04 1 1111-1205 ●
9 02.689 NUT; LAMP,RR COMB
EXC. RR BODY FLAT BED(RS6) 07.829 M6 FLANGE 		5-09440-004-0 04 1 1206-1312 ●
9 02.689 NUT; LAMP,RR COMB
EXC. RR BODY FLAT BED(RS6) 07.829 M6 FLANGE 		5-09440-004-0 04 1 1401- ● ●
13 02.682 LENS; TURN SIGNAL 8-94174-638-0 01 1 1011-1308 ●
13 02.682 LENS; TURN SIGNAL 8-94174-638-0 01 1 1309- ● ●
13 02.682 LENS; TURN SIGNAL 8-94174-639-0 01 1 1011-1308 ●
13 02.682 LENS; TURN SIGNAL 8-94174-639-0 01 1 1309- ● ●
14 02.682 LENS; TAIL & STOP,RR COMB LAMP 8-94178-624-0 01 1 1011-1308 ●
14 02.682 LENS; TAIL & STOP,RR COMB LAMP 8-94178-624-0 01 1 1309- ● ●
14 02.682 LENS; TAIL & STOP,RR COMB LAMP 8-94178-625-0 01 1 1011-1308 ●
14 02.682 LENS; TAIL & STOP,RR COMB LAMP 8-94178-625-0 01 1 1309- ● ●
15 02.664 SCREW; RR COMB LAMP
08.977 M4X20 TAPPING STAINLESS 		0-71190-420-0 16 1 1011-1308 ●
15 02.664 SCREW; RR COMB LAMP
08.977 M4X20 TAPPING STAINLESS 		0-71190-420-0 16 1 1309- ● ●
22 02.697 LENS; BACKUP,RR COMB LAMP
CLEAR 		8-94257-512-1 02 1 1011-1308 ●
22 02.697 LENS; BACKUP,RR COMB LAMP
CLEAR 		8-94257-512-1 02 1 1309- ● ●
24 02.697 GASKET; BACK,LAMP 8-94257-506-0 02 1 1011-1308 ●
24 02.697 GASKET; BACK,LAMP 8-94257-506-0 02 1 1309- ● ●
25 02.810 HORN ASM; BACK
BACK BUZZER<YM9> 		8-94257-518-0 01 1 1111-1308 ●
25 02.810 HORN ASM; BACK
BACK BUZZER<YM9> 		8-94257-518-0 01 1 1309- ● ●
26 02.812 SCREW; BACK HORN
EXC. BACK BUZZER<YM9> 02.688 M4X12 TAPPING 		9-07076-412-0 01 1 1111-1308 ●
26 02.812 SCREW; BACK HORN
EXC. BACK BUZZER<YM9> 02.688 M4X12 TAPPING 		9-07076-412-0 01 1 1309- ● ●
26 02.812 SCREW; BACK HORN
02.688 M4X12 TAPPING 		9-07076-412-0 01 1 1011-1110 ●
26 02.812 SCREW; BACK HORN
BACK BUZZER<YM9> 02.688 M4X12 TAPPING 		9-07076-412-0 02 1 1111-1308 ●
26 02.812 SCREW; BACK HORN
BACK BUZZER<YM9> 02.688 M4X12 TAPPING 		9-07076-412-0 02 1 1309- ● ●
26 02.812 SCREW; BACK HORN
09.655 M4X14 TAPPING 		9-07076-414-0 01 1 1011-1308 ●
26 02.812 SCREW; BACK HORN
09.655 M4X14 TAPPING 		9-07076-414-0 01 1 1309- ● ●
28 02.684 GASKET; TURN,LAMP 8-94257-507-0 02 1 1011-1308 ●
28 02.684 GASKET; TURN,LAMP 8-94257-507-0 02 1 1309- ● ●
30 02.664 NUT; BRKT,RR COMB
07.829 M6 FLANGE 		5-09440-004-0 02 1 1111-1205 ●
30 02.664 NUT; BRKT,RR COMB
WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6) 07.829 M6 FLANGE 		5-09440-004-0 02 1 1206- ●
37 02.680 COVER; RR COMB LAMP 8-94128-858-4 01 1 1011-1308 ●
37 02.680 COVER; RR COMB LAMP 8-94128-858-4 01 1 1309- ● ●
37 02.680 COVER; RR COMB LAMP 8-94129-274-4 01 1 1011-1308 ●
37 02.680 COVER; RR COMB LAMP 8-94129-274-4 01 1 1309- ● ●
42 02.679 BRACKET; REFLECTOR 8-98033-660-0 02 1 1111-1205 ●
42 02.679 BRACKET; REFLECTOR
WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6) 		8-98033-660-0 02 1 1206- ●
45 02.682 REFLECTOR; REFLEX,SIDE GATE,MIDD 1-82290-009-0 02 1 1011-1110 ●
45 02.682 REFLECTOR; REFLEX,SIDE GATE,MIDD 1-82290-011-1 02 1 1111-1205 ●
45 02.682 REFLECTOR; REFLEX,SIDE GATE,MIDD
WHEEL BASE 3300MM(33W) 		1-82290-011-1 02 1 1206- ●
47 02.689 NUT; REFLECTOR
03.444 M5 FLANGE 		8-94153-039-0 04 1 1011-1205 ●
47 02.689 NUT; REFLECTOR
WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6) 03.444 M5 FLANGE 		8-94153-039-0 04 1 1206- ●
48 02.664 SCREW; REFLECTOR
WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1206- ●
48 02.664 SCREW; REFLECTOR
14.550 M5X20 		9-93490-520-0 04 1 1011-1205 ●
48 02.664 SCREW; REFLECTOR
WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6) 14.550 M5X20 		9-93490-520-0 04 1 1206- ●
49 02.700 LAMP; LICENSE PLATE
12V 10W 		5-82120-020-0 01 1 1011-1308 ●
49 02.700 LAMP; LICENSE PLATE
12V 10W 		5-82120-020-0 01 1 1309- ● ●
50 02.709 LENS; LICENSE PLATE LAMP 5-82125-004-0 01 1 1011-1308 ●
50 02.709 LENS; LICENSE PLATE LAMP 5-82125-004-0 01 1 1309- ● ●
51 08.991 BULB; LICENSE PLATE LAMP
12V 10W 		8-94126-494-0 01 1 1011-1308 ●
51 08.991 BULB; LICENSE PLATE LAMP
12V 10W 		8-94126-494-0 01 1 1309- ● ●
54 02.708 SCREW; LICENSE PLATE LAMP
02.709 M4X8 		8-94419-312-0 01 1 1011-1308 ●
54 02.708 SCREW; LICENSE PLATE LAMP
02.709 M4X8 		8-94419-312-0 01 1 1309- ● ●
55 02.708 NUT; LICENSE PLATE LAMP
03.444 M5 FLANGE 		8-94153-039-0 02 1 1011-1308 ●
55 02.708 NUT; LICENSE PLATE LAMP
03.444 M5 FLANGE 		8-94153-039-0 02 1 1309- ● ●
58 02.705 COVER; LICENSE PLATE LAMP 8-97076-590-1 01 1 1011-1308 ●
58 02.705 COVER; LICENSE PLATE LAMP 8-97076-590-1 01 1 1309- ● ●
59 02.708 SCREW; TAP,LICENSE LAMP BODY
14.550 M5X20 		9-93490-520-0 02 1 1011-1308 ●
59 02.708 SCREW; TAP,LICENSE LAMP BODY
14.550 M5X20 		9-93490-520-0 02 1 1309- ● ●
102 02.705 BOLT; BRKT
02.664 M6X20 		8-94402-623-0 02 1 1111-1205 ●
102 02.705 BOLT; BRKT
WHEEL BASE 3300MM(33W) EXC. RR BODY FLAT BED(RS6) 02.664 M6X20 		8-94402-623-0 02 1 1206- ●

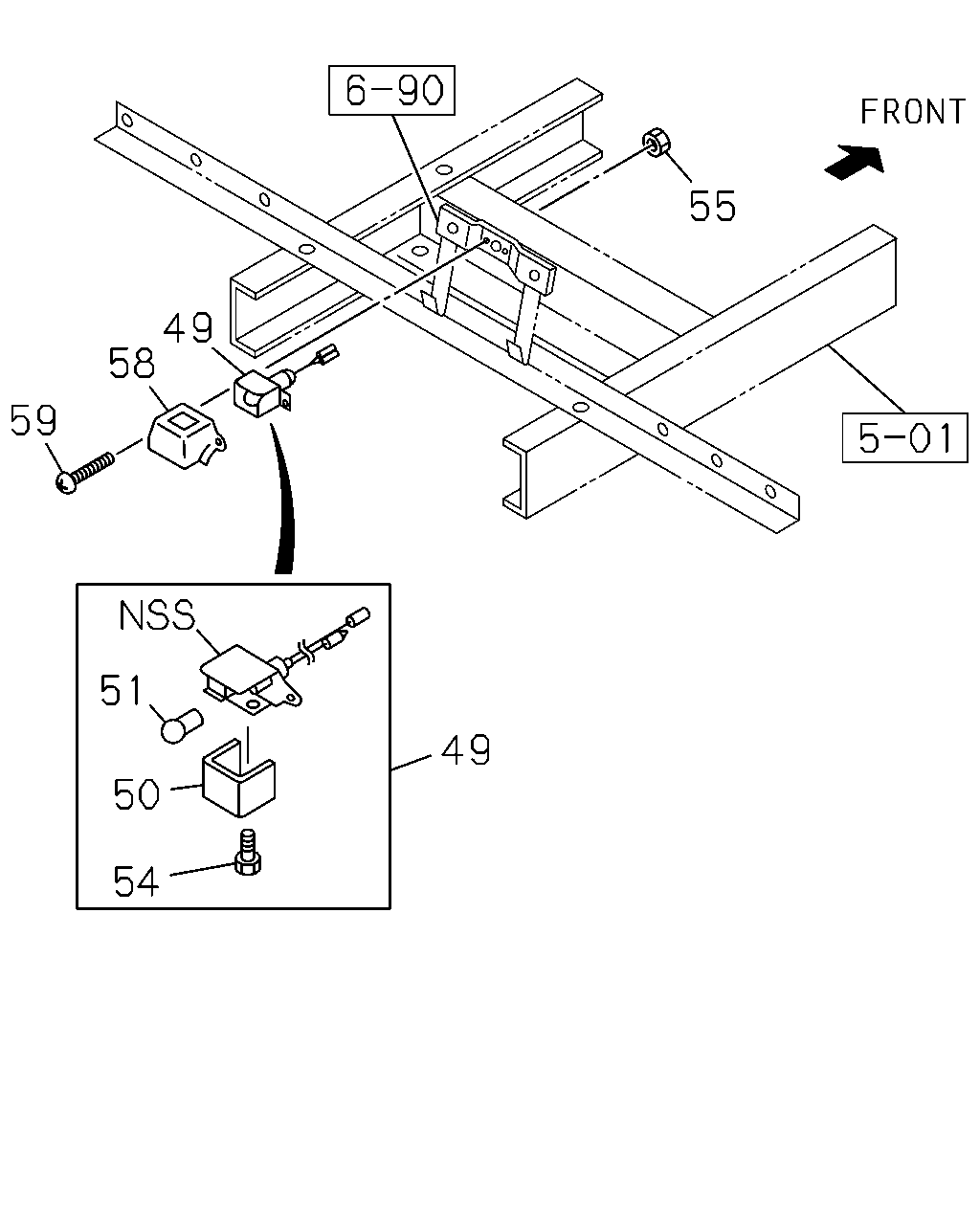

çizim 191728
55 49 58 59 51 49 50 54
BalonParca AdiParca NoAdetTipApplied Date A B
49 02.700 LAMP; LICENSE PLATE
12V 10W 		5-82120-020-0 01 1 1011-1308 ●
49 02.700 LAMP; LICENSE PLATE
12V 10W 		5-82120-020-0 01 1 1309- ● ●
50 02.709 LENS; LICENSE PLATE LAMP 5-82125-004-0 01 1 1011-1308 ●
50 02.709 LENS; LICENSE PLATE LAMP 5-82125-004-0 01 1 1309- ● ●
51 08.991 BULB; LICENSE PLATE LAMP
12V 10W 		8-94126-494-0 01 1 1011-1308 ●
51 08.991 BULB; LICENSE PLATE LAMP
12V 10W 		8-94126-494-0 01 1 1309- ● ●
54 02.708 SCREW; LICENSE PLATE LAMP
02.709 M4X8 		8-94419-312-0 01 1 1011-1308 ●
54 02.708 SCREW; LICENSE PLATE LAMP
02.709 M4X8 		8-94419-312-0 01 1 1309- ● ●
55 02.708 NUT; LICENSE PLATE LAMP
03.444 M5 FLANGE 		8-94153-039-0 02 1 1011-1308 ●
55 02.708 NUT; LICENSE PLATE LAMP
03.444 M5 FLANGE 		8-94153-039-0 02 1 1309- ● ●
58 02.705 COVER; LICENSE PLATE LAMP 8-97076-590-1 01 1 1011-1308 ●
58 02.705 COVER; LICENSE PLATE LAMP 8-97076-590-1 01 1 1309- ● ●
59 02.708 SCREW; TAP,LICENSE LAMP BODY
14.550 M5X20 		9-93490-520-0 02 1 1011-1308 ●
59 02.708 SCREW; TAP,LICENSE LAMP BODY
14.550 M5X20 		9-93490-520-0 02 1 1309- ● ●
