8-01 — LAMP; FRONT AND FRONT SIDE (#79876) — 107 parça

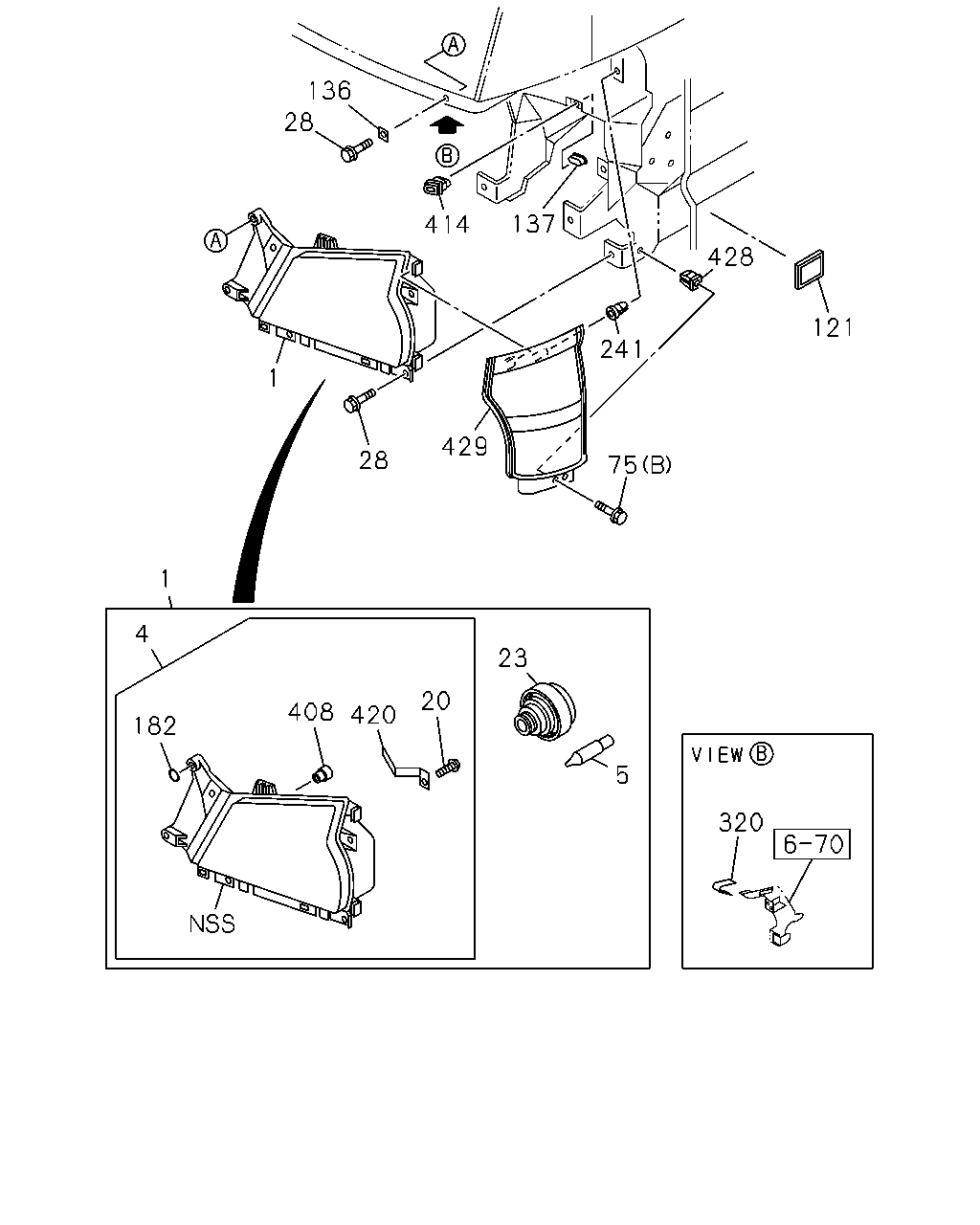

121 428 241 414 429 28 1 28 136 137 75 320 23 20 420 408 182 4 1 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	02.725 LAMP ASM; HEAD	8-98053-915-0	01	1	1011-1308	●
1	02.725 LAMP ASM; HEAD	8-98053-915-0	01	1	1309-	●	●
1	02.725 LAMP ASM; HEAD	8-98053-916-0	01	1	1011-1308	●
1	02.725 LAMP ASM; HEAD	8-98053-916-0	01	1	1309-	●	●
4	02.727 HEADLAMP UNIT	8-98009-824-0	01	1	1011-1308	●
4	02.727 HEADLAMP UNIT	8-98009-824-0	01	1	1309-	●	●
4	02.727 HEADLAMP UNIT	8-98009-825-0	01	1	1011-1308	●
4	02.727 HEADLAMP UNIT	8-98009-825-0	01	1	1309-	●	●
5	02.727 BULB; HEADLAMP 12V 60/55W	8-97106-708-0	02	1	1011-1308	●
5	02.727 BULB; HEADLAMP 12V 60/55W	8-97106-708-0	02	1	1309-	●	●
20	02.736 SCREW; HEADLAMP	8-97378-871-0	02	1	1011-1308	●
20	02.736 SCREW; HEADLAMP	8-97378-871-0	02	1	1309-	●	●
23	02.727 COVER; BULB,HEADLAMP	8-97232-491-0	02	1	1011-1308	●
23	02.727 COVER; BULB,HEADLAMP	8-97232-491-0	02	1	1309-	●	●
28	02.762 BOLT; HEADLAMP M6X20 W/LK&PL WASHER	8-98031-842-0	08	1	1011-1308	●
28	02.762 BOLT; HEADLAMP M6X20 W/LK&PL WASHER	8-98031-842-0	08	1	1309-1401	●	●
28	02.762 BOLT; HEADLAMP M6X23.5 W/LK&PL WASHER	8-98164-723-0	08	1	1402-	●	●
75	02.587 SCREW; FRT COMB LAMP (B) M6X16 TAPPING	8-97374-995-0	02	1	1011-1308	●
75	02.587 SCREW; FRT COMB LAMP (B) M6X16 TAPPING	8-97374-995-0	02	1	1309-	●	●
75	02.587 SCREW; FRT COMB LAMP (A) M4X12	8-97378-944-0	14	1	1011-1308	●
75	02.587 SCREW; FRT COMB LAMP (A) M4X12	8-97378-944-0	14	1	1309-	●	●
121	02.575 REFLECTOR; REFLEX	8-98013-990-1	02	1	1011-1308	●
121	02.575 REFLECTOR; REFLEX	8-98013-990-1	02	1	1309-	●	●
136	02.726 SEAL; HEADLAMP 03.602 25X25	8-94272-533-0	02	1	1011-1308	●
136	02.726 SEAL; HEADLAMP 03.602 25X25	8-94272-533-0	02	1	1309-	●	●
137	02.726 GROMMET; HEADLAMP	8-97581-666-0	02	1	1011-1308	●
137	02.726 GROMMET; HEADLAMP	8-97581-666-0	02	1	1309-	●	●
182	02.722 GASKET; HEADLAMP	8-97378-869-0	02	1	1011-1308	●
182	02.722 GASKET; HEADLAMP	8-97378-869-0	02	1	1309-	●	●
241	02.726 GROMMET; FRT LAMP	8-97380-030-0	02	1	1011-1308	●
241	02.726 GROMMET; FRT LAMP	8-97380-030-0	02	1	1309-	●	●
320	02.726 SEALER; HEADLAMP BRKT	8-97850-499-1	01	1	1011-1308	●
320	02.726 SEALER; HEADLAMP BRKT	8-97850-499-1	01	1	1309-	●	●
408	02.727 CAP; BREATHER,HEADLAMP	8-97378-874-0	02	1	1011-1308	●
408	02.727 CAP; BREATHER,HEADLAMP	8-97378-874-0	02	1	1309-	●	●
414	02.736 PIN; HEADLAMP,RIM	8-97581-667-0	02	1	1011-1308	●
414	02.736 PIN; HEADLAMP,RIM	8-97581-667-0	02	1	1309-	●	●
420	02.737 SPRING; BULB,HEADLAMP	8-97378-875-0	02	1	1011-1308	●
420	02.737 SPRING; BULB,HEADLAMP	8-97378-875-0	02	1	1309-	●	●
428	02.587 GROMMET; SIDE COMB LAMP 16.445	1-09983-081-0	02	1	1011-1308	●
428	02.587 GROMMET; SIDE COMB LAMP 16.445	1-09983-081-0	02	1	1309-	●	●
429	02.585 LAMP ASM; SIDE COMB	8-98010-889-0	01	1	1011-1308	●
429	02.585 LAMP ASM; SIDE COMB	8-98010-889-0	01	1	1309-	●	●
429	02.585 LAMP ASM; SIDE COMB	8-98010-890-0	01	1	1011-1308	●
429	02.585 LAMP ASM; SIDE COMB	8-98010-890-0	01	1	1309-	●	●

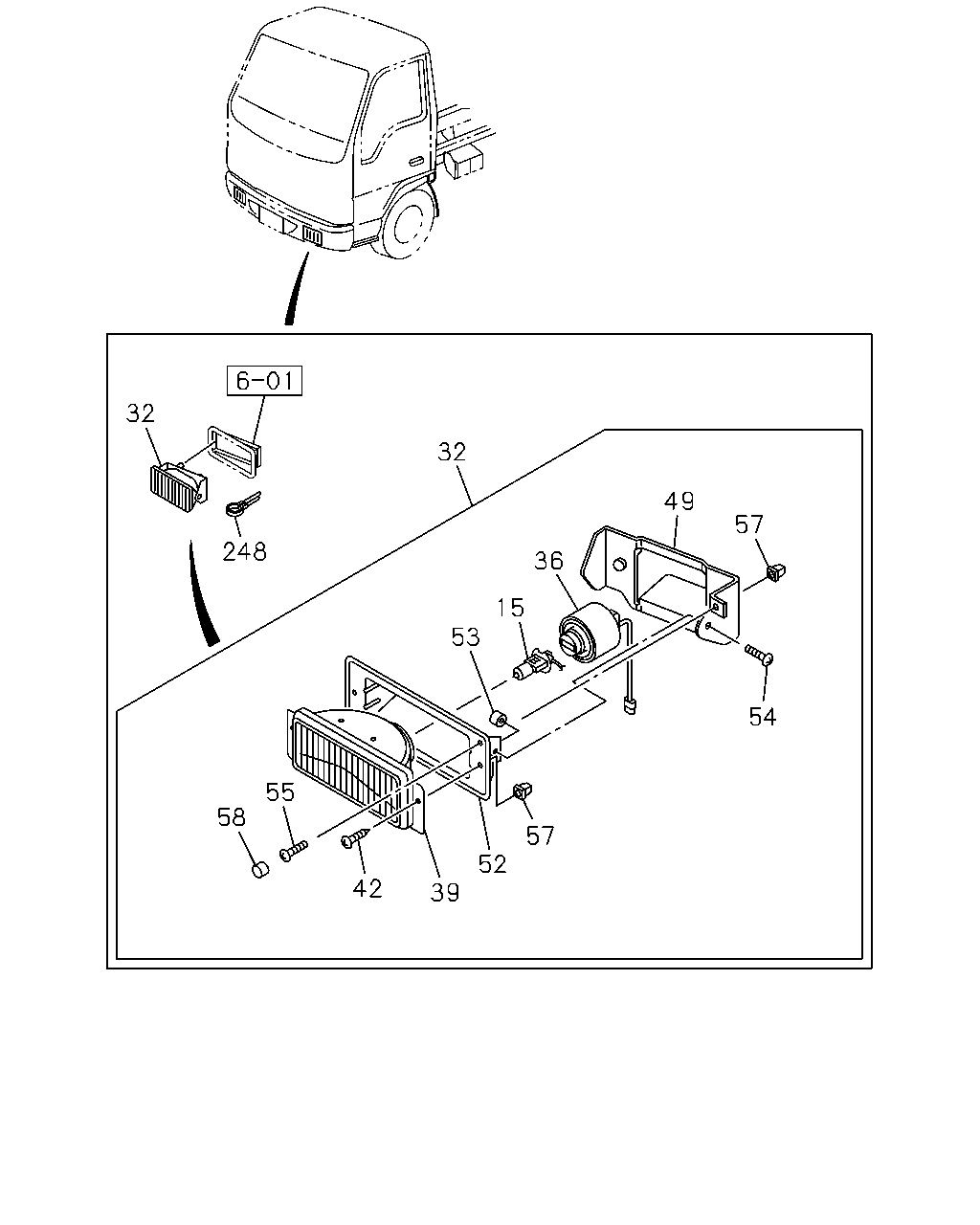

32 248 32 49 57 54 36 15 53 57 52 39 42 55 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	08.991 BULB; FOG LAMP FOG LAMP<T96> 12V 55W	8-97093-859-0	02	1	1011-1308	●
15	08.991 BULB; FOG LAMP FOG LAMP<T96> 12V 55W	8-97093-859-0	02	1	1309-	●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96>	8-98054-093-0	01	1	1011-1308	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96>	8-98054-093-0	01	1	1309-	●	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96>	8-98054-094-0	01	1	1011-1308	●
32	02.725 LAMP ASM; FOG FOG LAMP<T96>	8-98054-094-0	01	1	1309-	●	●
36	02.727 CORD; FOG LAMP FOG LAMP<T96>	8-97095-518-0	02	1	1011-1308	●
36	02.727 CORD; FOG LAMP FOG LAMP<T96>	8-97095-518-0	02	1	1309-	●	●
39	02.727 UNIT; FOG LAMP FOG LAMP<T96>	8-98063-678-0	01	1	1011-1308	●
39	02.727 UNIT; FOG LAMP FOG LAMP<T96>	8-98063-678-0	01	1	1309-	●	●
39	02.727 UNIT; FOG LAMP FOG LAMP<T96>	8-98063-679-0	01	1	1011-1308	●
39	02.727 UNIT; FOG LAMP FOG LAMP<T96>	8-98063-679-0	01	1	1309-	●	●
42	02.575 SCREW; LENS,FOG LAMP FOG LAMP<T96>	8-97104-089-0	04	1	1011-1308	●
42	02.575 SCREW; LENS,FOG LAMP FOG LAMP<T96>	8-97104-089-0	04	1	1309-	●	●
49	02.726 BRACKET; LAMP FOG LAMP<T96>	8-97104-090-0	01	1	1011-1308	●
49	02.726 BRACKET; LAMP FOG LAMP<T96>	8-97104-090-0	01	1	1309-	●	●
49	02.726 BRACKET; LAMP FOG LAMP<T96>	8-97104-091-0	01	1	1011-1308	●
49	02.726 BRACKET; LAMP FOG LAMP<T96>	8-97104-091-0	01	1	1309-	●	●
52	02.726 RING; MTG,FOG LAMP FOG LAMP<T96>	8-97104-062-0	02	1	1011-1308	●
52	02.726 RING; MTG,FOG LAMP FOG LAMP<T96>	8-97104-062-0	02	1	1309-	●	●
53	02.726 NUT; MTG RING,FOG LAMP FOG LAMP<T96>	8-94379-802-0	04	1	1011-1308	●
53	02.726 NUT; MTG RING,FOG LAMP FOG LAMP<T96>	8-94379-802-0	04	1	1309-	●	●
54	02.726 BOLT; MTG RING,FOG LAMP FOG LAMP<T96> M5X12	8-94379-803-0	04	1	1011-1308	●
54	02.726 BOLT; MTG RING,FOG LAMP FOG LAMP<T96> M5X12	8-94379-803-0	04	1	1309-	●	●
55	02.737 SCREW; ADJ,FOG LAMP FOG LAMP<T96>	8-97104-087-0	02	1	1011-1308	●
55	02.737 SCREW; ADJ,FOG LAMP FOG LAMP<T96>	8-97104-087-0	02	1	1309-	●	●
57	02.726 NUT; UNIT TO SCREW,FOG LAMP FOG LAMP<T96>	8-94379-806-0	06	1	1011-1308	●
57	02.726 NUT; UNIT TO SCREW,FOG LAMP FOG LAMP<T96>	8-94379-806-0	06	1	1309-	●	●
58	02.726 HOLDER; FOG LAMP FOG LAMP<T96>	8-97104-088-0	02	1	1011-1308	●
58	02.726 HOLDER; FOG LAMP FOG LAMP<T96>	8-97104-088-0	02	1	1309-	●	●
248	02.727 CLIP; HARNESS FOG LAMP<T96> 02.559 ID=20	5-09700-321-0	02	1	1011-1308	●
248	02.727 CLIP; HARNESS FOG LAMP<T96> 02.559 ID=20	5-09700-321-0	02	1	1309-	●	●

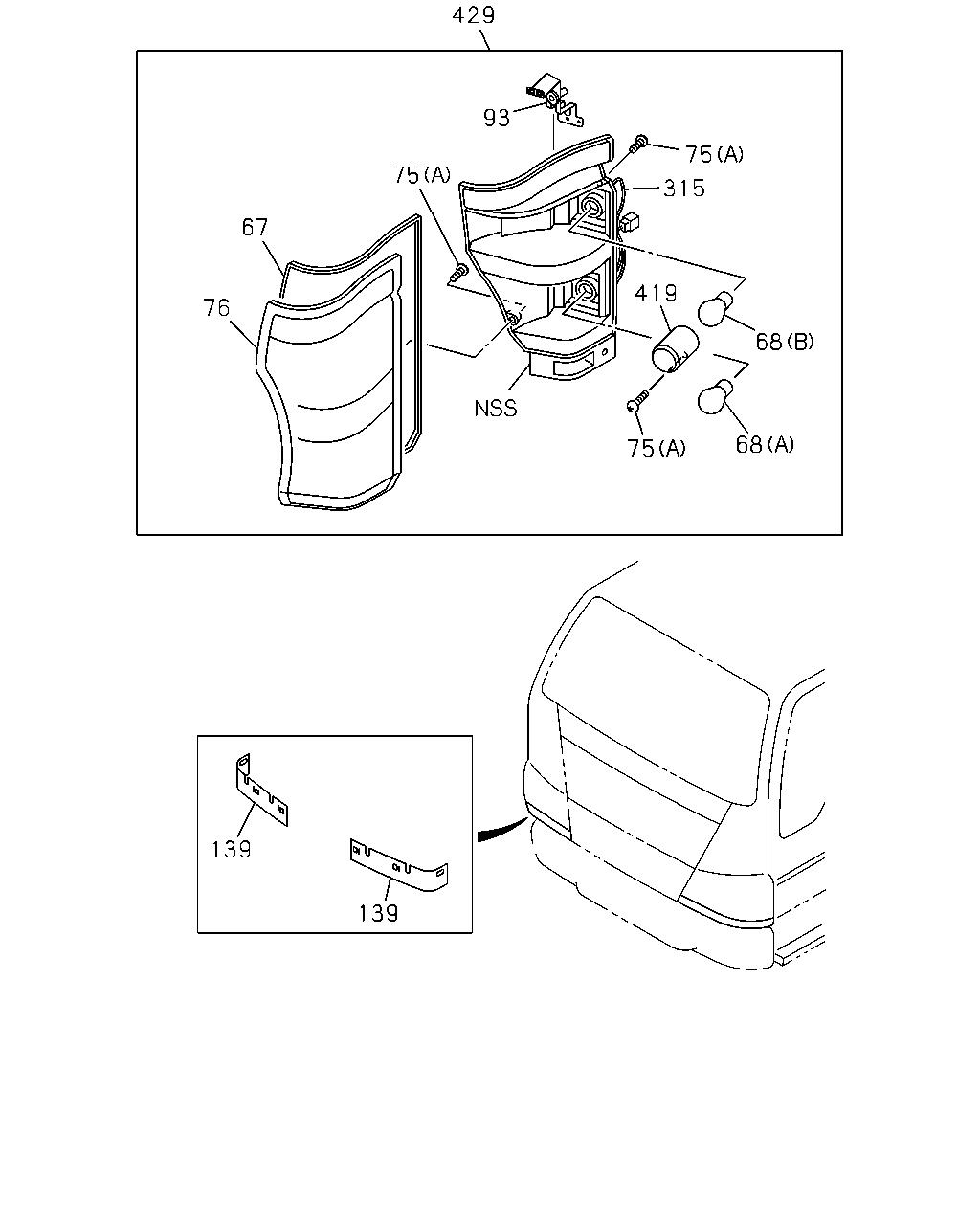

429 75 315 419 68 68 75 93 75 67 76 139 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
67	02.590 GASKET; FRT COMB LAMP	8-97378-948-0	02	1	1011-1308	●
67	02.590 GASKET; FRT COMB LAMP	8-97378-948-0	02	1	1309-	●	●
68	08.991 BULB; FRT COMB LAMP (A) 12V 21/5W	8-94125-959-0	02	1	1011-1308	●
68	08.991 BULB; FRT COMB LAMP (A) 12V 21/5W	8-94125-959-0	02	1	1309-	●	●
68	08.991 BULB; FRT COMB LAMP (B) 12V 21W	8-97304-590-0	02	1	1011-1308	●
68	08.991 BULB; FRT COMB LAMP (B) 12V 21W	8-97304-590-0	02	1	1309-	●	●
75	02.587 SCREW; FRT COMB LAMP (B) M6X16 TAPPING	8-97374-995-0	02	1	1011-1308	●
75	02.587 SCREW; FRT COMB LAMP (B) M6X16 TAPPING	8-97374-995-0	02	1	1309-	●	●
75	02.587 SCREW; FRT COMB LAMP (A) M4X12	8-97378-944-0	14	1	1011-1308	●
75	02.587 SCREW; FRT COMB LAMP (A) M4X12	8-97378-944-0	14	1	1309-	●	●
76	02.589 LENS; FRT COMB LAMP	8-97378-965-0	01	1	1011-1308	●
76	02.589 LENS; FRT COMB LAMP	8-97378-965-0	01	1	1309-	●	●
76	02.589 LENS; FRT COMB LAMP	8-97378-966-0	01	1	1011-1308	●
76	02.589 LENS; FRT COMB LAMP	8-97378-966-0	01	1	1309-	●	●
93	02.892 BRACKET; SIDE COMB LAMP	8-97378-943-0	01	1	1011-1308	●
93	02.892 BRACKET; SIDE COMB LAMP	8-97378-943-0	01	1	1309-	●	●
93	02.892 BRACKET; SIDE COMB LAMP	8-97378-945-0	01	1	1011-1308	●
93	02.892 BRACKET; SIDE COMB LAMP	8-97378-945-0	01	1	1309-	●	●
139	02.726 COVER; HEADLAMP 01.267	8-97581-653-3	02	1	1011-1308	●
139	02.726 COVER; HEADLAMP 01.267	8-97581-653-3	02	1	1309-	●	●
315	02.596 HARNESS; FRT COMB LAMP	8-98010-916-0	02	1	1011-1308	●
315	02.596 HARNESS; FRT COMB LAMP	8-98010-916-0	02	1	1309-	●	●
419	02.589 LENS; INNER,FRT COMB LAMP	8-97378-946-0	01	1	1011-1308	●
419	02.589 LENS; INNER,FRT COMB LAMP	8-97378-946-0	01	1	1309-	●	●
419	02.589 LENS; INNER,FRT COMB LAMP	8-97378-947-0	01	1	1011-1308	●
419	02.589 LENS; INNER,FRT COMB LAMP	8-97378-947-0	01	1	1309-	●	●
429	02.585 LAMP ASM; SIDE COMB	8-98010-889-0	01	1	1011-1308	●
429	02.585 LAMP ASM; SIDE COMB	8-98010-889-0	01	1	1309-	●	●
429	02.585 LAMP ASM; SIDE COMB	8-98010-890-0	01	1	1011-1308	●
429	02.585 LAMP ASM; SIDE COMB	8-98010-890-0	01	1	1309-	●	●
