◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51376 - QKR(MIDDLE EAST) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-43 - SUN VISOR AND ASSIST GRIP ▶

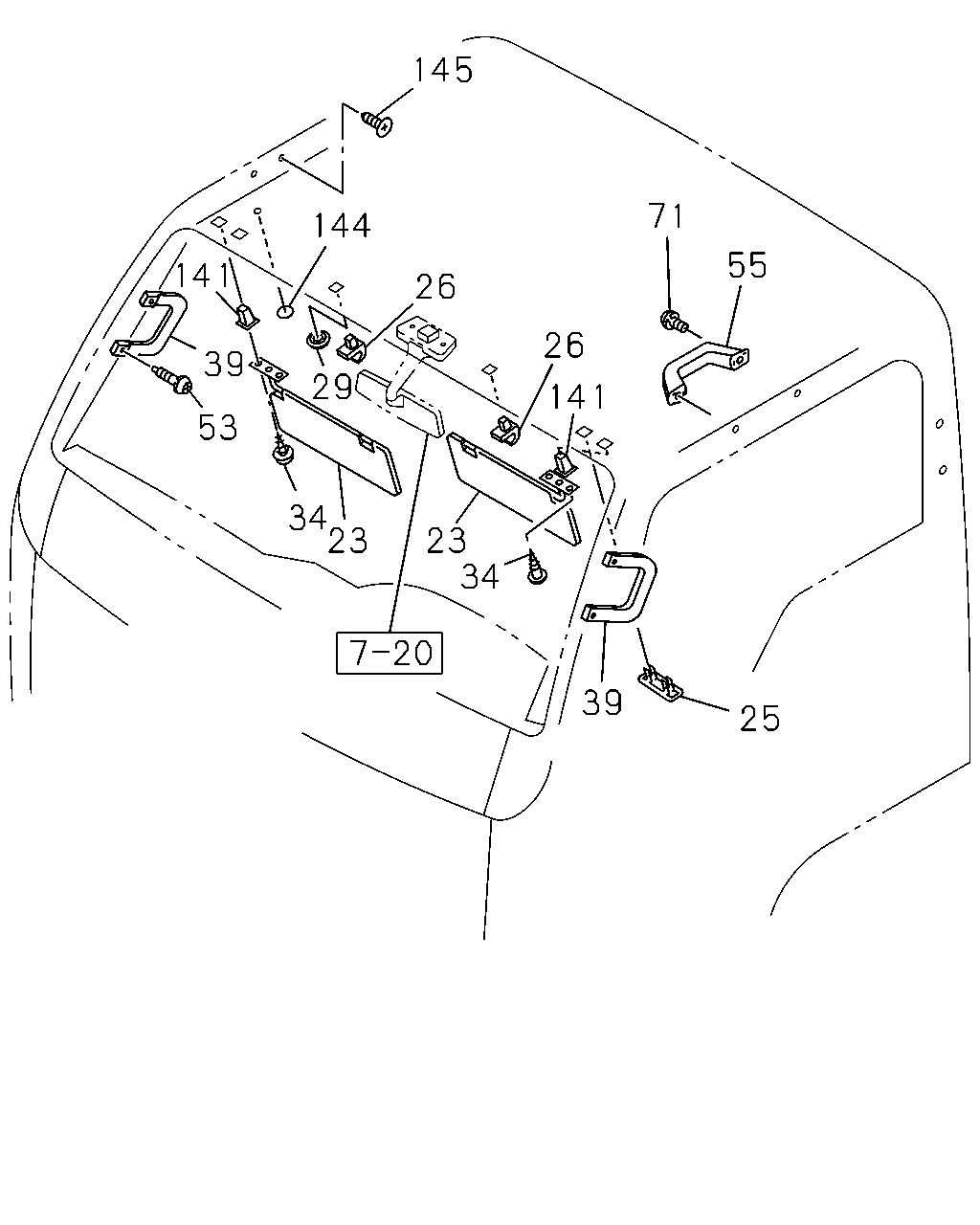

7-43 — SUN VISOR AND ASSIST GRIP (#79873) — 34 parça

145 71 55 25 39 141 26 26 144 34 23 23 34 53 39 29 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY	8-97404-450-0	01	1	1011-1308	●
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY	8-97404-450-0	01	1	1309-	●	●
23	16.070 SUN VISOR LIGHT GRAY	8-97404-398-0	01	1	1011-1308	●
23	16.070 SUN VISOR LIGHT GRAY	8-97404-398-0	01	1	1309-	●	●
25	16.070 COVER; HOLE,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20> DARK GRAY	8-97406-201-3	01	1	1011-1308	●
25	16.070 COVER; HOLE,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20> DARK GRAY	8-97406-201-3	01	1	1309-	●	●
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> DARK GRAY	8-97405-171-0	02	1	1011-1308	●
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> DARK GRAY	8-97405-171-0	02	1	1309-	●	●
26	16.070 HOLDER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20> DARK GRAY	8-97405-171-0	01	1	1011-1308	●
26	16.070 HOLDER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20> DARK GRAY	8-97405-171-0	01	1	1309-	●	●
29	16.070 HOLDER; GROMMET,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20> 16.547 OD=15.0	8-94279-040-0	01	1	1011-1308	●
29	16.070 HOLDER; GROMMET,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20> 16.547 OD=15.0	8-94279-040-0	01	1	1309-	●	●
34	16.070 SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> 06.514 M5X18 TAPPING	0-72180-518-0	04	1	1011-1308	●
34	16.070 SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> 06.514 M5X18 TAPPING	0-72180-518-0	04	1	1309-	●	●
34	16.070 SCREW; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20> 06.514 M5X18 TAPPING	0-72180-518-0	02	1	1011-1308	●
34	16.070 SCREW; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20> 06.514 M5X18 TAPPING	0-72180-518-0	02	1	1309-	●	●
39	16.450 HANDLE; ASSIST,A-POST GRAY	8-97409-477-0	02	1	1011-1308	●
39	16.450 HANDLE; ASSIST,A-POST GRAY	8-97409-477-0	02	1	1309-	●	●
53	16.450 SCREW; ASSIST HANDLE M6X28	8-98004-344-0	04	1	1011-1308	●
53	16.450 SCREW; ASSIST HANDLE M6X28	8-98004-344-0	04	1	1309-	●	●
55	16.450 GRIP; ASSIST,CAB SIDE UPR ASSIST GRIP PASSENGER<EG5> DARK GRAY	8-97405-285-2	01	1	1011-1308	●
55	16.450 GRIP; ASSIST,CAB SIDE UPR ASSIST GRIP PASSENGER<EG5> DARK GRAY	8-97405-285-2	01	1	1309-	●	●
71	16.450 SCREW ASSIST GRIP PASSENGER<EG5> M6X28	8-98004-344-0	02	1	1011-1308	●
71	16.450 SCREW ASSIST GRIP PASSENGER<EG5> M6X28	8-98004-344-0	02	1	1309-	●	●
141	16.070 COVER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> 16.588	8-94279-039-0	04	1	1011-1308	●
141	16.070 COVER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> 16.588	8-94279-039-0	04	1	1309-	●	●
141	16.070 COVER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20> 16.588	8-94279-039-0	02	1	1011-1308	●
141	16.070 COVER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20> 16.588	8-94279-039-0	02	1	1309-	●	●
144	16.070 SEAL; LOCATION HOLE BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	1011-1308	●
144	16.070 SEAL; LOCATION HOLE BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	1309-	●	●
144	16.070 SEAL; LOCATION HOLE BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) 16.570 OD=20 T=0.05 WHITE	8-98059-421-0	04	1	1011-1308	●
144	16.070 SEAL; LOCATION HOLE BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) 16.570 OD=20 T=0.05 WHITE	8-98059-421-0	04	1	1309-	●	●
145	16.070 PLUG; HOLE 16.069 OD=12 L=14.8	8-94279-921-0	04	1	1011-1308	●
145	16.070 PLUG; HOLE 16.069 OD=12 L=14.8	8-94279-921-0	04	1	1309-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
