Sayfa 2-01A - Isuzu EPC

2-01A — CLUTCH (#7987) — 269 parça

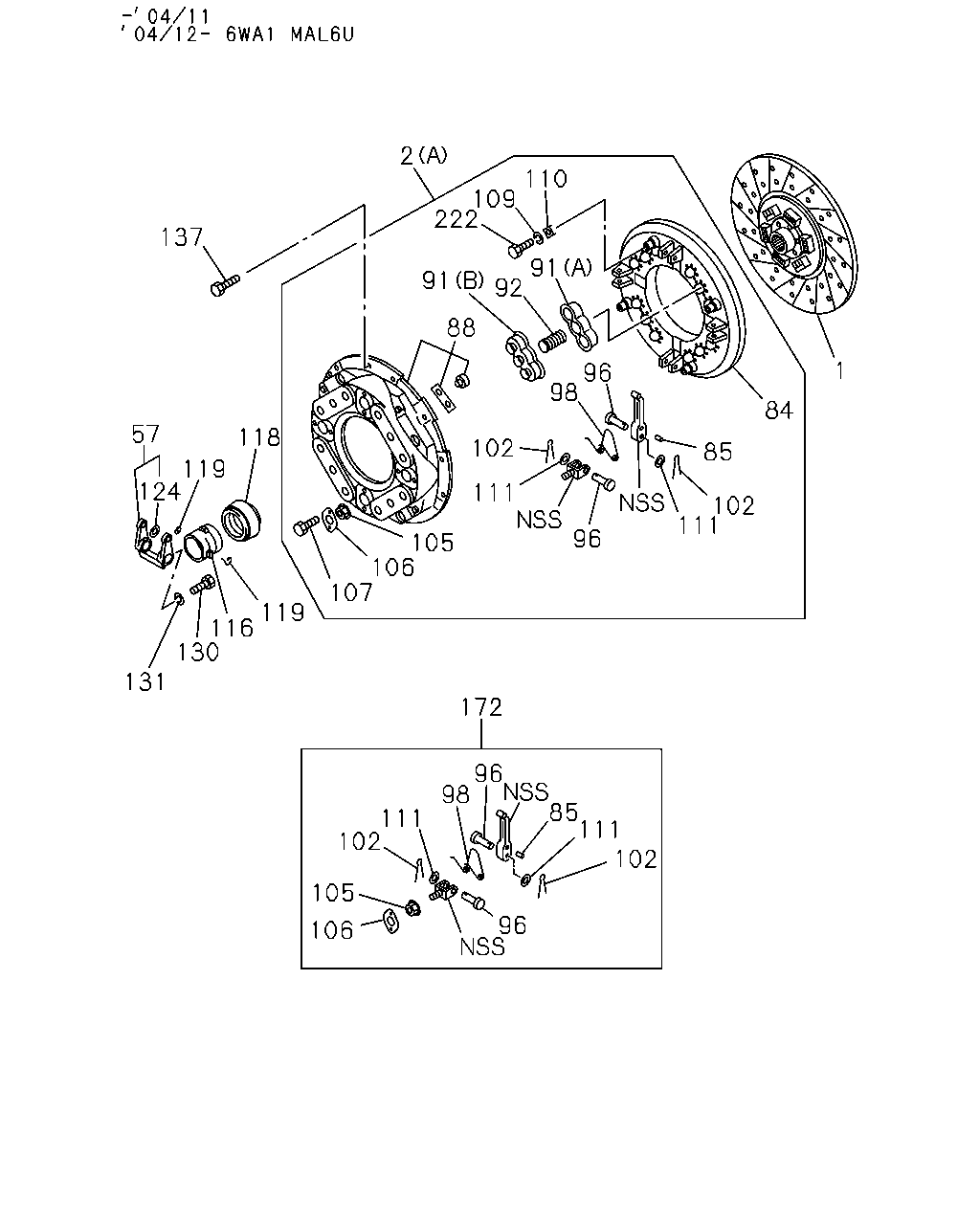

2 84 109 222 91 92 110 88 91 137 96 98 102 1 57 85 102 111 124 124 118 119 111 85 96 105 106 107 119 116 130 131 172 96 98 111 85 102 85 111 106 102 96 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DISC; CLUTCH 17"	1-31240-700-0	01	1	0012-0106	●	●
1	DISC; CLUTCH 17"	1-31240-897-0	01	1	0107-0210	●	●
1	DISC; CLUTCH 17"	1-31240-897-0	01	1	0211-	●	●
1	DISC; CLUTCH 6SD1 TC-S(83L) 17"	1-31240-897-0	01	1	0211-			●
1	DISC; CLUTCH 6WA1 TC-C(55L) 17"	1-31240-876-0	01	1	0204-			●
2	PLATE ASM; PRESSURE,CLU (A)	1-31220-227-4	01	1	0012-0210	●	●
2	PLATE ASM; PRESSURE,CLU (A)	1-31220-227-4	01	1	0211-0411	●	●
2	PLATE ASM; PRESSURE,CLU 6SD1 TC-S(83L) (A)	1-31220-227-4	01	1	0211-0411			●
2	PLATE ASM; PRESSURE,CLU (B)	1-31220-341-3	01	1	0412-	●	●
2	PLATE ASM; PRESSURE,CLU 6SD1 TC-S(83L) (B)	1-31220-341-3	01	1	0412-			●
2	PLATE ASM; PRESSURE,CLU 6WA1 TC-C(55L) (A)	1-31220-317-3	01	1	0204-			●
57	FORK; SHIFT,CLU	1-31340-059-1	01	1	0012-0203	●	●
57	FORK; SHIFT,CLU	1-31340-059-1	01	1	0204-	●	●	●
84	PLATE; PRESSURE	1-31221-041-0	01	1	0012-0210	●	●
84	PLATE; PRESSURE	1-31221-041-0	01	1	0211-0411	●	●
84	PLATE; PRESSURE 6SD1 TC-S(83L)	1-31221-041-0	01	1	0211-0411			●
84	PLATE; PRESSURE 6WA1 TC-C(55L)	1-31221-083-1	01	1	0204-0206			●
84	PLATE; PRESSURE 6WA1 TC-C(55L) 17"	1-31221-128-0	01	1	0207-0411			●
84	PLATE; PRESSURE 17"	1-31221-128-0	01	1	0412-	●	●	●
85	BUSHING; RELEASE LEVER	1-31239-003-0	08	1	0012-0210	●	●
85	BUSHING; RELEASE LEVER	1-31239-003-0	08	1	0211-0411	●	●
85	BUSHING; RELEASE LEVER 6SD1 TC-S(83L)	1-31239-003-0	08	1	0211-0411			●
85	BUSHING; RELEASE LEVER 6WA1 TC-C(55L)	1-31239-053-0	08	1	0204-0411			●
85	BUSHING; RELEASE LEVER	1-31239-053-0	08	1	0412-	●	●	●
88	COVER SUB ASM; CLU	1-31210-008-0	01	1	0412-	●	●
88	COVER SUB ASM; CLU 6SD1 TC-S(83L)	1-31210-008-0	01	1	0412-			●
88	COVER SUB ASM; CLU	1-31210-008-0	01	1	0012-0203	●	●
88	COVER SUB ASM; CLU	1-31210-008-0	01	1	0204-0205	●	●	●
88	COVER SUB ASM; CLU 6WA1 TC-C(55L)	1-31210-008-0	01	1	0206-0206			●
88	COVER SUB ASM; CLU	1-31210-024-0	01	1	0206-0206	●	●
88	COVER SUB ASM; CLU	1-31210-024-0	01	1	0207-0411	●	●	●
88	COVER SUB ASM; CLU 6WA1 TC-C(55L)	1-31210-024-0	01	1	0412-			●
91	SEAT; SPR (A)	1-31219-045-0	12	1	0412-	●	●
91	SEAT; SPR 6SD1 TC-S(83L) (A)	1-31219-045-0	12	1	0412-			●
91	SEAT; SPR (B)	1-31219-046-0	12	1	0412-	●	●
91	SEAT; SPR 6SD1 TC-S(83L) (B)	1-31219-046-0	12	1	0412-			●
91	SEAT; SPR (A)	1-31219-032-0	04	1	0012-0203	●	●
91	SEAT; SPR (A)	1-31219-032-0	04	1	0204-0411	●	●	●
91	SEAT; SPR 6WA1 TC-C(55L) (A)	1-31219-032-0	04	1	0412-			●
91	SEAT; SPR (B)	1-31219-033-0	04	1	0012-0203	●	●
91	SEAT; SPR (B)	1-31219-033-0	04	1	0204-0411	●	●	●
91	SEAT; SPR 6WA1 TC-C(55L) (B)	1-31219-033-0	04	1	0412-			●
92	SPRING; CLU	1-31214-026-0	12	1	0012-0205	●	●
92	SPRING; CLU	1-31214-076-0	12	1	0206-0210	●	●
92	SPRING; CLU	1-31214-076-0	12	1	0211-	●	●
92	SPRING; CLU 6SD1 TC-S(83L)	1-31214-076-0	12	1	0211-			●
92	SPRING; CLU 6WA1 TC-C(55L)	1-31214-052-0	12	1	0204-			●
96	PIN; RELEASE LEVER L=77	1-31232-010-0	08	1	0012-0210	●	●
96	PIN; RELEASE LEVER L=77	1-31232-010-0	08	1	0211-0308	●	●
96	PIN; RELEASE LEVER 6SD1 TC-S(83L) L=77	1-31232-010-0	08	1	0211-0308			●
96	PIN; RELEASE LEVER	1-31232-020-0	08	1	0309-0411	●	●
96	PIN; RELEASE LEVER 6SD1 TC-S(83L)	1-31232-020-0	08	1	0309-0411			●
96	PIN; RELEASE LEVER 6WA1 TC-C(55L)	1-31232-013-0	08	1	0204-0307			●
96	PIN; RELEASE LEVER 6WA1 TC-C(55L)	1-31232-017-0	08	1	0308-0411			●
96	PIN; RELEASE LEVER	1-31232-017-0	08	1	0412-	●	●	●
98	SPRING; RETURN	1-31233-001-0	04	1	0012-0210	●	●
98	SPRING; RETURN	1-31233-001-0	04	1	0211-0411	●	●
98	SPRING; RETURN 6SD1 TC-S(83L)	1-31233-001-0	04	1	0211-0411			●
98	SPRING; RETURN 6WA1 TC-C(55L)	1-31233-007-0	04	1	0204-0411			●
98	SPRING; RETURN	1-31233-007-0	04	1	0412-	●	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	0012-0203	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	0204-	●	●	●
105	NUT; SUPPORT	9-31235-061-0	04	1	0012-0205	●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0206-0206	●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0207-	●	●	●
105	NUT; SUPPORT 6WA1 TC-C(55L)	1-31235-009-0	04	1	0204-0206			●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0012-0203	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0204-	●	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0012-0203	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0204-0205	●	●	●
107	BOLT; LK PLATE 6WA1 TC-C(55L) M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0206-0206			●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0206-0206	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0207-	●	●	●
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	0012-0203	●	●
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	0204-0603	●	●	●
109	WASHER; LK,STRAP ID=12.2	0-91510-512-0	04	1	0604-	●	●	●
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	0012-0203	●	●
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	0204-	●	●	●
111	WASHER; PL,STRAP ID=14	9-09651-098-0	08	1	0012-0203	●	●
111	WASHER; PL,STRAP ID=14	9-09651-098-0	08	1	0204-	●	●	●
116	BLOCK; SHIFT,CLU	1-31321-073-2	01	1	0012-0203	●	●
116	BLOCK; SHIFT,CLU	1-31321-073-3	01	1	0204-	●	●	●
118	BEARING; CLU RELEASE	1-09820-112-0	01	1	0012-0110	●	●
118	BEARING; CLU RELEASE	1-09820-118-0	01	1	0111-0203	●	●
118	BEARING; CLU RELEASE	1-09820-118-0	01	1	0204-	●	●	●
119	SPRING; SHIFT FORK	1-31329-019-0	01	1	0012-0203	●	●
119	SPRING; SHIFT FORK	1-31329-019-0	01	1	0204-	●	●	●
119	SPRING; SHIFT FORK	1-31329-018-0	01	1	0012-0203	●	●
119	SPRING; SHIFT FORK	1-31329-018-0	01	1	0204-	●	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-011-1	02	1	0012-0203	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-011-1	02	1	0204-	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	0012-0203	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	0204-0512	●	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0601-	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0012-0203	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0204-0603	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0604-	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	0012-0203	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	0204-0512	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0601-	●	●	●
172	LEVER KIT; RELEASE,CLU	1-87830-526-1	01	1	0012-0205	●	●
172	LEVER KIT; RELEASE,CLU	1-87831-118-2	01	1	0206-0210	●	●
172	LEVER KIT; RELEASE,CLU	1-87831-118-2	01	1	0211-0411	●	●
172	LEVER KIT; RELEASE,CLU 6SD1 TC-S(83L)	1-87831-118-2	01	1	0211-0411			●
172	LEVER KIT; RELEASE,CLU 6WA1 TC-C(55L)	1-87830-885-2	01	1	0204-0403			●
172	LEVER KIT; RELEASE,CLU 6WA1 TC-C(55L)	1-87831-182-0	01	1	0404-0411			●
172	LEVER KIT; RELEASE,CLU	1-87831-182-0	01	1	0412-	●	●	●
222	BOLT; STRAP M12X30	1-09040-016-0	04	1	0012-0210	●	●
222	BOLT; STRAP M12X30	1-09040-016-0	04	1	0211-0411	●	●
222	BOLT; STRAP 6SD1 TC-S(83L) M12X30	1-09040-016-0	04	1	0211-0411			●
222	BOLT; STRAP 6WA1 TC-C(55L)	1-09040-102-0	04	1	0204-0411			●
222	BOLT; STRAP	1-09040-102-0	04	1	0412-	●	●	●

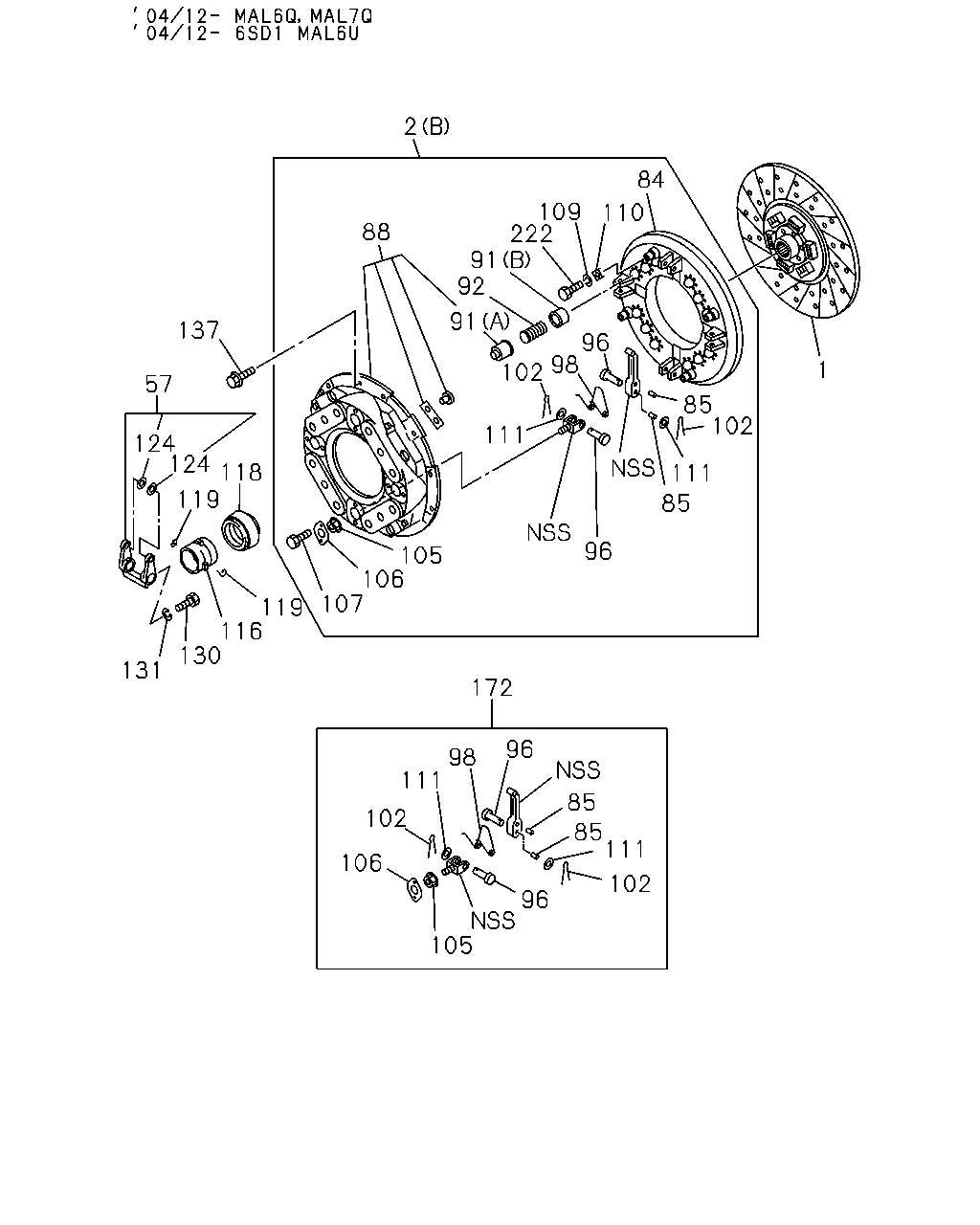

2 110 109 222 137 91 92 91 88 1 96 98 84 57 118 102 85 119 124 111 102 111 96 105 106 107 119 116 130 131 172 96 98 85 111 102 111 102 105 96 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DISC; CLUTCH 17"	1-31240-700-0	01	1	0012-0106	●	●
1	DISC; CLUTCH 17"	1-31240-897-0	01	1	0107-0210	●	●
1	DISC; CLUTCH 17"	1-31240-897-0	01	1	0211-	●	●
1	DISC; CLUTCH 6SD1 TC-S(83L) 17"	1-31240-897-0	01	1	0211-			●
1	DISC; CLUTCH 6WA1 TC-C(55L) 17"	1-31240-876-0	01	1	0204-			●
2	PLATE ASM; PRESSURE,CLU (A)	1-31220-227-4	01	1	0012-0210	●	●
2	PLATE ASM; PRESSURE,CLU (A)	1-31220-227-4	01	1	0211-0411	●	●
2	PLATE ASM; PRESSURE,CLU 6SD1 TC-S(83L) (A)	1-31220-227-4	01	1	0211-0411			●
2	PLATE ASM; PRESSURE,CLU (B)	1-31220-341-3	01	1	0412-	●	●
2	PLATE ASM; PRESSURE,CLU 6SD1 TC-S(83L) (B)	1-31220-341-3	01	1	0412-			●
2	PLATE ASM; PRESSURE,CLU 6WA1 TC-C(55L) (A)	1-31220-317-3	01	1	0204-			●
57	FORK; SHIFT,CLU	1-31340-059-1	01	1	0012-0203	●	●
57	FORK; SHIFT,CLU	1-31340-059-1	01	1	0204-	●	●	●
84	PLATE; PRESSURE	1-31221-041-0	01	1	0012-0210	●	●
84	PLATE; PRESSURE	1-31221-041-0	01	1	0211-0411	●	●
84	PLATE; PRESSURE 6SD1 TC-S(83L)	1-31221-041-0	01	1	0211-0411			●
84	PLATE; PRESSURE 6WA1 TC-C(55L)	1-31221-083-1	01	1	0204-0206			●
84	PLATE; PRESSURE 6WA1 TC-C(55L) 17"	1-31221-128-0	01	1	0207-0411			●
84	PLATE; PRESSURE 17"	1-31221-128-0	01	1	0412-	●	●	●
85	BUSHING; RELEASE LEVER	1-31239-003-0	08	1	0012-0210	●	●
85	BUSHING; RELEASE LEVER	1-31239-003-0	08	1	0211-0411	●	●
85	BUSHING; RELEASE LEVER 6SD1 TC-S(83L)	1-31239-003-0	08	1	0211-0411			●
85	BUSHING; RELEASE LEVER 6WA1 TC-C(55L)	1-31239-053-0	08	1	0204-0411			●
85	BUSHING; RELEASE LEVER	1-31239-053-0	08	1	0412-	●	●	●
88	COVER SUB ASM; CLU	1-31210-008-0	01	1	0412-	●	●
88	COVER SUB ASM; CLU 6SD1 TC-S(83L)	1-31210-008-0	01	1	0412-			●
88	COVER SUB ASM; CLU	1-31210-008-0	01	1	0012-0203	●	●
88	COVER SUB ASM; CLU	1-31210-008-0	01	1	0204-0205	●	●	●
88	COVER SUB ASM; CLU 6WA1 TC-C(55L)	1-31210-008-0	01	1	0206-0206			●
88	COVER SUB ASM; CLU	1-31210-024-0	01	1	0206-0206	●	●
88	COVER SUB ASM; CLU	1-31210-024-0	01	1	0207-0411	●	●	●
88	COVER SUB ASM; CLU 6WA1 TC-C(55L)	1-31210-024-0	01	1	0412-			●
91	SEAT; SPR (A)	1-31219-045-0	12	1	0412-	●	●
91	SEAT; SPR 6SD1 TC-S(83L) (A)	1-31219-045-0	12	1	0412-			●
91	SEAT; SPR (B)	1-31219-046-0	12	1	0412-	●	●
91	SEAT; SPR 6SD1 TC-S(83L) (B)	1-31219-046-0	12	1	0412-			●
91	SEAT; SPR (A)	1-31219-032-0	04	1	0012-0203	●	●
91	SEAT; SPR (A)	1-31219-032-0	04	1	0204-0411	●	●	●
91	SEAT; SPR 6WA1 TC-C(55L) (A)	1-31219-032-0	04	1	0412-			●
91	SEAT; SPR (B)	1-31219-033-0	04	1	0012-0203	●	●
91	SEAT; SPR (B)	1-31219-033-0	04	1	0204-0411	●	●	●
91	SEAT; SPR 6WA1 TC-C(55L) (B)	1-31219-033-0	04	1	0412-			●
92	SPRING; CLU	1-31214-026-0	12	1	0012-0205	●	●
92	SPRING; CLU	1-31214-076-0	12	1	0206-0210	●	●
92	SPRING; CLU	1-31214-076-0	12	1	0211-	●	●
92	SPRING; CLU 6SD1 TC-S(83L)	1-31214-076-0	12	1	0211-			●
92	SPRING; CLU 6WA1 TC-C(55L)	1-31214-052-0	12	1	0204-			●
96	PIN; RELEASE LEVER L=77	1-31232-010-0	08	1	0012-0210	●	●
96	PIN; RELEASE LEVER L=77	1-31232-010-0	08	1	0211-0308	●	●
96	PIN; RELEASE LEVER 6SD1 TC-S(83L) L=77	1-31232-010-0	08	1	0211-0308			●
96	PIN; RELEASE LEVER	1-31232-020-0	08	1	0309-0411	●	●
96	PIN; RELEASE LEVER 6SD1 TC-S(83L)	1-31232-020-0	08	1	0309-0411			●
96	PIN; RELEASE LEVER 6WA1 TC-C(55L)	1-31232-013-0	08	1	0204-0307			●
96	PIN; RELEASE LEVER 6WA1 TC-C(55L)	1-31232-017-0	08	1	0308-0411			●
96	PIN; RELEASE LEVER	1-31232-017-0	08	1	0412-	●	●	●
98	SPRING; RETURN	1-31233-001-0	04	1	0012-0210	●	●
98	SPRING; RETURN	1-31233-001-0	04	1	0211-0411	●	●
98	SPRING; RETURN 6SD1 TC-S(83L)	1-31233-001-0	04	1	0211-0411			●
98	SPRING; RETURN 6WA1 TC-C(55L)	1-31233-007-0	04	1	0204-0411			●
98	SPRING; RETURN	1-31233-007-0	04	1	0412-	●	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	0012-0203	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	0204-	●	●	●
105	NUT; SUPPORT	9-31235-061-0	04	1	0012-0205	●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0206-0206	●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0207-	●	●	●
105	NUT; SUPPORT 6WA1 TC-C(55L)	1-31235-009-0	04	1	0204-0206			●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0012-0203	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	0204-	●	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0012-0203	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0204-0205	●	●	●
107	BOLT; LK PLATE 6WA1 TC-C(55L) M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0206-0206			●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0206-0206	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0207-	●	●	●
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	0012-0203	●	●
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	0204-0603	●	●	●
109	WASHER; LK,STRAP ID=12.2	0-91510-512-0	04	1	0604-	●	●	●
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	0012-0203	●	●
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	0204-	●	●	●
111	WASHER; PL,STRAP ID=14	9-09651-098-0	08	1	0012-0203	●	●
111	WASHER; PL,STRAP ID=14	9-09651-098-0	08	1	0204-	●	●	●
116	BLOCK; SHIFT,CLU	1-31321-073-2	01	1	0012-0203	●	●
116	BLOCK; SHIFT,CLU	1-31321-073-3	01	1	0204-	●	●	●
118	BEARING; CLU RELEASE	1-09820-112-0	01	1	0012-0110	●	●
118	BEARING; CLU RELEASE	1-09820-118-0	01	1	0111-0203	●	●
118	BEARING; CLU RELEASE	1-09820-118-0	01	1	0204-	●	●	●
119	SPRING; SHIFT FORK	1-31329-019-0	01	1	0012-0203	●	●
119	SPRING; SHIFT FORK	1-31329-019-0	01	1	0204-	●	●	●
119	SPRING; SHIFT FORK	1-31329-018-0	01	1	0012-0203	●	●
119	SPRING; SHIFT FORK	1-31329-018-0	01	1	0204-	●	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-011-1	02	1	0012-0203	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-011-1	02	1	0204-	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	0012-0203	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	0204-0512	●	●	●
130	SCREW; SHIFT FORK M8X14	0-61200-814-0	01	1	0601-	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0012-0203	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0204-0603	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0604-	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	0012-0203	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	0204-0512	●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0601-	●	●	●
172	LEVER KIT; RELEASE,CLU	1-87830-526-1	01	1	0012-0205	●	●
172	LEVER KIT; RELEASE,CLU	1-87831-118-2	01	1	0206-0210	●	●
172	LEVER KIT; RELEASE,CLU	1-87831-118-2	01	1	0211-0411	●	●
172	LEVER KIT; RELEASE,CLU 6SD1 TC-S(83L)	1-87831-118-2	01	1	0211-0411			●
172	LEVER KIT; RELEASE,CLU 6WA1 TC-C(55L)	1-87830-885-2	01	1	0204-0403			●
172	LEVER KIT; RELEASE,CLU 6WA1 TC-C(55L)	1-87831-182-0	01	1	0404-0411			●
172	LEVER KIT; RELEASE,CLU	1-87831-182-0	01	1	0412-	●	●	●
222	BOLT; STRAP M12X30	1-09040-016-0	04	1	0012-0210	●	●
222	BOLT; STRAP M12X30	1-09040-016-0	04	1	0211-0411	●	●
222	BOLT; STRAP 6SD1 TC-S(83L) M12X30	1-09040-016-0	04	1	0211-0411			●
222	BOLT; STRAP 6WA1 TC-C(55L)	1-09040-102-0	04	1	0204-0411			●
222	BOLT; STRAP	1-09040-102-0	04	1	0412-	●	●	●

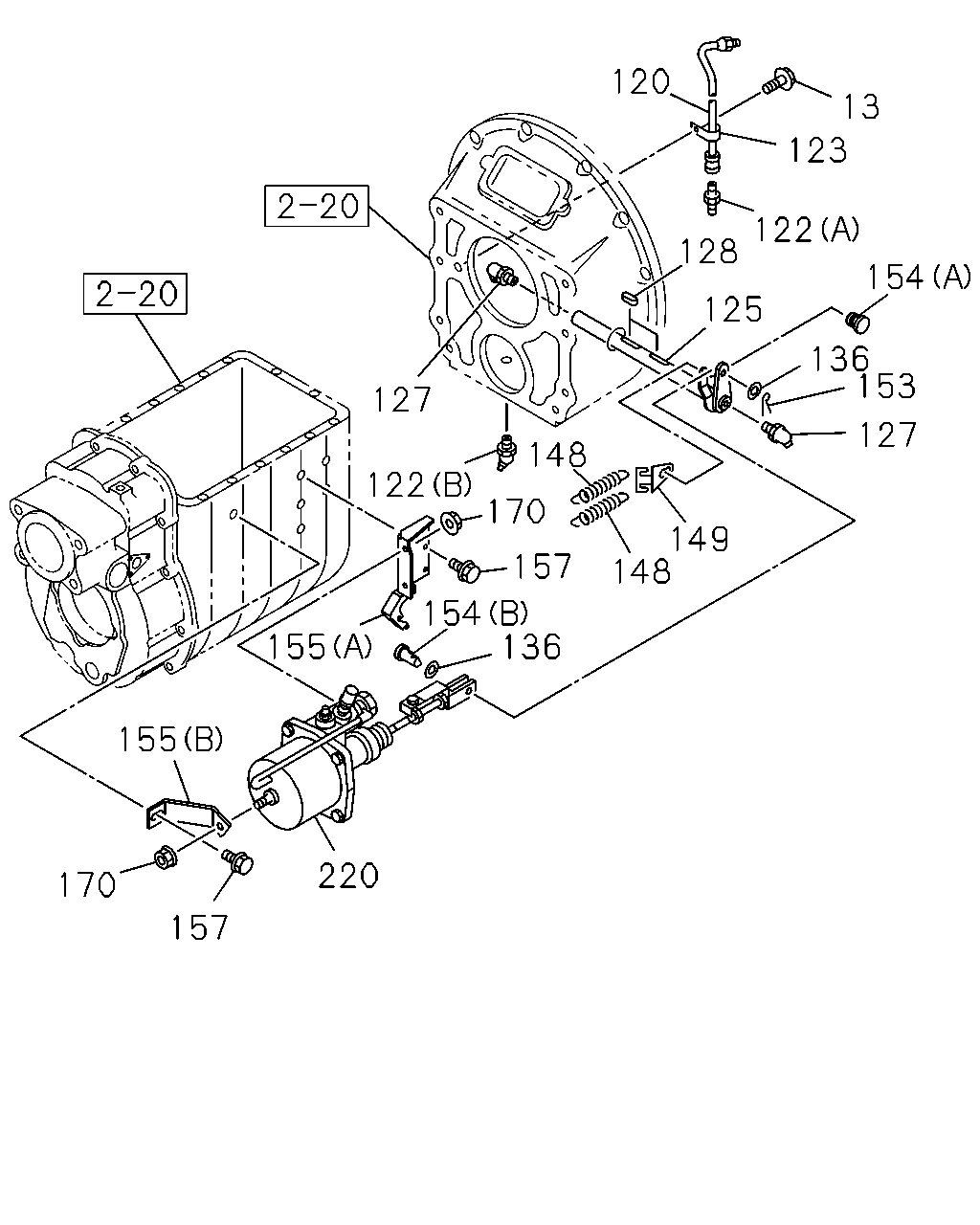

120 13 123 122 128 154 125 127 136 153 127 148 122 170 149 148 157 154 136 155 155 220 170 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0012-0203	●	●
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0204-0512	●	●	●
13	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-	●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0012-0203	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0204-	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	0012-0203	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 & M10	1-09660-710-0	01	1	0204-	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0012-0203	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	01	1	0204-0512	●	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0601-	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	0012-0203	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	0204-0606	●	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	0-95234-835-0	01	1	0607-	●	●	●
125	SHAFT; CLU	1-31342-278-0	01	1	0012-0203	●	●
125	SHAFT; CLU	1-31342-278-0	01	1	0204-	●	●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	0012-0203	●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	0204-0512	●	●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	0601-	●	●	●
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	0012-0203	●	●
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	0204-	●	●	●
136	WASHER; PL ID=15	9-09160-514-0	02	1	0012-0203	●	●
136	WASHER; PL ID=15	9-09160-514-0	02	1	0204-0605	●	●	●
136	WASHER; PL ID=15	0-91610-514-0	02	1	0606-	●	●	●
148	SPRING; CLU RETURN L=192	1-09583-266-0	02	1	0012-0203	●	●
148	SPRING; CLU RETURN L=192	1-09583-266-0	02	1	0204-	●	●	●
149	EYE; SPRING,RETURN SPRING	1-31426-031-0	01	1	0012-0203	●	●
149	EYE; SPRING,RETURN SPRING	1-31426-031-0	01	1	0204-	●	●	●
153	PIN; SPLIT,CLU SHAFT	1-09747-009-0	01	1	0012-0203	●	●
153	PIN; SPLIT,CLU SHAFT	1-09747-009-0	01	1	0204-	●	●	●
154	PIN; JAW JOINT (A) L=15.7	1-31424-005-0	01	1	0012-0203	●	●
154	PIN; JAW JOINT (A) L=15.7	1-31424-005-0	01	1	0204-	●	●	●
154	PIN; JAW JOINT (B) L=35	1-31424-010-0	01	1	0012-0105	●	●
154	PIN; JAW JOINT (B) L=35	1-31424-003-0	01	1	0106-0203	●	●
154	PIN; JAW JOINT (B) L=35	1-31424-003-0	01	1	0204-	●	●	●
155	BRACKET; MINIPACK (B)	1-31429-205-1	01	1	0012-0203	●	●
155	BRACKET; MINIPACK (B)	1-31429-205-1	01	1	0204-	●	●	●
155	BRACKET; MINIPACK (A)	1-31429-372-0	01	1	0012-0203	●	●
155	BRACKET; MINIPACK (A)	1-31429-372-0	01	1	0204-	●	●	●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	0012-0203	●	●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	0204-	●	●	●
170	NUT; BOOSTER FIX M10 FLANGE	0-91150-210-0	03	1	0012-0203	●	●
170	NUT; BOOSTER FIX M10 FLANGE	0-91150-210-0	03	1	0204-0602	●	●	●
170	NUT; BOOSTER FIX M10 FLANGE	0-91180-210-0	03	1	0603-	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-491-0	01	1	0012-0203	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-491-0	01	1	0204-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
