Isuzu WW
▶
TRUCKS
▶
QKR
▶
51376 - QKR(MIDDLE EAST)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-20 - MIRROR AND MIRROR STAY
▶

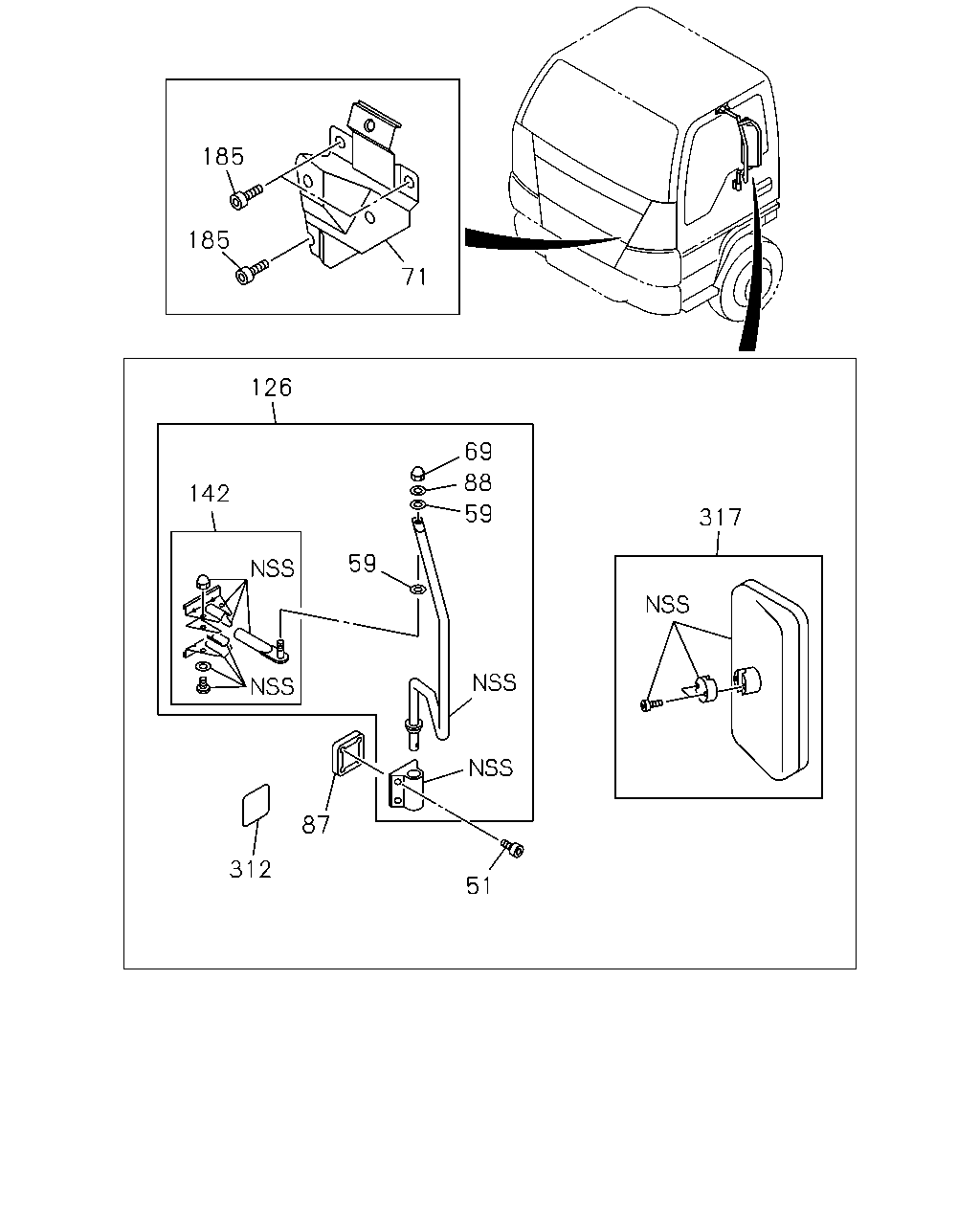

7-20 — MIRROR AND MIRROR STAY
(#79868) — 35 parça
Tümü
A - NKR6SN
B - NKR6SE
◀
[720A] DOOR MIRROR (25 parça)
[720A] ROOM MIRROR (10 parça)
▶
185
185
71
126
142
59
69
88
59
87
312
51
317
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
51
16.069 SCREW; MIRROR
M6X30
8-94279-327-0
08
1
1011-1308
●
51
16.069 SCREW; MIRROR
M6X30
8-94279-327-0
08
1
1309-
●
●
59
16.069 WASHER; LK
T=2.6
8-94279-073-0
04
1
1011-1308
●
59
16.069 WASHER; LK
T=2.6
8-94279-073-0
04
1
1309-
●
●
69
16.069 NUT; CAP
M10 CAP NUT
1-09984-134-0
02
1
1011-1308
●
69
16.069 NUT; CAP
M10 CAP NUT
1-09984-134-0
02
1
1309-
●
●
71
16.069 BRACKET; OUTSIDE MIRROR
8-97581-620-2
01
1
1011-1308
●
71
16.069 BRACKET; OUTSIDE MIRROR
8-97581-620-2
01
1
1309-
●
●
71
16.069 BRACKET; OUTSIDE MIRROR
8-97581-621-2
01
1
1011-1308
●
71
16.069 BRACKET; OUTSIDE MIRROR
8-97581-621-2
01
1
1309-
●
●
87
16.069 SPACER
8-94272-677-0
02
1
1011-1308
●
87
16.069 SPACER
8-94272-677-0
02
1
1309-
●
●
88
16.069 WASHER; PL,SUPPORT STAY
03.417 ID=10.5 OD=26 T=2.3
1-09985-172-0
02
1
1011-1308
●
88
16.069 WASHER; PL,SUPPORT STAY
03.417 ID=10.5 OD=26 T=2.3
1-09985-172-0
02
1
1309-
●
●
126
16.069 STAY ASM; MIRROR
8-97856-938-4
01
1
1011-1308
●
126
16.069 STAY ASM; MIRROR
8-97856-938-4
01
1
1309-
●
●
126
16.069 STAY ASM; MIRROR
8-97856-939-4
01
1
1011-1308
●
126
16.069 STAY ASM; MIRROR
8-97856-939-4
01
1
1309-
●
●
142
16.069 STAY ASM; SUB
8-97856-622-2
02
1
1011-
●
185
16.069 BOLT; BRKT
M8X12.5 W/LK WASHER
8-98020-348-0
06
1
1011-1308
●
185
16.069 BOLT; BRKT
M8X12.5 W/LK WASHER
8-98020-348-0
06
1
1309-
●
●
312
16.081 TAPE
8-97898-006-0
02
1
1011-1308
●
312
16.081 TAPE
8-97898-006-0
02
1
1309-
●
●
317
16.068 MIRROR PKG; DOOR
8-98037-583-1
02
1
1011-1308
●
317
16.068 MIRROR PKG; DOOR
8-98037-583-1
02
1
1309-
●
●
159
158
1
2
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
16.068 MIRROR; ROOM
LIGHT GRAY
8-97582-926-2
01
1
1011-1308
●
1
16.068 MIRROR; ROOM
LIGHT GRAY
8-97582-926-2
01
1
1309-
●
●
2
16.069 SCREW; MIRROR TO BODY
16.263 M5X16
8-94279-341-0
02
1
1011-1308
●
2
16.069 SCREW; MIRROR TO BODY
16.263 M5X16
8-94279-341-0
02
1
1309-
●
●
3
16.069 STOPPER; RR VIEW MIRROR
L=22
8-97857-352-1
01
1
1011-1308
●
3
16.069 STOPPER; RR VIEW MIRROR
L=22
8-97857-352-1
01
1
1309-
●
●
158
16.495 LENS; ROOM LAMP
16.068
5-73117-108-1
01
1
1011-1308
●
158
16.495 LENS; ROOM LAMP
16.068
5-73117-108-1
01
1
1309-
●
●
159
08.991 BULB; ROOM LAMP
12V 10W
8-97128-771-0
01
1
1011-1308
●
159
08.991 BULB; ROOM LAMP
12V 10W
8-97128-771-0
01
1
1309-
●
●
