6-90 — REAR BUMPER (#79865) — 76 parça

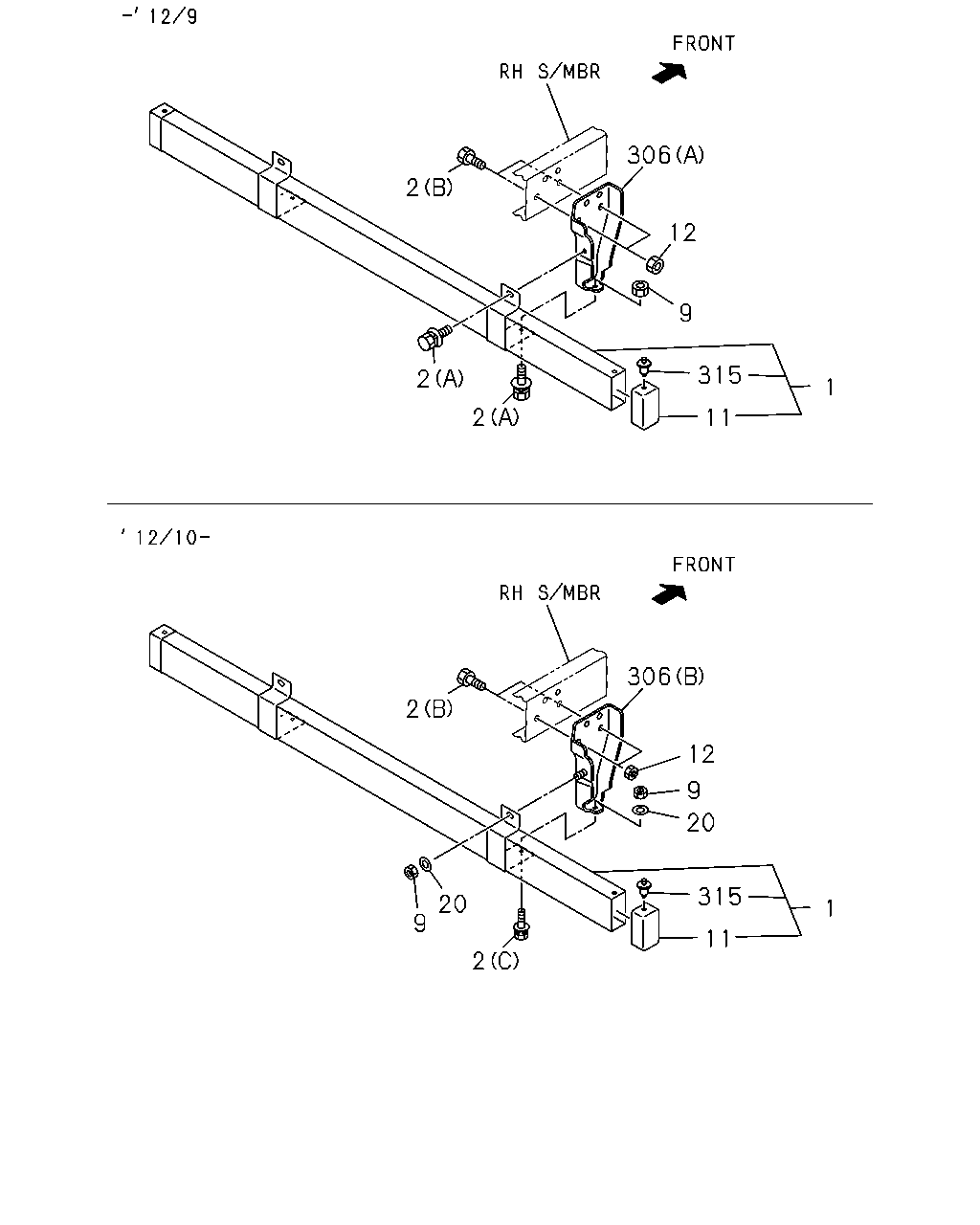

1 1 315 2 11 9 20 20 9 12 2 306 2 2 2 306 12 11 315 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	07.070 BUMPER; RR	8-97174-004-2	01	1	1309-1407	●
1	07.070 BUMPER; RR WIDE STEEL REAR BUMPER<SMS>	8-97174-004-2	01	1	1408-	●
1	07.070 BUMPER; RR STAMP IJ2H	8-98000-145-1	01	1	1011-1205		●
1	07.070 BUMPER; RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) STAMP IJ2H	8-98000-145-1	01	1	1206-1407		●
1	07.070 BUMPER; RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) WIDE STEEL REAR BUMPER<SMS> STAMP IJ2H	8-98000-145-1	01	1	1408-		●
2	07.874 BOLT; BACK BAR 01.271 (A) M10X30	8-94324-205-0	04	1	1011-1205		●
2	07.874 BOLT; BACK BAR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 01.271 (A) M10X30	8-94324-205-0	04	1	1206-1209		●
2	07.874 BOLT; BACK BAR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1210-1308		●
2	07.874 BOLT; BACK BAR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1309-1407		●
2	07.874 BOLT; BACK BAR 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1309-1407	●
2	07.874 BOLT; BACK BAR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) WIDE STEEL REAR BUMPER<SMS> 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1408-		●
2	07.874 BOLT; BACK BAR WIDE STEEL REAR BUMPER<SMS> 00.029 (C) M10X25 FLANGE	0-28651-025-0	02	1	1408-	●
2	07.874 BOLT; BACK BAR (B) M14X30	0-20851-430-0	06	1	1011-1011		●
2	07.874 BOLT; BACK BAR (B) M14X30	0-20851-430-0	08	1	1012-1205		●
2	07.874 BOLT; BACK BAR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (B) M14X30	0-20851-430-0	08	1	1206-1308		●
2	07.874 BOLT; BACK BAR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (B) M14X30	0-20851-430-0	08	1	1309-1407		●
2	07.874 BOLT; BACK BAR (B) M14X30	0-20851-430-0	08	1	1309-1407	●
2	07.874 BOLT; BACK BAR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) WIDE STEEL REAR BUMPER<SMS> (B) M14X30	0-20851-430-0	08	1	1408-		●
2	07.874 BOLT; BACK BAR WIDE STEEL REAR BUMPER<SMS> (B) M14X30	0-20851-430-0	08	1	1408-	●
9	07.070 NUT; BUMPER 04.085 M10 FLANGE	0-91180-210-0	02	1	1011-1205		●
9	07.070 NUT; BUMPER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 04.085 M10 FLANGE	0-91180-210-0	02	1	1206-1209		●
9	07.070 NUT; BUMPER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 04.085 M10 FLANGE	0-91180-210-0	04	1	1210-1308		●
9	07.070 NUT; BUMPER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 04.085 M10 FLANGE	0-91180-210-0	04	1	1309-1407		●
9	07.070 NUT; BUMPER 04.085 M10 FLANGE	0-91180-210-0	04	1	1309-1407	●
9	07.070 NUT; BUMPER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) WIDE STEEL REAR BUMPER<SMS> 04.085 M10 FLANGE	0-91180-210-0	04	1	1408-		●
9	07.070 NUT; BUMPER WIDE STEEL REAR BUMPER<SMS> 04.085 M10 FLANGE	0-91180-210-0	04	1	1408-	●
11	07.829 CAP; RR BUMPER	8-97174-008-0	02	1	1011-1205		●
11	07.829 CAP; RR BUMPER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W)	8-97174-008-0	02	1	1206-1407		●
11	07.829 CAP; RR BUMPER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) WIDE STEEL REAR BUMPER<SMS>	8-97174-008-0	02	1	1408-		●
12	07.833 NUT; BRKT 00.429 M14 FLANGE	0-91180-214-0	08	1	1011-1205		●
12	07.833 NUT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 00.429 M14 FLANGE	0-91180-214-0	08	1	1206-1308		●
12	07.833 NUT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 00.429 M14 FLANGE	0-91180-214-0	08	1	1309-1407		●
12	07.833 NUT; BRKT 00.429 M14 FLANGE	0-91180-214-0	08	1	1309-1407	●
12	07.833 NUT; BRKT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) WIDE STEEL REAR BUMPER<SMS> 00.429 M14 FLANGE	0-91180-214-0	08	1	1408-		●
12	07.833 NUT; BRKT WIDE STEEL REAR BUMPER<SMS> 00.429 M14 FLANGE	0-91180-214-0	08	1	1408-	●
20	07.070 WASHER; PL,BUMPER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 00.002 ID=10.5 OD=32	0-91614-810-0	04	1	1210-1308		●
20	07.070 WASHER; PL,BUMPER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 00.002 ID=10.5 OD=32	0-91614-810-0	04	1	1309-1407		●
20	07.070 WASHER; PL,BUMPER 00.002 ID=10.5 OD=32	0-91614-810-0	04	1	1309-1407	●
20	07.070 WASHER; PL,BUMPER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) WIDE STEEL REAR BUMPER<SMS> 00.002 ID=10.5 OD=32	0-91614-810-0	04	1	1408-		●
20	07.070 WASHER; PL,BUMPER WIDE STEEL REAR BUMPER<SMS> 00.002 ID=10.5 OD=32	0-91614-810-0	04	1	1408-	●
306	07.836 BAR; BACK,RR (A) STAMP IA2	8-98000-171-0	01	1	1011-1205		●
306	07.836 BAR; BACK,RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (A) STAMP IA2	8-98000-171-0	01	1	1206-1209		●
306	07.836 BAR; BACK,RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (B) STAMP IA2	8-98223-985-0	01	1	1210-1308		●
306	07.836 BAR; BACK,RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (B) STAMP IA2	8-98223-985-0	01	1	1309-1407		●
306	07.836 BAR; BACK,RR (B) STAMP IA2	8-98223-985-0	01	1	1309-1407	●
306	07.836 BAR; BACK,RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) WIDE STEEL REAR BUMPER<SMS> (B) STAMP IA2	8-98223-985-0	01	1	1408-		●
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> (B) STAMP IA2	8-98223-985-0	01	1	1408-	●
306	07.836 BAR; BACK,RR (A) STAMP IA2	8-98000-172-0	01	1	1011-1205		●
306	07.836 BAR; BACK,RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (A) STAMP IA2	8-98000-172-0	01	1	1206-1209		●
306	07.836 BAR; BACK,RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (B) STAMP IA2	8-98223-986-0	01	1	1210-1308		●
306	07.836 BAR; BACK,RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (B) STAMP IA2	8-98223-986-0	01	1	1309-1407		●
306	07.836 BAR; BACK,RR (B) STAMP IA2	8-98223-986-0	01	1	1309-1407	●
306	07.836 BAR; BACK,RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) WIDE STEEL REAR BUMPER<SMS> (B) STAMP IA2	8-98223-986-0	01	1	1408-		●
306	07.836 BAR; BACK,RR WIDE STEEL REAR BUMPER<SMS> (B) STAMP IA2	8-98223-986-0	01	1	1408-	●
315	07.829 RIVET; CAP 08.155 D8X13.5	1-09987-248-1	04	1	1011-1205		●
315	07.829 RIVET; CAP WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) 08.155 D8X13.5	1-09987-248-1	04	1	1206-1407		●
315	07.829 RIVET; CAP WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) WIDE STEEL REAR BUMPER<SMS> 08.155 D8X13.5	1-09987-248-1	04	1	1408-		●

113 114 128 128 116 114 113 116 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
113	07.800 BRACKET; LICENSE PLATE EXC. RR BODY FLAT BED(RS6) 02.662 (A)	8-97096-644-3	01	1	1311-1312	●
113	07.800 BRACKET; LICENSE PLATE (A)	8-98029-390-3	01	1	1011-1205		●
113	07.800 BRACKET; LICENSE PLATE EXC. RR BODY FLAT BED(RS6) (A)	8-98029-390-3	01	1	1206-1312		●
113	07.800 BRACKET; LICENSE PLATE EXC. RR BODY FLAT BED(RS6) (A)	8-98029-390-3	01	1	1401-	●	●
113	07.800 BRACKET; LICENSE PLATE RR BODY FLAT BED(RS6) (B)	8-97077-573-2	01	1	1206-1308		●
113	07.800 BRACKET; LICENSE PLATE RR BODY FLAT BED(RS6) (B)	8-97077-573-2	01	1	1309-1310		●
113	07.800 BRACKET; LICENSE PLATE (B)	8-97077-573-2	01	1	1309-1310	●
113	07.800 BRACKET; LICENSE PLATE RR BODY FLAT BED(RS6) (B)	8-97077-573-2	01	1	1311-	●	●
114	07.800 BOLT; BRKT,LICENSE PLATE 00.685 (A) M8X40 FLANGE	0-28650-840-0	02	1	1011-1205		●
114	07.800 BOLT; BRKT,LICENSE PLATE EXC. RR BODY FLAT BED(RS6) 00.685 (A) M8X40 FLANGE	0-28650-840-0	02	1	1206-1310		●
114	07.800 BOLT; BRKT,LICENSE PLATE EXC. RR BODY FLAT BED(RS6) 00.685 (A) M8X40 FLANGE	0-28650-840-0	02	1	1311-	●	●
114	07.800 BOLT; BRKT,LICENSE PLATE RR BODY FLAT BED(RS6) 00.685 (B) M6X25 FLANGE	0-28650-625-0	02	1	1206-1308		●
114	07.800 BOLT; BRKT,LICENSE PLATE RR BODY FLAT BED(RS6) 00.685 (B) M6X25 FLANGE	0-28650-625-0	02	1	1309-1310		●
114	07.800 BOLT; BRKT,LICENSE PLATE 00.685 (B) M6X25 FLANGE	0-28650-625-0	02	1	1309-1310	●
114	07.800 BOLT; BRKT,LICENSE PLATE RR BODY FLAT BED(RS6) 00.685 (B) M6X25 FLANGE	0-28650-625-0	02	1	1311-	●	●
116	07.800 WASHER; PL,LICENSE PLATE EXC. RR BODY FLAT BED(RS6) 03.706 ID=8.4 OD=26	0-91614-808-0	02	1	1401-	●
128	02.662 NUT; CROSS PLATE 01.062 M8 FLANGE	0-91180-108-0	02	1	1011-1205		●
128	02.662 NUT; CROSS PLATE EXC. RR BODY FLAT BED(RS6) 01.062 M8 FLANGE	0-91180-108-0	02	1	1206-1310		●
128	02.662 NUT; CROSS PLATE EXC. RR BODY FLAT BED(RS6) 01.062 M8 FLANGE	0-91180-108-0	02	1	1311-	●	●
