6-80 — BACK PANEL (#79863) — 12 parça

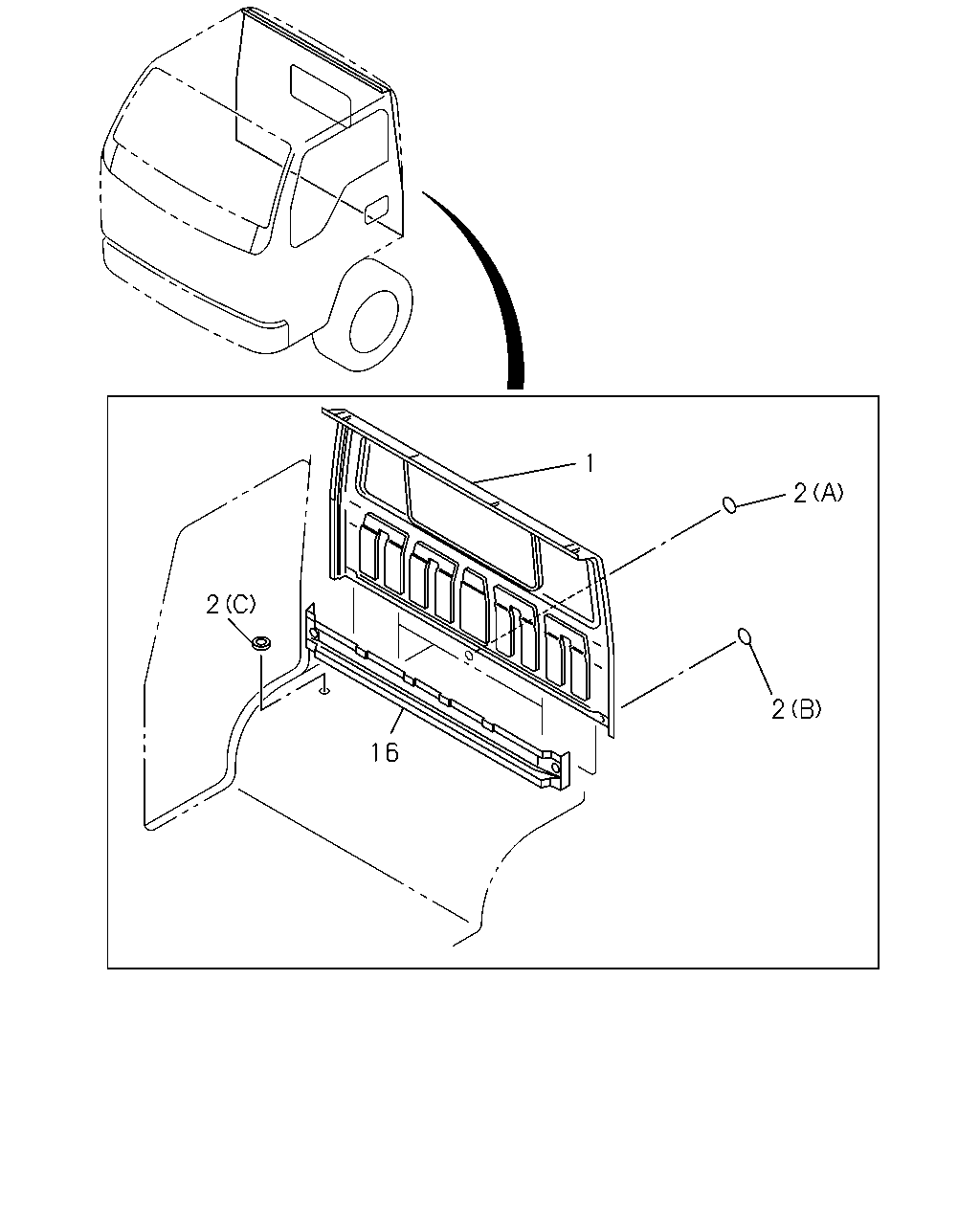

çizim 132383
2 2 1 16 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.587 PANEL; BACK OUTER 8-97851-352-2 01 1 1011-1308 ●
1 16.587 PANEL; BACK OUTER 8-97851-352-2 01 1 1309- ●
1 16.587 PANEL; BACK OUTER
4JB1-TC ENG(RDT) 		8-97851-352-2 01 1 1309- ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 1011-1308 ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.165 (A) OD=25 BLACK 		1-76798-019-0 04 1 1309- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (C) OD=15.0 		8-94279-040-0 02 1 1011-1308 ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.547 (C) OD=15.0 		8-94279-040-0 02 1 1309- ● ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (B) OD=32 BLACK 		8-98031-126-0 02 1 1011-1308 ●
2 16.587 GROMMET; LOCATION HOLE,BACK PANE
16.545 (B) OD=32 BLACK 		8-98031-126-0 02 1 1309- ● ●
16 16.575 REINFORCEMENT; BACK OUTER PNL 8-97867-215-0 01 1 1011-1308 ●
16 16.575 REINFORCEMENT; BACK OUTER PNL 8-97867-215-0 01 1 1309- ●
16 16.575 REINFORCEMENT; BACK OUTER PNL
4JB1-TC ENG(RDT) 		8-97867-215-0 01 1 1309- ●
