6-76 — FLOOR EQUIPMENT AND SEALING (#79861) — 116 parça

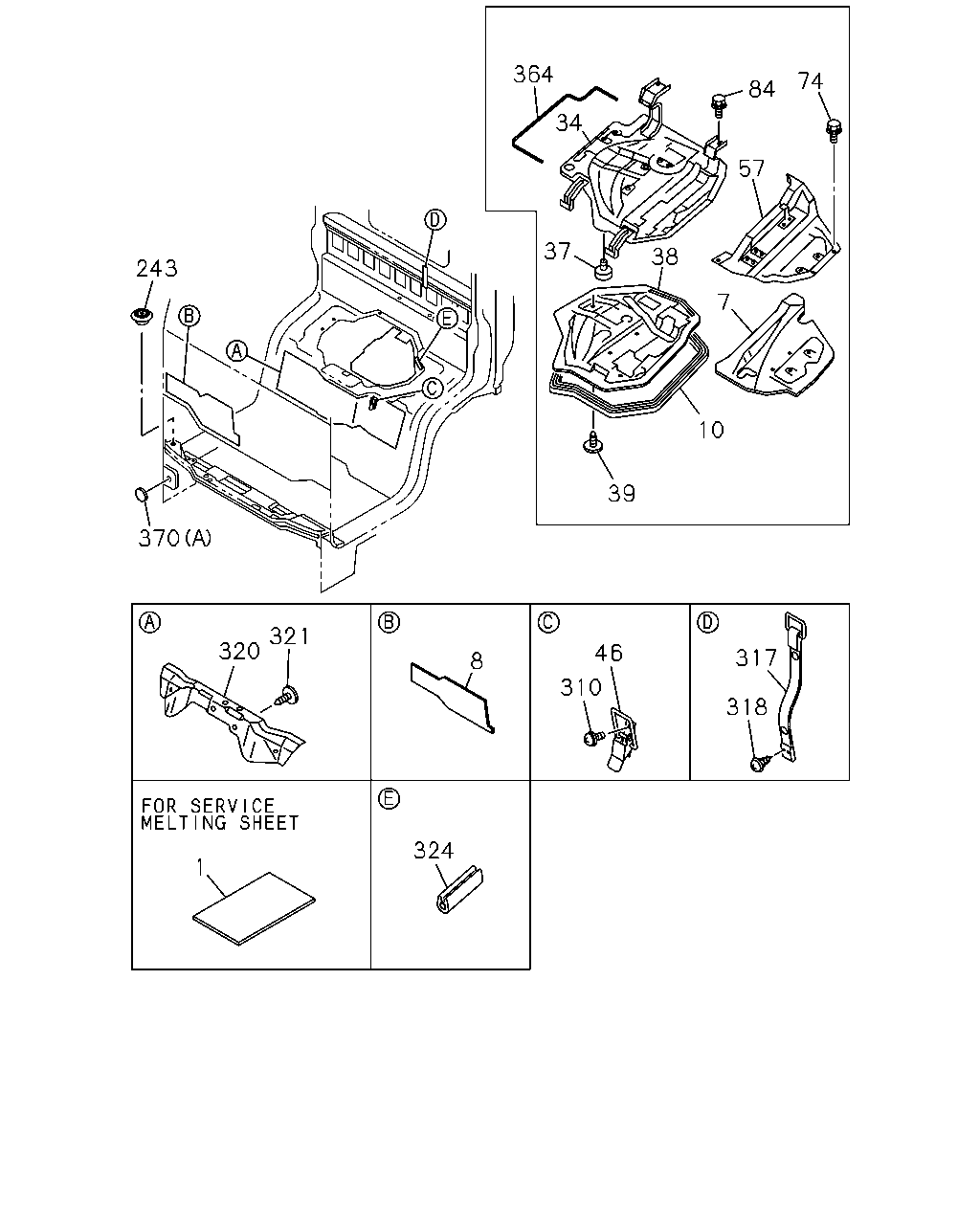

370 68 84 70 74 57 38 7 10 39 37 34 364 243 370 320 321 8 317 318 310 324 46 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.850 SHEET; MELTING,FLOOR NON ASBESTOS 1000X600 T=1.5; PARTS ONLY	8-94262-093-0	AR	1	1011-1308	●
1	16.850 SHEET; MELTING,FLOOR NON ASBESTOS 1000X600 T=1.5; PARTS ONLY	8-94262-093-0	AR	1	1309-	●	●
7	16.545 INSULATOR; SUPPORT COVER MANUAL TILT CAB<RWZ>	8-97856-207-1	01	1	1011-1308	●
7	16.545 INSULATOR; SUPPORT COVER MANUAL TILT CAB<RWZ>	8-97856-207-1	01	1	1309-	●	●
7	16.545 INSULATOR; SUPPORT COVER EXC. MANUAL TILT CAB<RWZ>	8-97856-208-1	01	1	1011-1308	●
7	16.545 INSULATOR; SUPPORT COVER EXC. MANUAL TILT CAB<RWZ>	8-97856-208-1	01	1	1309-	●	●
8	16.802 MAT; SILENCER,FRT PANEL	8-98019-713-2	02	1	1011-1308	●
8	16.802 MAT; SILENCER,FRT PANEL	8-98019-713-2	02	1	1309-	●	●
10	16.549 SEAL; ENG COVER	8-97853-010-4	01	1	1011-1308	●
10	16.549 SEAL; ENG COVER	8-97853-010-4	01	1	1309-	●	●
34	16.549 COVER ASM; ENG,CAB FLOOR	8-97850-678-1	01	1	1011-1308	●
34	16.549 COVER ASM; ENG,CAB FLOOR	8-97850-678-1	01	1	1309-	●	●
37	16.549 RUBBER; BUFFER,ENG COVER 16.155 OD=30 T=10	5-74917-001-2	02	1	1011-1308	●
37	16.549 RUBBER; BUFFER,ENG COVER 16.155 OD=30 T=10	5-74917-001-2	02	1	1309-	●	●
38	16.549 INSULATOR; ENG COVER	8-97856-204-1	01	1	1011-1308	●
38	16.549 INSULATOR; ENG COVER	8-97856-204-1	01	1	1309-	●	●
39	16.549 CLIP; INSULATOR,COVER MANUAL TILT CAB<RWZ> OD=30	8-94279-952-0	07	1	1011-1308	●
39	16.549 CLIP; INSULATOR,COVER MANUAL TILT CAB<RWZ> OD=30	8-94279-952-0	07	1	1309-	●	●
39	16.549 CLIP; INSULATOR,COVER OD=30	8-94279-952-0	05	1	1011-1308	●
39	16.549 CLIP; INSULATOR,COVER EXC. MANUAL TILT CAB<RWZ> OD=30	8-94279-952-0	05	1	1011-1308	●
39	16.549 CLIP; INSULATOR,COVER OD=30	8-94279-952-0	05	1	1309-	●	●
39	16.549 CLIP; INSULATOR,COVER EXC. MANUAL TILT CAB<RWZ> OD=30	8-94279-952-0	05	1	1309-	●	●
46	16.549 HOOK ASM; ENG COVER	8-97853-632-2	02	1	1011-1308	●
46	16.549 HOOK ASM; ENG COVER	8-97853-632-2	02	1	1309-	●	●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR MANUAL TILT CAB<RWZ>	8-97866-693-1	01	1	1011-1308	●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR MANUAL TILT CAB<RWZ>	8-97866-693-1	01	1	1309-	●	●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR EXC. MANUAL TILT CAB<RWZ>	8-97866-694-1	01	1	1011-1308	●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR EXC. MANUAL TILT CAB<RWZ>	8-97866-694-1	01	1	1309-	●	●
68	16.549 COVER ASM; SUB,ENG COVER EXC. MANUAL TILT CAB<RWZ>	8-98040-141-0	01	1	1011-1308	●
68	16.549 COVER ASM; SUB,ENG COVER EXC. MANUAL TILT CAB<RWZ>	8-98040-141-0	01	1	1309-	●	●
70	16.549 SEAL; ENG SUB COVER,CAB FLOOR EXC. MANUAL TILT CAB<RWZ>	8-97853-050-1	01	1	1011-1308	●
70	16.549 SEAL; ENG SUB COVER,CAB FLOOR EXC. MANUAL TILT CAB<RWZ>	8-97853-050-1	01	1	1309-	●	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1011-1308	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1309-	●	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1011-1308	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1309-	●	●
84	16.549 BOLT; ENG COVER HINGE 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1011-1308	●
84	16.549 BOLT; ENG COVER HINGE 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1309-	●	●
243	16.547 GROMMET; STOPPER,CHECK HOLE LID OD=12.1	8-97898-423-0	01	1	1011-1308	●
243	16.547 GROMMET; STOPPER,CHECK HOLE LID OD=12.1	8-97898-423-0	01	1	1309-	●	●
310	16.549 SCREW; ENG COVER HOOK 02.343 M6X16 FLANGE	0-28650-616-0	04	1	1011-1308	●
310	16.549 SCREW; ENG COVER HOOK 02.343 M6X16 FLANGE	0-28650-616-0	04	1	1309-	●	●
317	16.549 BAND; ENGINE COVER L=535 BLACK	8-97867-201-1	01	1	1011-1308	●
317	16.549 BAND; ENGINE COVER L=535 BLACK	8-97867-201-1	01	1	1309-	●	●
318	16.549 SCREW; BAND 16.570 M5X16 TAPPING HEXALOBULAR	0-72380-516-0	02	1	1011-1308	●
318	16.549 SCREW; BAND 16.570 M5X16 TAPPING HEXALOBULAR	0-72380-516-0	02	1	1309-	●	●
320	16.549 INSULATOR; FLOOR,FRT	8-97857-142-3	01	1	1011-1308	●
320	16.549 INSULATOR; FLOOR,FRT	8-97857-142-3	01	1	1309-	●	●
321	16.549 CLIP; INSULATOR,FLOOR OD=30	8-94279-952-0	03	1	1011-1308	●
321	16.549 CLIP; INSULATOR,FLOOR OD=30	8-94279-952-0	03	1	1309-	●	●
324	16.545 FINISHER; FLOOR PANEL L=140	8-97892-742-0	01	1	1011-1308	●
324	16.545 FINISHER; FLOOR PANEL L=140	8-97892-742-0	01	1	1309-	●	●
364	16.545 FINISHER; ENG COVER SIDE L=1100	8-97892-744-0	01	1	1011-1308	●
364	16.545 FINISHER; ENG COVER SIDE L=1100	8-97892-744-0	01	1	1309-	●	●
370	16.549 SEAL; LOCATION HOLE BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) 16.165 (A) OD=20 T=0.05 BLACK	5-76777-036-0	04	1	1011-1308	●
370	16.549 SEAL; LOCATION HOLE BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) 16.165 (A) OD=20 T=0.05 BLACK	5-76777-036-0	04	1	1309-	●	●
370	16.549 SEAL; LOCATION HOLE BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) 16.570 (A) OD=20 T=0.05 WHITE	8-98059-421-0	04	1	1011-1308	●
370	16.549 SEAL; LOCATION HOLE BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) 16.570 (A) OD=20 T=0.05 WHITE	8-98059-421-0	04	1	1309-	●	●
370	16.549 SEAL; LOCATION HOLE EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE	8-98059-421-0	02	1	1011-1308	●
370	16.549 SEAL; LOCATION HOLE EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE	8-98059-421-0	02	1	1309-	●	●

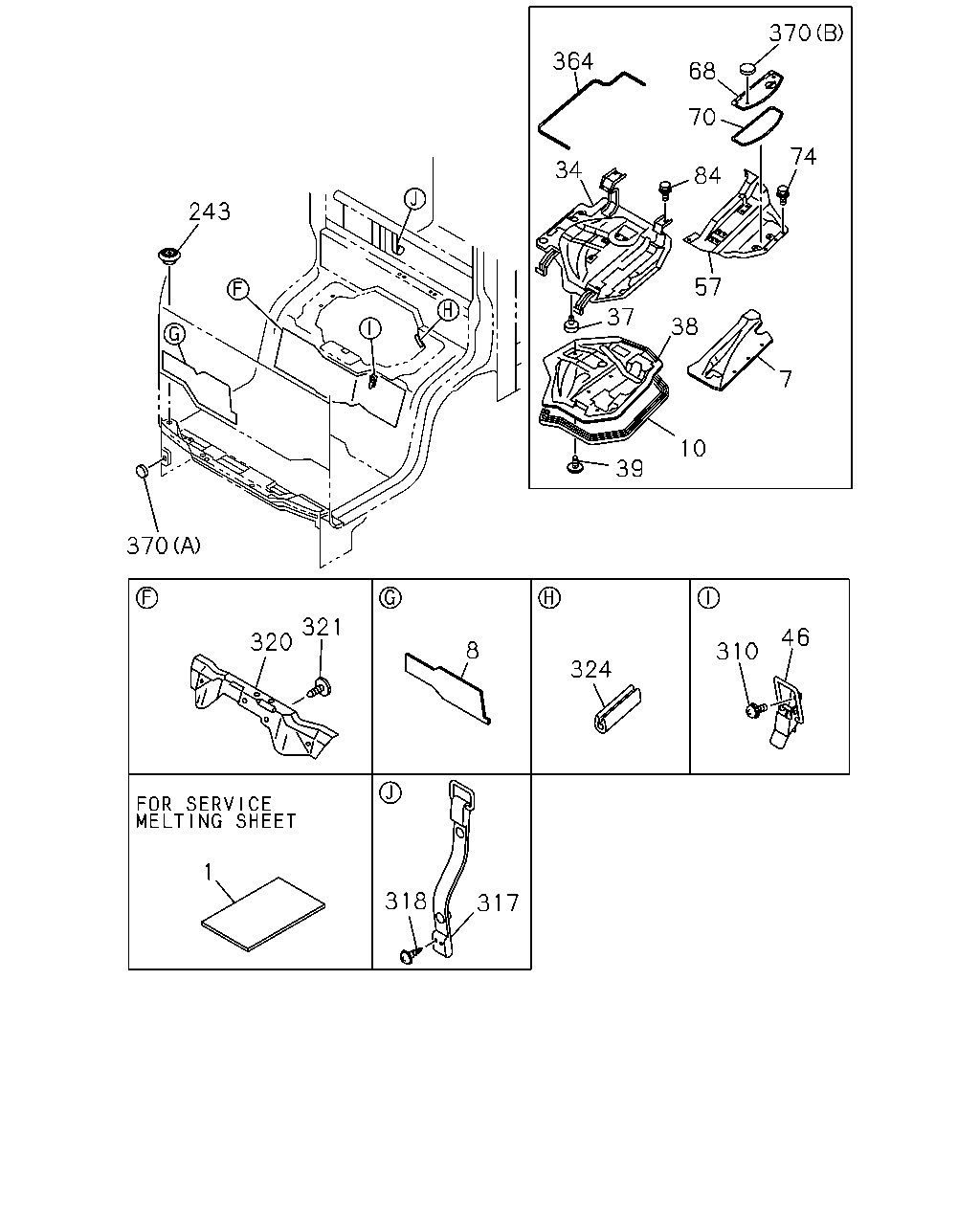

243 370 364 34 84 74 57 38 37 7 10 39 320 321 8 46 310 317 318 324 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.850 SHEET; MELTING,FLOOR NON ASBESTOS 1000X600 T=1.5; PARTS ONLY	8-94262-093-0	AR	1	1011-1308	●
1	16.850 SHEET; MELTING,FLOOR NON ASBESTOS 1000X600 T=1.5; PARTS ONLY	8-94262-093-0	AR	1	1309-	●	●
7	16.545 INSULATOR; SUPPORT COVER MANUAL TILT CAB<RWZ>	8-97856-207-1	01	1	1011-1308	●
7	16.545 INSULATOR; SUPPORT COVER MANUAL TILT CAB<RWZ>	8-97856-207-1	01	1	1309-	●	●
7	16.545 INSULATOR; SUPPORT COVER EXC. MANUAL TILT CAB<RWZ>	8-97856-208-1	01	1	1011-1308	●
7	16.545 INSULATOR; SUPPORT COVER EXC. MANUAL TILT CAB<RWZ>	8-97856-208-1	01	1	1309-	●	●
8	16.802 MAT; SILENCER,FRT PANEL	8-98019-713-2	02	1	1011-1308	●
8	16.802 MAT; SILENCER,FRT PANEL	8-98019-713-2	02	1	1309-	●	●
10	16.549 SEAL; ENG COVER	8-97853-010-4	01	1	1011-1308	●
10	16.549 SEAL; ENG COVER	8-97853-010-4	01	1	1309-	●	●
34	16.549 COVER ASM; ENG,CAB FLOOR	8-97850-678-1	01	1	1011-1308	●
34	16.549 COVER ASM; ENG,CAB FLOOR	8-97850-678-1	01	1	1309-	●	●
37	16.549 RUBBER; BUFFER,ENG COVER 16.155 OD=30 T=10	5-74917-001-2	02	1	1011-1308	●
37	16.549 RUBBER; BUFFER,ENG COVER 16.155 OD=30 T=10	5-74917-001-2	02	1	1309-	●	●
38	16.549 INSULATOR; ENG COVER	8-97856-204-1	01	1	1011-1308	●
38	16.549 INSULATOR; ENG COVER	8-97856-204-1	01	1	1309-	●	●
39	16.549 CLIP; INSULATOR,COVER MANUAL TILT CAB<RWZ> OD=30	8-94279-952-0	07	1	1011-1308	●
39	16.549 CLIP; INSULATOR,COVER MANUAL TILT CAB<RWZ> OD=30	8-94279-952-0	07	1	1309-	●	●
39	16.549 CLIP; INSULATOR,COVER OD=30	8-94279-952-0	05	1	1011-1308	●
39	16.549 CLIP; INSULATOR,COVER EXC. MANUAL TILT CAB<RWZ> OD=30	8-94279-952-0	05	1	1011-1308	●
39	16.549 CLIP; INSULATOR,COVER OD=30	8-94279-952-0	05	1	1309-	●	●
39	16.549 CLIP; INSULATOR,COVER EXC. MANUAL TILT CAB<RWZ> OD=30	8-94279-952-0	05	1	1309-	●	●
46	16.549 HOOK ASM; ENG COVER	8-97853-632-2	02	1	1011-1308	●
46	16.549 HOOK ASM; ENG COVER	8-97853-632-2	02	1	1309-	●	●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR MANUAL TILT CAB<RWZ>	8-97866-693-1	01	1	1011-1308	●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR MANUAL TILT CAB<RWZ>	8-97866-693-1	01	1	1309-	●	●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR EXC. MANUAL TILT CAB<RWZ>	8-97866-694-1	01	1	1011-1308	●
57	16.549 COVER ASM; SUPPORT,CAB FLOOR EXC. MANUAL TILT CAB<RWZ>	8-97866-694-1	01	1	1309-	●	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1011-1308	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1309-	●	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1011-1308	●
74	16.549 BOLT; SUPPORT COVER TO FLOOR 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1309-	●	●
84	16.549 BOLT; ENG COVER HINGE 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1011-1308	●
84	16.549 BOLT; ENG COVER HINGE 01.531 M8X20 FLANGE	0-28650-820-0	04	1	1309-	●	●
243	16.547 GROMMET; STOPPER,CHECK HOLE LID OD=12.1	8-97898-423-0	01	1	1011-1308	●
243	16.547 GROMMET; STOPPER,CHECK HOLE LID OD=12.1	8-97898-423-0	01	1	1309-	●	●
310	16.549 SCREW; ENG COVER HOOK 02.343 M6X16 FLANGE	0-28650-616-0	04	1	1011-1308	●
310	16.549 SCREW; ENG COVER HOOK 02.343 M6X16 FLANGE	0-28650-616-0	04	1	1309-	●	●
317	16.549 BAND; ENGINE COVER L=535 BLACK	8-97867-201-1	01	1	1011-1308	●
317	16.549 BAND; ENGINE COVER L=535 BLACK	8-97867-201-1	01	1	1309-	●	●
318	16.549 SCREW; BAND 16.570 M5X16 TAPPING HEXALOBULAR	0-72380-516-0	02	1	1011-1308	●
318	16.549 SCREW; BAND 16.570 M5X16 TAPPING HEXALOBULAR	0-72380-516-0	02	1	1309-	●	●
320	16.549 INSULATOR; FLOOR,FRT	8-97857-142-3	01	1	1011-1308	●
320	16.549 INSULATOR; FLOOR,FRT	8-97857-142-3	01	1	1309-	●	●
321	16.549 CLIP; INSULATOR,FLOOR OD=30	8-94279-952-0	03	1	1011-1308	●
321	16.549 CLIP; INSULATOR,FLOOR OD=30	8-94279-952-0	03	1	1309-	●	●
324	16.545 FINISHER; FLOOR PANEL L=140	8-97892-742-0	01	1	1011-1308	●
324	16.545 FINISHER; FLOOR PANEL L=140	8-97892-742-0	01	1	1309-	●	●
364	16.545 FINISHER; ENG COVER SIDE L=1100	8-97892-744-0	01	1	1011-1308	●
364	16.545 FINISHER; ENG COVER SIDE L=1100	8-97892-744-0	01	1	1309-	●	●
370	16.549 SEAL; LOCATION HOLE BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) 16.165 (A) OD=20 T=0.05 BLACK	5-76777-036-0	04	1	1011-1308	●
370	16.549 SEAL; LOCATION HOLE BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) 16.165 (A) OD=20 T=0.05 BLACK	5-76777-036-0	04	1	1309-	●	●
370	16.549 SEAL; LOCATION HOLE BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) 16.570 (A) OD=20 T=0.05 WHITE	8-98059-421-0	04	1	1011-1308	●
370	16.549 SEAL; LOCATION HOLE BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) 16.570 (A) OD=20 T=0.05 WHITE	8-98059-421-0	04	1	1309-	●	●
370	16.549 SEAL; LOCATION HOLE EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE	8-98059-421-0	02	1	1011-1308	●
370	16.549 SEAL; LOCATION HOLE EXC. MANUAL TILT CAB<RWZ> 16.570 (B) OD=20 T=0.05 WHITE	8-98059-421-0	02	1	1309-	●	●
