1-56 — EXHAUST BRAKE SYSTEM (#7986) — 143 parça

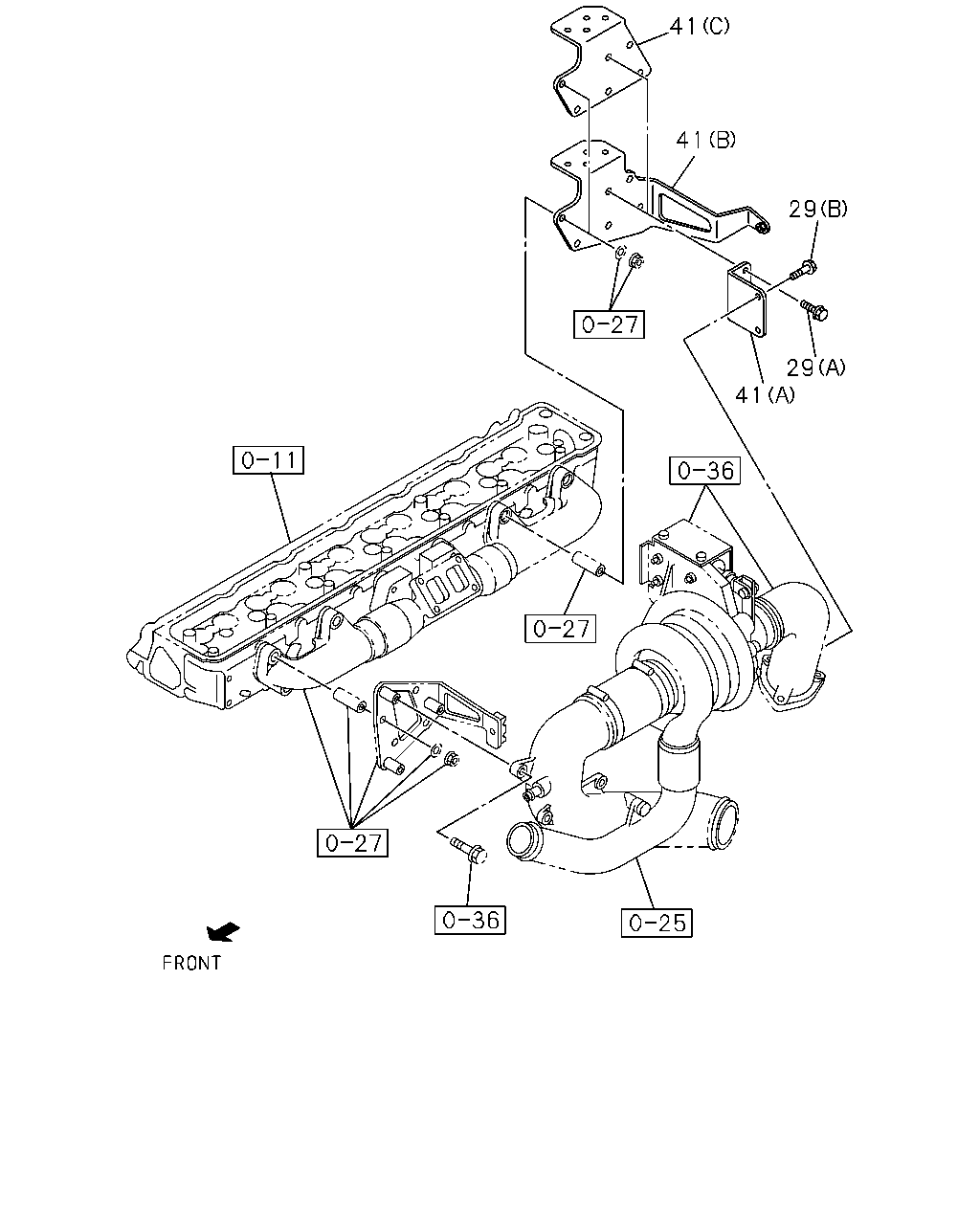

41 41 29 29 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	BOLT; CONT CYL EURO3 SPECIFICATION(NJX) (A) M10X25 FLANGE	0-28681-025-0	02	1	0107-0210	●
29	BOLT; CONT CYL EURO3 SPECIFICATION(NJX) (A) M10X25 FLANGE	0-28681-025-0	02	1	0211-0512	●
29	BOLT; CONT CYL (A) M10X25 FLANGE	0-28681-025-0	02	1	0211-0512		●
29	BOLT; CONT CYL EURO3 SPECIFICATION(NJX) (A) M10X25 FLANGE	0-28651-025-0	02	1	0601-	●
29	BOLT; CONT CYL (A) M10X25 FLANGE	0-28651-025-0	02	1	0601-		●
29	BOLT; CONT CYL EURO3 SPECIFICATION(NJX) (B) M10X20 FLANGE	0-28781-020-0	02	1	0107-0210	●
29	BOLT; CONT CYL EURO3 SPECIFICATION(NJX) (B) M10X20 FLANGE	0-28781-020-0	02	1	0211-0512	●
29	BOLT; CONT CYL (B) M10X20 FLANGE	0-28781-020-0	02	1	0211-0512		●
29	BOLT; CONT CYL EURO3 SPECIFICATION(NJX) (B) M10X20 FLANGE	0-28751-020-0	02	1	0601-	●
29	BOLT; CONT CYL (B) M10X20 FLANGE	0-28751-020-0	02	1	0601-		●
41	BRACKET EURO3 SPECIFICATION(NJX) (A)	1-14149-243-0	01	1	0107-0210	●
41	BRACKET EURO3 SPECIFICATION(NJX) (A)	1-14149-243-0	01	1	0211-	●
41	BRACKET (A)	1-14149-243-0	01	1	0211-		●
41	BRACKET EURO3 SPECIFICATION(NJX) (B)	1-14149-248-0	01	1	0107-0205	●
41	BRACKET EURO3 SPECIFICATION(NJX) (C)	1-14149-259-0	01	1	0206-0210	●
41	BRACKET EURO3 SPECIFICATION(NJX) (C)	1-14149-259-0	01	1	0211-	●
41	BRACKET (C)	1-14149-259-0	01	1	0211-		●

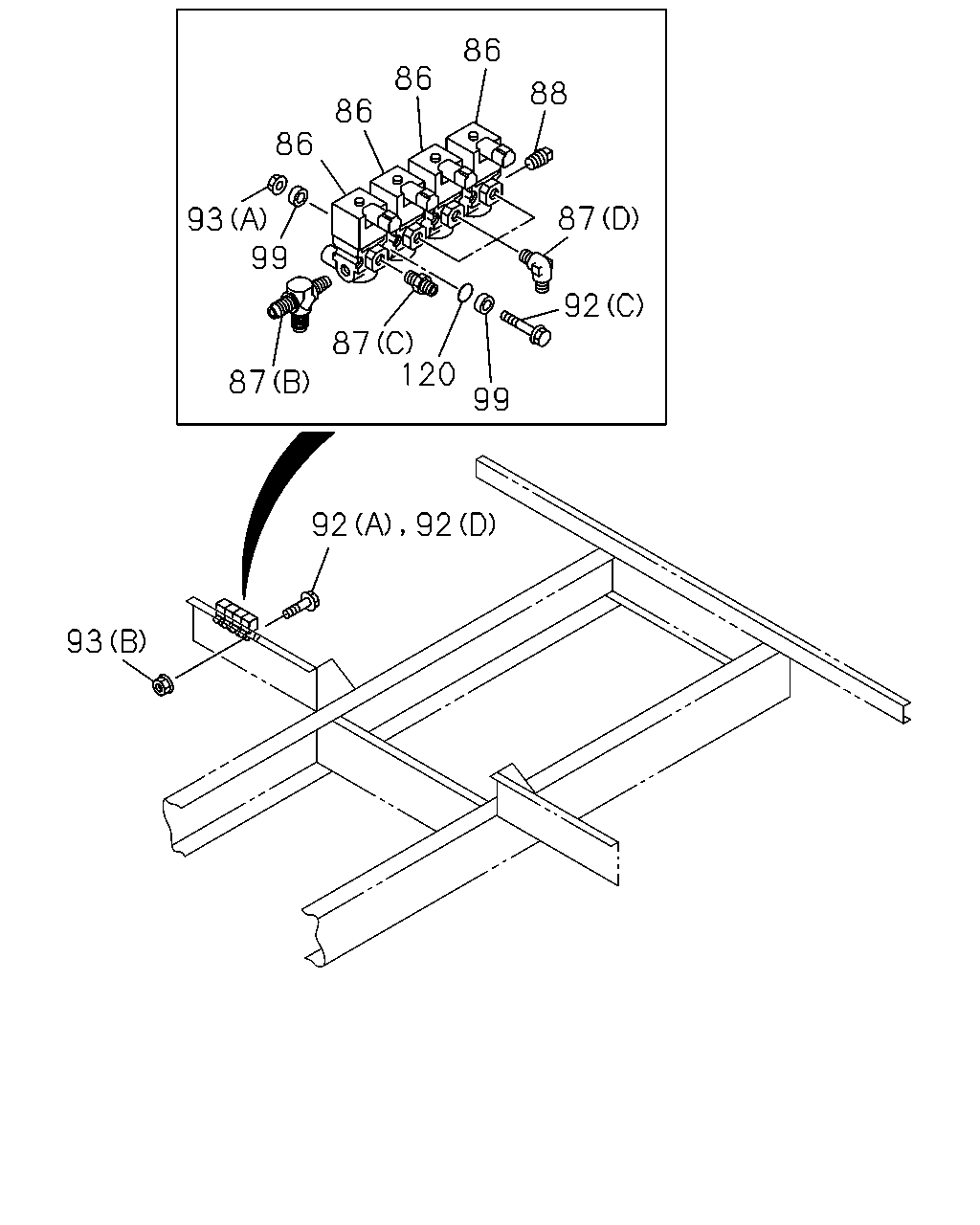

86 86 88 86 86 87 93 99 92 87 120 87 99 92 92 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
86	VALVE; MAG,EXH BRK EURO3 SPECIFICATION(NJX)	1-82563-871-2	04	1	0107-0210	●
86	VALVE; MAG,EXH BRK EURO3 SPECIFICATION(NJX)	1-82563-871-2	04	1	0211-	●
86	VALVE; MAG,EXH BRK	1-82563-871-2	04	1	0211-		●
86	VALVE; MAG,EXH BRK EXC. EURO3 SPECIFICATION(NJX)	1-82563-600-5	01	1	0012-0203	●
86	VALVE; MAG,EXH BRK ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX)	1-82563-600-5	01	1	0204-	●
86	VALVE; MAG,EXH BRK	1-82563-600-5	01	1	0204-			●
87	CONNECTOR BRAKE SYSTEM RETARDER<RE2> (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0012-0203	●
87	CONNECTOR BRAKE SYSTEM RETARDER<RE2> ISUZU M/T<X9A> (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0204-0210	●
87	CONNECTOR (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0204-0210			●
87	CONNECTOR BRAKE SYSTEM RETARDER<RE2> ISUZU M/T<X9A> (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0211-	●	●
87	CONNECTOR (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0211-			●
87	CONNECTOR EXC. BRAKE SYSTEM RETARDER<RE2> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0012-0106	●
87	CONNECTOR EXC. EURO3 SPECIFICATION(NJX),BRAKE SYSTEM RETARDER<RE2> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0107-0203	●
87	CONNECTOR EURO3 SPECIFICATION(NJX) BRAKE SYSTEM RETARDER<RE2> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0107-0203	●
87	CONNECTOR ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX),BRAKE SYSTEM RETARDER<RE2> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0204-0210	●
87	CONNECTOR EURO3 SPECIFICATION(NJX) BRAKE SYSTEM RETARDER<RE2> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0204-0210	●
87	CONNECTOR ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX),BRAKE SYSTEM RETARDER<RE2> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0211-	●
87	CONNECTOR EURO3 SPECIFICATION(NJX) BRAKE SYSTEM RETARDER<RE2> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0211-	●
87	CONNECTOR BRAKE SYSTEM RETARDER<RE2> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0211-		●
87	CONNECTOR EURO3 SPECIFICATION(NJX) (D) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	0107-0210	●
87	CONNECTOR EURO3 SPECIFICATION(NJX) (D) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	0211-	●
87	CONNECTOR (D) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	0211-		●
87	CONNECTOR EURO3 SPECIFICATION(NJX) EXC. BRAKE SYSTEM RETARDER<RE2> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0107-0210	●
87	CONNECTOR EURO3 SPECIFICATION(NJX) EXC. BRAKE SYSTEM RETARDER<RE2> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0211-	●
87	CONNECTOR EXC. BRAKE SYSTEM RETARDER<RE2> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0211-		●
87	CONNECTOR EXC. EURO3 SPECIFICATION(NJX) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0012-0203	●
87	CONNECTOR ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0204-	●
87	CONNECTOR (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0204-			●
88	PLUG EURO3 SPECIFICATION(NJX) PT1/4	1-09605-019-0	01	1	0107-0210	●
88	PLUG EURO3 SPECIFICATION(NJX) PT1/4	1-09605-019-0	01	1	0211-	●
88	PLUG PT1/4	1-09605-019-0	01	1	0211-		●
88	PLUG EXC. EURO3 SPECIFICATION(NJX) PT1/4	9-99204-513-0	01	1	0012-0203	●
88	PLUG ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) PT1/4	9-99204-513-0	01	1	0204-	●
88	PLUG PT1/4	9-99204-513-0	01	1	0204-			●
92	BOLT; MAG VLV (B) M8X25 FLANGE	0-28680-825-0	02	1	0012-0106	●
92	BOLT; MAG VLV EXC. EURO3 SPECIFICATION(NJX) (B) M8X25 FLANGE	0-28680-825-0	02	1	0107-0203	●
92	BOLT; MAG VLV ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) (B) M8X25 FLANGE	0-28680-825-0	02	1	0204-0512	●
92	BOLT; MAG VLV (B) M8X25 FLANGE	0-28680-825-0	02	1	0204-0512			●
92	BOLT; MAG VLV ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
92	BOLT; MAG VLV (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-			●
92	BOLT; MAG VLV BRAKE SYSTEM RETARDER<RE2> (A) M8X60 FLANGE	0-28080-860-0	02	1	0012-0203	●
92	BOLT; MAG VLV BRAKE SYSTEM RETARDER<RE2> ISUZU M/T<X9A> (A) M8X60 FLANGE	0-28080-860-0	02	1	0204-0512	●	●	●
92	BOLT; MAG VLV BRAKE SYSTEM RETARDER<RE2> ISUZU M/T<X9A> (A) M8X60 FLANGE	0-28050-860-0	02	1	0601-	●	●	●
92	BOLT; MAG VLV EURO3 SPECIFICATION(NJX) (C) M6X50 FLANGE	0-28080-650-0	03	1	0107-0210	●
92	BOLT; MAG VLV EURO3 SPECIFICATION(NJX) (C) M6X50 FLANGE	0-28080-650-0	03	1	0211-0512	●
92	BOLT; MAG VLV (C) M6X50 FLANGE	0-28080-650-0	03	1	0211-0512		●
92	BOLT; MAG VLV EURO3 SPECIFICATION(NJX) (C) M6X50 FLANGE	0-28050-650-0	03	1	0601-	●
92	BOLT; MAG VLV (C) M6X50 FLANGE	0-28050-650-0	03	1	0601-		●
92	BOLT; MAG VLV EURO3 SPECIFICATION(NJX) (D) M8X20 FLANGE	0-28680-820-0	04	1	0107-0203	●
92	BOLT; MAG VLV EURO3 SPECIFICATION(NJX) (D) M8X20 FLANGE	0-28680-820-0	04	1	0204-0512	●
92	BOLT; MAG VLV (D) M8X20 FLANGE	0-28680-820-0	04	1	0204-0512		●
92	BOLT; MAG VLV EURO3 SPECIFICATION(NJX) (D) M8X20 FLANGE	0-28650-820-0	04	1	0601-	●
93	NUT; MAG VLV BRAKE SYSTEM RETARDER<RE2> (B) M8 FLANGE	0-91150-108-0	02	1	0012-0203	●
93	NUT; MAG VLV BRAKE SYSTEM RETARDER<RE2> ISUZU M/T<X9A> (B) M8 FLANGE	0-91150-108-0	02	1	0204-0602	●	●	●
93	NUT; MAG VLV BRAKE SYSTEM RETARDER<RE2> ISUZU M/T<X9A> (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
93	NUT; MAG VLV EURO3 SPECIFICATION(NJX) (A) M6 FLANGE	0-91150-106-0	03	1	0107-0210	●
93	NUT; MAG VLV EURO3 SPECIFICATION(NJX) (A) M6 FLANGE	0-91150-106-0	03	1	0211-0602	●
93	NUT; MAG VLV (A) M6 FLANGE	0-91150-106-0	03	1	0211-0602		●
93	NUT; MAG VLV EURO3 SPECIFICATION(NJX) (A) M6 FLANGE	0-91180-106-0	03	1	0603-	●
93	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	03	1	0603-		●
99	WASHER; MAG VLV EURO3 SPECIFICATION(NJX)	1-82569-266-0	06	1	0107-0210	●
99	WASHER; MAG VLV EURO3 SPECIFICATION(NJX)	1-82569-266-0	06	1	0211-	●
99	WASHER; MAG VLV	1-82569-266-0	06	1	0211-		●
120	GASKET; MAG VLV EURO3 SPECIFICATION(NJX) ID=16.8	9-09565-117-0	03	1	0107-0210	●
120	GASKET; MAG VLV EURO3 SPECIFICATION(NJX) ID=16.8	9-09565-117-0	03	1	0211-	●
120	GASKET; MAG VLV ID=16.8	9-09565-117-0	03	1	0211-		●

86 87 88 87 92 87 92 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
86	VALVE; MAG,EXH BRK EURO3 SPECIFICATION(NJX)	1-82563-871-2	04	1	0107-0210	●
86	VALVE; MAG,EXH BRK EURO3 SPECIFICATION(NJX)	1-82563-871-2	04	1	0211-	●
86	VALVE; MAG,EXH BRK	1-82563-871-2	04	1	0211-		●
86	VALVE; MAG,EXH BRK EXC. EURO3 SPECIFICATION(NJX)	1-82563-600-5	01	1	0012-0203	●
86	VALVE; MAG,EXH BRK ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX)	1-82563-600-5	01	1	0204-	●
86	VALVE; MAG,EXH BRK	1-82563-600-5	01	1	0204-			●
87	CONNECTOR BRAKE SYSTEM RETARDER<RE2> (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0012-0203	●
87	CONNECTOR BRAKE SYSTEM RETARDER<RE2> ISUZU M/T<X9A> (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0204-0210	●
87	CONNECTOR (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0204-0210			●
87	CONNECTOR BRAKE SYSTEM RETARDER<RE2> ISUZU M/T<X9A> (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0211-	●	●
87	CONNECTOR (B) M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	0211-			●
87	CONNECTOR EXC. BRAKE SYSTEM RETARDER<RE2> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0012-0106	●
87	CONNECTOR EXC. EURO3 SPECIFICATION(NJX),BRAKE SYSTEM RETARDER<RE2> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0107-0203	●
87	CONNECTOR EURO3 SPECIFICATION(NJX) BRAKE SYSTEM RETARDER<RE2> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0107-0203	●
87	CONNECTOR ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX),BRAKE SYSTEM RETARDER<RE2> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0204-0210	●
87	CONNECTOR EURO3 SPECIFICATION(NJX) BRAKE SYSTEM RETARDER<RE2> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0204-0210	●
87	CONNECTOR ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX),BRAKE SYSTEM RETARDER<RE2> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0211-	●
87	CONNECTOR EURO3 SPECIFICATION(NJX) BRAKE SYSTEM RETARDER<RE2> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0211-	●
87	CONNECTOR BRAKE SYSTEM RETARDER<RE2> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	01	1	0211-		●
87	CONNECTOR EURO3 SPECIFICATION(NJX) (D) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	0107-0210	●
87	CONNECTOR EURO3 SPECIFICATION(NJX) (D) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	0211-	●
87	CONNECTOR (D) M12 & PT1/4 ELBOW	1-09650-430-0	03	1	0211-		●
87	CONNECTOR EURO3 SPECIFICATION(NJX) EXC. BRAKE SYSTEM RETARDER<RE2> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0107-0210	●
87	CONNECTOR EURO3 SPECIFICATION(NJX) EXC. BRAKE SYSTEM RETARDER<RE2> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0211-	●
87	CONNECTOR EXC. BRAKE SYSTEM RETARDER<RE2> (C) M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0211-		●
87	CONNECTOR EXC. EURO3 SPECIFICATION(NJX) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0012-0203	●
87	CONNECTOR ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0204-	●
87	CONNECTOR (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0204-			●
88	PLUG EURO3 SPECIFICATION(NJX) PT1/4	1-09605-019-0	01	1	0107-0210	●
88	PLUG EURO3 SPECIFICATION(NJX) PT1/4	1-09605-019-0	01	1	0211-	●
88	PLUG PT1/4	1-09605-019-0	01	1	0211-		●
88	PLUG EXC. EURO3 SPECIFICATION(NJX) PT1/4	9-99204-513-0	01	1	0012-0203	●
88	PLUG ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) PT1/4	9-99204-513-0	01	1	0204-	●
88	PLUG PT1/4	9-99204-513-0	01	1	0204-			●
92	BOLT; MAG VLV (B) M8X25 FLANGE	0-28680-825-0	02	1	0012-0106	●
92	BOLT; MAG VLV EXC. EURO3 SPECIFICATION(NJX) (B) M8X25 FLANGE	0-28680-825-0	02	1	0107-0203	●
92	BOLT; MAG VLV ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) (B) M8X25 FLANGE	0-28680-825-0	02	1	0204-0512	●
92	BOLT; MAG VLV (B) M8X25 FLANGE	0-28680-825-0	02	1	0204-0512			●
92	BOLT; MAG VLV ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
92	BOLT; MAG VLV (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-			●
92	BOLT; MAG VLV BRAKE SYSTEM RETARDER<RE2> (A) M8X60 FLANGE	0-28080-860-0	02	1	0012-0203	●
92	BOLT; MAG VLV BRAKE SYSTEM RETARDER<RE2> ISUZU M/T<X9A> (A) M8X60 FLANGE	0-28080-860-0	02	1	0204-0512	●	●	●
92	BOLT; MAG VLV BRAKE SYSTEM RETARDER<RE2> ISUZU M/T<X9A> (A) M8X60 FLANGE	0-28050-860-0	02	1	0601-	●	●	●
92	BOLT; MAG VLV EURO3 SPECIFICATION(NJX) (C) M6X50 FLANGE	0-28080-650-0	03	1	0107-0210	●
92	BOLT; MAG VLV EURO3 SPECIFICATION(NJX) (C) M6X50 FLANGE	0-28080-650-0	03	1	0211-0512	●
92	BOLT; MAG VLV (C) M6X50 FLANGE	0-28080-650-0	03	1	0211-0512		●
92	BOLT; MAG VLV EURO3 SPECIFICATION(NJX) (C) M6X50 FLANGE	0-28050-650-0	03	1	0601-	●
92	BOLT; MAG VLV (C) M6X50 FLANGE	0-28050-650-0	03	1	0601-		●
92	BOLT; MAG VLV EURO3 SPECIFICATION(NJX) (D) M8X20 FLANGE	0-28680-820-0	04	1	0107-0203	●
92	BOLT; MAG VLV EURO3 SPECIFICATION(NJX) (D) M8X20 FLANGE	0-28680-820-0	04	1	0204-0512	●
92	BOLT; MAG VLV (D) M8X20 FLANGE	0-28680-820-0	04	1	0204-0512		●
92	BOLT; MAG VLV EURO3 SPECIFICATION(NJX) (D) M8X20 FLANGE	0-28650-820-0	04	1	0601-	●
93	NUT; MAG VLV BRAKE SYSTEM RETARDER<RE2> (B) M8 FLANGE	0-91150-108-0	02	1	0012-0203	●
93	NUT; MAG VLV BRAKE SYSTEM RETARDER<RE2> ISUZU M/T<X9A> (B) M8 FLANGE	0-91150-108-0	02	1	0204-0602	●	●	●
93	NUT; MAG VLV BRAKE SYSTEM RETARDER<RE2> ISUZU M/T<X9A> (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
93	NUT; MAG VLV EURO3 SPECIFICATION(NJX) (A) M6 FLANGE	0-91150-106-0	03	1	0107-0210	●
93	NUT; MAG VLV EURO3 SPECIFICATION(NJX) (A) M6 FLANGE	0-91150-106-0	03	1	0211-0602	●
93	NUT; MAG VLV (A) M6 FLANGE	0-91150-106-0	03	1	0211-0602		●
93	NUT; MAG VLV EURO3 SPECIFICATION(NJX) (A) M6 FLANGE	0-91180-106-0	03	1	0603-	●
93	NUT; MAG VLV (A) M6 FLANGE	0-91180-106-0	03	1	0603-		●
