6-47 — MUD GUARD AND INSULATOR (#79856) — 122 parça

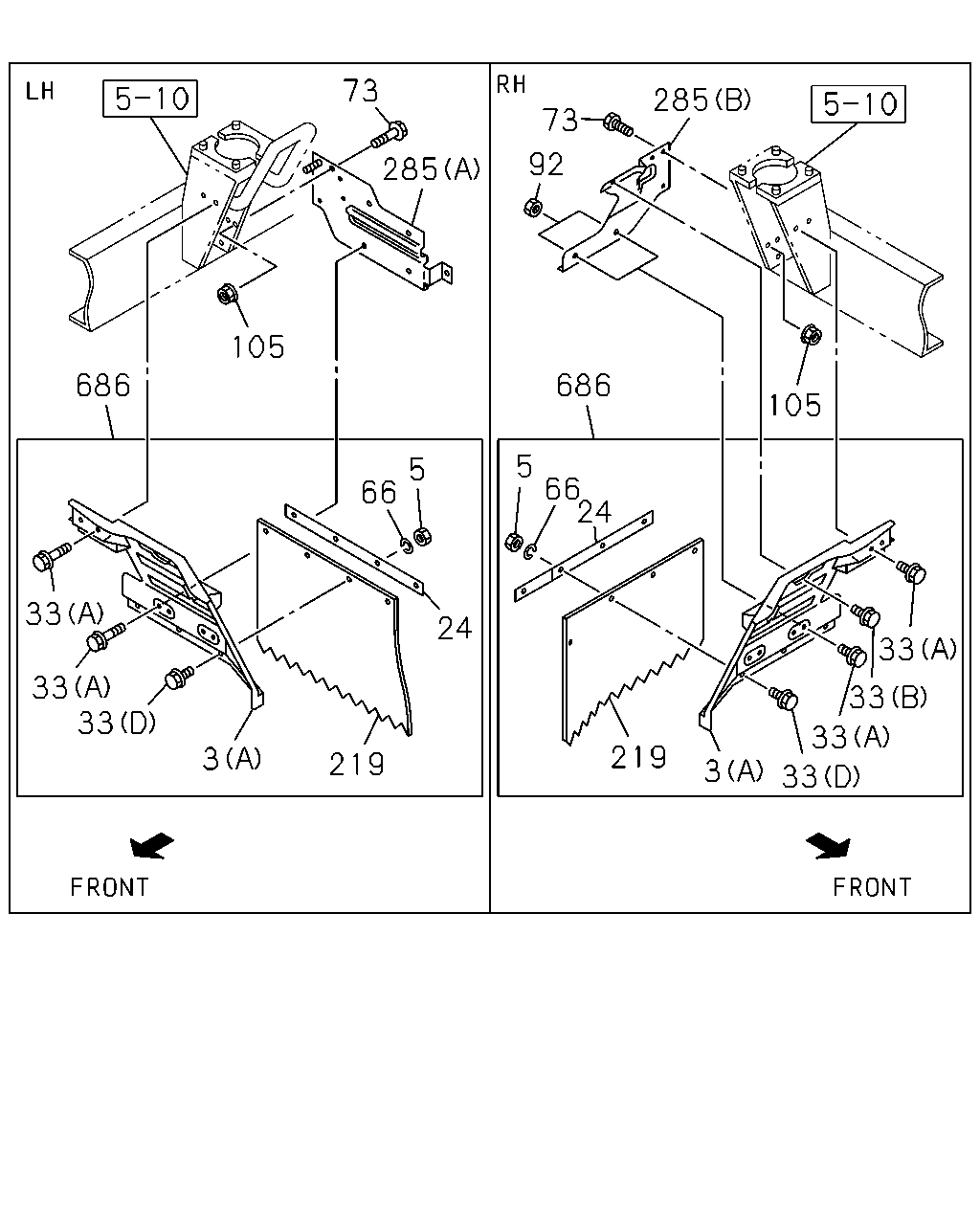

219 3 33 33 33 3 33 33 33 33 5 5 66 66 219 24 24 105 686 92 73 285 73 285 105 686

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	08.153 GUARD; MUD,RR (B) H=450 B=230	8-97324-878-0	02	1	1309-1310	●
3	08.153 GUARD; MUD,RR RR BODY FLAT BED(RS6) (B) H=450 B=230	8-97324-878-0	02	1	1311-	●
3	08.153 GUARD; MUD,RR (A)	8-97048-728-3	01	1	1011-1308		●
3	08.153 GUARD; MUD,RR (A)	8-97048-728-3	01	1	1309-	●	●
3	08.153 GUARD; MUD,RR (A)	8-97366-988-1	01	1	1011-1308		●
3	08.153 GUARD; MUD,RR (A)	8-97366-988-1	01	1	1309-	●	●
3	08.153 GUARD; MUD,RR RR BODY FLAT BED(RS6) 08.214 (B) H=440 B=430	8-97214-177-1	02	1	1206-1302		●
3	08.153 GUARD; MUD,RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 08.214 (B) H=440 B=430	8-97214-177-1	02	1	1303-		●
5	08.155 NUT; FLAP RUBBER M6	0-91111-506-0	08	1	1011-1308		●
5	08.155 NUT; FLAP RUBBER M6	0-91111-506-0	08	1	1309-	●	●
24	08.155 PLATE; MUD COVER	8-97095-186-0	02	1	1011-1308		●
24	08.155 PLATE; MUD COVER	8-97095-186-0	02	1	1309-	●	●
33	08.155 BOLT; MUD COVER 16.085 (B) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	1206-1308		●
33	08.155 BOLT; MUD COVER 16.085 (B) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	1309-	●	●
33	08.155 BOLT; MUD COVER 04.338 (A) M8X20 FLANGE	0-28050-820-0	07	1	1011-1308		●
33	08.155 BOLT; MUD COVER 04.338 (A) M8X20 FLANGE	0-28050-820-0	07	1	1309-	●	●
33	08.155 BOLT; MUD COVER 16.085 (B) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	1011-1205		●
33	08.155 BOLT; MUD COVER (C) M6X26 W/PL WASHER	8-98035-643-0	04	1	1011-1308		●
33	08.155 BOLT; MUD COVER (C) M6X26 W/PL WASHER	8-98035-643-0	04	1	1309-	●	●
33	08.155 BOLT; MUD COVER 09.242 (D) M6X16 FLANGE	0-28050-616-0	08	1	1011-1308		●
33	08.155 BOLT; MUD COVER 09.242 (D) M6X16 FLANGE	0-28050-616-0	08	1	1309-	●	●
66	08.155 WASHER; LK ID=6.1	0-91510-506-0	08	1	1011-1308		●
66	08.155 WASHER; LK ID=6.1	0-91510-506-0	08	1	1309-	●	●
73	08.155 BOLT; MUD COVER BRKT 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1011-1308		●
73	08.155 BOLT; MUD COVER BRKT 06.216 M8X25 FLANGE	0-28650-825-0	05	1	1309-	●	●
92	08.155 NUT; MUD COVER 01.062 M8 FLANGE	0-91180-108-0	02	1	1011-1308		●
92	08.155 NUT; MUD COVER 01.062 M8 FLANGE	0-91180-108-0	02	1	1309-	●	●
105	08.155 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	06	1	1011-1308		●
105	08.155 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	06	1	1309-	●	●
219	08.155 FLAP; MUD GUARD	8-97218-078-0	02	1	1011-1308		●
219	08.155 FLAP; MUD GUARD	8-97218-078-0	02	1	1309-	●	●
285	08.155 BRACKET; MUD COVER 4JB1-TC ENG(RDT) (A)	8-97225-272-1	01	1	1206-1308		●
285	08.155 BRACKET; MUD COVER 4JB1-TC ENG(RDT) (A)	8-97225-272-1	01	1	1309-	●	●
285	08.155 BRACKET; MUD COVER 4JB1-NA ENG(RLF) (A)	8-97035-780-4	01	1	1011-		●
285	08.155 BRACKET; MUD COVER (B)	8-97089-653-2	01	1	1011-1308		●
285	08.155 BRACKET; MUD COVER (B)	8-97089-653-2	01	1	1309-		●
285	08.155 BRACKET; MUD COVER 4JB1-TC ENG(RDT) (B)	8-97089-653-2	01	1	1309-	●
686	08.155 FLAP ASM; MUD	8-97218-119-0	01	1	1011-1308		●
686	08.155 FLAP ASM; MUD	8-97218-119-0	01	1	1309-	●	●
686	08.155 FLAP ASM; MUD	8-97366-986-1	01	1	1011-1308		●
686	08.155 FLAP ASM; MUD	8-97366-986-1	01	1	1309-	●	●

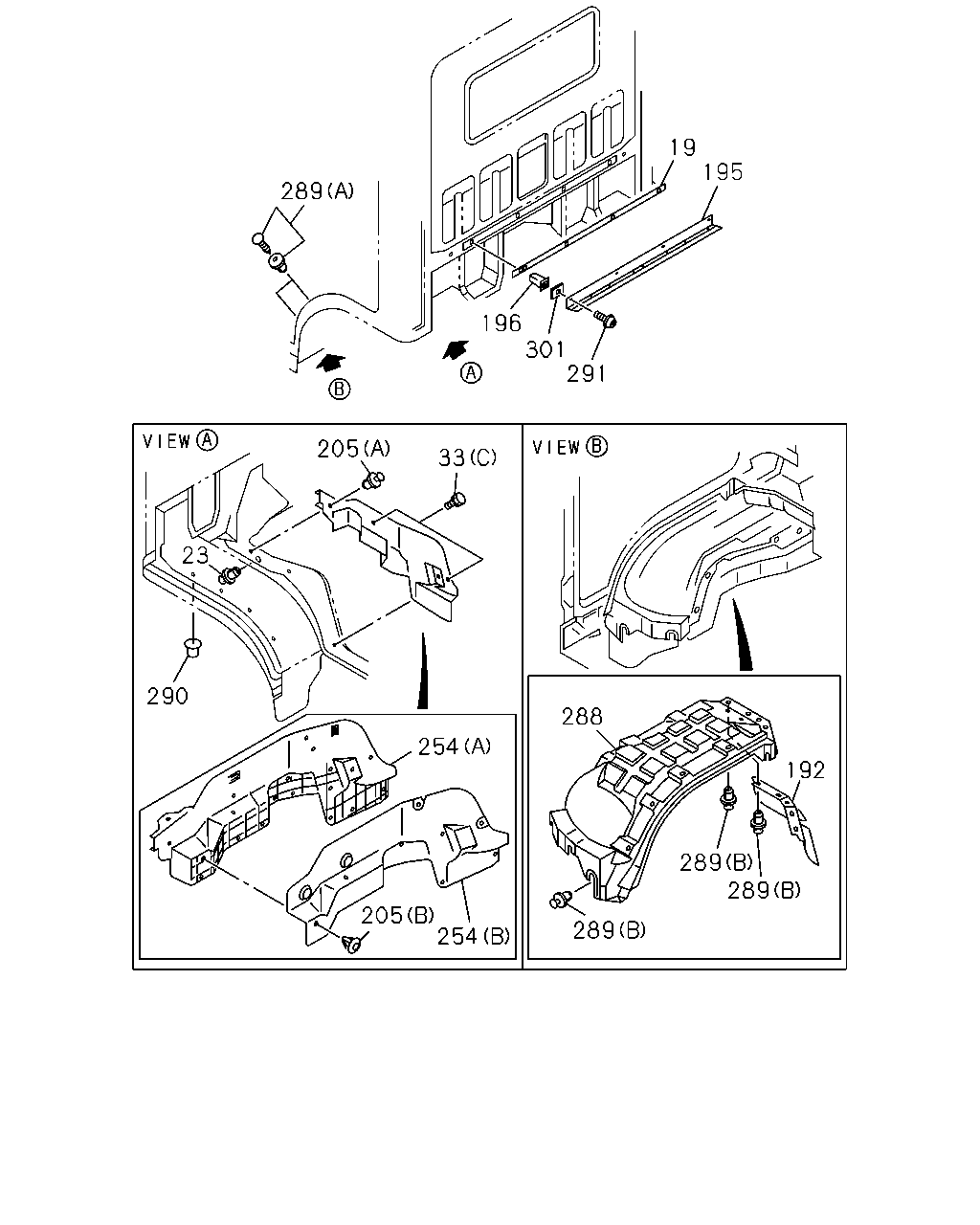

289 192 289 289 288 254 205 254 290 23 205 33 291 301 196 195 19 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK RR BODY FLAT BED(RS6)	8-98191-582-0	01	1	1206-1308		●
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK RR BODY FLAT BED(RS6)	8-98191-582-0	01	1	1309-1310		●
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK	8-98191-582-0	01	1	1309-1310	●
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK RR BODY FLAT BED(RS6)	8-98191-582-0	01	1	1311-	●	●
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-97997-832-0	06	1	1011-1308		●
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-97997-832-0	06	1	1309-	●	●
33	08.155 BOLT; MUD COVER 16.085 (B) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	1206-1308		●
33	08.155 BOLT; MUD COVER 16.085 (B) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	1309-	●	●
33	08.155 BOLT; MUD COVER 04.338 (A) M8X20 FLANGE	0-28050-820-0	07	1	1011-1308		●
33	08.155 BOLT; MUD COVER 04.338 (A) M8X20 FLANGE	0-28050-820-0	07	1	1309-	●	●
33	08.155 BOLT; MUD COVER 16.085 (B) M8X20 W/LK&PL WASHER	8-97359-709-0	01	1	1011-1205		●
33	08.155 BOLT; MUD COVER (C) M6X26 W/PL WASHER	8-98035-643-0	04	1	1011-1308		●
33	08.155 BOLT; MUD COVER (C) M6X26 W/PL WASHER	8-98035-643-0	04	1	1309-	●	●
33	08.155 BOLT; MUD COVER 09.242 (D) M6X16 FLANGE	0-28050-616-0	08	1	1011-1308		●
33	08.155 BOLT; MUD COVER 09.242 (D) M6X16 FLANGE	0-28050-616-0	08	1	1309-	●	●
192	08.153 SEAL; MUD COVER	8-97857-297-4	02	1	1011-1106		●
192	08.153 SEAL; MUD COVER	8-98192-031-0	02	1	1107-1308		●
192	08.153 SEAL; MUD COVER	8-98192-031-0	02	1	1309-	●	●
195	03.602 PROTECTOR; HEAT RR BODY FLAT BED(RS6)	8-97035-834-3	01	1	1206-1308		●
195	03.602 PROTECTOR; HEAT RR BODY FLAT BED(RS6)	8-97035-834-3	01	1	1309-1310		●
195	03.602 PROTECTOR; HEAT	8-97035-834-3	01	1	1309-1310	●
195	03.602 PROTECTOR; HEAT RR BODY FLAT BED(RS6)	8-97035-834-3	01	1	1311-	●	●
196	03.602 CLIP; HEAT PROTECTOR 08.155	8-97994-312-0	04	1	1011-1308		●
196	03.602 CLIP; HEAT PROTECTOR 08.155	8-97994-312-0	04	1	1309-	●	●
205	08.155 FASTENER; MUD COVER 12.934 (A) D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	1011-1308		●
205	08.155 FASTENER; MUD COVER 12.934 (A) D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	1309-	●	●
205	08.155 FASTENER; MUD COVER (B) OD=18 L=17	8-94279-702-0	10	1	1011-1308		●
205	08.155 FASTENER; MUD COVER (B) OD=18 L=17	8-94279-702-0	10	1	1309-	●	●
254	08.153 COVER; MUD,VALANCE 08.155 (B)	8-97853-116-3	01	1	1011-1308		●
254	08.153 COVER; MUD,VALANCE 08.155 (B)	8-97853-116-3	01	1	1309-		●
254	08.153 COVER; MUD,VALANCE 4JB1-TC ENG(RDT) 08.155 (B)	8-97853-116-3	01	1	1309-	●
254	08.153 COVER; MUD,VALANCE 08.155 (B)	8-97853-117-3	01	1	1011-1308		●
254	08.153 COVER; MUD,VALANCE 08.155 (B)	8-97853-117-3	01	1	1309-		●
254	08.153 COVER; MUD,VALANCE 4JB1-TC ENG(RDT) 08.155 (B)	8-97853-117-3	01	1	1309-	●
254	08.153 COVER; MUD,VALANCE (A)	8-97853-071-4	01	1	1011-1308		●
254	08.153 COVER; MUD,VALANCE (A)	8-97853-071-4	01	1	1309-	●	●
254	08.153 COVER; MUD,VALANCE (A)	8-97853-072-4	01	1	1011-1308		●
254	08.153 COVER; MUD,VALANCE (A)	8-97853-072-4	01	1	1309-	●	●
288	08.155 LINER; TIRE HOUSE	8-97581-240-0	01	1	1011-1308		●
288	08.155 LINER; TIRE HOUSE	8-97581-240-0	01	1	1309-	●	●
288	08.155 LINER; TIRE HOUSE	8-97581-241-0	01	1	1011-1308		●
288	08.155 LINER; TIRE HOUSE	8-97581-241-0	01	1	1309-	●	●
289	08.155 FASTENER; LINER (A) OD=8	1-09983-125-0	02	1	1011-1308		●
289	08.155 FASTENER; LINER (A) OD=8	1-09983-125-0	02	1	1309-	●	●
289	08.155 FASTENER; LINER 16.320 (B) OD=8.3	8-94279-989-0	18	1	1011-1308		●
289	08.155 FASTENER; LINER 16.320 (B) OD=8.3	8-94279-989-0	18	1	1309-	●	●
290	08.155 NUT; LINER CAP NUT BLACK	8-94279-526-0	08	1	1011-1308		●
290	08.155 NUT; LINER CAP NUT BLACK	8-94279-526-0	08	1	1309-	●	●
291	16.570 SCREW; PROTECTOR RR BODY FLAT BED(RS6) 16.090 M5X16 HEXALOBULAR SOCKET	8-98177-744-0	04	1	1206-1212		●
291	16.570 SCREW; PROTECTOR RR BODY FLAT BED(RS6) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1301-1308		●
291	16.570 SCREW; PROTECTOR RR BODY FLAT BED(RS6) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1309-1310		●
291	16.570 SCREW; PROTECTOR 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1309-1310	●
291	16.570 SCREW; PROTECTOR RR BODY FLAT BED(RS6) 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	04	1	1311-	●	●
301	08.155 HOLDER; HEAT PROTECTOR	8-97994-313-0	04	1	1011-1308		●
301	08.155 HOLDER; HEAT PROTECTOR	8-97994-313-0	04	1	1309-	●	●

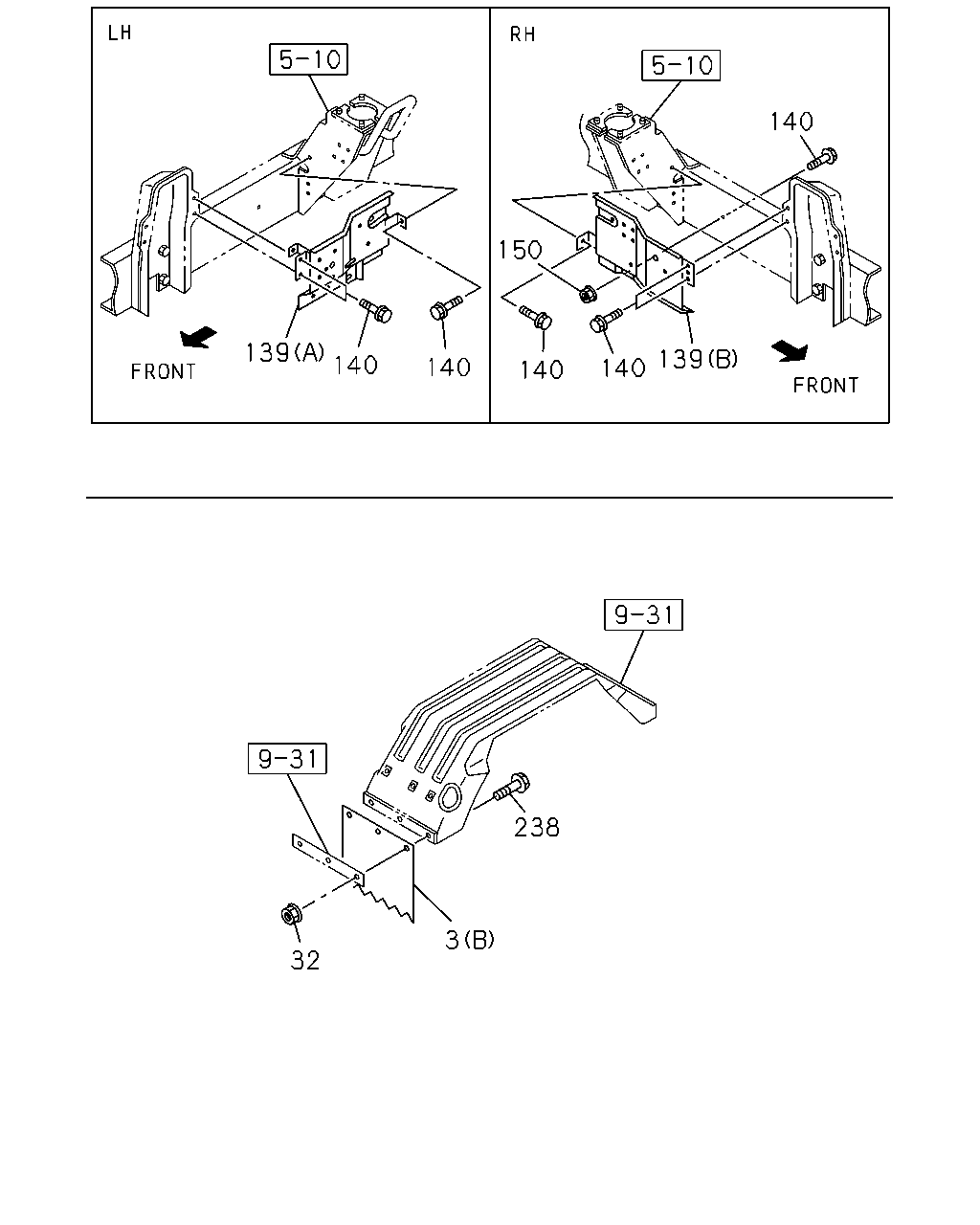

3 32 238 139 140 140 150 140 140 139 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	08.153 GUARD; MUD,RR (B) H=450 B=230	8-97324-878-0	02	1	1309-1310	●
3	08.153 GUARD; MUD,RR RR BODY FLAT BED(RS6) (B) H=450 B=230	8-97324-878-0	02	1	1311-	●
3	08.153 GUARD; MUD,RR (A)	8-97048-728-3	01	1	1011-1308		●
3	08.153 GUARD; MUD,RR (A)	8-97048-728-3	01	1	1309-	●	●
3	08.153 GUARD; MUD,RR (A)	8-97366-988-1	01	1	1011-1308		●
3	08.153 GUARD; MUD,RR (A)	8-97366-988-1	01	1	1309-	●	●
3	08.153 GUARD; MUD,RR RR BODY FLAT BED(RS6) 08.214 (B) H=440 B=430	8-97214-177-1	02	1	1206-1302		●
3	08.153 GUARD; MUD,RR WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 08.214 (B) H=440 B=430	8-97214-177-1	02	1	1303-		●
32	08.155 NUT; MUD GUARD 08.212 M6 FLANGE	8-97065-431-0	08	1	1309-1310	●
32	08.155 NUT; MUD GUARD RR BODY FLAT BED(RS6) 08.212 M6 FLANGE	8-97065-431-0	08	1	1311-	●
32	08.155 NUT; MUD GUARD RR BODY FLAT BED(RS6) 08.212 M6 FLANGE	8-97065-431-0	06	1	1206-1302		●
32	08.155 NUT; MUD GUARD WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 08.212 M6 FLANGE	8-97065-431-0	06	1	1303-		●
139	08.153 PANEL; SIDE 4JB1-NA ENG(RLF) (A)	8-97083-093-1	01	1	1011-		●
139	08.153 PANEL; SIDE 4JB1-TC ENG(RDT) (A)	8-97035-774-3	01	1	1206-1308		●
139	08.153 PANEL; SIDE 4JB1-TC ENG(RDT) (A)	8-97035-774-3	01	1	1309-	●	●
139	08.153 PANEL; SIDE (B)	8-97078-381-1	01	1	1011-1308		●
139	08.153 PANEL; SIDE (B)	8-97078-381-1	01	1	1309-		●
139	08.153 PANEL; SIDE 4JB1-TC ENG(RDT) (B)	8-97078-381-1	01	1	1309-	●
140	08.155 BOLT; SIDE PANEL 06.216 M8X25 FLANGE	0-28650-825-0	07	1	1011-1308		●
140	08.155 BOLT; SIDE PANEL 06.216 M8X25 FLANGE	0-28650-825-0	07	1	1309-	●	●
150	08.155 NUT; SIDE PANEL 01.062 M8 FLANGE	0-91180-108-0	01	1	1011-1308		●
150	08.155 NUT; SIDE PANEL 01.062 M8 FLANGE	0-91180-108-0	01	1	1309-	●	●
238	08.153 SCREW; MUD GUARD 17.208 M6X16 FLANGE	8-98098-459-0	08	1	1309-1310	●
238	08.153 SCREW; MUD GUARD RR BODY FLAT BED(RS6) 17.208 M6X16 FLANGE	8-98098-459-0	08	1	1311-	●
238	08.153 SCREW; MUD GUARD RR BODY FLAT BED(RS6) 17.208 M6X16 FLANGE	8-98098-459-0	06	1	1206-1302		●
238	08.153 SCREW; MUD GUARD WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 17.208 M6X16 FLANGE	8-98098-459-0	06	1	1303-		●
