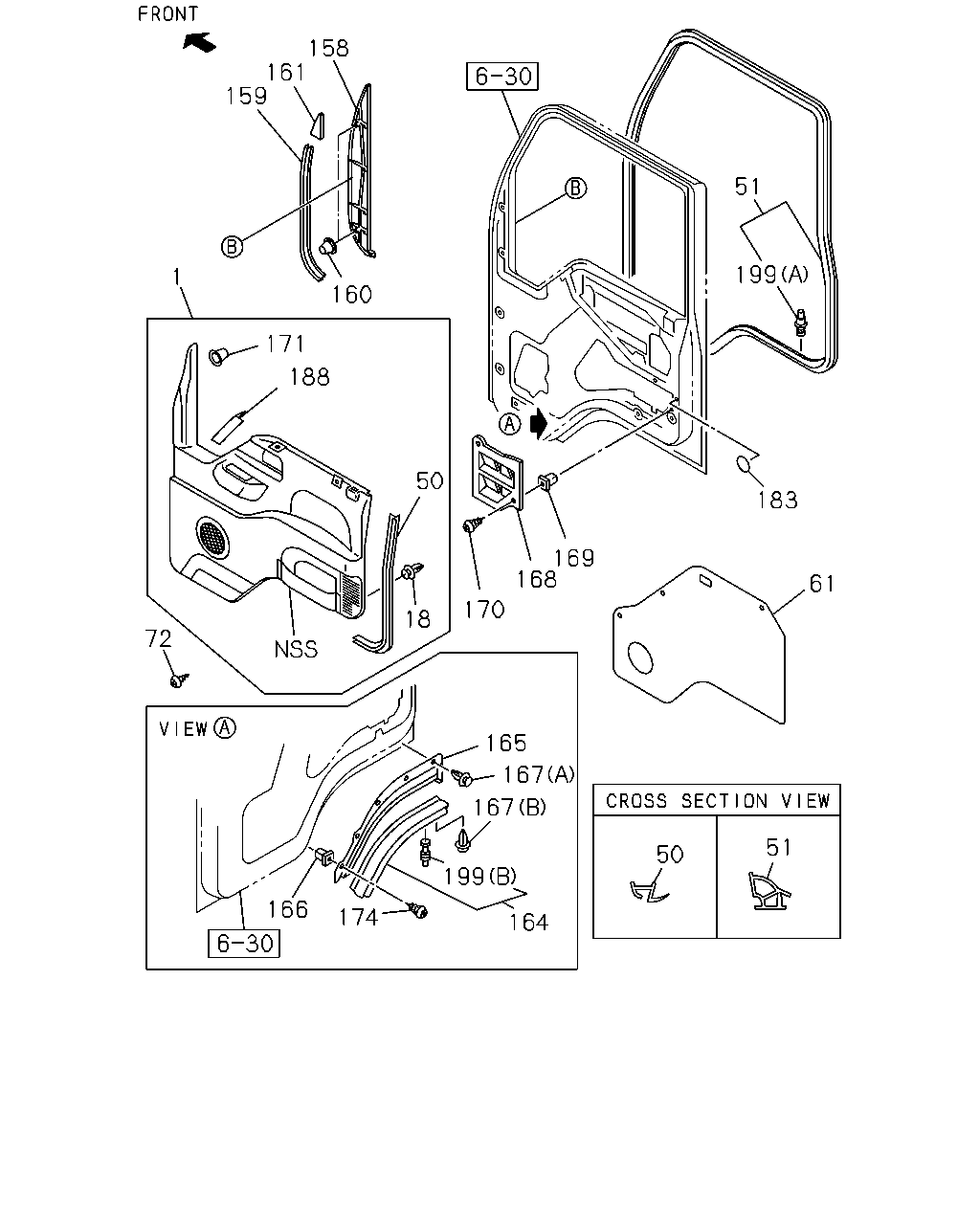

6-35 — FRONT DOOR TRIM (#79854) — 72 parça

158 161 159 160 1 188 171 50 18 72 170 168 169 51 199 183 61 51 50 164 199 174 166 167 167 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.165 PAD; TRIM,FRT DOOR GRAY	8-97582-280-4	01	1	1011-1308	●
1	16.165 PAD; TRIM,FRT DOOR GRAY	8-97582-280-4	01	1	1309-	●	●
1	16.165 PAD; TRIM,FRT DOOR GRAY	8-97582-286-4	01	1	1011-1308	●
1	16.165 PAD; TRIM,FRT DOOR GRAY	8-97582-286-4	01	1	1309-	●	●
18	16.165 CLIP; DOOR PAD OD=7.9 BLACK	8-94279-974-1	24	1	1011-1308	●
18	16.165 CLIP; DOOR PAD OD=7.9 BLACK	8-94279-974-1	24	1	1309-	●	●
50	16.166 FINISHER; DOOR PAD GRAY	8-97582-685-0	02	1	1011-1308	●
50	16.166 FINISHER; DOOR PAD GRAY	8-97582-685-0	02	1	1309-	●	●
51	16.225 WEATHERSTRIP; FRONT DOOR	8-97892-902-3	01	1	1011-1308	●
51	16.225 WEATHERSTRIP; FRONT DOOR	8-97892-902-3	01	1	1309-	●	●
51	16.225 WEATHERSTRIP; FRONT DOOR	8-97892-903-3	01	1	1011-1308	●
51	16.225 WEATHERSTRIP; FRONT DOOR	8-97892-903-3	01	1	1309-	●	●
61	16.165 SEAL; WATER,DOOR PAD 2-SPEAKER SYSTEM BASE<U95>	8-97852-308-1	02	1	1011-1308	●
61	16.165 SEAL; WATER,DOOR PAD 2-SPEAKER SYSTEM BASE<U95>	8-97852-308-1	02	1	1309-	●	●
61	16.165 SEAL; WATER,DOOR PAD EXC. 2-SPEAKER SYSTEM BASE<U95>	8-97852-307-1	02	1	1011-1308	●
61	16.165 SEAL; WATER,DOOR PAD EXC. 2-SPEAKER SYSTEM BASE<U95>	8-97852-307-1	02	1	1309-	●	●
72	16.165 SCREW; DOOR TRIM 16.345 M5X12 HEX SOCKET	0-72380-512-0	02	1	1011-1308	●
72	16.165 SCREW; DOOR TRIM 16.345 M5X12 HEX SOCKET	0-72380-512-0	02	1	1309-	●	●
158	16.165 GARNISH; DOOR	8-97852-128-2	01	1	1011-1308	●
158	16.165 GARNISH; DOOR	8-97852-128-2	01	1	1309-	●	●
158	16.165 GARNISH; DOOR	8-97852-129-2	01	1	1011-1308	●
158	16.165 GARNISH; DOOR	8-97852-129-2	01	1	1309-	●	●
159	16.165 FINISHER; GARNISH	8-97852-257-4	02	1	1011-1308	●
159	16.165 FINISHER; GARNISH	8-97852-257-4	02	1	1309-	●	●
160	16.165 CLIP; GARNISH	8-97852-058-0	04	1	1011-1308	●
160	16.165 CLIP; GARNISH	8-97852-058-0	04	1	1309-	●	●
161	16.165 FASTENER; GARNISH	8-97134-312-1	01	1	1011-1308	●
161	16.165 FASTENER; GARNISH	8-97134-312-1	01	1	1309-	●	●
161	16.165 FASTENER; GARNISH	8-97134-313-1	01	1	1011-1308	●
161	16.165 FASTENER; GARNISH	8-97134-313-1	01	1	1309-	●	●
164	16.165 SEAL; SUB,SILL SIDE	8-97852-319-4	01	1	1011-1308	●
164	16.165 SEAL; SUB,SILL SIDE	8-97852-319-4	01	1	1309-	●	●
164	16.165 SEAL; SUB,SILL SIDE	8-97852-320-4	01	1	1011-1308	●
164	16.165 SEAL; SUB,SILL SIDE	8-97852-320-4	01	1	1309-	●	●
165	16.165 LINER; DOOR LWR	8-97581-080-0	01	1	1011-1308	●
165	16.165 LINER; DOOR LWR	8-97581-080-0	01	1	1309-	●	●
165	16.165 LINER; DOOR LWR	8-97581-081-0	01	1	1011-1308	●
165	16.165 LINER; DOOR LWR	8-97581-081-0	01	1	1309-	●	●
166	16.155 PLUG; HOLE 01.269 D=8.6X7.7 L=7.5	8-94279-078-0	04	1	1011-1308	●
166	16.155 PLUG; HOLE 01.269 D=8.6X7.7 L=7.5	8-94279-078-0	04	1	1309-	●	●
167	16.165 CLIP; LINER 08.155 (A) D6X16 PUSH RIVET	1-09983-105-0	06	1	1011-1308	●
167	16.165 CLIP; LINER 08.155 (A) D6X16 PUSH RIVET	1-09983-105-0	06	1	1309-	●	●
167	16.165 CLIP; LINER (B) D6X20 PUSH RIVET	8-97859-673-0	02	1	1011-1308	●
167	16.165 CLIP; LINER (B) D6X20 PUSH RIVET	8-97859-673-0	02	1	1309-	●	●
168	16.175 VALVE; DOOR OUTLET	8-97855-412-0	01	1	1011-1308	●
168	16.175 VALVE; DOOR OUTLET	8-97855-412-0	01	1	1309-	●	●
168	16.175 VALVE; DOOR OUTLET	8-97855-413-0	01	1	1011-1308	●
168	16.175 VALVE; DOOR OUTLET	8-97855-413-0	01	1	1309-	●	●
169	16.175 GROMMET; SCREW,VALVE 01.269 D=8.6X7.7 L=7.5	8-94279-078-0	04	1	1011-1308	●
169	16.175 GROMMET; SCREW,VALVE 01.269 D=8.6X7.7 L=7.5	8-94279-078-0	04	1	1309-	●	●
170	16.175 SCREW; VALVE 16.570 M5X16 TAPPING HEXALOBULAR	0-72380-516-0	04	1	1011-1308	●
170	16.175 SCREW; VALVE 16.570 M5X16 TAPPING HEXALOBULAR	0-72380-516-0	04	1	1309-	●	●
171	16.165 RETAINER; DOOR PAD 01.303	5-09709-049-0	02	1	1011-1308	●
171	16.165 RETAINER; DOOR PAD 01.303	5-09709-049-0	02	1	1309-	●	●
174	16.175 SCREW; LINER 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	04	1	1011-1308	●
174	16.175 SCREW; LINER 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	04	1	1309-	●	●
183	16.165 SEAL; LOCATION HOLE OD=25 BLACK	1-76798-019-0	02	1	1011-1308	●
183	16.165 SEAL; LOCATION HOLE OD=25 BLACK	1-76798-019-0	02	1	1309-	●	●
188	16.165 CASE; DOOR GRAY	8-97582-684-3	01	1	1011-1308	●
188	16.165 CASE; DOOR GRAY	8-97582-684-3	01	1	1309-	●	●
188	16.165 CASE; DOOR GRAY	8-97582-693-3	01	1	1011-1308	●
188	16.165 CASE; DOOR GRAY	8-97582-693-3	01	1	1309-	●	●
199	16.165 CLIP; SEAL (A) FRONT NATURAL	1-09987-253-1	09	1	1011-1308	●
199	16.165 CLIP; SEAL (A) FRONT NATURAL	1-09987-253-1	09	1	1309-	●	●
199	16.165 CLIP; SEAL (A) FRONT YELLOW	1-09987-254-1	09	1	1011-1308	●
199	16.165 CLIP; SEAL (A) FRONT YELLOW	1-09987-254-1	09	1	1309-	●	●
199	16.165 CLIP; SEAL (A) LOWER & BACK PINK	1-09987-256-0	32	1	1011-1308	●
199	16.165 CLIP; SEAL (A) LOWER & BACK PINK	1-09987-256-0	32	1	1309-	●	●
199	16.165 CLIP; SEAL (B) NATURAL	8-97852-455-0	07	1	1011-1308	●
199	16.165 CLIP; SEAL (B) NATURAL	8-97852-455-0	07	1	1309-	●	●
199	16.165 CLIP; SEAL (B) PINK	8-97852-456-0	07	1	1011-1308	●
199	16.165 CLIP; SEAL (B) PINK	8-97852-456-0	07	1	1309-	●	●
