6-32 — FRONT DOOR LOCK AND HANDLE (#79853) — 54 parça

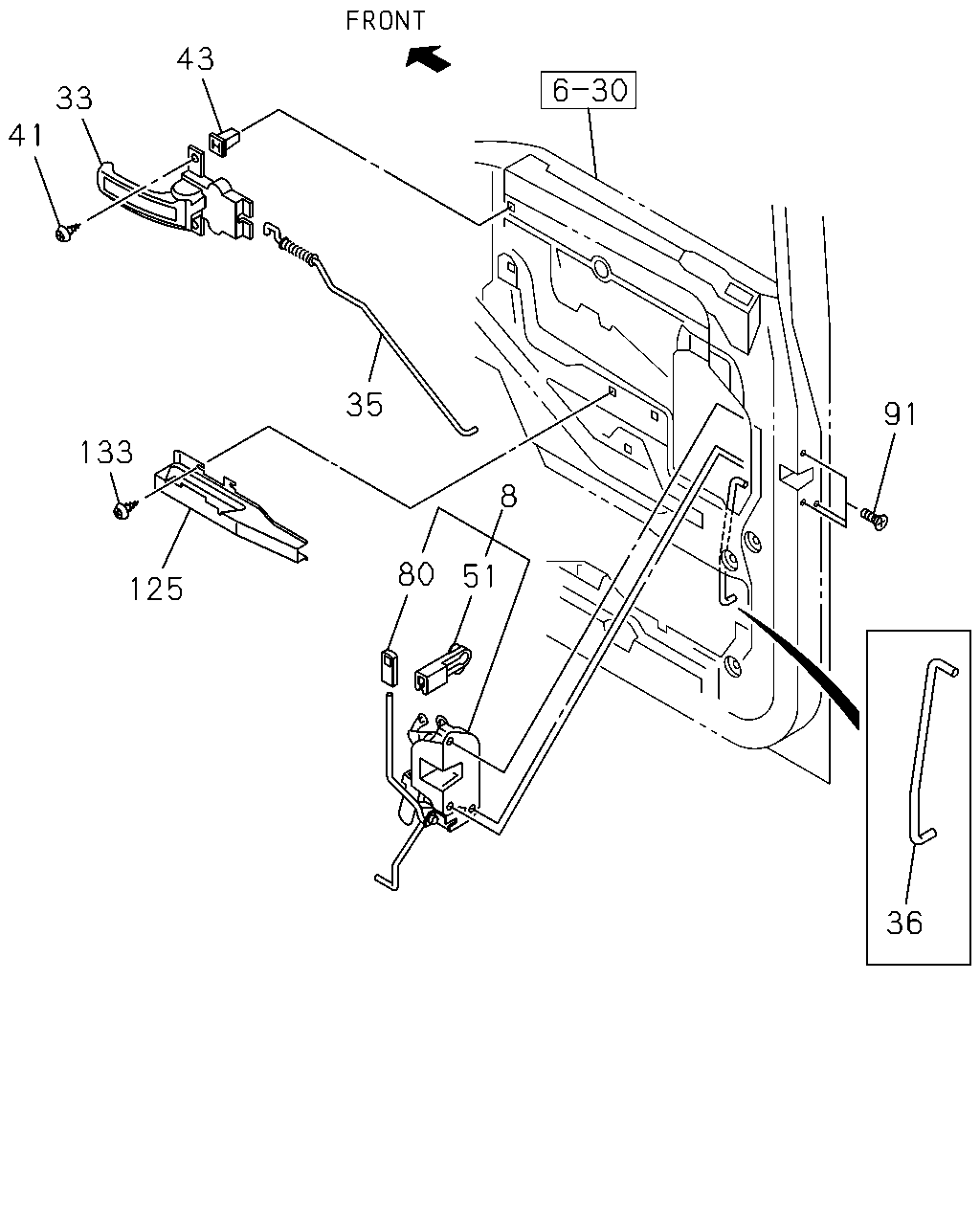

çizim 130926
91 36 8 51 80 35 43 33 41 133 125
BalonParca AdiParca NoAdetTipApplied Date A B
8 16.330 LOCK; DOOR,FRT DOOR
GRAY 		8-97406-309-2 01 1 1011-1308 ●
8 16.330 LOCK; DOOR,FRT DOOR
GRAY 		8-97406-309-2 01 1 1309- ● ●
8 16.330 LOCK; DOOR,FRT DOOR
GRAY 		8-97406-310-2 01 1 1011-1308 ●
8 16.330 LOCK; DOOR,FRT DOOR
GRAY 		8-97406-310-2 01 1 1309- ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
GRAY 		8-97409-388-0 01 1 1011-1308 ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
GRAY 		8-97409-388-0 01 1 1309- ● ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
GRAY 		8-97409-389-0 01 1 1011-1308 ●
33 16.345 LEVER ASM; INSIDE,FRT DOOR
GRAY 		8-97409-389-0 01 1 1309- ● ●
35 16.341 LINK; DOOR LOCK,INSIDE 8-97890-886-3 01 1 1011-1308 ●
35 16.341 LINK; DOOR LOCK,INSIDE 8-97890-886-3 01 1 1309- ● ●
35 16.341 LINK; DOOR LOCK,INSIDE 8-97890-887-3 01 1 1011-1308 ●
35 16.341 LINK; DOOR LOCK,INSIDE 8-97890-887-3 01 1 1309- ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE 8-97890-884-0 01 1 1011-1308 ●
36 16.332 LINK; DOOR LOCK,OUTSIDE 8-97890-884-0 01 1 1309- ● ●
36 16.332 LINK; DOOR LOCK,OUTSIDE 8-97890-885-0 01 1 1011-1308 ●
36 16.332 LINK; DOOR LOCK,OUTSIDE 8-97890-885-0 01 1 1309- ● ●
41 16.345 SCREW; INSIDE HANDLE
16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1011-1308 ●
41 16.345 SCREW; INSIDE HANDLE
16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 04 1 1309- ● ●
43 16.345 GROMMET; SCREW,INSIDE LEVER,DOOR
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 1011-1308 ●
43 16.345 GROMMET; SCREW,INSIDE LEVER,DOOR
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 1309- ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
16.345 		8-97852-643-0 01 1 1011-1308 ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD
16.345 		8-97852-643-0 01 1 1309- ● ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD 8-97859-069-0 01 1 1011-1308 ●
51 16.335 SNAP; FRT DOOR LOCK CONT ROD 8-97859-069-0 01 1 1309- ● ●
80 16.157 KNOB; DOOR LOCK
GRAY 		8-97406-876-0 02 1 1011-1308 ●
80 16.157 KNOB; DOOR LOCK
GRAY 		8-97406-876-0 02 1 1309- ● ●
91 16.330 BOLT; DOOR LOCK
M6X14.5 		8-98004-342-0 06 1 1011-1308 ●
91 16.330 BOLT; DOOR LOCK
M6X14.5 		8-98004-342-0 06 1 1309- ● ●
125 16.341 BRACKET; DOOR PULL 8-97869-459-1 01 1 1011-1308 ●
125 16.341 BRACKET; DOOR PULL 8-97869-459-1 01 1 1309- ● ●
125 16.341 BRACKET; DOOR PULL 8-97869-460-1 01 1 1011-1308 ●
125 16.341 BRACKET; DOOR PULL 8-97869-460-1 01 1 1309- ● ●
133 16.345 SCREW; DOOR PULL STAY
16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 06 1 1011-1308 ●
133 16.345 SCREW; DOOR PULL STAY
16.570 M5X16 TAPPING HEXALOBULAR 		0-72380-516-0 06 1 1309- ● ●

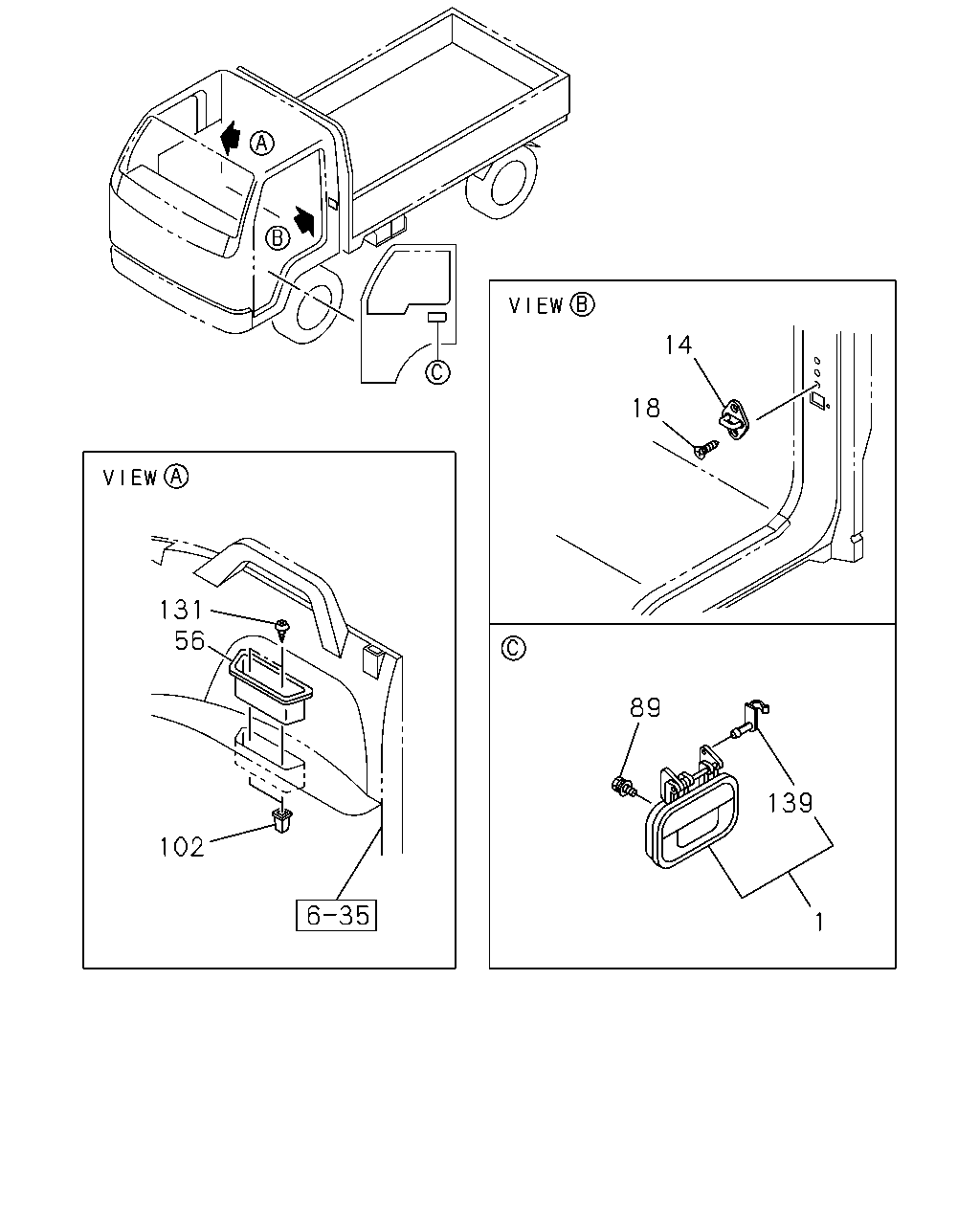

çizim 131104
131 56 102 14 18 89 139 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.350 HANDLE; OUTSIDE,FRT DOOR 8-97867-721-1 01 1 1011-1308 ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR 8-97867-721-1 01 1 1309- ● ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR 8-97867-722-1 01 1 1011-1308 ●
1 16.350 HANDLE; OUTSIDE,FRT DOOR 8-97867-722-1 01 1 1309- ● ●
14 16.335 STRIKER; FRT DOOR 8-97221-702-1 02 1 1011-1308 ●
14 16.335 STRIKER; FRT DOOR 8-97221-702-1 02 1 1309- ● ●
18 16.335 SCREW; DOOR STRIKER
M8X20 CK-HEAD 		8-98004-343-2 04 1 1011-1308 ●
18 16.335 SCREW; DOOR STRIKER
M8X20 CK-HEAD 		8-98004-343-2 04 1 1309- ● ●
56 16.157 ESCUTCHEON; LOCK KNOB
GRAY 		8-97406-318-3 02 1 1011-1308 ●
56 16.157 ESCUTCHEON; LOCK KNOB
GRAY 		8-97406-318-3 02 1 1309- ● ●
89 16.350 BOLT; DOOR OUTSIDE HANDLE
M6X8 W/TORQUES 		8-98064-276-1 04 1 1011-1308 ●
89 16.350 BOLT; DOOR OUTSIDE HANDLE
M6X8 W/TORQUES 		8-98064-276-1 04 1 1309- ● ●
102 16.345 GROMMET; SCREW,ESCUTCHEON,DOOR P
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1011-1308 ●
102 16.345 GROMMET; SCREW,ESCUTCHEON,DOOR P
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1309- ● ●
131 16.345 SCREW; ESCUTCHEON,DOOR PULL
M5X12 HEX SOCKET 		0-72380-512-0 04 1 1011-1308 ●
131 16.345 SCREW; ESCUTCHEON,DOOR PULL
M5X12 HEX SOCKET 		0-72380-512-0 04 1 1309- ● ●
139 16.350 HOLDER; ROD,DOOR HANDLE 8-97852-651-1 01 1 1011-1308 ●
139 16.350 HOLDER; ROD,DOOR HANDLE 8-97852-651-1 01 1 1309- ● ●
139 16.350 HOLDER; ROD,DOOR HANDLE 8-97852-652-1 01 1 1011-1308 ●
139 16.350 HOLDER; ROD,DOOR HANDLE 8-97852-652-1 01 1 1309- ● ●
