6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#79849) — 19 parça

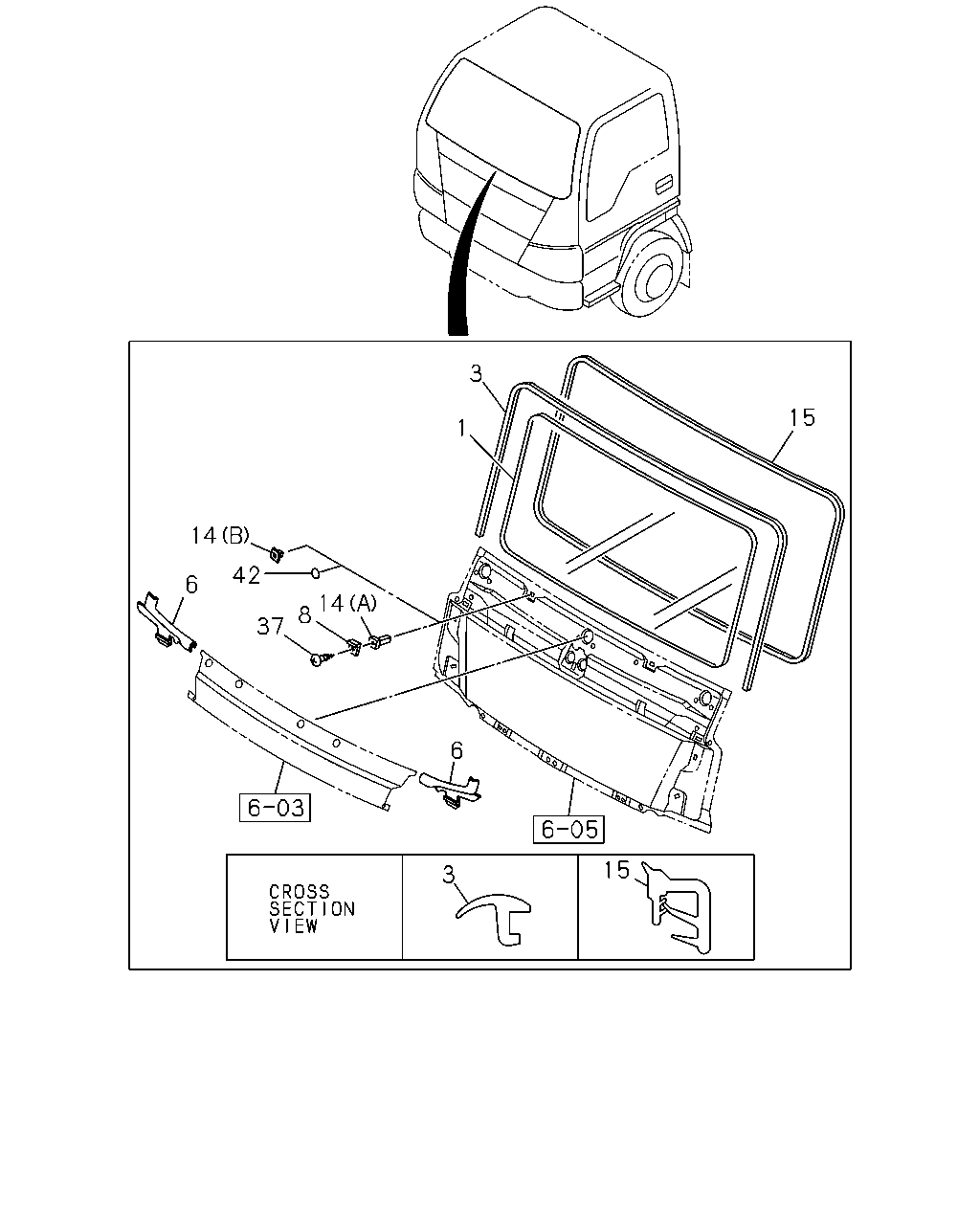

çizim 126520
15 3 1 14 37 42 6 8 14 15 3 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.005 GLASS; WINDSHIELD 8-97997-944-1 01 1 1011-1308 ●
1 16.005 GLASS; WINDSHIELD 8-97997-944-1 01 1 1309- ● ●
3 16.470 MOLDING; WINDSHIELD 8-97581-678-3 01 1 1011-1308 ●
3 16.470 MOLDING; WINDSHIELD 8-97581-678-3 01 1 1309- ● ●
6 16.475 MOLDING; SIDE,WINDSHIELD
16.041 		8-97581-617-4 01 1 1011-1308 ●
6 16.475 MOLDING; SIDE,WINDSHIELD
16.041 		8-97581-617-4 01 1 1309- ● ●
6 16.475 MOLDING; SIDE,WINDSHIELD
16.041 		8-97581-618-3 01 1 1011-1308 ●
6 16.475 MOLDING; SIDE,WINDSHIELD
16.041 		8-97581-618-3 01 1 1309- ● ●
8 16.041 STOPPER; WINDSHIELD GLASS
KD PREPARATORY PACK VAR.4<7TV> 		8-97853-733-1 02 1 1011-1308 ●
8 16.041 STOPPER; WINDSHIELD GLASS
KD PREPARATORY PACK VAR.4<7TV> 		8-97853-733-1 02 1 1309- ● ●
14 16.041 GROMMET; SCREW,STOPPER
EXC. KD PREPARATORY PACK VAR.4<7TV> 12.182 (B) D=7.9X7.9 L=11.4 M5 		8-94367-528-0 02 1 1305-1308 ●
14 16.041 GROMMET; SCREW,STOPPER
EXC. KD PREPARATORY PACK VAR.4<7TV> 12.182 (B) D=7.9X7.9 L=11.4 M5 		8-94367-528-0 02 1 1309- ● ●
14 16.041 GROMMET; SCREW,STOPPER
KD PREPARATORY PACK VAR.4<7TV> 16.802 (A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 1011-1308 ●
14 16.041 GROMMET; SCREW,STOPPER
KD PREPARATORY PACK VAR.4<7TV> 16.802 (A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 1309- ● ●
15 16.041 FINISHER; WINDSHIELD
GRAY 		8-97582-226-7 01 1 1011-1308 ●
15 16.041 FINISHER; WINDSHIELD
GRAY 		8-97582-226-7 01 1 1309- ● ●
37 08.130 BOLT
KD PREPARATORY PACK VAR.4<7TV> 16.067 M5X14 		8-94279-325-0 02 1 1011-1308 ●
37 08.130 BOLT
KD PREPARATORY PACK VAR.4<7TV> 16.067 M5X14 		8-94279-325-0 02 1 1309- ● ●
42 16.041 SEAL; HOLE
EXC. KD PREPARATORY PACK VAR.4<7TV> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 1011-1304 ●
