◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51376 - QKR(MIDDLE EAST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#79848) — 76 parça

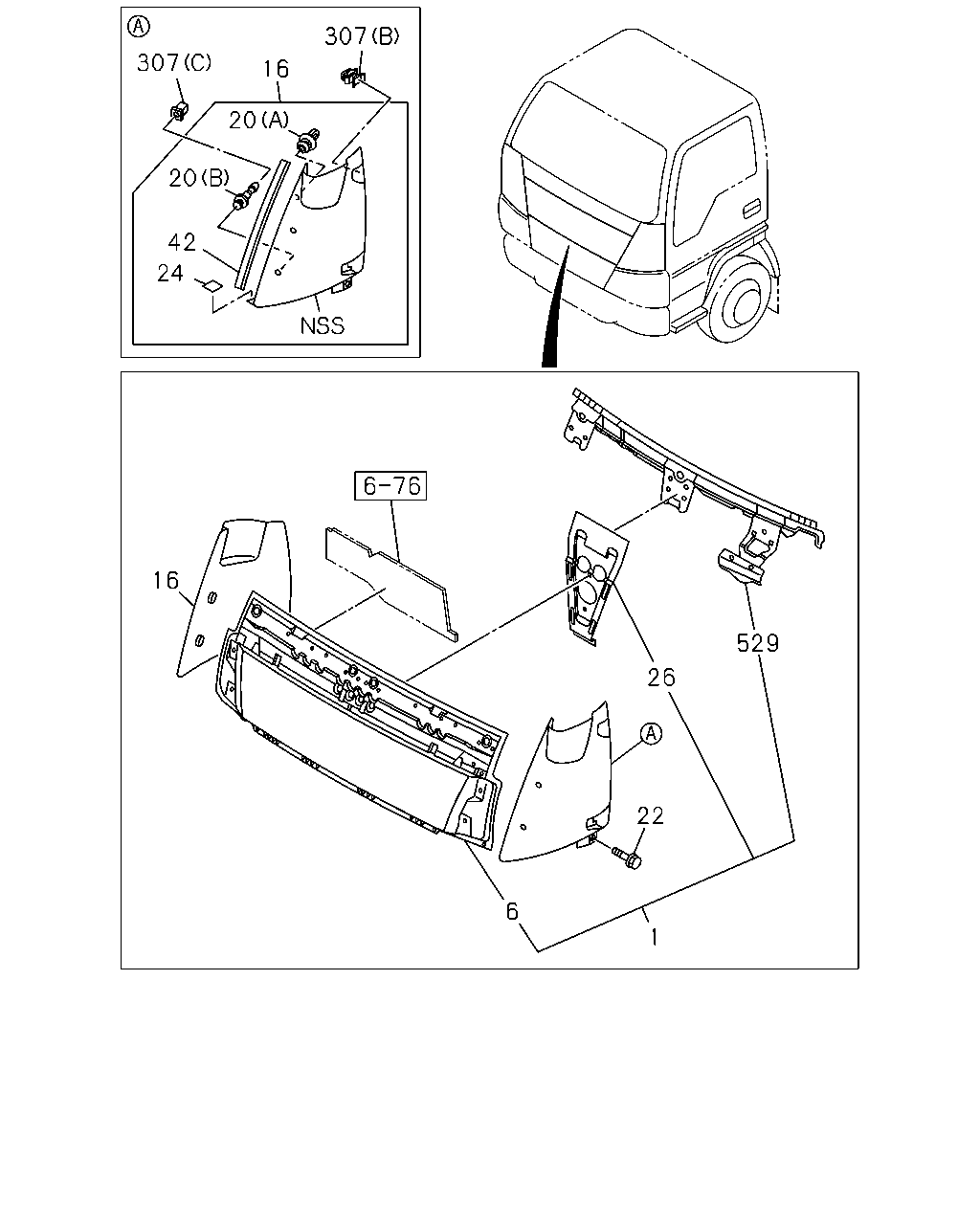

çizim 126303
307 16 307 20 20 42 24 16 26 22 529 6 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.550 PANEL ASM; FRT 8-97582-868-0 01 1 1011-1308 ●
1 16.550 PANEL ASM; FRT 8-97582-868-0 01 1 1309- ● ●
6 16.570 PANEL; FRONT 8-97582-871-2 01 1 1011-1308 ●
6 16.570 PANEL; FRONT 8-97582-871-2 01 1 1309- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) BLACK 		8-97407-788-6 01 1 1011-1310 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) BLACK 		8-97407-788-6 01 1 1311- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) BLACK 		8-97407-790-6 01 1 1011-1310 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR EBONY BLACK(508) BLACK 		8-97407-790-6 01 1 1311- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97422-129-6 01 1 1011-1310 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97422-129-6 01 1 1311- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97422-128-6 01 1 1011-1310 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97422-128-6 01 1 1311- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) WHITE 		8-97422-130-6 01 1 1011-1310 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) WHITE 		8-97422-130-6 01 1 1311- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) WHITE 		8-97422-134-6 01 1 1011-1310 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(534) WHITE 		8-97422-134-6 01 1 1311- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97585-428-6 01 1 1011-1308 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97585-428-6 01 1 1309- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97585-430-6 01 1 1011-1308 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97585-430-6 01 1 1309- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97422-131-6 01 1 1011-1310 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97422-131-6 01 1 1311- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97422-135-6 01 1 1011-1310 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97422-135-6 01 1 1311- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97422-132-6 01 1 1011-1310 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97422-132-6 01 1 1311- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97422-136-6 01 1 1011-1310 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97422-136-6 01 1 1311- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97585-429-6 01 1 1011-1308 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97585-429-6 01 1 1309- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97585-431-6 01 1 1011-1308 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97585-431-6 01 1 1309- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97422-133-6 01 1 1011-1308 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97422-133-6 01 1 1309- ● ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97422-137-6 01 1 1011-1308 ●
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97422-137-6 01 1 1309- ● ●
20 16.588 CLIP; FRT PANEL SIDE
16.570 (B) D4.2X13 		1-09983-161-0 04 1 1011-1308 ●
20 16.588 CLIP; FRT PANEL SIDE
16.570 (B) D4.2X13 		1-09983-161-0 04 1 1309- ● ●
20 16.588 CLIP; FRT PANEL SIDE
(A) H=11.6 		8-98013-823-0 02 1 1011-1308 ●
20 16.588 CLIP; FRT PANEL SIDE
(A) H=11.6 		8-98013-823-0 02 1 1309- ● ●
22 16.588 SCREW; FRT PANEL SIDE
02.334 M6X16 W/PL WASHER 		8-97803-781-0 02 1 1011-1308 ●
22 16.588 SCREW; FRT PANEL SIDE
02.334 M6X16 W/PL WASHER 		8-97803-781-0 02 1 1309- ● ●
24 08.131 SEAL; FRT PANEL LWR 8-97583-672-0 02 1 1011-1308 ●
24 08.131 SEAL; FRT PANEL LWR 8-97583-672-0 02 1 1309- ● ●
26 16.592 PANEL; REINF,FRT PANEL CENTER,IN 8-97851-038-1 01 1 1011-1308 ●
26 16.592 PANEL; REINF,FRT PANEL CENTER,IN 8-97851-038-1 01 1 1309- ● ●
42 01.303 FINISHER; FRT PANEL,SIDE 8-97411-043-0 01 1 1011-1308 ●
42 01.303 FINISHER; FRT PANEL,SIDE 8-97411-043-0 01 1 1309- ● ●
42 01.303 FINISHER; FRT PANEL,SIDE 8-97411-044-0 01 1 1011-1308 ●
42 01.303 FINISHER; FRT PANEL,SIDE 8-97411-044-0 01 1 1309- ● ●
307 16.125 GROMMET; FRT PANEL
16.802 (A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 1011-1308 ●
307 16.125 GROMMET; FRT PANEL
16.802 (A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 1309- ● ●
307 16.125 GROMMET; FRT PANEL
16.588 (B) 		8-97581-632-1 04 1 1011-1308 ●
307 16.125 GROMMET; FRT PANEL
16.588 (B) 		8-97581-632-1 04 1 1309- ● ●
307 16.125 GROMMET; FRT PANEL
(C) 		8-97583-397-0 04 1 1011-1308 ●
307 16.125 GROMMET; FRT PANEL
(C) 		8-97583-397-0 04 1 1309- ● ●
525 08.131 SEAL; FENDER
MANUAL TILT CAB<RWZ> 16.165 OD=25 BLACK 		1-76798-019-0 03 1 1011-1308 ●
525 08.131 SEAL; FENDER
MANUAL TILT CAB<RWZ> 16.165 OD=25 BLACK 		1-76798-019-0 03 1 1309- ● ●
525 08.131 SEAL; FENDER
EXC. MANUAL TILT CAB<RWZ> 16.165 OD=25 BLACK 		1-76798-019-0 06 1 1011-1308 ●
525 08.131 SEAL; FENDER
EXC. MANUAL TILT CAB<RWZ> 16.165 OD=25 BLACK 		1-76798-019-0 06 1 1309- ● ●
529 16.578 REINFORCEMENT; PANEL 8-97851-373-2 01 1 1011-1308 ●
529 16.578 REINFORCEMENT; PANEL 8-97851-373-2 01 1 1309- ● ●
çizim 126715
545 164 307
BalonParca AdiParca NoAdetTipApplied Date A B
164 16.125 SEAL; FRT PILLAR
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 1011-1308 ●
164 16.125 SEAL; FRT PILLAR
BODY COLOR EBONY BLACK(508),BODY COLOR ALGRAY(517),BODY COLOR WHEATLAND YELLOW(812),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR TRANS BLUE(999) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 1309- ● ●
164 16.125 SEAL; FRT PILLAR
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 1011-1308 ●
164 16.125 SEAL; FRT PILLAR
BODY COLOR POLAR WHITE(534),BODY COLOR ARC WHITE(729) 16.570 OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 1309- ● ●
307 16.125 GROMMET; FRT PANEL
16.802 (A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 1011-1308 ●
307 16.125 GROMMET; FRT PANEL
16.802 (A) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 1309- ● ●
307 16.125 GROMMET; FRT PANEL
16.588 (B) 		8-97581-632-1 04 1 1011-1308 ●
307 16.125 GROMMET; FRT PANEL
16.588 (B) 		8-97581-632-1 04 1 1309- ● ●
307 16.125 GROMMET; FRT PANEL
(C) 		8-97583-397-0 04 1 1011-1308 ●
307 16.125 GROMMET; FRT PANEL
(C) 		8-97583-397-0 04 1 1309- ● ●
525 08.131 SEAL; FENDER
MANUAL TILT CAB<RWZ> 16.165 OD=25 BLACK 		1-76798-019-0 03 1 1011-1308 ●
525 08.131 SEAL; FENDER
MANUAL TILT CAB<RWZ> 16.165 OD=25 BLACK 		1-76798-019-0 03 1 1309- ● ●
525 08.131 SEAL; FENDER
EXC. MANUAL TILT CAB<RWZ> 16.165 OD=25 BLACK 		1-76798-019-0 06 1 1011-1308 ●
525 08.131 SEAL; FENDER
EXC. MANUAL TILT CAB<RWZ> 16.165 OD=25 BLACK 		1-76798-019-0 06 1 1309- ● ●
