◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51376 - QKR(MIDDLE EAST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-04 - CAB ASM ▶
6-04 — CAB ASM (#79847) — 6 parça

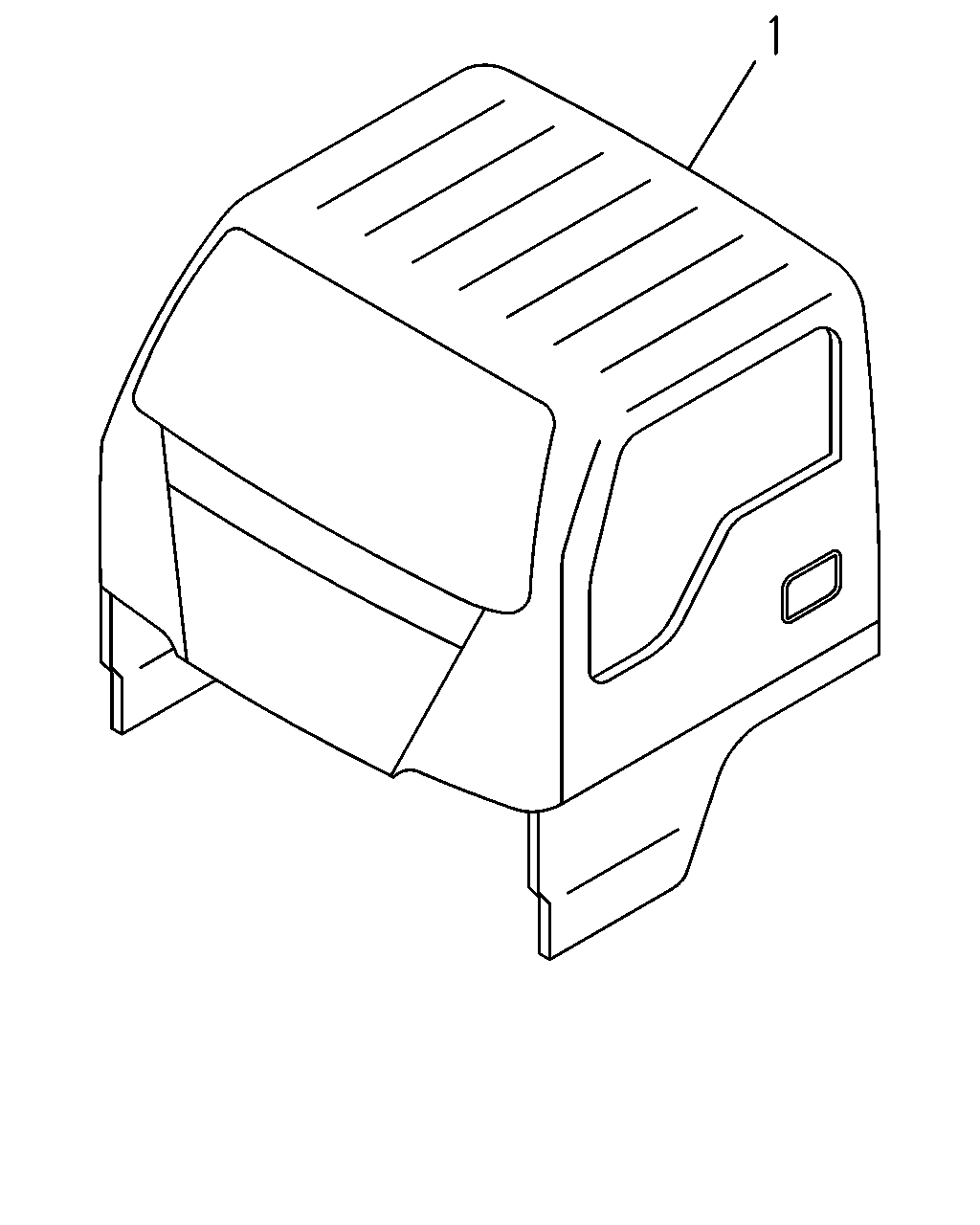

çizim 191766
1
BalonParca AdiParca NoAdetTipApplied Date A B
1 16.000 CAB ASM; SERVICE,WO/ELEC
BODY COLOR ARC WHITE(729) MIDDLE EAST EQUIPMENT(GH3) 4JB1-NA ENG(RLF) JC521T5H(RM5) MANUAL TILT CAB<RWZ> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. FUEL TANK CAP W/LOCK<N05> 		8-98193-663-0 01 1 1101-1205 ●
1 16.000 CAB ASM; SERVICE,WO/ELEC
MIDDLE EAST EQUIPMENT(GH3) BODY COLOR ARC WHITE(729) MANUAL TILT CAB<RWZ> JC521T5H(RM5) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. FUEL TANK CAP W/LOCK<N05> 		8-98224-835-0 01 1 1206-1308 ●
1 16.000 CAB ASM; SERVICE,WO/ELEC
MIDDLE EAST EQUIPMENT(GH3) BODY COLOR ARC WHITE(729) MANUAL TILT CAB<RWZ> JC521T5H(RM5) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. FUEL TANK CAP W/LOCK<N05> 		8-98224-835-0 01 1 1309-1310 ●
1 16.000 CAB ASM; SERVICE,WO/ELEC
MIDDLE EAST EQUIPMENT(GH3) BODY COLOR ARC WHITE(729) MANUAL TILT CAB<RWZ> RR BODY FLAT BED(RS6) 4JB1-TC ENG(RDT) JC520T9D(R45) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. FUEL TANK CAP W/LOCK<N05> 		8-98224-835-0 01 1 1309-1310 ●
1 16.000 CAB ASM; SERVICE,WO/ELEC
MIDDLE EAST EQUIPMENT(GH3) BODY COLOR ARC WHITE(729) MANUAL TILT CAB<RWZ> JC521T5H(RM5) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. FUEL TANK CAP W/LOCK<N05> 		8-98224-835-0 01 1 1311- ●
1 16.000 CAB ASM; SERVICE,WO/ELEC
MIDDLE EAST EQUIPMENT(GH3) BODY COLOR ARC WHITE(729) MANUAL TILT CAB<RWZ> 4JB1-TC ENG(RDT) JC520T9D(R45) O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. FUEL TANK CAP W/LOCK<N05> 		8-98224-835-0 01 1 1311- ●
