6-03 — RADIATOR GRILLE (#79846) — 28 parça

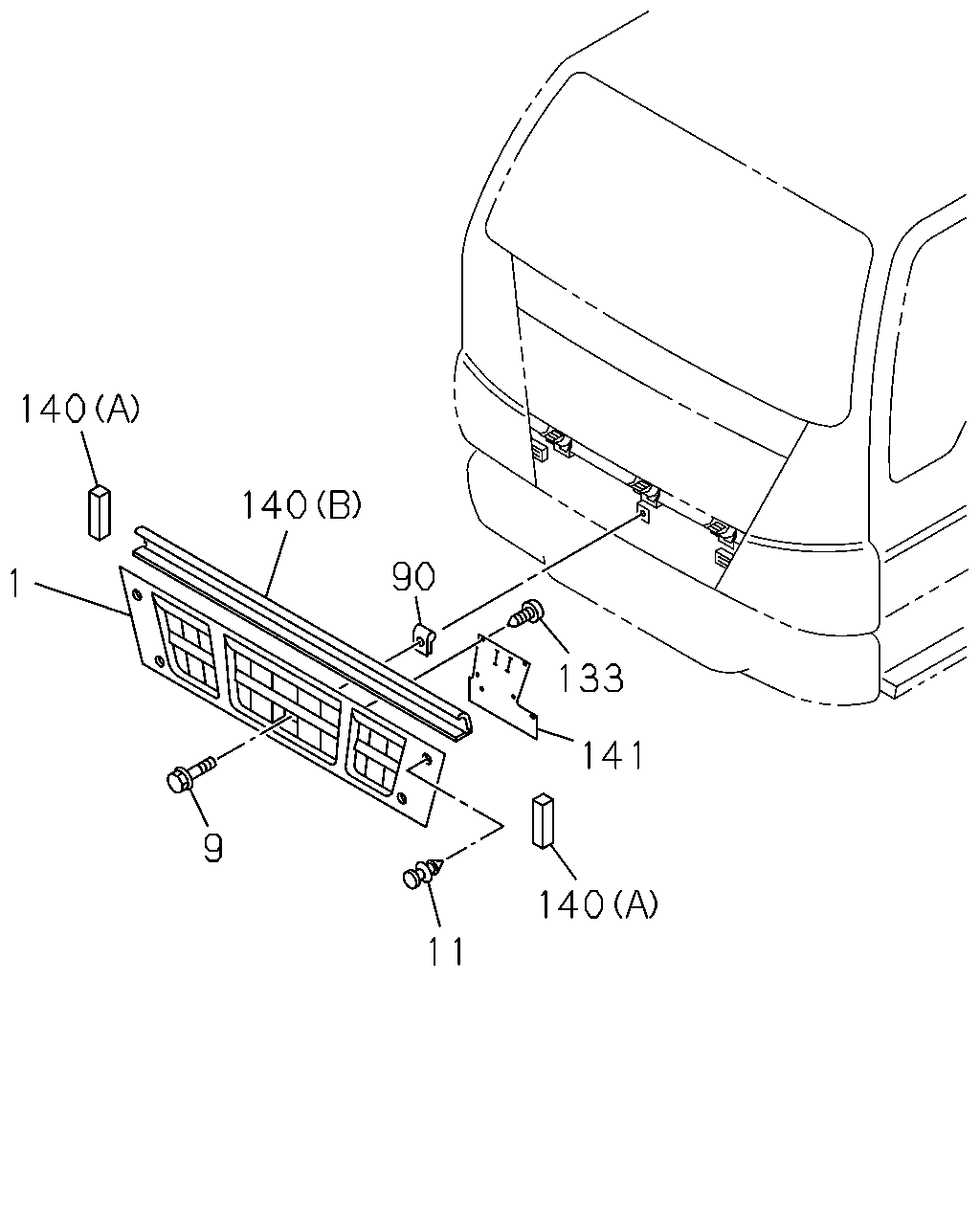

çizim 126818
140 140 90 133 141 140 11 9 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.266 GRILLE; RAD
PLEASE PAINT TO MATCH BODY COLOR 		8-97581-825-2 01 1 1011-1308 ●
1 01.266 GRILLE; RAD
PLEASE PAINT TO MATCH BODY COLOR 		8-97581-825-2 01 1 1309- ● ●
9 01.269 SCREW; RAD GRILLE
08.153 M6X20 W/PL WASHER 		8-98059-504-0 01 1 1011-1308 ●
9 01.269 SCREW; RAD GRILLE
08.153 M6X20 W/PL WASHER 		8-98059-504-0 01 1 1309- ● ●
11 01.269 CLIP; RAD GRILLE 8-97581-651-2 04 1 1011-1308 ●
11 01.269 CLIP; RAD GRILLE 8-97581-651-2 04 1 1309- ● ●
90 01.269 NUT; RAD GRILLE 8-98014-760-0 01 1 1011-1308 ●
90 01.269 NUT; RAD GRILLE 8-98014-760-0 01 1 1309- ● ●
133 01.269 SCREW; COVER
01.303 M5X12 W/PL WASHER 		8-94385-565-0 06 1 1011-1308 ●
133 01.269 SCREW; COVER
01.303 M5X12 W/PL WASHER 		8-94385-565-0 06 1 1309- ● ●
140 01.266 SEAL; RAD GRILLE
(B) 		8-97581-664-0 01 1 1011-1308 ●
140 01.266 SEAL; RAD GRILLE
(B) 		8-97581-664-0 01 1 1309- ● ●
140 01.266 SEAL; RAD GRILLE
(A) 		8-97583-411-1 02 1 1011-1308 ●
140 01.266 SEAL; RAD GRILLE
(A) 		8-97583-411-1 02 1 1309- ● ●
141 01.266 COVER; RAD GRILLE 8-97581-648-1 01 1 1011-1308 ●
141 01.266 COVER; RAD GRILLE 8-97581-648-1 01 1 1309- ● ●
çizim 191718
2 184 188 116 188 129 179
BalonParca AdiParca NoAdetTipApplied Date A B
2 01.266 GRILLE; ORNAMENT
WO/DECAL 		8-97582-873-5 01 1 1011-1308 ●
2 01.266 GRILLE; ORNAMENT
WO/DECAL 		8-97582-873-5 01 1 1309- ● ●
116 01.266 MOLDING; ORNAMENT GRILLE 8-97581-655-1 01 1 1011-1308 ●
116 01.266 MOLDING; ORNAMENT GRILLE 8-97581-655-1 01 1 1309- ● ●
129 01.269 CLIP; COVER HEADLAMP GRILLE
D=6.5 		8-97855-279-0 02 1 1011-1308 ●
129 01.269 CLIP; COVER HEADLAMP GRILLE
D=6.5 		8-97855-279-0 02 1 1309- ● ●
179 01.269 RETAINER; GRILLE,RAD
WHITE 		8-97102-415-0 03 1 1011-1308 ●
179 01.269 RETAINER; GRILLE,RAD
WHITE 		8-97102-415-0 03 1 1309- ● ●
184 01.269 GROMMET; ORNAMENT 8-97581-668-0 02 1 1011-1308 ●
184 01.269 GROMMET; ORNAMENT 8-97581-668-0 02 1 1309- ● ●
188 08.010 SEAL; ORNAMENT 8-97584-800-0 02 1 1011-1308 ●
188 08.010 SEAL; ORNAMENT 8-97584-800-0 02 1 1309- ● ●
