1-50 — EXHAUST PIPE AND SILENCER (#7984) — 348 parça

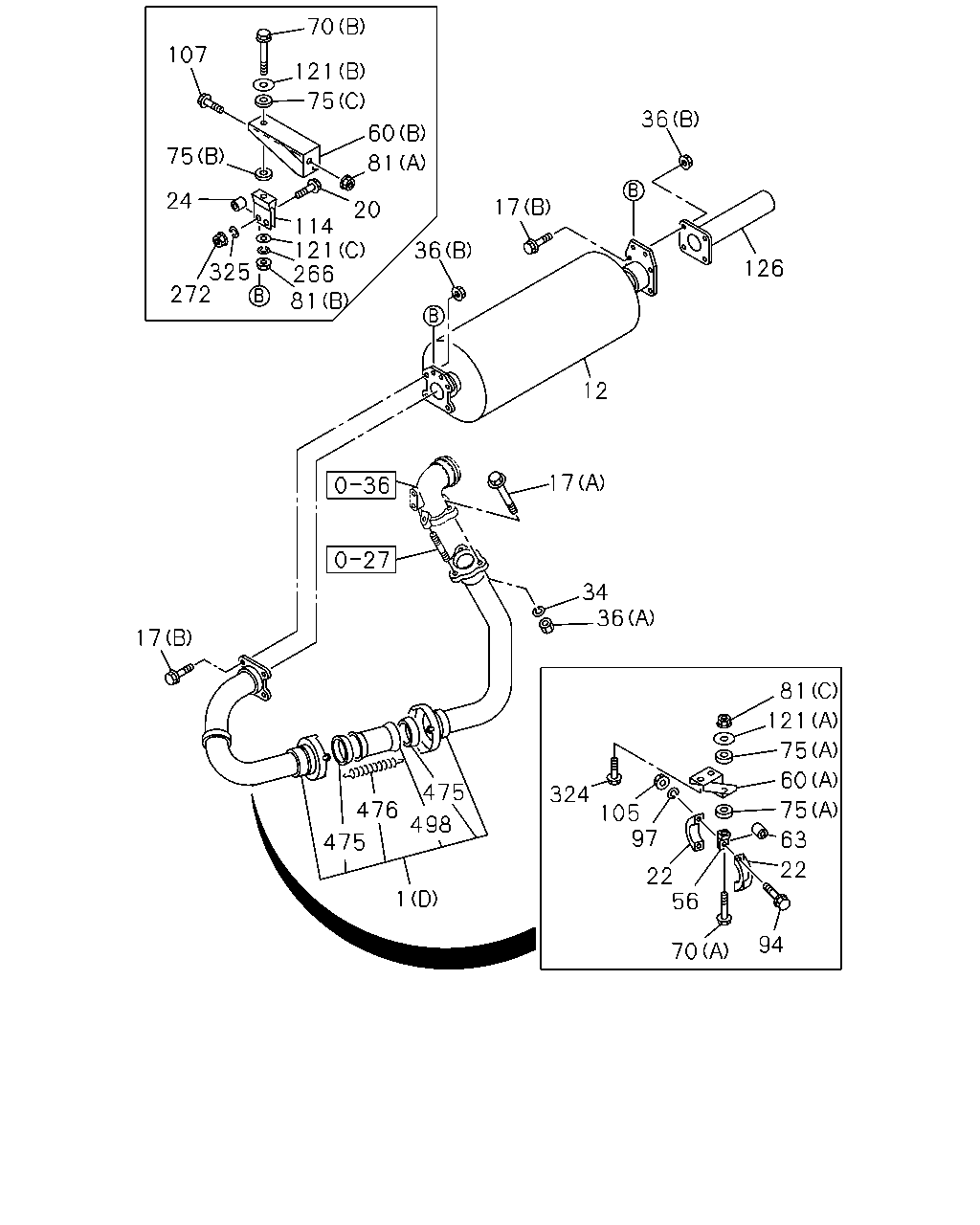

çizim 7635
70 107 121 75 36 60 75 81 24 17 20 114 121 266 81 36 126 325 272 12 17 34 36 17 81 121 75 60 475 324 75 476 105 97 498 63 475 22 22 56 1 94 70
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PIPE; EXH
(C) 		1-22123-238-1 01 1 0012-0106 ●
1 PIPE; EXH
EXC. EURO3 SPECIFICATION(NJX) (C) 		1-22123-238-1 01 1 0107- ●
1 PIPE; EXH
EURO3 SPECIFICATION(NJX) (D) 		1-22123-437-0 01 1 0107-0210 ●
1 PIPE; EXH
EURO3 SPECIFICATION(NJX) (D) 		1-22123-437-0 01 1 0211- ●
1 PIPE; EXH
(D) 		1-22123-437-0 01 1 0211- ●
1 PIPE; EXH
(A) 		1-22122-227-1 01 1 0204- ●
1 PIPE; EXH
(B) 		1-22123-272-0 01 1 0204- ●
12 SILENCER ASM; EXH 1-22140-938-0 01 1 0012-0203 ●
12 SILENCER ASM; EXH 1-22140-938-0 01 1 0204- ● ● ●
17 BOLT; EXH PIPE
(B) M12X35 FLANGE 		0-28781-235-0 08 1 0012-0203 ●
17 BOLT; EXH PIPE
(B) M12X35 FLANGE 		0-28781-235-0 08 1 0204-0512 ● ● ●
17 BOLT; EXH PIPE
(B) M12X35 FLANGE 		0-28751-235-0 08 1 0601- ●
17 BOLT; EXH PIPE
EURO3 SPECIFICATION(NJX) (A) 		0-28086-212-0 01 1 0107-0210 ●
17 BOLT; EXH PIPE
EURO3 SPECIFICATION(NJX) (A) 		0-28086-212-0 01 1 0211-0512 ●
17 BOLT; EXH PIPE
(A) 		0-28086-212-0 01 1 0211-0512 ●
17 BOLT; EXH PIPE
EURO3 SPECIFICATION(NJX) (A) M12X120 FLANGE 		0-28056-212-0 01 1 0601- ●
17 BOLT; EXH PIPE
(A) M12X120 FLANGE 		0-28056-212-0 01 1 0601- ●
17 BOLT; EXH PIPE
(C) M12X25 FLANGE 		1-09000-604-0 04 1 0204- ●
20 BOLT; FLANGE,EXH PIPE
M10X50 FLANGE 		0-28081-050-0 04 1 0012-0106 ●
20 BOLT; FLANGE,EXH PIPE
M10X40 FLANGE 		0-28681-040-0 04 1 0107-0203 ●
20 BOLT; FLANGE,EXH PIPE
M10X40 FLANGE 		0-28681-040-0 04 1 0204-0512 ● ● ●
20 BOLT; FLANGE,EXH PIPE
M10X40 FLANGE 		0-28651-040-0 04 1 0601- ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0012-0210 ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0211- ● ●
24 COLLAR; DIST,CLAMP
L=8.5 		1-22139-057-0 04 1 0012-0203 ●
24 COLLAR; DIST,CLAMP
L=8.5 		1-22139-057-0 04 1 0204- ● ● ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09556-020-0 03 1 0012-0203 ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09556-020-0 03 1 0204- ● ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 0012-0203 ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 0204-0303 ● ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-131-0 03 1 0304- ● ● ●
36 NUT; EXH PIPE
(B) M12 		1-09400-012-0 08 1 0012-0203 ●
36 NUT; EXH PIPE
(B) M12 		1-09400-012-0 08 1 0204- ● ● ●
36 NUT; EXH PIPE
(C) M12 		9-99110-512-0 04 1 0204-0512 ●
36 NUT; EXH PIPE
(C) M12 		0-91110-512-0 04 1 0601- ●
56 BRACKET; CLAMP,EXH PIPE
L=40 B=50 H=74 		1-22139-045-0 01 1 0012-0210 ●
56 BRACKET; CLAMP,EXH PIPE
L=40 B=50 H=74 		1-22139-045-0 01 1 0211- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22151-839-0 01 1 0012-0106 ●
60 BRACKET; FRAME TO BRKT
EXC. EURO3 SPECIFICATION(NJX) (A) 		1-22151-839-0 01 1 0107- ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-840-1 02 1 0012-0203 ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-840-1 02 1 0204- ● ● ●
60 BRACKET; FRAME TO BRKT
EURO3 SPECIFICATION(NJX) (A) 		1-22151-907-0 01 1 0107-0210 ●
60 BRACKET; FRAME TO BRKT
EURO3 SPECIFICATION(NJX) (A) 		1-22151-907-0 01 1 0211- ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22151-907-0 01 1 0211- ●
63 TUBE; DIST,BRKT
L=12.5 		1-22139-022-0 01 1 0012-0210 ●
63 TUBE; DIST,BRKT
L=12.5 		1-22139-022-0 01 1 0211- ● ●
70 BOLT; BRKT
(A) M10X50 		0-10806-050-0 01 1 0012-0210 ●
70 BOLT; BRKT
(A) M10X50 		0-10806-050-0 01 1 0211-0512 ● ●
70 BOLT; BRKT
(A) M10X50 		0-10856-050-0 01 1 0601- ● ●
70 BOLT; BRKT
(B) M10X53 		1-09009-171-0 02 1 0012-0203 ●
70 BOLT; BRKT
(B) M10X53 		1-09009-171-0 02 1 0204- ● ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0012-0210 ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0211- ● ●
75 RUBBER; SUPPORT,BRKT
(B) 		1-22159-135-0 02 1 0012-0203 ●
75 RUBBER; SUPPORT,BRKT
(B) 		1-22159-135-0 02 1 0204- ● ● ●
75 RUBBER; SUPPORT,BRKT
(C) 		1-22159-136-0 02 1 0012-0203 ●
75 RUBBER; SUPPORT,BRKT
(C) 		1-22159-136-0 02 1 0204- ● ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 04 1 0012-0106 ●
81 NUT; BRKT
EXC. EURO3 SPECIFICATION(NJX) (A) M10 FLANGE 		0-91150-210-0 04 1 0107-0203 ●
81 NUT; BRKT
EXC. EURO3 SPECIFICATION(NJX) (A) M10 FLANGE 		0-91150-210-0 04 1 0204-0602 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 04 1 0204-0602 ●
81 NUT; BRKT
EXC. EURO3 SPECIFICATION(NJX) (A) M10 FLANGE 		0-91180-210-0 04 1 0603- ●
81 NUT; BRKT
(B) M10 		9-09111-510-0 02 1 0012-0203 ●
81 NUT; BRKT
(B) M10 		9-09111-510-0 02 1 0204-0512 ● ● ●
81 NUT; BRKT
(B) M10 		0-91111-510-0 02 1 0601- ●
81 NUT; BRKT
(C) M10 LOCK NUT 		9-09131-510-0 01 1 0012-0210 ●
81 NUT; BRKT
(C) M10 LOCK NUT 		9-09131-510-0 01 1 0211-0603 ● ●
81 NUT; BRKT
(C) M10 LOCK NUT 		0-91370-010-0 01 1 0604- ● ●
81 NUT; BRKT
EURO3 SPECIFICATION(NJX) (A) M10 FLANGE 		0-91150-210-0 02 1 0107-0203 ●
81 NUT; BRKT
EURO3 SPECIFICATION(NJX) (A) M10 FLANGE 		0-91150-210-0 02 1 0204-0602 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 02 1 0204-0602 ●
81 NUT; BRKT
EURO3 SPECIFICATION(NJX) (A) M10 FLANGE 		0-91180-210-0 02 1 0603- ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0603- ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28681-040-0 02 1 0012-0210 ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28681-040-0 02 1 0211-0512 ● ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 0601- ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0012-0210 ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0211- ● ●
105 NUT; CLAMP
M10 		9-09111-410-0 02 1 0012-0210 ●
105 NUT; CLAMP
M10 		9-09111-410-0 02 1 0211-0512 ● ●
105 NUT; CLAMP
M10 		0-91111-510-0 02 1 0601- ● ●
107 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 0012-0203 ●
107 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 0204-0512 ● ● ●
107 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
114 BRACKET; EXH SILENCER 1-22139-123-0 02 1 0012-0203 ●
114 BRACKET; EXH SILENCER 1-22139-123-0 02 1 0204- ● ● ●
121 WASHER; PL,BRKT
(A) ID=10.5 OD=32 		9-09164-810-0 01 1 0012-0210 ●
121 WASHER; PL,BRKT
(A) ID=10.5 OD=32 		9-09164-810-0 01 1 0211-0605 ● ●
121 WASHER; PL,BRKT
(A) ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ● ●
121 WASHER; PL,BRKT
(B) ID=15 OD=52 		9-09164-814-0 02 1 0012-0203 ●
121 WASHER; PL,BRKT
(B) ID=15 OD=52 		9-09164-814-0 02 1 0204- ● ● ●
121 WASHER; PL,BRKT
(C) ID=10.5 OD=18 		9-09160-510-0 02 1 0208-0605 ● ● ●
121 WASHER; PL,BRKT
(C) ID=10.5 		0-91610-510-0 02 1 0606- ●
126 PIPE; EXH,RR 1-22123-377-0 01 1 0012-0106 ●
126 PIPE; EXH,RR
EXC. EURO3 SPECIFICATION(NJX) 		1-22123-377-0 01 1 0107-0203 ●
126 PIPE; EXH,RR
EXC. EURO3 SPECIFICATION(NJX) 		1-22123-377-0 01 1 0204- ●
126 PIPE; EXH,RR 1-22123-377-0 01 1 0204- ●
126 PIPE; EXH,RR
EURO3 SPECIFICATION(NJX) 		1-22123-470-0 01 1 0107-0203 ●
126 PIPE; EXH,RR
EURO3 SPECIFICATION(NJX) 		1-22123-470-0 01 1 0204- ●
126 PIPE; EXH,RR 1-22123-470-0 01 1 0204- ●
266 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 02 1 0012-0203 ●
266 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 02 1 0204-0603 ● ● ●
266 WASHER; LK,BRKT
ID=10.2 		0-91510-510-0 02 1 0604- ●
272 NUT; FLANGE
M10 		9-09110-410-0 04 1 0012-0203 ●
272 NUT; FLANGE
M10 		9-09110-410-0 04 1 0204-0512 ● ● ●
272 NUT; FLANGE
M10 		0-91110-510-0 04 1 0601- ●
324 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0012-0210 ●
324 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0211-0512 ● ●
324 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
325 WASHER; LK,EXH PIPE MTG BRKT
ID=10.2 		9-09150-510-0 04 1 0012-0203 ●
325 WASHER; LK,EXH PIPE MTG BRKT
ID=10.2 		9-09150-510-0 04 1 0204-0603 ● ● ●
325 WASHER; LK,EXH PIPE MTG BRKT
ID=10.2 		0-91510-510-0 04 1 0604- ●
475 BEARING; SEAL,VIBNON,EXH PIPE
OD=112 		1-22119-294-0 02 1 0012- ● ● ●
476 SPRING; VIBNON,EXH PIPE 1-09583-248-0 04 1 0012- ● ● ●
498 PIPE ASM 1-22123-309-0 01 1 0012- ● ● ●

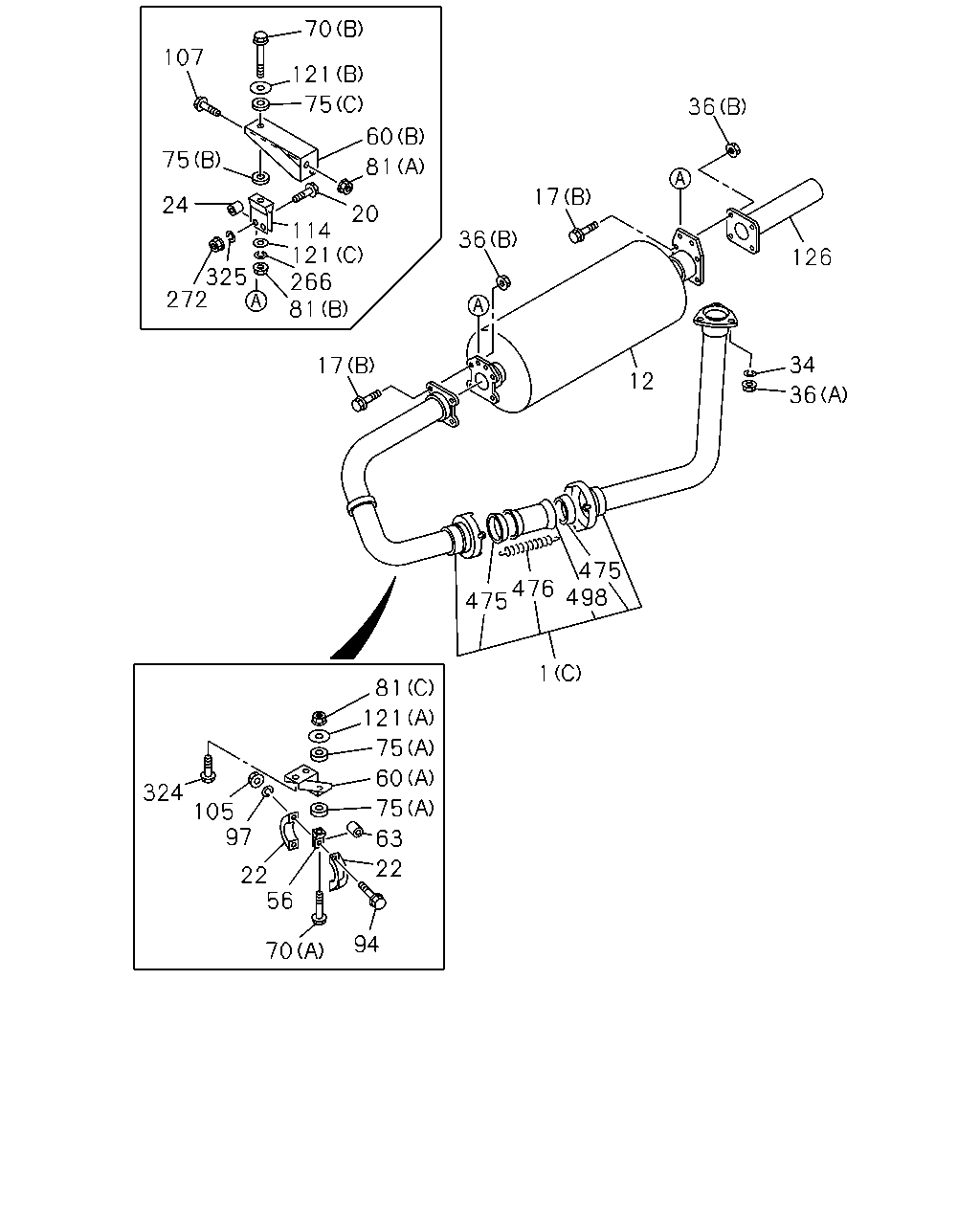

çizim 8155
70 107 121 75 36 60 75 81 17 24 20 114 121 266 81 36 126 325 272 34 17 12 36 475 498 476 475 1 81 121 75 60 324 75 105 97 63 22 22 56 94 70
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PIPE; EXH
(C) 		1-22123-238-1 01 1 0012-0106 ●
1 PIPE; EXH
EXC. EURO3 SPECIFICATION(NJX) (C) 		1-22123-238-1 01 1 0107- ●
1 PIPE; EXH
EURO3 SPECIFICATION(NJX) (D) 		1-22123-437-0 01 1 0107-0210 ●
1 PIPE; EXH
EURO3 SPECIFICATION(NJX) (D) 		1-22123-437-0 01 1 0211- ●
1 PIPE; EXH
(D) 		1-22123-437-0 01 1 0211- ●
1 PIPE; EXH
(A) 		1-22122-227-1 01 1 0204- ●
1 PIPE; EXH
(B) 		1-22123-272-0 01 1 0204- ●
12 SILENCER ASM; EXH 1-22140-938-0 01 1 0012-0203 ●
12 SILENCER ASM; EXH 1-22140-938-0 01 1 0204- ● ● ●
17 BOLT; EXH PIPE
(B) M12X35 FLANGE 		0-28781-235-0 08 1 0012-0203 ●
17 BOLT; EXH PIPE
(B) M12X35 FLANGE 		0-28781-235-0 08 1 0204-0512 ● ● ●
17 BOLT; EXH PIPE
(B) M12X35 FLANGE 		0-28751-235-0 08 1 0601- ●
17 BOLT; EXH PIPE
EURO3 SPECIFICATION(NJX) (A) 		0-28086-212-0 01 1 0107-0210 ●
17 BOLT; EXH PIPE
EURO3 SPECIFICATION(NJX) (A) 		0-28086-212-0 01 1 0211-0512 ●
17 BOLT; EXH PIPE
(A) 		0-28086-212-0 01 1 0211-0512 ●
17 BOLT; EXH PIPE
EURO3 SPECIFICATION(NJX) (A) M12X120 FLANGE 		0-28056-212-0 01 1 0601- ●
17 BOLT; EXH PIPE
(A) M12X120 FLANGE 		0-28056-212-0 01 1 0601- ●
17 BOLT; EXH PIPE
(C) M12X25 FLANGE 		1-09000-604-0 04 1 0204- ●
20 BOLT; FLANGE,EXH PIPE
M10X50 FLANGE 		0-28081-050-0 04 1 0012-0106 ●
20 BOLT; FLANGE,EXH PIPE
M10X40 FLANGE 		0-28681-040-0 04 1 0107-0203 ●
20 BOLT; FLANGE,EXH PIPE
M10X40 FLANGE 		0-28681-040-0 04 1 0204-0512 ● ● ●
20 BOLT; FLANGE,EXH PIPE
M10X40 FLANGE 		0-28651-040-0 04 1 0601- ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0012-0210 ●
22 CLAMP; EXH PIPE
ID=80-84 		1-22133-233-0 02 1 0211- ● ●
24 COLLAR; DIST,CLAMP
L=8.5 		1-22139-057-0 04 1 0012-0203 ●
24 COLLAR; DIST,CLAMP
L=8.5 		1-22139-057-0 04 1 0204- ● ● ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09556-020-0 03 1 0012-0203 ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09556-020-0 03 1 0204- ● ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 0012-0203 ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 0204-0303 ● ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-131-0 03 1 0304- ● ● ●
36 NUT; EXH PIPE
(B) M12 		1-09400-012-0 08 1 0012-0203 ●
36 NUT; EXH PIPE
(B) M12 		1-09400-012-0 08 1 0204- ● ● ●
36 NUT; EXH PIPE
(C) M12 		9-99110-512-0 04 1 0204-0512 ●
36 NUT; EXH PIPE
(C) M12 		0-91110-512-0 04 1 0601- ●
56 BRACKET; CLAMP,EXH PIPE
L=40 B=50 H=74 		1-22139-045-0 01 1 0012-0210 ●
56 BRACKET; CLAMP,EXH PIPE
L=40 B=50 H=74 		1-22139-045-0 01 1 0211- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22151-839-0 01 1 0012-0106 ●
60 BRACKET; FRAME TO BRKT
EXC. EURO3 SPECIFICATION(NJX) (A) 		1-22151-839-0 01 1 0107- ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-840-1 02 1 0012-0203 ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-840-1 02 1 0204- ● ● ●
60 BRACKET; FRAME TO BRKT
EURO3 SPECIFICATION(NJX) (A) 		1-22151-907-0 01 1 0107-0210 ●
60 BRACKET; FRAME TO BRKT
EURO3 SPECIFICATION(NJX) (A) 		1-22151-907-0 01 1 0211- ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22151-907-0 01 1 0211- ●
63 TUBE; DIST,BRKT
L=12.5 		1-22139-022-0 01 1 0012-0210 ●
63 TUBE; DIST,BRKT
L=12.5 		1-22139-022-0 01 1 0211- ● ●
70 BOLT; BRKT
(A) M10X50 		0-10806-050-0 01 1 0012-0210 ●
70 BOLT; BRKT
(A) M10X50 		0-10806-050-0 01 1 0211-0512 ● ●
70 BOLT; BRKT
(A) M10X50 		0-10856-050-0 01 1 0601- ● ●
70 BOLT; BRKT
(B) M10X53 		1-09009-171-0 02 1 0012-0203 ●
70 BOLT; BRKT
(B) M10X53 		1-09009-171-0 02 1 0204- ● ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0012-0210 ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0211- ● ●
75 RUBBER; SUPPORT,BRKT
(B) 		1-22159-135-0 02 1 0012-0203 ●
75 RUBBER; SUPPORT,BRKT
(B) 		1-22159-135-0 02 1 0204- ● ● ●
75 RUBBER; SUPPORT,BRKT
(C) 		1-22159-136-0 02 1 0012-0203 ●
75 RUBBER; SUPPORT,BRKT
(C) 		1-22159-136-0 02 1 0204- ● ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 04 1 0012-0106 ●
81 NUT; BRKT
EXC. EURO3 SPECIFICATION(NJX) (A) M10 FLANGE 		0-91150-210-0 04 1 0107-0203 ●
81 NUT; BRKT
EXC. EURO3 SPECIFICATION(NJX) (A) M10 FLANGE 		0-91150-210-0 04 1 0204-0602 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 04 1 0204-0602 ●
81 NUT; BRKT
EXC. EURO3 SPECIFICATION(NJX) (A) M10 FLANGE 		0-91180-210-0 04 1 0603- ●
81 NUT; BRKT
(B) M10 		9-09111-510-0 02 1 0012-0203 ●
81 NUT; BRKT
(B) M10 		9-09111-510-0 02 1 0204-0512 ● ● ●
81 NUT; BRKT
(B) M10 		0-91111-510-0 02 1 0601- ●
81 NUT; BRKT
(C) M10 LOCK NUT 		9-09131-510-0 01 1 0012-0210 ●
81 NUT; BRKT
(C) M10 LOCK NUT 		9-09131-510-0 01 1 0211-0603 ● ●
81 NUT; BRKT
(C) M10 LOCK NUT 		0-91370-010-0 01 1 0604- ● ●
81 NUT; BRKT
EURO3 SPECIFICATION(NJX) (A) M10 FLANGE 		0-91150-210-0 02 1 0107-0203 ●
81 NUT; BRKT
EURO3 SPECIFICATION(NJX) (A) M10 FLANGE 		0-91150-210-0 02 1 0204-0602 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 02 1 0204-0602 ●
81 NUT; BRKT
EURO3 SPECIFICATION(NJX) (A) M10 FLANGE 		0-91180-210-0 02 1 0603- ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0603- ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28681-040-0 02 1 0012-0210 ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28681-040-0 02 1 0211-0512 ● ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 0601- ● ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0012-0210 ●
97 WASHER; PL,CLAMP
ID=10.5 		9-09164-510-0 02 1 0211- ● ●
105 NUT; CLAMP
M10 		9-09111-410-0 02 1 0012-0210 ●
105 NUT; CLAMP
M10 		9-09111-410-0 02 1 0211-0512 ● ●
105 NUT; CLAMP
M10 		0-91111-510-0 02 1 0601- ● ●
107 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 0012-0203 ●
107 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 0204-0512 ● ● ●
107 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
114 BRACKET; EXH SILENCER 1-22139-123-0 02 1 0012-0203 ●
114 BRACKET; EXH SILENCER 1-22139-123-0 02 1 0204- ● ● ●
121 WASHER; PL,BRKT
(A) ID=10.5 OD=32 		9-09164-810-0 01 1 0012-0210 ●
121 WASHER; PL,BRKT
(A) ID=10.5 OD=32 		9-09164-810-0 01 1 0211-0605 ● ●
121 WASHER; PL,BRKT
(A) ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ● ●
121 WASHER; PL,BRKT
(B) ID=15 OD=52 		9-09164-814-0 02 1 0012-0203 ●
121 WASHER; PL,BRKT
(B) ID=15 OD=52 		9-09164-814-0 02 1 0204- ● ● ●
121 WASHER; PL,BRKT
(C) ID=10.5 OD=18 		9-09160-510-0 02 1 0208-0605 ● ● ●
121 WASHER; PL,BRKT
(C) ID=10.5 		0-91610-510-0 02 1 0606- ●
126 PIPE; EXH,RR 1-22123-377-0 01 1 0012-0106 ●
126 PIPE; EXH,RR
EXC. EURO3 SPECIFICATION(NJX) 		1-22123-377-0 01 1 0107-0203 ●
126 PIPE; EXH,RR
EXC. EURO3 SPECIFICATION(NJX) 		1-22123-377-0 01 1 0204- ●
126 PIPE; EXH,RR 1-22123-377-0 01 1 0204- ●
126 PIPE; EXH,RR
EURO3 SPECIFICATION(NJX) 		1-22123-470-0 01 1 0107-0203 ●
126 PIPE; EXH,RR
EURO3 SPECIFICATION(NJX) 		1-22123-470-0 01 1 0204- ●
126 PIPE; EXH,RR 1-22123-470-0 01 1 0204- ●
266 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 02 1 0012-0203 ●
266 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 02 1 0204-0603 ● ● ●
266 WASHER; LK,BRKT
ID=10.2 		0-91510-510-0 02 1 0604- ●
272 NUT; FLANGE
M10 		9-09110-410-0 04 1 0012-0203 ●
272 NUT; FLANGE
M10 		9-09110-410-0 04 1 0204-0512 ● ● ●
272 NUT; FLANGE
M10 		0-91110-510-0 04 1 0601- ●
324 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0012-0210 ●
324 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0211-0512 ● ●
324 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
325 WASHER; LK,EXH PIPE MTG BRKT
ID=10.2 		9-09150-510-0 04 1 0012-0203 ●
325 WASHER; LK,EXH PIPE MTG BRKT
ID=10.2 		9-09150-510-0 04 1 0204-0603 ● ● ●
325 WASHER; LK,EXH PIPE MTG BRKT
ID=10.2 		0-91510-510-0 04 1 0604- ●
475 BEARING; SEAL,VIBNON,EXH PIPE
OD=112 		1-22119-294-0 02 1 0012- ● ● ●
476 SPRING; VIBNON,EXH PIPE 1-09583-248-0 04 1 0012- ● ● ●
498 PIPE ASM 1-22123-309-0 01 1 0012- ● ● ●

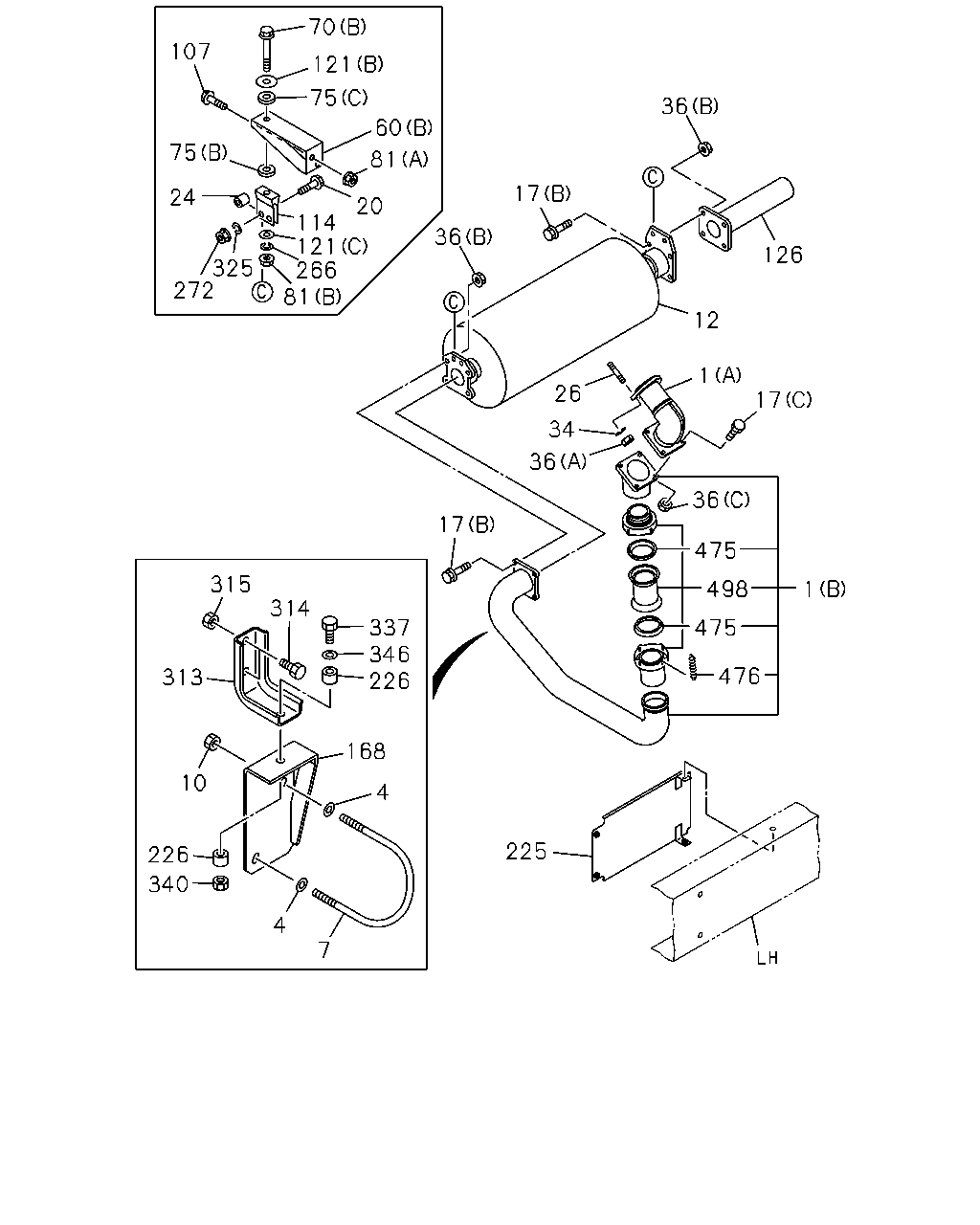

çizim 44310
70 107 121 75 36 60 75 81 17 24 20 114 121 266 81 36 126 325 272 12 1 26 17 34 36 36 17 475 315 498 1 314 337 346 226 475 476 313 168 10 4 225 226 340 4 7
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PIPE; EXH
(C) 		1-22123-238-1 01 1 0012-0106 ●
1 PIPE; EXH
EXC. EURO3 SPECIFICATION(NJX) (C) 		1-22123-238-1 01 1 0107- ●
1 PIPE; EXH
EURO3 SPECIFICATION(NJX) (D) 		1-22123-437-0 01 1 0107-0210 ●
1 PIPE; EXH
EURO3 SPECIFICATION(NJX) (D) 		1-22123-437-0 01 1 0211- ●
1 PIPE; EXH
(D) 		1-22123-437-0 01 1 0211- ●
1 PIPE; EXH
(A) 		1-22122-227-1 01 1 0204- ●
1 PIPE; EXH
(B) 		1-22123-272-0 01 1 0204- ●
4 WASHER; PL,U BOLT
ID=8.4 OD=22 		9-09160-708-0 02 1 0204-0605 ●
4 WASHER; PL,U BOLT
ID=8.4 OD=22 		0-91610-708-0 02 1 0606- ●
7 U-BOLT; EXH PIPE,FRT 1-22113-079-0 01 1 0204- ●
10 NUT; U BOLT
M8 FLANGE 		0-91150-108-0 02 1 0204-0602 ●
10 NUT; U BOLT
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
12 SILENCER ASM; EXH 1-22140-938-0 01 1 0012-0203 ●
12 SILENCER ASM; EXH 1-22140-938-0 01 1 0204- ● ● ●
17 BOLT; EXH PIPE
(B) M12X35 FLANGE 		0-28781-235-0 08 1 0012-0203 ●
17 BOLT; EXH PIPE
(B) M12X35 FLANGE 		0-28781-235-0 08 1 0204-0512 ● ● ●
17 BOLT; EXH PIPE
(B) M12X35 FLANGE 		0-28751-235-0 08 1 0601- ●
17 BOLT; EXH PIPE
EURO3 SPECIFICATION(NJX) (A) 		0-28086-212-0 01 1 0107-0210 ●
17 BOLT; EXH PIPE
EURO3 SPECIFICATION(NJX) (A) 		0-28086-212-0 01 1 0211-0512 ●
17 BOLT; EXH PIPE
(A) 		0-28086-212-0 01 1 0211-0512 ●
17 BOLT; EXH PIPE
EURO3 SPECIFICATION(NJX) (A) M12X120 FLANGE 		0-28056-212-0 01 1 0601- ●
17 BOLT; EXH PIPE
(A) M12X120 FLANGE 		0-28056-212-0 01 1 0601- ●
17 BOLT; EXH PIPE
(C) M12X25 FLANGE 		1-09000-604-0 04 1 0204- ●
20 BOLT; FLANGE,EXH PIPE
M10X50 FLANGE 		0-28081-050-0 04 1 0012-0106 ●
20 BOLT; FLANGE,EXH PIPE
M10X40 FLANGE 		0-28681-040-0 04 1 0107-0203 ●
20 BOLT; FLANGE,EXH PIPE
M10X40 FLANGE 		0-28681-040-0 04 1 0204-0512 ● ● ●
20 BOLT; FLANGE,EXH PIPE
M10X40 FLANGE 		0-28651-040-0 04 1 0601- ●
24 COLLAR; DIST,CLAMP
L=8.5 		1-22139-057-0 04 1 0012-0203 ●
24 COLLAR; DIST,CLAMP
L=8.5 		1-22139-057-0 04 1 0204- ● ● ●
26 STUD; EXH MANIF
M12X140 L=160 		1-09302-163-0 03 1 0204- ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09556-020-0 03 1 0012-0203 ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09556-020-0 03 1 0204- ● ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 0012-0203 ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 0204-0303 ● ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-131-0 03 1 0304- ● ● ●
36 NUT; EXH PIPE
(B) M12 		1-09400-012-0 08 1 0012-0203 ●
36 NUT; EXH PIPE
(B) M12 		1-09400-012-0 08 1 0204- ● ● ●
36 NUT; EXH PIPE
(C) M12 		9-99110-512-0 04 1 0204-0512 ●
36 NUT; EXH PIPE
(C) M12 		0-91110-512-0 04 1 0601- ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22151-839-0 01 1 0012-0106 ●
60 BRACKET; FRAME TO BRKT
EXC. EURO3 SPECIFICATION(NJX) (A) 		1-22151-839-0 01 1 0107- ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-840-1 02 1 0012-0203 ●
60 BRACKET; FRAME TO BRKT
(B) 		1-22151-840-1 02 1 0204- ● ● ●
60 BRACKET; FRAME TO BRKT
EURO3 SPECIFICATION(NJX) (A) 		1-22151-907-0 01 1 0107-0210 ●
60 BRACKET; FRAME TO BRKT
EURO3 SPECIFICATION(NJX) (A) 		1-22151-907-0 01 1 0211- ●
60 BRACKET; FRAME TO BRKT
(A) 		1-22151-907-0 01 1 0211- ●
70 BOLT; BRKT
(A) M10X50 		0-10806-050-0 01 1 0012-0210 ●
70 BOLT; BRKT
(A) M10X50 		0-10806-050-0 01 1 0211-0512 ● ●
70 BOLT; BRKT
(A) M10X50 		0-10856-050-0 01 1 0601- ● ●
70 BOLT; BRKT
(B) M10X53 		1-09009-171-0 02 1 0012-0203 ●
70 BOLT; BRKT
(B) M10X53 		1-09009-171-0 02 1 0204- ● ● ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0012-0210 ●
75 RUBBER; SUPPORT,BRKT
(A) OD=30 		1-22159-106-1 02 1 0211- ● ●
75 RUBBER; SUPPORT,BRKT
(B) 		1-22159-135-0 02 1 0012-0203 ●
75 RUBBER; SUPPORT,BRKT
(B) 		1-22159-135-0 02 1 0204- ● ● ●
75 RUBBER; SUPPORT,BRKT
(C) 		1-22159-136-0 02 1 0012-0203 ●
75 RUBBER; SUPPORT,BRKT
(C) 		1-22159-136-0 02 1 0204- ● ● ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 04 1 0012-0106 ●
81 NUT; BRKT
EXC. EURO3 SPECIFICATION(NJX) (A) M10 FLANGE 		0-91150-210-0 04 1 0107-0203 ●
81 NUT; BRKT
EXC. EURO3 SPECIFICATION(NJX) (A) M10 FLANGE 		0-91150-210-0 04 1 0204-0602 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 04 1 0204-0602 ●
81 NUT; BRKT
EXC. EURO3 SPECIFICATION(NJX) (A) M10 FLANGE 		0-91180-210-0 04 1 0603- ●
81 NUT; BRKT
(B) M10 		9-09111-510-0 02 1 0012-0203 ●
81 NUT; BRKT
(B) M10 		9-09111-510-0 02 1 0204-0512 ● ● ●
81 NUT; BRKT
(B) M10 		0-91111-510-0 02 1 0601- ●
81 NUT; BRKT
(C) M10 LOCK NUT 		9-09131-510-0 01 1 0012-0210 ●
81 NUT; BRKT
(C) M10 LOCK NUT 		9-09131-510-0 01 1 0211-0603 ● ●
81 NUT; BRKT
(C) M10 LOCK NUT 		0-91370-010-0 01 1 0604- ● ●
81 NUT; BRKT
EURO3 SPECIFICATION(NJX) (A) M10 FLANGE 		0-91150-210-0 02 1 0107-0203 ●
81 NUT; BRKT
EURO3 SPECIFICATION(NJX) (A) M10 FLANGE 		0-91150-210-0 02 1 0204-0602 ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91150-210-0 02 1 0204-0602 ●
81 NUT; BRKT
EURO3 SPECIFICATION(NJX) (A) M10 FLANGE 		0-91180-210-0 02 1 0603- ●
81 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 0603- ●
107 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 0012-0203 ●
107 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 04 1 0204-0512 ● ● ●
107 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 04 1 0601- ●
114 BRACKET; EXH SILENCER 1-22139-123-0 02 1 0012-0203 ●
114 BRACKET; EXH SILENCER 1-22139-123-0 02 1 0204- ● ● ●
121 WASHER; PL,BRKT
(A) ID=10.5 OD=32 		9-09164-810-0 01 1 0012-0210 ●
121 WASHER; PL,BRKT
(A) ID=10.5 OD=32 		9-09164-810-0 01 1 0211-0605 ● ●
121 WASHER; PL,BRKT
(A) ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ● ●
121 WASHER; PL,BRKT
(B) ID=15 OD=52 		9-09164-814-0 02 1 0012-0203 ●
121 WASHER; PL,BRKT
(B) ID=15 OD=52 		9-09164-814-0 02 1 0204- ● ● ●
121 WASHER; PL,BRKT
(C) ID=10.5 OD=18 		9-09160-510-0 02 1 0208-0605 ● ● ●
121 WASHER; PL,BRKT
(C) ID=10.5 		0-91610-510-0 02 1 0606- ●
126 PIPE; EXH,RR 1-22123-377-0 01 1 0012-0106 ●
126 PIPE; EXH,RR
EXC. EURO3 SPECIFICATION(NJX) 		1-22123-377-0 01 1 0107-0203 ●
126 PIPE; EXH,RR
EXC. EURO3 SPECIFICATION(NJX) 		1-22123-377-0 01 1 0204- ●
126 PIPE; EXH,RR 1-22123-377-0 01 1 0204- ●
126 PIPE; EXH,RR
EURO3 SPECIFICATION(NJX) 		1-22123-470-0 01 1 0107-0203 ●
126 PIPE; EXH,RR
EURO3 SPECIFICATION(NJX) 		1-22123-470-0 01 1 0204- ●
126 PIPE; EXH,RR 1-22123-470-0 01 1 0204- ●
168 BRACKET; EXH PIPE,FRT 1-47478-525-0 01 1 0204- ●
225 PROTECTOR; HEAT 1-22119-493-0 01 1 0204- ●
226 RUBBER; CUSHION
OD=30 		1-22159-106-1 02 1 0204- ●
266 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 02 1 0012-0203 ●
266 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 02 1 0204-0603 ● ● ●
266 WASHER; LK,BRKT
ID=10.2 		0-91510-510-0 02 1 0604- ●
272 NUT; FLANGE
M10 		9-09110-410-0 04 1 0012-0203 ●
272 NUT; FLANGE
M10 		9-09110-410-0 04 1 0204-0512 ● ● ●
272 NUT; FLANGE
M10 		0-91110-510-0 04 1 0601- ●
313 BRACKET; BRKT TO FRAME,EXH PIPE,FRT 1-22151-433-1 01 1 0204- ●
314 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 0204-0512 ●
314 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0601- ●
315 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0204-0602 ●
315 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ●
325 WASHER; LK,EXH PIPE MTG BRKT
ID=10.2 		9-09150-510-0 04 1 0012-0203 ●
325 WASHER; LK,EXH PIPE MTG BRKT
ID=10.2 		9-09150-510-0 04 1 0204-0603 ● ● ●
325 WASHER; LK,EXH PIPE MTG BRKT
ID=10.2 		0-91510-510-0 04 1 0604- ●
337 BOLT; RUBBER,SUPPORT
M10X50 FLANGE 		0-28081-050-0 01 1 0204-0512 ●
337 BOLT; RUBBER,SUPPORT
M10X50 FLANGE 		0-28051-050-0 01 1 0601- ●
340 NUT; RUBBER,SUPPORT
M10 LOCK NUT 		9-09131-510-0 01 1 0204-0603 ●
340 NUT; RUBBER,SUPPORT
M10 LOCK NUT 		0-91370-010-0 01 1 0604- ●
346 WASHER; PL,SUPPORT RUBBER
ID=10.5 OD=32 		9-09164-810-0 01 1 0204-0605 ●
346 WASHER; PL,SUPPORT RUBBER
ID=10.5 OD=32 		0-91614-810-0 01 1 0606- ●
475 BEARING; SEAL,VIBNON,EXH PIPE
OD=112 		1-22119-294-0 02 1 0012- ● ● ●
476 SPRING; VIBNON,EXH PIPE 1-09583-248-0 04 1 0012- ● ● ●
498 PIPE ASM 1-22123-309-0 01 1 0012- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
