◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51376 - QKR(MIDDLE EAST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶

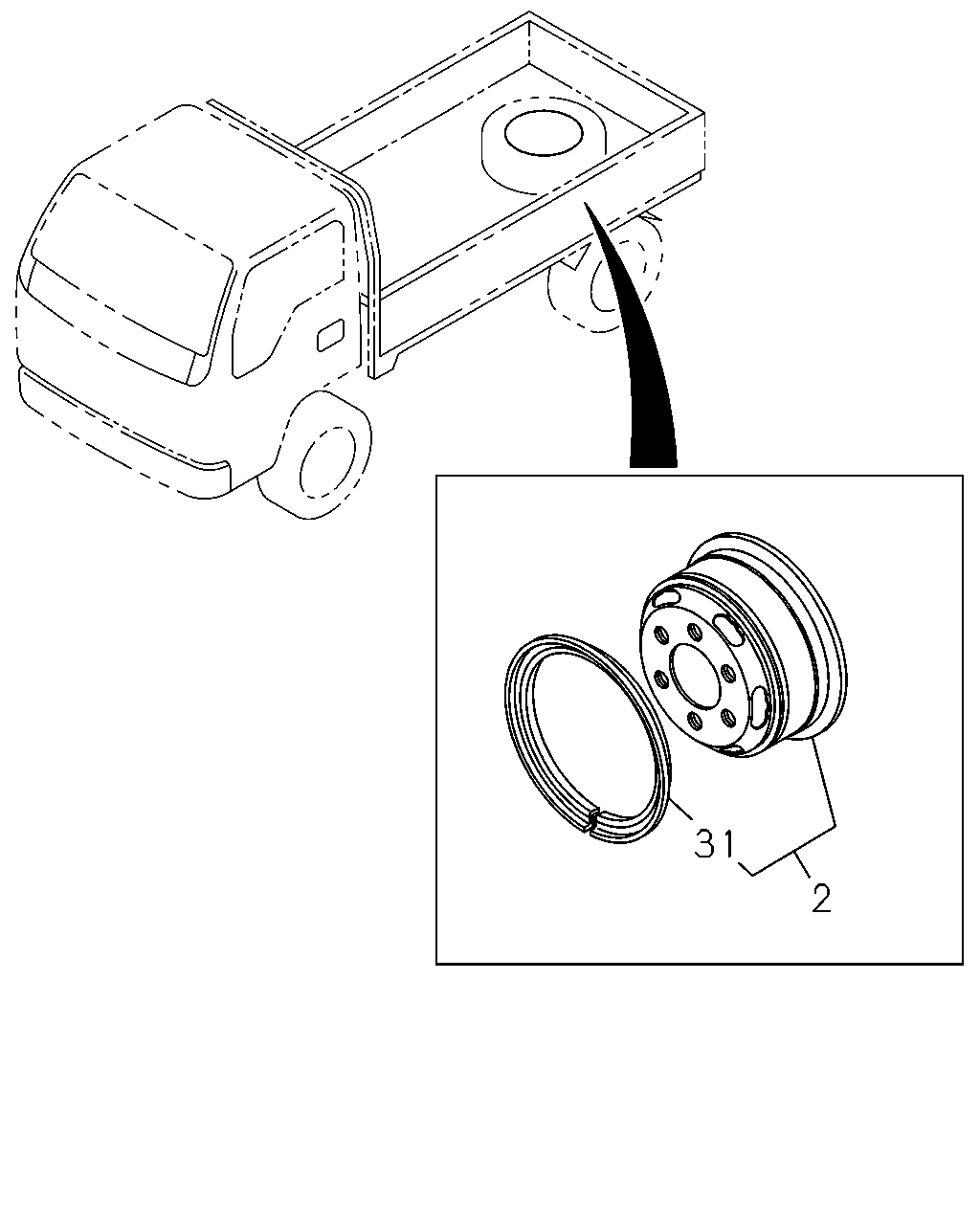

4-80 — ROAD WHEEL (#79839) — 48 parça

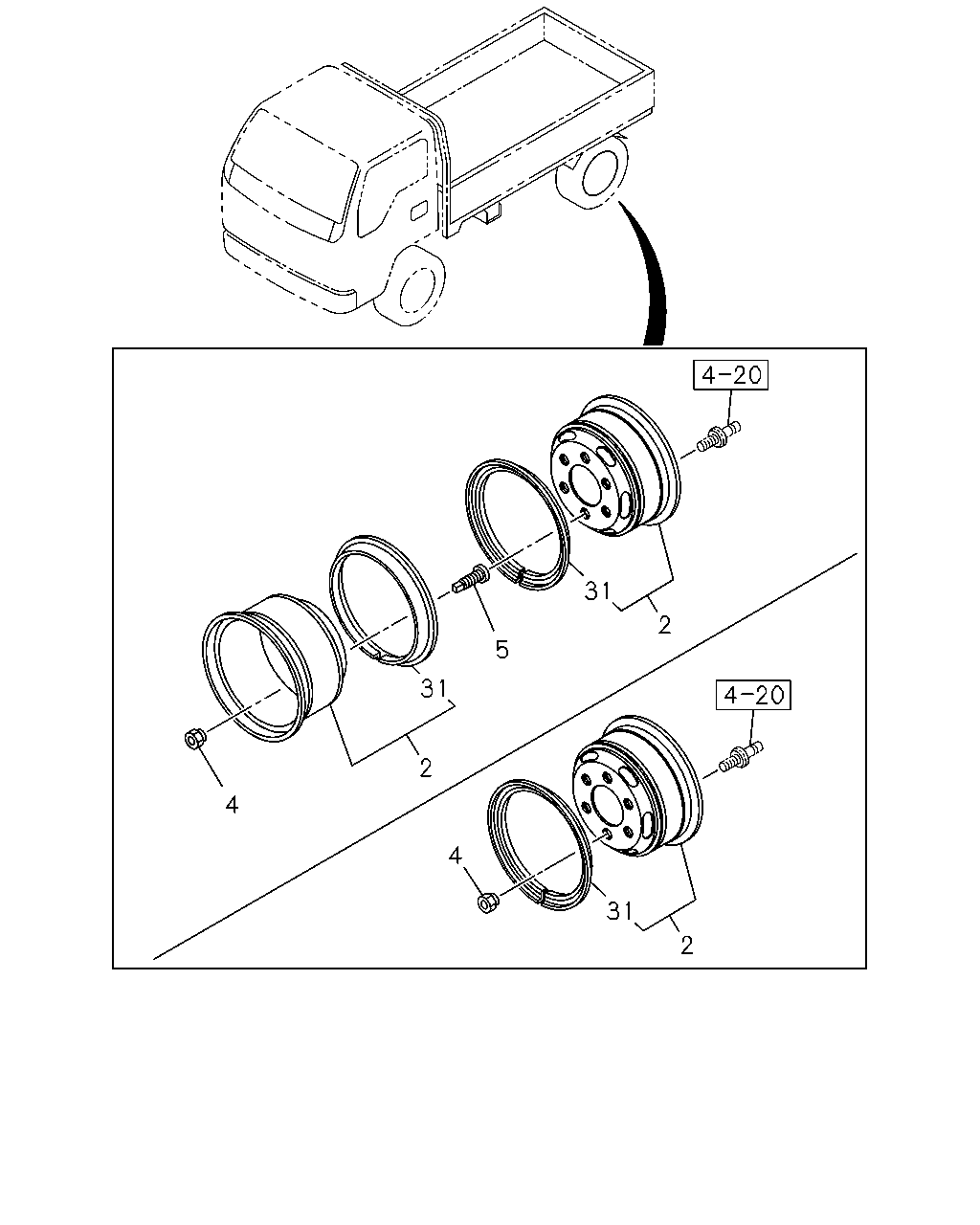

2 31 5 31 2 4 4 31 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	05.803 WHEEL; DISC FRONT 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	02	1	1309-	●
2	05.803 WHEEL; DISC SPARE 6.0FX16 OFFSET=25 BLACK 6-HOLE	8-98240-182-0	01	1	1309-	●
2	05.803 WHEEL; DISC REAR 6.0FX16 OFFSET=25 BLACK 6-HOLE	8-98240-182-0	02	1	1309-	●
2	05.803 WHEEL; DISC SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	01	1	1011-		●
2	05.803 WHEEL; DISC FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	06	1	1011-		●
4	05.813 NUT; WHEEL,RR AXLE M14 RH THREAD	8-98007-905-0	06	1	1309-	●
4	05.813 NUT; WHEEL,RR AXLE M14 LH THREAD	8-98007-906-0	06	1	1309-	●
4	05.813 NUT; WHEEL,RR AXLE IDENTIFICATION LABEL FOR KD<6UT> M27 RH THREAD	8-97693-148-0	05	1	1206-		●
4	05.813 NUT; WHEEL,RR AXLE IDENTIFICATION LABEL FOR KD<6UT> M27 LH THREAD	8-97693-149-0	05	1	1206-		●
4	05.813 NUT; WHEEL,RR AXLE M27 RH THREAD	8-98007-824-0	05	1	1011-1205		●
4	05.813 NUT; WHEEL,RR AXLE EXC. IDENTIFICATION LABEL FOR KD<6UT> M27 RH THREAD	8-98007-824-0	05	1	1206-		●
4	05.813 NUT; WHEEL,RR AXLE M27 LH THREAD	8-98007-825-0	05	1	1011-1205		●
4	05.813 NUT; WHEEL,RR AXLE EXC. IDENTIFICATION LABEL FOR KD<6UT> M27 LH THREAD	8-98007-825-0	05	1	1206-		●
5	05.813 NUT; WHEEL,INNER,RR AXLE IDENTIFICATION LABEL FOR KD<6UT> M18 RH THREAD	8-97693-146-0	05	1	1206-		●
5	05.813 NUT; WHEEL,INNER,RR AXLE IDENTIFICATION LABEL FOR KD<6UT> M18 LH THREAD	8-97693-147-0	05	1	1206-		●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 RH THREAD	8-98007-810-0	05	1	1011-1205		●
5	05.813 NUT; WHEEL,INNER,RR AXLE EXC. IDENTIFICATION LABEL FOR KD<6UT> OUTER M27,INNER M18 RH THREAD	8-98007-810-0	05	1	1206-		●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 LH THREAD	8-98007-811-0	05	1	1011-1205		●
5	05.813 NUT; WHEEL,INNER,RR AXLE EXC. IDENTIFICATION LABEL FOR KD<6UT> OUTER M27,INNER M18 LH THREAD	8-98007-811-0	05	1	1206-		●
31	05.839 RING; SIDE,DISC WHEEL FRONT 16X5.50F STAMP, BLACK	8-94135-601-0	02	1	1309-	●
31	05.839 RING; SIDE,DISC WHEEL SPARE 16X6.00GS STAMP, BLACK	8-94412-585-0	01	1	1309-	●
31	05.839 RING; SIDE,DISC WHEEL REAR 16X6.00GS STAMP, BLACK	8-94412-585-0	02	1	1309-	●
31	05.839 RING; SIDE,DISC WHEEL SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	1011-		●
31	05.839 RING; SIDE,DISC WHEEL FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	06	1	1011-		●

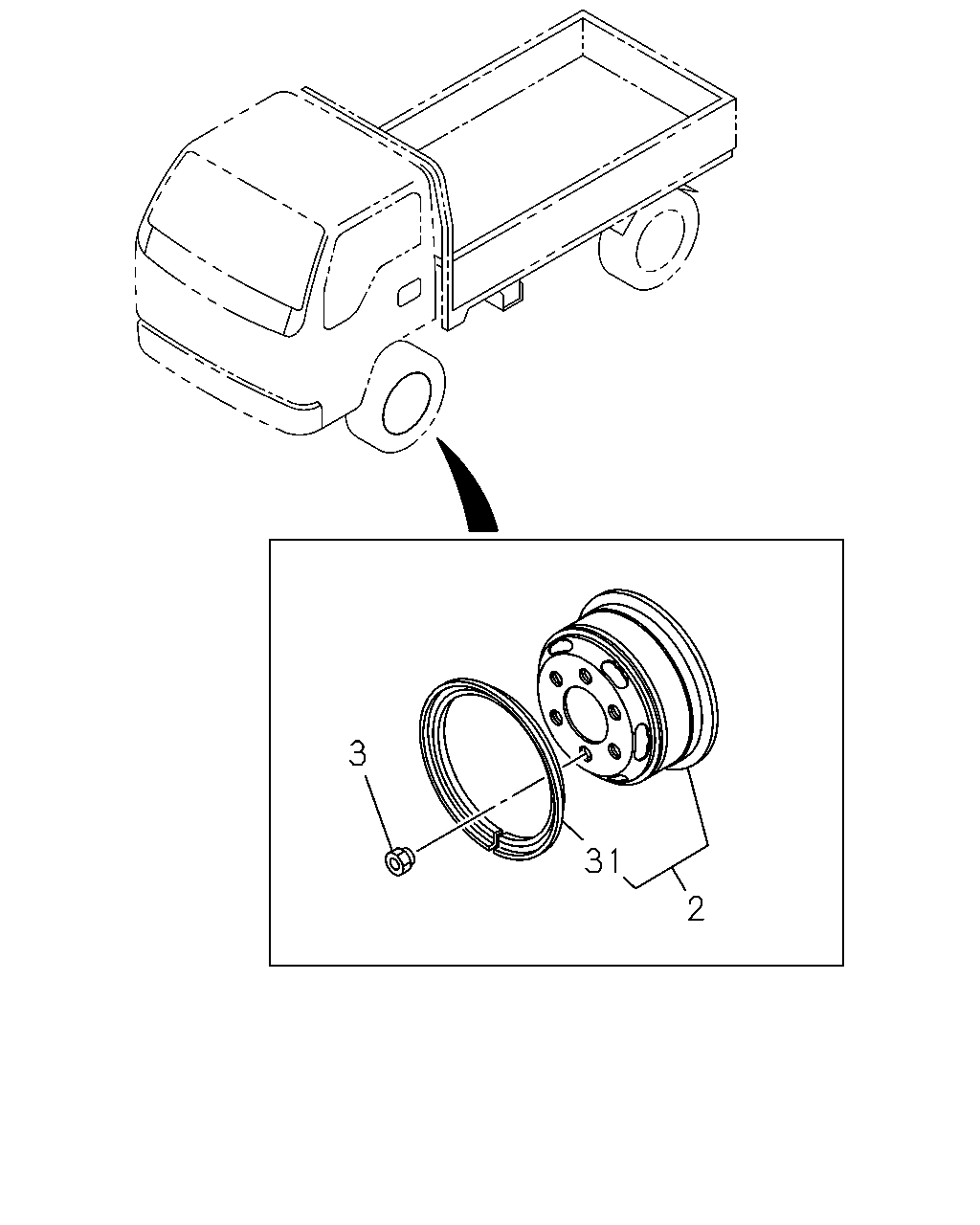

2 31 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	05.803 WHEEL; DISC FRONT 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	02	1	1309-	●
2	05.803 WHEEL; DISC SPARE 6.0FX16 OFFSET=25 BLACK 6-HOLE	8-98240-182-0	01	1	1309-	●
2	05.803 WHEEL; DISC REAR 6.0FX16 OFFSET=25 BLACK 6-HOLE	8-98240-182-0	02	1	1309-	●
2	05.803 WHEEL; DISC SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	01	1	1011-		●
2	05.803 WHEEL; DISC FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	06	1	1011-		●
3	05.813 NUT; WHEEL,FRT AXLE M14 RH THREAD	8-98007-905-0	06	1	1309-	●
3	05.813 NUT; WHEEL,FRT AXLE M14 LH THREAD	8-98007-906-0	06	1	1309-	●
3	05.813 NUT; WHEEL,FRT AXLE M18 RH THREAD	8-98007-907-0	05	1	1011-		●
3	05.813 NUT; WHEEL,FRT AXLE M18 LH THREAD	8-98007-908-0	05	1	1011-		●
31	05.839 RING; SIDE,DISC WHEEL FRONT 16X5.50F STAMP, BLACK	8-94135-601-0	02	1	1309-	●
31	05.839 RING; SIDE,DISC WHEEL SPARE 16X6.00GS STAMP, BLACK	8-94412-585-0	01	1	1309-	●
31	05.839 RING; SIDE,DISC WHEEL REAR 16X6.00GS STAMP, BLACK	8-94412-585-0	02	1	1309-	●
31	05.839 RING; SIDE,DISC WHEEL SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	1011-		●
31	05.839 RING; SIDE,DISC WHEEL FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	06	1	1011-		●

2 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	05.803 WHEEL; DISC FRONT 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	02	1	1309-	●
2	05.803 WHEEL; DISC SPARE 6.0FX16 OFFSET=25 BLACK 6-HOLE	8-98240-182-0	01	1	1309-	●
2	05.803 WHEEL; DISC REAR 6.0FX16 OFFSET=25 BLACK 6-HOLE	8-98240-182-0	02	1	1309-	●
2	05.803 WHEEL; DISC SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	01	1	1011-		●
2	05.803 WHEEL; DISC FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE	8-94378-330-1	06	1	1011-		●
31	05.839 RING; SIDE,DISC WHEEL FRONT 16X5.50F STAMP, BLACK	8-94135-601-0	02	1	1309-	●
31	05.839 RING; SIDE,DISC WHEEL SPARE 16X6.00GS STAMP, BLACK	8-94412-585-0	01	1	1309-	●
31	05.839 RING; SIDE,DISC WHEEL REAR 16X6.00GS STAMP, BLACK	8-94412-585-0	02	1	1309-	●
31	05.839 RING; SIDE,DISC WHEEL SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	1011-		●
31	05.839 RING; SIDE,DISC WHEEL FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	06	1	1011-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
