◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51376 - QKR(MIDDLE EAST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#79827) — 61 parça

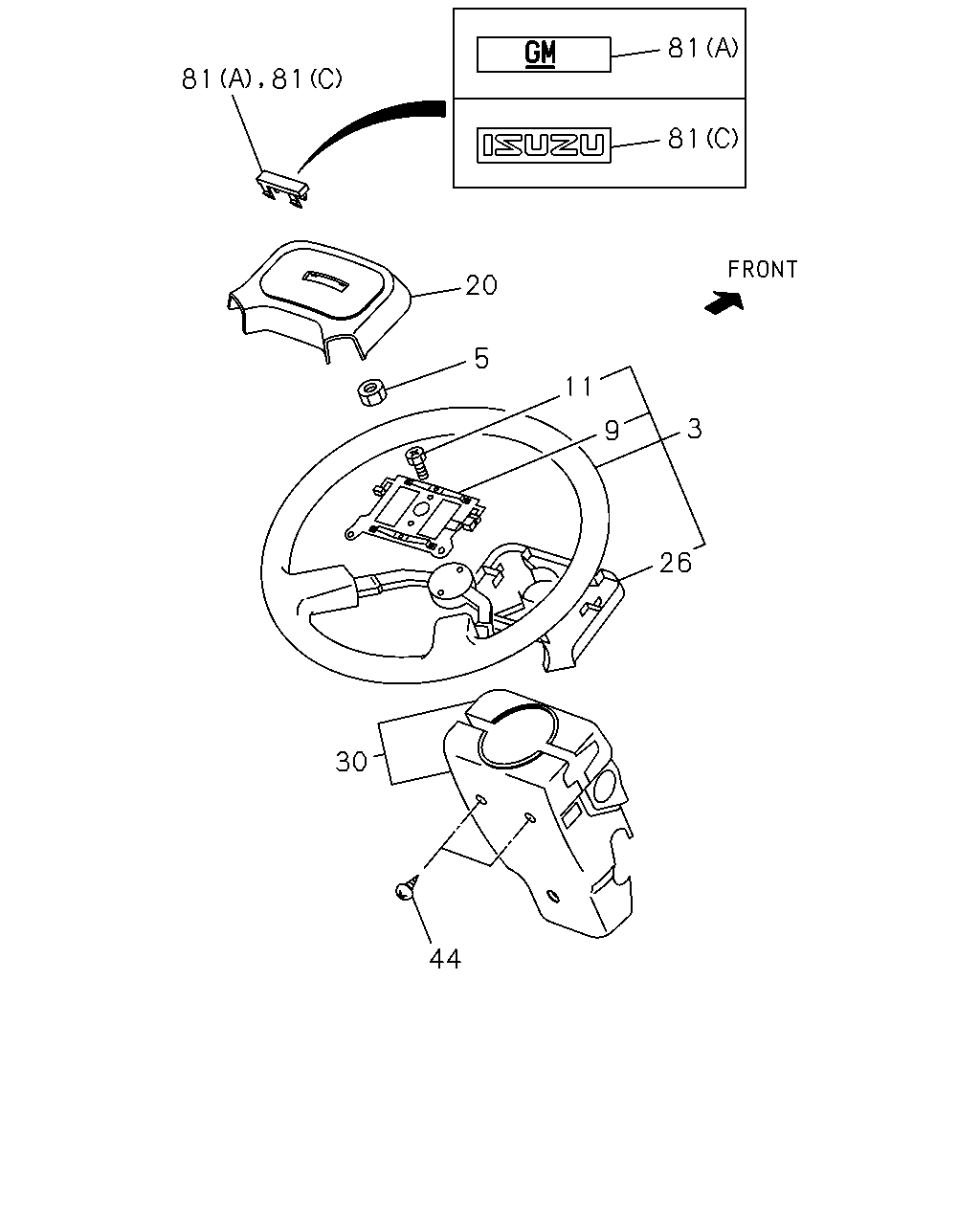

çizim 122982
81 81 81 81 20 5 3 9 11 26 30 44
BalonParca AdiParca NoAdetTipApplied Date A B
3 06.513 WHEEL; STRG
POWER STEERING<N40> DARK GRAY 		8-97400-081-2 01 1 1011-1308 ●
3 06.513 WHEEL; STRG
POWER STEERING<N40> DARK GRAY 		8-97400-081-2 01 1 1309- ●
3 06.513 WHEEL; STRG
DARK GRAY 		8-97400-081-2 01 1 1309- ●
3 06.513 WHEEL; STRG
EXC. POWER STEERING<N40> DARK GRAY 		8-97400-399-0 01 1 1011- ●
5 06.515 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 1011-1308 ●
5 06.515 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 1309- ● ●
9 02.819 PLATE; HORN CONTACT
POWER STEERING<N40> 		8-97076-688-1 01 1 1011-1308 ●
9 02.819 PLATE; HORN CONTACT
POWER STEERING<N40> 		8-97076-688-1 01 1 1309- ●
9 02.819 PLATE; HORN CONTACT 8-97076-688-1 01 1 1309- ●
11 06.514 SCREW; PLATE TO BUTTON
POWER STEERING<N40> 		8-97076-690-1 01 1 1011-1308 ●
11 06.514 SCREW; PLATE TO BUTTON
POWER STEERING<N40> 		8-97076-690-1 01 1 1309- ●
11 06.514 SCREW; PLATE TO BUTTON 8-97076-690-1 01 1 1309- ●
20 06.512 SHROUD; PAD,STRG WHEEL
POWER STEERING<N40> DARK GRAY 		8-97400-049-0 01 1 1011-1308 ●
20 06.512 SHROUD; PAD,STRG WHEEL
POWER STEERING<N40> DARK GRAY 		8-97400-049-0 01 1 1309- ●
20 06.512 SHROUD; PAD,STRG WHEEL
DARK GRAY 		8-97400-049-0 01 1 1309- ●
20 06.512 SHROUD; PAD,STRG WHEEL
EXC. POWER STEERING<N40> DARK GRAY 		8-97400-396-0 01 1 1011- ●
26 06.514 COVER; STRG WHEEL,LWR
POWER STEERING<N40> DARK GRAY 		8-97400-089-1 01 1 1011-1308 ●
26 06.514 COVER; STRG WHEEL,LWR
POWER STEERING<N40> DARK GRAY 		8-97400-089-1 01 1 1309- ●
26 06.514 COVER; STRG WHEEL,LWR
DARK GRAY 		8-97400-089-1 01 1 1309- ●
30 06.518 COWL; STEERING
TILT STEERING<N33> DARK GRAY 		8-97582-824-8 01 1 1011-1308 ●
30 06.518 COWL; STEERING
TILT STEERING<N33> DARK GRAY 		8-97582-824-8 01 1 1309- ● ●
30 06.518 COWL; STEERING
EXC. TILT STEERING<N33> DARK GRAY 		8-97587-492-7 01 1 1011-1308 ●
30 06.518 COWL; STEERING
EXC. TILT STEERING<N33> DARK GRAY 		8-97587-492-7 01 1 1309- ● ●
44 06.514 SCREW; STRG COWL
M5X12 		0-38050-512-0 02 1 1011-1308 ●
44 06.514 SCREW; STRG COWL
M5X12 		0-38050-512-0 02 1 1309- ● ●
81 02.820 EMBLEM; STRG WHEEL
POWER STEERING<N40> CHEVROLET BRAND<RWE> (A) DARK GRAY 		8-97400-048-0 01 1 1011-1308 ●
81 02.820 EMBLEM; STRG WHEEL
POWER STEERING<N40> CHEVROLET BRAND<RWE> (A) DARK GRAY 		8-97400-048-0 01 1 1309- ●
81 02.820 EMBLEM; STRG WHEEL
CHEVROLET BRAND<RWE> (A) DARK GRAY 		8-97400-048-0 01 1 1309- ●
81 02.820 EMBLEM; STRG WHEEL
POWER STEERING<N40> EXC. CHEVROLET BRAND<RWE> (C) DARK GRAY 		8-97400-060-0 01 1 1011-1308 ●
81 02.820 EMBLEM; STRG WHEEL
POWER STEERING<N40> EXC. CHEVROLET BRAND<RWE> (C) DARK GRAY 		8-97400-060-0 01 1 1309- ●
81 02.820 EMBLEM; STRG WHEEL
EXC. CHEVROLET BRAND<RWE> (C) DARK GRAY 		8-97400-060-0 01 1 1309- ●
81 02.820 EMBLEM; STRG WHEEL
CHEVROLET BRAND<RWE> EXC. POWER STEERING<N40> (B) DARK GRAY 		8-97400-398-0 01 1 1011- ●
81 02.820 EMBLEM; STRG WHEEL
EXC. POWER STEERING<N40>,CHEVROLET BRAND<RWE> (D) DARK GRAY 		8-97400-397-0 01 1 1011- ●

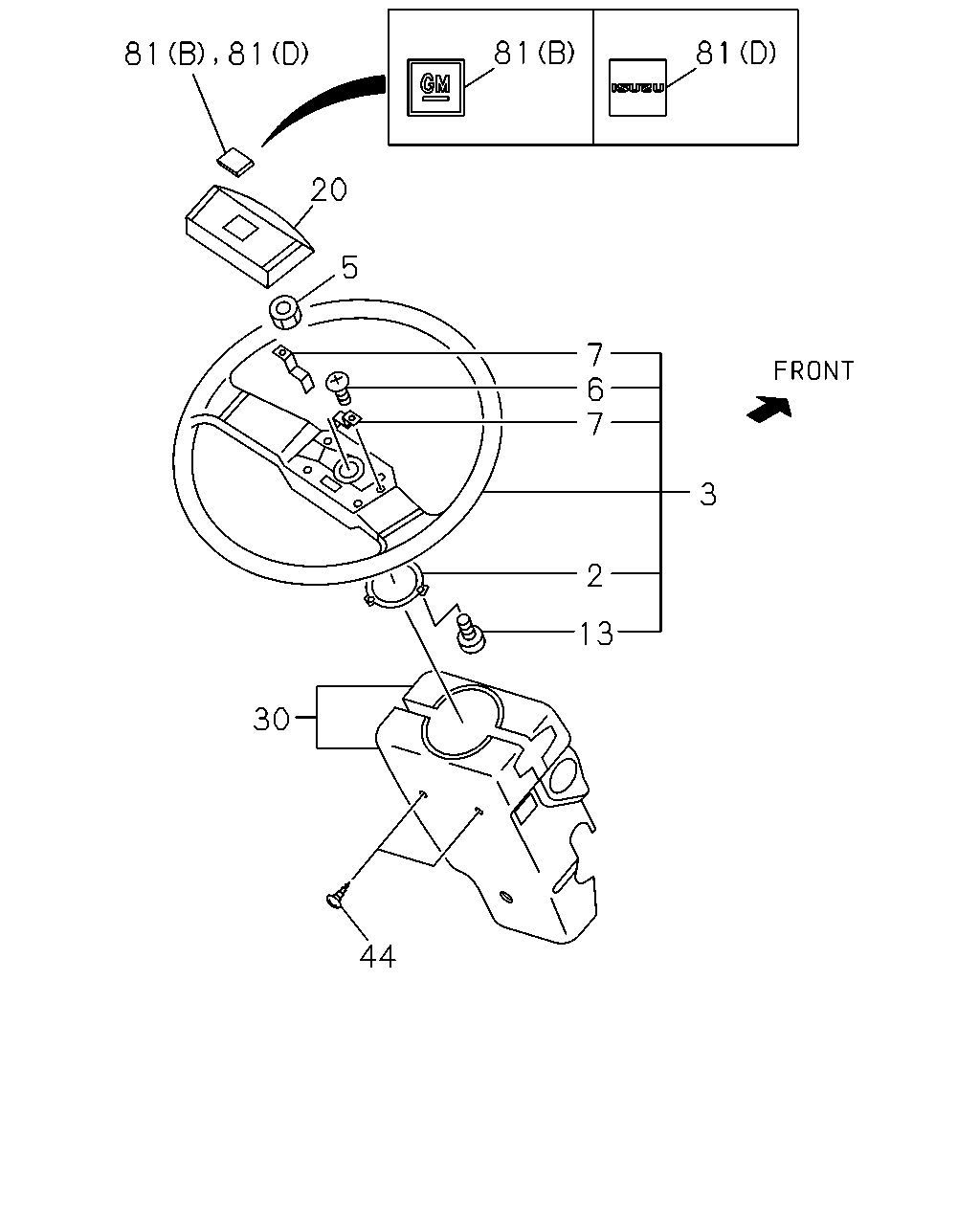

çizim 123205
20 5 81 81 7 7 6 3 2 13 30 44 81 81
BalonParca AdiParca NoAdetTipApplied Date A B
2 06.514 RING; HORN CONTACT
EXC. POWER STEERING<N40> 02.819 		8-94150-223-0 01 1 1011- ●
3 06.513 WHEEL; STRG
POWER STEERING<N40> DARK GRAY 		8-97400-081-2 01 1 1011-1308 ●
3 06.513 WHEEL; STRG
POWER STEERING<N40> DARK GRAY 		8-97400-081-2 01 1 1309- ●
3 06.513 WHEEL; STRG
DARK GRAY 		8-97400-081-2 01 1 1309- ●
3 06.513 WHEEL; STRG
EXC. POWER STEERING<N40> DARK GRAY 		8-97400-399-0 01 1 1011- ●
5 06.515 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 1011-1308 ●
5 06.515 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 1309- ● ●
6 02.820 SCREW; HORN SPR CONTACT
EXC. POWER STEERING<N40> 		8-94458-316-0 02 1 1011- ●
7 02.819 SPRING; HORN CONTACT
EXC. POWER STEERING<N40> 		8-94150-222-0 02 1 1011- ●
13 06.514 SCREW; CONTACT RING
EXC. POWER STEERING<N40> M3X10 TAPPING 		9-07076-310-0 03 1 1011- ●
20 06.512 SHROUD; PAD,STRG WHEEL
POWER STEERING<N40> DARK GRAY 		8-97400-049-0 01 1 1011-1308 ●
20 06.512 SHROUD; PAD,STRG WHEEL
POWER STEERING<N40> DARK GRAY 		8-97400-049-0 01 1 1309- ●
20 06.512 SHROUD; PAD,STRG WHEEL
DARK GRAY 		8-97400-049-0 01 1 1309- ●
20 06.512 SHROUD; PAD,STRG WHEEL
EXC. POWER STEERING<N40> DARK GRAY 		8-97400-396-0 01 1 1011- ●
30 06.518 COWL; STEERING
TILT STEERING<N33> DARK GRAY 		8-97582-824-8 01 1 1011-1308 ●
30 06.518 COWL; STEERING
TILT STEERING<N33> DARK GRAY 		8-97582-824-8 01 1 1309- ● ●
30 06.518 COWL; STEERING
EXC. TILT STEERING<N33> DARK GRAY 		8-97587-492-7 01 1 1011-1308 ●
30 06.518 COWL; STEERING
EXC. TILT STEERING<N33> DARK GRAY 		8-97587-492-7 01 1 1309- ● ●
44 06.514 SCREW; STRG COWL
M5X12 		0-38050-512-0 02 1 1011-1308 ●
44 06.514 SCREW; STRG COWL
M5X12 		0-38050-512-0 02 1 1309- ● ●
81 02.820 EMBLEM; STRG WHEEL
POWER STEERING<N40> CHEVROLET BRAND<RWE> (A) DARK GRAY 		8-97400-048-0 01 1 1011-1308 ●
81 02.820 EMBLEM; STRG WHEEL
POWER STEERING<N40> CHEVROLET BRAND<RWE> (A) DARK GRAY 		8-97400-048-0 01 1 1309- ●
81 02.820 EMBLEM; STRG WHEEL
CHEVROLET BRAND<RWE> (A) DARK GRAY 		8-97400-048-0 01 1 1309- ●
81 02.820 EMBLEM; STRG WHEEL
POWER STEERING<N40> EXC. CHEVROLET BRAND<RWE> (C) DARK GRAY 		8-97400-060-0 01 1 1011-1308 ●
81 02.820 EMBLEM; STRG WHEEL
POWER STEERING<N40> EXC. CHEVROLET BRAND<RWE> (C) DARK GRAY 		8-97400-060-0 01 1 1309- ●
81 02.820 EMBLEM; STRG WHEEL
EXC. CHEVROLET BRAND<RWE> (C) DARK GRAY 		8-97400-060-0 01 1 1309- ●
81 02.820 EMBLEM; STRG WHEEL
CHEVROLET BRAND<RWE> EXC. POWER STEERING<N40> (B) DARK GRAY 		8-97400-398-0 01 1 1011- ●
81 02.820 EMBLEM; STRG WHEEL
EXC. POWER STEERING<N40>,CHEVROLET BRAND<RWE> (D) DARK GRAY 		8-97400-397-0 01 1 1011- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
