◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51376 - QKR(MIDDLE EAST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-10 - FRONT AXLE ▶
4-10 — FRONT AXLE (#79823) — 133 parça

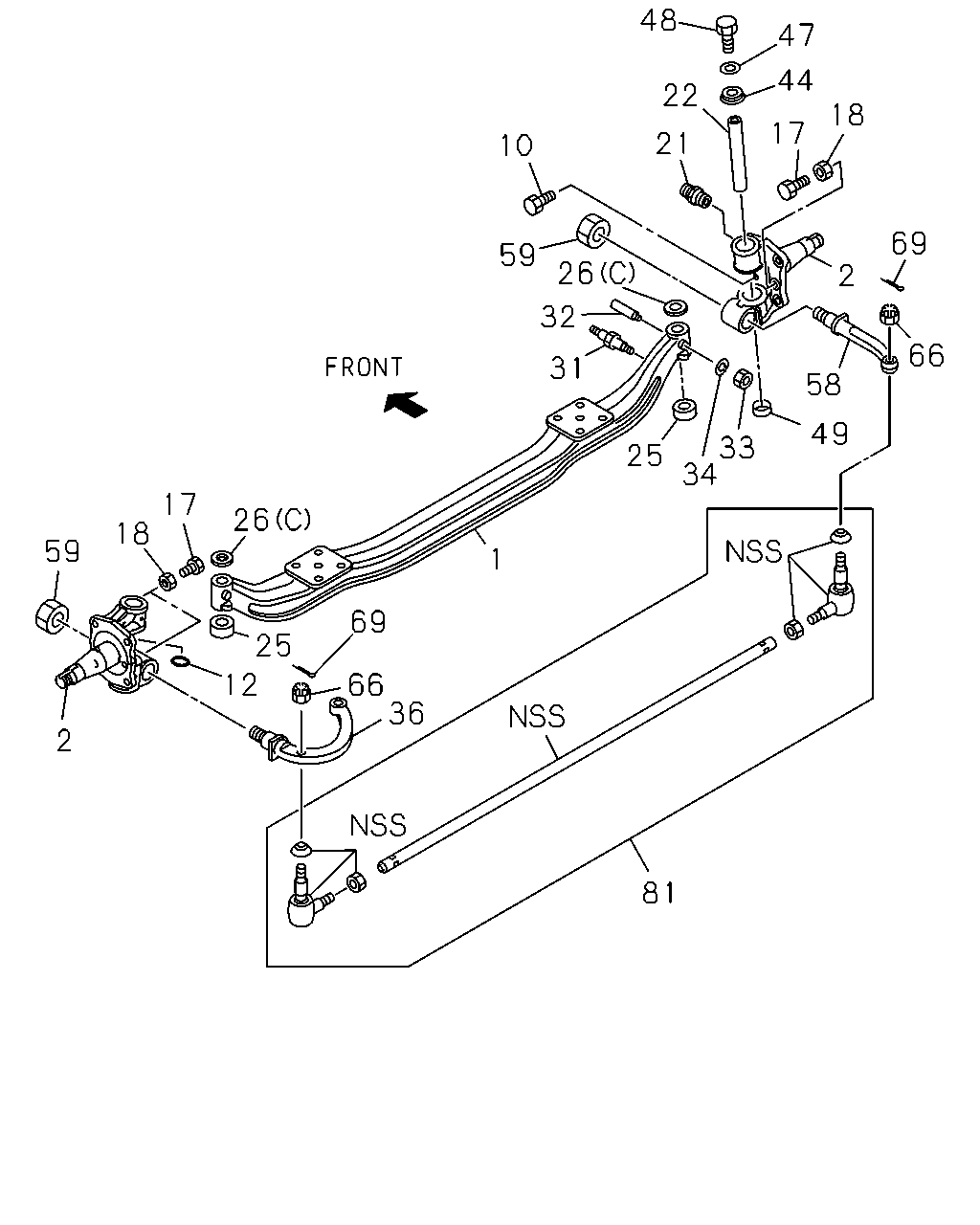

çizim 191769
48 47 44 17 18 69 66 58 2 49 33 34 25 31 32 26 59 10 22 21 81 1 36 66 69 26 17 18 59 2 12 25
BalonParca AdiParca NoAdetTipApplied Date A B
1 06.008 AXLE; FRT 8-97137-585-4 01 1 1309- ●
1 06.008 AXLE; FRT 5-87220-050-0 01 1 1011- ●
2 06.020 KNUCKLE; FRT AXLE 8-97261-545-2 01 1 1309- ●
2 06.020 KNUCKLE; FRT AXLE 8-97261-546-2 01 1 1309- ●
2 06.020 KNUCKLE; FRT AXLE 5-87220-051-0 01 1 1011- ●
2 06.020 KNUCKLE; FRT AXLE 5-87220-052-0 01 1 1011- ●
10 06.009 PLUG; PLATE,KNUCKLE 8-97360-117-0 01 1 1309- ●
10 06.009 PLUG; PLATE,KNUCKLE 5-87220-053-0 01 1 1011- ●
12 06.021 GASKET; KNUCKLE 8-98084-500-0 02 1 1309- ●
12 06.021 GASKET; KNUCKLE 5-87220-054-0 02 1 1011- ●
17 06.009 BOLT; STOPPER KNUCKLE
M12X24 EYE-BOLT 		8-97360-059-0 03 1 1309- ●
17 06.009 BOLT; STOPPER KNUCKLE 5-87220-056-0 03 1 1011- ●
18 06.216 NUT; STOPPER BOLT,KNUCKLE
04.439 M12 		0-91111-512-0 03 1 1309- ●
18 06.216 NUT; STOPPER BOLT,KNUCKLE 5-87220-057-0 03 1 1011- ●
21 06.166 NIPPLE; GREASE,KING PIN
05.601 M6 STRAIGHT 		0-90301-406-0 04 1 1309- ●
21 06.166 NIPPLE; GREASE,KING PIN 5-87220-058-0 04 1 1011- ●
22 06.203 PIN; KING,FRT AXLE 5-87220-471-0 02 1 1011- ●
25 06.210 BEARING; THRUST,KING PIN
06.021 OD=54 ID=30.2 T=13.8 		8-94248-883-3 01 1 1309- ●
25 06.210 BEARING; THRUST,KING PIN
OD=51.6 ID=30.5 T=15.6 		8-97141-943-1 01 1 1309- ●
25 06.210 BEARING; THRUST,KING PIN 5-87220-059-0 01 1 1011- ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.50 		8-94162-574-0 AR 1 1309- ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.55 		8-94162-575-0 AR 1 1309- ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.60 		8-94162-576-0 AR 1 1309- ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.65 		8-94162-577-0 AR 1 1309- ●
26 06.022 SHIM; KING PIN,BRG
05.460 (B) T=1.95 		8-94168-490-0 01 1 1309- ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.70 		8-94174-352-0 AR 1 1309- ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.80 		8-94174-354-0 AR 1 1309- ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.90 		8-94174-356-0 AR 1 1309- ●
26 06.022 SHIM; KING PIN,BRG
(C) T=0.5 		5-87220-060-0 AR 1 1011- ●
26 06.022 SHIM; KING PIN,BRG
(C) T=0.6 		5-87220-531-0 AR 1 1011- ●
26 06.022 SHIM; KING PIN,BRG
(C) T=0.7 		5-87220-532-0 AR 1 1011- ●
31 07.347 PIN; S/ABS,LWR 8-97141-944-0 02 1 1309- ●
31 07.347 PIN; S/ABS,LWR 5-87220-061-0 02 1 1011- ●
32 06.216 BOLT; KEY,KING PIN 8-97141-945-2 02 1 1309- ●
32 06.216 BOLT; KEY,KING PIN 5-87220-062-0 02 1 1011- ●
33 06.216 NUT; KEY BOLT
00.833 M10 		0-91110-510-0 02 1 1309- ●
33 06.216 NUT; KEY BOLT 5-87220-063-0 02 1 1011- ●
34 06.216 WASHER; LK,KEY BOLT
06.606 ID=10.2 		0-91510-510-0 02 1 1309- ●
34 06.216 WASHER; LK,KEY BOLT 5-87220-064-0 02 1 1011- ●
36 06.103 ARM; KNUCKLE 8-97168-291-5 01 1 1309- ●
36 06.103 ARM; KNUCKLE 5-87220-065-0 01 1 1011- ●
44 06.225 COVER; KING PIN
OD=36 		8-97360-023-0 02 1 1309- ●
44 06.225 COVER; KING PIN 5-87220-066-0 02 1 1011- ●
47 06.225 WASHER; PL,COVER,KING PIN 5-87220-067-0 02 1 1011- ●
48 06.225 BOLT; COVER
M10X12 FLANGE 		0-28051-012-0 02 1 1309- ●
48 06.225 BOLT; COVER 5-87220-068-0 02 1 1011- ●
49 06.225 CAP; KNUCKLE 8-97360-024-0 02 1 1309- ●
49 06.225 CAP; KNUCKLE 5-87220-069-0 02 1 1011- ●
58 06.103 ARM; TIE ROD 8-97168-292-1 01 1 1309- ●
58 06.103 ARM; TIE ROD 5-87220-070-0 01 1 1011- ●
59 06.104 NUT; TIE ROD ARM 8-97360-123-0 02 1 1309- ●
59 06.104 NUT; TIE ROD ARM 5-87220-071-0 02 1 1011- ●
66 06.234 NUT; TIE ROD END
06.216 M16 SLOTTED 		8-98049-689-0 02 1 1309- ●
66 06.234 NUT; TIE ROD END 5-87220-074-0 02 1 1011- ●
69 06.255 PIN; SPLIT,TIE ROD END
OD=3.7 L=20 		0-81124-020-0 02 1 1309- ●
69 06.255 PIN; SPLIT,TIE ROD END 5-87220-075-0 02 1 1011- ●
81 06.230 ROD; TIE 8-97142-023-0 01 1 1309- ●
81 06.230 ROD; TIE 5-87220-078-0 01 1 1011- ●

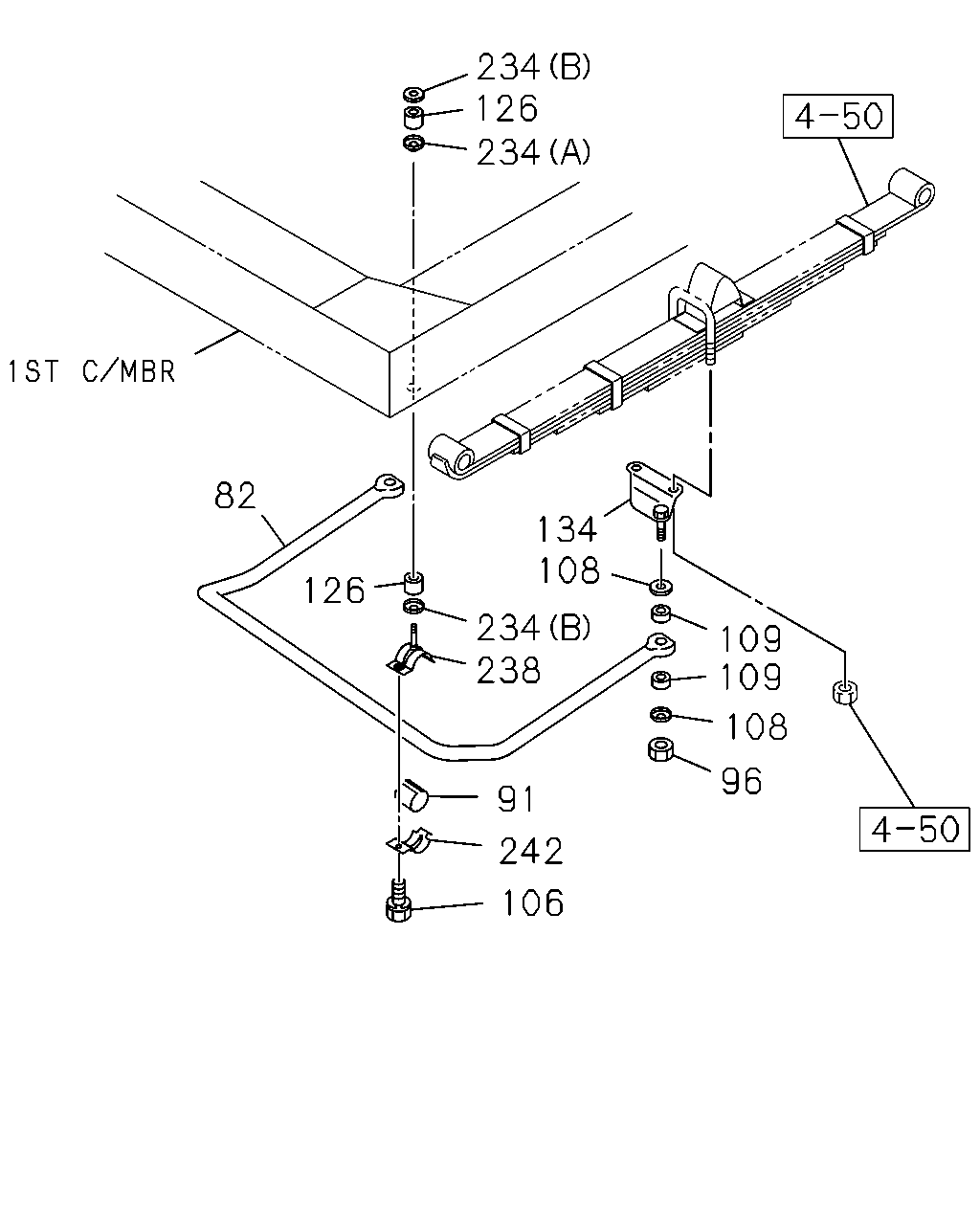

çizim 380317
234 234 126 82 126 134 234 238 109 109 108 96 91 242 106 108
BalonParca AdiParca NoAdetTipApplied Date A B
82 07.241 BAR; STAB,FRT SUSP 8-97170-624-1 01 1 1309- ●
91 07.243 BUSHING; RUBBER,STAB BAR 8-97170-752-0 02 1 1309- ●
96 07.242 NUT; STAB BAR TO CONT ARM
03.704 M10 LOCK NUT 		0-91370-010-0 02 1 1309- ●
106 06.216 BOLT; CAP FIX
04.439 M10X30 W/LK WASHER 		0-50541-030-0 02 1 1309- ●
108 07.242 CAP 8-97170-631-0 04 1 1309- ●
109 07.244 BUFFER; STAB BAR 8-97170-622-0 04 1 1309- ●
126 07.243 RUBBER; MTG,STAB BAR
07.244 		5-51631-017-0 04 1 1309- ●
134 07.242 BRACKET; STAB TO AXLE 8-97304-055-0 01 1 1309- ●
134 07.242 BRACKET; STAB TO AXLE 8-97304-056-0 01 1 1309- ●
234 07.242 WASHER; STAB
(A) ID=15.0 OD=32 		8-97387-669-0 02 1 1309- ●
234 07.242 WASHER; STAB
07.245 (B) 		9-51779-027-0 04 1 1309- ●
238 07.240 ROD LINK ASM; STABILIZER,FRT
07.242 		8-97170-751-0 02 1 1309- ●
242 07.242 CAP; LINK ROD 8-97170-746-0 02 1 1309- ●

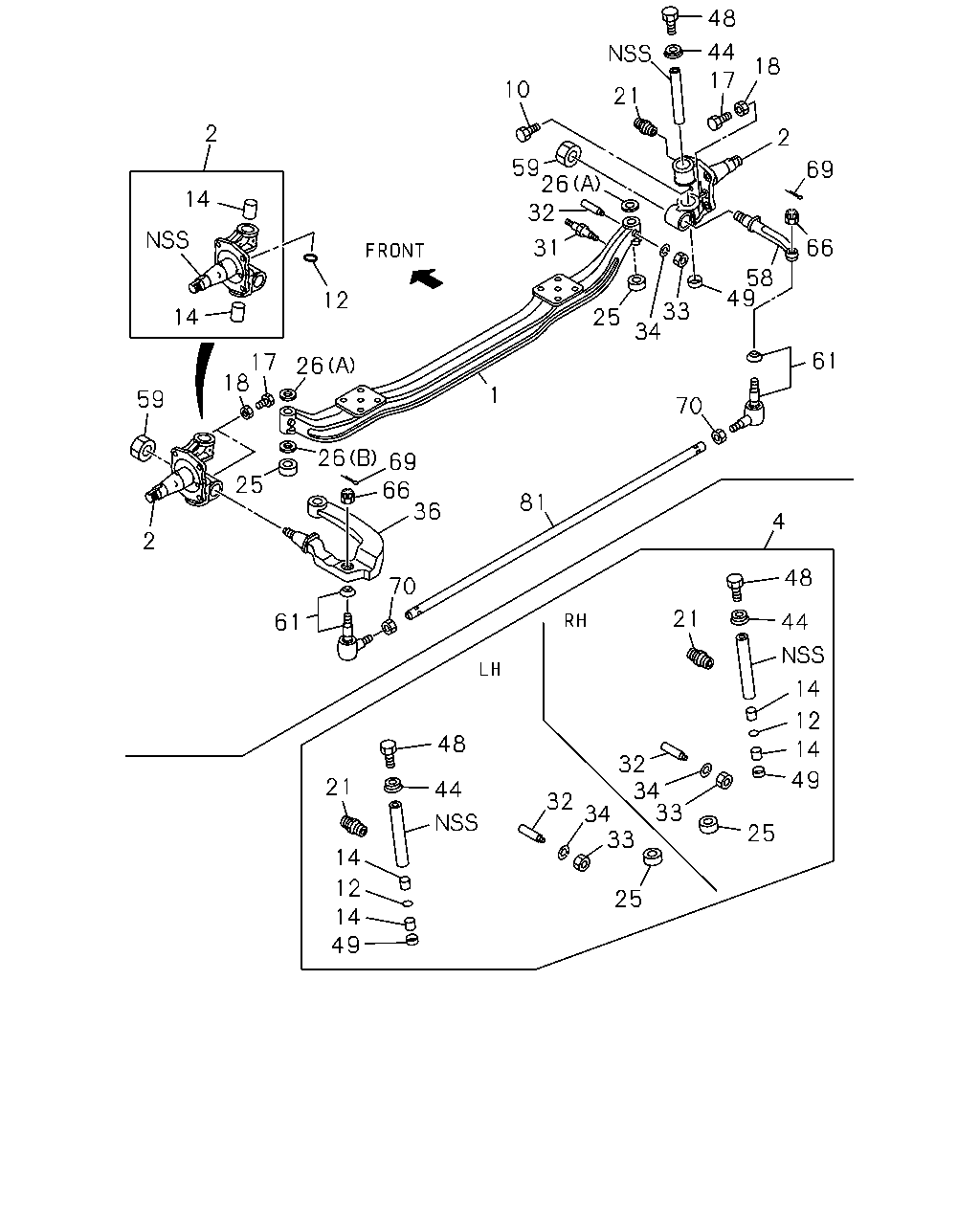

çizim 380985
48 18 44 2 17 21 10 59 31 32 26 25 33 58 66 69 61 34 49 70 12 2 14 14 26 17 18 59 2 25 26 61 66 69 70 36 1 81 4 21 44 14 12 14 49 32 48 34 33 33 25 25 34 32 49 14 12 14 44 21 48
BalonParca AdiParca NoAdetTipApplied Date A B
1 06.008 AXLE; FRT 8-97137-585-4 01 1 1309- ●
1 06.008 AXLE; FRT 5-87220-050-0 01 1 1011- ●
2 06.020 KNUCKLE; FRT AXLE 8-97261-545-2 01 1 1309- ●
2 06.020 KNUCKLE; FRT AXLE 8-97261-546-2 01 1 1309- ●
2 06.020 KNUCKLE; FRT AXLE 5-87220-051-0 01 1 1011- ●
2 06.020 KNUCKLE; FRT AXLE 5-87220-052-0 01 1 1011- ●
4 06.203 KING PIN KIT 5-87832-220-2 01 1 1309- ●
10 06.009 PLUG; PLATE,KNUCKLE 8-97360-117-0 01 1 1309- ●
10 06.009 PLUG; PLATE,KNUCKLE 5-87220-053-0 01 1 1011- ●
12 06.021 GASKET; KNUCKLE 8-98084-500-0 02 1 1309- ●
12 06.021 GASKET; KNUCKLE 5-87220-054-0 02 1 1011- ●
14 06.021 BUSHING; KING PIN
DAIDO WO/NOTCH 		8-94107-672-3 04 1 1309- ●
17 06.009 BOLT; STOPPER KNUCKLE
M12X24 EYE-BOLT 		8-97360-059-0 03 1 1309- ●
17 06.009 BOLT; STOPPER KNUCKLE 5-87220-056-0 03 1 1011- ●
18 06.216 NUT; STOPPER BOLT,KNUCKLE
04.439 M12 		0-91111-512-0 03 1 1309- ●
18 06.216 NUT; STOPPER BOLT,KNUCKLE 5-87220-057-0 03 1 1011- ●
21 06.166 NIPPLE; GREASE,KING PIN
05.601 M6 STRAIGHT 		0-90301-406-0 04 1 1309- ●
21 06.166 NIPPLE; GREASE,KING PIN 5-87220-058-0 04 1 1011- ●
25 06.210 BEARING; THRUST,KING PIN
06.021 OD=54 ID=30.2 T=13.8 		8-94248-883-3 01 1 1309- ●
25 06.210 BEARING; THRUST,KING PIN
OD=51.6 ID=30.5 T=15.6 		8-97141-943-1 01 1 1309- ●
25 06.210 BEARING; THRUST,KING PIN 5-87220-059-0 01 1 1011- ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.50 		8-94162-574-0 AR 1 1309- ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.55 		8-94162-575-0 AR 1 1309- ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.60 		8-94162-576-0 AR 1 1309- ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.65 		8-94162-577-0 AR 1 1309- ●
26 06.022 SHIM; KING PIN,BRG
05.460 (B) T=1.95 		8-94168-490-0 01 1 1309- ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.70 		8-94174-352-0 AR 1 1309- ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.80 		8-94174-354-0 AR 1 1309- ●
26 06.022 SHIM; KING PIN,BRG
(A) T=0.90 		8-94174-356-0 AR 1 1309- ●
26 06.022 SHIM; KING PIN,BRG
(C) T=0.5 		5-87220-060-0 AR 1 1011- ●
26 06.022 SHIM; KING PIN,BRG
(C) T=0.6 		5-87220-531-0 AR 1 1011- ●
26 06.022 SHIM; KING PIN,BRG
(C) T=0.7 		5-87220-532-0 AR 1 1011- ●
31 07.347 PIN; S/ABS,LWR 8-97141-944-0 02 1 1309- ●
31 07.347 PIN; S/ABS,LWR 5-87220-061-0 02 1 1011- ●
32 06.216 BOLT; KEY,KING PIN 8-97141-945-2 02 1 1309- ●
32 06.216 BOLT; KEY,KING PIN 5-87220-062-0 02 1 1011- ●
33 06.216 NUT; KEY BOLT
00.833 M10 		0-91110-510-0 02 1 1309- ●
33 06.216 NUT; KEY BOLT 5-87220-063-0 02 1 1011- ●
34 06.216 WASHER; LK,KEY BOLT
06.606 ID=10.2 		0-91510-510-0 02 1 1309- ●
34 06.216 WASHER; LK,KEY BOLT 5-87220-064-0 02 1 1011- ●
36 06.103 ARM; KNUCKLE 8-97168-291-5 01 1 1309- ●
36 06.103 ARM; KNUCKLE 5-87220-065-0 01 1 1011- ●
44 06.225 COVER; KING PIN
OD=36 		8-97360-023-0 02 1 1309- ●
44 06.225 COVER; KING PIN 5-87220-066-0 02 1 1011- ●
48 06.225 BOLT; COVER
M10X12 FLANGE 		0-28051-012-0 02 1 1309- ●
48 06.225 BOLT; COVER 5-87220-068-0 02 1 1011- ●
49 06.225 CAP; KNUCKLE 8-97360-024-0 02 1 1309- ●
49 06.225 CAP; KNUCKLE 5-87220-069-0 02 1 1011- ●
58 06.103 ARM; TIE ROD 8-97168-292-1 01 1 1309- ●
58 06.103 ARM; TIE ROD 5-87220-070-0 01 1 1011- ●
59 06.104 NUT; TIE ROD ARM 8-97360-123-0 02 1 1309- ●
59 06.104 NUT; TIE ROD ARM 5-87220-071-0 02 1 1011- ●
61 06.233 ROD END; TIE ROD 8-97142-100-1 01 1 1309- ●
61 06.233 ROD END; TIE ROD 8-97142-101-1 01 1 1309- ●
66 06.234 NUT; TIE ROD END
06.216 M16 SLOTTED 		8-98049-689-0 02 1 1309- ●
66 06.234 NUT; TIE ROD END 5-87220-074-0 02 1 1011- ●
69 06.255 PIN; SPLIT,TIE ROD END
OD=3.7 L=20 		0-81124-020-0 02 1 1309- ●
69 06.255 PIN; SPLIT,TIE ROD END 5-87220-075-0 02 1 1011- ●
70 06.234 NUT; TIE ROD END
M20 LH THREAD 		8-94254-726-0 01 1 1309- ●
70 06.234 NUT; TIE ROD END
M20 RH THREAD 		8-98043-530-0 01 1 1309- ●
81 06.230 ROD; TIE 8-97142-023-0 01 1 1309- ●
81 06.230 ROD; TIE 5-87220-078-0 01 1 1011- ●
