Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#79821) — 173 parça

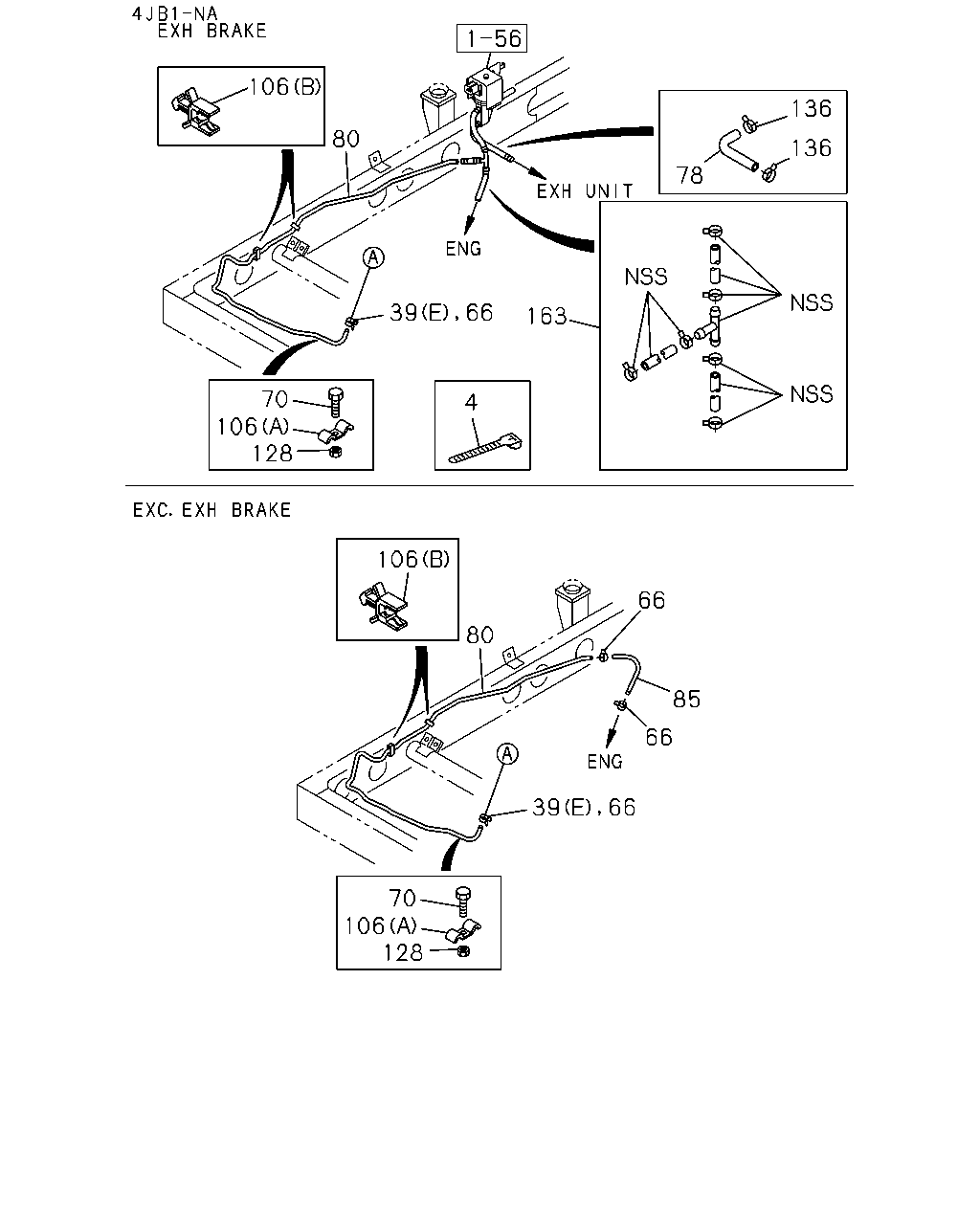

128 106 70 39 66 66 85 66 80 106 4 78 136 136 163 39 66 128 106 70 106 80

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	03.417 CLIP; HOSE,VAC PUMP 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 02.559 L=250	5-09707-030-1	01	1	1011-	●
39	04.681 CLIP; HOSE,VAC 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 (E) ID=16	8-98008-098-0	02	1	1206-1308	●
39	04.681 CLIP; HOSE,VAC 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 (E) ID=16	8-98008-098-0	02	1	1309-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (D) L=219.5	1-09987-136-0	01	1	1011-1308	●
39	04.681 CLIP; HOSE,VAC 02.559 (D) L=219.5	1-09987-136-0	01	1	1309-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	5-09707-023-2	02	1	1011-1308	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	5-09707-023-2	02	1	1309-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (A) ID=16	8-94238-568-0	03	1	1011-1308	●
39	04.681 CLIP; HOSE,VAC 04.930 (A) ID=16	8-94238-568-0	03	1	1309-	●	●
39	04.681 CLIP; HOSE,VAC (C) ID=25.5	8-97077-492-0	01	1	1011-1308	●
39	04.681 CLIP; HOSE,VAC (C) ID=25.5	8-97077-492-0	01	1	1309-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (E) ID=16	8-98008-098-0	01	1	1011-1308	●
39	04.681 CLIP; HOSE,VAC 03.162 (E) ID=16	8-98008-098-0	01	1	1309-	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	03	1	1011-	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	02	1	1011-1205	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	02	1	1206-1308	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	02	1	1206-1308	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	02	1	1309-	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	02	1	1309-	●	●
70	04.930 BOLT; CLIP FIX 03.162 M6X20 FLANGE	0-28650-620-0	01	1	1011-1308	●
70	04.930 BOLT; CLIP FIX 03.162 M6X20 FLANGE	0-28650-620-0	01	1	1309-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> 03.630 L=490 SERVICED BY L=3000	0-08258-300-0	01	1	1309-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8>	8-97028-386-2	01	1	1206-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	1011-1205	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) EXHAUST BRAKE<NF8> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	1206-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	1206-	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97161-684-0	01	1	1206-1308	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97161-684-0	01	1	1309-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-NA ENG(RLF)	8-97178-175-0	01	1	1011-1205	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-97178-175-0	01	1	1206-1308	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-NA ENG(RLF)	8-97178-175-0	01	1	1206-1308	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-97178-175-0	01	1	1309-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-NA ENG(RLF)	8-97178-175-0	01	1	1309-	●
85	04.931 HOSE; VAC,ENG SIDE 4JB1-NA ENG(RLF) EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	1011-1205	●
85	04.931 HOSE; VAC,ENG SIDE 4JB1-TC ENG(RDT) L=130	8-94438-246-0	01	1	1206-1308	●
85	04.931 HOSE; VAC,ENG SIDE 4JB1-NA ENG(RLF) EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	1206-1308	●
85	04.931 HOSE; VAC,ENG SIDE 4JB1-TC ENG(RDT) L=130	8-94438-246-0	01	1	1309-	●	●
85	04.931 HOSE; VAC,ENG SIDE 4JB1-NA ENG(RLF) EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	1309-	●
106	04.930 CLIP; PIPE EXHAUST BRAKE<NF8> (D) ID=10 H=40	8-94462-219-0	01	1	1309-		●
106	04.930 CLIP; PIPE EXHAUST BRAKE<NF8> (E) ID=10X2 H=47.5	8-97018-605-0	01	1	1309-		●
106	04.930 CLIP; PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 (F) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	1309-		●
106	04.930 CLIP; PIPE 04.686 (A) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	1011-1308	●
106	04.930 CLIP; PIPE 04.686 (A) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	1309-	●	●
106	04.930 CLIP; PIPE 03.485 (B) ID=10 H=36	8-94249-686-1	02	1	1011-1308	●
106	04.930 CLIP; PIPE 03.485 (B) ID=10 H=36	8-94249-686-1	02	1	1309-	●	●
106	04.930 CLIP; PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> (C) ID=10X2 H=37.5	8-97018-546-0	01	1	1206-	●
106	04.930 CLIP; PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) EXHAUST BRAKE<NF8> (C) ID=10X2 H=37.5	8-97018-546-0	01	1	1206-	●
128	04.930 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	1011-1308	●
128	04.930 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	1309-	●	●
136	04.681 CLIP; VAC HOSE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	06	1	1206-1308	●
136	04.681 CLIP; VAC HOSE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	06	1	1309-	●	●
136	04.681 CLIP; VAC HOSE 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	02	1	1011-	●
163	04.681 JOINT; VAC HOSE 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8>	8-97083-158-1	01	1	1011-	●

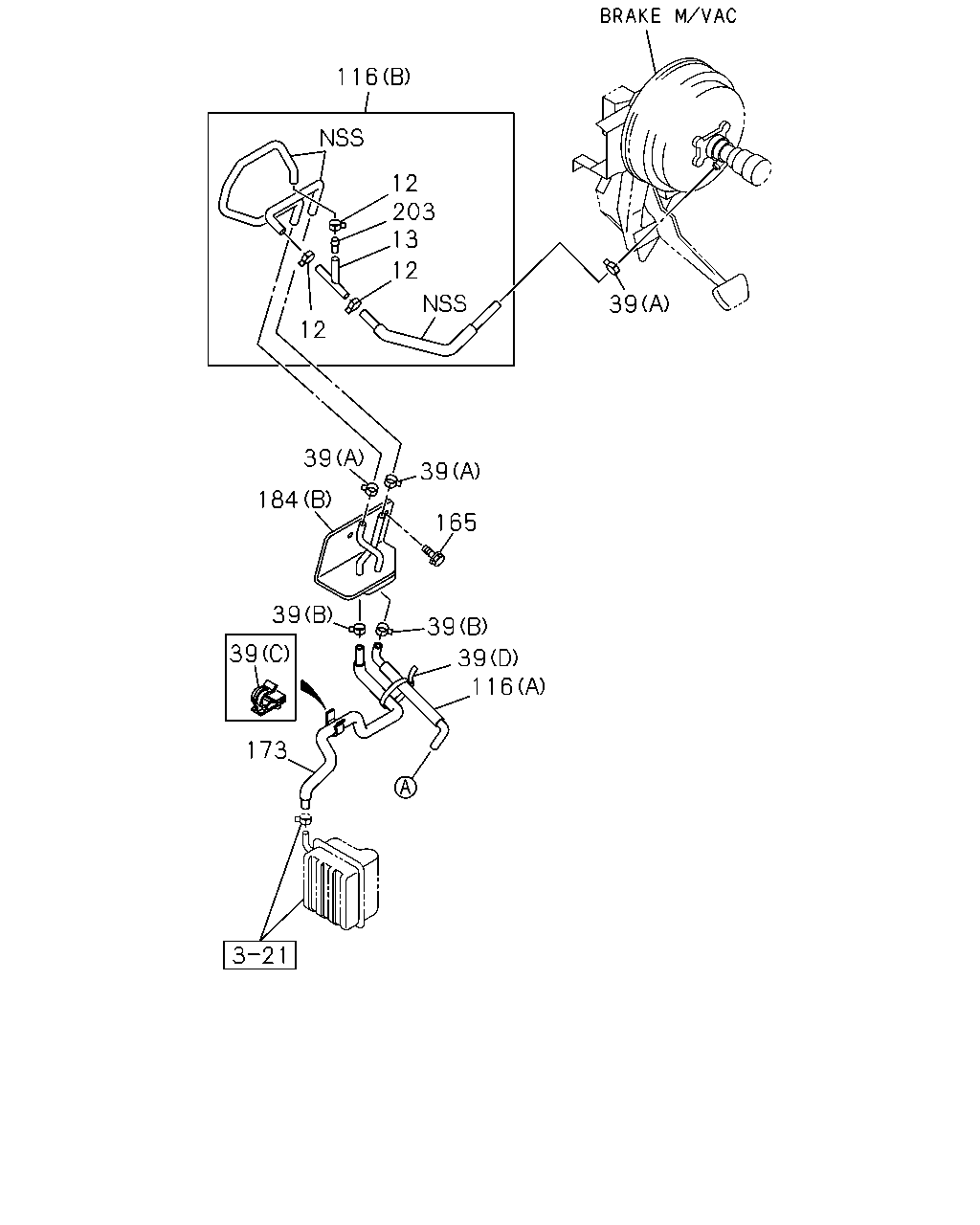

116 39 39 39 173 39 184 39 39 165 12 12 13 203 12 116 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE 04.930 ID=14.5	8-94167-480-0	03	1	1011-1308	●
12	04.681 CLIP; HOSE 04.930 ID=14.5	8-94167-480-0	03	1	1309-	●	●
13	04.681 JOINT; HOSE,VAC 04.686 3WAY	8-94441-184-0	01	1	1011-1308	●
13	04.681 JOINT; HOSE,VAC 04.686 3WAY	8-94441-184-0	01	1	1309-	●	●
39	04.681 CLIP; HOSE,VAC 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 (E) ID=16	8-98008-098-0	02	1	1206-1308	●
39	04.681 CLIP; HOSE,VAC 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 (E) ID=16	8-98008-098-0	02	1	1309-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (D) L=219.5	1-09987-136-0	01	1	1011-1308	●
39	04.681 CLIP; HOSE,VAC 02.559 (D) L=219.5	1-09987-136-0	01	1	1309-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	5-09707-023-2	02	1	1011-1308	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	5-09707-023-2	02	1	1309-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (A) ID=16	8-94238-568-0	03	1	1011-1308	●
39	04.681 CLIP; HOSE,VAC 04.930 (A) ID=16	8-94238-568-0	03	1	1309-	●	●
39	04.681 CLIP; HOSE,VAC (C) ID=25.5	8-97077-492-0	01	1	1011-1308	●
39	04.681 CLIP; HOSE,VAC (C) ID=25.5	8-97077-492-0	01	1	1309-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (E) ID=16	8-98008-098-0	01	1	1011-1308	●
39	04.681 CLIP; HOSE,VAC 03.162 (E) ID=16	8-98008-098-0	01	1	1309-	●	●
116	04.931 HOSE; VAC,M/VAC (A)	8-97078-785-0	01	1	1011-1308	●
116	04.931 HOSE; VAC,M/VAC (A)	8-97078-785-0	01	1	1309-	●	●
116	04.931 HOSE; VAC,M/VAC (B)	8-97314-597-1	01	1	1011-1308	●
116	04.931 HOSE; VAC,M/VAC (B)	8-97314-597-1	01	1	1309-	●	●
165	04.686 BOLT; BRKT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1206-1308	●
165	04.686 BOLT; BRKT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1309-	●	●
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1011-1308	●
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1309-	●	●
165	04.686 BOLT; BRKT 04.012 M5X16 TAPPING W/PL WASHER	0-74365-516-0	02	1	1011-1308	●
165	04.686 BOLT; BRKT 04.012 M5X16 TAPPING W/PL WASHER	0-74365-516-0	02	1	1309-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE	8-97129-872-0	01	1	1011-1205	●
173	04.931 HOSE; VAC,VAC TANK SIDE	8-97129-872-0	01	1	1206-1308	●
173	04.931 HOSE; VAC,VAC TANK SIDE	8-97129-872-0	01	1	1309-	●	●
184	04.685 BRACKET; UNION FIX (A)	8-97094-014-4	01	1	1011-1308	●
184	04.685 BRACKET; UNION FIX (A)	8-97094-014-4	01	1	1309-	●	●
184	04.685 BRACKET; UNION FIX (B)	8-97094-377-4	01	1	1011-1308	●
184	04.685 BRACKET; UNION FIX (B)	8-97094-377-4	01	1	1309-	●	●
203	04.690 VALVE; CHECK	8-94386-540-0	01	1	1011-1308	●
203	04.690 VALVE; CHECK	8-94386-540-0	01	1	1309-	●	●

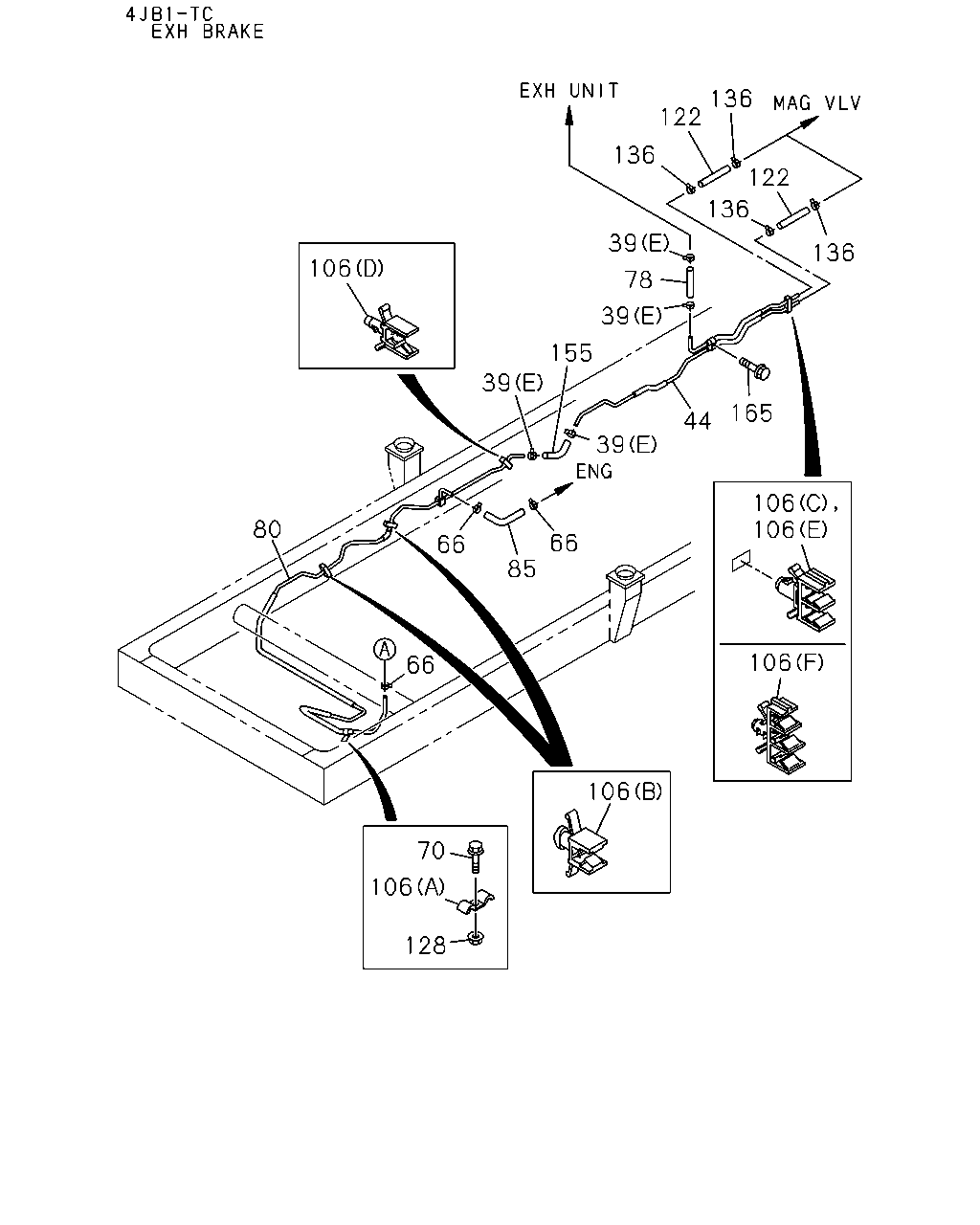

128 106 106 106 106 106 165 44 39 66 85 66 39 155 39 78 39 66 80 106 136 122 136 122 136 136 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 (E) ID=16	8-98008-098-0	02	1	1206-1308	●
39	04.681 CLIP; HOSE,VAC 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 (E) ID=16	8-98008-098-0	02	1	1309-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (D) L=219.5	1-09987-136-0	01	1	1011-1308	●
39	04.681 CLIP; HOSE,VAC 02.559 (D) L=219.5	1-09987-136-0	01	1	1309-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	5-09707-023-2	02	1	1011-1308	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	5-09707-023-2	02	1	1309-	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (A) ID=16	8-94238-568-0	03	1	1011-1308	●
39	04.681 CLIP; HOSE,VAC 04.930 (A) ID=16	8-94238-568-0	03	1	1309-	●	●
39	04.681 CLIP; HOSE,VAC (C) ID=25.5	8-97077-492-0	01	1	1011-1308	●
39	04.681 CLIP; HOSE,VAC (C) ID=25.5	8-97077-492-0	01	1	1309-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (E) ID=16	8-98008-098-0	01	1	1011-1308	●
39	04.681 CLIP; HOSE,VAC 03.162 (E) ID=16	8-98008-098-0	01	1	1309-	●	●
44	04.930 PIPE; VAC,MAG VLV EXHAUST BRAKE<NF8> 06.671	8-97258-369-0	01	1	1309-		●
44	04.930 PIPE; VAC,MAG VLV 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) EXHAUST BRAKE<NF8>	8-98187-133-0	01	1	1206-	●
44	04.930 PIPE; VAC,MAG VLV 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> 04.685	8-97225-306-1	01	1	1206-	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	03	1	1011-	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	02	1	1011-1205	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	02	1	1206-1308	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	02	1	1206-1308	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	02	1	1309-	●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	02	1	1309-	●	●
70	04.930 BOLT; CLIP FIX 03.162 M6X20 FLANGE	0-28650-620-0	01	1	1011-1308	●
70	04.930 BOLT; CLIP FIX 03.162 M6X20 FLANGE	0-28650-620-0	01	1	1309-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> 03.630 L=490 SERVICED BY L=3000	0-08258-300-0	01	1	1309-		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8>	8-97028-386-2	01	1	1206-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	1011-1205	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) EXHAUST BRAKE<NF8> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	1206-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	1206-	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97161-684-0	01	1	1206-1308	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97161-684-0	01	1	1309-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-NA ENG(RLF)	8-97178-175-0	01	1	1011-1205	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-97178-175-0	01	1	1206-1308	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-NA ENG(RLF)	8-97178-175-0	01	1	1206-1308	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-TC ENG(RDT) EXC. EXHAUST BRAKE<NF8>	8-97178-175-0	01	1	1309-	●	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1-NA ENG(RLF)	8-97178-175-0	01	1	1309-	●
85	04.931 HOSE; VAC,ENG SIDE 4JB1-NA ENG(RLF) EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	1011-1205	●
85	04.931 HOSE; VAC,ENG SIDE 4JB1-TC ENG(RDT) L=130	8-94438-246-0	01	1	1206-1308	●
85	04.931 HOSE; VAC,ENG SIDE 4JB1-NA ENG(RLF) EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	1206-1308	●
85	04.931 HOSE; VAC,ENG SIDE 4JB1-TC ENG(RDT) L=130	8-94438-246-0	01	1	1309-	●	●
85	04.931 HOSE; VAC,ENG SIDE 4JB1-NA ENG(RLF) EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	1309-	●
106	04.930 CLIP; PIPE EXHAUST BRAKE<NF8> (D) ID=10 H=40	8-94462-219-0	01	1	1309-		●
106	04.930 CLIP; PIPE EXHAUST BRAKE<NF8> (E) ID=10X2 H=47.5	8-97018-605-0	01	1	1309-		●
106	04.930 CLIP; PIPE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 (F) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	1309-		●
106	04.930 CLIP; PIPE 04.686 (A) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	1011-1308	●
106	04.930 CLIP; PIPE 04.686 (A) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	1309-	●	●
106	04.930 CLIP; PIPE 03.485 (B) ID=10 H=36	8-94249-686-1	02	1	1011-1308	●
106	04.930 CLIP; PIPE 03.485 (B) ID=10 H=36	8-94249-686-1	02	1	1309-	●	●
106	04.930 CLIP; PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> (C) ID=10X2 H=37.5	8-97018-546-0	01	1	1206-	●
106	04.930 CLIP; PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) EXHAUST BRAKE<NF8> (C) ID=10X2 H=37.5	8-97018-546-0	01	1	1206-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> 03.630 L=160 SERVICED BY L=3000	0-08258-300-0	01	1	1309-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	02	1	1309-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> 03.630 L=110 SERVICED BY L=3000	0-08258-300-0	01	1	1206-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) EXHAUST BRAKE<NF8> 03.630 L=230 SERVICED BY L=3000	0-08258-300-0	02	1	1206-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> 03.630 L=330 SERVICED BY L=3000	0-08258-300-0	02	1	1206-	●
128	04.930 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	1011-1308	●
128	04.930 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	1309-	●	●
136	04.681 CLIP; VAC HOSE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	06	1	1206-1308	●
136	04.681 CLIP; VAC HOSE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	06	1	1309-	●	●
136	04.681 CLIP; VAC HOSE 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 03.162 ID=16	8-98008-098-0	02	1	1011-	●
155	04.931 HOSE; VAC,AIR FILTER 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) EXHAUST BRAKE<NF8> 03.630 L=220 SERVICED BY L=3000	0-08258-300-0	01	1	1206-1308	●
155	04.931 HOSE; VAC,AIR FILTER 4JB1-TC ENG(RDT) WHEEL BASE 2700MM(27W) EXHAUST BRAKE<NF8> 03.630 L=220 SERVICED BY L=3000	0-08258-300-0	01	1	1309-	●
155	04.931 HOSE; VAC,AIR FILTER 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.630 L=220 SERVICED BY L=3000	0-08258-300-0	01	1	1309-		●
155	04.931 HOSE; VAC,AIR FILTER 4JB1-TC ENG(RDT) WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> 03.630 L=180 SERVICED BY L=3000	0-08258-300-0	01	1	1206-	●
165	04.686 BOLT; BRKT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1206-1308	●
165	04.686 BOLT; BRKT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1309-	●	●
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1011-1308	●
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1309-	●	●
165	04.686 BOLT; BRKT 04.012 M5X16 TAPPING W/PL WASHER	0-74365-516-0	02	1	1011-1308	●
165	04.686 BOLT; BRKT 04.012 M5X16 TAPPING W/PL WASHER	0-74365-516-0	02	1	1309-	●	●

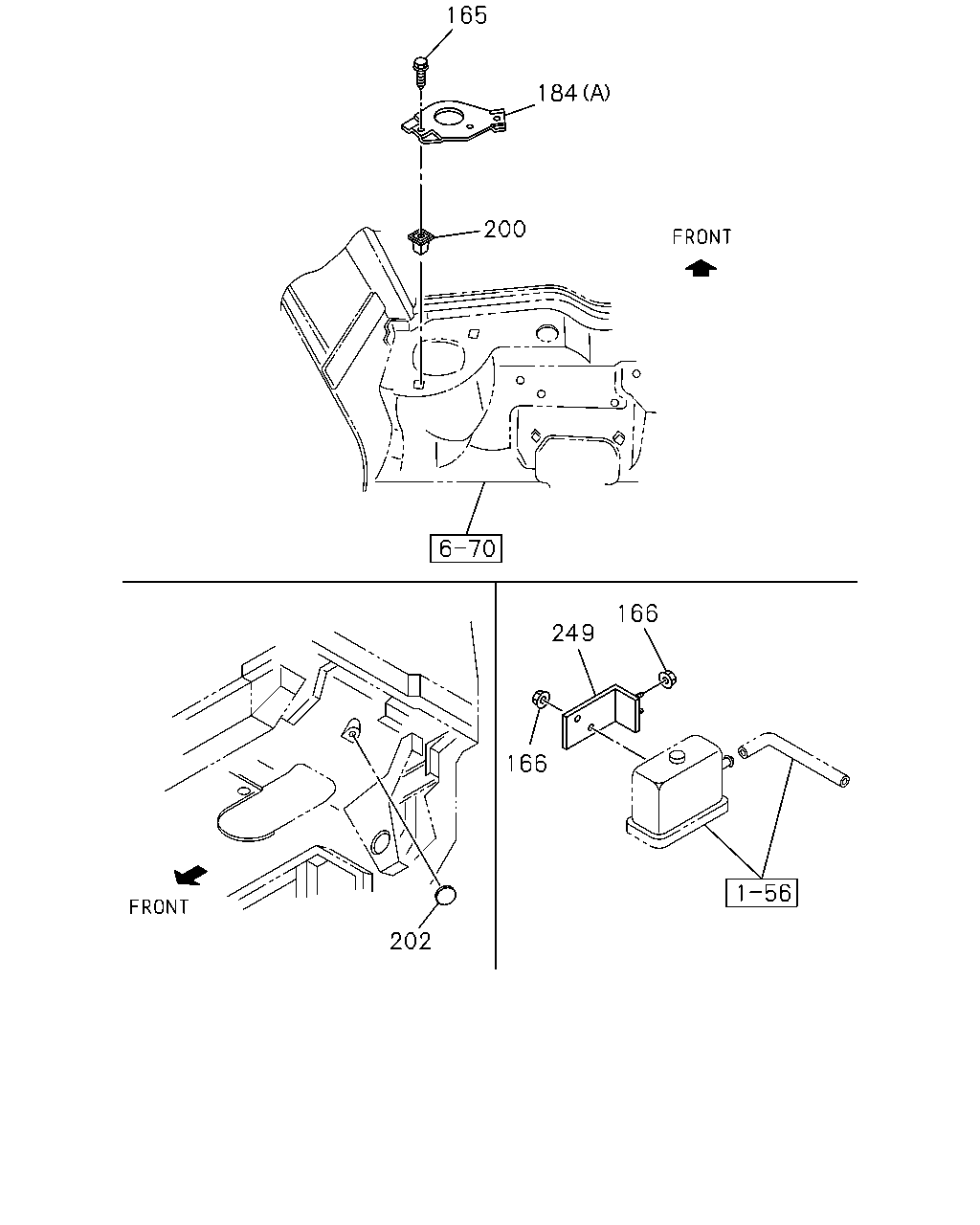

166 249 202 200 184 165 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
165	04.686 BOLT; BRKT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1206-1308	●
165	04.686 BOLT; BRKT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1309-	●	●
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1011-1308	●
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	1309-	●	●
165	04.686 BOLT; BRKT 04.012 M5X16 TAPPING W/PL WASHER	0-74365-516-0	02	1	1011-1308	●
165	04.686 BOLT; BRKT 04.012 M5X16 TAPPING W/PL WASHER	0-74365-516-0	02	1	1309-	●	●
166	04.686 NUT; BRKT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 01.062 M8 FLANGE	0-91180-108-0	02	1	1309-		●
184	04.685 BRACKET; UNION FIX (A)	8-97094-014-4	01	1	1011-1308	●
184	04.685 BRACKET; UNION FIX (A)	8-97094-014-4	01	1	1309-	●	●
184	04.685 BRACKET; UNION FIX (B)	8-97094-377-4	01	1	1011-1308	●
184	04.685 BRACKET; UNION FIX (B)	8-97094-377-4	01	1	1309-	●	●
200	04.931 GROMMET; SCREW H=15	8-94463-268-1	02	1	1011-1308	●
200	04.931 GROMMET; SCREW H=15	8-94463-268-1	02	1	1309-	●	●
202	04.686 SEAL 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	1011-1308	●
202	04.686 SEAL 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	1309-	●	●
249	04.686 BRACKET; VAC,AIR FILTER 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.634	8-97106-474-2	01	1	1309-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
