3-58 — FIXING PARTS; OIL PIPING (#79820) — 34 parça

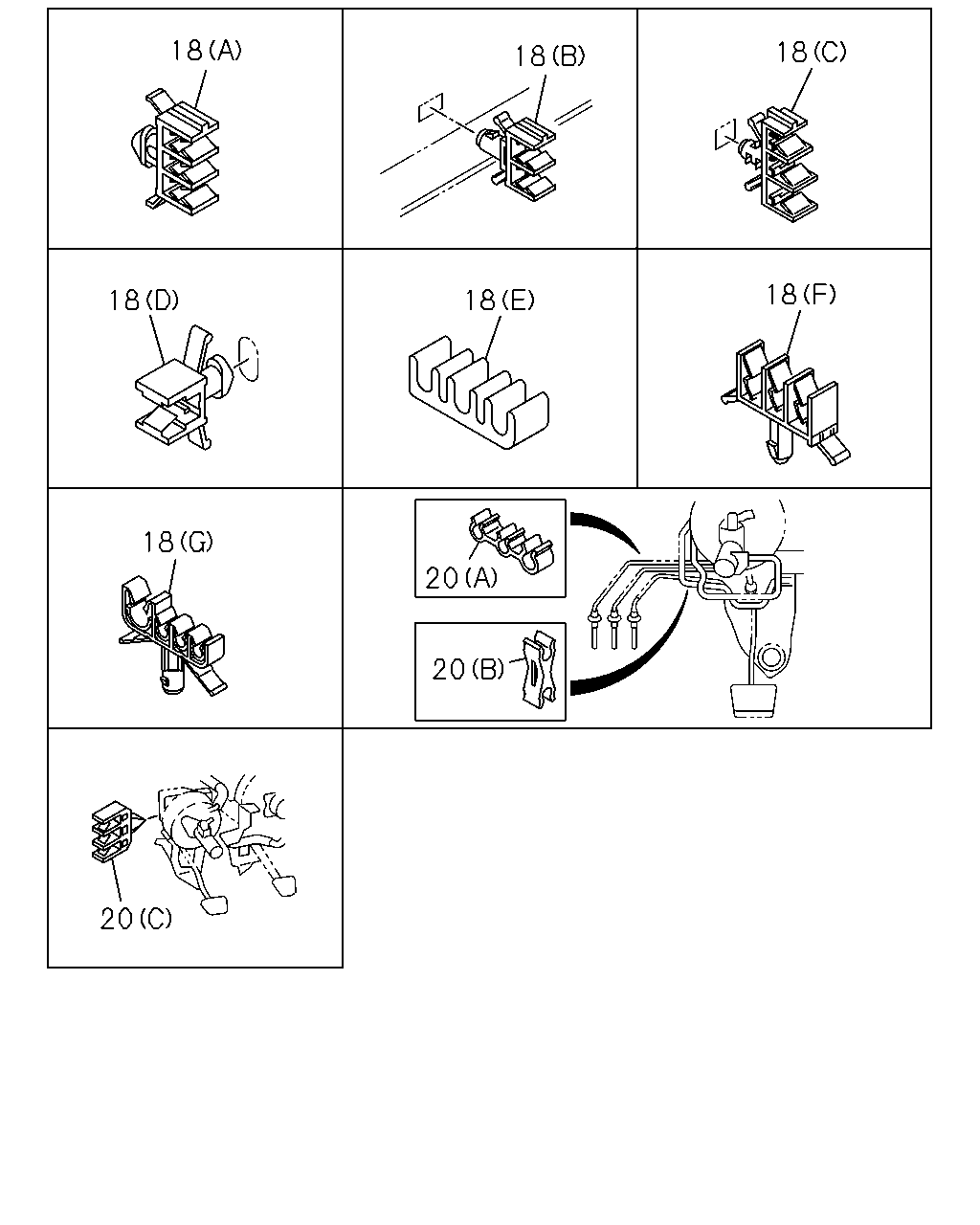

20 18 18 18 18 18 18 18 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	04.686 CLIP; BRK PIPE (B) ID=4.8X2	8-94316-410-0	02	1	1309-	●
18	04.686 CLIP; BRK PIPE (G) ID=10 & 4.76X3	8-97168-820-0	02	1	1309-	●
18	04.686 CLIP; BRK PIPE WHEEL BASE 2700MM(27W) (B) ID=4.8X2	8-94316-410-0	03	1	1206-		●
18	04.686 CLIP; BRK PIPE 04.685 (E) ID=4.76X3	8-94122-333-0	01	1	1011-1308		●
18	04.686 CLIP; BRK PIPE 04.685 (E) ID=4.76X3	8-94122-333-0	01	1	1309-	●	●
18	04.686 CLIP; BRK PIPE (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	1011-1308		●
18	04.686 CLIP; BRK PIPE (A) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	1309-	●	●
18	04.686 CLIP; BRK PIPE (B) ID=4.8X2	8-94316-410-0	01	1	1011-		●
18	04.686 CLIP; BRK PIPE (F) ID=6.5 & 4.8X2	8-94131-710-2	01	1	1011-1205		●
18	04.686 CLIP; BRK PIPE (F) ID=6.5 & 4.8X2	8-94131-710-2	01	1	1011-1205		●
18	04.686 CLIP; BRK PIPE (F) ID=6.5 & 4.8X2	8-94131-710-2	01	1	1206-1308		●
18	04.686 CLIP; BRK PIPE WHEEL BASE 3300MM(33W) (F) ID=6.5 & 4.8X2	8-94131-710-2	01	1	1206-1308		●
18	04.686 CLIP; BRK PIPE (F) ID=6.5 & 4.8X2	8-94131-710-2	01	1	1309-	●	●
18	04.686 CLIP; BRK PIPE WHEEL BASE 3300MM(33W) (F) ID=6.5 & 4.8X2	8-94131-710-2	01	1	1309-		●
18	04.686 CLIP; BRK PIPE (D) ID=4.8 H=26	8-94249-685-0	01	1	1011-1308		●
18	04.686 CLIP; BRK PIPE (D) ID=4.8 H=26	8-94249-685-0	01	1	1011-1308		●
18	04.686 CLIP; BRK PIPE (D) ID=4.8 H=26	8-94249-685-0	01	1	1309-	●	●
18	04.686 CLIP; BRK PIPE (D) ID=4.8 H=26	8-94249-685-0	01	1	1309-	●	●
18	04.686 CLIP; BRK PIPE (D) ID=4.8 H=26	8-94249-685-0	04	1	1011-1012		●
18	04.686 CLIP; BRK PIPE (D) ID=4.8 H=26	8-94249-685-0	02	1	1101-1205		●
18	04.686 CLIP; BRK PIPE (D) ID=4.8 H=26	8-94249-685-0	02	1	1101-1205		●
18	04.686 CLIP; BRK PIPE WHEEL BASE 3300MM(33W) (D) ID=4.8 H=26	8-94249-685-0	02	1	1206-		●
18	04.686 CLIP; BRK PIPE WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) (D) ID=4.8 H=26	8-94249-685-0	02	1	1206-		●
18	04.686 CLIP; BRK PIPE 03.162 (C) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	1011-1012		●
18	04.686 CLIP; BRK PIPE 03.162 (C) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	1101-1308		●
18	04.686 CLIP; BRK PIPE 03.162 (C) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	1101-1308		●
18	04.686 CLIP; BRK PIPE 03.162 (C) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	1309-	●	●
18	04.686 CLIP; BRK PIPE 03.162 (C) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	1309-	●	●
20	04.686 CLIP; BRK PIPE (A) ID=6.4 & 4.8X2	8-94146-043-0	03	1	1011-1308		●
20	04.686 CLIP; BRK PIPE (A) ID=6.4 & 4.8X2	8-94146-043-0	03	1	1309-	●	●
20	04.686 CLIP; BRK PIPE 04.868 (B) ID=4.6X2	8-94241-454-0	01	1	1011-1308		●
20	04.686 CLIP; BRK PIPE 04.868 (B) ID=4.6X2	8-94241-454-0	01	1	1309-	●	●
20	04.686 CLIP; BRK PIPE (C) ID=6.35 & 4.76X2	8-94250-923-2	01	1	1011-1308		●
20	04.686 CLIP; BRK PIPE (C) ID=6.35 & 4.76X2	8-94250-923-2	01	1	1309-	●	●
