Sayfa 1-41 - Isuzu EPC

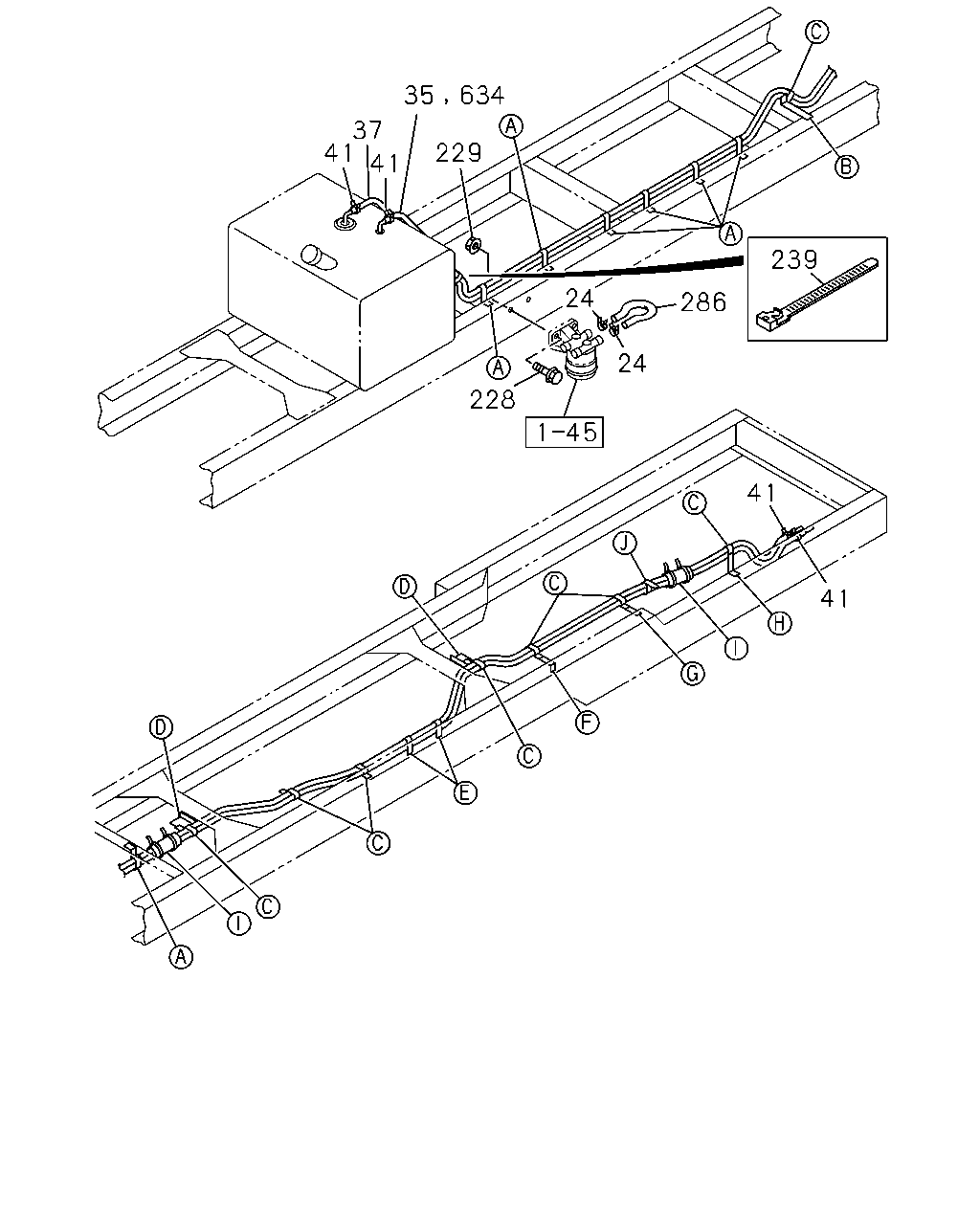

1-41 — FUEL PIPING; CHASSIS (#7982) — 273 parça

100 101 100 48 101 97 103 102 102 103 97 100 97 48 48 101 48 97 134 134 48 97 103 38 103 102 101 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
38	SLEEVE; RUBBER,RUBBER HOSE RR ENG AIR SUSP(LVD5FB) ISUZU M/T<X9A> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0103-0103	●
38	SLEEVE; RUBBER,RUBBER HOSE RR ENG AIR SUSP(LVD5FB) ISUZU M/T<X9A> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0104-0106	●
38	SLEEVE; RUBBER,RUBBER HOSE RR ENG AIR SUSP(LVD5FB) ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0107-0202	●
38	SLEEVE; RUBBER,RUBBER HOSE RR ENG AIR SUSP(LVD5FB) ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0203-0203	●
38	SLEEVE; RUBBER,RUBBER HOSE EURO3 SPECIFICATION(NJX) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0204-0210	●
38	SLEEVE; RUBBER,RUBBER HOSE EURO3 SPECIFICATION(NJX) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0211-	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0211-		●
38	SLEEVE; RUBBER,RUBBER HOSE RR ENG AIR SUSP(LVD5FB) ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0204-	●
38	SLEEVE; RUBBER,RUBBER HOSE RR ENG LEAF SUSP(LVR5FB) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0104-0106	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0107-0202	●
38	SLEEVE; RUBBER,RUBBER HOSE EURO3 SPECIFICATION(NJX) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0203-0203	●
38	SLEEVE; RUBBER,RUBBER HOSE RR ENG AIR SUSP(LVD5FB) A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) L=150 SERVICED BY L=1300	1-09360-677-1	04	1	0204-	●
38	SLEEVE; RUBBER,RUBBER HOSE RR ENG LEAF SUSP(LVR5FB) EXC. EURO3 SPECIFICATION(NJX) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0203-	●
48	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	09	1	0012-0210	●
48	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	09	1	0211-0512	●	●
48	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	09	1	0601-	●	●
48	BOLT; BRKT RR ENG LEAF SUSP(LVR5FB) (A) M10X30 FLANGE	0-28681-030-0	01	1	0012-0512	●
48	BOLT; BRKT RR ENG LEAF SUSP(LVR5FB) (A) M10X30 FLANGE	0-28651-030-0	01	1	0601-	●
48	BOLT; BRKT RR ENG LEAF SUSP(LVR5FB) (B) M8X30 FLANGE	0-28680-830-0	06	1	0204-0512			●
48	BOLT; BRKT RR ENG LEAF SUSP(LVR5FB) (B) M8X30 FLANGE	0-28650-830-0	06	1	0601-			●
97	BRACKET; CLIP (A)	1-38329-061-0	01	1	0012-0203	●
97	BRACKET; CLIP (A)	1-38329-061-0	01	1	0204-	●	●	●
97	BRACKET; CLIP (A)	1-38329-061-0	01	1	0204-			●
97	BRACKET; CLIP (B)	1-47478-738-0	01	1	0012-0203	●
97	BRACKET; CLIP (B)	1-47478-738-0	01	1	0204-	●	●
97	BRACKET; CLIP (C)	1-47478-924-0	02	1	0012-0210	●
97	BRACKET; CLIP (C)	1-47478-924-0	02	1	0211-	●	●
97	BRACKET; CLIP (D)	1-47478-937-0	01	1	0012-0210	●
97	BRACKET; CLIP (D)	1-47478-937-0	01	1	0211-	●	●
97	BRACKET; CLIP RR ENG AIR SUSP(LVD5FB) (E)	1-47478-941-0	01	1	0012-0203	●
97	BRACKET; CLIP RR ENG AIR SUSP(LVD5FB) (E)	1-47478-941-0	01	1	0204-	●	●
97	BRACKET; CLIP RR ENG LEAF SUSP(LVR5FB) (F)	1-47478-917-0	01	1	0012-	●
97	BRACKET; CLIP RR ENG LEAF SUSP(LVR5FB) (G)	1-47479-057-0	01	1	0012-	●
97	BRACKET; CLIP RR ENG LEAF SUSP(LVR5FB) (C)	1-47478-924-0	01	1	0204-			●
97	BRACKET; CLIP RR ENG LEAF SUSP(LVR5FB) (H)	1-47479-195-0	01	1	0204-			●
100	CLIP; FUEL PIPE (C) ID=33X16.5 L=50	5-09700-341-0	01	1	0012-0210	●
100	CLIP; FUEL PIPE (C) ID=33X16.5 L=50	5-09700-341-0	01	1	0211-	●	●
100	CLIP; FUEL PIPE RR ENG AIR SUSP(LVD5FB) (A) ID=14X29 H=30 L=25	1-09701-101-0	07	1	0012-0203	●
100	CLIP; FUEL PIPE RR ENG AIR SUSP(LVD5FB) (A) ID=14X29 H=30 L=25	1-09701-101-0	07	1	0204-	●	●
100	CLIP; FUEL PIPE RR ENG AIR SUSP(LVD5FB) (B) ID=16X2 L=20	9-09535-536-0	10	1	0012-0203	●
100	CLIP; FUEL PIPE RR ENG AIR SUSP(LVD5FB) (B) ID=16X2 L=20	9-09535-536-0	10	1	0204-0606	●
100	CLIP; FUEL PIPE (B) ID=16X2 L=20	9-09535-536-0	10	1	0204-0606		●	●
100	CLIP; FUEL PIPE RR ENG AIR SUSP(LVD5FB) (B) ID=16X2 L=20	0-95325-536-0	10	1	0607-	●
100	CLIP; FUEL PIPE (B) ID=16X2 L=20	0-95325-536-0	10	1	0607-		●	●
100	CLIP; FUEL PIPE RR ENG LEAF SUSP(LVR5FB) (A) ID=14X29 H=30 L=25	1-09701-101-0	08	1	0012-	●
100	CLIP; FUEL PIPE RR ENG LEAF SUSP(LVR5FB) (B) ID=16X2 L=20	9-09535-536-0	07	1	0012-0606	●
100	CLIP; FUEL PIPE RR ENG LEAF SUSP(LVR5FB) (B) ID=16X2 L=20	0-95325-536-0	07	1	0607-	●
100	CLIP; FUEL PIPE RR ENG LEAF SUSP(LVR5FB) (A) ID=14X29 H=30 L=25	1-09701-101-0	06	1	0204-			●
101	BOLT; CLIP,FUEL PIPE RR ENG AIR SUSP(LVD5FB) M8X30 FLANGE	0-28680-830-0	18	1	0012-0203	●
101	BOLT; CLIP,FUEL PIPE RR ENG AIR SUSP(LVD5FB) M8X30 FLANGE	0-28680-830-0	18	1	0204-0512	●	●
101	BOLT; CLIP,FUEL PIPE RR ENG AIR SUSP(LVD5FB) M8X30 FLANGE	0-28650-830-0	18	1	0601-	●
101	BOLT; CLIP,FUEL PIPE RR ENG LEAF SUSP(LVR5FB) M8X30 FLANGE	0-28680-830-0	16	1	0012-0512	●
101	BOLT; CLIP,FUEL PIPE RR ENG LEAF SUSP(LVR5FB) M8X30 FLANGE	0-28650-830-0	16	1	0601-	●
101	BOLT; CLIP,FUEL PIPE RR ENG LEAF SUSP(LVR5FB) M8X20 FLANGE	0-28680-820-0	02	1	0204-0512			●
101	BOLT; CLIP,FUEL PIPE RR ENG LEAF SUSP(LVR5FB) M8X20 FLANGE	0-28650-820-0	02	1	0601-			●
101	BOLT; CLIP,FUEL PIPE RR ENG LEAF SUSP(LVR5FB) M8X30 FLANGE	0-28680-830-0	14	1	0204-0512			●
101	BOLT; CLIP,FUEL PIPE RR ENG LEAF SUSP(LVR5FB) M8X30 FLANGE	0-28650-830-0	14	1	0601-			●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	16	1	0012-0203	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	16	1	0204-0602	●	●	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	16	1	0603-	●	●	●
103	NUT; BRKT RR ENG AIR SUSP(LVD5FB) (A) M8 FLANGE	0-91150-108-0	07	1	0101-0203	●
103	NUT; BRKT RR ENG AIR SUSP(LVD5FB) (A) M8 FLANGE	0-91150-108-0	07	1	0204-0602	●	●
103	NUT; BRKT RR ENG AIR SUSP(LVD5FB) (A) M8 FLANGE	0-91180-108-0	07	1	0603-	●
103	NUT; BRKT RR ENG LEAF SUSP(LVR5FB) (A) M8 FLANGE	0-91150-108-0	09	1	0012-0602	●
103	NUT; BRKT RR ENG LEAF SUSP(LVR5FB) (A) M8 FLANGE	0-91180-108-0	09	1	0603-	●
103	NUT; BRKT RR ENG LEAF SUSP(LVR5FB) (B) M10 FLANGE	0-91150-210-0	01	1	0012-0602	●
103	NUT; BRKT RR ENG LEAF SUSP(LVR5FB) (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●
103	NUT; BRKT RR ENG LEAF SUSP(LVR5FB) (A) M8 FLANGE	0-91150-108-0	06	1	0204-0602			●
103	NUT; BRKT RR ENG LEAF SUSP(LVR5FB) (A) M8 FLANGE	0-91180-108-0	06	1	0603-			●
134	CLIP; BAND,FUEL PIPE RR ENG AIR SUSP(LVD5FB) L=250	5-09707-030-1	02	1	0103-0103	●
134	CLIP; BAND,FUEL PIPE RR ENG AIR SUSP(LVD5FB) L=250	5-09707-030-1	03	1	0104-0202	●
134	CLIP; BAND,FUEL PIPE EURO3 SPECIFICATION(NJX) L=250	5-09707-030-1	04	1	0203-0203	●
134	CLIP; BAND,FUEL PIPE RR ENG AIR SUSP(LVD5FB) A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) L=250	5-09707-030-1	07	1	0204-	●
134	CLIP; BAND,FUEL PIPE RR ENG AIR SUSP(LVD5FB) L=250	5-09707-030-1	02	1	0107-0202	●
134	CLIP; BAND,FUEL PIPE RR ENG AIR SUSP(LVD5FB) L=250	5-09707-030-1	05	1	0203-0203	●
134	CLIP; BAND,FUEL PIPE EURO3 SPECIFICATION(NJX) L=250	5-09707-030-1	04	1	0204-0210	●
134	CLIP; BAND,FUEL PIPE EURO3 SPECIFICATION(NJX) L=250	5-09707-030-1	04	1	0211-	●
134	CLIP; BAND,FUEL PIPE L=250	5-09707-030-1	04	1	0211-		●
134	CLIP; BAND,FUEL PIPE RR ENG AIR SUSP(LVD5FB) ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) L=250	5-09707-030-1	05	1	0204-	●
134	CLIP; BAND,FUEL PIPE RR ENG LEAF SUSP(LVR5FB) L=250	5-09707-030-1	01	1	0104-	●

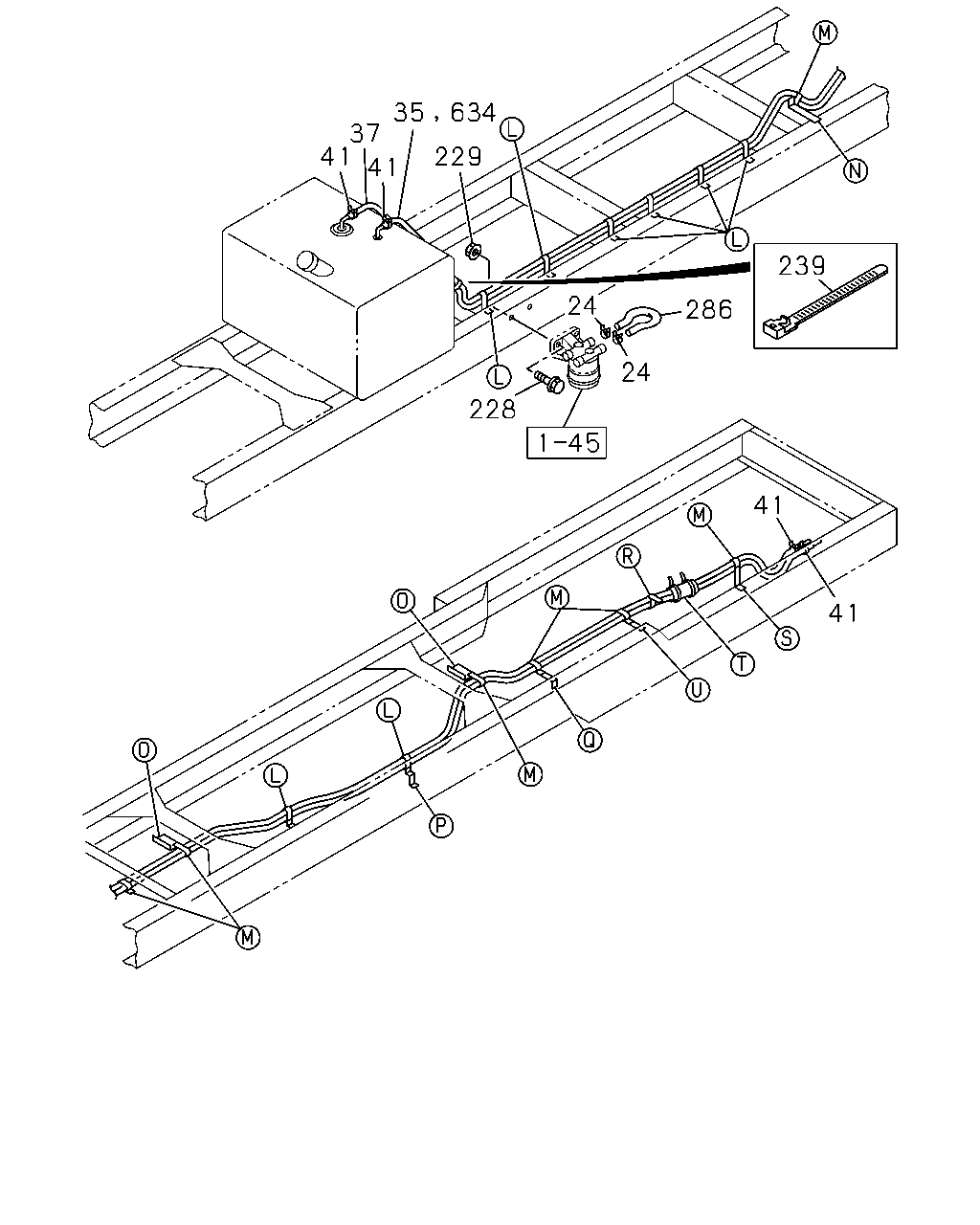

41 41 37 35 634 229 228 24 24 286 239 41 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	CLIP; FUEL HOSE ID=14	1-09704-102-0	02	1	0012-0203	●
24	CLIP; FUEL HOSE ID=14	1-09704-102-0	02	1	0204-	●	●	●
35	PIPE; FUEL TANK,RETURN SERVICED BY L=8000	0-01260-800-0	01	1	0012-0106	●
37	HOSE; RUBBER DELIVERY SERVICED BY L=8000	0-01260-800-0	01	1	0012-0203	●
37	HOSE; RUBBER DELIVERY SERVICED BY L=8000	0-01260-800-0	01	1	0204-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	04	1	0012-0203	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	04	1	0204-	●	●	●
228	BOLT; BRKT,SEDIMENTER M10X35 FLANGE	0-28681-035-0	02	1	0012-0203	●
228	BOLT; BRKT,SEDIMENTER M10X35 FLANGE	0-28681-035-0	02	1	0204-0512	●	●	●
228	BOLT; BRKT,SEDIMENTER M10X35 FLANGE	0-28651-035-0	02	1	0601-	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	0012-0203	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	0204-0602	●	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●
239	CLIP; FUEL PIPE L=250	5-09707-030-1	02	1	0012-0203	●
239	CLIP; FUEL PIPE L=250	5-09707-030-1	02	1	0204-	●	●	●
286	PIPE; VINYL SEDIMENTER L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0012-0203	●
286	PIPE; VINYL SEDIMENTER L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0204-0403	●	●	●
286	PIPE; VINYL SEDIMENTER L=260 SERVICED BY L=3000	0-01260-300-0	01	1	0404-	●
634	HOSE; RUBBER RETURN SERVICED BY L=8000	0-01260-800-0	01	1	0107-	●

100 101 100 48 101 97 103 102 102 103 97 97 97 48 48 48 103 103 102 97 134 134 48 101 38 100 103 48 97 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
38	SLEEVE; RUBBER,RUBBER HOSE RR ENG AIR SUSP(LVD5FB) ISUZU M/T<X9A> L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0103-0103	●
38	SLEEVE; RUBBER,RUBBER HOSE RR ENG AIR SUSP(LVD5FB) ISUZU M/T<X9A> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0104-0106	●
38	SLEEVE; RUBBER,RUBBER HOSE RR ENG AIR SUSP(LVD5FB) ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0107-0202	●
38	SLEEVE; RUBBER,RUBBER HOSE RR ENG AIR SUSP(LVD5FB) ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0203-0203	●
38	SLEEVE; RUBBER,RUBBER HOSE EURO3 SPECIFICATION(NJX) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0204-0210	●
38	SLEEVE; RUBBER,RUBBER HOSE EURO3 SPECIFICATION(NJX) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0211-	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0211-		●
38	SLEEVE; RUBBER,RUBBER HOSE RR ENG AIR SUSP(LVD5FB) ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0204-	●
38	SLEEVE; RUBBER,RUBBER HOSE RR ENG LEAF SUSP(LVR5FB) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0104-0106	●
38	SLEEVE; RUBBER,RUBBER HOSE L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0107-0202	●
38	SLEEVE; RUBBER,RUBBER HOSE EURO3 SPECIFICATION(NJX) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0203-0203	●
38	SLEEVE; RUBBER,RUBBER HOSE RR ENG AIR SUSP(LVD5FB) A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) L=150 SERVICED BY L=1300	1-09360-677-1	04	1	0204-	●
38	SLEEVE; RUBBER,RUBBER HOSE RR ENG LEAF SUSP(LVR5FB) EXC. EURO3 SPECIFICATION(NJX) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0203-	●
48	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	09	1	0012-0210	●
48	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	09	1	0211-0512	●	●
48	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	09	1	0601-	●	●
48	BOLT; BRKT RR ENG LEAF SUSP(LVR5FB) (A) M10X30 FLANGE	0-28681-030-0	01	1	0012-0512	●
48	BOLT; BRKT RR ENG LEAF SUSP(LVR5FB) (A) M10X30 FLANGE	0-28651-030-0	01	1	0601-	●
48	BOLT; BRKT RR ENG LEAF SUSP(LVR5FB) (B) M8X30 FLANGE	0-28680-830-0	06	1	0204-0512			●
48	BOLT; BRKT RR ENG LEAF SUSP(LVR5FB) (B) M8X30 FLANGE	0-28650-830-0	06	1	0601-			●
97	BRACKET; CLIP (A)	1-38329-061-0	01	1	0012-0203	●
97	BRACKET; CLIP (A)	1-38329-061-0	01	1	0204-	●	●	●
97	BRACKET; CLIP (A)	1-38329-061-0	01	1	0204-			●
97	BRACKET; CLIP (B)	1-47478-738-0	01	1	0012-0203	●
97	BRACKET; CLIP (B)	1-47478-738-0	01	1	0204-	●	●
97	BRACKET; CLIP (C)	1-47478-924-0	02	1	0012-0210	●
97	BRACKET; CLIP (C)	1-47478-924-0	02	1	0211-	●	●
97	BRACKET; CLIP (D)	1-47478-937-0	01	1	0012-0210	●
97	BRACKET; CLIP (D)	1-47478-937-0	01	1	0211-	●	●
97	BRACKET; CLIP RR ENG AIR SUSP(LVD5FB) (E)	1-47478-941-0	01	1	0012-0203	●
97	BRACKET; CLIP RR ENG AIR SUSP(LVD5FB) (E)	1-47478-941-0	01	1	0204-	●	●
97	BRACKET; CLIP RR ENG LEAF SUSP(LVR5FB) (F)	1-47478-917-0	01	1	0012-	●
97	BRACKET; CLIP RR ENG LEAF SUSP(LVR5FB) (G)	1-47479-057-0	01	1	0012-	●
97	BRACKET; CLIP RR ENG LEAF SUSP(LVR5FB) (C)	1-47478-924-0	01	1	0204-			●
97	BRACKET; CLIP RR ENG LEAF SUSP(LVR5FB) (H)	1-47479-195-0	01	1	0204-			●
100	CLIP; FUEL PIPE (C) ID=33X16.5 L=50	5-09700-341-0	01	1	0012-0210	●
100	CLIP; FUEL PIPE (C) ID=33X16.5 L=50	5-09700-341-0	01	1	0211-	●	●
100	CLIP; FUEL PIPE RR ENG AIR SUSP(LVD5FB) (A) ID=14X29 H=30 L=25	1-09701-101-0	07	1	0012-0203	●
100	CLIP; FUEL PIPE RR ENG AIR SUSP(LVD5FB) (A) ID=14X29 H=30 L=25	1-09701-101-0	07	1	0204-	●	●
100	CLIP; FUEL PIPE RR ENG AIR SUSP(LVD5FB) (B) ID=16X2 L=20	9-09535-536-0	10	1	0012-0203	●
100	CLIP; FUEL PIPE RR ENG AIR SUSP(LVD5FB) (B) ID=16X2 L=20	9-09535-536-0	10	1	0204-0606	●
100	CLIP; FUEL PIPE (B) ID=16X2 L=20	9-09535-536-0	10	1	0204-0606		●	●
100	CLIP; FUEL PIPE RR ENG AIR SUSP(LVD5FB) (B) ID=16X2 L=20	0-95325-536-0	10	1	0607-	●
100	CLIP; FUEL PIPE (B) ID=16X2 L=20	0-95325-536-0	10	1	0607-		●	●
100	CLIP; FUEL PIPE RR ENG LEAF SUSP(LVR5FB) (A) ID=14X29 H=30 L=25	1-09701-101-0	08	1	0012-	●
100	CLIP; FUEL PIPE RR ENG LEAF SUSP(LVR5FB) (B) ID=16X2 L=20	9-09535-536-0	07	1	0012-0606	●
100	CLIP; FUEL PIPE RR ENG LEAF SUSP(LVR5FB) (B) ID=16X2 L=20	0-95325-536-0	07	1	0607-	●
100	CLIP; FUEL PIPE RR ENG LEAF SUSP(LVR5FB) (A) ID=14X29 H=30 L=25	1-09701-101-0	06	1	0204-			●
101	BOLT; CLIP,FUEL PIPE RR ENG AIR SUSP(LVD5FB) M8X30 FLANGE	0-28680-830-0	18	1	0012-0203	●
101	BOLT; CLIP,FUEL PIPE RR ENG AIR SUSP(LVD5FB) M8X30 FLANGE	0-28680-830-0	18	1	0204-0512	●	●
101	BOLT; CLIP,FUEL PIPE RR ENG AIR SUSP(LVD5FB) M8X30 FLANGE	0-28650-830-0	18	1	0601-	●
101	BOLT; CLIP,FUEL PIPE RR ENG LEAF SUSP(LVR5FB) M8X30 FLANGE	0-28680-830-0	16	1	0012-0512	●
101	BOLT; CLIP,FUEL PIPE RR ENG LEAF SUSP(LVR5FB) M8X30 FLANGE	0-28650-830-0	16	1	0601-	●
101	BOLT; CLIP,FUEL PIPE RR ENG LEAF SUSP(LVR5FB) M8X20 FLANGE	0-28680-820-0	02	1	0204-0512			●
101	BOLT; CLIP,FUEL PIPE RR ENG LEAF SUSP(LVR5FB) M8X20 FLANGE	0-28650-820-0	02	1	0601-			●
101	BOLT; CLIP,FUEL PIPE RR ENG LEAF SUSP(LVR5FB) M8X30 FLANGE	0-28680-830-0	14	1	0204-0512			●
101	BOLT; CLIP,FUEL PIPE RR ENG LEAF SUSP(LVR5FB) M8X30 FLANGE	0-28650-830-0	14	1	0601-			●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	16	1	0012-0203	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	16	1	0204-0602	●	●	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	16	1	0603-	●	●	●
103	NUT; BRKT RR ENG AIR SUSP(LVD5FB) (A) M8 FLANGE	0-91150-108-0	07	1	0101-0203	●
103	NUT; BRKT RR ENG AIR SUSP(LVD5FB) (A) M8 FLANGE	0-91150-108-0	07	1	0204-0602	●	●
103	NUT; BRKT RR ENG AIR SUSP(LVD5FB) (A) M8 FLANGE	0-91180-108-0	07	1	0603-	●
103	NUT; BRKT RR ENG LEAF SUSP(LVR5FB) (A) M8 FLANGE	0-91150-108-0	09	1	0012-0602	●
103	NUT; BRKT RR ENG LEAF SUSP(LVR5FB) (A) M8 FLANGE	0-91180-108-0	09	1	0603-	●
103	NUT; BRKT RR ENG LEAF SUSP(LVR5FB) (B) M10 FLANGE	0-91150-210-0	01	1	0012-0602	●
103	NUT; BRKT RR ENG LEAF SUSP(LVR5FB) (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●
103	NUT; BRKT RR ENG LEAF SUSP(LVR5FB) (A) M8 FLANGE	0-91150-108-0	06	1	0204-0602			●
103	NUT; BRKT RR ENG LEAF SUSP(LVR5FB) (A) M8 FLANGE	0-91180-108-0	06	1	0603-			●
134	CLIP; BAND,FUEL PIPE RR ENG AIR SUSP(LVD5FB) L=250	5-09707-030-1	02	1	0103-0103	●
134	CLIP; BAND,FUEL PIPE RR ENG AIR SUSP(LVD5FB) L=250	5-09707-030-1	03	1	0104-0202	●
134	CLIP; BAND,FUEL PIPE EURO3 SPECIFICATION(NJX) L=250	5-09707-030-1	04	1	0203-0203	●
134	CLIP; BAND,FUEL PIPE RR ENG AIR SUSP(LVD5FB) A/T ZF 4 HP500 DD-2 W/RETARDER(Y2E) L=250	5-09707-030-1	07	1	0204-	●
134	CLIP; BAND,FUEL PIPE RR ENG AIR SUSP(LVD5FB) L=250	5-09707-030-1	02	1	0107-0202	●
134	CLIP; BAND,FUEL PIPE RR ENG AIR SUSP(LVD5FB) L=250	5-09707-030-1	05	1	0203-0203	●
134	CLIP; BAND,FUEL PIPE EURO3 SPECIFICATION(NJX) L=250	5-09707-030-1	04	1	0204-0210	●
134	CLIP; BAND,FUEL PIPE EURO3 SPECIFICATION(NJX) L=250	5-09707-030-1	04	1	0211-	●
134	CLIP; BAND,FUEL PIPE L=250	5-09707-030-1	04	1	0211-		●
134	CLIP; BAND,FUEL PIPE RR ENG AIR SUSP(LVD5FB) ISUZU M/T<X9A> EXC. EURO3 SPECIFICATION(NJX) L=250	5-09707-030-1	05	1	0204-	●
134	CLIP; BAND,FUEL PIPE RR ENG LEAF SUSP(LVR5FB) L=250	5-09707-030-1	01	1	0104-	●

41 41 37 229 634 35 24 228 24 286 239 41 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	CLIP; FUEL HOSE ID=14	1-09704-102-0	02	1	0012-0203	●
24	CLIP; FUEL HOSE ID=14	1-09704-102-0	02	1	0204-	●	●	●
35	PIPE; FUEL TANK,RETURN SERVICED BY L=8000	0-01260-800-0	01	1	0012-0106	●
37	HOSE; RUBBER DELIVERY SERVICED BY L=8000	0-01260-800-0	01	1	0012-0203	●
37	HOSE; RUBBER DELIVERY SERVICED BY L=8000	0-01260-800-0	01	1	0204-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	04	1	0012-0203	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	04	1	0204-	●	●	●
228	BOLT; BRKT,SEDIMENTER M10X35 FLANGE	0-28681-035-0	02	1	0012-0203	●
228	BOLT; BRKT,SEDIMENTER M10X35 FLANGE	0-28681-035-0	02	1	0204-0512	●	●	●
228	BOLT; BRKT,SEDIMENTER M10X35 FLANGE	0-28651-035-0	02	1	0601-	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	0012-0203	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	0204-0602	●	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●
239	CLIP; FUEL PIPE L=250	5-09707-030-1	02	1	0012-0203	●
239	CLIP; FUEL PIPE L=250	5-09707-030-1	02	1	0204-	●	●	●
286	PIPE; VINYL SEDIMENTER L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0012-0203	●
286	PIPE; VINYL SEDIMENTER L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0204-0403	●	●	●
286	PIPE; VINYL SEDIMENTER L=260 SERVICED BY L=3000	0-01260-300-0	01	1	0404-	●
634	HOSE; RUBBER RETURN SERVICED BY L=8000	0-01260-800-0	01	1	0107-	●

100 100 100 102 48 101 101 101 97 103 102 102 101 100 100 97 101 103 97 48 102 102 103 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
48	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	09	1	0012-0210	●
48	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	09	1	0211-0512	●	●
48	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	09	1	0601-	●	●
48	BOLT; BRKT RR ENG LEAF SUSP(LVR5FB) (A) M10X30 FLANGE	0-28681-030-0	01	1	0012-0512	●
48	BOLT; BRKT RR ENG LEAF SUSP(LVR5FB) (A) M10X30 FLANGE	0-28651-030-0	01	1	0601-	●
48	BOLT; BRKT RR ENG LEAF SUSP(LVR5FB) (B) M8X30 FLANGE	0-28680-830-0	06	1	0204-0512			●
48	BOLT; BRKT RR ENG LEAF SUSP(LVR5FB) (B) M8X30 FLANGE	0-28650-830-0	06	1	0601-			●
97	BRACKET; CLIP (A)	1-38329-061-0	01	1	0012-0203	●
97	BRACKET; CLIP (A)	1-38329-061-0	01	1	0204-	●	●	●
97	BRACKET; CLIP (A)	1-38329-061-0	01	1	0204-			●
97	BRACKET; CLIP (B)	1-47478-738-0	01	1	0012-0203	●
97	BRACKET; CLIP (B)	1-47478-738-0	01	1	0204-	●	●
97	BRACKET; CLIP (C)	1-47478-924-0	02	1	0012-0210	●
97	BRACKET; CLIP (C)	1-47478-924-0	02	1	0211-	●	●
97	BRACKET; CLIP (D)	1-47478-937-0	01	1	0012-0210	●
97	BRACKET; CLIP (D)	1-47478-937-0	01	1	0211-	●	●
97	BRACKET; CLIP RR ENG AIR SUSP(LVD5FB) (E)	1-47478-941-0	01	1	0012-0203	●
97	BRACKET; CLIP RR ENG AIR SUSP(LVD5FB) (E)	1-47478-941-0	01	1	0204-	●	●
97	BRACKET; CLIP RR ENG LEAF SUSP(LVR5FB) (F)	1-47478-917-0	01	1	0012-	●
97	BRACKET; CLIP RR ENG LEAF SUSP(LVR5FB) (G)	1-47479-057-0	01	1	0012-	●
97	BRACKET; CLIP RR ENG LEAF SUSP(LVR5FB) (C)	1-47478-924-0	01	1	0204-			●
97	BRACKET; CLIP RR ENG LEAF SUSP(LVR5FB) (H)	1-47479-195-0	01	1	0204-			●
100	CLIP; FUEL PIPE (C) ID=33X16.5 L=50	5-09700-341-0	01	1	0012-0210	●
100	CLIP; FUEL PIPE (C) ID=33X16.5 L=50	5-09700-341-0	01	1	0211-	●	●
100	CLIP; FUEL PIPE RR ENG AIR SUSP(LVD5FB) (A) ID=14X29 H=30 L=25	1-09701-101-0	07	1	0012-0203	●
100	CLIP; FUEL PIPE RR ENG AIR SUSP(LVD5FB) (A) ID=14X29 H=30 L=25	1-09701-101-0	07	1	0204-	●	●
100	CLIP; FUEL PIPE RR ENG AIR SUSP(LVD5FB) (B) ID=16X2 L=20	9-09535-536-0	10	1	0012-0203	●
100	CLIP; FUEL PIPE RR ENG AIR SUSP(LVD5FB) (B) ID=16X2 L=20	9-09535-536-0	10	1	0204-0606	●
100	CLIP; FUEL PIPE (B) ID=16X2 L=20	9-09535-536-0	10	1	0204-0606		●	●
100	CLIP; FUEL PIPE RR ENG AIR SUSP(LVD5FB) (B) ID=16X2 L=20	0-95325-536-0	10	1	0607-	●
100	CLIP; FUEL PIPE (B) ID=16X2 L=20	0-95325-536-0	10	1	0607-		●	●
100	CLIP; FUEL PIPE RR ENG LEAF SUSP(LVR5FB) (A) ID=14X29 H=30 L=25	1-09701-101-0	08	1	0012-	●
100	CLIP; FUEL PIPE RR ENG LEAF SUSP(LVR5FB) (B) ID=16X2 L=20	9-09535-536-0	07	1	0012-0606	●
100	CLIP; FUEL PIPE RR ENG LEAF SUSP(LVR5FB) (B) ID=16X2 L=20	0-95325-536-0	07	1	0607-	●
100	CLIP; FUEL PIPE RR ENG LEAF SUSP(LVR5FB) (A) ID=14X29 H=30 L=25	1-09701-101-0	06	1	0204-			●
101	BOLT; CLIP,FUEL PIPE RR ENG AIR SUSP(LVD5FB) M8X30 FLANGE	0-28680-830-0	18	1	0012-0203	●
101	BOLT; CLIP,FUEL PIPE RR ENG AIR SUSP(LVD5FB) M8X30 FLANGE	0-28680-830-0	18	1	0204-0512	●	●
101	BOLT; CLIP,FUEL PIPE RR ENG AIR SUSP(LVD5FB) M8X30 FLANGE	0-28650-830-0	18	1	0601-	●
101	BOLT; CLIP,FUEL PIPE RR ENG LEAF SUSP(LVR5FB) M8X30 FLANGE	0-28680-830-0	16	1	0012-0512	●
101	BOLT; CLIP,FUEL PIPE RR ENG LEAF SUSP(LVR5FB) M8X30 FLANGE	0-28650-830-0	16	1	0601-	●
101	BOLT; CLIP,FUEL PIPE RR ENG LEAF SUSP(LVR5FB) M8X20 FLANGE	0-28680-820-0	02	1	0204-0512			●
101	BOLT; CLIP,FUEL PIPE RR ENG LEAF SUSP(LVR5FB) M8X20 FLANGE	0-28650-820-0	02	1	0601-			●
101	BOLT; CLIP,FUEL PIPE RR ENG LEAF SUSP(LVR5FB) M8X30 FLANGE	0-28680-830-0	14	1	0204-0512			●
101	BOLT; CLIP,FUEL PIPE RR ENG LEAF SUSP(LVR5FB) M8X30 FLANGE	0-28650-830-0	14	1	0601-			●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	16	1	0012-0203	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91150-108-0	16	1	0204-0602	●	●	●
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	16	1	0603-	●	●	●
103	NUT; BRKT RR ENG AIR SUSP(LVD5FB) (A) M8 FLANGE	0-91150-108-0	07	1	0101-0203	●
103	NUT; BRKT RR ENG AIR SUSP(LVD5FB) (A) M8 FLANGE	0-91150-108-0	07	1	0204-0602	●	●
103	NUT; BRKT RR ENG AIR SUSP(LVD5FB) (A) M8 FLANGE	0-91180-108-0	07	1	0603-	●
103	NUT; BRKT RR ENG LEAF SUSP(LVR5FB) (A) M8 FLANGE	0-91150-108-0	09	1	0012-0602	●
103	NUT; BRKT RR ENG LEAF SUSP(LVR5FB) (A) M8 FLANGE	0-91180-108-0	09	1	0603-	●
103	NUT; BRKT RR ENG LEAF SUSP(LVR5FB) (B) M10 FLANGE	0-91150-210-0	01	1	0012-0602	●
103	NUT; BRKT RR ENG LEAF SUSP(LVR5FB) (B) M10 FLANGE	0-91180-210-0	01	1	0603-	●
103	NUT; BRKT RR ENG LEAF SUSP(LVR5FB) (A) M8 FLANGE	0-91150-108-0	06	1	0204-0602			●
103	NUT; BRKT RR ENG LEAF SUSP(LVR5FB) (A) M8 FLANGE	0-91180-108-0	06	1	0603-			●

41 41 228 24 286 239 24 229 634 35 37 41 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	CLIP; FUEL HOSE ID=14	1-09704-102-0	02	1	0012-0203	●
24	CLIP; FUEL HOSE ID=14	1-09704-102-0	02	1	0204-	●	●	●
35	PIPE; FUEL TANK,RETURN SERVICED BY L=8000	0-01260-800-0	01	1	0012-0106	●
37	HOSE; RUBBER DELIVERY SERVICED BY L=8000	0-01260-800-0	01	1	0012-0203	●
37	HOSE; RUBBER DELIVERY SERVICED BY L=8000	0-01260-800-0	01	1	0204-	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	04	1	0012-0203	●
41	CLIP; FUEL PIPE,FUEL TANK ID=14	1-09704-102-0	04	1	0204-	●	●	●
228	BOLT; BRKT,SEDIMENTER M10X35 FLANGE	0-28681-035-0	02	1	0012-0203	●
228	BOLT; BRKT,SEDIMENTER M10X35 FLANGE	0-28681-035-0	02	1	0204-0512	●	●	●
228	BOLT; BRKT,SEDIMENTER M10X35 FLANGE	0-28651-035-0	02	1	0601-	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	0012-0203	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	0204-0602	●	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●
239	CLIP; FUEL PIPE L=250	5-09707-030-1	02	1	0012-0203	●
239	CLIP; FUEL PIPE L=250	5-09707-030-1	02	1	0204-	●	●	●
286	PIPE; VINYL SEDIMENTER L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0012-0203	●
286	PIPE; VINYL SEDIMENTER L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0204-0403	●	●	●
286	PIPE; VINYL SEDIMENTER L=260 SERVICED BY L=3000	0-01260-300-0	01	1	0404-	●
634	HOSE; RUBBER RETURN SERVICED BY L=8000	0-01260-800-0	01	1	0107-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
