3-55 — BRAKE PIPING; OIL,REAR (#79819) — 12 parça

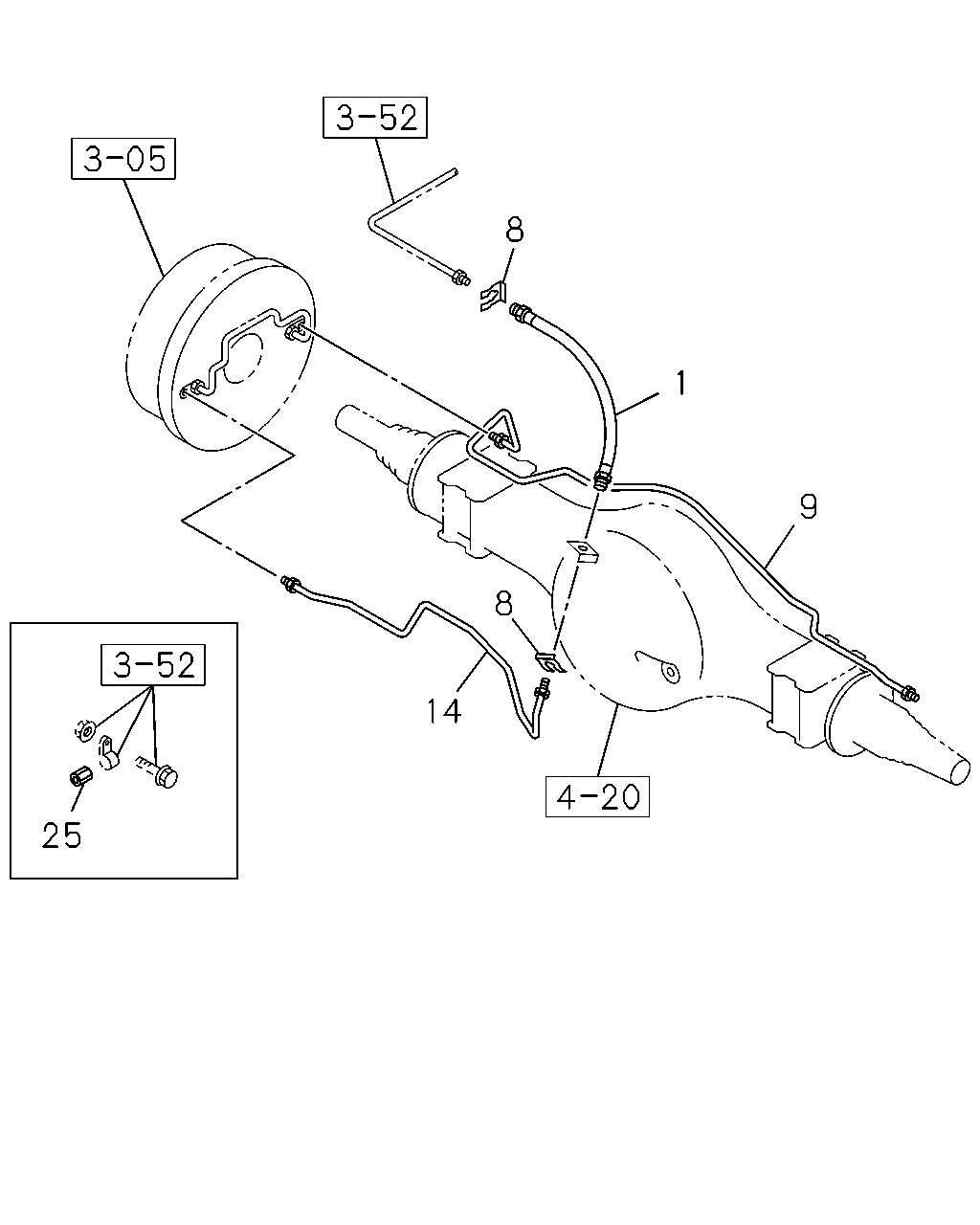

çizim 119828
9 1 14 8 25 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.680 HOSE; FLEX,RR BRK
L=370 		8-97035-574-0 01 1 1011-1308 ●
1 04.680 HOSE; FLEX,RR BRK
L=370 		8-97035-574-0 01 1 1309- ● ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 1011-1308 ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 1309- ● ●
9 04.685 PIPE; BRK,RR AXLE 8-97089-922-0 01 1 1309- ●
9 04.685 PIPE; BRK,RR AXLE 8-97034-530-0 01 1 1011-1308 ●
9 04.685 PIPE; BRK,RR AXLE 8-97034-530-0 01 1 1309- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97076-838-2 01 1 1309- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97070-590-0 01 1 1011-1308 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97070-590-0 01 1 1309- ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1011-1308 ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1309- ● ●
