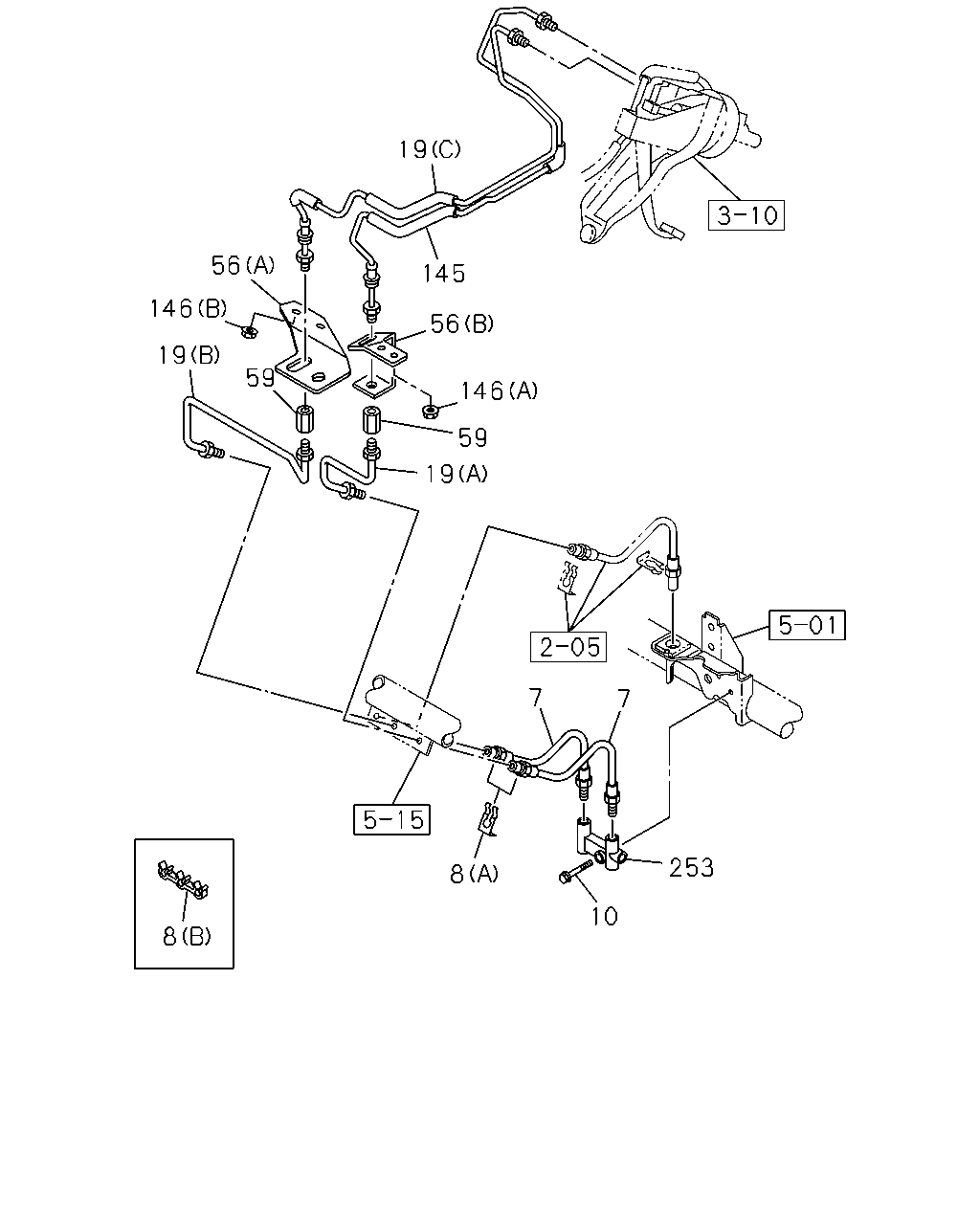

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#79817) — 28 parça

19 56 146 19 59 8 19 59 146 56 145 8 10 253 7 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-97171-031-0	02	1	1011-1308	●
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-97171-031-0	02	1	1309-	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 04.686 (B)	8-97076-471-0	01	1	1011-1308	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 04.686 (B)	8-97076-471-0	01	1	1309-	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	1011-1308	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	1309-	●	●
10	04.686 BOLT; JOINT 00.685 M6X40 FLANGE	0-28650-640-0	01	1	1011-1308	●
10	04.686 BOLT; JOINT 00.685 M6X40 FLANGE	0-28650-640-0	01	1	1309-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A) REAR	8-97070-296-2	01	1	1011-1308	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A) REAR	8-97070-296-2	01	1	1309-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B) FRONT	5-47411-763-0	01	1	1011-1308	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B) FRONT	5-47411-763-0	01	1	1309-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-97314-591-0	01	1	1011-1308	●
19	04.685 PIPE; BRK,M/CYL TO UNION (C)	8-97314-591-0	01	1	1309-	●	●
56	04.686 BRACKET; UNION,BRK (A)	8-97102-365-0	01	1	1011-1308	●
56	04.686 BRACKET; UNION,BRK (A)	8-97102-365-0	01	1	1309-	●	●
56	04.686 BRACKET; UNION,BRK (B)	8-97102-366-2	01	1	1011-1308	●
56	04.686 BRACKET; UNION,BRK (B)	8-97102-366-2	01	1	1309-	●	●
59	04.686 UNION; BRK PIPE M10 STRAIGHT	0-92107-005-0	02	1	1011-1308	●
59	04.686 UNION; BRK PIPE M10 STRAIGHT	0-92107-005-0	02	1	1309-	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION	8-97314-584-0	01	1	1011-1308	●
145	04.685 PIPE; BRK,METERING VLV TO UNION	8-97314-584-0	01	1	1309-	●	●
146	04.685 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	1011-1308	●
146	04.685 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	1309-	●	●
146	04.685 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1011-1308	●
146	04.685 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	1309-	●	●
253	04.840 JOINT 04.686	5-47456-009-1	01	1	1011-1308	●
253	04.840 JOINT 04.686	5-47456-009-1	01	1	1309-	●	●
