◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51376 - QKR(MIDDLE EAST) ▶ 3 - Brakes, Brake System ▶ 3-30 - BRAKE MASTER CYLINDER ▶
3-30 — BRAKE MASTER CYLINDER (#79815) — 28 parça

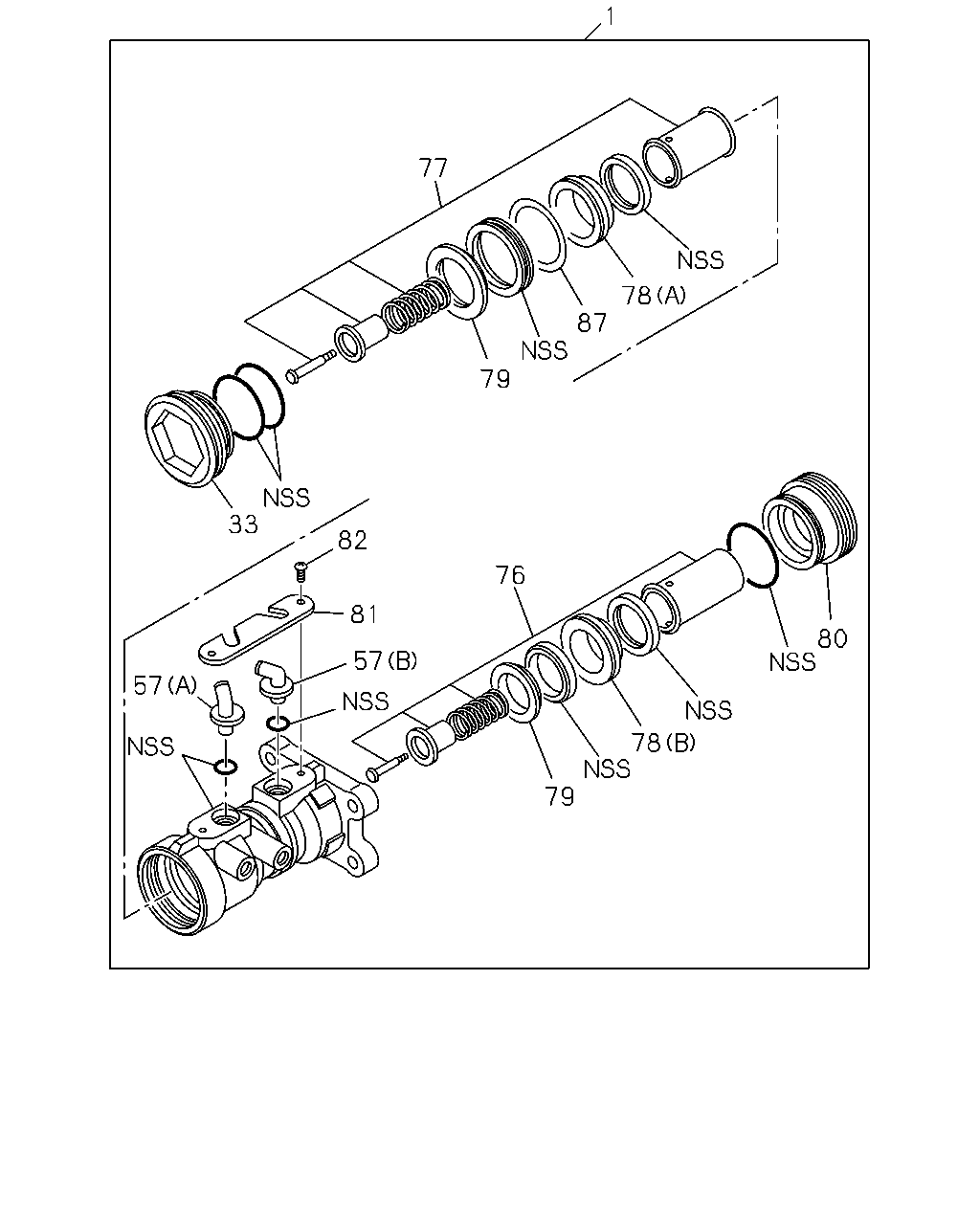

çizim 117280
80 78 79 76 57 82 81 57 33 79 77 1 87 78
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.650 CYLINDER ASM; BRK MASTER 8-97315-164-0 01 1 1011-1308 ●
1 04.650 CYLINDER ASM; BRK MASTER 8-97315-164-0 01 1 1309- ● ●
33 04.661 PLUG; END,M/CYL 8-97186-696-0 01 1 1011-1308 ●
33 04.661 PLUG; END,M/CYL 8-97186-696-0 01 1 1309- ● ●
57 04.651 NIPPLE; BRK M/CYL
(A) 		8-97130-441-0 01 1 1011-1308 ●
57 04.651 NIPPLE; BRK M/CYL
(A) 		8-97130-441-0 01 1 1309- ● ●
57 04.651 NIPPLE; BRK M/CYL
(B) 		8-97130-442-0 01 1 1011-1308 ●
57 04.651 NIPPLE; BRK M/CYL
(B) 		8-97130-442-0 01 1 1309- ● ●
76 04.653 PISTON ASM; PRIMARY 8-97224-636-0 01 1 1011-1308 ●
76 04.653 PISTON ASM; PRIMARY 8-97224-636-0 01 1 1309- ● ●
77 04.653 PISTON ASM; SECONDARY 8-97224-635-0 01 1 1011-1308 ●
77 04.653 PISTON ASM; SECONDARY 8-97224-635-0 01 1 1309- ● ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97130-454-0 01 1 1011-1308 ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97130-454-0 01 1 1309- ● ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97217-310-0 01 1 1011-1308 ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97217-310-0 01 1 1309- ● ●
79 04.651 SUPPORTER; CUP 8-97130-462-0 02 1 1011-1308 ●
79 04.651 SUPPORTER; CUP 8-97130-462-0 02 1 1309- ● ●
80 04.651 COVER; MASTER CYL 8-97130-448-0 01 1 1011-1308 ●
80 04.651 COVER; MASTER CYL 8-97130-448-0 01 1 1309- ● ●
81 04.651 HOLDER; NIPPLE 8-97315-168-0 01 1 1011-1308 ●
81 04.651 HOLDER; NIPPLE 8-97315-168-0 01 1 1309- ● ●
82 04.651 SCREW; HOLDER 8-97130-446-0 02 1 1011-1308 ●
82 04.651 SCREW; HOLDER 8-97130-446-0 02 1 1309- ● ●
87 04.662 SPACER; CUP 8-97130-458-0 01 1 1011-1308 ●
87 04.662 SPACER; CUP 8-97130-458-0 01 1 1309- ● ●

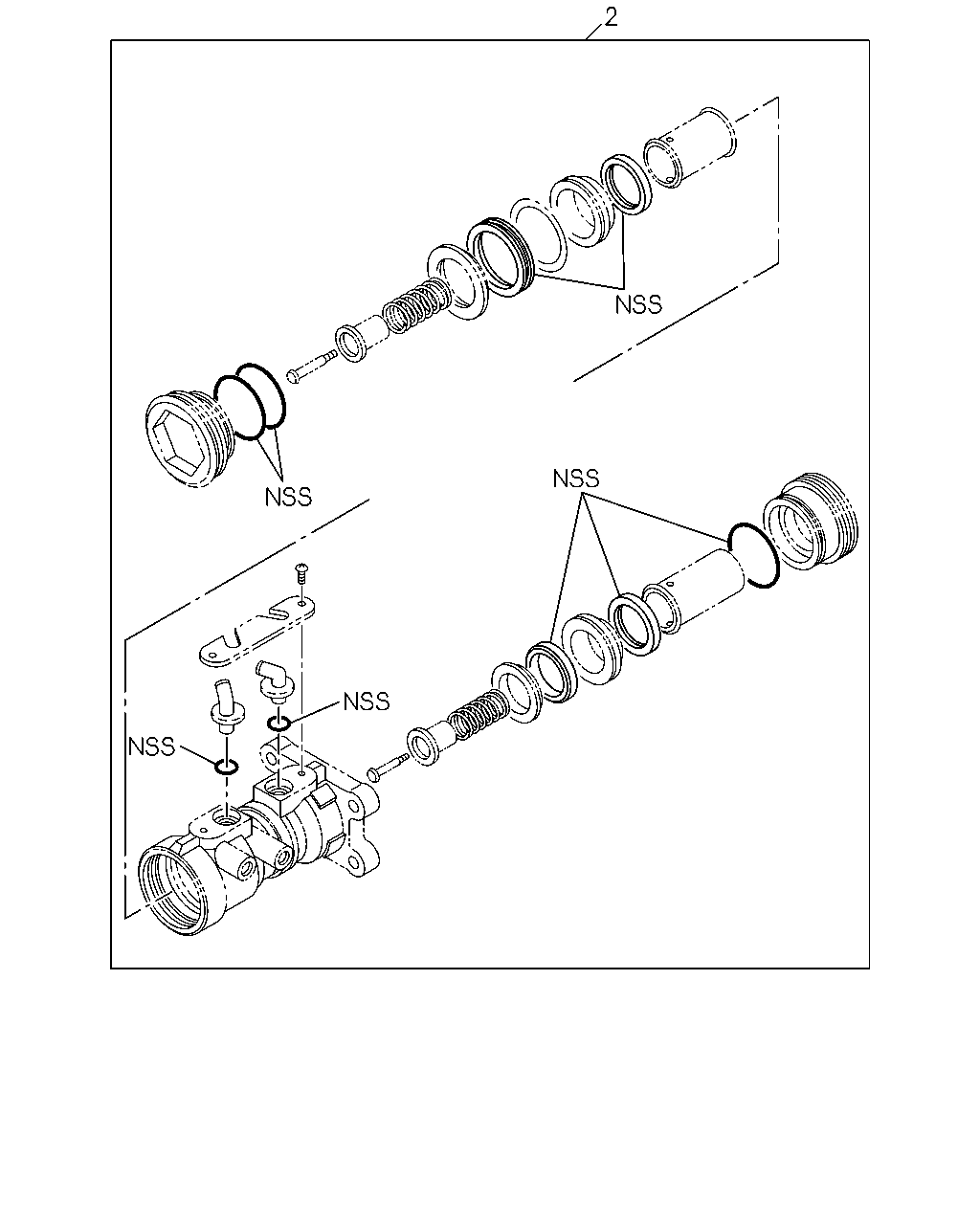

çizim 191765
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 04.649 REPAIR KIT; BRK,M/CYL 8-97130-470-0 01 1 1011-1308 ●
2 04.649 REPAIR KIT; BRK,M/CYL 8-97130-470-0 01 1 1309- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
