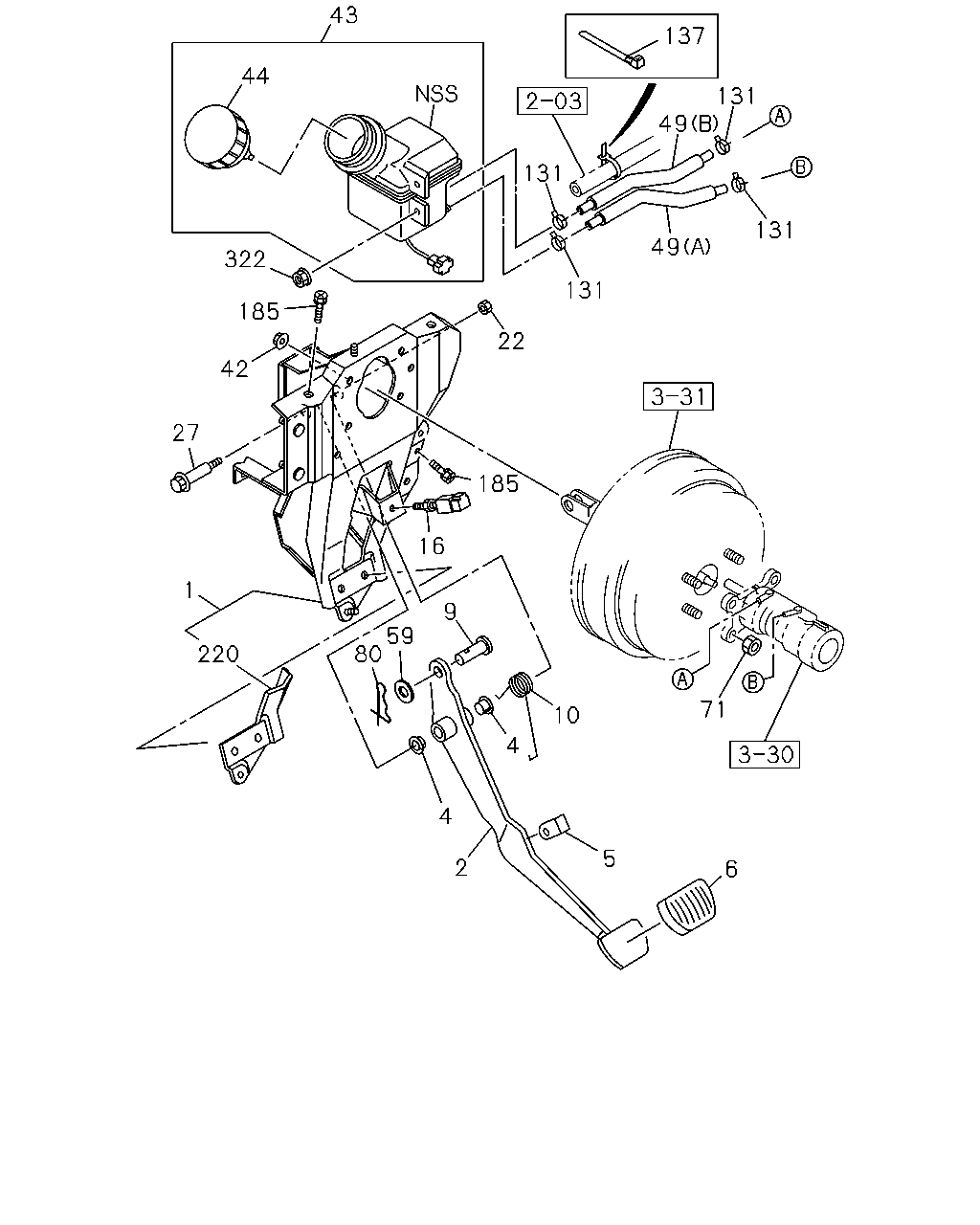

3-10 — BRAKE PEDAL AND CONTROL (#79812) — 49 parça

6 5 2 4 4 71 10 59 80 16 185 9 1 220 27 42 185 322 44 43 131 131 22 49 49 131 131 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.634 BRACKET ASM; PEDAL	8-97896-969-5	01	1	1011-1308	●
1	04.634 BRACKET ASM; PEDAL	8-97896-969-5	01	1	1309-	●	●
2	04.625 PEDAL; BRK	8-97856-336-2	01	1	1011-1308	●
2	04.625 PEDAL; BRK	8-97856-336-2	02	1	1309-	●	●
4	04.634 BUSHING; BRK PEDAL 04.792	8-94238-596-0	02	1	1011-1308	●
4	04.634 BUSHING; BRK PEDAL 04.792	8-94238-596-0	02	1	1309-	●	●
5	04.634 STOPPER; BRK PEDAL	8-97853-602-1	01	1	1011-1308	●
5	04.634 STOPPER; BRK PEDAL	8-97853-602-1	01	1	1309-	●	●
6	04.630 COVER; BRK PEDAL 00.829	8-97853-413-2	01	1	1011-1308	●
6	04.630 COVER; BRK PEDAL 00.829	8-97853-413-2	01	1	1309-	●	●
9	04.634 PIN; JAW JOINT	8-94410-276-0	01	1	1011-1308	●
9	04.634 PIN; JAW JOINT	8-94410-276-0	01	1	1309-1406	●	●
9	04.634 PIN; JAW JOINT 00.833	8-97359-812-0	01	1	1407-	●	●
10	04.639 SPRING; RETURN,BRK PEDAL	8-97853-212-1	01	1	1011-1308	●
10	04.639 SPRING; RETURN,BRK PEDAL	8-97853-212-1	01	1	1309-	●	●
16	02.447 SWITCH; STOP LAMP	8-97855-187-0	01	1	1011-1308	●
16	02.447 SWITCH; STOP LAMP	8-97855-187-0	01	1	1309-	●	●
22	04.634 NUT; SHAFT 00.833 M10 FLANGE	1-09440-022-0	01	1	1011-1308	●
22	04.634 NUT; SHAFT 00.833 M10 FLANGE	1-09440-022-0	01	1	1309-	●	●
27	04.634 SHAFT; BRK PEDAL	8-97866-667-0	01	1	1011-1308	●
27	04.634 SHAFT; BRK PEDAL	8-97866-667-0	01	1	1309-	●	●
42	04.898 NUT; BRK PEDAL 00.777 M8 W/LK WASHER	8-94279-050-0	04	1	1011-1308	●
42	04.898 NUT; BRK PEDAL 00.777 M8 W/LK WASHER	8-94279-050-0	04	1	1309-	●	●
43	04.651 TANK ASM; OIL	8-97179-813-1	01	1	1011-1308	●
43	04.651 TANK ASM; OIL	8-97179-813-1	01	1	1309-	●	●
44	04.651 CAP; OIL TANK	8-97178-291-1	01	1	1011-1308	●
44	04.651 CAP; OIL TANK	8-97178-291-1	01	1	1309-	●	●
49	04.680 HOSE; OIL TANK TO BRK M/CYL (B) L=315	8-97129-584-0	01	1	1011-1308	●
49	04.680 HOSE; OIL TANK TO BRK M/CYL (B) L=315	8-97129-584-0	01	1	1309-	●	●
49	04.680 HOSE; OIL TANK TO BRK M/CYL (A) L=320	8-97129-585-0	01	1	1011-1308	●
49	04.680 HOSE; OIL TANK TO BRK M/CYL (A) L=320	8-97129-585-0	01	1	1309-	●	●
59	04.634 WASHER; PL,JAW JOINT ID=15	0-91610-514-0	01	1	1011-1308	●
59	04.634 WASHER; PL,JAW JOINT ID=15	0-91610-514-0	01	1	1309-	●	●
71	04.650 NUT; BRK M/CYL 00.777 M8 W/LK WASHER	8-94279-050-0	04	1	1011-1308	●
71	04.650 NUT; BRK M/CYL 00.777 M8 W/LK WASHER	8-94279-050-0	04	1	1309-	●	●
80	04.634 PIN; SNAP,BRK PEDAL	8-94279-912-0	01	1	1011-1308	●
80	04.634 PIN; SNAP,BRK PEDAL	8-94279-912-0	01	1	1309-	●	●
131	04.681 CLIP; RUBBER HOSE,OIL TANK TO BR	8-97130-480-0	04	1	1011-1308	●
131	04.681 CLIP; RUBBER HOSE,OIL TANK TO BR	8-97130-480-0	04	1	1309-	●	●
137	04.681 CLIP; BAND,RUBBER HOSE 02.559 L=250	5-09707-030-1	01	1	1011-1308	●
137	04.681 CLIP; BAND,RUBBER HOSE 02.559 L=250	5-09707-030-1	01	1	1309-	●	●
185	04.634 BOLT; BRKT 07.833 M10X25 FLANGE	0-28661-025-0	02	1	1011-1308	●
185	04.634 BOLT; BRKT 07.833 M10X25 FLANGE	0-28661-025-0	02	1	1309-	●	●
185	04.634 BOLT; BRKT 00.833 M10X22 W/PL WASHER	8-97313-188-0	02	1	1011-1308	●
185	04.634 BOLT; BRKT 00.833 M10X22 W/PL WASHER	8-97313-188-0	02	1	1309-	●	●
220	04.634 BRACKET; STRG SHAFT	8-97857-044-1	01	1	1011-1308	●
220	04.634 BRACKET; STRG SHAFT	8-97857-044-1	01	1	1309-	●	●
322	04.651 NUT; OIL TANK 01.062 M6 FLANGE	0-91180-106-0	02	1	1011-1308	●
322	04.651 NUT; OIL TANK 01.062 M6 FLANGE	0-91180-106-0	02	1	1309-	●	●
