3-05 — REAR WHEEL BRAKE (#79810) — 73 parça

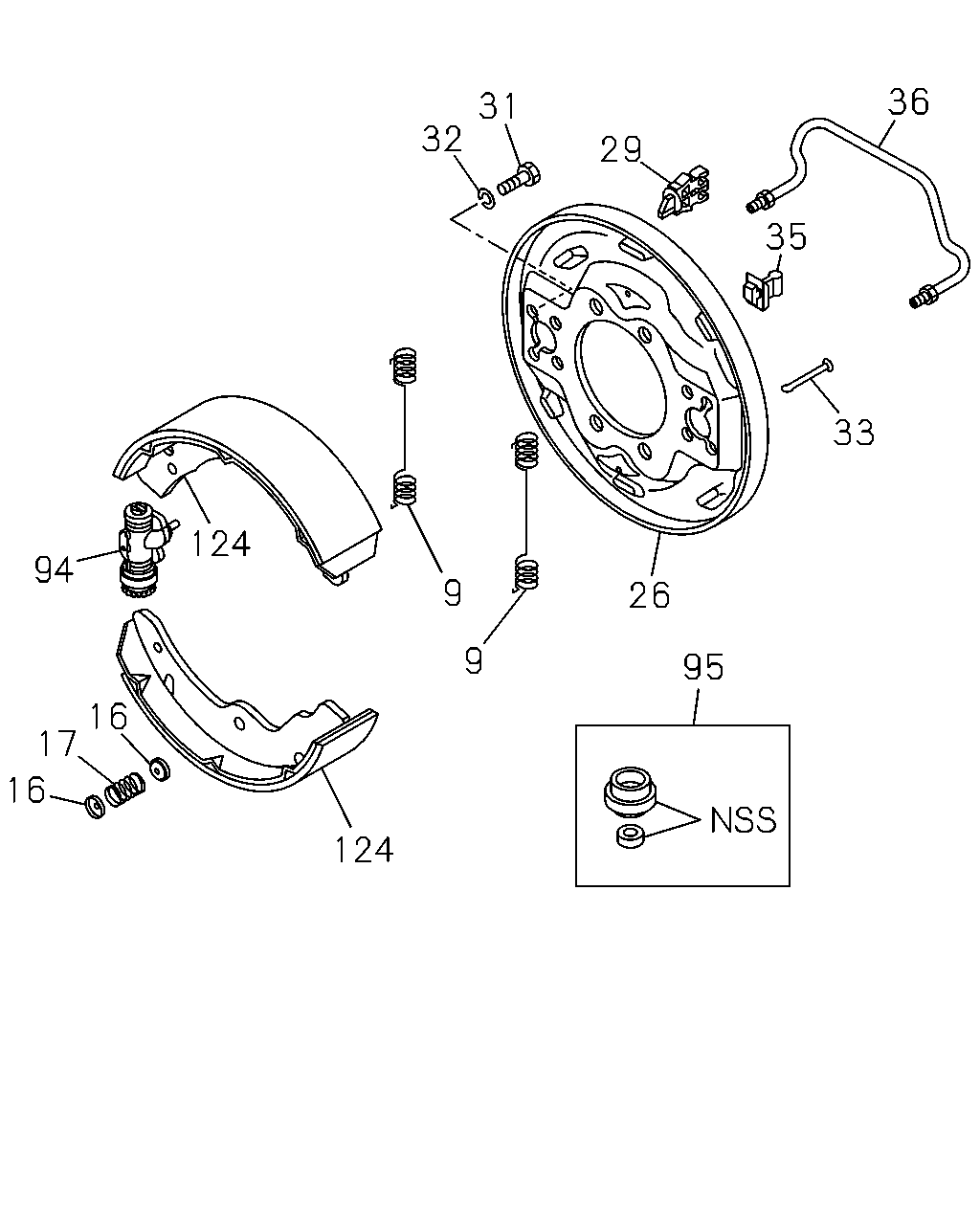

çizim 115178
36 35 33 29 31 32 95 26 9 9 124 124 94 16 17 16
BalonParca AdiParca NoAdetTipApplied Date A B
9 05.026 SPRING; RETURN,BRK SHOE 8-97078-739-0 04 1 1309- ●
9 05.026 SPRING; RETURN,BRK SHOE 5-87220-256-0 04 1 1011- ●
16 05.043 CUP; SHOE HOLDING 9-47162-033-0 08 1 1309- ●
16 05.043 CUP; SHOE HOLDING 5-87220-252-0 08 1 1011- ●
17 04.043 SPRING; SHOE HOLD DOWN
05.043 		9-09940-989-1 04 1 1309- ●
17 04.043 SPRING; SHOE HOLD DOWN 5-87220-254-0 04 1 1011- ●
26 05.001 PLATE; BACK,RR BRK 8-97093-934-0 01 1 1309- ●
26 05.001 PLATE; BACK,RR BRK 8-97093-935-0 01 1 1309- ●
26 05.001 PLATE; BACK,RR BRK 5-87220-260-0 01 1 1011- ●
26 05.001 PLATE; BACK,RR BRK 5-87220-261-0 01 1 1011- ●
29 04.685 CLIP; PIPE,BRK 8-94128-307-0 02 1 1309- ●
29 04.685 CLIP; PIPE,BRK 5-87220-266-0 02 1 1011- ●
31 04.665 BOLT; RR WHEEL CYL 5-09030-036-1 16 1 1309- ●
31 04.665 BOLT; RR WHEEL CYL 5-87220-272-0 16 1 1011- ●
32 05.056 WASHER; LK 5-87220-273-0 16 1 1011- ●
33 05.043 PIN; SHOE HOLD DOWN 9-47162-607-0 04 1 1309- ●
33 05.043 PIN; SHOE HOLD DOWN 5-87220-264-0 04 1 1011- ●
35 05.002 GROMMET; CHECK HOLE 8-94344-919-0 02 1 1309- ●
35 05.002 GROMMET; CHECK HOLE 5-87220-270-0 04 1 1011- ●
36 04.685 PIPE; OIL,RR BRK 8-94128-192-0 02 1 1309- ●
36 04.685 PIPE; OIL,RR BRK 5-87220-268-0 02 1 1011- ●
94 04.665 CYLINDER; WHEEL,RR BRK
FRONT 		8-97179-335-0 01 1 1309- ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR 		8-97179-336-0 01 1 1309- ●
94 04.665 CYLINDER; WHEEL,RR BRK 8-97179-337-0 02 1 1309- ●
94 04.665 CYLINDER; WHEEL,RR BRK 5-87220-249-0 02 1 1011- ●
94 04.665 CYLINDER; WHEEL,RR BRK
FRONT 		5-87220-250-0 01 1 1011- ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR 		5-87220-251-0 01 1 1011- ●
95 04.665 CUP SET; RR WHEEL CYL 5-87831-625-0 01 1 1309- ●
95 04.665 CUP SET; RR WHEEL CYL 5-87220-391-0 04 1 1011- ●
124 05.017 SHOE ASM; BRK,RR 8-97035-085-1 04 1 1309- ●
124 05.017 SHOE ASM; BRK,RR 5-87220-258-0 04 1 1011- ●
124 05.017 SHOE ASM; BRK,RR
BEST VALUE PARTS 		5-87610-123-0 04 1 1309- ●

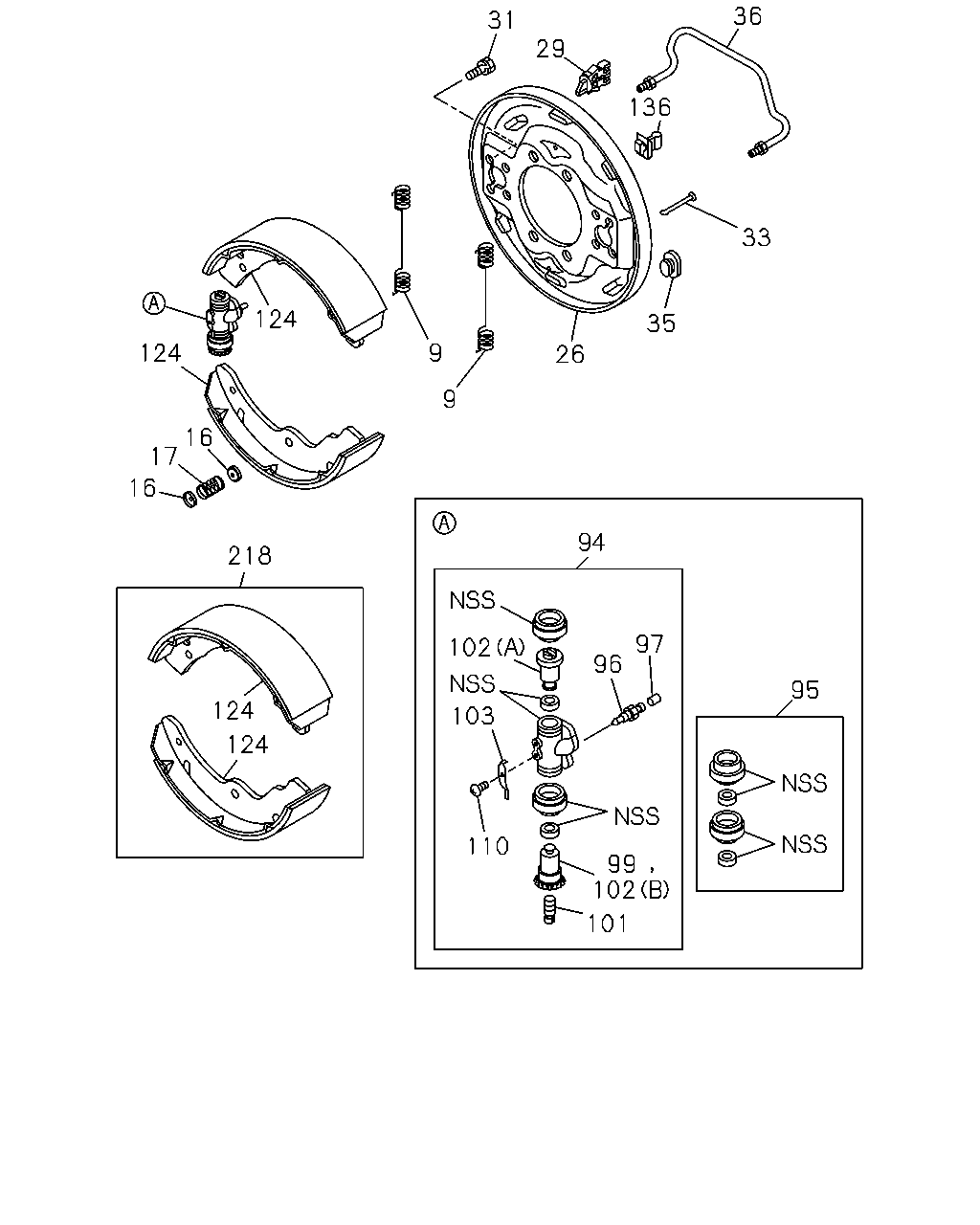

çizim 380697
124 17 16 16 124 218 124 124 102 103 110 94 97 96 99 101 102 95 9 9 26 35 33 36 136 29 31
BalonParca AdiParca NoAdetTipApplied Date A B
9 05.026 SPRING; RETURN,BRK SHOE 8-97078-739-0 04 1 1309- ●
9 05.026 SPRING; RETURN,BRK SHOE 5-87220-256-0 04 1 1011- ●
16 05.043 CUP; SHOE HOLDING 9-47162-033-0 08 1 1309- ●
16 05.043 CUP; SHOE HOLDING 5-87220-252-0 08 1 1011- ●
17 04.043 SPRING; SHOE HOLD DOWN
05.043 		9-09940-989-1 04 1 1309- ●
17 04.043 SPRING; SHOE HOLD DOWN 5-87220-254-0 04 1 1011- ●
26 05.001 PLATE; BACK,RR BRK 8-97093-934-0 01 1 1309- ●
26 05.001 PLATE; BACK,RR BRK 8-97093-935-0 01 1 1309- ●
26 05.001 PLATE; BACK,RR BRK 5-87220-260-0 01 1 1011- ●
26 05.001 PLATE; BACK,RR BRK 5-87220-261-0 01 1 1011- ●
29 04.685 CLIP; PIPE,BRK 8-94128-307-0 02 1 1309- ●
29 04.685 CLIP; PIPE,BRK 5-87220-266-0 02 1 1011- ●
31 04.665 BOLT; RR WHEEL CYL 5-09030-036-1 16 1 1309- ●
31 04.665 BOLT; RR WHEEL CYL 5-87220-272-0 16 1 1011- ●
33 05.043 PIN; SHOE HOLD DOWN 9-47162-607-0 04 1 1309- ●
33 05.043 PIN; SHOE HOLD DOWN 5-87220-264-0 04 1 1011- ●
35 05.002 GROMMET; CHECK HOLE 8-94344-919-0 02 1 1309- ●
35 05.002 GROMMET; CHECK HOLE 5-87220-270-0 04 1 1011- ●
36 04.685 PIPE; OIL,RR BRK 8-94128-192-0 02 1 1309- ●
36 04.685 PIPE; OIL,RR BRK 5-87220-268-0 02 1 1011- ●
94 04.665 CYLINDER; WHEEL,RR BRK
FRONT 		8-97179-335-0 01 1 1309- ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR 		8-97179-336-0 01 1 1309- ●
94 04.665 CYLINDER; WHEEL,RR BRK 8-97179-337-0 02 1 1309- ●
94 04.665 CYLINDER; WHEEL,RR BRK 5-87220-249-0 02 1 1011- ●
94 04.665 CYLINDER; WHEEL,RR BRK
FRONT 		5-87220-250-0 01 1 1011- ●
94 04.665 CYLINDER; WHEEL,RR BRK
REAR 		5-87220-251-0 01 1 1011- ●
95 04.665 CUP SET; RR WHEEL CYL 5-87831-625-0 01 1 1309- ●
95 04.665 CUP SET; RR WHEEL CYL 5-87220-391-0 04 1 1011- ●
96 04.666 SCREW; BLEEDER,RR BRK 8-98050-476-0 01 1 1309- ●
97 04.666 CAP; BLEEDER,RR WHEEL CYL 8-98050-479-0 01 1 1309- ●
99 04.668 PISTON; RR WHEEL CYL 8-97081-149-0 03 1 1309- ●
101 04.666 SCREW; ADJ,RR WHEEL CYL
05.110 		8-97078-623-0 04 1 1309- ●
102 04.668 PISTON; REAR WHEEL CYL
(A) D=22.22 		8-94128-533-1 04 1 1309- ●
102 04.668 PISTON; REAR WHEEL CYL
(B) 		8-97081-149-0 01 1 1309- ●
103 05.107 SPRING; LK,RR WHEEL CYL,ADJ 8-94128-486-0 04 1 1309- ●
110 05.107 SCREW; LOCK SPRING,RR WHEEL CYL 8-94128-727-0 04 1 1309- ●
124 05.017 SHOE ASM; BRK,RR 8-97035-085-1 04 1 1309- ●
124 05.017 SHOE ASM; BRK,RR 5-87220-258-0 04 1 1011- ●
124 05.017 SHOE ASM; BRK,RR
BEST VALUE PARTS 		5-87610-123-0 04 1 1309- ●
136 05.002 GROMMET 9-09956-640-0 04 1 1309- ●
218 05.017 SHOE KIT; BRK,RR 5-87832-045-0 01 1 1309- ●
