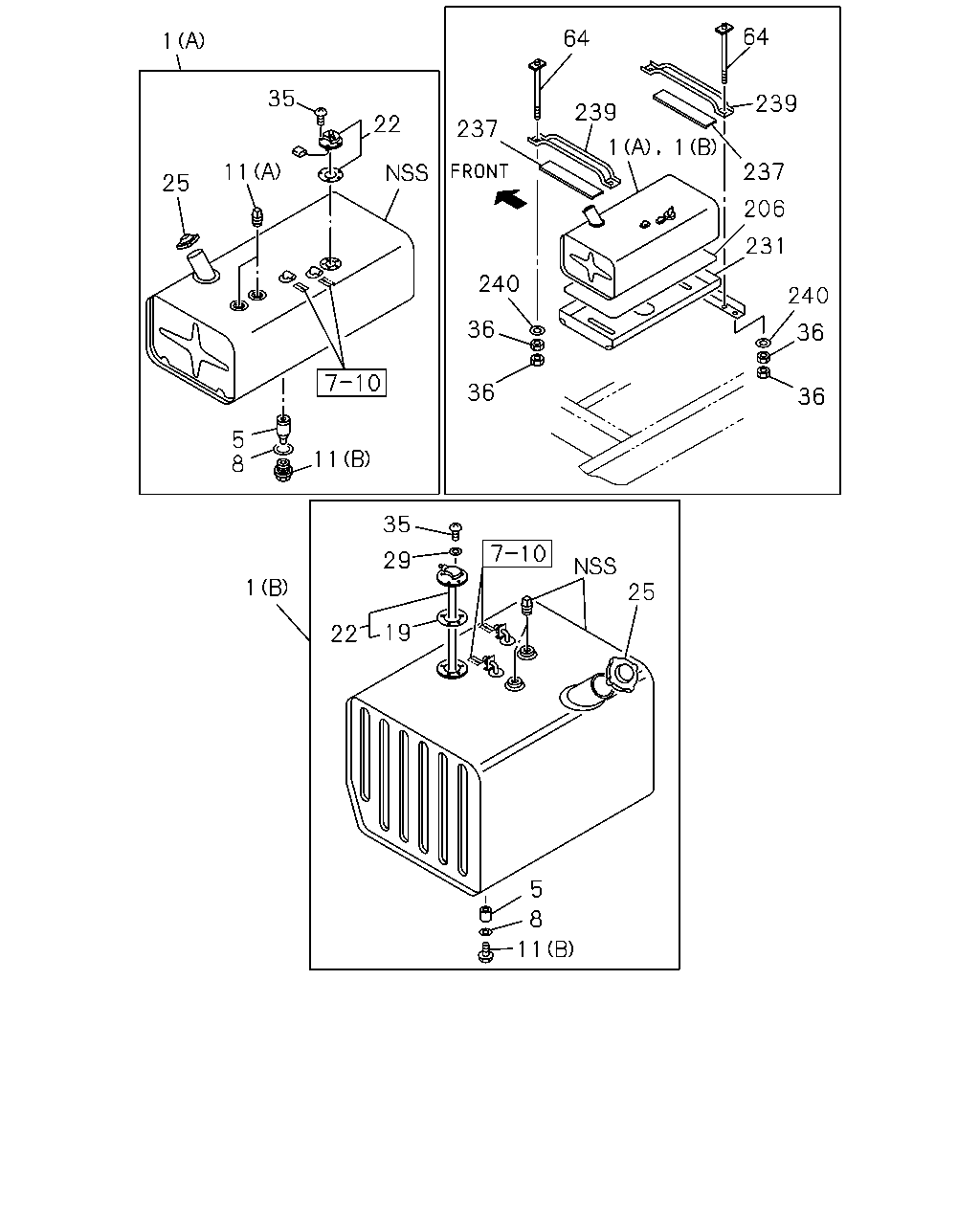

1 |
TANK; FUEL
FUEL TANK 280L<RF4>
(B)
840X649X549 278L
|
1-22401-086-1 |
01 |
1 |
0012-0203 |
● |
|
|
| |
1 |
TANK; FUEL
FUEL TANK 280L<RF4>
(B)
840X649X549 278L
|
1-22401-086-1 |
01 |
1 |
0204- |
● |
● |
● |
| |
1 |
TANK; FUEL
EXC. FUEL TANK 280L<RF4>
(A)
1260X532X322 200L
|
1-22401-087-2 |
01 |
1 |
0012-0203 |
● |
|
|
| |
1 |
TANK; FUEL
EXC. FUEL TANK 280L<RF4>
(A)
1260X532X322 200L
|
1-22401-087-2 |
01 |
1 |
0204- |
● |
● |
● |
| |
5 |
STRAINER; FUEL TANK
|
1-22460-001-1 |
01 |
1 |
0012-0203 |
● |
|
|
| |
5 |
STRAINER; FUEL TANK
|
1-22460-001-1 |
01 |
1 |
0204- |
● |
● |
● |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
T=2.0
|
9-09923-030-0 |
01 |
1 |
0012-0203 |
● |
|
|
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
T=2.0
|
9-09923-030-0 |
01 |
1 |
0204-0509 |
● |
● |
● |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
T=2.0
|
8-98030-375-0 |
01 |
1 |
0510- |
● |
|
|
| |
11 |
PLUG; DRAIN,FUEL TANK
(B)
M36
|
1-09604-052-0 |
01 |
1 |
0012-0203 |
● |
|
|
| |
11 |
PLUG; DRAIN,FUEL TANK
(B)
M36
|
1-09604-052-0 |
01 |
1 |
0204- |
● |
● |
● |
| |
11 |
PLUG; DRAIN,FUEL TANK
EXC. FUEL TANK 280L<RF4>
(A)
PT1/4
|
9-99204-513-0 |
02 |
1 |
0012-0203 |
● |
|
|
| |
11 |
PLUG; DRAIN,FUEL TANK
EXC. FUEL TANK 280L<RF4>
(A)
PT1/4
|
9-99204-513-0 |
02 |
1 |
0204- |
● |
● |
● |
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 280L<RF4>
|
1-83149-003-0 |
01 |
1 |
0107- |
● |
|
|
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 280L<RF4>
|
9-83135-003-0 |
01 |
1 |
0012-0106 |
● |
|
|
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 280L<RF4>
|
9-83135-003-0 |
01 |
1 |
0107-0203 |
|
● |
● |
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 280L<RF4>
|
9-83135-003-0 |
01 |
1 |
0204- |
● |
● |
● |
| |
22 |
UNIT; FUEL TANK
FUEL TANK 280L<RF4>
|
1-83141-118-0 |
01 |
1 |
0012-0203 |
● |
|
|
| |
22 |
UNIT; FUEL TANK
FUEL TANK 280L<RF4>
|
1-83141-118-0 |
01 |
1 |
0204- |
● |
● |
● |
| |
22 |
UNIT; FUEL TANK
EXC. FUEL TANK 280L<RF4>
|
1-83141-106-0 |
01 |
1 |
0012-0203 |
● |
|
|
| |
22 |
UNIT; FUEL TANK
EXC. FUEL TANK 280L<RF4>
|
1-83141-106-0 |
01 |
1 |
0204- |
● |
● |
● |
| |
25 |
CAP; FILLER,FUEL TANK
|
1-22440-023-1 |
01 |
1 |
0012-0203 |
● |
|
|
| |
25 |
CAP; FILLER,FUEL TANK
|
1-22440-023-1 |
01 |
1 |
0204- |
● |
● |
● |
| |
29 |
WASHER; PL,FUEL TANK UNIT
FUEL TANK 280L<RF4>
ID=4.3
|
9-09160-504-0 |
01 |
1 |
0012-0203 |
● |
|
|
| |
29 |
WASHER; PL,FUEL TANK UNIT
FUEL TANK 280L<RF4>
ID=4.3
|
9-09160-504-0 |
01 |
1 |
0204- |
● |
● |
● |
| |
35 |
SCREW; FUEL TANK UNIT
FUEL TANK 280L<RF4>
M4X10 W/LK&PL WASHER
|
9-03920-410-0 |
05 |
1 |
0012-0203 |
● |
|
|
| |
35 |
SCREW; FUEL TANK UNIT
FUEL TANK 280L<RF4>
M4X10 W/LK&PL WASHER
|
9-03920-410-0 |
05 |
1 |
0204-0604 |
● |
● |
● |
| |
35 |
SCREW; FUEL TANK UNIT
FUEL TANK 280L<RF4>
M4X10 W/LK&PL WASHER
|
0-36230-410-0 |
05 |
1 |
0605- |
● |
|
|
| |
35 |
SCREW; FUEL TANK UNIT
EXC. FUEL TANK 280L<RF4>
|
1-22419-012-0 |
05 |
1 |
0012-0203 |
● |
|
|
| |
35 |
SCREW; FUEL TANK UNIT
EXC. FUEL TANK 280L<RF4>
|
1-22419-012-0 |
05 |
1 |
0204- |
● |
● |
● |
| |
36 |
NUT; SPACER,FUEL TANK
LOWER
M12
|
9-99111-412-0 |
04 |
1 |
0012-0203 |
● |
|
|
| |
36 |
NUT; SPACER,FUEL TANK
LOWER
M12
|
9-99111-412-0 |
04 |
1 |
0204-0509 |
● |
● |
● |
| |
36 |
NUT; SPACER,FUEL TANK
FUEL TANK 280L<RF4>
UPPER
M12
|
9-99110-512-0 |
04 |
1 |
0012-0012 |
● |
|
|
| |
36 |
NUT; SPACER,FUEL TANK
UPPER
M12
|
9-99110-512-0 |
04 |
1 |
0101-0203 |
● |
|
|
| |
36 |
NUT; SPACER,FUEL TANK
UPPER
M12
|
9-99110-512-0 |
04 |
1 |
0204-0509 |
● |
● |
● |
| |
36 |
NUT; SPACER,FUEL TANK
M12
|
9-99110-512-0 |
08 |
1 |
0510-0512 |
● |
|
|
| |
36 |
NUT; SPACER,FUEL TANK
M12
|
0-91110-512-0 |
08 |
1 |
0601- |
● |
|
|
| |
36 |
NUT; SPACER,FUEL TANK
EXC. FUEL TANK 280L<RF4>
UPPER AND LOWER
M12
|
9-99110-512-0 |
08 |
1 |
0012-0012 |
● |
|
|
| |
64 |
BOLT; FUEL TANK
FUEL TANK 280L<RF4>
M12X594
|
1-22559-003-1 |
04 |
1 |
0012-0203 |
● |
|
|
| |
64 |
BOLT; FUEL TANK
FUEL TANK 280L<RF4>
M12X594
|
1-22559-003-1 |
04 |
1 |
0204- |
● |
● |
● |
| |
64 |
BOLT; FUEL TANK
EXC. FUEL TANK 280L<RF4>
M12X359
|
9-22559-030-2 |
04 |
1 |
0012-0203 |
● |
|
|
| |
64 |
BOLT; FUEL TANK
EXC. FUEL TANK 280L<RF4>
M12X359
|
9-22559-030-2 |
04 |
1 |
0204- |
● |
● |
● |
| |
206 |
SLEEPER; FUEL TANK
FUEL TANK 280L<RF4>
|
1-22554-002-0 |
01 |
1 |
0012-0203 |
● |
|
|
| |
206 |
SLEEPER; FUEL TANK
FUEL TANK 280L<RF4>
|
1-22554-002-0 |
01 |
1 |
0204- |
● |
● |
● |
| |
206 |
SLEEPER; FUEL TANK
EXC. FUEL TANK 280L<RF4>
|
1-22555-018-0 |
01 |
1 |
0012-0203 |
● |
|
|
| |
206 |
SLEEPER; FUEL TANK
EXC. FUEL TANK 280L<RF4>
|
1-22555-018-0 |
01 |
1 |
0204- |
● |
● |
● |
| |
231 |
COVER; UNDER,FUEL TANK
FUEL TANK 280L<RF4>
|
1-22557-003-0 |
01 |
1 |
0012-0203 |
● |
|
|
| |
231 |
COVER; UNDER,FUEL TANK
FUEL TANK 280L<RF4>
|
1-22557-003-0 |
01 |
1 |
0204- |
● |
● |
● |
| |
231 |
COVER; UNDER,FUEL TANK
EXC. FUEL TANK 280L<RF4>
|
1-22557-040-0 |
01 |
1 |
0012-0203 |
● |
|
|
| |
231 |
COVER; UNDER,FUEL TANK
EXC. FUEL TANK 280L<RF4>
|
1-22557-040-0 |
01 |
1 |
0204- |
● |
● |
● |
| |
237 |
GASKET; BRKT TO FUEL TANK
FUEL TANK 280L<RF4>
L=580
|
1-22553-003-0 |
04 |
1 |
0012-0203 |
● |
|
|
| |
237 |
GASKET; BRKT TO FUEL TANK
FUEL TANK 280L<RF4>
L=580
|
1-22553-003-0 |
04 |
1 |
0204- |
● |
● |
● |
| |
237 |
GASKET; BRKT TO FUEL TANK
EXC. FUEL TANK 280L<RF4>
L=540
|
1-22553-006-0 |
02 |
1 |
0012-0203 |
● |
|
|
| |
237 |
GASKET; BRKT TO FUEL TANK
EXC. FUEL TANK 280L<RF4>
L=540
|
1-22553-006-0 |
02 |
1 |
0204- |
● |
● |
● |
| |
239 |
SUPPORT; FUEL TANK
FUEL TANK 280L<RF4>
|
1-22555-004-0 |
02 |
1 |
0012-0203 |
● |
|
|
| |
239 |
SUPPORT; FUEL TANK
FUEL TANK 280L<RF4>
|
1-22555-004-0 |
02 |
1 |
0204- |
● |
● |
● |
| |
239 |
SUPPORT; FUEL TANK
EXC. FUEL TANK 280L<RF4>
|
9-22555-005-0 |
02 |
1 |
0012-0203 |
● |
|
|
| |
239 |
SUPPORT; FUEL TANK
EXC. FUEL TANK 280L<RF4>
|
9-22555-005-0 |
02 |
1 |
0204- |
● |
● |
● |
| |
240 |
WASHER; PL,FUEL TANK
ID=12.5 OD=26
|
9-09164-612-0 |
04 |
1 |
0012-0203 |
● |
|
|
| |
240 |
WASHER; PL,FUEL TANK
ID=12.5 OD=26
|
9-09164-612-0 |
04 |
1 |
0204- |
● |
● |
● |
