◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51376 - QKR(MIDDLE EAST) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-56 - AUTO TRANS CONTROL LINK ▶
2-56 — AUTO TRANS CONTROL LINK (#79808) — 23 parça

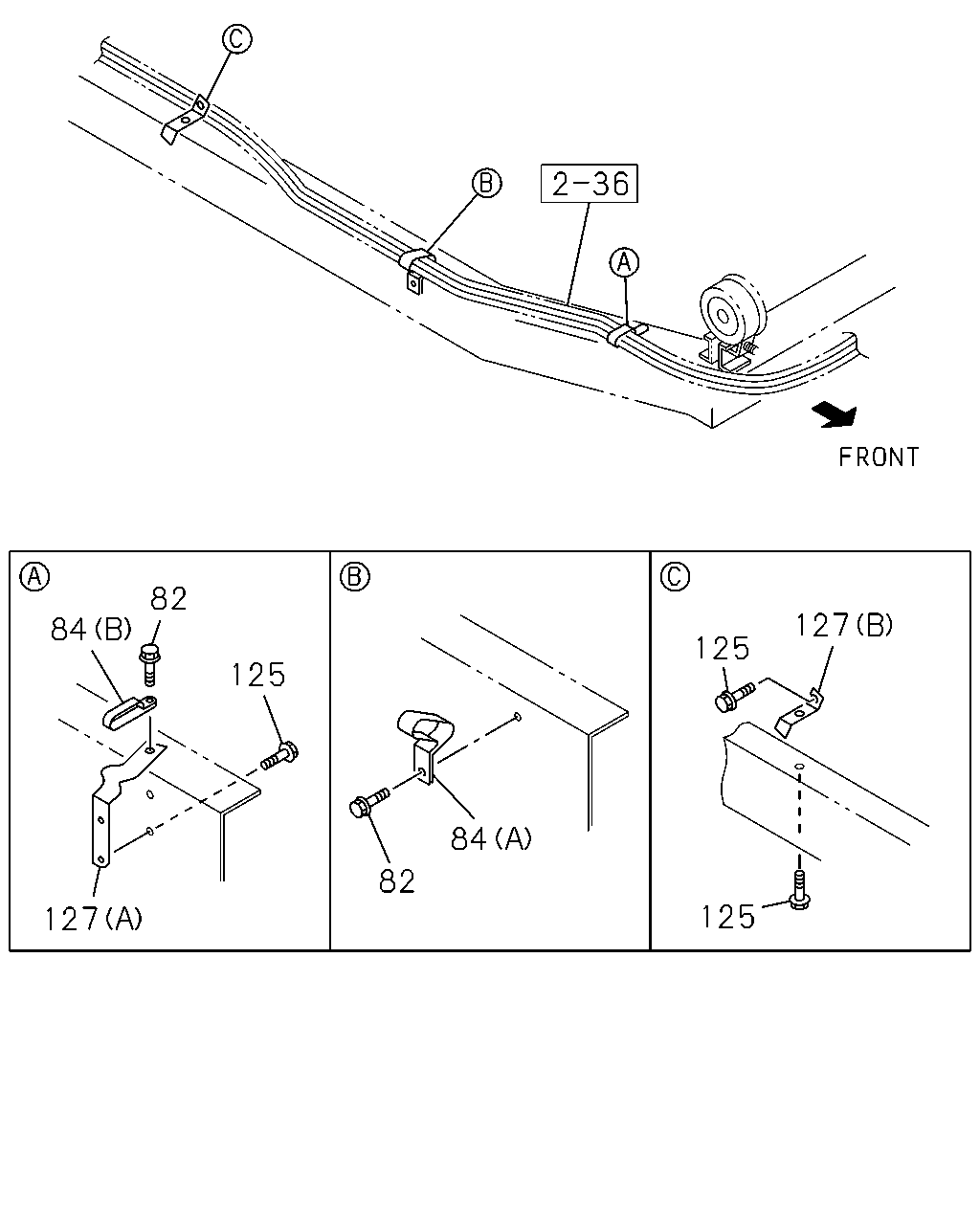

çizim 114676
82 84 125 127 82 84 125 125 127
BalonParca AdiParca NoAdetTipApplied Date A B
82 04.047 BOLT; A/T CONT CABLE
03.162 M6X20 FLANGE 		0-28650-620-0 01 1 1011-1308 ●
82 04.047 BOLT; A/T CONT CABLE
03.162 M6X20 FLANGE 		0-28650-620-0 01 1 1309- ● ●
82 04.047 BOLT; A/T CONT CABLE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1011-1308 ●
82 04.047 BOLT; A/T CONT CABLE
06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1309- ● ●
84 04.047 CLIP; A/T CONT CABLE
(A) 		8-97036-329-2 01 1 1011-1308 ●
84 04.047 CLIP; A/T CONT CABLE
(A) 		8-97036-329-2 01 1 1309- ● ●
84 04.047 CLIP; A/T CONT CABLE
(B) 		8-97137-589-0 01 1 1011-1308 ●
84 04.047 CLIP; A/T CONT CABLE
(B) 		8-97137-589-0 01 1 1309- ● ●
125 04.047 BOLT; BRKT
00.029 M10X25 FLANGE 		0-28651-025-0 02 1 1011-1308 ●
125 04.047 BOLT; BRKT
00.029 M10X25 FLANGE 		0-28651-025-0 02 1 1309- ● ●
125 04.047 BOLT; BRKT
EXC. POWER STEERING<N40> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1011-1308 ●
125 04.047 BOLT; BRKT
EXC. POWER STEERING<N40> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 1309- ● ●
127 04.047 BRACKET; A/T CONT CABLE
(A) 		8-97101-709-1 01 1 1011- ●
127 04.047 BRACKET; A/T CONT CABLE
EXC. POWER STEERING<N40> (B) 		8-97103-234-0 01 1 1011-1308 ●
127 04.047 BRACKET; A/T CONT CABLE
EXC. POWER STEERING<N40> (B) 		8-97103-234-0 01 1 1309- ● ●
çizim 191760
202 195 194 203
BalonParca AdiParca NoAdetTipApplied Date A B
194 04.047 RETAINER; GROMMET 8-97048-319-1 01 1 1011-1308 ●
194 04.047 RETAINER; GROMMET 8-97048-319-1 01 1 1309- ● ●
195 04.047 BOLT; GROMMET FIX
00.785 M6X20 FLANGE 		0-28450-620-0 02 1 1011-1308 ●
195 04.047 BOLT; GROMMET FIX
00.785 M6X20 FLANGE 		0-28450-620-0 02 1 1309- ● ●
202 04.047 NUT; GROMMET
01.062 M6 FLANGE 		0-91180-106-0 02 1 1011-1308 ●
202 04.047 NUT; GROMMET
01.062 M6 FLANGE 		0-91180-106-0 02 1 1309- ● ●
203 04.047 SEAL; CABLE
MANUAL TILT CAB<RWZ> 		8-97096-753-0 01 1 1011-1308 ●
203 04.047 SEAL; CABLE
MANUAL TILT CAB<RWZ> 		8-97096-753-0 01 1 1309- ● ●
