2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#79807) — 116 parça

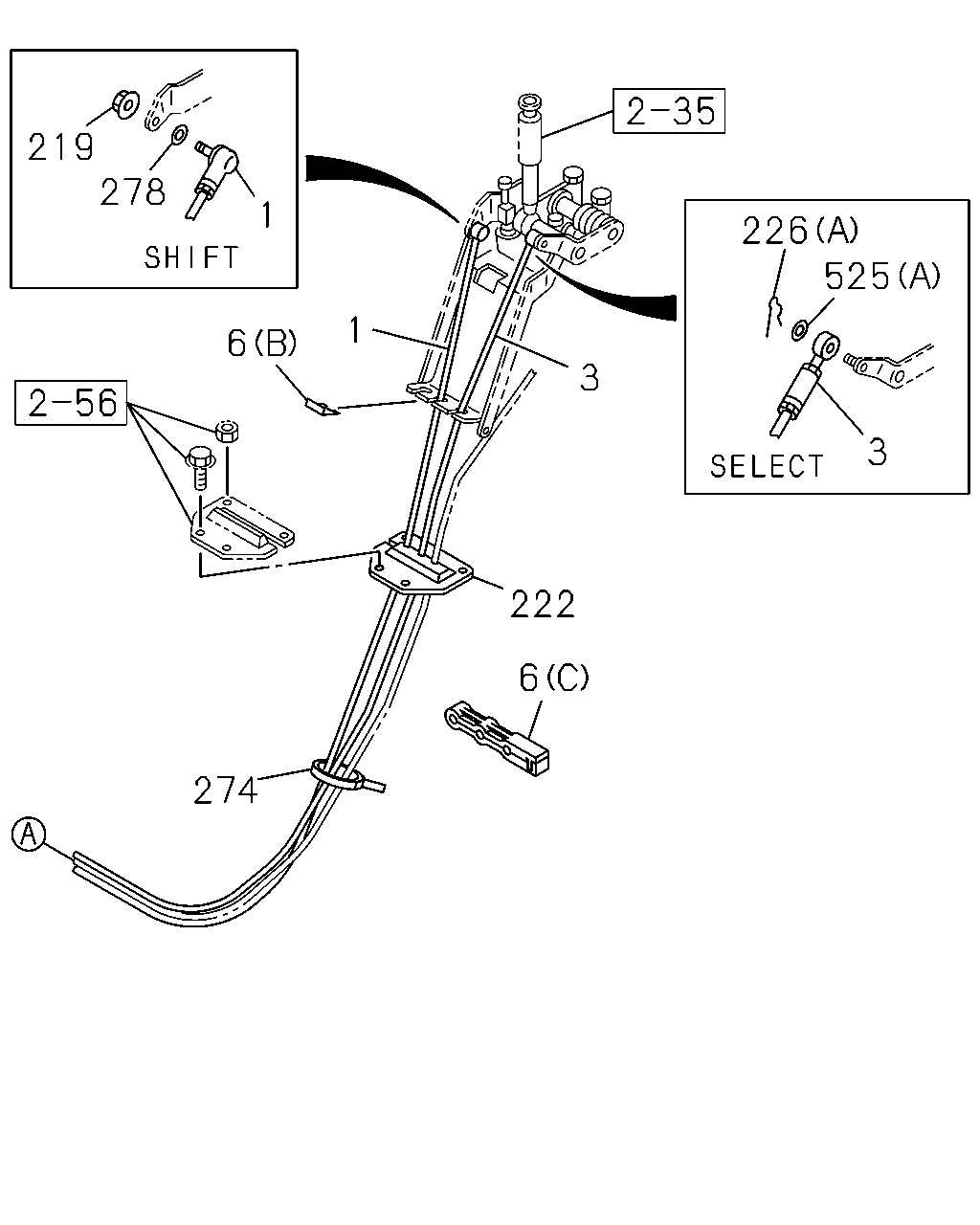

274 222 3 1 6 219 278 226 3 525 6 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.854 CABLE; SHIFT,TRANS CONT L=2540	8-98146-809-0	01	1	1011-1308	●
1	00.854 CABLE; SHIFT,TRANS CONT L=2540	8-98146-809-0	01	1	1309-	●	●
3	00.852 CABLE; SELECT,TRANS CONT L=2684	8-97089-987-3	01	1	1011-1308	●
3	00.852 CABLE; SELECT,TRANS CONT L=2684	8-97089-987-3	01	1	1309-	●	●
6	04.047 CLIP; CABLE POWER STEERING<N40> (E)	8-98023-697-0	01	1	1212-1308	●
6	04.047 CLIP; CABLE POWER STEERING<N40> (E)	8-98023-697-0	01	1	1309-	●	●
6	04.047 CLIP; CABLE (B)	8-97011-448-0	02	1	1011-1308	●
6	04.047 CLIP; CABLE (B)	8-97011-448-0	02	1	1309-	●	●
6	04.047 CLIP; CABLE (D)	8-97036-332-1	01	1	1011-1211	●
6	04.047 CLIP; CABLE EXC. POWER STEERING<N40> (D)	8-97036-332-1	01	1	1212-1308	●
6	04.047 CLIP; CABLE EXC. POWER STEERING<N40> (D)	8-97036-332-1	01	1	1309-	●	●
6	04.047 CLIP; CABLE (A) ID=19.2	8-97211-011-0	02	1	1011-1308	●
6	04.047 CLIP; CABLE (A) ID=19.2	8-97211-011-0	02	1	1309-	●	●
6	04.047 CLIP; CABLE EXC. MANUAL TILT CAB<RWZ> 04.008 (C)	8-97093-491-1	01	1	1011-1308	●
6	04.047 CLIP; CABLE EXC. MANUAL TILT CAB<RWZ> 04.008 (C)	8-97093-491-1	01	1	1309-	●	●
219	04.047 NUT; FLANGE,SHAFT CABLE 04.037 M8 T=8.0	8-94363-045-0	01	1	1011-1308	●
219	04.047 NUT; FLANGE,SHAFT CABLE 04.037 M8 T=8.0	8-94363-045-0	01	1	1309-	●	●
222	04.010 GROMMET; CABLE	8-97089-851-0	01	1	1011-1308	●
222	04.010 GROMMET; CABLE	8-97089-851-0	01	1	1309-	●	●
226	04.047 PIN; SHIFT CABLE 00.833 (A) L=27.7	8-94111-137-0	01	1	1011-1308	●
226	04.047 PIN; SHIFT CABLE 00.833 (A) L=27.7	8-94111-137-0	01	1	1309-	●	●
226	04.047 PIN; SHIFT CABLE (B) L=23	8-94170-378-0	02	1	1011-1308	●
226	04.047 PIN; SHIFT CABLE (B) L=23	8-94170-378-0	02	1	1309-	●	●
274	04.008 CLIP; CONT CABLE 03.162 L=140	5-09707-031-1	01	1	1011-1308	●
274	04.008 CLIP; CONT CABLE 03.162 L=140	5-09707-031-1	01	1	1309-	●	●
278	00.854 WASHER; LK,SHIFT WIRE ID=8.4 TOOTH LK INT	0-91541-208-0	01	1	1011-1308	●
278	00.854 WASHER; LK,SHIFT WIRE ID=8.4 TOOTH LK INT	0-91541-208-0	01	1	1309-	●	●
525	04.047 WASHER; SHIFT CABLE 06.056 (A) ID=8.4 OD=16	0-91614-508-0	01	1	1011-1308	●
525	04.047 WASHER; SHIFT CABLE 06.056 (A) ID=8.4 OD=16	0-91614-508-0	01	1	1309-	●	●
525	04.047 WASHER; SHIFT CABLE 00.854 (B) ID=8.4 OD=14	5-09550-002-0	01	1	1011-1308	●
525	04.047 WASHER; SHIFT CABLE 00.854 (B) ID=8.4 OD=14	5-09550-002-0	01	1	1309-	●	●

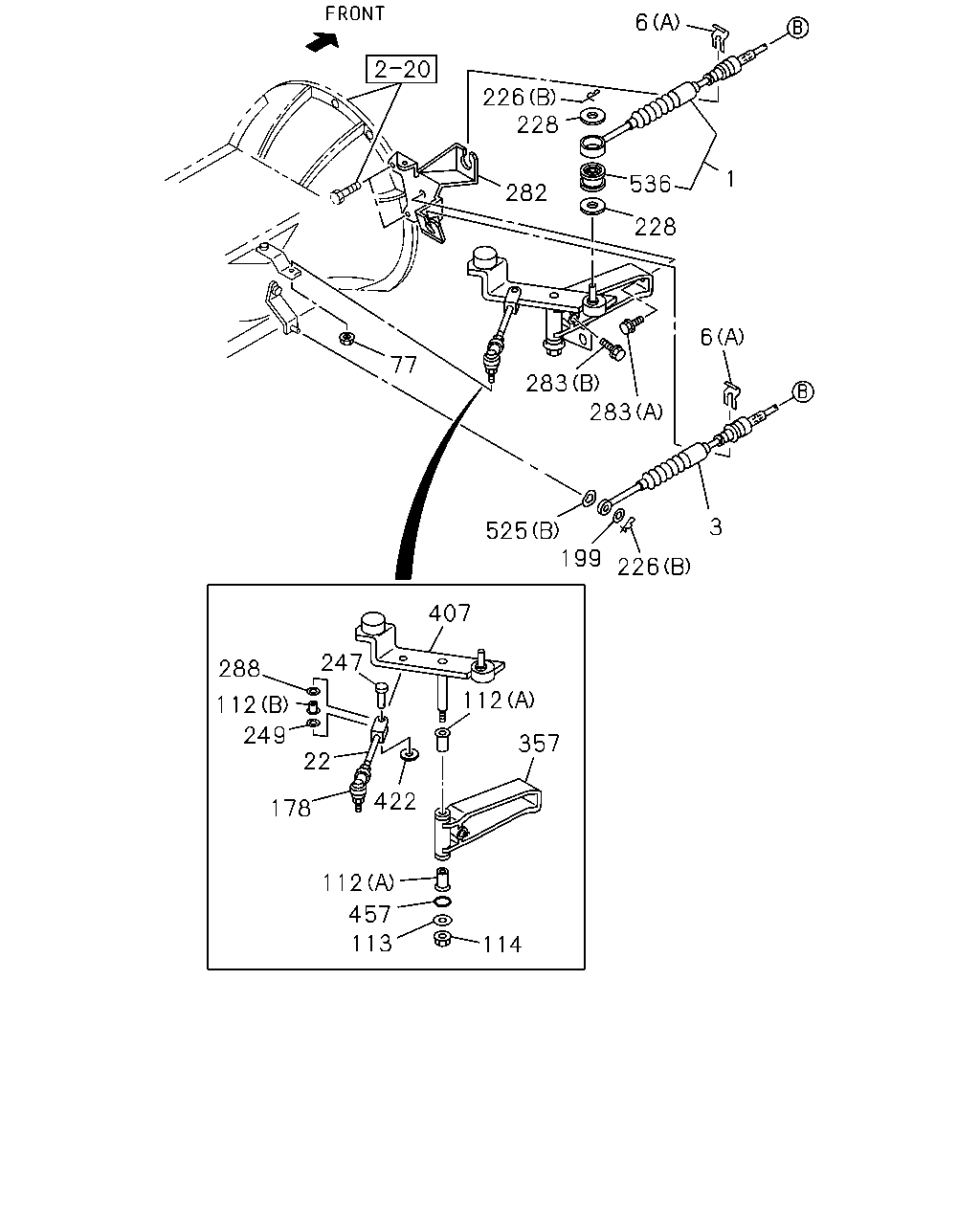

114 113 112 457 422 357 112 407 247 288 112 249 22 178 525 226 199 3 6 1 228 536 283 283 282 226 6 228 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.854 CABLE; SHIFT,TRANS CONT L=2540	8-98146-809-0	01	1	1011-1308	●
1	00.854 CABLE; SHIFT,TRANS CONT L=2540	8-98146-809-0	01	1	1309-	●	●
3	00.852 CABLE; SELECT,TRANS CONT L=2684	8-97089-987-3	01	1	1011-1308	●
3	00.852 CABLE; SELECT,TRANS CONT L=2684	8-97089-987-3	01	1	1309-	●	●
6	04.047 CLIP; CABLE POWER STEERING<N40> (E)	8-98023-697-0	01	1	1212-1308	●
6	04.047 CLIP; CABLE POWER STEERING<N40> (E)	8-98023-697-0	01	1	1309-	●	●
6	04.047 CLIP; CABLE (B)	8-97011-448-0	02	1	1011-1308	●
6	04.047 CLIP; CABLE (B)	8-97011-448-0	02	1	1309-	●	●
6	04.047 CLIP; CABLE (D)	8-97036-332-1	01	1	1011-1211	●
6	04.047 CLIP; CABLE EXC. POWER STEERING<N40> (D)	8-97036-332-1	01	1	1212-1308	●
6	04.047 CLIP; CABLE EXC. POWER STEERING<N40> (D)	8-97036-332-1	01	1	1309-	●	●
6	04.047 CLIP; CABLE (A) ID=19.2	8-97211-011-0	02	1	1011-1308	●
6	04.047 CLIP; CABLE (A) ID=19.2	8-97211-011-0	02	1	1309-	●	●
6	04.047 CLIP; CABLE EXC. MANUAL TILT CAB<RWZ> 04.008 (C)	8-97093-491-1	01	1	1011-1308	●
6	04.047 CLIP; CABLE EXC. MANUAL TILT CAB<RWZ> 04.008 (C)	8-97093-491-1	01	1	1309-	●	●
22	04.035 ROD; CONT,SHIFT	8-97134-286-1	01	1	1011-1308	●
22	04.035 ROD; CONT,SHIFT	8-97134-286-1	01	1	1309-	●	●
77	04.037 NUT; LK,BALL JOINT,CONT ROD	8-97358-973-0	01	1	1011-1308	●
77	04.037 NUT; LK,BALL JOINT,CONT ROD	8-97358-973-0	01	1	1309-	●	●
112	04.046 BUSHING; RELAY LEVER (B)	8-97085-157-0	01	1	1011-1308	●
112	04.046 BUSHING; RELAY LEVER (B)	8-97085-157-0	01	1	1309-	●	●
112	04.046 BUSHING; RELAY LEVER (A)	8-97174-057-0	02	1	1011-1308	●
112	04.046 BUSHING; RELAY LEVER (A)	8-97174-057-0	02	1	1309-	●	●
113	04.046 WASHER; RELAY LEVER ID=10.5 OD=22 T=1.6	0-91610-610-0	01	1	1011-1308	●
113	04.046 WASHER; RELAY LEVER ID=10.5 OD=22 T=1.6	0-91610-610-0	01	1	1309-	●	●
114	04.037 NUT; RELAY LEVER 03.162 M10 FLANGE	0-91180-110-0	01	1	1011-1308	●
114	04.037 NUT; RELAY LEVER 03.162 M10 FLANGE	0-91180-110-0	01	1	1309-	●	●
178	04.040 JOINT; BALL,LINK ROD 04.037 L=45.5	1-09760-118-1	01	1	1011-1308	●
178	04.040 JOINT; BALL,LINK ROD 04.037 L=45.5	1-09760-118-1	01	1	1309-	●	●
199	04.012 WASHER; PL,SELECT 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	1011-1308	●
199	04.012 WASHER; PL,SELECT 03.417 ID=8.4 OD=16	0-91610-508-0	01	1	1309-	●	●
226	04.047 PIN; SHIFT CABLE 00.833 (A) L=27.7	8-94111-137-0	01	1	1011-1308	●
226	04.047 PIN; SHIFT CABLE 00.833 (A) L=27.7	8-94111-137-0	01	1	1309-	●	●
226	04.047 PIN; SHIFT CABLE (B) L=23	8-94170-378-0	02	1	1011-1308	●
226	04.047 PIN; SHIFT CABLE (B) L=23	8-94170-378-0	02	1	1309-	●	●
228	04.047 WASHER; PL,SHIFT CABLE ID=8.2 OD=40	8-97182-975-0	02	1	1011-1308	●
228	04.047 WASHER; PL,SHIFT CABLE ID=8.2 OD=40	8-97182-975-0	02	1	1309-	●	●
247	04.010 PIN; CONT ROD TO LEVER	8-97373-728-0	01	1	1011-1308	●
247	04.010 PIN; CONT ROD TO LEVER	8-97373-728-0	01	1	1309-	●	●
249	04.010 WASHER; RUBBER,CONT ROD TO LEVER 04.037 ID=8.5 T=1.5	9-09851-889-0	01	1	1011-1308	●
249	04.010 WASHER; RUBBER,CONT ROD TO LEVER 04.037 ID=8.5 T=1.5	9-09851-889-0	01	1	1309-	●	●
282	04.010 BRACKET; TRANS SIDE IDENTIFICATION LABEL FOR KD<6UT>	8-97034-142-1	01	1	1201-1204	●
282	04.010 BRACKET; TRANS SIDE IDENTIFICATION LABEL FOR KD<6UT>	8-97034-142-1	01	1	1205-1206	●
282	04.010 BRACKET; TRANS SIDE EXHAUST BRAKE<NF8>	8-97034-142-1	01	1	1205-1206	●
282	04.010 BRACKET; TRANS SIDE	8-97034-142-1	01	1	1207-1308	●
282	04.010 BRACKET; TRANS SIDE	8-97034-142-1	01	1	1309-	●	●
282	04.010 BRACKET; TRANS SIDE	8-97034-142-1	01	1	1011-1103	●
282	04.010 BRACKET; TRANS SIDE	8-98187-414-0	01	1	1104-1112	●
282	04.010 BRACKET; TRANS SIDE EXC. IDENTIFICATION LABEL FOR KD<6UT>	8-98187-414-0	01	1	1201-1204	●
282	04.010 BRACKET; TRANS SIDE EXC. EXHAUST BRAKE<NF8>,IDENTIFICATION LABEL FOR KD<6UT>	8-98187-414-0	01	1	1205-1206	●
283	04.037 BOLT; RELAY LEVER 00.029 (A) M10X25 FLANGE	0-28651-025-0	01	1	1011-1308	●
283	04.037 BOLT; RELAY LEVER 00.029 (A) M10X25 FLANGE	0-28651-025-0	01	1	1309-	●	●
283	04.037 BOLT; RELAY LEVER 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1011-1308	●
283	04.037 BOLT; RELAY LEVER 02.277 (B) M10X35 FLANGE	0-28651-035-0	01	1	1309-	●	●
288	04.047 WASHER; CABLE TO RELAY LEVER	8-97373-819-0	01	1	1011-1308	●
288	04.047 WASHER; CABLE TO RELAY LEVER	8-97373-819-0	01	1	1309-	●	●
357	04.010 BRACKET; RELAY LEVER	8-97182-166-0	01	1	1011-1308	●
357	04.010 BRACKET; RELAY LEVER	8-97182-166-0	01	1	1309-	●	●
407	04.030 LEVER; RELAY,SHIFT	8-97174-055-2	01	1	1011-1308	●
407	04.030 LEVER; RELAY,SHIFT	8-97174-055-2	01	1	1309-	●	●
422	04.032 NUT; CONT ROD TO LEVER 04.047	8-97373-729-0	01	1	1011-1308	●
422	04.032 NUT; CONT ROD TO LEVER 04.047	8-97373-729-0	01	1	1309-	●	●
457	04.010 GASKET ID=13.8	9-09561-114-0	02	1	1011-1308	●
457	04.010 GASKET ID=13.8	9-09561-114-0	02	1	1309-	●	●
525	04.047 WASHER; SHIFT CABLE 06.056 (A) ID=8.4 OD=16	0-91614-508-0	01	1	1011-1308	●
525	04.047 WASHER; SHIFT CABLE 06.056 (A) ID=8.4 OD=16	0-91614-508-0	01	1	1309-	●	●
525	04.047 WASHER; SHIFT CABLE 00.854 (B) ID=8.4 OD=14	5-09550-002-0	01	1	1011-1308	●
525	04.047 WASHER; SHIFT CABLE 00.854 (B) ID=8.4 OD=14	5-09550-002-0	01	1	1309-	●	●
536	00.854 DAMPER; CABLE	8-98097-681-0	01	1	1011-1308	●
536	00.854 DAMPER; CABLE	8-98097-681-0	01	1	1309-	●	●

6 6 272 272 294

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	04.047 CLIP; CABLE POWER STEERING<N40> (E)	8-98023-697-0	01	1	1212-1308	●
6	04.047 CLIP; CABLE POWER STEERING<N40> (E)	8-98023-697-0	01	1	1309-	●	●
6	04.047 CLIP; CABLE (B)	8-97011-448-0	02	1	1011-1308	●
6	04.047 CLIP; CABLE (B)	8-97011-448-0	02	1	1309-	●	●
6	04.047 CLIP; CABLE (D)	8-97036-332-1	01	1	1011-1211	●
6	04.047 CLIP; CABLE EXC. POWER STEERING<N40> (D)	8-97036-332-1	01	1	1212-1308	●
6	04.047 CLIP; CABLE EXC. POWER STEERING<N40> (D)	8-97036-332-1	01	1	1309-	●	●
6	04.047 CLIP; CABLE (A) ID=19.2	8-97211-011-0	02	1	1011-1308	●
6	04.047 CLIP; CABLE (A) ID=19.2	8-97211-011-0	02	1	1309-	●	●
6	04.047 CLIP; CABLE EXC. MANUAL TILT CAB<RWZ> 04.008 (C)	8-97093-491-1	01	1	1011-1308	●
6	04.047 CLIP; CABLE EXC. MANUAL TILT CAB<RWZ> 04.008 (C)	8-97093-491-1	01	1	1309-	●	●
272	04.047 BOLT; CLIP,CONT CABLE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1011-1308	●
272	04.047 BOLT; CLIP,CONT CABLE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1309-	●	●
294	00.854 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1011-1308	●
294	00.854 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	1309-	●	●
