◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51376 - QKR(MIDDLE EAST) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#79806) — 46 parça

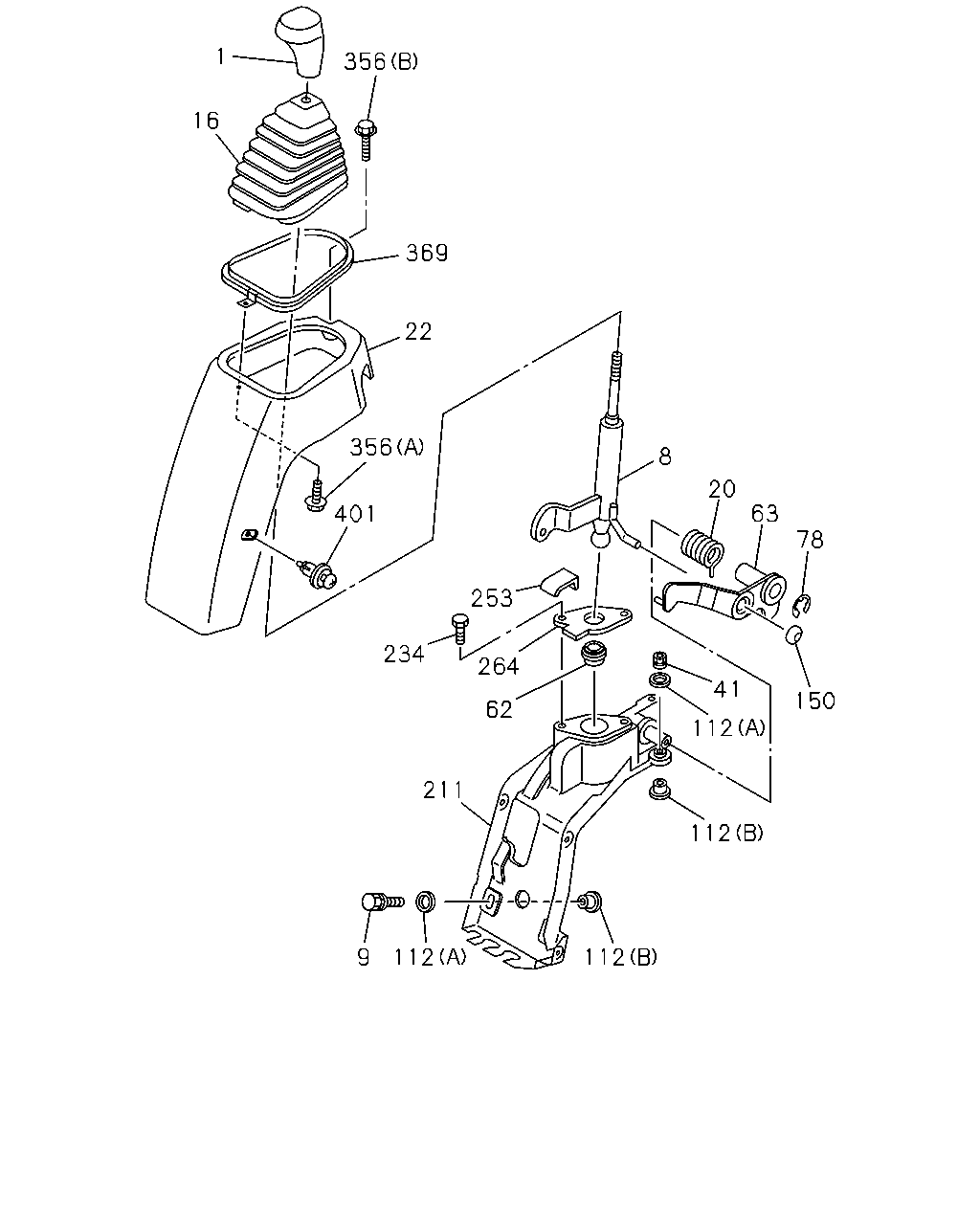

çizim 114094
356 1 16 369 22 356 401 8 78 63 20 150 41 112 112 112 112 9 211 62 253 264 234
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.006 KNOB; CHANGE LEVER
BLACK 		8-97196-285-1 01 1 1011-1308 ●
1 04.006 KNOB; CHANGE LEVER
BLACK 		8-97196-285-1 01 1 1309- ● ●
8 04.006 LEVER; CHANGE 8-97204-506-0 01 1 1011-1308 ●
8 04.006 LEVER; CHANGE 8-97204-506-0 01 1 1309- ● ●
9 04.012 BOLT; CHANGE LEVER
07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 1011-1308 ●
9 04.012 BOLT; CHANGE LEVER
07.633 M8X28 W/LK&PL WASHER 		8-94438-324-1 02 1 1309- ● ●
16 04.015 BOOT; CHANGE LEVER 8-97066-287-2 01 1 1011-1205 ●
16 04.015 BOOT; CHANGE LEVER
EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-97066-287-2 01 1 1206-1308 ●
16 04.015 BOOT; CHANGE LEVER
EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-97066-287-2 01 1 1309- ● ●
20 04.012 SPRING; CHANGE LEVER 8-97204-514-1 01 1 1011-1308 ●
20 04.012 SPRING; CHANGE LEVER 8-97204-514-1 01 1 1309- ● ●
22 04.015 COVER; DUST,CHANGE LEVER
GRAY 		8-97587-501-1 01 1 1011-1205 ●
22 04.015 COVER; DUST,CHANGE LEVER
EXC. KD PREPARATORY PACK VAR.4<7TV> GRAY 		8-97587-501-1 01 1 1206-1308 ●
22 04.015 COVER; DUST,CHANGE LEVER
EXC. KD PREPARATORY PACK VAR.4<7TV> GRAY 		8-97587-501-1 01 1 1309- ● ●
41 04.012 NUT; CHANGE LEVER
01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1011-1308 ●
41 04.012 NUT; CHANGE LEVER
01.840 M8 W/DISHED WASHER 		8-97329-625-0 02 1 1309- ● ●
62 04.012 SEAT; BALL,CHANGE LEVER 8-97011-895-1 01 1 1011-1308 ●
62 04.012 SEAT; BALL,CHANGE LEVER 8-97011-895-1 01 1 1309- ● ●
63 04.006 LEVER; RELAY,SELECT 8-97143-199-0 01 1 1011-1308 ●
63 04.006 LEVER; RELAY,SELECT 8-97143-199-0 01 1 1309- ● ●
78 04.008 RING; SNAP,CHANGE LEVER
ID=10 		0-91805-510-0 01 1 1011-1308 ●
78 04.008 RING; SNAP,CHANGE LEVER
ID=10 		0-91805-510-0 01 1 1309- ● ●
112 04.012 RUBBER; CUSHION
(A) 		8-97091-426-0 04 1 1011-1308 ●
112 04.012 RUBBER; CUSHION
(A) 		8-97091-426-0 04 1 1309- ● ●
112 04.012 RUBBER; CUSHION
(B) 		8-97091-427-0 04 1 1011-1308 ●
112 04.012 RUBBER; CUSHION
(B) 		8-97091-427-0 04 1 1309- ● ●
150 04.008 BALL; DETENT,CONT LEVER 8-97049-147-0 01 1 1011-1308 ●
150 04.008 BALL; DETENT,CONT LEVER 8-97049-147-0 01 1 1309- ● ●
211 04.010 BRACKET; CHANGE LEVER 8-97204-505-1 01 1 1011-1308 ●
211 04.010 BRACKET; CHANGE LEVER 8-97204-505-1 01 1 1309- ● ●
234 04.010 BOLT; BRKT
M6X12 FLANGE 		1-33739-842-0 02 1 1011-1308 ●
234 04.010 BOLT; BRKT
M6X12 FLANGE 		1-33739-842-0 02 1 1309- ● ●
253 04.012 STOPPER; CHANGE LEVER 8-97204-510-0 01 1 1011-1308 ●
253 04.012 STOPPER; CHANGE LEVER 8-97204-510-0 01 1 1309- ● ●
264 04.015 PLATE; COVER 8-97204-511-0 01 1 1011-1308 ●
264 04.015 PLATE; COVER 8-97204-511-0 01 1 1309- ● ●
356 04.012 SCREW; COVER
16.650 (B) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 01 1 1011-1308 ●
356 04.012 SCREW; COVER
16.650 (B) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 01 1 1309- ● ●
356 04.012 SCREW; COVER
16.800 (A) M5X14 TAPPING W/PL WASHER 		0-74160-514-0 01 1 1011-1205 ●
356 04.012 SCREW; COVER
EXC. KD PREPARATORY PACK VAR.4<7TV> 16.800 (A) M5X14 TAPPING W/PL WASHER 		0-74160-514-0 01 1 1206-1308 ●
356 04.012 SCREW; COVER
EXC. KD PREPARATORY PACK VAR.4<7TV> 16.800 (A) M5X14 TAPPING W/PL WASHER 		0-74160-514-0 01 1 1309- ● ●
369 04.012 RETAINER; REINF 8-97066-288-1 01 1 1011-1205 ●
369 04.012 RETAINER; REINF
EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-97066-288-1 01 1 1206-1308 ●
369 04.012 RETAINER; REINF
EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-97066-288-1 01 1 1309- ● ●
401 04.012 CLIP; COVER
GRAY 		8-97582-240-0 03 1 1011-1308 ●
401 04.012 CLIP; COVER
GRAY 		8-97582-240-0 03 1 1309- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
