◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51376 - QKR(MIDDLE EAST) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#79805) — 63 parça

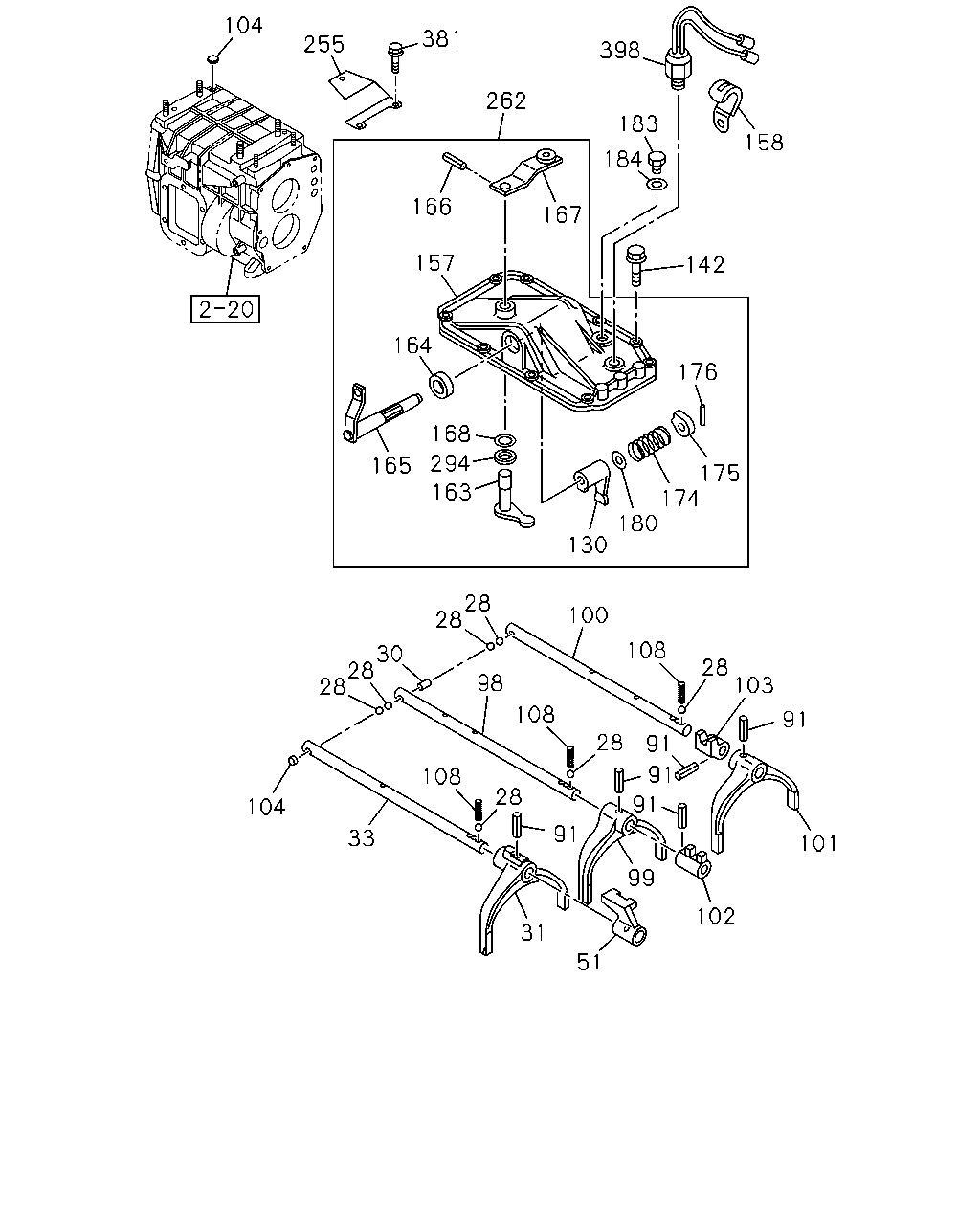

çizim 191758
104 381 255 262 398 158 183 167 142 176 175 174 180 130 184 166 164 165 168 163 294 157 28 28 30 28 28 104 33 108 100 98 108 28 108 28 91 101 102 99 51 31 91 91 103 28 91 91
BalonParca AdiParca NoAdetTipApplied Date A B
28 04.311 BALL; INTER LK 5-87220-295-0 07 1 1011-1308 ●
28 04.311 BALL; INTER LK 5-87220-295-0 07 1 1309- ● ●
30 04.307 PIN; INTER LK 5-87220-296-0 01 1 1011-1308 ●
30 04.307 PIN; INTER LK 5-87220-296-0 01 1 1309- ● ●
31 04.302 ARM; SHIFT,LOW & 2ND 5-87220-302-0 01 1 1011-1308 ●
31 04.302 ARM; SHIFT,LOW & 2ND 5-87220-302-0 01 1 1309- ● ●
33 04.309 ROD; SHIFT,LOW & 2ND 5-87220-299-0 01 1 1011-1308 ●
33 04.309 ROD; SHIFT,LOW & 2ND 5-87220-299-0 01 1 1309- ● ●
51 04.303 BLOCK; SHIFT,1ST & 2ND 5-87220-303-0 01 1 1011-1308 ●
51 04.303 BLOCK; SHIFT,1ST & 2ND 5-87220-303-0 01 1 1309- ● ●
91 04.302 PIN; SPR,SHIFT ARM 5-87220-301-0 06 1 1011-1308 ●
91 04.302 PIN; SPR,SHIFT ARM 5-87220-301-0 06 1 1309- ● ●
98 04.309 ROD; SHIFT,TOP & 3RD 5-87220-297-0 01 1 1011-1308 ●
98 04.309 ROD; SHIFT,TOP & 3RD 5-87220-297-0 01 1 1309- ● ●
99 04.302 ARM; SHIFT,4TH & 3RD 5-87220-304-0 01 1 1011-1308 ●
99 04.302 ARM; SHIFT,4TH & 3RD 5-87220-304-0 01 1 1309- ● ●
100 04.309 ROD; SHIFT,REV & 5TH 5-87220-294-0 01 1 1011-1308 ●
100 04.309 ROD; SHIFT,REV & 5TH 5-87220-294-0 01 1 1309- ● ●
101 04.302 ARM; SHIFT,REV & 5TH 5-87220-306-0 01 1 1011-1308 ●
101 04.302 ARM; SHIFT,REV & 5TH 5-87220-306-0 01 1 1309- ● ●
102 04.303 BLOCK; SHIFT,3RD & 4TH 5-87220-305-0 01 1 1011-1308 ●
102 04.303 BLOCK; SHIFT,3RD & 4TH 5-87220-305-0 01 1 1309- ● ●
103 04.303 BLOCK; SHIFT,REV TO OD 5-87220-307-0 01 1 1011-1308 ●
103 04.303 BLOCK; SHIFT,REV TO OD 5-87220-307-0 01 1 1309- ● ●
104 04.311 PLUG; PLATE 5-87220-298-0 01 1 1011-1308 ●
104 04.311 PLUG; PLATE 5-87220-298-0 01 1 1309- ● ●
108 04.311 SPRING; LOCK BALL 5-87220-300-0 03 1 1011-1308 ●
108 04.311 SPRING; LOCK BALL 5-87220-300-0 03 1 1309- ● ●
130 04.302 LEVER; SHIFT,INTERNAL 5-87220-308-0 01 1 1011-1205 ●
142 04.012 BOLT; QUAD BOX
04.317 		5-87220-283-0 08 1 1206-1308 ●
142 04.012 BOLT; QUAD BOX
04.317 		5-87220-283-0 08 1 1309- ● ●
142 04.012 BOLT; QUAD BOX
04.317 		5-87220-283-0 09 1 1011-1205 ●
157 04.105 BOX; QUAD,TRANS 5-87220-316-0 01 1 1011-1205 ●
158 04.105 CLIP; HARNESS 5-87220-312-0 01 1 1011-1308 ●
158 04.105 CLIP; HARNESS 5-87220-312-0 01 1 1309- ● ●
163 04.302 LEVER; SELECT,INTERNAL 5-87220-320-0 01 1 1011-1205 ●
164 04.105 SEAL; OIL,QUAD BOX 5-87220-317-0 01 1 1011-1205 ●
165 04.302 LEVER; SHIFT 5-87220-318-0 01 1 1011-1205 ●
166 04.302 PIN; SPR,SELECT LEVER 5-87220-301-0 01 1 1011-1205 ●
167 04.302 LEVER; SELECT,EXTERNAL
IDENTIFICATION LABEL FOR KD<6UT> 		5-87220-499-0 01 1 1201-1204 ●
167 04.302 LEVER; SELECT,EXTERNAL
IDENTIFICATION LABEL FOR KD<6UT> EXC. EXHAUST BRAKE<NF8> 		5-87220-499-0 01 1 1205-1205 ●
167 04.302 LEVER; SELECT,EXTERNAL 5-87220-315-0 01 1 1011-1112 ●
167 04.302 LEVER; SELECT,EXTERNAL
EXC. IDENTIFICATION LABEL FOR KD<6UT> 		5-87220-315-0 01 1 1201-1204 ●
167 04.302 LEVER; SELECT,EXTERNAL
EXC. EXHAUST BRAKE<NF8>,IDENTIFICATION LABEL FOR KD<6UT> 		5-87220-315-0 01 1 1205-1205 ●
168 04.302 WASHER; LK,SELECT LEVER 5-87220-319-0 01 1 1011-1205 ●
174 04.307 SPRING; REV 5-87220-310-0 01 1 1011-1205 ●
175 04.302 RING; STOPPER,SHIFT LEVER 5-87220-309-0 01 1 1011-1205 ●
176 04.302 PIN; SPR,STOPPER 5-87220-311-0 01 1 1011-1205 ●
180 04.302 WASHER; REV STOP SPRING 5-87220-309-0 01 1 1011-1205 ●
183 04.105 PLUG; SCREW,OIL FILTER 5-87220-314-0 01 1 1011-1308 ●
183 04.105 PLUG; SCREW,OIL FILTER 5-87220-314-0 01 1 1309- ● ●
184 04.105 GASKET; FILLER PLUG 5-87220-281-0 01 1 1011-1308 ●
184 04.105 GASKET; FILLER PLUG 5-87220-281-0 01 1 1309- ● ●
255 04.105 PLATE; DIST,QUAD BOX 5-87220-543-0 01 1 1206-1308 ●
255 04.105 PLATE; DIST,QUAD BOX 5-87220-543-0 01 1 1309- ● ●
262 04.105 BOX ASM; SHIFT CONT
EXHAUST BRAKE<NF8> 		5-87220-540-0 01 1 1206-1308 ●
262 04.105 BOX ASM; SHIFT CONT
EXHAUST BRAKE<NF8> 		5-87220-540-0 01 1 1309- ● ●
262 04.105 BOX ASM; SHIFT CONT
EXC. EXHAUST BRAKE<NF8> 		5-87220-535-0 01 1 1206-1308 ●
262 04.105 BOX ASM; SHIFT CONT
EXC. EXHAUST BRAKE<NF8> 		5-87220-535-0 01 1 1309- ● ●
294 04.107 SEAL; OIL,SELECT
04.105 		5-87220-317-0 01 1 1011-1205 ●
381 04.105 BOLT 5-87220-544-0 02 1 1206-1308 ●
381 04.105 BOLT 5-87220-544-0 02 1 1309- ● ●
398 02.698 SWITCH; REV LAMP 5-87220-313-0 01 1 1011-1205 ●
