◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51376 - QKR(MIDDLE EAST) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-26 - MANUAL TRANSMISSION GEAR ▶
2-26 — MANUAL TRANSMISSION GEAR (#79804) — 108 parça

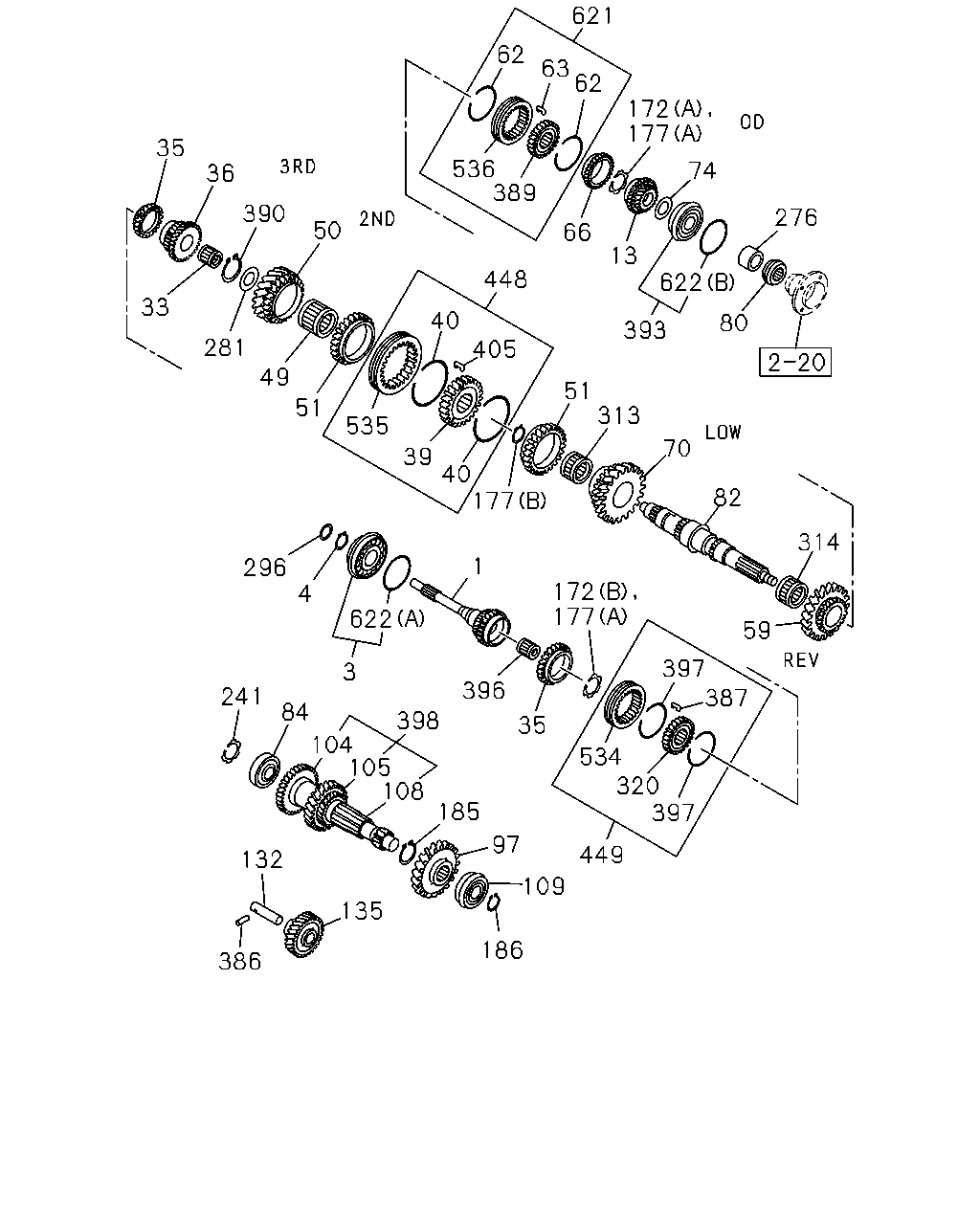

çizim 191761
276 74 177 172 621 62 63 62 536 448 389 13 66 622 393 70 82 314 313 51 405 40 50 390 36 35 33 49 281 51 39 535 40 1 177 172 177 397 387 59 320 397 534 35 396 622 4 296 241 84 104 3 398 105 108 185 97 109 186 449 135 132 386 80
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.351 SHAFT; TOP GEAR,TRANS 5-87220-324-0 01 1 1309- ●
1 04.351 SHAFT; TOP GEAR,TRANS 5-87220-325-0 01 1 1011- ●
3 04.403 BEARING; TOP GEAR SHAFT 5-87220-323-0 01 1 1011-1308 ●
3 04.403 BEARING; TOP GEAR SHAFT 5-87220-323-0 01 1 1309- ● ●
4 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 5-87220-322-0 01 1 1011-1308 ●
4 04.416 RING; SNAP,BRG TO TOP GEAR SHAFT 5-87220-322-0 01 1 1309- ● ●
13 04.415 GEAR; 5TH,MAINSHAFT 5-87220-352-0 01 1 1309- ●
13 04.415 GEAR; 5TH,MAINSHAFT 5-87220-353-0 01 1 1011- ●
33 04.352 BEARING; NEEDLE,3RD GEAR 5-87220-335-0 01 1 1011-1308 ●
33 04.352 BEARING; NEEDLE,3RD GEAR 5-87220-335-0 01 1 1309- ● ●
35 04.383 RING; BLOCK,4TH & 3RD 5-87220-327-0 02 1 1011-1308 ●
35 04.383 RING; BLOCK,4TH & 3RD 5-87220-327-0 02 1 1309- ● ●
36 04.415 GEAR; 3RD,MAINSHAFT 5-87220-333-0 01 1 1309- ●
36 04.415 GEAR; 3RD,MAINSHAFT 5-87220-334-0 01 1 1011- ●
39 04.384 HUB; CLU,LOW & 2ND 5-87220-343-0 01 1 1011-1205 ●
40 04.384 SPRING; INSERT,LOW & 2ND 5-87220-344-0 02 1 1011-1205 ●
49 04.352 BEARING; NEEDLE,2ND GEAR 5-87220-340-0 01 1 1011-1308 ●
49 04.352 BEARING; NEEDLE,2ND GEAR 5-87220-340-0 01 1 1309- ● ●
50 04.395 GEAR; 2ND,MAINSHAFT 5-87220-338-0 01 1 1309- ●
50 04.395 GEAR; 2ND,MAINSHAFT 5-87220-339-0 01 1 1011- ●
51 04.383 RING; BLOCK,LOW & 2ND 5-87220-341-0 02 1 1011-1308 ●
51 04.383 RING; BLOCK,LOW & 2ND 5-87220-341-0 02 1 1309- ● ●
59 04.417 GEAR; REV MAINSHAFT 5-87220-348-0 01 1 1011-1308 ●
59 04.417 GEAR; REV MAINSHAFT 5-87220-348-0 01 1 1309- ● ●
62 04.384 SPRING; INSERT,REV & 5TH 5-87220-330-0 02 1 1011-1205 ●
63 04.384 INSERT; SYN,REV & 5TH 5-87220-350-0 01 1 1011-1205 ●
66 04.383 RING; BLOCK,SYN 5-87220-327-0 01 1 1011-1308 ●
66 04.383 RING; BLOCK,SYN 5-87220-327-0 01 1 1309- ● ●
70 04.417 GEAR; 1ST,MAINSHAFT 5-87220-346-0 01 1 1011-1308 ●
70 04.417 GEAR; 1ST,MAINSHAFT 5-87220-346-0 01 1 1309- ● ●
74 04.419 WASHER; THRUST,REV GEAR 5-87220-354-0 01 1 1011-1308 ●
74 04.419 WASHER; THRUST,REV GEAR 5-87220-354-0 01 1 1309- ● ●
80 04.343 GEAR; SPD DRIVE 5-87220-357-0 01 1 1011-1308 ●
80 04.343 GEAR; SPD DRIVE 5-87220-357-0 01 1 1309- ● ●
82 04.403 SHAFT; MAIN,TRANS 5-87220-347-0 01 1 1011-1308 ●
82 04.403 SHAFT; MAIN,TRANS 5-87220-347-0 01 1 1309- ● ●
84 04.422 BEARING; COUNTER SHAFT,FRT 5-87220-358-0 01 1 1011-1308 ●
84 04.422 BEARING; COUNTER SHAFT,FRT 5-87220-358-0 01 1 1309- ● ●
97 04.415 GEAR; 5TH,COUNTER 5-87220-367-0 01 1 1309- ●
97 04.415 GEAR; 5TH,COUNTER 5-87220-368-0 01 1 1011- ●
104 04.415 GEAR; 4TH,COUNTER 5-87220-361-0 01 1 1309- ●
104 04.415 GEAR; 4TH,COUNTER 5-87220-362-0 01 1 1011- ●
105 04.415 GEAR; 3RD,COUNTER 5-87220-363-0 01 1 1309- ●
105 04.415 GEAR; 3RD,COUNTER 5-87220-364-0 01 1 1011- ●
108 04.428 SHAFT; COUNTER 5-87220-365-0 01 1 1011-1308 ●
108 04.428 SHAFT; COUNTER 5-87220-365-0 01 1 1309- ● ●
109 04.422 BEARING; COUNTER SHAFT,RR
04.352 		5-87220-355-0 01 1 1011-1308 ●
109 04.422 BEARING; COUNTER SHAFT,RR
04.352 		5-87220-355-0 01 1 1309- ● ●
132 04.433 SHAFT; REV 5-87220-371-0 01 1 1011-1308 ●
132 04.433 SHAFT; REV 5-87220-371-0 01 1 1309- ● ●
135 04.430 GEAR; REV IDLER 5-87220-370-0 01 1 1011-1308 ●
135 04.430 GEAR; REV IDLER 5-87220-370-0 01 1 1309- ● ●
172 04.412 RING; SNAP,CLU HUB
(B) 		5-87220-541-0 01 1 1206-1308 ●
172 04.412 RING; SNAP,CLU HUB
(B) 		5-87220-541-0 01 1 1309- ● ●
172 04.412 RING; SNAP,CLU HUB
(A) 		5-87220-542-0 01 1 1206-1308 ●
172 04.412 RING; SNAP,CLU HUB
(A) 		5-87220-542-0 01 1 1309- ● ●
177 04.384 RING; SNAP,CLU HUB
(A) T=1.80 		5-87220-384-0 AR 1 1011-1308 ●
177 04.384 RING; SNAP,CLU HUB
(A) T=1.80 		5-87220-384-0 AR 1 1309- ● ●
177 04.384 RING; SNAP,CLU HUB
(A) T=1.85 		5-87220-385-0 AR 1 1011-1205 ●
177 04.384 RING; SNAP,CLU HUB
(A) T=1.90 		5-87220-386-0 AR 1 1011-1205 ●
177 04.384 RING; SNAP,CLU HUB
(A) T=1.95 		5-87220-387-0 AR 1 1011-1308 ●
177 04.384 RING; SNAP,CLU HUB
(A) T=1.95 		5-87220-387-0 AR 1 1309- ● ●
177 04.384 RING; SNAP,CLU HUB
04.383 (B) 		5-87220-336-0 01 1 1011-1205 ●
177 04.384 RING; SNAP,CLU HUB
IDENTIFICATION LABEL FOR KD<6UT> EXC. EXHAUST BRAKE<NF8> 04.383 (B) 		5-87220-336-0 01 1 1206-1206 ●
177 04.384 RING; SNAP,CLU HUB
EXC. EXHAUST BRAKE<NF8> 04.383 (B) 		5-87220-336-0 01 1 1207- ●
185 04.422 RING; SNAP,CLUSTER GEAR 5-87220-366-0 01 1 1011-1308 ●
185 04.422 RING; SNAP,CLUSTER GEAR 5-87220-366-0 01 1 1309- ● ●
186 04.422 RING; SNAP,CLUSTER GEAR 5-87220-369-0 01 1 1011-1308 ●
186 04.422 RING; SNAP,CLUSTER GEAR 5-87220-369-0 01 1 1309- ● ●
241 04.416 RING; SNAP 5-87220-548-0 01 1 1206-1308 ●
241 04.416 RING; SNAP 5-87220-548-0 01 1 1309- ● ●
276 04.419 SPACER; BRG TO DRIVE GEAR 5-87220-356-0 01 1 1011-1308 ●
276 04.419 SPACER; BRG TO DRIVE GEAR 5-87220-356-0 01 1 1309- ● ●
281 04.419 WASHER; THRUST,MAINSHAFT 5-87220-337-0 01 1 1011-1308 ●
281 04.419 WASHER; THRUST,MAINSHAFT 5-87220-337-0 01 1 1309- ● ●
296 04.406 WASHER; THRUST 5-87220-321-0 01 1 1011-1308 ●
296 04.406 WASHER; THRUST 5-87220-321-0 01 1 1309- ● ●
313 04.419 BEARING; NEEDLE,LOW GEAR 5-87220-345-0 01 1 1011-1308 ●
313 04.419 BEARING; NEEDLE,LOW GEAR 5-87220-345-0 01 1 1309- ● ●
314 04.419 BEARING; NEEDLE,REV GEAR
04.352 		5-87220-340-0 01 1 1011-1308 ●
314 04.419 BEARING; NEEDLE,REV GEAR
04.352 		5-87220-340-0 01 1 1309- ● ●
320 04.384 HUB; CLU,4TH & 3RD 5-87220-351-0 01 1 1011-1205 ●
386 04.435 PIN; REV SHAFT 5-87220-372-0 01 1 1011-1308 ●
386 04.435 PIN; REV SHAFT 5-87220-372-0 01 1 1309- ● ●
387 04.384 INSERT; SYN,4TH & 3RD 5-87220-332-0 03 1 1011-1205 ●
389 04.384 HUB; CLU,REV & 5TH 5-87220-351-0 01 1 1011-1205 ●
390 04.383 RING; SNAP,CLU HUB 5-87220-336-0 01 1 1011-1205 ●
393 04.352 BEARING; MAINSHAFT END 5-87220-355-0 01 1 1011-1308 ●
393 04.352 BEARING; MAINSHAFT END 5-87220-355-0 01 1 1309- ● ●
396 04.352 BEARING; NEEDLE,MAINSHAFT 5-87220-326-0 01 1 1011-1308 ●
396 04.352 BEARING; NEEDLE,MAINSHAFT 5-87220-326-0 01 1 1309- ● ●
397 04.384 SPRING; INSERT,4TH & 3RD 5-87220-330-0 02 1 1011-1205 ●
398 04.421 GEAR; COUNTER 5-87220-359-0 01 1 1309- ●
398 04.421 GEAR; COUNTER 5-87220-360-0 01 1 1011- ●
405 04.384 INSERT; SYN,LOW & 2ND 5-87220-332-0 03 1 1011-1205 ●
448 04.380 SYNCHRONIZER ASM; 1ST & 2ND 5-87220-536-0 01 1 1206-1308 ●
448 04.380 SYNCHRONIZER ASM; 1ST & 2ND 5-87220-536-0 01 1 1309- ● ●
449 04.380 SYNCHRONIZER ASM; 3RD & 4TH 5-87220-537-0 01 1 1206-1308 ●
449 04.380 SYNCHRONIZER ASM; 3RD & 4TH 5-87220-537-0 01 1 1309- ● ●
534 04.395 SLEEVE; HUB,4TH-3RD 5-87220-329-0 01 1 1011-1205 ●
535 04.395 SLEEVE; HUB,LOW-2ND 5-87220-342-0 01 1 1011-1205 ●
536 04.395 SLEEVE; HUB,REV-5TH 5-87220-349-0 01 1 1011-1205 ●
621 04.380 SYNCHRONIZER ASM; REV & 5TH 5-87220-538-0 01 1 1206-1308 ●
621 04.380 SYNCHRONIZER ASM; REV & 5TH 5-87220-538-0 01 1 1309- ● ●
622 04.416 RING
(A) 		5-87220-546-0 01 1 1206-1308 ●
622 04.416 RING
(A) 		5-87220-546-0 01 1 1309- ● ●
622 04.416 RING
(B) 		5-87220-547-0 02 1 1206-1308 ●
622 04.416 RING
(B) 		5-87220-547-0 02 1 1309- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
