◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51376 - QKR(MIDDLE EAST) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-08 - CLUTCH MASTER CYLINDER ▶
2-08 — CLUTCH MASTER CYLINDER (#79801) — 20 parça

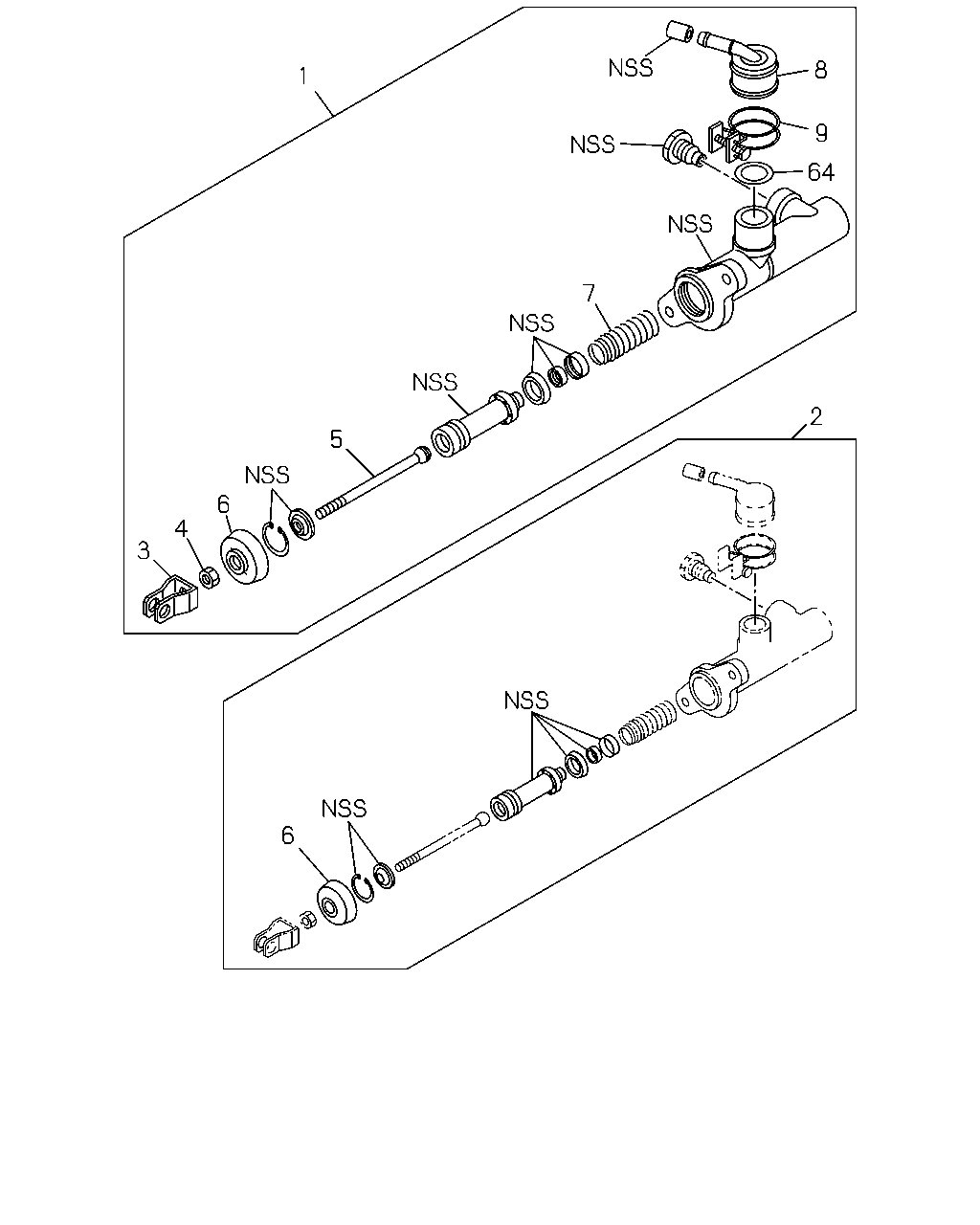

çizim 104512
1 3 4 6 5 7 8 9 64 2 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.775 CYLINDER ASM; CLUTCH MASTER 8-98117-644-0 01 1 1011-1308 ●
1 00.775 CYLINDER ASM; CLUTCH MASTER 8-98117-644-0 01 1 1309- ● ●
2 00.775 REPAIR KIT; CLU M/CYL 5-87832-226-0 01 1 1011-1308 ●
2 00.775 REPAIR KIT; CLU M/CYL 5-87832-226-0 01 1 1309- ● ●
3 00.777 JOINT; JAW,CLU M/CYL 8-97167-770-0 01 1 1011-1308 ●
3 00.777 JOINT; JAW,CLU M/CYL 8-97167-770-0 01 1 1309- ● ●
4 00.777 NUT; JAW JOINT
M8 		0-91111-508-0 01 1 1011-1308 ●
4 00.777 NUT; JAW JOINT
M8 		0-91111-508-0 01 1 1309- ● ●
5 00.775 ROD; PUSH,CLU M/CYL 8-97167-768-0 01 1 1011-1308 ●
5 00.775 ROD; PUSH,CLU M/CYL 8-97167-768-0 01 1 1309- ● ●
6 00.775 BOOT; CLU M/CYL 8-94412-200-0 01 1 1011-1308 ●
6 00.775 BOOT; CLU M/CYL 8-94412-200-0 01 1 1309- ● ●
7 00.775 SPRING ASM; CLU M/CYL 8-97167-780-0 01 1 1011-1308 ●
7 00.775 SPRING ASM; CLU M/CYL 8-97167-780-0 01 1 1309- ● ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL 8-97167-766-0 01 1 1011-1308 ●
8 00.777 CONNECTOR; PIPE,CLU M/CYL 8-97167-766-0 01 1 1309- ● ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 1011-1308 ●
9 00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 1309- ● ●
64 00.777 GASKET; CONNECTOR 8-97167-767-0 01 1 1011-1308 ●
64 00.777 GASKET; CONNECTOR 8-97167-767-0 01 1 1309- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
