Sayfa 1-35 - Isuzu EPC

1-35 — CHARGE AIR COOLER (#7980) — 248 parça

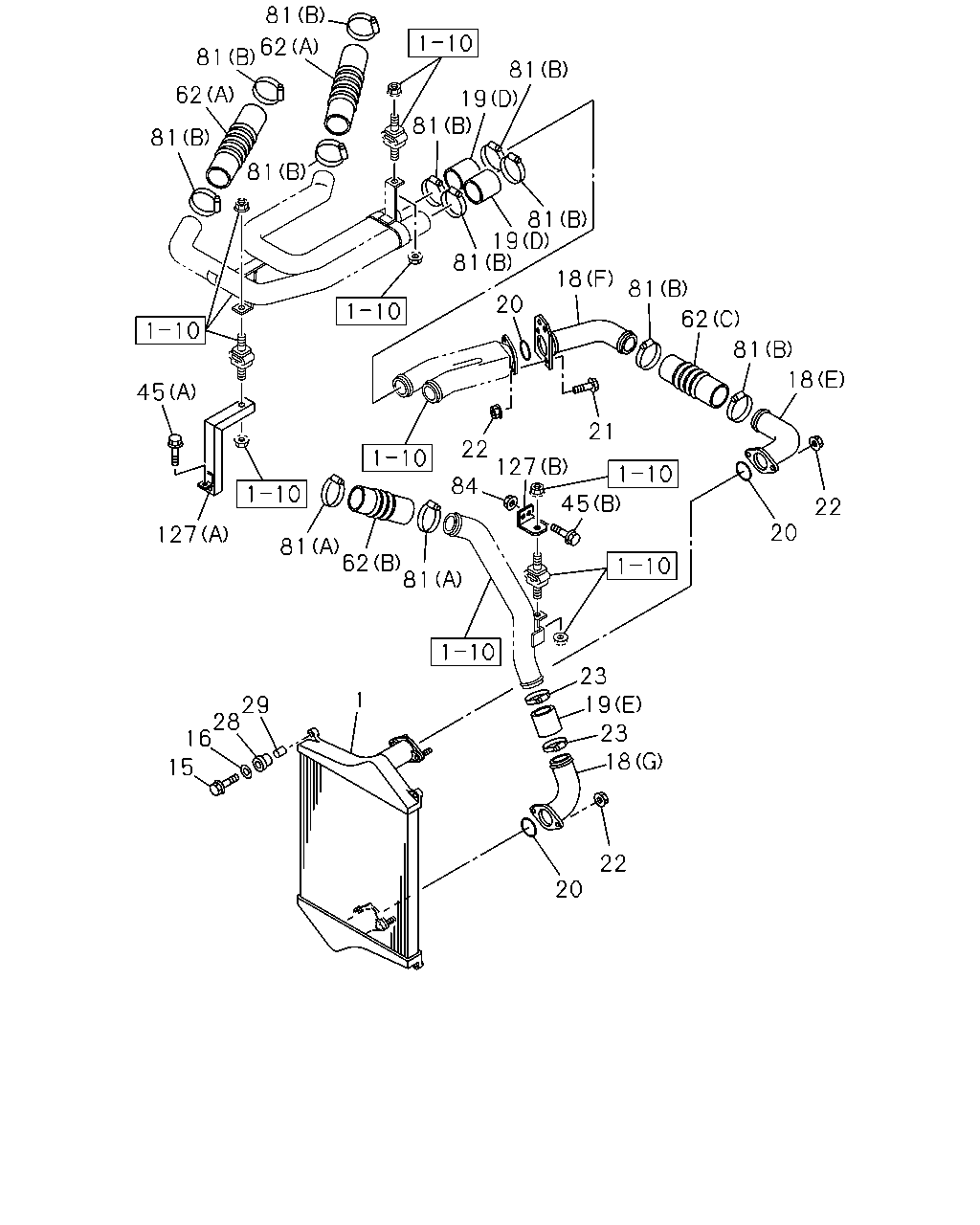

81 62 81 81 19 81 62 81 81 81 19 81 18 81 20 62 81 18 45 21 22 127 84 45 22 20 127 81 62 81 23 19 23 18 1 29 28 16 15 22 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COOLER; CHARGE AIR	1-14431-042-1	01	1	0012-0106	●
1	COOLER; CHARGE AIR EXC. EURO3 SPECIFICATION(NJX)	1-14431-042-1	01	1	0107-	●
1	COOLER; CHARGE AIR EURO3 SPECIFICATION(NJX)	1-14431-054-0	01	1	0107-0203	●
1	COOLER; CHARGE AIR EURO3 SPECIFICATION(NJX)	1-14431-054-2	01	1	0204-0210	●
1	COOLER; CHARGE AIR	1-14431-054-2	01	1	0204-0210		●
1	COOLER; CHARGE AIR EURO3 SPECIFICATION(NJX)	1-14431-054-2	01	1	0211-	●
1	COOLER; CHARGE AIR	1-14431-054-2	01	1	0211-		●	●
15	BOLT; CHARGE AIR COOLER M8X50 FLANGE	0-28080-850-0	04	1	0012-0203	●
15	BOLT; CHARGE AIR COOLER M8X50 FLANGE	0-28080-850-0	04	1	0204-0210	●	●
15	BOLT; CHARGE AIR COOLER M8X50 FLANGE	0-28080-850-0	04	1	0211-	●	●	●
16	WASHER; PL,CHARGE AIR COOLER EURO3 SPECIFICATION(NJX) ID=10.5 OD=32	9-09164-810-0	04	1	0303-	●
16	WASHER; PL,CHARGE AIR COOLER ID=10.5 OD=32	9-09164-810-0	04	1	0303-		●	●
16	WASHER; PL,CHARGE AIR COOLER ID=10.5 OD=32	9-09164-810-0	04	1	0012-0203	●
16	WASHER; PL,CHARGE AIR COOLER ID=10.5 OD=32	9-09164-810-0	04	1	0204-0210	●	●
16	WASHER; PL,CHARGE AIR COOLER ID=10.5 OD=32	9-09164-810-0	04	1	0211-0302	●	●	●
16	WASHER; PL,CHARGE AIR COOLER EXC. EURO3 SPECIFICATION(NJX) ID=10.5 OD=32	9-09164-810-0	08	1	0303-	●
18	ADAPTER (A)	1-14112-684-0	01	1	0012-0106	●
18	ADAPTER EXC. EURO3 SPECIFICATION(NJX) (A)	1-14112-684-0	01	1	0107-	●
18	ADAPTER (B)	1-14112-685-0	01	1	0012-0106	●
18	ADAPTER EXC. EURO3 SPECIFICATION(NJX) (B)	1-14112-685-0	01	1	0107-	●
18	ADAPTER EURO3 SPECIFICATION(NJX) (C)	1-14112-761-1	01	1	0107-0210	●
18	ADAPTER EURO3 SPECIFICATION(NJX) (C)	1-14112-761-1	01	1	0211-	●
18	ADAPTER (C)	1-14112-761-1	01	1	0211-			●
18	ADAPTER EURO3 SPECIFICATION(NJX) (D)	1-14112-762-1	01	1	0107-0210	●
18	ADAPTER EURO3 SPECIFICATION(NJX) (D)	1-14112-762-1	01	1	0211-	●
18	ADAPTER (D)	1-14112-762-1	01	1	0211-			●
18	ADAPTER (E)	1-14112-733-0	01	1	0204-		●
18	ADAPTER (F)	1-14112-734-0	01	1	0204-		●
18	ADAPTER (G)	1-14112-735-0	01	1	0204-		●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (A)	1-09360-797-1	02	1	0012-0210	●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (A)	1-09360-797-1	02	1	0211-	●		●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (B)	1-09360-911-0	01	1	0012-0210	●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (B)	1-09360-911-0	01	1	0211-0212	●		●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (B)	1-09361-118-0	01	1	0301-	●		●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (C)	8-94395-023-1	01	1	0012-0210	●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (C)	8-94395-023-1	01	1	0211-	●		●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (D)	1-09361-047-0	02	1	0204-		●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (E)	1-09361-048-0	01	1	0204-		●
20	GASKET ID=84.6	1-09623-431-0	02	1	0012-0210	●
20	GASKET ID=84.6	1-09623-431-0	02	1	0211-	●		●
20	GASKET ID=84.6	1-09623-431-0	03	1	0204-		●
21	BOLT M10X35 FLANGE	0-28681-035-0	02	1	0204-0512		●
21	BOLT M10X35 FLANGE	0-28651-035-0	02	1	0601-		●
22	NUT M10 FLANGE	0-91150-210-0	04	1	0012-0210	●
22	NUT M10 FLANGE	0-91150-210-0	04	1	0211-0602	●		●
22	NUT M10 FLANGE	0-91180-210-0	04	1	0603-	●		●
22	NUT M10 FLANGE	0-91150-210-0	06	1	0204-0602		●
22	NUT M10 FLANGE	0-91180-210-0	06	1	0603-		●
23	CLIP; HOSE EXC. KD PREPARATORY PACK<6HF> ID=58-79	1-09707-136-0	12	1	1002-	●		●
23	CLIP; HOSE EXC. KD PREPARATORY PACK<6HF> ID=68-85	8-98096-592-0	06	1	1002-		●
23	CLIP; HOSE ID=58-79	8-94126-771-0	12	1	0012-0210	●
23	CLIP; HOSE ID=58-79	8-94126-771-0	12	1	0211-0306	●		●
23	CLIP; HOSE ID=58-76	1-09707-203-0	12	1	0307-0811	●		●
23	CLIP; HOSE ID=55-75	8-98133-349-0	12	1	0812-1001	●		●
23	CLIP; HOSE KD PREPARATORY PACK<6HF> ID=55-75	8-98133-349-0	12	1	1002-	●		●
23	CLIP; HOSE ID=68-85	8-94320-428-0	06	1	0204-0306		●
23	CLIP; HOSE ID=68-85	1-09707-202-0	06	1	0307-0810		●
23	CLIP; HOSE ID=65-85	8-98133-350-0	06	1	0811-1001		●
23	CLIP; HOSE KD PREPARATORY PACK<6HF> ID=65-85	8-98133-350-0	06	1	1002-		●
28	RUBBER; MTG,CHARGE AIR COOLER	1-21467-018-0	08	1	0012-0203	●
28	RUBBER; MTG,CHARGE AIR COOLER	1-21467-018-0	08	1	0204-0210	●	●
28	RUBBER; MTG,CHARGE AIR COOLER	1-21467-018-0	08	1	0211-	●	●	●
29	COLLAR; MTG RUBBER,CAC BRKT	1-21469-100-0	04	1	0012-0203	●
29	COLLAR; MTG RUBBER,CAC BRKT	1-21469-100-0	04	1	0204-0210	●	●
29	COLLAR; MTG RUBBER,CAC BRKT	1-21469-100-0	04	1	0211-	●	●	●
45	BOLT; BRKT EURO3 SPECIFICATION(NJX) (A) M8X25 FLANGE	0-28680-825-0	02	1	0107-0203	●
45	BOLT; BRKT EURO3 SPECIFICATION(NJX) (A) M8X25 FLANGE	0-28680-825-0	02	1	0204-0210	●
45	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	0204-0210		●
45	BOLT; BRKT EURO3 SPECIFICATION(NJX) (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512	●
45	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512		●	●
45	BOLT; BRKT EURO3 SPECIFICATION(NJX) (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
45	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●	●
45	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	02	1	0204-0512		●
45	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-		●
62	HOSE; CHARGE AIR COOLER TO INL DUCT (A) L=270	1-09360-914-2	02	1	0204-		●
62	HOSE; CHARGE AIR COOLER TO INL DUCT (B)	1-09361-045-0	01	1	0204-		●
62	HOSE; CHARGE AIR COOLER TO INL DUCT (C)	1-09361-046-0	01	1	0204-		●
81	CLIP; HOSE EXC. KD PREPARATORY PACK<6HF> (A) ID=77-99	1-09707-141-0	04	1	1002-		●
81	CLIP; HOSE EXC. KD PREPARATORY PACK<6HF> (B) ID=68-85	8-98096-592-0	10	1	1002-		●
81	CLIP; HOSE (A) ID=77-95	1-09707-114-0	04	1	0204-0306		●
81	CLIP; HOSE (A) ID=77-95	1-09707-198-0	04	1	0307-0810		●
81	CLIP; HOSE (A) ID=75-95	8-98133-357-0	04	1	0811-1001		●
81	CLIP; HOSE KD PREPARATORY PACK<6HF> (A) ID=75-95	8-98133-357-0	04	1	1002-		●
81	CLIP; HOSE (B) ID=68-85	8-94320-428-0	10	1	0204-0306		●
81	CLIP; HOSE (B) ID=68-85	1-09707-202-0	10	1	0307-0810		●
81	CLIP; HOSE (B) ID=65-85	8-98133-350-0	10	1	0811-1001		●
81	CLIP; HOSE KD PREPARATORY PACK<6HF> (B) ID=65-85	8-98133-350-0	10	1	1002-		●
84	NUT; BRKT EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-208-0	02	1	0107-0210	●
84	NUT; BRKT EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-208-0	02	1	0211-0602	●
84	NUT; BRKT M8 FLANGE	0-91150-208-0	02	1	0211-0602			●
84	NUT; BRKT EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-208-0	02	1	0603-	●
84	NUT; BRKT M8 FLANGE	0-91180-208-0	02	1	0603-			●
84	NUT; BRKT M8 FLANGE	0-91150-208-0	04	1	0204-0602		●
84	NUT; BRKT M8 FLANGE	0-91180-208-0	04	1	0603-		●
127	BRACKET; DUCT EURO3 SPECIFICATION(NJX) (B)	1-47478-710-0	01	1	0107-0203	●
127	BRACKET; DUCT EURO3 SPECIFICATION(NJX) (B)	1-47478-710-0	01	1	0204-0210	●
127	BRACKET; DUCT (B)	1-47478-710-0	01	1	0204-0210		●
127	BRACKET; DUCT EURO3 SPECIFICATION(NJX) (B)	1-47478-710-0	01	1	0211-	●
127	BRACKET; DUCT (B)	1-47478-710-0	01	1	0211-		●	●
127	BRACKET; DUCT (A)	1-21439-115-0	01	1	0204-		●

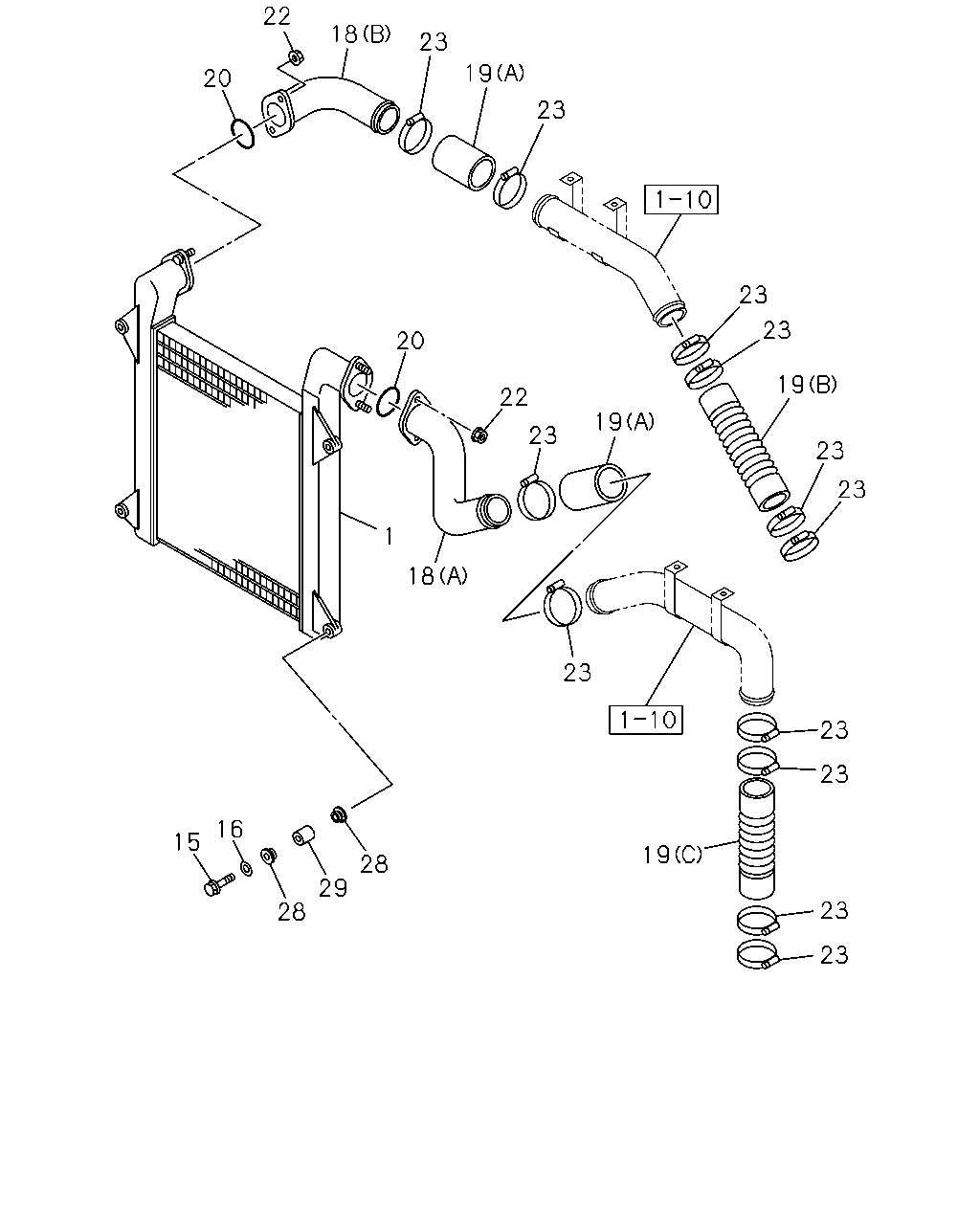

22 18 23 19 20 23 23 23 20 19 22 19 23 23 23 1 18 23 23 23 16 15 19 28 29 23 28 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COOLER; CHARGE AIR	1-14431-042-1	01	1	0012-0106	●
1	COOLER; CHARGE AIR EXC. EURO3 SPECIFICATION(NJX)	1-14431-042-1	01	1	0107-	●
1	COOLER; CHARGE AIR EURO3 SPECIFICATION(NJX)	1-14431-054-0	01	1	0107-0203	●
1	COOLER; CHARGE AIR EURO3 SPECIFICATION(NJX)	1-14431-054-2	01	1	0204-0210	●
1	COOLER; CHARGE AIR	1-14431-054-2	01	1	0204-0210		●
1	COOLER; CHARGE AIR EURO3 SPECIFICATION(NJX)	1-14431-054-2	01	1	0211-	●
1	COOLER; CHARGE AIR	1-14431-054-2	01	1	0211-		●	●
15	BOLT; CHARGE AIR COOLER M8X50 FLANGE	0-28080-850-0	04	1	0012-0203	●
15	BOLT; CHARGE AIR COOLER M8X50 FLANGE	0-28080-850-0	04	1	0204-0210	●	●
15	BOLT; CHARGE AIR COOLER M8X50 FLANGE	0-28080-850-0	04	1	0211-	●	●	●
16	WASHER; PL,CHARGE AIR COOLER EURO3 SPECIFICATION(NJX) ID=10.5 OD=32	9-09164-810-0	04	1	0303-	●
16	WASHER; PL,CHARGE AIR COOLER ID=10.5 OD=32	9-09164-810-0	04	1	0303-		●	●
16	WASHER; PL,CHARGE AIR COOLER ID=10.5 OD=32	9-09164-810-0	04	1	0012-0203	●
16	WASHER; PL,CHARGE AIR COOLER ID=10.5 OD=32	9-09164-810-0	04	1	0204-0210	●	●
16	WASHER; PL,CHARGE AIR COOLER ID=10.5 OD=32	9-09164-810-0	04	1	0211-0302	●	●	●
16	WASHER; PL,CHARGE AIR COOLER EXC. EURO3 SPECIFICATION(NJX) ID=10.5 OD=32	9-09164-810-0	08	1	0303-	●
18	ADAPTER (A)	1-14112-684-0	01	1	0012-0106	●
18	ADAPTER EXC. EURO3 SPECIFICATION(NJX) (A)	1-14112-684-0	01	1	0107-	●
18	ADAPTER (B)	1-14112-685-0	01	1	0012-0106	●
18	ADAPTER EXC. EURO3 SPECIFICATION(NJX) (B)	1-14112-685-0	01	1	0107-	●
18	ADAPTER EURO3 SPECIFICATION(NJX) (C)	1-14112-761-1	01	1	0107-0210	●
18	ADAPTER EURO3 SPECIFICATION(NJX) (C)	1-14112-761-1	01	1	0211-	●
18	ADAPTER (C)	1-14112-761-1	01	1	0211-			●
18	ADAPTER EURO3 SPECIFICATION(NJX) (D)	1-14112-762-1	01	1	0107-0210	●
18	ADAPTER EURO3 SPECIFICATION(NJX) (D)	1-14112-762-1	01	1	0211-	●
18	ADAPTER (D)	1-14112-762-1	01	1	0211-			●
18	ADAPTER (E)	1-14112-733-0	01	1	0204-		●
18	ADAPTER (F)	1-14112-734-0	01	1	0204-		●
18	ADAPTER (G)	1-14112-735-0	01	1	0204-		●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (A)	1-09360-797-1	02	1	0012-0210	●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (A)	1-09360-797-1	02	1	0211-	●		●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (B)	1-09360-911-0	01	1	0012-0210	●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (B)	1-09360-911-0	01	1	0211-0212	●		●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (B)	1-09361-118-0	01	1	0301-	●		●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (C)	8-94395-023-1	01	1	0012-0210	●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (C)	8-94395-023-1	01	1	0211-	●		●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (D)	1-09361-047-0	02	1	0204-		●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (E)	1-09361-048-0	01	1	0204-		●
20	GASKET ID=84.6	1-09623-431-0	02	1	0012-0210	●
20	GASKET ID=84.6	1-09623-431-0	02	1	0211-	●		●
20	GASKET ID=84.6	1-09623-431-0	03	1	0204-		●
22	NUT M10 FLANGE	0-91150-210-0	04	1	0012-0210	●
22	NUT M10 FLANGE	0-91150-210-0	04	1	0211-0602	●		●
22	NUT M10 FLANGE	0-91180-210-0	04	1	0603-	●		●
22	NUT M10 FLANGE	0-91150-210-0	06	1	0204-0602		●
22	NUT M10 FLANGE	0-91180-210-0	06	1	0603-		●
23	CLIP; HOSE EXC. KD PREPARATORY PACK<6HF> ID=58-79	1-09707-136-0	12	1	1002-	●		●
23	CLIP; HOSE EXC. KD PREPARATORY PACK<6HF> ID=68-85	8-98096-592-0	06	1	1002-		●
23	CLIP; HOSE ID=58-79	8-94126-771-0	12	1	0012-0210	●
23	CLIP; HOSE ID=58-79	8-94126-771-0	12	1	0211-0306	●		●
23	CLIP; HOSE ID=58-76	1-09707-203-0	12	1	0307-0811	●		●
23	CLIP; HOSE ID=55-75	8-98133-349-0	12	1	0812-1001	●		●
23	CLIP; HOSE KD PREPARATORY PACK<6HF> ID=55-75	8-98133-349-0	12	1	1002-	●		●
23	CLIP; HOSE ID=68-85	8-94320-428-0	06	1	0204-0306		●
23	CLIP; HOSE ID=68-85	1-09707-202-0	06	1	0307-0810		●
23	CLIP; HOSE ID=65-85	8-98133-350-0	06	1	0811-1001		●
23	CLIP; HOSE KD PREPARATORY PACK<6HF> ID=65-85	8-98133-350-0	06	1	1002-		●
28	RUBBER; MTG,CHARGE AIR COOLER	1-21467-018-0	08	1	0012-0203	●
28	RUBBER; MTG,CHARGE AIR COOLER	1-21467-018-0	08	1	0204-0210	●	●
28	RUBBER; MTG,CHARGE AIR COOLER	1-21467-018-0	08	1	0211-	●	●	●
29	COLLAR; MTG RUBBER,CAC BRKT	1-21469-100-0	04	1	0012-0203	●
29	COLLAR; MTG RUBBER,CAC BRKT	1-21469-100-0	04	1	0204-0210	●	●
29	COLLAR; MTG RUBBER,CAC BRKT	1-21469-100-0	04	1	0211-	●	●	●

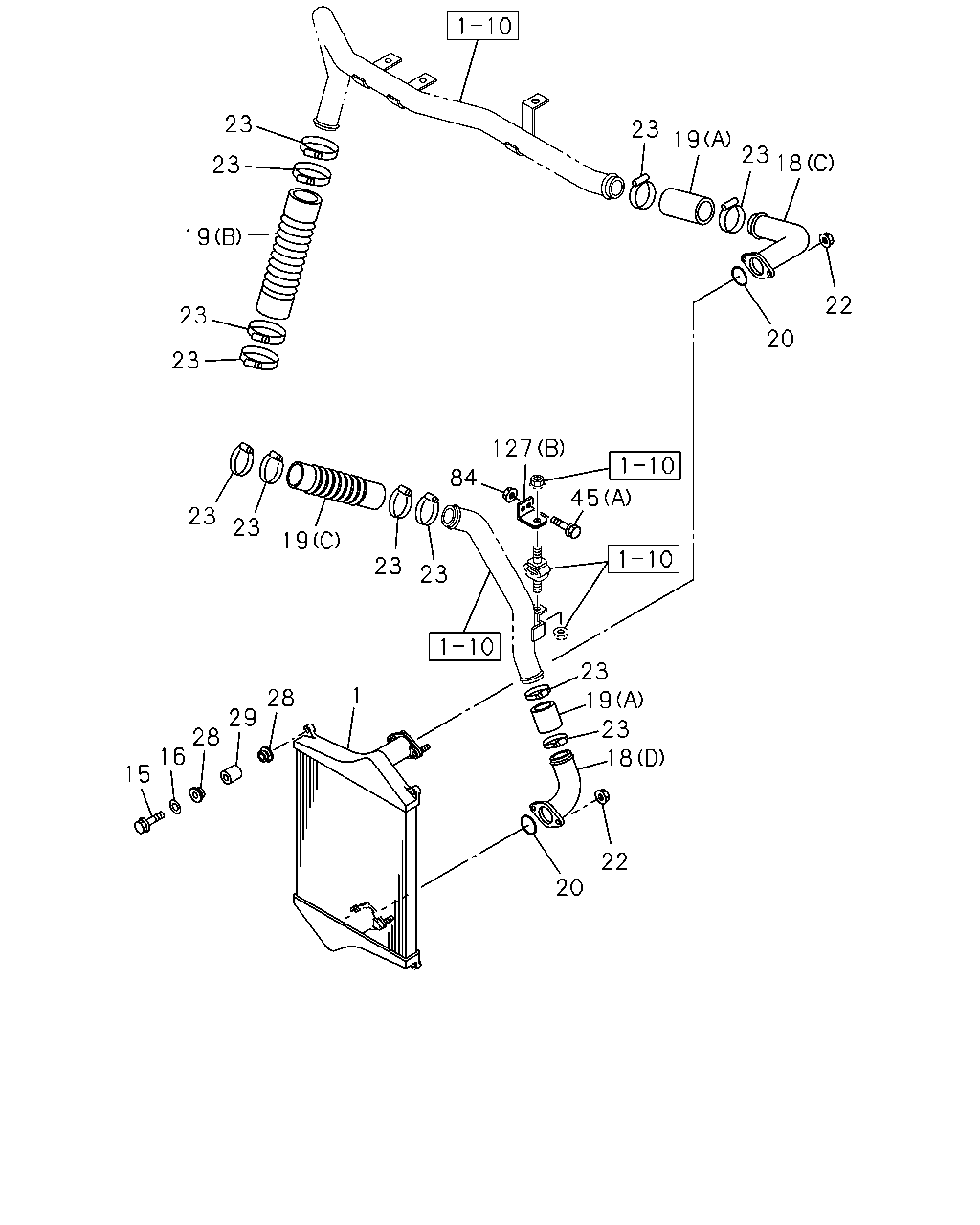

23 23 19 23 18 23 19 22 23 20 23 127 84 45 23 23 19 23 23 23 19 23 18 1 28 29 28 16 15 22 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COOLER; CHARGE AIR	1-14431-042-1	01	1	0012-0106	●
1	COOLER; CHARGE AIR EXC. EURO3 SPECIFICATION(NJX)	1-14431-042-1	01	1	0107-	●
1	COOLER; CHARGE AIR EURO3 SPECIFICATION(NJX)	1-14431-054-0	01	1	0107-0203	●
1	COOLER; CHARGE AIR EURO3 SPECIFICATION(NJX)	1-14431-054-2	01	1	0204-0210	●
1	COOLER; CHARGE AIR	1-14431-054-2	01	1	0204-0210		●
1	COOLER; CHARGE AIR EURO3 SPECIFICATION(NJX)	1-14431-054-2	01	1	0211-	●
1	COOLER; CHARGE AIR	1-14431-054-2	01	1	0211-		●	●
15	BOLT; CHARGE AIR COOLER M8X50 FLANGE	0-28080-850-0	04	1	0012-0203	●
15	BOLT; CHARGE AIR COOLER M8X50 FLANGE	0-28080-850-0	04	1	0204-0210	●	●
15	BOLT; CHARGE AIR COOLER M8X50 FLANGE	0-28080-850-0	04	1	0211-	●	●	●
16	WASHER; PL,CHARGE AIR COOLER EURO3 SPECIFICATION(NJX) ID=10.5 OD=32	9-09164-810-0	04	1	0303-	●
16	WASHER; PL,CHARGE AIR COOLER ID=10.5 OD=32	9-09164-810-0	04	1	0303-		●	●
16	WASHER; PL,CHARGE AIR COOLER ID=10.5 OD=32	9-09164-810-0	04	1	0012-0203	●
16	WASHER; PL,CHARGE AIR COOLER ID=10.5 OD=32	9-09164-810-0	04	1	0204-0210	●	●
16	WASHER; PL,CHARGE AIR COOLER ID=10.5 OD=32	9-09164-810-0	04	1	0211-0302	●	●	●
16	WASHER; PL,CHARGE AIR COOLER EXC. EURO3 SPECIFICATION(NJX) ID=10.5 OD=32	9-09164-810-0	08	1	0303-	●
18	ADAPTER (A)	1-14112-684-0	01	1	0012-0106	●
18	ADAPTER EXC. EURO3 SPECIFICATION(NJX) (A)	1-14112-684-0	01	1	0107-	●
18	ADAPTER (B)	1-14112-685-0	01	1	0012-0106	●
18	ADAPTER EXC. EURO3 SPECIFICATION(NJX) (B)	1-14112-685-0	01	1	0107-	●
18	ADAPTER EURO3 SPECIFICATION(NJX) (C)	1-14112-761-1	01	1	0107-0210	●
18	ADAPTER EURO3 SPECIFICATION(NJX) (C)	1-14112-761-1	01	1	0211-	●
18	ADAPTER (C)	1-14112-761-1	01	1	0211-			●
18	ADAPTER EURO3 SPECIFICATION(NJX) (D)	1-14112-762-1	01	1	0107-0210	●
18	ADAPTER EURO3 SPECIFICATION(NJX) (D)	1-14112-762-1	01	1	0211-	●
18	ADAPTER (D)	1-14112-762-1	01	1	0211-			●
18	ADAPTER (E)	1-14112-733-0	01	1	0204-		●
18	ADAPTER (F)	1-14112-734-0	01	1	0204-		●
18	ADAPTER (G)	1-14112-735-0	01	1	0204-		●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (A)	1-09360-797-1	02	1	0012-0210	●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (A)	1-09360-797-1	02	1	0211-	●		●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (B)	1-09360-911-0	01	1	0012-0210	●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (B)	1-09360-911-0	01	1	0211-0212	●		●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (B)	1-09361-118-0	01	1	0301-	●		●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (C)	8-94395-023-1	01	1	0012-0210	●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (C)	8-94395-023-1	01	1	0211-	●		●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (D)	1-09361-047-0	02	1	0204-		●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (E)	1-09361-048-0	01	1	0204-		●
20	GASKET ID=84.6	1-09623-431-0	02	1	0012-0210	●
20	GASKET ID=84.6	1-09623-431-0	02	1	0211-	●		●
20	GASKET ID=84.6	1-09623-431-0	03	1	0204-		●
22	NUT M10 FLANGE	0-91150-210-0	04	1	0012-0210	●
22	NUT M10 FLANGE	0-91150-210-0	04	1	0211-0602	●		●
22	NUT M10 FLANGE	0-91180-210-0	04	1	0603-	●		●
22	NUT M10 FLANGE	0-91150-210-0	06	1	0204-0602		●
22	NUT M10 FLANGE	0-91180-210-0	06	1	0603-		●
23	CLIP; HOSE EXC. KD PREPARATORY PACK<6HF> ID=58-79	1-09707-136-0	12	1	1002-	●		●
23	CLIP; HOSE EXC. KD PREPARATORY PACK<6HF> ID=68-85	8-98096-592-0	06	1	1002-		●
23	CLIP; HOSE ID=58-79	8-94126-771-0	12	1	0012-0210	●
23	CLIP; HOSE ID=58-79	8-94126-771-0	12	1	0211-0306	●		●
23	CLIP; HOSE ID=58-76	1-09707-203-0	12	1	0307-0811	●		●
23	CLIP; HOSE ID=55-75	8-98133-349-0	12	1	0812-1001	●		●
23	CLIP; HOSE KD PREPARATORY PACK<6HF> ID=55-75	8-98133-349-0	12	1	1002-	●		●
23	CLIP; HOSE ID=68-85	8-94320-428-0	06	1	0204-0306		●
23	CLIP; HOSE ID=68-85	1-09707-202-0	06	1	0307-0810		●
23	CLIP; HOSE ID=65-85	8-98133-350-0	06	1	0811-1001		●
23	CLIP; HOSE KD PREPARATORY PACK<6HF> ID=65-85	8-98133-350-0	06	1	1002-		●
28	RUBBER; MTG,CHARGE AIR COOLER	1-21467-018-0	08	1	0012-0203	●
28	RUBBER; MTG,CHARGE AIR COOLER	1-21467-018-0	08	1	0204-0210	●	●
28	RUBBER; MTG,CHARGE AIR COOLER	1-21467-018-0	08	1	0211-	●	●	●
29	COLLAR; MTG RUBBER,CAC BRKT	1-21469-100-0	04	1	0012-0203	●
29	COLLAR; MTG RUBBER,CAC BRKT	1-21469-100-0	04	1	0204-0210	●	●
29	COLLAR; MTG RUBBER,CAC BRKT	1-21469-100-0	04	1	0211-	●	●	●
45	BOLT; BRKT EURO3 SPECIFICATION(NJX) (A) M8X25 FLANGE	0-28680-825-0	02	1	0107-0203	●
45	BOLT; BRKT EURO3 SPECIFICATION(NJX) (A) M8X25 FLANGE	0-28680-825-0	02	1	0204-0210	●
45	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	0204-0210		●
45	BOLT; BRKT EURO3 SPECIFICATION(NJX) (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512	●
45	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512		●	●
45	BOLT; BRKT EURO3 SPECIFICATION(NJX) (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●
45	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●	●
45	BOLT; BRKT (B) M8X30 FLANGE	0-28680-830-0	02	1	0204-0512		●
45	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0601-		●
84	NUT; BRKT EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-208-0	02	1	0107-0210	●
84	NUT; BRKT EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91150-208-0	02	1	0211-0602	●
84	NUT; BRKT M8 FLANGE	0-91150-208-0	02	1	0211-0602			●
84	NUT; BRKT EURO3 SPECIFICATION(NJX) M8 FLANGE	0-91180-208-0	02	1	0603-	●
84	NUT; BRKT M8 FLANGE	0-91180-208-0	02	1	0603-			●
84	NUT; BRKT M8 FLANGE	0-91150-208-0	04	1	0204-0602		●
84	NUT; BRKT M8 FLANGE	0-91180-208-0	04	1	0603-		●
127	BRACKET; DUCT EURO3 SPECIFICATION(NJX) (B)	1-47478-710-0	01	1	0107-0203	●
127	BRACKET; DUCT EURO3 SPECIFICATION(NJX) (B)	1-47478-710-0	01	1	0204-0210	●
127	BRACKET; DUCT (B)	1-47478-710-0	01	1	0204-0210		●
127	BRACKET; DUCT EURO3 SPECIFICATION(NJX) (B)	1-47478-710-0	01	1	0211-	●
127	BRACKET; DUCT (B)	1-47478-710-0	01	1	0211-		●	●
127	BRACKET; DUCT (A)	1-21439-115-0	01	1	0204-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
