2-05 — CLUTCH PIPING (#79799) — 69 parça

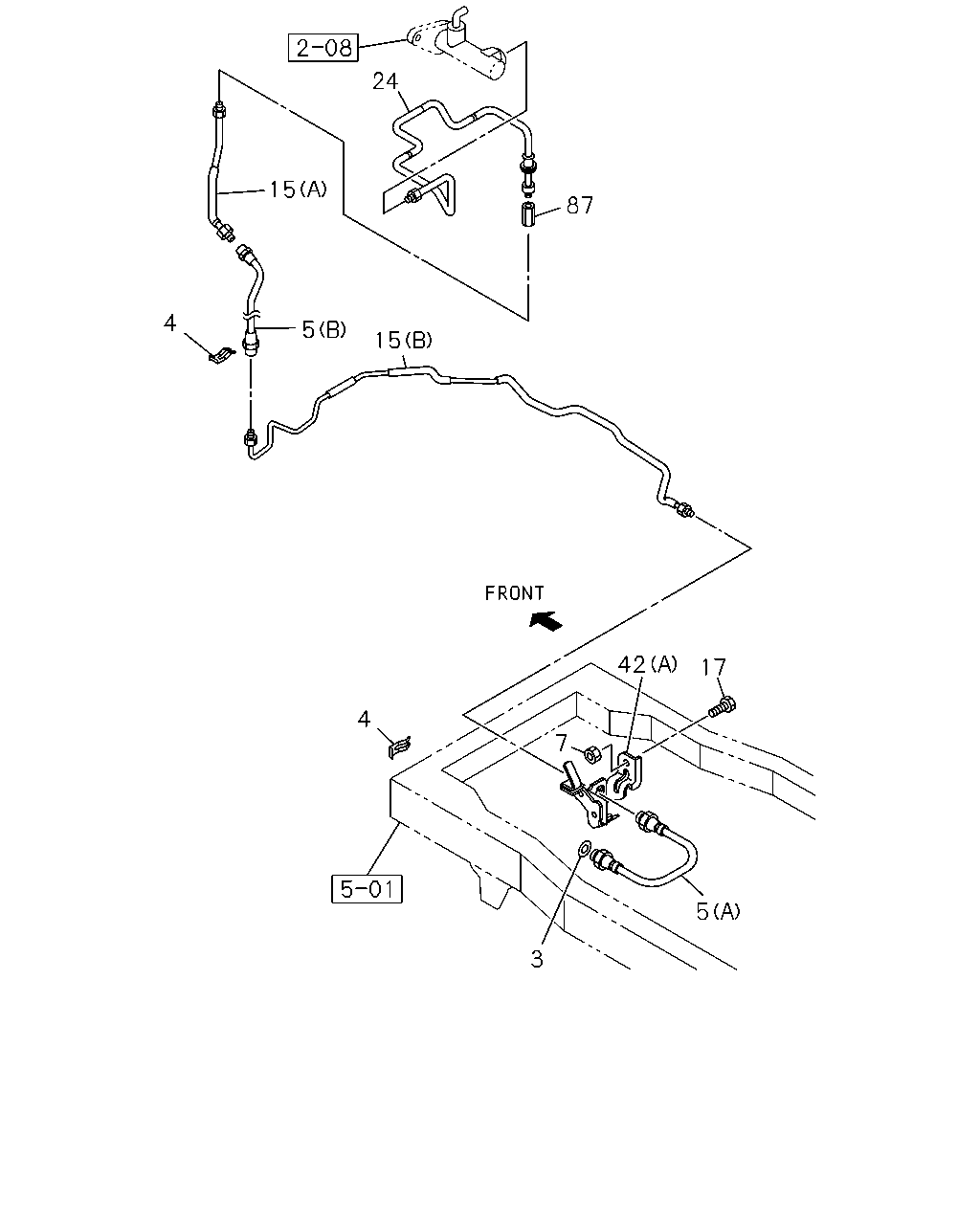

24 87 15 5 15 4 4 3 5 7 42 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	00.785 GASKET; FLEX HOSE,CLU 4JB1-NA ENG(RLF)	9-09920-873-1	01	1	1011-	●
4	00.785 CLIP; FLEX HOSE,CLU CONT 4JB1-TC ENG(RDT) 04.681	8-97365-304-0	01	1	1206-1308	●
4	00.785 CLIP; FLEX HOSE,CLU CONT 4JB1-TC ENG(RDT) 04.681	8-97365-304-0	01	1	1309-	●	●
4	00.785 CLIP; FLEX HOSE,CLU CONT 04.681	8-97365-304-0	03	1	1011-1308	●
4	00.785 CLIP; FLEX HOSE,CLU CONT 04.681	8-97365-304-0	03	1	1309-	●	●
5	00.785 HOSE; FLEX,CLU PIPE 4JB1-TC ENG(RDT) (C)	8-94374-552-1	01	1	1206-1308	●
5	00.785 HOSE; FLEX,CLU PIPE 4JB1-TC ENG(RDT) (C)	8-94374-552-1	01	1	1309-	●	●
5	00.785 HOSE; FLEX,CLU PIPE 4JB1-NA ENG(RLF) (A)	8-97064-108-1	01	1	1011-	●
5	00.785 HOSE; FLEX,CLU PIPE (B)	8-98090-655-0	01	1	1011-1308	●
5	00.785 HOSE; FLEX,CLU PIPE (B)	8-98090-655-0	01	1	1309-	●	●
7	00.785 NUT; FLEX HOSE,CLU CONT 01.062 M8 FLANGE	0-91180-108-0	01	1	1011-1308	●
7	00.785 NUT; FLEX HOSE,CLU CONT 01.062 M8 FLANGE	0-91180-108-0	01	1	1309-	●	●
15	00.785 PIPE; CLU,FLEX HOSE 4JB1-TC ENG(RDT) (D)	8-97063-756-2	01	1	1206-1308	●
15	00.785 PIPE; CLU,FLEX HOSE 4JB1-TC ENG(RDT) (D)	8-97063-756-2	01	1	1309-	●	●
15	00.785 PIPE; CLU,FLEX HOSE 4JB1-TC ENG(RDT) (C)	8-98204-484-0	01	1	1206-1308	●
15	00.785 PIPE; CLU,FLEX HOSE 4JB1-TC ENG(RDT) (C)	8-98204-484-0	01	1	1309-	●	●
15	00.785 PIPE; CLU,FLEX HOSE 4JB1-NA ENG(RLF) (B)	8-97070-380-4	01	1	1011-	●
15	00.785 PIPE; CLU,FLEX HOSE (A)	8-97328-481-0	01	1	1011-1308	●
15	00.785 PIPE; CLU,FLEX HOSE (A)	8-97328-481-0	01	1	1309-	●	●
17	00.785 BOLT; BRKT 4JB1-TC ENG(RDT) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1206-1308	●
17	00.785 BOLT; BRKT 4JB1-TC ENG(RDT) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1309-	●	●
17	00.785 BOLT; BRKT 4JB1-NA ENG(RLF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1011-	●
24	00.785 PIPE ASM; CLU,M/CYL TO UNION	8-97094-343-2	01	1	1011-1308	●
24	00.785 PIPE ASM; CLU,M/CYL TO UNION	8-97094-343-2	01	1	1309-	●	●
42	00.785 BRACKET; FLEX HOSE,CLU CONT 4JB1-TC ENG(RDT) (B)	8-97090-299-0	01	1	1206-1308	●
42	00.785 BRACKET; FLEX HOSE,CLU CONT 4JB1-TC ENG(RDT) (B)	8-97090-299-0	01	1	1309-	●	●
42	00.785 BRACKET; FLEX HOSE,CLU CONT 4JB1-TC ENG(RDT) (C)	8-98110-199-0	01	1	1206-1308	●
42	00.785 BRACKET; FLEX HOSE,CLU CONT 4JB1-TC ENG(RDT) (C)	8-98110-199-0	01	1	1309-	●	●
42	00.785 BRACKET; FLEX HOSE,CLU CONT 4JB1-NA ENG(RLF) (A)	8-94411-135-0	01	1	1011-	●
87	00.785 UNION; OIL PIPE M12 STRAIGHT	0-92107-006-0	01	1	1011-1308	●
87	00.785 UNION; OIL PIPE M12 STRAIGHT	0-92107-006-0	01	1	1309-	●	●

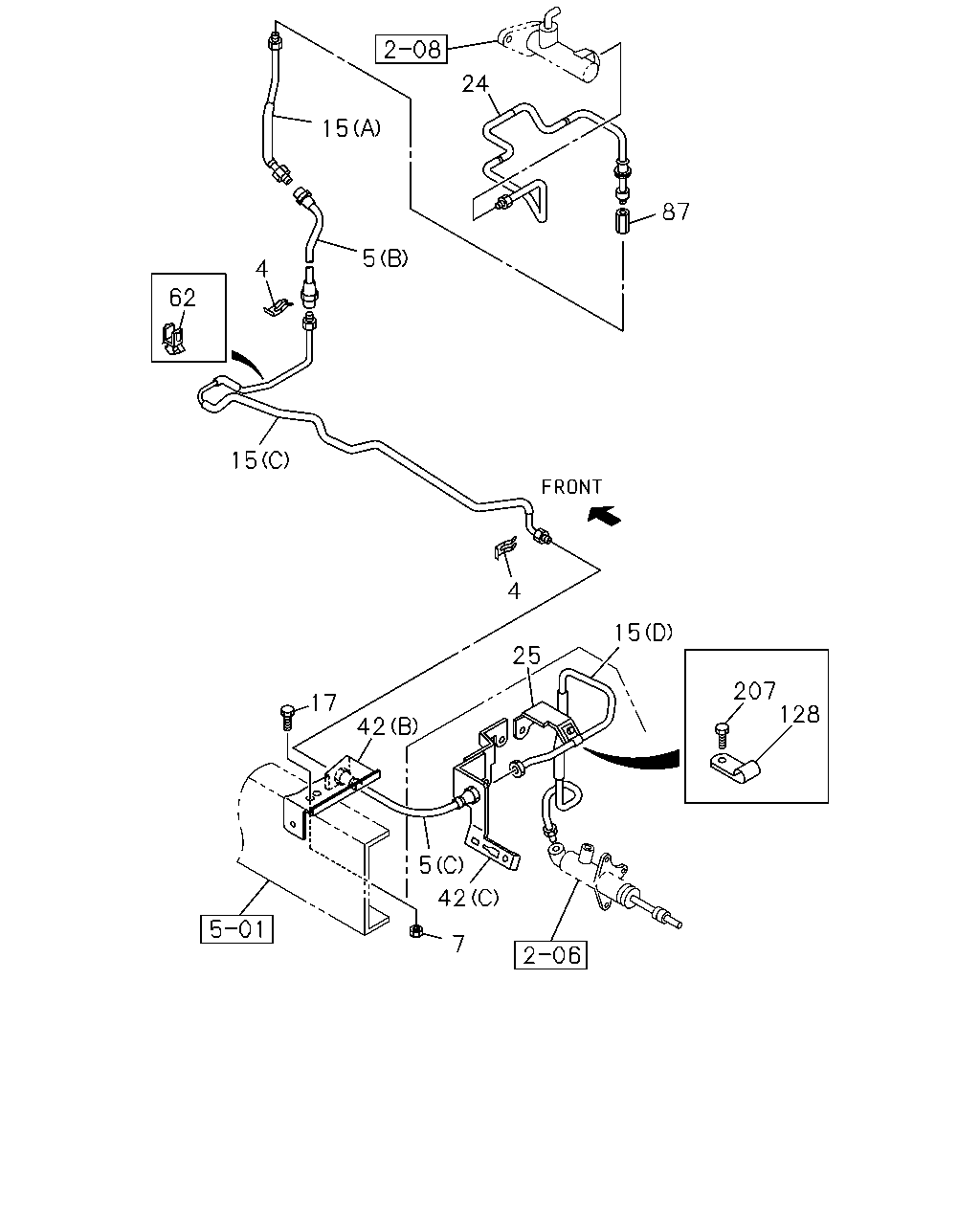

24 87 5 15 4 15 62 4 15 207 128 5 42 42 17 7 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	00.785 CLIP; FLEX HOSE,CLU CONT 4JB1-TC ENG(RDT) 04.681	8-97365-304-0	01	1	1206-1308	●
4	00.785 CLIP; FLEX HOSE,CLU CONT 4JB1-TC ENG(RDT) 04.681	8-97365-304-0	01	1	1309-	●	●
4	00.785 CLIP; FLEX HOSE,CLU CONT 04.681	8-97365-304-0	03	1	1011-1308	●
4	00.785 CLIP; FLEX HOSE,CLU CONT 04.681	8-97365-304-0	03	1	1309-	●	●
5	00.785 HOSE; FLEX,CLU PIPE 4JB1-TC ENG(RDT) (C)	8-94374-552-1	01	1	1206-1308	●
5	00.785 HOSE; FLEX,CLU PIPE 4JB1-TC ENG(RDT) (C)	8-94374-552-1	01	1	1309-	●	●
5	00.785 HOSE; FLEX,CLU PIPE 4JB1-NA ENG(RLF) (A)	8-97064-108-1	01	1	1011-	●
5	00.785 HOSE; FLEX,CLU PIPE (B)	8-98090-655-0	01	1	1011-1308	●
5	00.785 HOSE; FLEX,CLU PIPE (B)	8-98090-655-0	01	1	1309-	●	●
7	00.785 NUT; FLEX HOSE,CLU CONT 01.062 M8 FLANGE	0-91180-108-0	01	1	1011-1308	●
7	00.785 NUT; FLEX HOSE,CLU CONT 01.062 M8 FLANGE	0-91180-108-0	01	1	1309-	●	●
15	00.785 PIPE; CLU,FLEX HOSE 4JB1-TC ENG(RDT) (D)	8-97063-756-2	01	1	1206-1308	●
15	00.785 PIPE; CLU,FLEX HOSE 4JB1-TC ENG(RDT) (D)	8-97063-756-2	01	1	1309-	●	●
15	00.785 PIPE; CLU,FLEX HOSE 4JB1-TC ENG(RDT) (C)	8-98204-484-0	01	1	1206-1308	●
15	00.785 PIPE; CLU,FLEX HOSE 4JB1-TC ENG(RDT) (C)	8-98204-484-0	01	1	1309-	●	●
15	00.785 PIPE; CLU,FLEX HOSE 4JB1-NA ENG(RLF) (B)	8-97070-380-4	01	1	1011-	●
15	00.785 PIPE; CLU,FLEX HOSE (A)	8-97328-481-0	01	1	1011-1308	●
15	00.785 PIPE; CLU,FLEX HOSE (A)	8-97328-481-0	01	1	1309-	●	●
17	00.785 BOLT; BRKT 4JB1-TC ENG(RDT) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1206-1308	●
17	00.785 BOLT; BRKT 4JB1-TC ENG(RDT) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1309-	●	●
17	00.785 BOLT; BRKT 4JB1-NA ENG(RLF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1011-	●
24	00.785 PIPE ASM; CLU,M/CYL TO UNION	8-97094-343-2	01	1	1011-1308	●
24	00.785 PIPE ASM; CLU,M/CYL TO UNION	8-97094-343-2	01	1	1309-	●	●
25	00.785 BRACKET; OIL PIPE 4JB1-TC ENG(RDT)	8-97013-211-1	01	1	1206-1308	●
25	00.785 BRACKET; OIL PIPE 4JB1-TC ENG(RDT)	8-97013-211-1	01	1	1309-	●	●
42	00.785 BRACKET; FLEX HOSE,CLU CONT 4JB1-TC ENG(RDT) (B)	8-97090-299-0	01	1	1206-1308	●
42	00.785 BRACKET; FLEX HOSE,CLU CONT 4JB1-TC ENG(RDT) (B)	8-97090-299-0	01	1	1309-	●	●
42	00.785 BRACKET; FLEX HOSE,CLU CONT 4JB1-TC ENG(RDT) (C)	8-98110-199-0	01	1	1206-1308	●
42	00.785 BRACKET; FLEX HOSE,CLU CONT 4JB1-TC ENG(RDT) (C)	8-98110-199-0	01	1	1309-	●	●
42	00.785 BRACKET; FLEX HOSE,CLU CONT 4JB1-NA ENG(RLF) (A)	8-94411-135-0	01	1	1011-	●
62	00.785 CLIP; CLU PIPE 4JB1-TC ENG(RDT) 03.162 H=28.5	8-94486-808-0	02	1	1206-1308	●
62	00.785 CLIP; CLU PIPE 4JB1-TC ENG(RDT) 03.162 H=28.5	8-94486-808-0	02	1	1309-	●	●
87	00.785 UNION; OIL PIPE M12 STRAIGHT	0-92107-006-0	01	1	1011-1308	●
87	00.785 UNION; OIL PIPE M12 STRAIGHT	0-92107-006-0	01	1	1309-	●	●
128	00.785 CLIP; AIR PIPE 4JB1-TC ENG(RDT) ID=7 L=16	0-95234-622-0	02	1	1206-1308	●
128	00.785 CLIP; AIR PIPE 4JB1-TC ENG(RDT) ID=7 L=16	0-95234-622-0	02	1	1309-	●	●
207	00.785 BOLT; CLIP 4JB1-TC ENG(RDT) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1206-1308	●
207	00.785 BOLT; CLIP 4JB1-TC ENG(RDT) 03.162 M6X12 FLANGE	0-28050-612-0	02	1	1309-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
