◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51376 - QKR(MIDDLE EAST) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#79798) — 48 parça

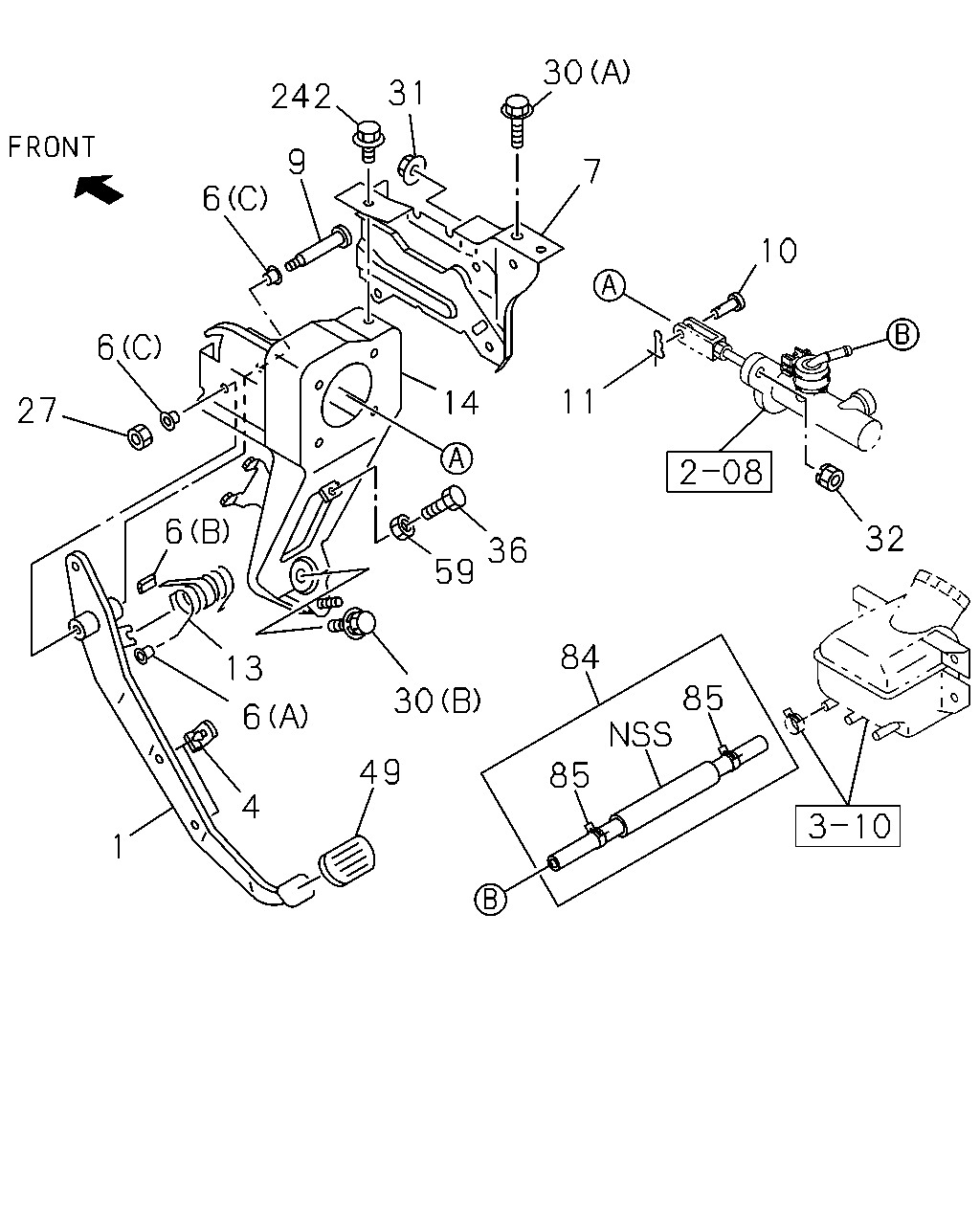

çizim 98605
30 7 31 242 6 9 10 11 32 85 84 85 30 49 36 59 13 4 6 1 6 6 27 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.830 PEDAL; CLU 8-97853-219-2 01 1 1011-1308 ●
1 00.830 PEDAL; CLU 8-97853-219-2 01 1 1309- ● ●
4 00.829 STOPPER; CLU PEDAL 8-97853-534-1 02 1 1011-1308 ●
4 00.829 STOPPER; CLU PEDAL 8-97853-534-1 02 1 1309- ● ●
6 00.831 BUSHING; CLU PEDAL
04.792 (C) 		8-94238-596-0 02 1 1011-1308 ●
6 00.831 BUSHING; CLU PEDAL
04.792 (C) 		8-94238-596-0 02 1 1309- ● ●
6 00.831 BUSHING; CLU PEDAL
(A) 		8-97853-619-0 02 1 1011-1308 ●
6 00.831 BUSHING; CLU PEDAL
(A) 		8-97853-619-0 02 1 1309- ● ●
6 00.831 BUSHING; CLU PEDAL
(B) 		8-97853-620-0 01 1 1011-1308 ●
6 00.831 BUSHING; CLU PEDAL
(B) 		8-97853-620-0 01 1 1309- ● ●
7 00.829 BRACKET; CLU PEDAL 8-97856-307-3 01 1 1011-1308 ●
7 00.829 BRACKET; CLU PEDAL 8-97856-307-3 01 1 1309- ● ●
9 00.833 PIN; CLU PEDAL
04.634 		8-97866-667-0 01 1 1011-1308 ●
9 00.833 PIN; CLU PEDAL
04.634 		8-97866-667-0 01 1 1309- ● ●
10 00.833 PIN; CLU PEDAL
04.634 		8-94410-276-0 01 1 1011-1308 ●
10 00.833 PIN; CLU PEDAL
04.634 		8-94410-276-0 01 1 1309-1406 ● ●
10 00.833 PIN; CLU PEDAL 8-97359-812-0 01 1 1407- ● ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
04.634 		8-94279-912-0 01 1 1011-1308 ●
11 00.833 PIN; SNAP,PUSH ROD TO PEDAL
04.634 		8-94279-912-0 01 1 1309- ● ●
13 00.844 SPRING; ASSIST,CLU PEDAL 8-97853-221-1 01 1 1011-1308 ●
13 00.844 SPRING; ASSIST,CLU PEDAL 8-97853-221-1 01 1 1309- ● ●
14 00.829 BRACKET ASM; CLU PEDAL MTG 8-98030-646-0 01 1 1011-1308 ●
14 00.829 BRACKET ASM; CLU PEDAL MTG 8-98030-646-0 01 1 1309- ● ●
27 00.833 NUT; FULCRUM PIN
M10 FLANGE 		1-09440-022-0 01 1 1011-1308 ●
27 00.833 NUT; FULCRUM PIN
M10 FLANGE 		1-09440-022-0 01 1 1309- ● ●
30 00.829 BOLT; CLU MTG BRKT
07.833 (A) M10X25 FLANGE 		0-28661-025-0 01 1 1011-1308 ●
30 00.829 BOLT; CLU MTG BRKT
07.833 (A) M10X25 FLANGE 		0-28661-025-0 01 1 1309- ● ●
30 00.829 BOLT; CLU MTG BRKT
00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1011-1308 ●
30 00.829 BOLT; CLU MTG BRKT
00.833 (B) M10X22 W/PL WASHER 		8-97313-188-0 01 1 1309- ● ●
31 01.153 NUT; MTG BRKT TO BODY
00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 1011-1308 ●
31 01.153 NUT; MTG BRKT TO BODY
00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 1309- ● ●
32 00.777 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 1011-1308 ●
32 00.777 NUT; BRKT TO CLU M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 1309- ● ●
36 00.833 BOLT; STOPPER,CLU PEDAL
EXC. EXHAUST BRAKE<NF8> 02.277 M10X35 FLANGE 		0-28651-035-0 01 1 1011-1012 ●
36 00.833 BOLT; STOPPER,CLU PEDAL
EXC. EXHAUST BRAKE<NF8> 00.841 M10X35 		0-20851-035-0 01 1 1101-1308 ●
36 00.833 BOLT; STOPPER,CLU PEDAL
EXC. EXHAUST BRAKE<NF8> 00.841 M10X35 		0-20851-035-0 01 1 1309- ● ●
49 00.829 RUBBER; PAD,CLU PEDAL 8-97853-413-2 01 1 1011-1308 ●
49 00.829 RUBBER; PAD,CLU PEDAL 8-97853-413-2 01 1 1309- ● ●
59 00.833 NUT; CLU PEDAL ADJ
EXC. EXHAUST BRAKE<NF8> M10 		0-91110-510-0 01 1 1011-1308 ●
59 00.833 NUT; CLU PEDAL ADJ
EXC. EXHAUST BRAKE<NF8> M10 		0-91110-510-0 01 1 1309- ● ●
84 00.785 HOSE; RUBBER,CLU LINE 8-97135-021-0 01 1 1011-1308 ●
84 00.785 HOSE; RUBBER,CLU LINE 8-97135-021-0 01 1 1309-1405 ● ●
84 00.785 HOSE; RUBBER,CLU LINE 8-98193-588-1 01 1 1406- ● ●
85 00.785 CLIP; HOSE TO M/CYL
04.681 		8-97130-480-0 02 1 1011-1308 ●
85 00.785 CLIP; HOSE TO M/CYL
04.681 		8-97130-480-0 02 1 1309-1405 ● ●
85 00.785 CLIP; HOSE TO M/CYL 8-98168-080-0 02 1 1406- ● ●
242 00.785 BOLT; BRKT,CLUTCH
03.604 M8X16 FLANGE 		0-28450-816-0 02 1 1011-1308 ●
242 00.785 BOLT; BRKT,CLUTCH
03.604 M8X16 FLANGE 		0-28450-816-0 02 1 1309- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
