◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ QKR ▶ 51376 - QKR(MIDDLE EAST) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-01 - CLUTCH ▶
2-01 — CLUTCH (#79797) — 19 parça

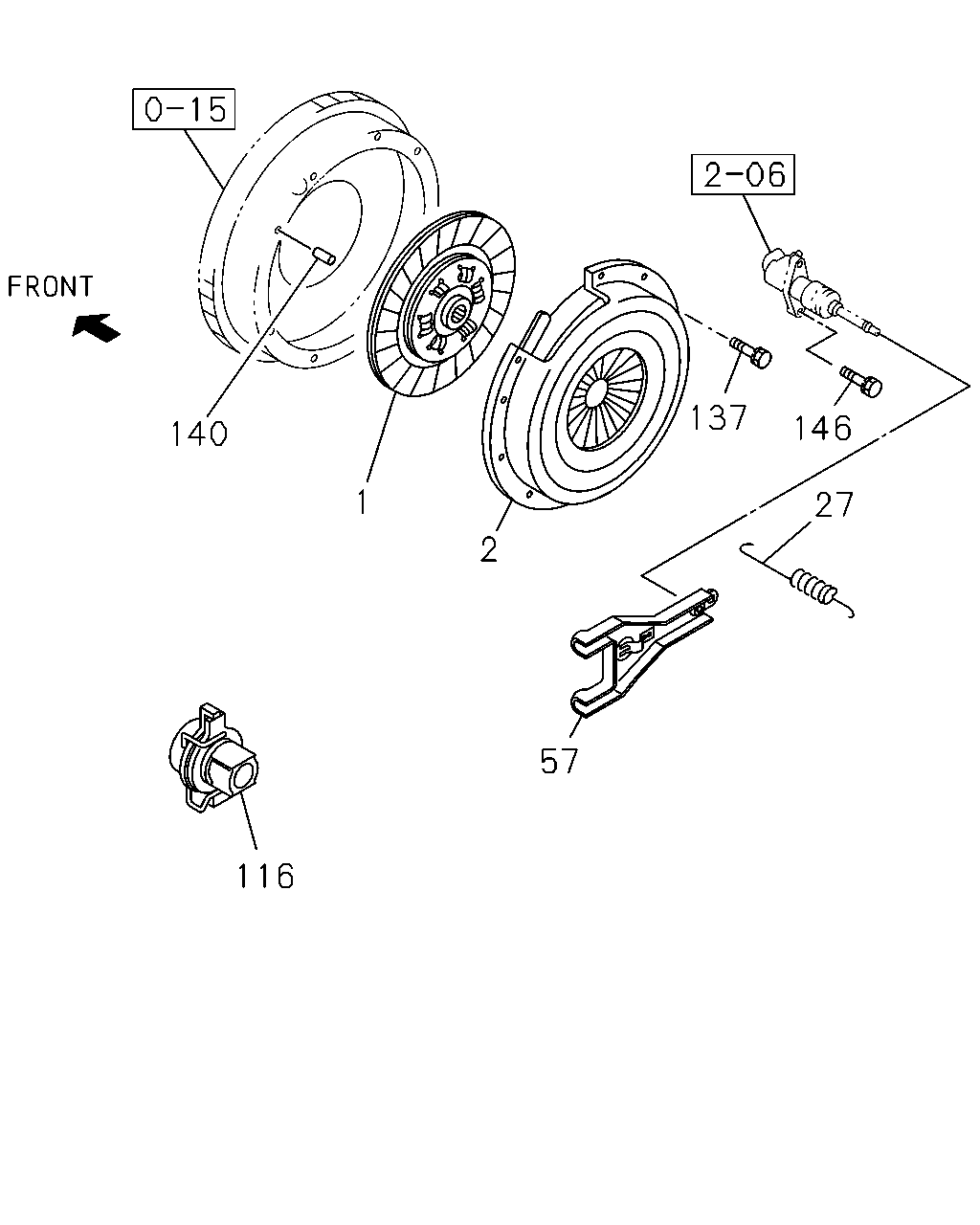

çizim 97682
140 1 2 137 146 27 57 116
BalonParca AdiParca NoAdetTipApplied Date A B
1 00.886 DISC; CLUTCH 8-97693-033-0 01 1 1011-1112 ●
1 00.886 DISC; CLUTCH 8-97693-041-0 01 1 1201-1308 ●
1 00.886 DISC; CLUTCH 8-97693-041-0 01 1 1309-1503 ● ●
1 00.886 DISC; CLUTCH 8-98278-292-0 01 1 1504- ● ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97693-034-0 01 1 1011-1308 ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-97693-034-0 01 1 1309-1503 ● ●
2 00.859 PLATE ASM; PRESSURE,CLU 8-98278-294-0 01 1 1504- ● ●
27 00.837 SPRING; RETURN,SHIFT FORK 8-98025-314-0 01 1 1011-1308 ●
27 00.837 SPRING; RETURN,SHIFT FORK 8-98025-314-0 01 1 1309- ● ●
57 00.795 FORK; SHIFT,CLU 5-87220-374-0 01 1 1011-1308 ●
57 00.795 FORK; SHIFT,CLU 5-87220-374-0 01 1 1309- ● ●
116 00.799 BLOCK; SHIFT,CLU 5-87220-375-0 01 1 1011-1308 ●
116 00.799 BLOCK; SHIFT,CLU 5-87220-375-0 01 1 1309- ● ●
137 00.862 BOLT; CLU COVER
02.343 M8X16 FLANGE 		0-28050-816-0 06 1 1011-1308 ●
137 00.862 BOLT; CLU COVER
02.343 M8X16 FLANGE 		0-28050-816-0 06 1 1309- ● ●
140 00.862 PIN; STRAIGHT
OD=6 L=24 		9-09878-532-0 02 1 1011-1308 ●
140 00.862 PIN; STRAIGHT
OD=6 L=24 		9-09878-532-0 02 1 1309- ● ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
03.403 M8X30 FLANGE 		0-28650-830-0 02 1 1011-1308 ●
146 00.780 BOLT; SLAVE CYL TO TRANS CASE
03.403 M8X30 FLANGE 		0-28650-830-0 02 1 1309- ● ●
