1-56 — EXHAUST BRAKE SYSTEM (#79796) — 38 parça

1 7 8 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.632 BRAKE UNIT; EXH 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97102-372-4	01	1	1206-1308	●
1	03.632 BRAKE UNIT; EXH 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97102-372-4	01	1	1309-	●	●
1	03.632 BRAKE UNIT; EXH EXHAUST BRAKE<NF8>	8-97034-024-4	01	1	1011-1205	●
1	03.632 BRAKE UNIT; EXH 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8>	8-97034-024-4	01	1	1206-	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> T=1.9	5-09500-012-0	04	1	1206-1308	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> T=1.9	5-09500-012-0	04	1	1309-	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX EXHAUST BRAKE<NF8> 03.613 ID=10.5	5-09500-013-0	04	1	1011-1205	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 03.613 ID=10.5	5-09500-013-0	04	1	1206-	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 02.334 M8	0-91110-508-0	04	1	1206-1308	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 02.334 M8	0-91110-508-0	04	1	1309-	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX EXHAUST BRAKE<NF8> 03.613 M10 H=18	9-09640-014-0	04	1	1011-1205	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 03.613 M10 H=18	9-09640-014-0	04	1	1206-	●
10	03.634 NUT; BRKT,EXH BRAKE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 01.062 M8 FLANGE	0-91180-108-0	02	1	1206-1308	●
10	03.634 NUT; BRKT,EXH BRAKE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 01.062 M8 FLANGE	0-91180-108-0	02	1	1309-	●	●
10	03.634 NUT; BRKT,EXH BRAKE EXHAUST BRAKE<NF8> 01.062 M8 FLANGE	0-91180-108-0	01	1	1011-1205	●
10	03.634 NUT; BRKT,EXH BRAKE 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 01.062 M8 FLANGE	0-91180-108-0	01	1	1206-	●

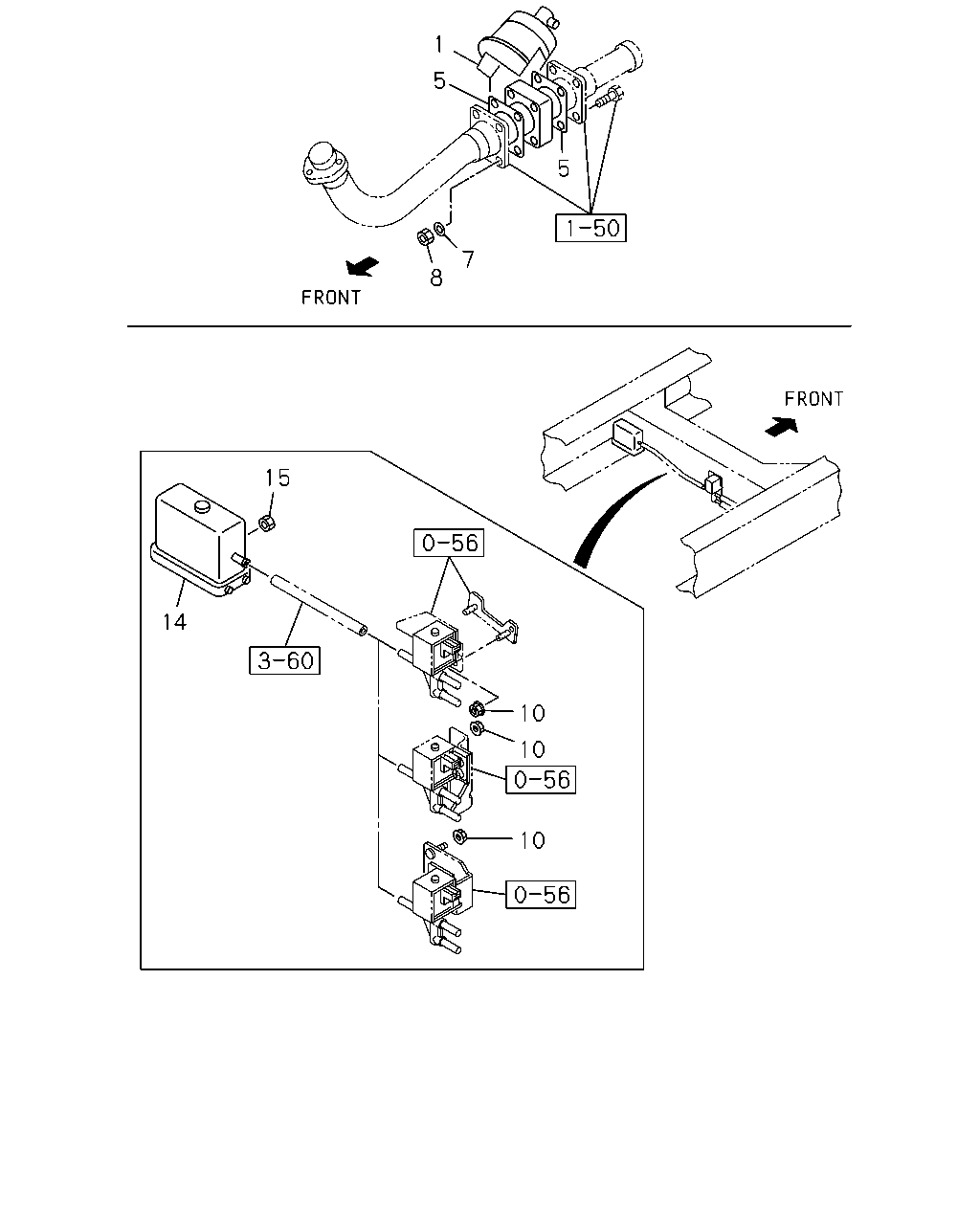

1 5 8 7 5 15 14 10 10 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.632 BRAKE UNIT; EXH 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97102-372-4	01	1	1206-1308	●
1	03.632 BRAKE UNIT; EXH 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97102-372-4	01	1	1309-	●	●
1	03.632 BRAKE UNIT; EXH EXHAUST BRAKE<NF8>	8-97034-024-4	01	1	1011-1205	●
1	03.632 BRAKE UNIT; EXH 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8>	8-97034-024-4	01	1	1206-	●
5	03.634 GASKET; EXH BRAKE UNIT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	02	1	1206-1308	●
5	03.634 GASKET; EXH BRAKE UNIT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> ID=54	8-94328-354-0	02	1	1309-	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> T=1.9	5-09500-012-0	04	1	1206-1308	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> T=1.9	5-09500-012-0	04	1	1309-	●	●
7	03.632 WASHER; EXH BRAKE UNIT FIX EXHAUST BRAKE<NF8> 03.613 ID=10.5	5-09500-013-0	04	1	1011-1205	●
7	03.632 WASHER; EXH BRAKE UNIT FIX 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 03.613 ID=10.5	5-09500-013-0	04	1	1206-	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 02.334 M8	0-91110-508-0	04	1	1206-1308	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 02.334 M8	0-91110-508-0	04	1	1309-	●	●
8	03.632 NUT; EXH BRAKE UNIT FIX EXHAUST BRAKE<NF8> 03.613 M10 H=18	9-09640-014-0	04	1	1011-1205	●
8	03.632 NUT; EXH BRAKE UNIT FIX 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 03.613 M10 H=18	9-09640-014-0	04	1	1206-	●
10	03.634 NUT; BRKT,EXH BRAKE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 01.062 M8 FLANGE	0-91180-108-0	02	1	1206-1308	●
10	03.634 NUT; BRKT,EXH BRAKE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 01.062 M8 FLANGE	0-91180-108-0	02	1	1309-	●	●
10	03.634 NUT; BRKT,EXH BRAKE EXHAUST BRAKE<NF8> 01.062 M8 FLANGE	0-91180-108-0	01	1	1011-1205	●
10	03.634 NUT; BRKT,EXH BRAKE 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 01.062 M8 FLANGE	0-91180-108-0	01	1	1206-	●
14	03.634 FILTER; AIR,EXH BRAKE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97033-888-0	01	1	1206-1308	●
14	03.634 FILTER; AIR,EXH BRAKE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97033-888-0	01	1	1309-	●	●
15	03.634 NUT; AIR FILTER 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 01.062 M8 FLANGE	0-91180-108-0	02	1	1206-1308	●
15	03.634 NUT; AIR FILTER 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 01.062 M8 FLANGE	0-91180-108-0	02	1	1309-	●	●
