1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#79795) — 64 parça

74 137 139 140 138 180 141 142 143 144 146 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	03.632 VALVE; EXH BRAKE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97369-945-1	01	1	1206-1308	●
6	03.632 VALVE; EXH BRAKE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97369-945-1	01	1	1309-	●	●
6	03.632 VALVE; EXH BRAKE EXHAUST BRAKE<NF8>	8-97173-325-0	01	1	1011-1205	●
6	03.632 VALVE; EXH BRAKE 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8>	8-97173-325-0	01	1	1206-	●
74	03.634 CONNECTOR; EXH BRK VLV EXHAUST BRAKE<NF8>	8-94311-454-0	01	1	1011-1205	●
74	03.634 CONNECTOR; EXH BRK VLV 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8>	8-94311-454-0	01	1	1206-	●
137	03.634 CHAMBER; POWER 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97173-327-0	01	1	1206-1308	●
137	03.634 CHAMBER; POWER 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97173-327-0	01	1	1309-	●	●
137	03.634 CHAMBER; POWER EXHAUST BRAKE<NF8>	8-94158-416-0	01	1	1011-1205	●
137	03.634 CHAMBER; POWER 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8>	8-94158-416-0	01	1	1206-	●
138	03.634 BEARING; EXH BRK VLV 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.440	8-94311-446-0	01	1	1206-1308	●
138	03.634 BEARING; EXH BRK VLV 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.440	8-94311-446-0	01	1	1309-	●	●
138	03.634 BEARING; EXH BRK VLV EXHAUST BRAKE<NF8>	5-22189-004-0	01	1	1011-1205	●
138	03.634 BEARING; EXH BRK VLV 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8>	5-22189-004-0	01	1	1206-	●
139	03.634 GASKET; EXH BRK VLV EXHAUST BRAKE<NF8>	8-94328-234-0	01	1	1011-	●
140	03.634 INSULATOR; EXH BRK VLV EXHAUST BRAKE<NF8>	8-97093-854-0	01	1	1011-	●
141	03.636 NUT; CLEVIS,EXH BRK VLV EXHAUST BRAKE<NF8>	9-88510-009-0	01	1	1011-	●
142	03.636 CLEVIS; EXH BRK VLV 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97177-311-0	01	1	1206-1308	●
142	03.636 CLEVIS; EXH BRK VLV 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97177-311-0	01	1	1309-	●	●
142	03.636 CLEVIS; EXH BRK VLV EXHAUST BRAKE<NF8>	8-97177-310-0	01	1	1011-1205	●
142	03.636 CLEVIS; EXH BRK VLV 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8>	8-97177-310-0	01	1	1206-	●
143	03.636 PIN; EXH BRK VLV 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-94311-452-0	01	1	1206-1308	●
143	03.636 PIN; EXH BRK VLV 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-94311-452-0	01	1	1309-	●	●
143	03.636 PIN; EXH BRK VLV EXHAUST BRAKE<NF8>	5-22189-008-0	01	1	1011-1205	●
143	03.636 PIN; EXH BRK VLV 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8>	5-22189-008-0	01	1	1206-	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97029-428-0	01	1	1206-1308	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97029-428-0	01	1	1309-	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV EXHAUST BRAKE<NF8> 03.440	8-97010-295-1	01	1	1011-1205	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 03.440	8-97010-295-1	01	1	1206-	●
146	03.634 NUT; EXH BRK VLV EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	1011-	●
180	03.640 COLLAR; EXH BRK VLV EXHAUST BRAKE<NF8> 03.440	8-97018-597-0	02	1	1011-1205	●
180	03.640 COLLAR; EXH BRK VLV 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 03.440	8-97018-597-0	02	1	1206-	●

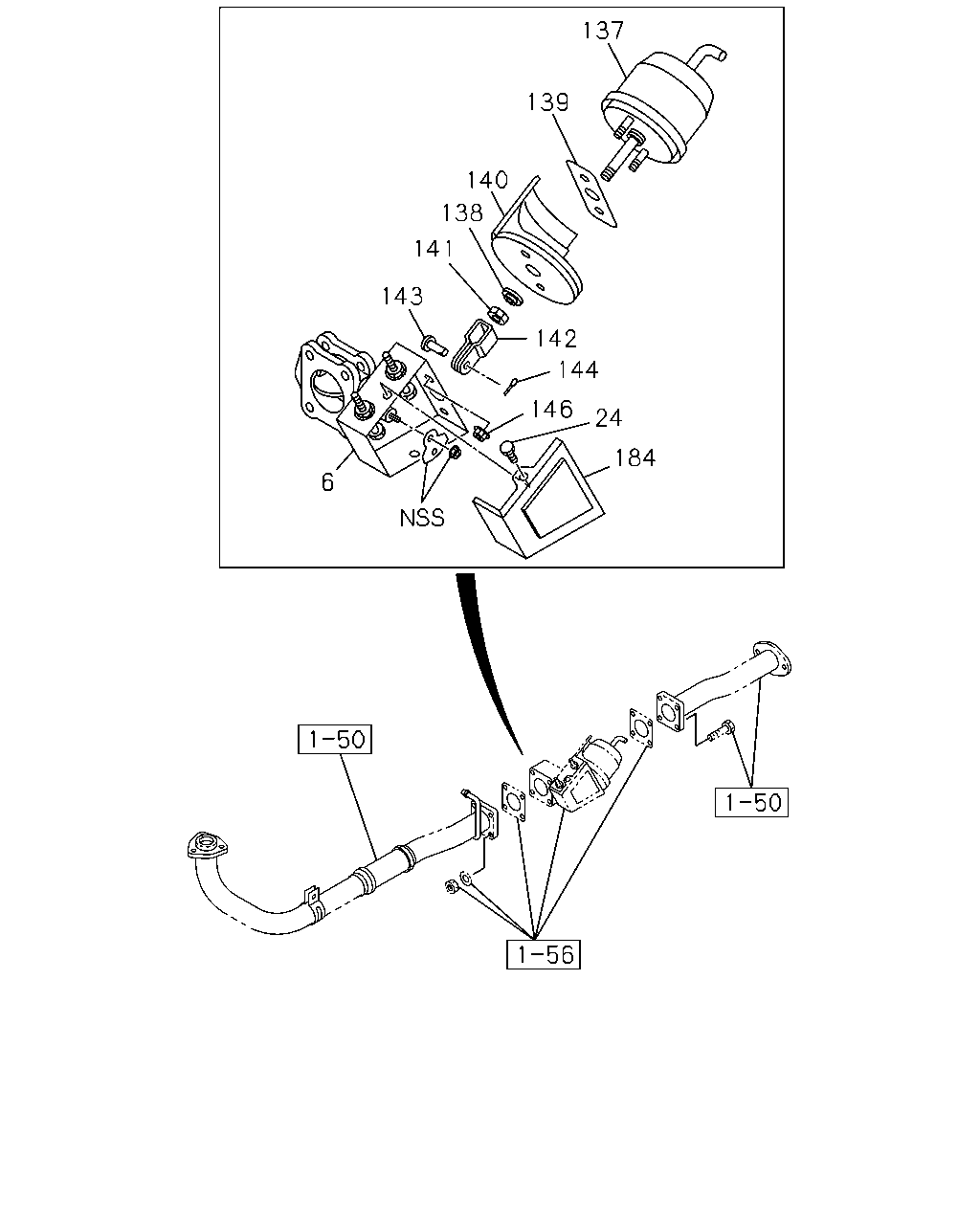

6 184 24 146 144 142 143 141 138 140 139 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	03.632 VALVE; EXH BRAKE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97369-945-1	01	1	1206-1308	●
6	03.632 VALVE; EXH BRAKE 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97369-945-1	01	1	1309-	●	●
6	03.632 VALVE; EXH BRAKE EXHAUST BRAKE<NF8>	8-97173-325-0	01	1	1011-1205	●
6	03.632 VALVE; EXH BRAKE 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8>	8-97173-325-0	01	1	1206-	●
24	03.634 BOLT; COVER 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.444	8-97065-029-0	02	1	1206-1308	●
24	03.634 BOLT; COVER 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.444	8-97065-029-0	02	1	1309-	●	●
137	03.634 CHAMBER; POWER 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97173-327-0	01	1	1206-1308	●
137	03.634 CHAMBER; POWER 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97173-327-0	01	1	1309-	●	●
137	03.634 CHAMBER; POWER EXHAUST BRAKE<NF8>	8-94158-416-0	01	1	1011-1205	●
137	03.634 CHAMBER; POWER 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8>	8-94158-416-0	01	1	1206-	●
138	03.634 BEARING; EXH BRK VLV 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.440	8-94311-446-0	01	1	1206-1308	●
138	03.634 BEARING; EXH BRK VLV 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8> 03.440	8-94311-446-0	01	1	1309-	●	●
138	03.634 BEARING; EXH BRK VLV EXHAUST BRAKE<NF8>	5-22189-004-0	01	1	1011-1205	●
138	03.634 BEARING; EXH BRK VLV 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8>	5-22189-004-0	01	1	1206-	●
139	03.634 GASKET; EXH BRK VLV EXHAUST BRAKE<NF8>	8-94328-234-0	01	1	1011-	●
140	03.634 INSULATOR; EXH BRK VLV EXHAUST BRAKE<NF8>	8-97093-854-0	01	1	1011-	●
141	03.636 NUT; CLEVIS,EXH BRK VLV EXHAUST BRAKE<NF8>	9-88510-009-0	01	1	1011-	●
142	03.636 CLEVIS; EXH BRK VLV 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97177-311-0	01	1	1206-1308	●
142	03.636 CLEVIS; EXH BRK VLV 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97177-311-0	01	1	1309-	●	●
142	03.636 CLEVIS; EXH BRK VLV EXHAUST BRAKE<NF8>	8-97177-310-0	01	1	1011-1205	●
142	03.636 CLEVIS; EXH BRK VLV 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8>	8-97177-310-0	01	1	1206-	●
143	03.636 PIN; EXH BRK VLV 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-94311-452-0	01	1	1206-1308	●
143	03.636 PIN; EXH BRK VLV 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-94311-452-0	01	1	1309-	●	●
143	03.636 PIN; EXH BRK VLV EXHAUST BRAKE<NF8>	5-22189-008-0	01	1	1011-1205	●
143	03.636 PIN; EXH BRK VLV 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8>	5-22189-008-0	01	1	1206-	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97029-428-0	01	1	1206-1308	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97029-428-0	01	1	1309-	●	●
144	03.636 PIN; SPLIT,EXH BRK VLV EXHAUST BRAKE<NF8> 03.440	8-97010-295-1	01	1	1011-1205	●
144	03.636 PIN; SPLIT,EXH BRK VLV 4JB1-NA ENG(RLF) EXHAUST BRAKE<NF8> 03.440	8-97010-295-1	01	1	1206-	●
146	03.634 NUT; EXH BRK VLV EXHAUST BRAKE<NF8> 07.633 M8 FLANGE	0-91150-108-0	02	1	1011-	●
184	03.634 COVER; BRKT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97311-447-1	01	1	1206-1308	●
184	03.634 COVER; BRKT 4JB1-TC ENG(RDT) EXHAUST BRAKE<NF8>	8-97311-447-1	01	1	1309-	●	●
